◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10698 - FRR RHD EXC.EURO3 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-45 - WATER SEDIMENTER; FUEL ▶
1-45 — WATER SEDIMENTER; FUEL (#37284) — 38 parça

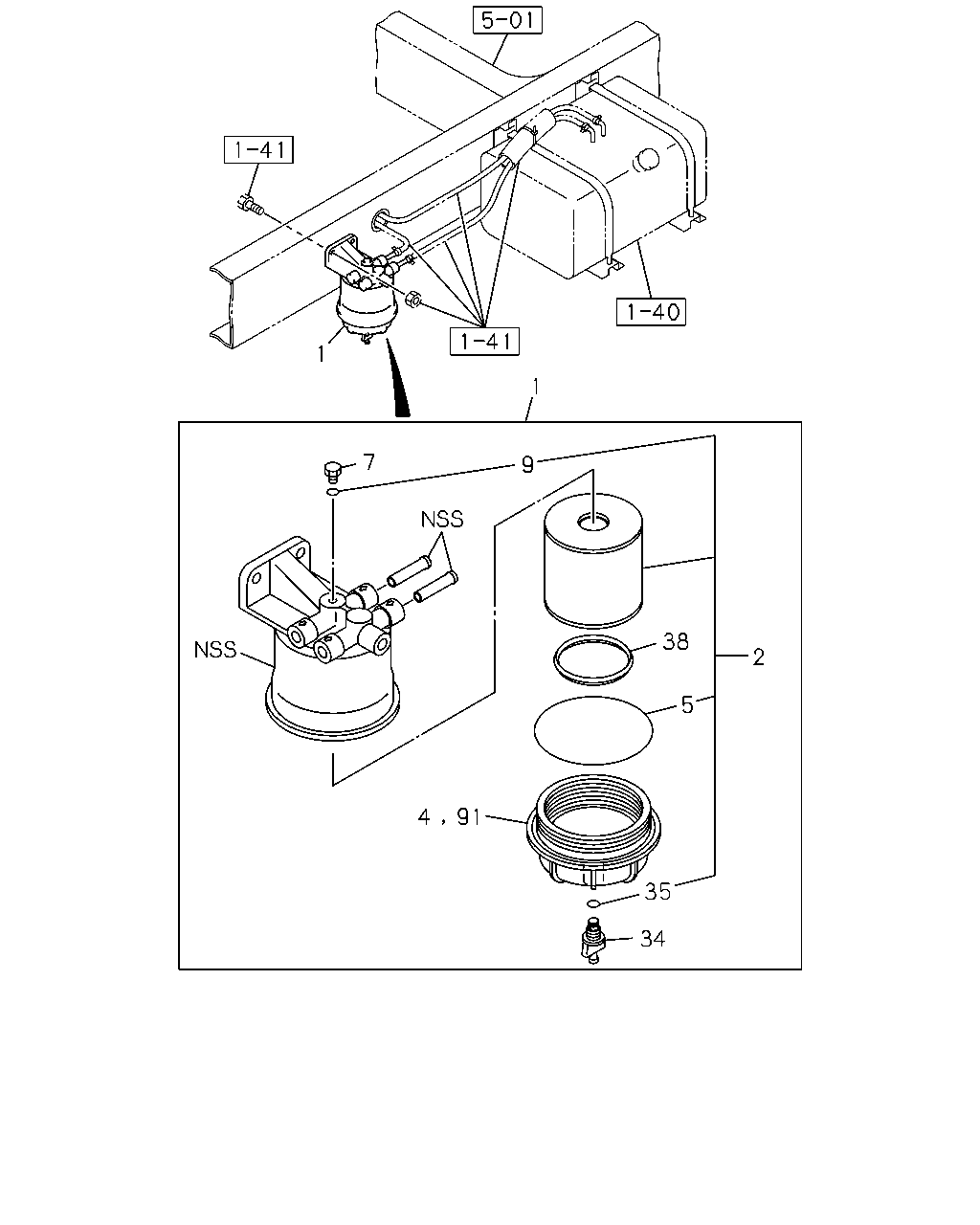

çizim 151223
1 1 7 9 38 2 5 91 4 35 34
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SEDIMENTER; FUEL 8-97601-458-1 01 1 0601- ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9510-9802 ● ● ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9803-0004 ● ● ● ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 0005-0006 ● ● ● ●
1 SEDIMENTER; FUEL 1-13201-015-1 01 1 0007- ● ● ● ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 9510-9802 ● ● ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 9803-0004 ● ● ● ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 0005-0512 ● ● ● ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 0601- ● ● ● ● ●
4 COVER; UPR,SEDIMENTER ASM 1-13212-176-2 01 1 9510-9802 ● ● ●
4 COVER; UPR,SEDIMENTER ASM 1-13212-176-2 01 1 9803-0004 ● ● ● ●
5 GASKET; UPR COVER,SEDIMENTER 9-09920-643-0 01 1 9510-9603 ● ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 9604-9802 ● ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 9803-0004 ● ● ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 0005-0512 ● ● ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 0601- ● ● ● ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 9510-9802 ● ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 9803-0004 ● ● ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 0005-0512 ● ● ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 0601- ● ● ● ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 9510-9802 ● ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 9803-0004 ● ● ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 0005-0512 ● ● ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 0601- ● ● ● ● ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 9510-9802 ● ● ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 9803-0004 ● ● ● ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 0005-0512 ● ● ● ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 0601- ● ● ● ● ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 9510-9802 ● ● ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 9803-0004 ● ● ● ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 0005-0512 ● ● ● ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 0601- ● ● ● ● ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 9510-9802 ● ● ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 9803-0004 ● ● ● ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 0005-0512 ● ● ● ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 0601- ● ● ● ● ●
91 COVER; LWR,SEDIMENTER 1-13212-176-2 01 1 0005-0512 ● ● ● ●
91 COVER; LWR,SEDIMENTER 1-13212-176-3 01 1 0601- ● ● ● ● ●
