1-41 — FUEL PIPING; CHASSIS (#37283) — 339 parça

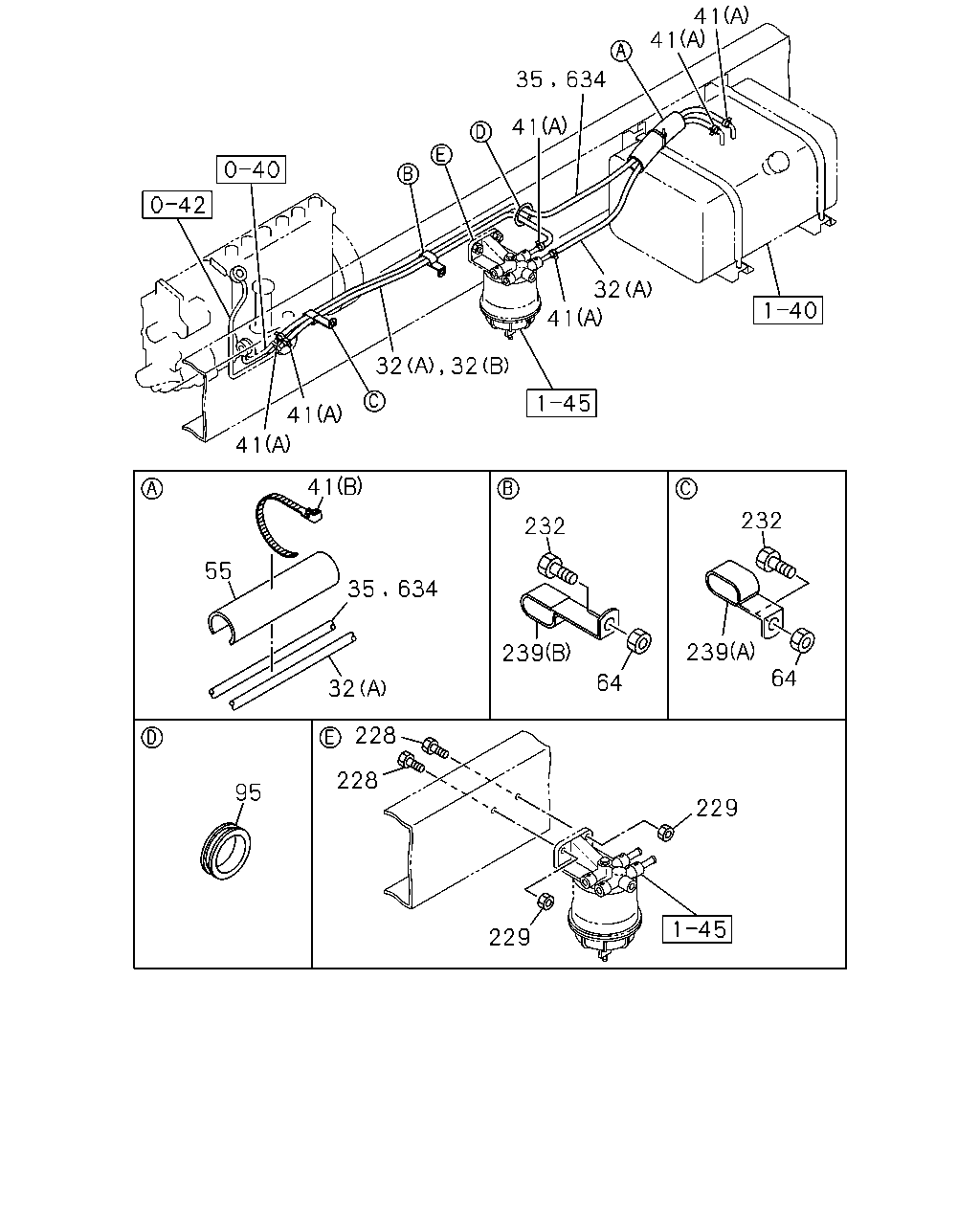

çizim 151218
41 41 35 634 41 32 41 32 32 41 41 41 232 232 55 35 634 239 239 64 64 32 228 228 95 229 229
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) (B) L=4200 SERVICED BY L=8000 		0-01260-800-0 01 1 9510-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) (A) L=2400 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 02 1 9510-9612 ● ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> (B) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-9808 ● ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> EXC. AUSTRALIA EQUIPMENT(RR3) (B) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> (B) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) (B) L=2250 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9806 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EXC. EURO2 SPECIFICATION<THN> (B) L=2250 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9612 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-9806 ● ●
32 PIPE; DELIVERY,FUEL TANK
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-9806 ● ●
32 PIPE; DELIVERY,FUEL TANK
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-9806 ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-9806 ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EXC. EURO2 SPECIFICATION<THN> (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. EURO2 SPECIFICATION<THN> (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) (B) L=2100 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) (A) L=820 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EURO2 SPECIFICATION<THN> (A) L=900 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EURO2 SPECIFICATION<THN> (B) L=2400 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
35 PIPE; FUEL TANK,RETURN
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) L=2600 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ● ●
35 PIPE; FUEL TANK,RETURN
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) L=2650 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ● ●
35 PIPE; FUEL TANK,RETURN
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9806 ● ●
35 PIPE; FUEL TANK,RETURN
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EXC. EURO2 SPECIFICATION<THN> L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ● ● ●
35 PIPE; FUEL TANK,RETURN
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9612 ● ●
35 PIPE; FUEL TANK,RETURN
L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9612 ●
35 PIPE; FUEL TANK,RETURN
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-0004 ● ●
35 PIPE; FUEL TANK,RETURN
EURO2 SPECIFICATION<THN> L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-9808 ● ●
35 PIPE; FUEL TANK,RETURN
EURO2 SPECIFICATION<THN> EXC. AUSTRALIA EQUIPMENT(RR3) L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
35 PIPE; FUEL TANK,RETURN
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EURO2 SPECIFICATION<THN> SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 9510-9802 ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 9803-0004 ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 0005-0512 ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 0601- ● ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-0 01 1 9510-9802 ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 9803-0004 ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 0005-0512 ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 0601- ● ● ● ● ●
55 COVER; PIPE,FUEL TANK
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) L=350 		1-09360-460-1 01 1 9510-9606 ● ●
55 COVER; PIPE,FUEL TANK
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) L=250 		9-09912-735-1 01 1 9607-9802 ● ●
55 COVER; PIPE,FUEL TANK
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) L=250 		1-09360-677-1 01 1 9803-0004 ● ●
55 COVER; PIPE,FUEL TANK
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) L=500 		1-09360-690-1 01 1 9510-9802 ● ●
55 COVER; PIPE,FUEL TANK
L=500 		1-09360-690-1 01 1 9510-9802 ●
55 COVER; PIPE,FUEL TANK
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) L=500 		1-09360-677-1 01 1 9803-0004 ● ●
55 COVER; PIPE,FUEL TANK
L=500 		1-09360-677-1 01 1 9803-0004 ● ●
55 COVER; PIPE,FUEL TANK
L=500 		1-09360-677-1 01 1 0005-0512 ● ● ● ●
55 COVER; PIPE,FUEL TANK
L=500 SERVICED BY L=1300 		1-09360-677-1 01 1 0601- ● ● ● ● ●
64 NUT; CLIP
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 14 1 9510-9606 ● ●
64 NUT; CLIP
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 14 1 9607-0004 ● ●
64 NUT; CLIP
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 06 1 9510-9606 ● ●
64 NUT; CLIP
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 06 1 9607-0004 ● ●
64 NUT; CLIP
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 07 1 9510-9606 ● ●
64 NUT; CLIP
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 07 1 9607-0004 ● ●
64 NUT; CLIP
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 02 1 9510-9606 ● ●
64 NUT; CLIP
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0512 ● ● ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0601-0602 ● ● ● ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-1 01 1 9510-9802 ● ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-1 01 1 9803-0004 ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0005-0512 ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0601- ● ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X35 FLANGE 		0-28081-035-0 02 1 9510-9606 ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 9607-9802 ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 9803-0004 ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 0005-0512 ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28651-040-0 02 1 0601- ● ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 		9-09110-510-0 02 1 9510-9606 ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 9607-0004 ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 0005-0512 ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 0601-0602 ● ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ● ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9607-0004 ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 11 1 9510-9606 ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 11 1 9607-0004 ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 05 1 9510-9606 ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 05 1 9607-0004 ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 06 1 9510-9606 ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 06 1 9607-9806 ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EURO2 SPECIFICATION<THN> M8X30 FLANGE 		0-28680-830-0 07 1 9807-0004 ● ●
232 BOLT; CLIP,PIPE
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ●
232 BOLT; CLIP,PIPE
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 02 1 9607-0004 ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 9607-0004 ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 0005-0512 ● ● ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ● ● ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EXC. EURO2 SPECIFICATION<THN> M8X30 FLANGE 		0-28680-830-0 06 1 9807-0004 ● ● ● ●
239 CLIP; FUEL PIPE
AUSTRALIA EQUIPMENT(RR3) (C) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 9510-9802 ● ●
239 CLIP; FUEL PIPE
AUSTRALIA EQUIPMENT(RR3) (C) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 9803-9804 ● ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) (A) ID=13X2 H=25 L=50 		1-09700-777-0 07 1 9510-9907 ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) (A) M13X2 H=20 L=60 		1-09701-280-0 07 1 9908-0004 ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 0005-0512 ● ● ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 0601- ● ● ● ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) (B) ID=14X2 H=85 L=30 		1-09701-062-0 02 1 9510-0004 ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25 		1-09701-101-0 04 1 9510-9804 ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W), WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25 		1-09701-101-0 05 1 9805-9806 ● ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W), WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EXC. EURO2 SPECIFICATION<THN> (B) ID=14X29 H=30 L=25 		1-09701-101-0 05 1 9807-0004 ● ● ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25 		1-09701-101-0 05 1 9510-9804 ● ●
239 CLIP; FUEL PIPE
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9510-0004 ● ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9510-0004 ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 0005-0512 ● ● ● ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 0601- ● ● ● ● ●
239 CLIP; FUEL PIPE
(A) ID=13X2 H=25 L=50 		1-09700-777-0 01 1 9510-9907 ● ● ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) (A) ID=13X2 H=25 L=50 		1-09700-777-0 01 1 9510-9907 ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 9908-0004 ● ● ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) (A) M13X2 H=20 L=60 		1-09701-280-0 01 1 9908-0004 ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EURO2 SPECIFICATION<THN> (B) ID=14X29 H=30 L=25 		1-09701-101-0 06 1 9807-0004 ● ●
634 HOSE; RUBBER RETURN
EURO2 SPECIFICATION<THN> L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ●
634 HOSE; RUBBER RETURN
EXC. EURO2 SPECIFICATION<THN> L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ● ● ● ● ●

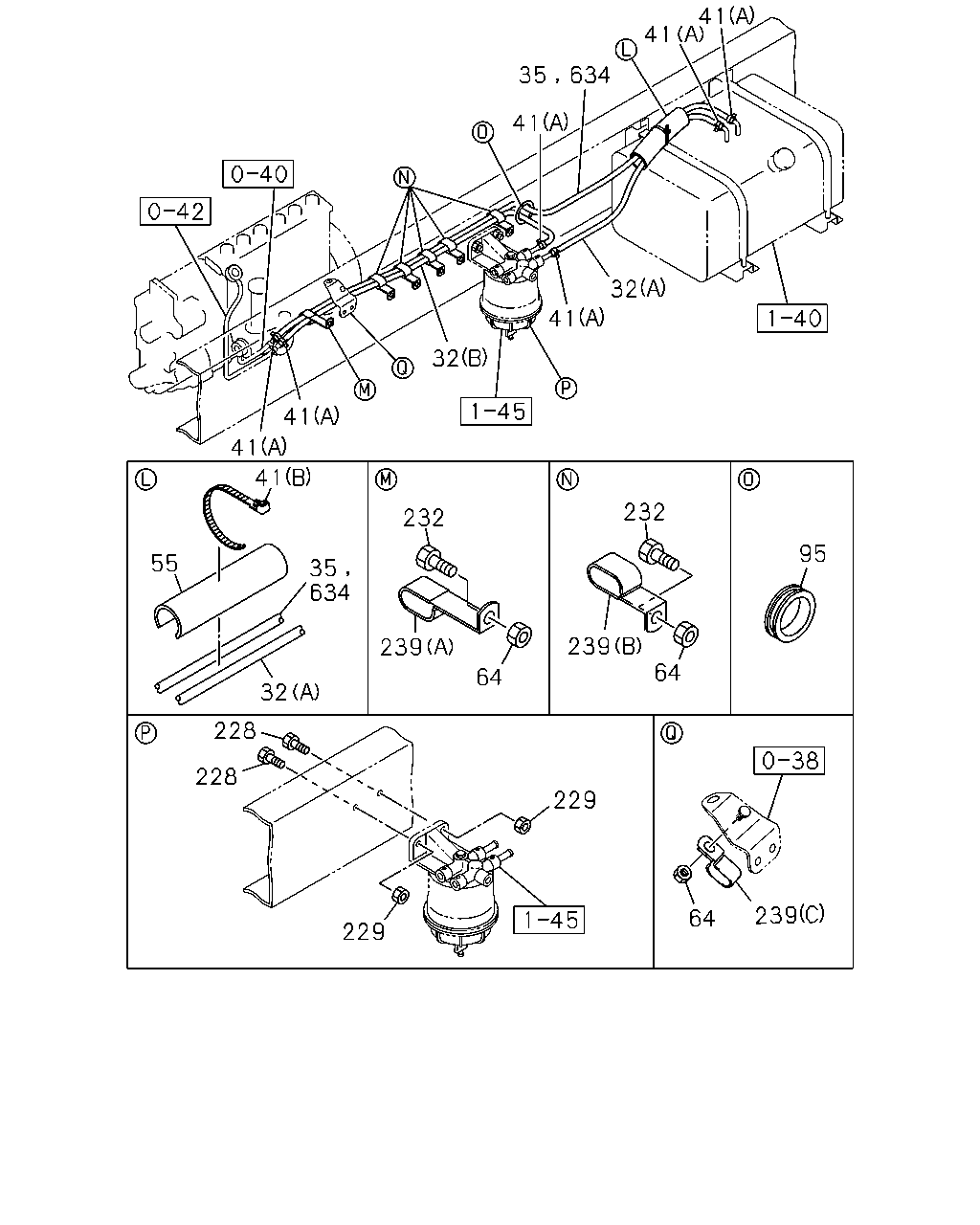

çizim 151235
41 41 634 35 41 32 41 32 41 41 41 55 35 634 32 228 228 239 64 232 239 232 64 95 239 64 229 229
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) (B) L=4200 SERVICED BY L=8000 		0-01260-800-0 01 1 9510-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) (A) L=2400 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 02 1 9510-9612 ● ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> (B) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-9808 ● ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> EXC. AUSTRALIA EQUIPMENT(RR3) (B) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> (B) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) (B) L=2250 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9806 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EXC. EURO2 SPECIFICATION<THN> (B) L=2250 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9612 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-9806 ● ●
32 PIPE; DELIVERY,FUEL TANK
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-9806 ● ●
32 PIPE; DELIVERY,FUEL TANK
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-9806 ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-9806 ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EXC. EURO2 SPECIFICATION<THN> (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. EURO2 SPECIFICATION<THN> (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) (B) L=2100 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) (A) L=820 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EURO2 SPECIFICATION<THN> (A) L=900 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EURO2 SPECIFICATION<THN> (B) L=2400 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
35 PIPE; FUEL TANK,RETURN
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) L=2600 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ● ●
35 PIPE; FUEL TANK,RETURN
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) L=2650 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ● ●
35 PIPE; FUEL TANK,RETURN
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9806 ● ●
35 PIPE; FUEL TANK,RETURN
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EXC. EURO2 SPECIFICATION<THN> L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ● ● ●
35 PIPE; FUEL TANK,RETURN
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9612 ● ●
35 PIPE; FUEL TANK,RETURN
L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9612 ●
35 PIPE; FUEL TANK,RETURN
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-0004 ● ●
35 PIPE; FUEL TANK,RETURN
EURO2 SPECIFICATION<THN> L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-9808 ● ●
35 PIPE; FUEL TANK,RETURN
EURO2 SPECIFICATION<THN> EXC. AUSTRALIA EQUIPMENT(RR3) L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
35 PIPE; FUEL TANK,RETURN
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EURO2 SPECIFICATION<THN> SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 9510-9802 ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 9803-0004 ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 0005-0512 ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 0601- ● ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-0 01 1 9510-9802 ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 9803-0004 ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 0005-0512 ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 0601- ● ● ● ● ●
55 COVER; PIPE,FUEL TANK
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) L=350 		1-09360-460-1 01 1 9510-9606 ● ●
55 COVER; PIPE,FUEL TANK
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) L=250 		9-09912-735-1 01 1 9607-9802 ● ●
55 COVER; PIPE,FUEL TANK
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) L=250 		1-09360-677-1 01 1 9803-0004 ● ●
55 COVER; PIPE,FUEL TANK
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) L=500 		1-09360-690-1 01 1 9510-9802 ● ●
55 COVER; PIPE,FUEL TANK
L=500 		1-09360-690-1 01 1 9510-9802 ●
55 COVER; PIPE,FUEL TANK
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) L=500 		1-09360-677-1 01 1 9803-0004 ● ●
55 COVER; PIPE,FUEL TANK
L=500 		1-09360-677-1 01 1 9803-0004 ● ●
55 COVER; PIPE,FUEL TANK
L=500 		1-09360-677-1 01 1 0005-0512 ● ● ● ●
55 COVER; PIPE,FUEL TANK
L=500 SERVICED BY L=1300 		1-09360-677-1 01 1 0601- ● ● ● ● ●
64 NUT; CLIP
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 14 1 9510-9606 ● ●
64 NUT; CLIP
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 14 1 9607-0004 ● ●
64 NUT; CLIP
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 06 1 9510-9606 ● ●
64 NUT; CLIP
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 06 1 9607-0004 ● ●
64 NUT; CLIP
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 07 1 9510-9606 ● ●
64 NUT; CLIP
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 07 1 9607-0004 ● ●
64 NUT; CLIP
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 02 1 9510-9606 ● ●
64 NUT; CLIP
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0512 ● ● ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0601-0602 ● ● ● ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-1 01 1 9510-9802 ● ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-1 01 1 9803-0004 ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0005-0512 ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0601- ● ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X35 FLANGE 		0-28081-035-0 02 1 9510-9606 ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 9607-9802 ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 9803-0004 ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 0005-0512 ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28651-040-0 02 1 0601- ● ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 		9-09110-510-0 02 1 9510-9606 ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 9607-0004 ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 0005-0512 ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 0601-0602 ● ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ● ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9607-0004 ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 11 1 9510-9606 ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 11 1 9607-0004 ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 05 1 9510-9606 ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 05 1 9607-0004 ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 06 1 9510-9606 ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 06 1 9607-9806 ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EURO2 SPECIFICATION<THN> M8X30 FLANGE 		0-28680-830-0 07 1 9807-0004 ● ●
232 BOLT; CLIP,PIPE
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ●
232 BOLT; CLIP,PIPE
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 02 1 9607-0004 ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 9607-0004 ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 0005-0512 ● ● ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ● ● ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EXC. EURO2 SPECIFICATION<THN> M8X30 FLANGE 		0-28680-830-0 06 1 9807-0004 ● ● ● ●
239 CLIP; FUEL PIPE
AUSTRALIA EQUIPMENT(RR3) (C) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 9510-9802 ● ●
239 CLIP; FUEL PIPE
AUSTRALIA EQUIPMENT(RR3) (C) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 9803-9804 ● ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) (A) ID=13X2 H=25 L=50 		1-09700-777-0 07 1 9510-9907 ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) (A) M13X2 H=20 L=60 		1-09701-280-0 07 1 9908-0004 ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 0005-0512 ● ● ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 0601- ● ● ● ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) (B) ID=14X2 H=85 L=30 		1-09701-062-0 02 1 9510-0004 ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25 		1-09701-101-0 04 1 9510-9804 ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W), WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25 		1-09701-101-0 05 1 9805-9806 ● ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W), WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EXC. EURO2 SPECIFICATION<THN> (B) ID=14X29 H=30 L=25 		1-09701-101-0 05 1 9807-0004 ● ● ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25 		1-09701-101-0 05 1 9510-9804 ● ●
239 CLIP; FUEL PIPE
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9510-0004 ● ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9510-0004 ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 0005-0512 ● ● ● ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 0601- ● ● ● ● ●
239 CLIP; FUEL PIPE
(A) ID=13X2 H=25 L=50 		1-09700-777-0 01 1 9510-9907 ● ● ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) (A) ID=13X2 H=25 L=50 		1-09700-777-0 01 1 9510-9907 ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 9908-0004 ● ● ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) (A) M13X2 H=20 L=60 		1-09701-280-0 01 1 9908-0004 ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EURO2 SPECIFICATION<THN> (B) ID=14X29 H=30 L=25 		1-09701-101-0 06 1 9807-0004 ● ●
634 HOSE; RUBBER RETURN
EURO2 SPECIFICATION<THN> L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ●
634 HOSE; RUBBER RETURN
EXC. EURO2 SPECIFICATION<THN> L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ● ● ● ● ●

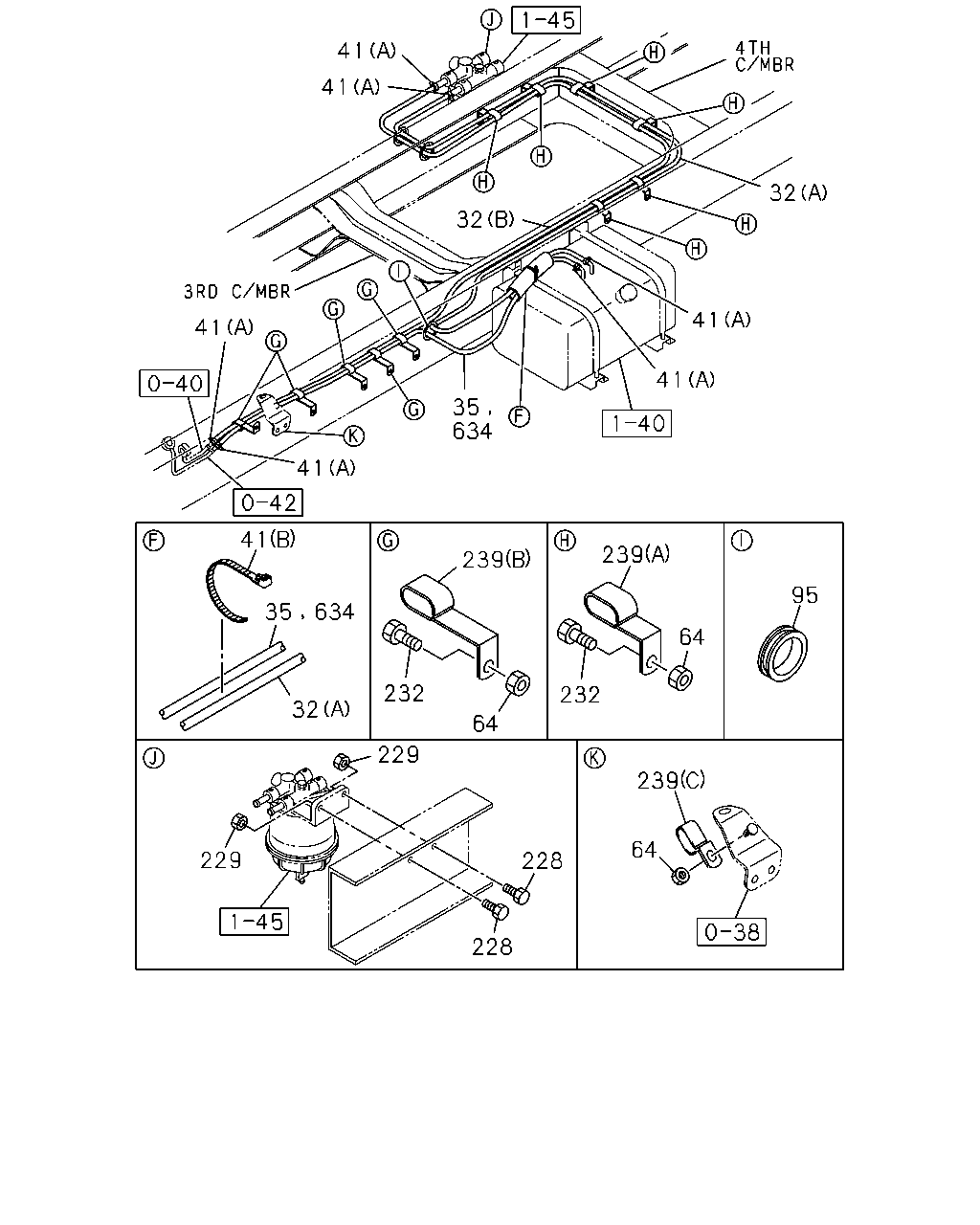

çizim 151240
41 41 32 32 41 41 35 634 41 41 41 35 634 32 229 229 228 228 64 239 64 232 232 64 95 239 239
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) (B) L=4200 SERVICED BY L=8000 		0-01260-800-0 01 1 9510-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) (A) L=2400 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 02 1 9510-9612 ● ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> (B) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-9808 ● ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> EXC. AUSTRALIA EQUIPMENT(RR3) (B) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> (B) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) (B) L=2250 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9806 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EXC. EURO2 SPECIFICATION<THN> (B) L=2250 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9612 ● ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-9806 ● ●
32 PIPE; DELIVERY,FUEL TANK
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-9806 ● ●
32 PIPE; DELIVERY,FUEL TANK
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-9806 ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-9806 ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EXC. EURO2 SPECIFICATION<THN> (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3),EURO2 SPECIFICATION<THN> (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. EURO2 SPECIFICATION<THN> (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) (B) L=2100 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) (A) L=820 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EURO2 SPECIFICATION<THN> (A) L=900 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EURO2 SPECIFICATION<THN> (B) L=2400 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
35 PIPE; FUEL TANK,RETURN
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) L=2600 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ● ●
35 PIPE; FUEL TANK,RETURN
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) L=2650 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ● ●
35 PIPE; FUEL TANK,RETURN
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9806 ● ●
35 PIPE; FUEL TANK,RETURN
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EXC. EURO2 SPECIFICATION<THN> L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ● ● ●
35 PIPE; FUEL TANK,RETURN
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9612 ● ●
35 PIPE; FUEL TANK,RETURN
L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9612 ●
35 PIPE; FUEL TANK,RETURN
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-0004 ● ●
35 PIPE; FUEL TANK,RETURN
EURO2 SPECIFICATION<THN> L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-9808 ● ●
35 PIPE; FUEL TANK,RETURN
EURO2 SPECIFICATION<THN> EXC. AUSTRALIA EQUIPMENT(RR3) L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
35 PIPE; FUEL TANK,RETURN
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EURO2 SPECIFICATION<THN> SERVICED BY L=3000 		0-01260-300-0 01 1 9807-0004 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 9510-9802 ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 9803-0004 ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 0005-0512 ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 0601- ● ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-0 01 1 9510-9802 ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 9803-0004 ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 0005-0512 ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 0601- ● ● ● ● ●
64 NUT; CLIP
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 14 1 9510-9606 ● ●
64 NUT; CLIP
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 14 1 9607-0004 ● ●
64 NUT; CLIP
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 06 1 9510-9606 ● ●
64 NUT; CLIP
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 06 1 9607-0004 ● ●
64 NUT; CLIP
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 07 1 9510-9606 ● ●
64 NUT; CLIP
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 07 1 9607-0004 ● ●
64 NUT; CLIP
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 02 1 9510-9606 ● ●
64 NUT; CLIP
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0512 ● ● ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0601-0602 ● ● ● ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-1 01 1 9510-9802 ● ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-1 01 1 9803-0004 ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0005-0512 ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0601- ● ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X35 FLANGE 		0-28081-035-0 02 1 9510-9606 ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 9607-9802 ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 9803-0004 ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 0005-0512 ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28651-040-0 02 1 0601- ● ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 		9-09110-510-0 02 1 9510-9606 ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 9607-0004 ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 0005-0512 ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 0601-0602 ● ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ● ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9607-0004 ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 11 1 9510-9606 ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 11 1 9607-0004 ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 05 1 9510-9606 ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 05 1 9607-0004 ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 06 1 9510-9606 ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 06 1 9607-9806 ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EURO2 SPECIFICATION<THN> M8X30 FLANGE 		0-28680-830-0 07 1 9807-0004 ● ●
232 BOLT; CLIP,PIPE
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ●
232 BOLT; CLIP,PIPE
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28680-830-0 02 1 9607-0004 ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 9607-0004 ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 0005-0512 ● ● ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ● ● ● ●
232 BOLT; CLIP,PIPE
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EXC. EURO2 SPECIFICATION<THN> M8X30 FLANGE 		0-28680-830-0 06 1 9807-0004 ● ● ● ●
239 CLIP; FUEL PIPE
AUSTRALIA EQUIPMENT(RR3) (C) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 9510-9802 ● ●
239 CLIP; FUEL PIPE
AUSTRALIA EQUIPMENT(RR3) (C) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 9803-9804 ● ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) (A) ID=13X2 H=25 L=50 		1-09700-777-0 07 1 9510-9907 ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) (A) M13X2 H=20 L=60 		1-09701-280-0 07 1 9908-0004 ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 0005-0512 ● ● ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 0601- ● ● ● ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) (B) ID=14X2 H=85 L=30 		1-09701-062-0 02 1 9510-0004 ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25 		1-09701-101-0 04 1 9510-9804 ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W), WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25 		1-09701-101-0 05 1 9805-9806 ● ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W), WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EXC. EURO2 SPECIFICATION<THN> (B) ID=14X29 H=30 L=25 		1-09701-101-0 05 1 9807-0004 ● ● ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25 		1-09701-101-0 05 1 9510-9804 ● ●
239 CLIP; FUEL PIPE
STD CAB(FR**M*) EXC. AUSTRALIA EQUIPMENT(RR3) (B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9510-0004 ● ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9510-0004 ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 0005-0512 ● ● ● ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 0601- ● ● ● ● ●
239 CLIP; FUEL PIPE
(A) ID=13X2 H=25 L=50 		1-09700-777-0 01 1 9510-9907 ● ● ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) (A) ID=13X2 H=25 L=50 		1-09700-777-0 01 1 9510-9907 ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 9908-0004 ● ● ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) (A) M13X2 H=20 L=60 		1-09701-280-0 01 1 9908-0004 ● ●
239 CLIP; FUEL PIPE
WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) EURO2 SPECIFICATION<THN> (B) ID=14X29 H=30 L=25 		1-09701-101-0 06 1 9807-0004 ● ●
634 HOSE; RUBBER RETURN
EURO2 SPECIFICATION<THN> L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ●
634 HOSE; RUBBER RETURN
EXC. EURO2 SPECIFICATION<THN> L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
