Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#37280) — 330 parça

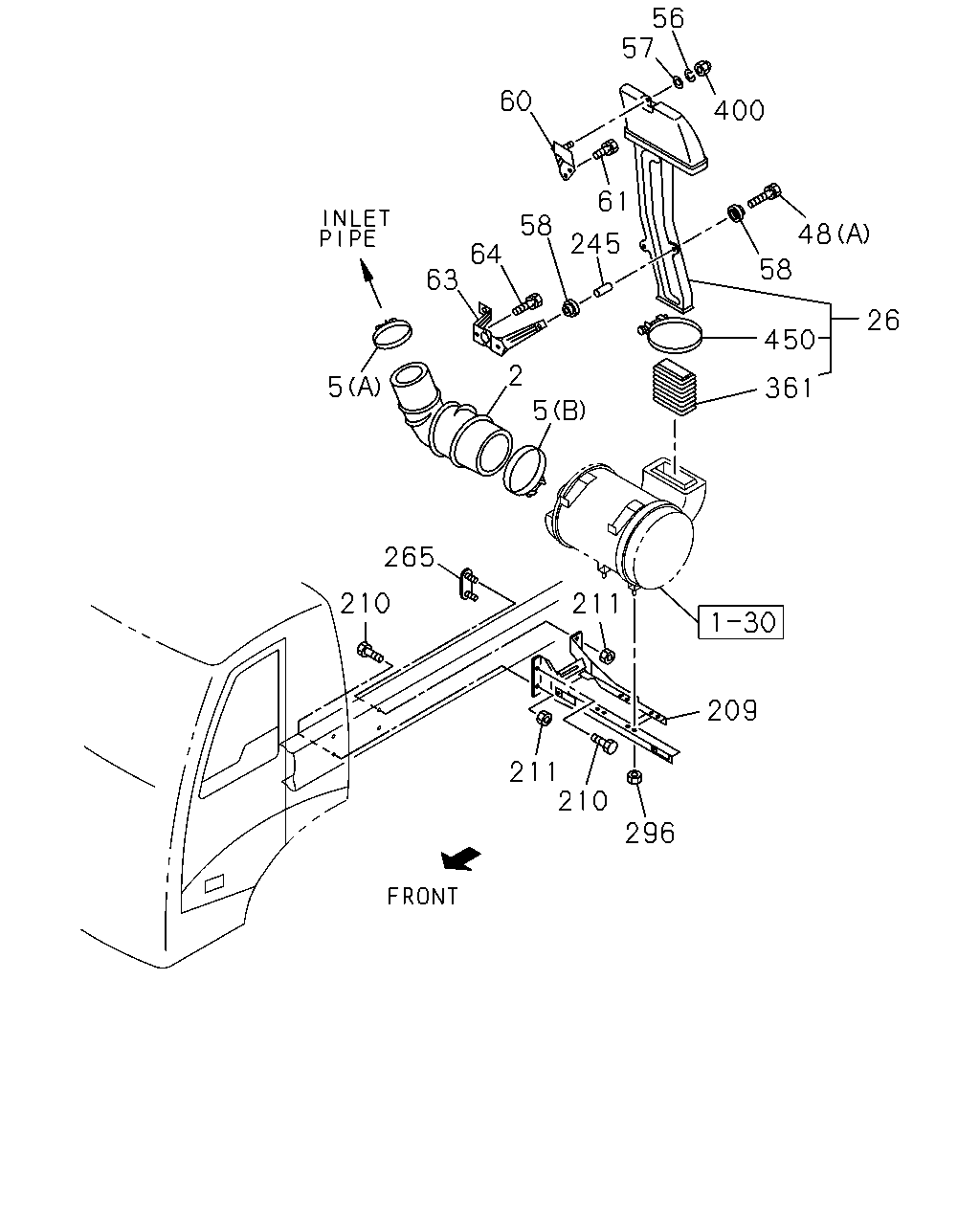

56 57 60 400 61 58 48 245 64 58 63 26 450 2 5 361 5 265 210 211 209 211 210 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	HOSE; ACL	1-14232-161-0	01	1	0601-	●
2	HOSE; ACL STD CAB(FR*M) EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>	1-14231-907-1	01	1	9510-9702		●	●
2	HOSE; ACL STD CAB(FR*M) AUSTRALIA EQUIPMENT(RR3)	1-14231-907-1	01	1	9510-9702		●	●
2	HOSE; ACL STD CAB(FR*M) EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-14231-907-1	01	1	9703-9802		●	●
2	HOSE; ACL STD CAB(FR*M) AUSTRALIA EQUIPMENT(RR3)	1-14231-907-1	01	1	9703-9802		●	●
2	HOSE; ACL STD CAB(FR*M) EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-14231-907-1	01	1	9803-0004		●	●
2	HOSE; ACL STD CAB(FR*M) AUSTRALIA EQUIPMENT(RR3)	1-14231-907-1	01	1	9803-0004		●	●
2	HOSE; ACL EURO2 SPECIFICATION<THN>	1-14232-006-0	01	1	0005-0010				●
2	HOSE; ACL EURO2 SPECIFICATION<THN>	1-14232-006-0	01	1	0011-				●
2	HOSE; ACL NEW ZEALAND EQUIPMENT(PK5)	1-14232-006-0	01	1	0011-				●
2	HOSE; ACL STD CAB(FR*M) EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, AUSTRALIA EQUIPMENT(RR3)	1-14231-851-0	01	1	9510-9702		●	●
2	HOSE; ACL STD CAB(FR*M) EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-14231-851-0	01	1	9703-9802		●	●
2	HOSE; ACL STD CAB(FR*M) EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-14231-851-0	01	1	9803-0004		●	●
2	HOSE; ACL	1-14231-851-0	01	1	0005-		●	●
2	HOSE; ACL DOUBLE CAB(FR*W)	1-14231-876-0	01	1	9510-0004		●	●
2	HOSE; ACL	1-14231-853-1	01	1	9612-9802					●
2	HOSE; ACL	1-14231-853-1	01	1	9803-0004					●	●
2	HOSE; ACL	1-14231-853-1	01	1	0005-					●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=87-116	1-09707-138-0	01	1	1002-		●	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (B) ID=104-142	1-09707-139-0	01	1	1002-		●	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=77-99	1-09707-141-0	01	1	1002-	●				●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (B) ID=130-169	8-98155-950-0	01	1	1002-	●				●
5	CLIP; AIR DUCT (A) ID=87-116	1-09707-144-0	01	1	9510-0004		●	●
5	CLIP; AIR DUCT (A) ID=87-116	1-09707-144-0	01	1	0005-0212		●	●	●
5	CLIP; AIR DUCT (A) ID=87-113	1-09707-199-0	01	1	0301-0811		●	●	●
5	CLIP; AIR DUCT (A) ID=90-110	8-98133-365-0	01	1	0812-1001		●	●	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=90-110	8-98133-365-0	01	1	1002-		●	●	●
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-155-0	01	1	9510-0004		●	●
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-155-0	01	1	0005-0212		●	●	●
5	CLIP; AIR DUCT (B) ID=104-139	1-09707-200-0	01	1	0301-0812		●	●	●
5	CLIP; AIR DUCT (B) ID=110-130	8-98133-359-0	01	1	0901-1001		●	●	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (B) ID=110-130	8-98133-359-0	01	1	1002-		●	●	●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-114-0	01	1	9610-9802					●
5	CLIP; AIR DUCT (B) ID=130-169	1-09707-157-0	01	1	9610-9802					●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-114-0	01	1	9803-0004					●	●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-114-0	01	1	0005-0212					●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-198-0	01	1	0301-0512					●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-198-0	01	1	0601-0810	●				●
5	CLIP; AIR DUCT (A) ID=75-95	8-98133-357-0	01	1	0811-1001	●				●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=75-95	8-98133-357-0	01	1	1002-	●				●
5	CLIP; AIR DUCT (B) ID=130-169	1-09707-157-0	01	1	9803-0004					●	●
5	CLIP; AIR DUCT (B) ID=130-169	1-09707-157-0	01	1	0005-0212					●
5	CLIP; AIR DUCT (B) ID=130-165	1-09707-201-0	01	1	0301-0512					●
5	CLIP; AIR DUCT (B) ID=130-165	1-09707-201-0	01	1	0601-0810	●				●
5	CLIP; AIR DUCT (B) ID=130-150	8-98133-360-0	01	1	0811-1001	●				●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (B) ID=130-150	8-98133-360-0	01	1	1002-	●				●
26	DUCT; AIR INT STD CAB(FR*M)	1-14230-126-4	01	1	9510-9610		●	●
26	DUCT; AIR INT STD CAB(FR*M)	1-14230-153-0	01	1	9611-9712		●	●
26	DUCT; AIR INT STD CAB(FR*M)	1-14230-176-0	01	1	9801-0004		●	●
26	DUCT; AIR INT	1-14230-176-2	01	1	0005-		●	●	●
26	DUCT; AIR INT DOUBLE CAB(FR*W)	1-14230-142-0	01	1	9510-0004		●	●
26	DUCT; AIR INT	1-14230-120-4	01	1	9610-9611					●
26	DUCT; AIR INT	1-14230-156-0	01	1	9612-9712					●
26	DUCT; AIR INT	1-14230-173-0	01	1	9801-9802					●
26	DUCT; AIR INT	1-14230-173-0	01	1	9803-0004					●	●
26	DUCT; AIR INT	1-14230-173-2	01	1	0005-0512					●
26	DUCT; AIR INT	1-14230-173-2	01	1	0601-	●				●
48	BOLT; AIR DUCT DOUBLE CAB(FR*W) (B) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606		●	●
48	BOLT; AIR DUCT DOUBLE CAB(FR*W) (B) M8X20 FLANGE	0-28680-820-0	02	1	9607-0004		●	●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	9510-9802		●	●		●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	9803-0004		●	●		●	●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	0005-0512		●	●	●	●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	0601-	●	●	●	●	●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	9510-9802		●	●		●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	9803-0004		●	●		●	●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	0005-0512		●	●	●	●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	0601-	●	●	●	●	●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9510-9802		●	●		●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9803-0004		●	●		●	●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0005-0512		●	●	●	●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0601-	●	●	●	●	●
58	SUPPORT; AIR INL DUCT STD CAB(FR*M) OD=40 T=18.5	1-14119-267-0	04	1	9510-9802		●	●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	9510-9802					●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	9803-0004		●	●		●	●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	0005-0512		●	●	●	●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	0601-	●	●	●	●	●
58	SUPPORT; AIR INL DUCT DOUBLE CAB(FR*W) OD=40 T=18.5	1-14119-267-0	06	1	9510-9802		●	●
60	BRACKET; AIR DUCT,UPR STD CAB(FR*M)	1-79998-748-2	01	1	9510-9802		●	●
60	BRACKET; AIR DUCT,UPR	1-79998-748-2	01	1	9510-9802					●
60	BRACKET; AIR DUCT,UPR STD CAB(FR*M)	1-79998-748-2	01	1	9803-0004		●	●
60	BRACKET; AIR DUCT,UPR	1-79998-748-2	01	1	9803-0004					●	●
60	BRACKET; AIR DUCT,UPR	1-79998-748-2	01	1	0005-0512		●	●	●	●
60	BRACKET; AIR DUCT,UPR	1-79998-748-2	01	1	0601-	●	●	●	●	●
60	BRACKET; AIR DUCT,UPR DOUBLE CAB(FR*W)	1-79998-571-2	01	1	9510-0004		●	●
61	BOLT; BRKT,AIR DUCT STD CAB(FR*M) M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	9510-9802		●	●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	9510-9802					●
61	BOLT; BRKT,AIR DUCT STD CAB(FR*M) M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	9803-0004		●	●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	9803-0004					●	●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0005-0512		●	●	●	●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0601-	●	●	●	●	●
61	BOLT; BRKT,AIR DUCT DOUBLE CAB(FR*W) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0004		●	●
63	BRACKET; AIR DUCT,LWR STD CAB(FR*M)	1-79998-749-3	01	1	9510-9802		●	●
63	BRACKET; AIR DUCT,LWR	1-79998-749-3	01	1	9510-9802					●
63	BRACKET; AIR DUCT,LWR STD CAB(FR*M)	1-79998-749-3	01	1	9803-0004		●	●
63	BRACKET; AIR DUCT,LWR	1-79998-749-3	01	1	9803-0004					●	●
63	BRACKET; AIR DUCT,LWR	1-79998-749-3	01	1	0005-0512		●	●	●	●
63	BRACKET; AIR DUCT,LWR	1-79998-749-3	01	1	0601-	●	●	●	●	●
63	BRACKET; AIR DUCT,LWR DOUBLE CAB(FR*W)	1-79998-572-2	01	1	9510-0004		●	●
64	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	9510-9802		●	●		●
64	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	9803-0004		●	●		●	●
64	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0005-0512		●	●	●	●
64	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0601-	●	●	●	●	●
209	BRACKET; ACL STD CAB(FR*M)	1-53497-478-2	01	1	9510-9802		●	●
209	BRACKET; ACL	1-53497-478-2	01	1	9510-9802					●
209	BRACKET; ACL STD CAB(FR*M)	1-53497-478-2	01	1	9803-0004		●	●
209	BRACKET; ACL	1-53497-478-2	01	1	9803-0004					●	●
209	BRACKET; ACL	1-53497-478-2	01	1	0005-0512		●	●	●	●
209	BRACKET; ACL	1-53497-478-2	01	1	0601-	●	●	●	●	●
209	BRACKET; ACL	1-53497-478-2	01	1	0601-	●	●	●	●	●
209	BRACKET; ACL DOUBLE CAB(FR*W)	1-53497-328-1	01	1	9510-0004	●	●	●
210	BOLT; ACL BRKT STD CAB(FR*M) M12X35 FLANGE	0-28081-235-0	02	1	9510-9606		●	●
210	BOLT; ACL BRKT M12X35 FLANGE	0-28081-235-0	02	1	9510-9606					●
210	BOLT; ACL BRKT STD CAB(FR*M) M12X40 FLANGE	0-28681-240-0	02	1	9607-9802		●	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	9607-9802					●
210	BOLT; ACL BRKT STD CAB(FR*M) M12X40 FLANGE	0-28681-240-0	02	1	9803-9807		●	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	9803-9807					●	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	9808-0004		●	●		●	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	0005-0512		●	●	●	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28651-240-0	02	1	0601-	●	●	●	●	●
210	BOLT; ACL BRKT DOUBLE CAB(FR*W) M12X35 FLANGE	0-28081-235-0	04	1	9510-9606		●	●
210	BOLT; ACL BRKT DOUBLE CAB(FR*W) M12X40 FLANGE	0-28681-240-0	04	1	9607-9807		●	●
210	BOLT; ACL BRKT DOUBLE CAB(FR*W) M12X35 FLANGE	0-28681-235-0	02	1	9808-0004		●	●
211	NUT; BRKT STD CAB(FR*M) M12 FLANGE	0-91150-112-0	03	1	9510-9606		●	●
211	NUT; BRKT STD CAB(FR*M) M12 FLANGE	0-91150-212-0	03	1	9607-9802		●	●
211	NUT; BRKT M12 FLANGE	0-91150-212-0	03	1	9607-9802					●
211	NUT; BRKT STD CAB(FR*M) M12 FLANGE	0-91150-212-0	03	1	9803-0004		●	●
211	NUT; BRKT M12 FLANGE	0-91150-212-0	03	1	9803-0004					●	●
211	NUT; BRKT M12 FLANGE	0-91150-212-0	03	1	0005-0512		●	●	●	●
211	NUT; BRKT M12 FLANGE	0-91150-212-0	03	1	0601-0602	●	●	●	●	●
211	NUT; BRKT M12 FLANGE	0-91180-212-0	03	1	0603-	●	●	●	●	●
211	NUT; BRKT DOUBLE CAB(FR*W) M12 FLANGE	0-91150-112-0	01	1	9510-9606		●	●
211	NUT; BRKT DOUBLE CAB(FR*W) M12 FLANGE	0-91150-212-0	01	1	9607-9607		●	●
245	PIECE; DIST,AIR DUCT STD CAB(FR*M)	1-79998-228-0	02	1	9510-9802		●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	9510-9802					●
245	PIECE; DIST,AIR DUCT STD CAB(FR*M)	1-79998-228-0	02	1	9803-0004		●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	9803-0004					●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0005-0512		●	●	●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0601-	●	●	●	●	●
245	PIECE; DIST,AIR DUCT DOUBLE CAB(FR*W)	1-79998-228-0	03	1	9510-0004		●	●
265	BRACKET; STUD,ACL STD CAB(FR*M)	1-53497-477-0	01	1	9510-9802		●	●
265	BRACKET; STUD,ACL	1-53497-477-0	01	1	9510-9802					●
265	BRACKET; STUD,ACL STD CAB(FR*M)	1-53497-477-0	01	1	9803-0004		●	●
265	BRACKET; STUD,ACL	1-53497-477-0	01	1	9803-0004					●	●
265	BRACKET; STUD,ACL	1-53497-477-0	01	1	0005-0512		●	●	●	●
265	BRACKET; STUD,ACL	1-53497-477-0	01	1	0601-	●	●	●	●	●
296	NUT; ACL STD CAB(FR*M) M8 FLANGE	0-91150-108-0	04	1	9510-9802		●	●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	9510-9802					●
296	NUT; ACL STD CAB(FR*M) M8 FLANGE	0-91150-108-0	04	1	9803-0004		●	●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	9803-0004					●	●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	0005-0512		●	●	●	●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	0601-0602	●	●	●	●	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●	●	●
361	RUBBER; CUSHION,AIR DUCT STD CAB(FR*M)	1-14231-973-0	01	1	9611-9712		●	●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-0	01	1	9611-9712					●
361	RUBBER; CUSHION,AIR DUCT STD CAB(FR*M)	1-14231-973-0	01	1	9801-0004		●	●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-0	01	1	9801-0004					●	●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-1	01	1	0005-0512		●	●	●	●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-1	01	1	0601-	●	●	●	●	●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	9510-9802		●	●		●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	9803-0004		●	●		●	●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	0005-0512		●	●	●	●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	0601-	●	●	●	●	●
450	CLAMP; HOSE STD CAB(FR*M)	9-09915-504-1	01	1	9611-9712		●	●
450	CLAMP; HOSE	9-09915-504-1	01	1	9611-9712					●
450	CLAMP; HOSE STD CAB(FR*M)	9-09915-504-1	01	1	9801-0004		●	●
450	CLAMP; HOSE	9-09915-504-1	01	1	9801-0004					●	●
450	CLAMP; HOSE	9-09915-504-1	01	1	0005-0512		●	●	●	●
450	CLAMP; HOSE	9-09915-504-1	01	1	0601-	●	●	●	●	●

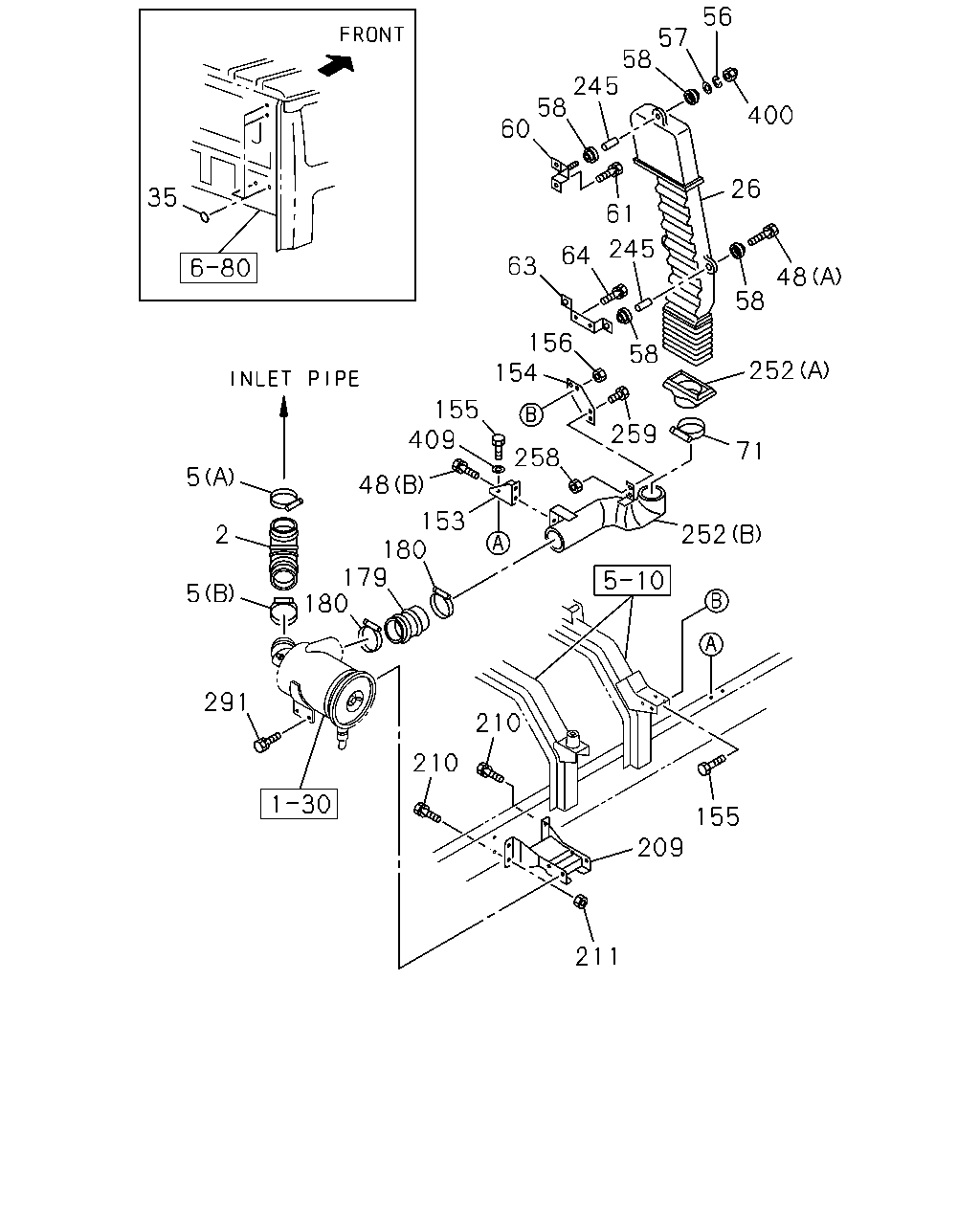

56 57 58 245 58 60 400 26 35 61 245 64 63 48 58 156 154 58 252 155 409 259 71 258 5 48 153 180 179 180 252 2 5 291 210 210 155 209 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	HOSE; ACL	1-14232-161-0	01	1	0601-	●
2	HOSE; ACL STD CAB(FR*M) EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>	1-14231-907-1	01	1	9510-9702		●	●
2	HOSE; ACL STD CAB(FR*M) AUSTRALIA EQUIPMENT(RR3)	1-14231-907-1	01	1	9510-9702		●	●
2	HOSE; ACL STD CAB(FR*M) EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-14231-907-1	01	1	9703-9802		●	●
2	HOSE; ACL STD CAB(FR*M) AUSTRALIA EQUIPMENT(RR3)	1-14231-907-1	01	1	9703-9802		●	●
2	HOSE; ACL STD CAB(FR*M) EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-14231-907-1	01	1	9803-0004		●	●
2	HOSE; ACL STD CAB(FR*M) AUSTRALIA EQUIPMENT(RR3)	1-14231-907-1	01	1	9803-0004		●	●
2	HOSE; ACL EURO2 SPECIFICATION<THN>	1-14232-006-0	01	1	0005-0010				●
2	HOSE; ACL EURO2 SPECIFICATION<THN>	1-14232-006-0	01	1	0011-				●
2	HOSE; ACL NEW ZEALAND EQUIPMENT(PK5)	1-14232-006-0	01	1	0011-				●
2	HOSE; ACL STD CAB(FR*M) EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, AUSTRALIA EQUIPMENT(RR3)	1-14231-851-0	01	1	9510-9702		●	●
2	HOSE; ACL STD CAB(FR*M) EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-14231-851-0	01	1	9703-9802		●	●
2	HOSE; ACL STD CAB(FR*M) EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-14231-851-0	01	1	9803-0004		●	●
2	HOSE; ACL	1-14231-851-0	01	1	0005-		●	●
2	HOSE; ACL DOUBLE CAB(FR*W)	1-14231-876-0	01	1	9510-0004		●	●
2	HOSE; ACL	1-14231-853-1	01	1	9612-9802					●
2	HOSE; ACL	1-14231-853-1	01	1	9803-0004					●	●
2	HOSE; ACL	1-14231-853-1	01	1	0005-					●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=87-116	1-09707-138-0	01	1	1002-		●	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (B) ID=104-142	1-09707-139-0	01	1	1002-		●	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=77-99	1-09707-141-0	01	1	1002-	●				●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (B) ID=130-169	8-98155-950-0	01	1	1002-	●				●
5	CLIP; AIR DUCT (A) ID=87-116	1-09707-144-0	01	1	9510-0004		●	●
5	CLIP; AIR DUCT (A) ID=87-116	1-09707-144-0	01	1	0005-0212		●	●	●
5	CLIP; AIR DUCT (A) ID=87-113	1-09707-199-0	01	1	0301-0811		●	●	●
5	CLIP; AIR DUCT (A) ID=90-110	8-98133-365-0	01	1	0812-1001		●	●	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=90-110	8-98133-365-0	01	1	1002-		●	●	●
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-155-0	01	1	9510-0004		●	●
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-155-0	01	1	0005-0212		●	●	●
5	CLIP; AIR DUCT (B) ID=104-139	1-09707-200-0	01	1	0301-0812		●	●	●
5	CLIP; AIR DUCT (B) ID=110-130	8-98133-359-0	01	1	0901-1001		●	●	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (B) ID=110-130	8-98133-359-0	01	1	1002-		●	●	●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-114-0	01	1	9610-9802					●
5	CLIP; AIR DUCT (B) ID=130-169	1-09707-157-0	01	1	9610-9802					●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-114-0	01	1	9803-0004					●	●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-114-0	01	1	0005-0212					●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-198-0	01	1	0301-0512					●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-198-0	01	1	0601-0810	●				●
5	CLIP; AIR DUCT (A) ID=75-95	8-98133-357-0	01	1	0811-1001	●				●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=75-95	8-98133-357-0	01	1	1002-	●				●
5	CLIP; AIR DUCT (B) ID=130-169	1-09707-157-0	01	1	9803-0004					●	●
5	CLIP; AIR DUCT (B) ID=130-169	1-09707-157-0	01	1	0005-0212					●
5	CLIP; AIR DUCT (B) ID=130-165	1-09707-201-0	01	1	0301-0512					●
5	CLIP; AIR DUCT (B) ID=130-165	1-09707-201-0	01	1	0601-0810	●				●
5	CLIP; AIR DUCT (B) ID=130-150	8-98133-360-0	01	1	0811-1001	●				●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (B) ID=130-150	8-98133-360-0	01	1	1002-	●				●
26	DUCT; AIR INT STD CAB(FR*M)	1-14230-126-4	01	1	9510-9610		●	●
26	DUCT; AIR INT STD CAB(FR*M)	1-14230-153-0	01	1	9611-9712		●	●
26	DUCT; AIR INT STD CAB(FR*M)	1-14230-176-0	01	1	9801-0004		●	●
26	DUCT; AIR INT	1-14230-176-2	01	1	0005-		●	●	●
26	DUCT; AIR INT DOUBLE CAB(FR*W)	1-14230-142-0	01	1	9510-0004		●	●
26	DUCT; AIR INT	1-14230-120-4	01	1	9610-9611					●
26	DUCT; AIR INT	1-14230-156-0	01	1	9612-9712					●
26	DUCT; AIR INT	1-14230-173-0	01	1	9801-9802					●
26	DUCT; AIR INT	1-14230-173-0	01	1	9803-0004					●	●
26	DUCT; AIR INT	1-14230-173-2	01	1	0005-0512					●
26	DUCT; AIR INT	1-14230-173-2	01	1	0601-	●				●
35	SEAL; DUCT,INT DOUBLE CAB(FR*W) OD=30 BLACK	1-76798-035-0	04	1	9510-0004		●	●
48	BOLT; AIR DUCT DOUBLE CAB(FR*W) (B) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606		●	●
48	BOLT; AIR DUCT DOUBLE CAB(FR*W) (B) M8X20 FLANGE	0-28680-820-0	02	1	9607-0004		●	●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	9510-9802		●	●		●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	9803-0004		●	●		●	●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	0005-0512		●	●	●	●
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	0601-	●	●	●	●	●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	9510-9802		●	●		●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	9803-0004		●	●		●	●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	0005-0512		●	●	●	●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	0601-	●	●	●	●	●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9510-9802		●	●		●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9803-0004		●	●		●	●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0005-0512		●	●	●	●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0601-	●	●	●	●	●
58	SUPPORT; AIR INL DUCT STD CAB(FR*M) OD=40 T=18.5	1-14119-267-0	04	1	9510-9802		●	●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	9510-9802					●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	9803-0004		●	●		●	●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	0005-0512		●	●	●	●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	0601-	●	●	●	●	●
58	SUPPORT; AIR INL DUCT DOUBLE CAB(FR*W) OD=40 T=18.5	1-14119-267-0	06	1	9510-9802		●	●
60	BRACKET; AIR DUCT,UPR STD CAB(FR*M)	1-79998-748-2	01	1	9510-9802		●	●
60	BRACKET; AIR DUCT,UPR	1-79998-748-2	01	1	9510-9802					●
60	BRACKET; AIR DUCT,UPR STD CAB(FR*M)	1-79998-748-2	01	1	9803-0004		●	●
60	BRACKET; AIR DUCT,UPR	1-79998-748-2	01	1	9803-0004					●	●
60	BRACKET; AIR DUCT,UPR	1-79998-748-2	01	1	0005-0512		●	●	●	●
60	BRACKET; AIR DUCT,UPR	1-79998-748-2	01	1	0601-	●	●	●	●	●
60	BRACKET; AIR DUCT,UPR DOUBLE CAB(FR*W)	1-79998-571-2	01	1	9510-0004		●	●
61	BOLT; BRKT,AIR DUCT STD CAB(FR*M) M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	9510-9802		●	●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	9510-9802					●
61	BOLT; BRKT,AIR DUCT STD CAB(FR*M) M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	9803-0004		●	●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	9803-0004					●	●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0005-0512		●	●	●	●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0601-	●	●	●	●	●
61	BOLT; BRKT,AIR DUCT DOUBLE CAB(FR*W) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-0004		●	●
63	BRACKET; AIR DUCT,LWR STD CAB(FR*M)	1-79998-749-3	01	1	9510-9802		●	●
63	BRACKET; AIR DUCT,LWR	1-79998-749-3	01	1	9510-9802					●
63	BRACKET; AIR DUCT,LWR STD CAB(FR*M)	1-79998-749-3	01	1	9803-0004		●	●
63	BRACKET; AIR DUCT,LWR	1-79998-749-3	01	1	9803-0004					●	●
63	BRACKET; AIR DUCT,LWR	1-79998-749-3	01	1	0005-0512		●	●	●	●
63	BRACKET; AIR DUCT,LWR	1-79998-749-3	01	1	0601-	●	●	●	●	●
63	BRACKET; AIR DUCT,LWR DOUBLE CAB(FR*W)	1-79998-572-2	01	1	9510-0004		●	●
64	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	9510-9802		●	●		●
64	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	9803-0004		●	●		●	●
64	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0005-0512		●	●	●	●
64	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0601-	●	●	●	●	●
71	CLIP; AIR DUCT DOUBLE CAB(FR*W) ID=104-142	1-09707-155-0	01	1	9510-0004		●	●
153	BRACKET; ACL,FRT DOUBLE CAB(FR*W)	1-14239-222-0	01	1	9510-0004		●	●
154	BRACKET; ACL,RR DOUBLE CAB(FR*W)	1-14239-232-0	01	1	9510-0004		●	●
155	BOLT; BRKT DOUBLE CAB(FR*W) M8X25 FLANGE	0-28080-825-0	04	1	9510-9606		●	●
155	BOLT; BRKT DOUBLE CAB(FR*W) M8X25 FLANGE	0-28680-825-0	04	1	9607-0004		●	●
156	NUT; BRKT DOUBLE CAB(FR*W) M8	9-09110-408-0	02	1	9510-9606		●	●
156	NUT; BRKT DOUBLE CAB(FR*W) M8 FLANGE	0-91150-108-0	02	1	9607-0004		●	●
179	HOSE; AIR INT DOUBLE CAB(FR*W)	1-14231-810-1	01	1	9510-0004		●	●
180	CLIP; AIR INT HOSE DOUBLE CAB(FR*W) ID=104-142	1-09707-155-0	02	1	9510-0004		●	●
209	BRACKET; ACL STD CAB(FR*M)	1-53497-478-2	01	1	9510-9802		●	●
209	BRACKET; ACL	1-53497-478-2	01	1	9510-9802					●
209	BRACKET; ACL STD CAB(FR*M)	1-53497-478-2	01	1	9803-0004		●	●
209	BRACKET; ACL	1-53497-478-2	01	1	9803-0004					●	●
209	BRACKET; ACL	1-53497-478-2	01	1	0005-0512		●	●	●	●
209	BRACKET; ACL	1-53497-478-2	01	1	0601-	●	●	●	●	●
209	BRACKET; ACL	1-53497-478-2	01	1	0601-	●	●	●	●	●
209	BRACKET; ACL DOUBLE CAB(FR*W)	1-53497-328-1	01	1	9510-0004	●	●	●
210	BOLT; ACL BRKT STD CAB(FR*M) M12X35 FLANGE	0-28081-235-0	02	1	9510-9606		●	●
210	BOLT; ACL BRKT M12X35 FLANGE	0-28081-235-0	02	1	9510-9606					●
210	BOLT; ACL BRKT STD CAB(FR*M) M12X40 FLANGE	0-28681-240-0	02	1	9607-9802		●	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	9607-9802					●
210	BOLT; ACL BRKT STD CAB(FR*M) M12X40 FLANGE	0-28681-240-0	02	1	9803-9807		●	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	9803-9807					●	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	9808-0004		●	●		●	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	0005-0512		●	●	●	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28651-240-0	02	1	0601-	●	●	●	●	●
210	BOLT; ACL BRKT DOUBLE CAB(FR*W) M12X35 FLANGE	0-28081-235-0	04	1	9510-9606		●	●
210	BOLT; ACL BRKT DOUBLE CAB(FR*W) M12X40 FLANGE	0-28681-240-0	04	1	9607-9807		●	●
210	BOLT; ACL BRKT DOUBLE CAB(FR*W) M12X35 FLANGE	0-28681-235-0	02	1	9808-0004		●	●
211	NUT; BRKT STD CAB(FR*M) M12 FLANGE	0-91150-112-0	03	1	9510-9606		●	●
211	NUT; BRKT STD CAB(FR*M) M12 FLANGE	0-91150-212-0	03	1	9607-9802		●	●
211	NUT; BRKT M12 FLANGE	0-91150-212-0	03	1	9607-9802					●
211	NUT; BRKT STD CAB(FR*M) M12 FLANGE	0-91150-212-0	03	1	9803-0004		●	●
211	NUT; BRKT M12 FLANGE	0-91150-212-0	03	1	9803-0004					●	●
211	NUT; BRKT M12 FLANGE	0-91150-212-0	03	1	0005-0512		●	●	●	●
211	NUT; BRKT M12 FLANGE	0-91150-212-0	03	1	0601-0602	●	●	●	●	●
211	NUT; BRKT M12 FLANGE	0-91180-212-0	03	1	0603-	●	●	●	●	●
211	NUT; BRKT DOUBLE CAB(FR*W) M12 FLANGE	0-91150-112-0	01	1	9510-9606		●	●
211	NUT; BRKT DOUBLE CAB(FR*W) M12 FLANGE	0-91150-212-0	01	1	9607-9607		●	●
245	PIECE; DIST,AIR DUCT STD CAB(FR*M)	1-79998-228-0	02	1	9510-9802		●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	9510-9802					●
245	PIECE; DIST,AIR DUCT STD CAB(FR*M)	1-79998-228-0	02	1	9803-0004		●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	9803-0004					●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0005-0512		●	●	●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0601-	●	●	●	●	●
245	PIECE; DIST,AIR DUCT DOUBLE CAB(FR*W)	1-79998-228-0	03	1	9510-0004		●	●
252	DUCT; AIR INT DOUBLE CAB(FR*W) (A)	1-14219-222-0	01	1	9510-0004		●	●
252	DUCT; AIR INT DOUBLE CAB(FR*W) (B)	1-14231-819-1	01	1	9510-0004		●	●
258	NUT; AIR DUCT DOUBLE CAB(FR*W) M8	9-09110-408-0	02	1	9510-9606		●	●
258	NUT; AIR DUCT DOUBLE CAB(FR*W) M8 FLANGE	0-91150-108-0	02	1	9607-0004		●	●
259	BOLT; AIR DUCT TO BRKT DOUBLE CAB(FR*W) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606		●	●
259	BOLT; AIR DUCT TO BRKT DOUBLE CAB(FR*W) M8X20 FLANGE	0-28680-820-0	02	1	9607-0004		●	●
291	BOLT; ACL DOUBLE CAB(FR*W) M8X25 FLANGE	0-28080-825-0	04	1	9510-9606		●	●
291	BOLT; ACL DOUBLE CAB(FR*W) M8X25 FLANGE	0-28680-825-0	04	1	9607-0004		●	●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	9510-9802		●	●		●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	9803-0004		●	●		●	●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	0005-0512		●	●	●	●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	0601-	●	●	●	●	●
409	WASHER; PL,BRKT DOUBLE CAB(FR*W) ID=8.4 OD=18	9-09160-608-0	02	1	9510-9802		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
