Sayfa 1-11 - Isuzu EPC

1-11 — RADIATOR HOSE AND SUB TANK (#37278) — 254 parça

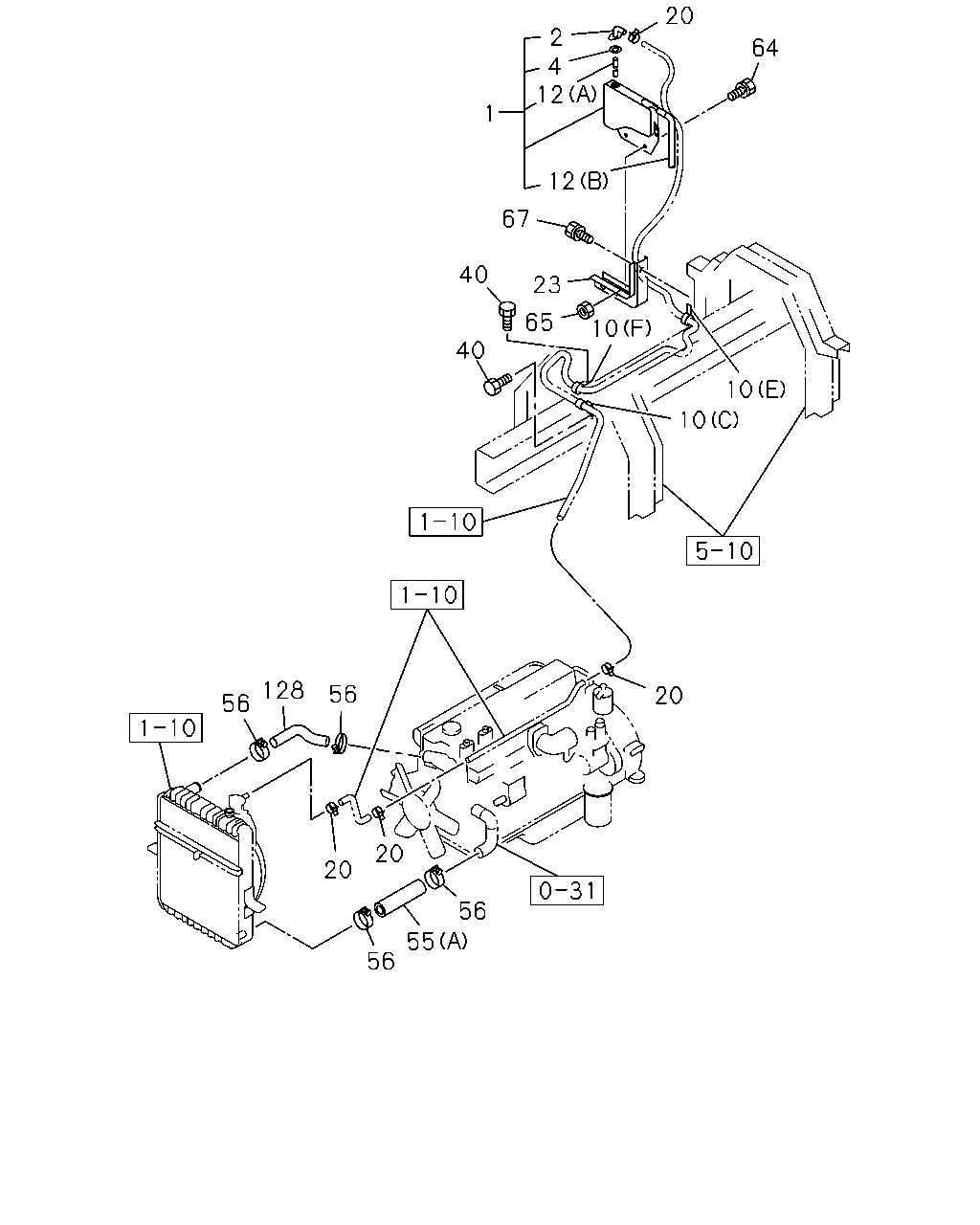

20 2 4 12 64 10 1 12 40 40 67 23 10 10 10 65 10 10 10 128 56 20 56 20 20 56 55 56 132 56 56 55 56 55 132 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; SURGE,RAD	1-21480-077-2	01	1	9510-9802	●	●	●
1	TANK; SURGE,RAD	1-21480-077-2	01	1	9803-9812	●	●	●	●
1	TANK; SURGE,RAD	1-21480-104-0	01	1	9901-0004	●	●	●	●
1	TANK; SURGE,RAD	1-21480-104-1	01	1	0005-0512	●	●	●		●
1	TANK; SURGE,RAD	1-21480-104-1	01	1	0601-	●	●	●		●	●
2	CAP; SURGE TANK	5-21483-001-1	01	1	9510-9802	●	●	●
2	CAP; SURGE TANK	5-21483-001-1	01	1	9803-9812	●	●	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	9901-0004	●	●	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	0005-0512	●	●	●		●
2	CAP; SURGE TANK	1-21483-008-0	01	1	0601-	●	●	●		●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	9510-9802	●	●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	9803-0004	●	●	●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	0005-0512	●	●	●		●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	0601-	●	●	●		●	●
10	CLIP; RUBBER HOSE STD CAB(FR*M) (D) L=140	5-09707-031-0	01	1	9510-9802		●	●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-0	01	1	9510-9802	●
10	CLIP; RUBBER HOSE STD CAB(FR*M) (D) L=140	5-09707-031-1	01	1	9803-0004		●	●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	9803-0004	●			●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	0005-0512	●	●	●		●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	0601-	●	●	●		●	●
10	CLIP; RUBBER HOSE STD CAB(FR*M) (A) ID=13 L=50	9-09525-286-0	01	1	9510-9802		●	●
10	CLIP; RUBBER HOSE (A) ID=13 L=50	9-09525-286-0	01	1	9510-9802	●
10	CLIP; RUBBER HOSE STD CAB(FR*M) (A) ID=13 L=50	9-09525-286-0	01	1	9803-0004		●	●
10	CLIP; RUBBER HOSE (A) ID=13 L=50	9-09525-286-0	01	1	9803-0004	●			●
10	CLIP; RUBBER HOSE CAB SUSPENSION RIGID<W71> (A) ID=13 L=50	9-09525-286-0	01	1	0005-0606	●	●	●		●
10	CLIP; RUBBER HOSE CAB SUSPENSION RIGID<W71> (A) ID=13 L=50	0-95235-286-0	01	1	0607-	●	●	●		●
10	CLIP; RUBBER HOSE STD CAB(FR*M) CAB SUSPENSION RIGID<W71> (B) ID=14 L=44	9-09917-427-0	03	1	9510-0004		●	●
10	CLIP; RUBBER HOSE CAB SUSPENSION RIGID<W71> (B) ID=14 L=44	9-09917-427-0	03	1	9510-0004	●			●
10	CLIP; RUBBER HOSE CAB SUSPENSION RIGID<W71> (B) ID=14 L=44	9-09917-427-0	03	1	0005-	●	●	●		●
10	CLIP; RUBBER HOSE DOUBLE CAB(FR*W) (E) ID=13 L=50	1-09700-027-1	01	1	9510-0004		●	●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (H) ID=13 L=20	9-09525-235-0	01	1	0005-0512	●	●	●		●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (H) ID=13 L=20	9-09525-235-0	01	1	0601-0606	●	●	●		●
10	CLIP; RUBBER HOSE (H) ID=13 L=20	9-09525-235-0	01	1	0601-0606						●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (H) ID=13 L=20	0-95235-235-0	01	1	0607-	●	●	●		●
10	CLIP; RUBBER HOSE DOUBLE CAB(FR*W) (F) ID=13 L=40	9-09525-276-0	01	1	9510-0004		●	●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> EURO2 SPECIFICATION<THN> (A) ID=14.5 L=40	1-09701-014-0	01	1	0005-0008	●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (A) ID=14.5 L=40	1-09701-014-0	02	1	9510-9802	●	●	●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (A) ID=14.5 L=40	1-09701-014-0	02	1	9803-0004	●	●	●	●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (A) ID=14.5 L=40	1-09701-014-0	02	1	0005-0512	●	●	●		●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (A) ID=14.5 L=40	1-09701-014-0	02	1	0601-	●	●	●		●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	02	1	0601-						●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=14 L=44	9-09917-427-0	01	1	9510-9802	●	●	●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=14 L=44	9-09917-427-0	01	1	9803-0004	●	●	●	●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (G) ID=12 L=70	1-09700-097-1	01	1	0005-0512	●	●	●		●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (G) ID=12 L=70	1-09700-097-1	01	1	0601-	●	●	●		●
10	CLIP; RUBBER HOSE (G) ID=12 L=70	1-09700-097-1	01	1	0601-						●
10	CLIP; RUBBER HOSE CAB SUSPENSION RIGID<W71> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	9510-0004	●	●	●	●
10	CLIP; RUBBER HOSE CAB SUSPENSION RIGID<W71> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0005-0008	●	●	●		●
10	CLIP; RUBBER HOSE CAB SUSPENSION RIGID<W71> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0009-0512		●	●
10	CLIP; RUBBER HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0009-0512	●				●
10	CLIP; RUBBER HOSE CAB SUSPENSION RIGID<W71> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0601-		●	●
10	CLIP; RUBBER HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0601-	●				●	●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=14 L=44	9-09917-427-0	01	1	0005-0512	●	●	●		●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=14 L=44	9-09917-427-0	01	1	0601-	●	●	●		●
10	CLIP; RUBBER HOSE (B) ID=14 L=44	9-09917-427-0	01	1	0601-						●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	9901-0004	●	●	●	●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	0005-0512	●	●	●		●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	0601-	●	●	●		●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	9510-9802	●	●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	9803-0004	●	●	●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	0005-0512	●	●	●		●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	0601-	●	●	●		●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	9510-9802	●	●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	9803-0004	●	●	●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	0005-0512	●	●	●		●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	0601-	●	●	●		●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	9510-9802	●	●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	9803-0004	●	●	●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	0005-0512	●	●	●		●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	0601-	●	●	●		●	●
40	BOLT; CLIP CAB SUSPENSION RIGID<W71> M8X20 FLANGE	0-28080-820-0	02	1	9510-9606		●	●
40	BOLT; CLIP CAB SUSPENSION RIGID<W71> M8X20 FLANGE	0-28680-820-0	02	1	9607-0004	●	●	●	●
40	BOLT; CLIP CAB SUSPENSION RIGID<W71> M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●	●	●		●
40	BOLT; CLIP CAB SUSPENSION RIGID<W71> M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●		●
40	BOLT; CLIP CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE	0-28080-820-0	03	1	9510-9606	●	●	●
40	BOLT; CLIP CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE	0-28680-820-0	03	1	9607-9802	●	●	●
40	BOLT; CLIP CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE	0-28680-820-0	03	1	9803-0004	●	●	●	●
40	BOLT; CLIP CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE	0-28680-820-0	04	1	0005-0512	●	●	●		●
40	BOLT; CLIP CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●	●		●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	0601-						●
40	BOLT; CLIP CAB SUSPENSION SEMI FLOATING<SDK> EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28680-820-0	01	1	0005-0512	●
40	BOLT; CLIP CAB SUSPENSION SEMI FLOATING<SDK> EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28650-820-0	01	1	0601-0601	●
40	BOLT; CLIP CAB SUSPENSION SEMI FLOATING<SDK> EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
40	BOLT; CLIP CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE	0-28650-820-0	01	1	0601-						●
55	HOSE; WATER,RAD OUTLET (B)	1-21437-869-1	01	1	0601-						●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-560-0	01	1	9510-9802	●	●	●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-560-0	01	1	9803-0004	●	●	●	●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-560-0	01	1	0005-0010	●	●	●		●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-560-2	01	1	0011-0403		●
55	HOSE; WATER,RAD OUTLET EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-21437-560-2	01	1	0011-0403	●			●	●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-560-2	01	1	0404-	●	●	●
55	HOSE; WATER,RAD OUTLET EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-21437-560-2	01	1	0404-					●
55	HOSE; WATER,RAD OUTLET NEW ZEALAND EQUIPMENT(PK5) (C)	1-21437-801-0	01	1	0011-					●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	0011-0403		●
56	CLIP; WATER HOSE,RAD EXC. NEW ZEALAND EQUIPMENT(PK5) ID=63	1-09704-067-0	04	1	0011-0403	●			●	●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	0404-0512	●	●	●
56	CLIP; WATER HOSE,RAD EXC. NEW ZEALAND EQUIPMENT(PK5) ID=63	1-09704-067-0	04	1	0404-0512					●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	0601-	●	●	●			●
56	CLIP; WATER HOSE,RAD EXC. NEW ZEALAND EQUIPMENT(PK5) ID=63	1-09704-067-0	04	1	0601-					●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	9510-9802	●	●	●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	9803-0004	●	●	●	●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	0005-0010	●	●	●		●
56	CLIP; WATER HOSE,RAD NEW ZEALAND EQUIPMENT(PK5) ID=63	1-09704-067-0	02	1	0011-					●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9510-9802	●	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9803-0004	●	●	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0005-0512	●	●	●		●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0601-0707	●	●	●		●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0708-	●	●	●		●
65	NUT; BRKT,SUB TANK M8	9-09110-408-0	04	1	9510-9606	●	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	9607-9802	●	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	9803-0004	●	●	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	0005-0512	●	●	●		●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	0601-0602	●	●	●		●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●		●	●
67	BOLT; BRKT M10X20 W/LK WASHER	0-50041-020-0	02	1	9510-9606	●	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	9607-9802	●	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	9803-0004	●	●	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	0005-0512	●	●	●		●
67	BOLT; BRKT M10X20 FLANGE	0-28651-020-0	02	1	0601-	●	●	●		●	●
128	HOSE; WATER,RAD INL	1-21437-756-0	01	1	0601-						●
128	HOSE; WATER,RAD INL	1-21437-450-0	01	1	9510-9708	●	●	●
128	HOSE; WATER,RAD INL	1-21437-675-0	01	1	9709-9802	●	●	●
128	HOSE; WATER,RAD INL	1-21437-675-0	01	1	9803-0004	●	●	●	●
128	HOSE; WATER,RAD INL	1-21437-675-0	01	1	0005-0707	●	●	●		●
128	HOSE; WATER,RAD INL	1-21437-450-0	01	1	0708-	●	●	●		●
132	BOLT; CLIP,WATER HOSE,OUTLET NEW ZEALAND EQUIPMENT(PK5) M8X30 FLANGE	0-28680-830-0	01	1	0011-0512					●
132	BOLT; CLIP,WATER HOSE,OUTLET NEW ZEALAND EQUIPMENT(PK5) M8X30 FLANGE	0-28650-830-0	01	1	0601-0601					●
132	BOLT; CLIP,WATER HOSE,OUTLET NEW ZEALAND EQUIPMENT(PK5) M8X30 FLANGE	0-28650-830-0	01	1	0601-					●
132	BOLT; CLIP,WATER HOSE,OUTLET M8X30 FLANGE	0-28650-830-0	01	1	0601-						●

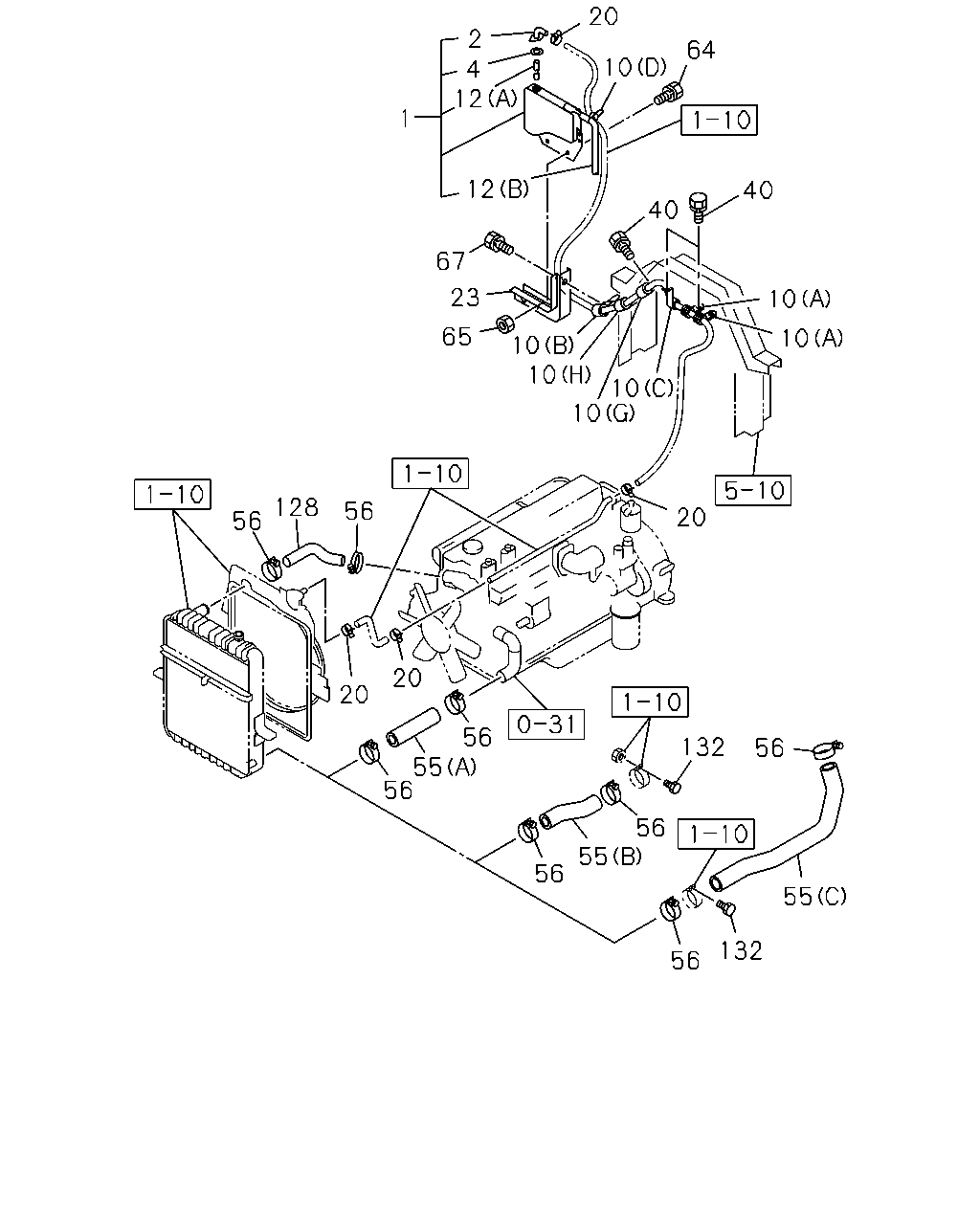

20 2 4 12 64 1 12 67 40 23 10 65 40 10 10 128 56 20 56 20 20 56 55 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; SURGE,RAD	1-21480-077-2	01	1	9510-9802	●	●	●
1	TANK; SURGE,RAD	1-21480-077-2	01	1	9803-9812	●	●	●	●
1	TANK; SURGE,RAD	1-21480-104-0	01	1	9901-0004	●	●	●	●
1	TANK; SURGE,RAD	1-21480-104-1	01	1	0005-0512	●	●	●		●
1	TANK; SURGE,RAD	1-21480-104-1	01	1	0601-	●	●	●		●	●
2	CAP; SURGE TANK	5-21483-001-1	01	1	9510-9802	●	●	●
2	CAP; SURGE TANK	5-21483-001-1	01	1	9803-9812	●	●	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	9901-0004	●	●	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	0005-0512	●	●	●		●
2	CAP; SURGE TANK	1-21483-008-0	01	1	0601-	●	●	●		●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	9510-9802	●	●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	9803-0004	●	●	●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	0005-0512	●	●	●		●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	0601-	●	●	●		●	●
10	CLIP; RUBBER HOSE STD CAB(FR*M) (D) L=140	5-09707-031-0	01	1	9510-9802		●	●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-0	01	1	9510-9802	●
10	CLIP; RUBBER HOSE STD CAB(FR*M) (D) L=140	5-09707-031-1	01	1	9803-0004		●	●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	9803-0004	●			●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	0005-0512	●	●	●		●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	0601-	●	●	●		●	●
10	CLIP; RUBBER HOSE STD CAB(FR*M) (A) ID=13 L=50	9-09525-286-0	01	1	9510-9802		●	●
10	CLIP; RUBBER HOSE (A) ID=13 L=50	9-09525-286-0	01	1	9510-9802	●
10	CLIP; RUBBER HOSE STD CAB(FR*M) (A) ID=13 L=50	9-09525-286-0	01	1	9803-0004		●	●
10	CLIP; RUBBER HOSE (A) ID=13 L=50	9-09525-286-0	01	1	9803-0004	●			●
10	CLIP; RUBBER HOSE CAB SUSPENSION RIGID<W71> (A) ID=13 L=50	9-09525-286-0	01	1	0005-0606	●	●	●		●
10	CLIP; RUBBER HOSE CAB SUSPENSION RIGID<W71> (A) ID=13 L=50	0-95235-286-0	01	1	0607-	●	●	●		●
10	CLIP; RUBBER HOSE STD CAB(FR*M) CAB SUSPENSION RIGID<W71> (B) ID=14 L=44	9-09917-427-0	03	1	9510-0004		●	●
10	CLIP; RUBBER HOSE CAB SUSPENSION RIGID<W71> (B) ID=14 L=44	9-09917-427-0	03	1	9510-0004	●			●
10	CLIP; RUBBER HOSE CAB SUSPENSION RIGID<W71> (B) ID=14 L=44	9-09917-427-0	03	1	0005-	●	●	●		●
10	CLIP; RUBBER HOSE DOUBLE CAB(FR*W) (E) ID=13 L=50	1-09700-027-1	01	1	9510-0004		●	●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (H) ID=13 L=20	9-09525-235-0	01	1	0005-0512	●	●	●		●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (H) ID=13 L=20	9-09525-235-0	01	1	0601-0606	●	●	●		●
10	CLIP; RUBBER HOSE (H) ID=13 L=20	9-09525-235-0	01	1	0601-0606						●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (H) ID=13 L=20	0-95235-235-0	01	1	0607-	●	●	●		●
10	CLIP; RUBBER HOSE DOUBLE CAB(FR*W) (F) ID=13 L=40	9-09525-276-0	01	1	9510-0004		●	●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> EURO2 SPECIFICATION<THN> (A) ID=14.5 L=40	1-09701-014-0	01	1	0005-0008	●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (A) ID=14.5 L=40	1-09701-014-0	02	1	9510-9802	●	●	●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (A) ID=14.5 L=40	1-09701-014-0	02	1	9803-0004	●	●	●	●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (A) ID=14.5 L=40	1-09701-014-0	02	1	0005-0512	●	●	●		●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (A) ID=14.5 L=40	1-09701-014-0	02	1	0601-	●	●	●		●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	02	1	0601-						●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=14 L=44	9-09917-427-0	01	1	9510-9802	●	●	●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=14 L=44	9-09917-427-0	01	1	9803-0004	●	●	●	●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (G) ID=12 L=70	1-09700-097-1	01	1	0005-0512	●	●	●		●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (G) ID=12 L=70	1-09700-097-1	01	1	0601-	●	●	●		●
10	CLIP; RUBBER HOSE (G) ID=12 L=70	1-09700-097-1	01	1	0601-						●
10	CLIP; RUBBER HOSE CAB SUSPENSION RIGID<W71> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	9510-0004	●	●	●	●
10	CLIP; RUBBER HOSE CAB SUSPENSION RIGID<W71> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0005-0008	●	●	●		●
10	CLIP; RUBBER HOSE CAB SUSPENSION RIGID<W71> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0009-0512		●	●
10	CLIP; RUBBER HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0009-0512	●				●
10	CLIP; RUBBER HOSE CAB SUSPENSION RIGID<W71> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0601-		●	●
10	CLIP; RUBBER HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0601-	●				●	●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=14 L=44	9-09917-427-0	01	1	0005-0512	●	●	●		●
10	CLIP; RUBBER HOSE CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=14 L=44	9-09917-427-0	01	1	0601-	●	●	●		●
10	CLIP; RUBBER HOSE (B) ID=14 L=44	9-09917-427-0	01	1	0601-						●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	9901-0004	●	●	●	●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	0005-0512	●	●	●		●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	0601-	●	●	●		●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	9510-9802	●	●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	9803-0004	●	●	●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	0005-0512	●	●	●		●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	0601-	●	●	●		●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	9510-9802	●	●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	9803-0004	●	●	●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	0005-0512	●	●	●		●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	0601-	●	●	●		●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	9510-9802	●	●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	9803-0004	●	●	●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	0005-0512	●	●	●		●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	0601-	●	●	●		●	●
40	BOLT; CLIP CAB SUSPENSION RIGID<W71> M8X20 FLANGE	0-28080-820-0	02	1	9510-9606		●	●
40	BOLT; CLIP CAB SUSPENSION RIGID<W71> M8X20 FLANGE	0-28680-820-0	02	1	9607-0004	●	●	●	●
40	BOLT; CLIP CAB SUSPENSION RIGID<W71> M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●	●	●		●
40	BOLT; CLIP CAB SUSPENSION RIGID<W71> M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●		●
40	BOLT; CLIP CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE	0-28080-820-0	03	1	9510-9606	●	●	●
40	BOLT; CLIP CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE	0-28680-820-0	03	1	9607-9802	●	●	●
40	BOLT; CLIP CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE	0-28680-820-0	03	1	9803-0004	●	●	●	●
40	BOLT; CLIP CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE	0-28680-820-0	04	1	0005-0512	●	●	●		●
40	BOLT; CLIP CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●	●		●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	0601-						●
40	BOLT; CLIP CAB SUSPENSION SEMI FLOATING<SDK> EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28680-820-0	01	1	0005-0512	●
40	BOLT; CLIP CAB SUSPENSION SEMI FLOATING<SDK> EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28650-820-0	01	1	0601-0601	●
40	BOLT; CLIP CAB SUSPENSION SEMI FLOATING<SDK> EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
40	BOLT; CLIP CAB SUSPENSION SEMI FLOATING<SDK> M8X20 FLANGE	0-28650-820-0	01	1	0601-						●
55	HOSE; WATER,RAD OUTLET (B)	1-21437-869-1	01	1	0601-						●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-560-0	01	1	9510-9802	●	●	●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-560-0	01	1	9803-0004	●	●	●	●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-560-0	01	1	0005-0010	●	●	●		●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-560-2	01	1	0011-0403		●
55	HOSE; WATER,RAD OUTLET EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-21437-560-2	01	1	0011-0403	●			●	●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-560-2	01	1	0404-	●	●	●
55	HOSE; WATER,RAD OUTLET EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-21437-560-2	01	1	0404-					●
55	HOSE; WATER,RAD OUTLET NEW ZEALAND EQUIPMENT(PK5) (C)	1-21437-801-0	01	1	0011-					●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	0011-0403		●
56	CLIP; WATER HOSE,RAD EXC. NEW ZEALAND EQUIPMENT(PK5) ID=63	1-09704-067-0	04	1	0011-0403	●			●	●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	0404-0512	●	●	●
56	CLIP; WATER HOSE,RAD EXC. NEW ZEALAND EQUIPMENT(PK5) ID=63	1-09704-067-0	04	1	0404-0512					●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	0601-	●	●	●			●
56	CLIP; WATER HOSE,RAD EXC. NEW ZEALAND EQUIPMENT(PK5) ID=63	1-09704-067-0	04	1	0601-					●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	9510-9802	●	●	●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	9803-0004	●	●	●	●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	0005-0010	●	●	●		●
56	CLIP; WATER HOSE,RAD NEW ZEALAND EQUIPMENT(PK5) ID=63	1-09704-067-0	02	1	0011-					●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9510-9802	●	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9803-0004	●	●	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0005-0512	●	●	●		●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0601-0707	●	●	●		●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0708-	●	●	●		●
65	NUT; BRKT,SUB TANK M8	9-09110-408-0	04	1	9510-9606	●	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	9607-9802	●	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	9803-0004	●	●	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	0005-0512	●	●	●		●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	0601-0602	●	●	●		●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●		●	●
67	BOLT; BRKT M10X20 W/LK WASHER	0-50041-020-0	02	1	9510-9606	●	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	9607-9802	●	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	9803-0004	●	●	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	0005-0512	●	●	●		●
67	BOLT; BRKT M10X20 FLANGE	0-28651-020-0	02	1	0601-	●	●	●		●	●
128	HOSE; WATER,RAD INL	1-21437-756-0	01	1	0601-						●
128	HOSE; WATER,RAD INL	1-21437-450-0	01	1	9510-9708	●	●	●
128	HOSE; WATER,RAD INL	1-21437-675-0	01	1	9709-9802	●	●	●
128	HOSE; WATER,RAD INL	1-21437-675-0	01	1	9803-0004	●	●	●	●
128	HOSE; WATER,RAD INL	1-21437-675-0	01	1	0005-0707	●	●	●		●
128	HOSE; WATER,RAD INL	1-21437-450-0	01	1	0708-	●	●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
