◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10698 - FRR RHD EXC.EURO3 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-82 - BOOST COMPENSATOR; INJECTION GOVERNOR ▶
0-82 — BOOST COMPENSATOR; INJECTION GOVERNOR (#37270) — 9 parça

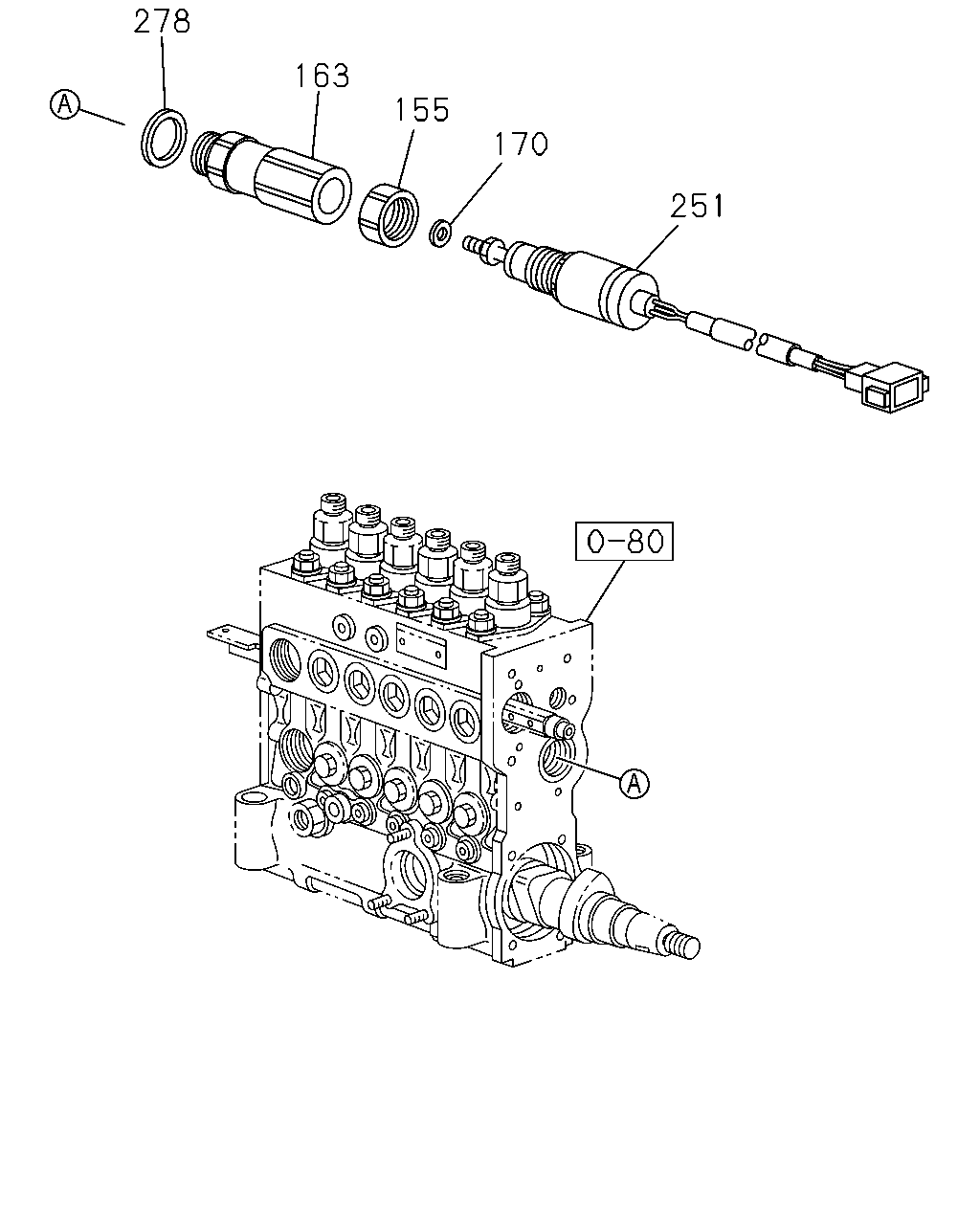

çizim 151193
278 163 155 170 251
BalonParca AdiParca NoAdetTipApplied Date
155 NUT; SENSOR
ASM PART: A = 8-94390-618-3, B = 8-94391-109-3, C = 8-94392-231-8, D = 8-97600-576-1, E = 8-97602-131-0 		1-15779-179-0 01 1 -
163 JOINT; LOAD SENSOR,SENSOR SIDE
ASM PART: A = 8-94390-618-3, B = 8-94391-109-3, C = 8-94392-231-8, D = 8-97600-576-1, E = 8-97602-131-0 		1-15779-551-0 01 1 -
170 SHIM; CONN PIN,LOAD SENSOR,GOV
ASM PART: A = 8-94390-618-3, B = 8-94391-109-3, C = 8-94392-231-8, D = 8-97600-576-1, E = 8-97602-131-0 		1-15729-673-0 01 1 -
251 SENSOR; RACK,GOV
ASM PART: B = 8-94391-109-3 		1-15637-035-0 01 1 -0004
251 SENSOR; RACK,GOV
ASM PART: D = 8-97600-576-1, E = 8-97602-131-0 		1-15637-045-2 01 1 -
251 SENSOR; RACK,GOV
ASM PART: C = 8-94392-231-8 		1-15637-046-5 01 1 -
251 SENSOR; RACK,GOV
ASM PART: A = 8-94390-618-3 		1-15637-054-0 01 1 -
251 SENSOR; RACK,GOV
ASM PART: B = 8-94391-109-3 		1-15637-054-0 01 1 0005-
278 GASKET; SENSOR
ASM PART: A = 8-94390-618-3, B = 8-94391-109-3, C = 8-94392-231-8, D = 8-97600-576-1, E = 8-97602-131-0 		9-81325-528-0 01 1 -
