0-82B — BOOST COMPENSATOR; INJECTION GOVERNOR (#3727) — 81 parça

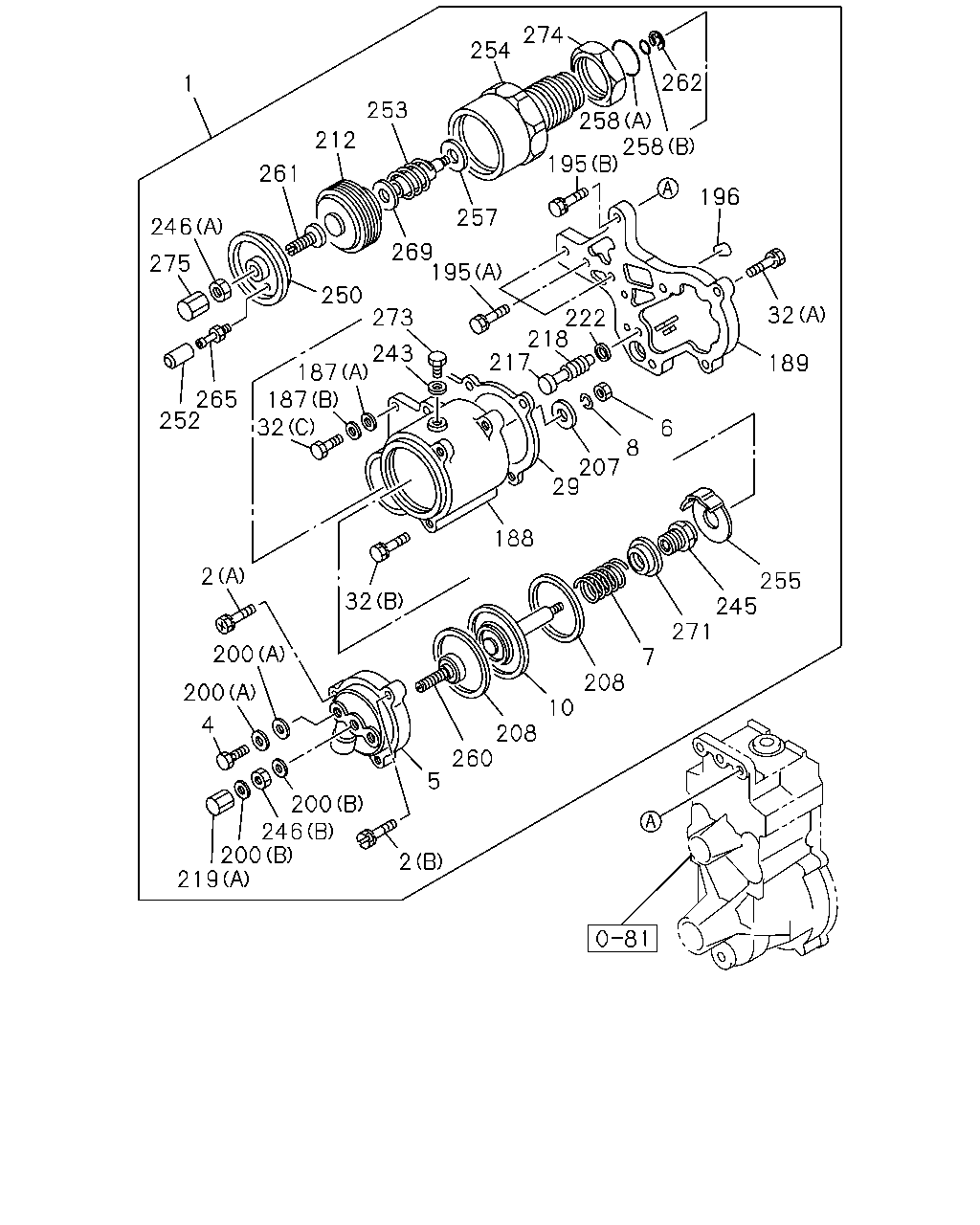

çizim 6818
274 254 262 1 253 258 258 195 212 261 196 257 246 269 195 275 250 273 222 218 217 32 243 187 187 32 189 265 252 6 8 207 29 188 2 255 245 271 32 200 7 208 200 10 4 208 260 5 200 246 200 219 2
BalonParca AdiParca NoAdetTipApplied Date
1 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: C = 8-94392-708-1 		1-15728-105-0 01 1 -
2 BOLT; COVER FIX,BOOST COMPENSATOR
(B) ASM PART: C = 8-94392-708-1 		5-15729-297-0 02 1 -
2 BOLT; COVER FIX,BOOST COMPENSATOR
(A) ASM PART: C = 8-94392-708-1 		8-97029-204-0 01 1 -
4 BOLT; EYE,BOOST PIPE,COMPENSATOR
ASM PART: C = 8-94392-708-1 		1-15729-325-0 01 1 -
5 COVER; HSG,BOOST COMPENSATOR,GOV
ASM PART: C = 8-94392-708-1 		1-15619-283-0 01 1 -
6 NUT; DIAPH,BOOST COMPENSATOR
ASM PART: C = 8-94392-708-1 		1-15729-249-0 01 1 -
7 SPRING; DIAPH,BOOST COMPENSATOR
ASM PART: C = 8-94392-708-1 		1-15723-569-0 01 1 -
8 WASHER; LK,DIAPH,BOOST COMPENSATOR
ID=6.1 ASM PART: C = 8-94392-708-1 		9-09150-506-0 01 1 -
10 DIAPHRAGM; BOOST COMPENSATOR,GOV
ASM PART: C = 8-94392-708-1 		8-97037-286-0 01 1 -
29 GASKET; HSG,BOOST COMPENSATOR
ASM PART: C = 8-94392-708-1 		1-15779-616-0 01 1 -
32 BOLT; BOOST COMPENSATOR FIX,INJ PUMP
(C), M6X16 ASM PART: C = 8-94392-708-1 		9-02050-616-0 01 1 -
32 BOLT; BOOST COMPENSATOR FIX,INJ PUMP
(B), M6X20 ASM PART: C = 8-94392-708-1 		9-81325-187-0 02 1 -
32 BOLT; BOOST COMPENSATOR FIX,INJ PUMP
(A) ASM PART: C = 8-94392-708-1 		9-88410-094-0 03 1 -
187 WASHER; LK,BOOST COMPENSATOR FIX
(A) ASM PART: C = 8-94392-708-1 		8-97037-295-0 01 1 -
187 WASHER; LK,BOOST COMPENSATOR FIX
(B), ID=6.4 OD=14 ASM PART: C = 8-94392-708-1 		9-09160-606-0 01 1 -
188 HOUSING; BOOST COMPENSATOR,INJ PUMP
ASM PART: C = 8-94392-708-1 		1-15779-614-0 01 1 -
189 SPACER; BOOST COMPENSATOR HSG
ASM PART: C = 8-94392-708-1 		1-15779-615-0 01 1 -
195 BOLT; SPACER FIX,BOOST COMPENSATOR
(B), M8X30 ASM PART: C = 8-94392-708-1 		1-15729-243-0 01 1 -
195 BOLT; SPACER FIX,BOOST COMPENSATOR
(A) ASM PART: C = 8-94392-708-1 		9-88410-094-0 03 1 -
196 GASKET; SPACER,BOOST COMPENSATOR
ASM PART: C = 8-94392-708-1 		8-94424-220-0 01 1 -
200 GASKET; EYE BOLT,BOOST COMPENSATOR
(A) ASM PART: C = 8-94392-708-1 		1-15729-849-0 02 1 -
200 GASKET; EYE BOLT,BOOST COMPENSATOR
(B) ASM PART: C = 8-94392-708-1 		1-15729-868-0 02 1 -
207 DISC; DIAPH,BOOST COMPENSATOR
ASM PART: C = 8-94392-708-1 		1-15729-248-0 01 1 -
208 GASKET; DIAPH,BOOST COMPENSATOR
ASM PART: C = 8-94392-708-1 		1-15779-129-0 02 1 -
212 BELLOWS; BOOST COMPENSATOR
ASM PART: C = 8-94392-708-1 		1-15729-622-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=125.0 ASM PART: C = 8-94392-708-1 		1-15729-245-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=127.5 ASM PART: C = 8-94392-708-1 		8-94172-282-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=128.0 ASM PART: C = 8-94392-708-1 		8-94172-283-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=127.0 ASM PART: C = 8-94392-708-1 		8-94172-284-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=126.0 ASM PART: C = 8-94392-708-1 		8-94172-285-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=129.0 ASM PART: C = 8-94392-708-1 		8-94172-286-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=128.5 ASM PART: C = 8-94392-708-1 		8-94172-287-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=125.5 ASM PART: C = 8-94392-708-1 		8-94172-288-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=126.5 ASM PART: C = 8-94392-708-1 		8-94172-289-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=119.5 ASM PART: C = 8-94392-708-1 		8-94172-290-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=120.0 ASM PART: C = 8-94392-708-1 		8-94172-291-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=120.5 ASM PART: C = 8-94392-708-1 		8-94172-292-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=121.0 ASM PART: C = 8-94392-708-1 		8-94172-293-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=121.5 ASM PART: C = 8-94392-708-1 		8-94172-294-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=122.0 ASM PART: C = 8-94392-708-1 		8-94172-295-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=122.5 ASM PART: C = 8-94392-708-1 		8-94172-296-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=123.0 ASM PART: C = 8-94392-708-1 		8-94172-297-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=123.5 ASM PART: C = 8-94392-708-1 		8-94172-298-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=129.5 ASM PART: C = 8-94392-708-1 		8-94443-435-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=130.0 ASM PART: C = 8-94392-708-1 		8-94443-436-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=130.5 ASM PART: C = 8-94392-708-1 		8-94443-437-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=131.0 ASM PART: C = 8-94392-708-1 		8-94443-438-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=131.5 ASM PART: C = 8-94392-708-1 		8-94443-439-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=132.0 ASM PART: C = 8-94392-708-1 		8-94443-440-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=132.5 ASM PART: C = 8-94392-708-1 		8-94443-441-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=133.0 ASM PART: C = 8-94392-708-1 		8-94443-442-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=133.5 ASM PART: C = 8-94392-708-1 		8-94443-443-0 01 1 -
218 SPRING; PUSH ROD,BOOST COMPENSATOR
ASM PART: C = 8-94392-708-1 		8-94171-176-0 01 1 -
219 NUT; CAP,ADJ SCREW,BOOST COMPENSATOR
(A), CAP NUT ASM PART: C = 8-94392-708-1 		1-15729-093-0 01 1 -
222 WASHER; PUSH ROD,BOOST COMPENSATOR
ASM PART: C = 8-94392-708-1 		1-83539-045-0 01 1 -
243 GASKET; HSG
L=96 ASM PART: C = 8-94392-708-1 		1-15729-066-0 01 1 -
245 BUSHING; DIAPHRAGM
ASM PART: C = 8-94392-708-1 		8-97104-945-0 01 1 -
246 NUT; SET BOLT
(A) ASM PART: C = 8-94392-708-1 		9-81325-081-0 01 1 -
246 NUT; SET BOLT
(B) ASM PART: C = 8-94392-708-1 		9-88410-525-0 01 1 -
250 COVER; HSG
ASM PART: C = 8-94392-708-1 		1-15721-103-0 01 1 -
252 CAP; HOSE JOINT
ASM PART: C = 8-94392-708-1 		8-94424-221-0 01 1 -
253 SPRING; PUSH ROD
ASM PART: C = 8-94392-708-1 		1-15723-151-0 01 1 -
254 HOUSING; BOOST COMPENSATOR
ASM PART: C = 8-94392-708-1 		8-97037-289-1 01 1 -
255 PLATE; DIAPHRAGM
ASM PART: C = 8-94392-708-1 		8-94122-719-0 01 1 -
257 SHIM; SPRING
ASM PART: C = 8-94392-708-1 		8-97037-292-0 01 1 -
258 GASKET; HSG
(A) ASM PART: C = 8-94392-708-1 		8-97037-290-0 01 1 -
258 GASKET; HSG
(B) ASM PART: C = 8-94392-708-1 		8-97037-291-0 01 1 -
260 SCREW; DIAPHRAGM
ASM PART: C = 8-94392-708-1 		8-97037-287-0 01 1 -
261 BOLT; SET,BELLOWS
ASM PART: C = 8-94392-708-1 		1-15729-342-0 01 1 -
262 RING; SNAP,HSG
ASM PART: C = 8-94392-708-1 		8-94244-599-0 01 1 -
265 JOINT; HOSE
ASM PART: C = 8-94392-708-1 		1-15729-360-0 01 1 -
269 ROD; PUSH,BELLOWS
ASM PART: C = 8-94392-708-1 		8-97037-293-0 01 1 -
271 NUT; DIAPHRAGM
ASM PART: C = 8-94392-708-1 		8-97104-978-0 01 1 -
273 PLUG; HSG
ASM PART: C = 8-94392-708-1 		8-97037-288-0 01 1 -
274 NUT; HSG
ASM PART: C = 8-94392-708-1 		8-97037-294-0 01 1 -
275 NUT; CAP,SET BOLT
CAP NUT ASM PART: C = 8-94392-708-1 		1-15729-093-0 01 1 -
çizim 37760
251 170 155 163 278
BalonParca AdiParca NoAdetTipApplied Date
155 NUT; SENSOR
ASM PART: A = 1-15603-294-4, B = 1-15603-366-5 		1-15779-179-0 01 1 -
163 JOINT; LOAD SENSOR,SENSOR SIDE
ASM PART: A = 1-15603-294-4, B = 1-15603-366-5 		1-15779-176-0 01 1 -
170 SHIM; CONN PIN,LOAD SENSOR,GOV
ASM PART: A = 1-15603-294-4, B = 1-15603-366-5 		1-15729-673-0 01 1 -
251 SENSOR; RACK,GOV
ASM PART: A = 1-15603-294-4, B = 1-15603-366-5 		1-15779-533-1 01 1 -
278 GASKET; SENSOR
ASM PART: A = 1-15603-294-4, B = 1-15603-366-5 		9-81325-528-0 01 1 -
