Sayfa 0-60 - Isuzu EPC

0-60 — ENGINE ELECTRICAL CONTROL PARTS (#37264) — 371 parça

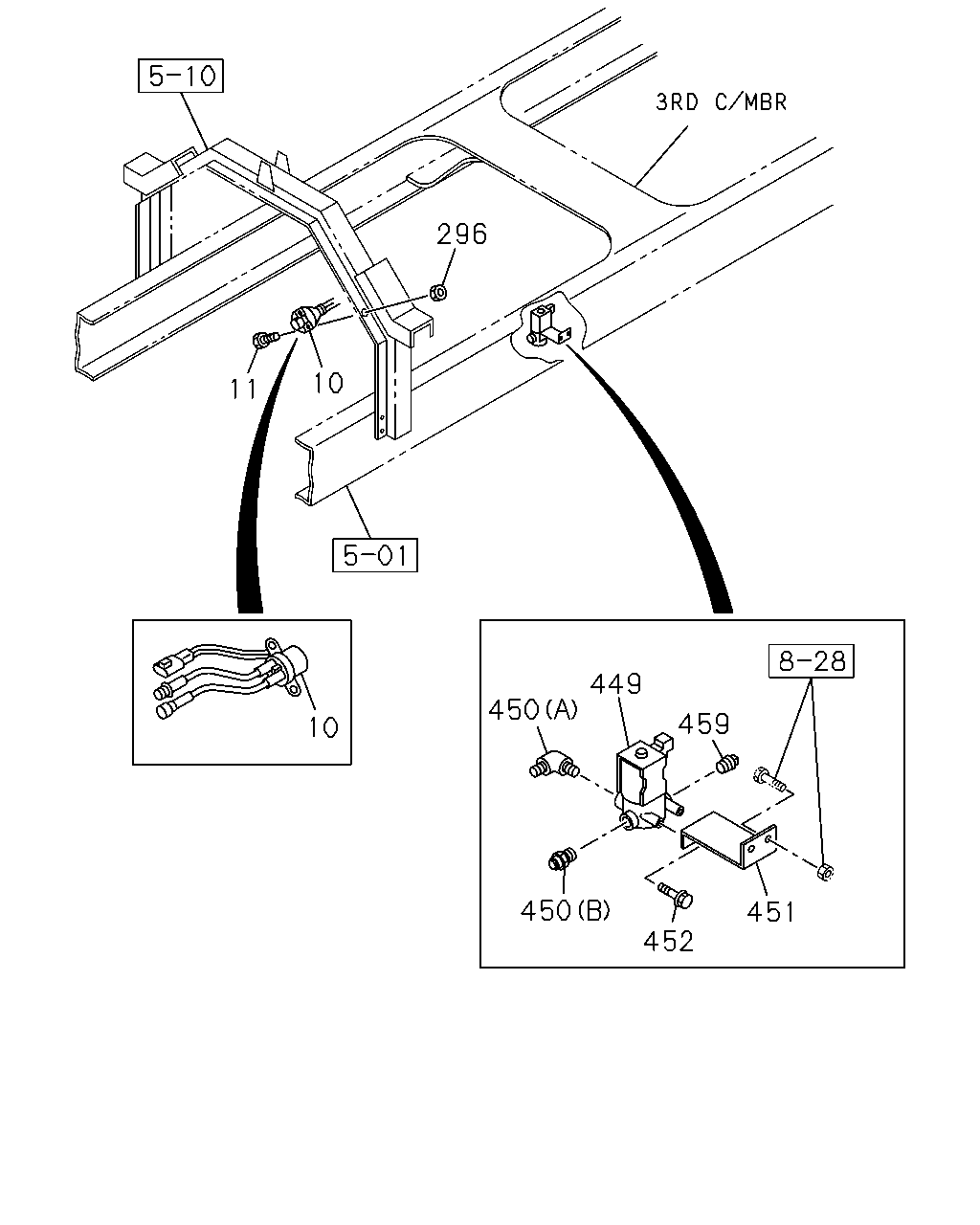

296 10 11 449 450 459 10 450 451 452

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
10	RELAY; STARTER NIKKO	1-81171-067-0	01	1	9510-9608	●	●
10	RELAY; STARTER NIKKO	1-81171-075-0	01	1	9609-0004	●	●
10	RELAY; STARTER HITACHI	1-81171-087-0	01	1	0005-0303	●	●	●
10	RELAY; STARTER NIKKO	1-81171-075-1	01	1	0304-	●	●	●
10	RELAY; STARTER HITACHI	1-81171-087-0	01	1	9904-9907	●	●
10	RELAY; STARTER EXC. NIKKO<Y70> HITACHI	1-81171-087-0	01	1	9908-0004	●	●		●	●
10	RELAY; STARTER DENSO	1-81171-070-0	01	1	9610-9802					●
10	RELAY; STARTER DENSO	1-81171-070-0	01	1	9803-				●	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28080-820-0	02	1	9510-9610	●	●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28680-825-0	02	1	9611-9801	●	●			●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28680-820-0	02	1	9802-9802	●	●			●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28680-820-0	02	1	9803-0004	●	●		●	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●	●	●		●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●		●	●
296	NUT; RELAY,STARTER M8	9-09110-408-0	02	1	9510-9606	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	9607-9609	●	●			●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	9610-0004	●	●		●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	0005-0512	●	●	●		●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	0601-0602	●	●	●		●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●		●	●
449	VALVE; MAG,VARIABLE SWIRL SYSTEM	1-82563-600-2	01	1	9510-9802	●
449	VALVE; MAG,VARIABLE SWIRL SYSTEM AUSTRALIA EQUIPMENT(RR3)	1-82563-600-2	01	1	9510-9802		●
449	VALVE; MAG,VARIABLE SWIRL SYSTEM AUSTRALIA EQUIPMENT(RR3)	1-82563-599-4	01	1	9803-0001	●	●
449	VALVE; MAG,VARIABLE SWIRL SYSTEM AUSTRALIA EQUIPMENT(RR3)	1-82563-778-2	01	1	0002-0004	●	●
450	CONNECTOR; MAG VLV,INL PORT EXHAUST BRAKE<NF8> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9510-9802	●
450	CONNECTOR; MAG VLV,INL PORT AUSTRALIA EQUIPMENT(RR3) EXHAUST BRAKE<NF8> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9510-9802		●
450	CONNECTOR; MAG VLV,INL PORT AUSTRALIA EQUIPMENT(RR3) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9803-0004	●	●
450	CONNECTOR; MAG VLV,INL PORT EXHAUST BRAKE<NF8> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9510-9802	●
450	CONNECTOR; MAG VLV,INL PORT AUSTRALIA EQUIPMENT(RR3) EXHAUST BRAKE<NF8> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9510-9802		●
450	CONNECTOR; MAG VLV,INL PORT AUSTRALIA EQUIPMENT(RR3) (B) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9803-9804	●	●
450	CONNECTOR; MAG VLV,INL PORT AUSTRALIA EQUIPMENT(RR3) (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9805-0004	●	●
450	CONNECTOR; MAG VLV,INL PORT EXC. EXHAUST BRAKE<NF8> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9510-9802	●
450	CONNECTOR; MAG VLV,INL PORT AUSTRALIA EQUIPMENT(RR3) EXC. EXHAUST BRAKE<NF8> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9510-9802		●
451	BRACKET; MAG VLV,VSS	1-47477-462-0	01	1	9510-9704	●
451	BRACKET; MAG VLV,VSS AUSTRALIA EQUIPMENT(RR3)	1-47477-462-0	01	1	9510-9704		●
451	BRACKET; MAG VLV,VSS	1-47477-953-0	01	1	9705-9802	●
451	BRACKET; MAG VLV,VSS AUSTRALIA EQUIPMENT(RR3)	1-47477-953-0	01	1	9705-9802		●
451	BRACKET; MAG VLV,VSS AUSTRALIA EQUIPMENT(RR3)	1-82569-208-0	01	1	9803-0004	●	●
452	BOLT; VSS MAG VLV M8X20 FLANGE	0-28080-820-0	02	1	9510-9802	●
452	BOLT; VSS MAG VLV AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE	0-28080-820-0	02	1	9510-9802		●
452	BOLT; VSS MAG VLV AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE	0-28080-820-0	02	1	9803-9810	●	●
452	BOLT; VSS MAG VLV AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE	0-28680-820-0	02	1	9811-0004	●	●
459	PLUG AUSTRALIA EQUIPMENT(RR3) PT1/4	9-99204-513-0	01	1	9510-9802	●	●
459	PLUG AUSTRALIA EQUIPMENT(RR3) PT1/4	9-99204-513-0	01	1	0002-0004	●	●
459	PLUG NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	0011-			●

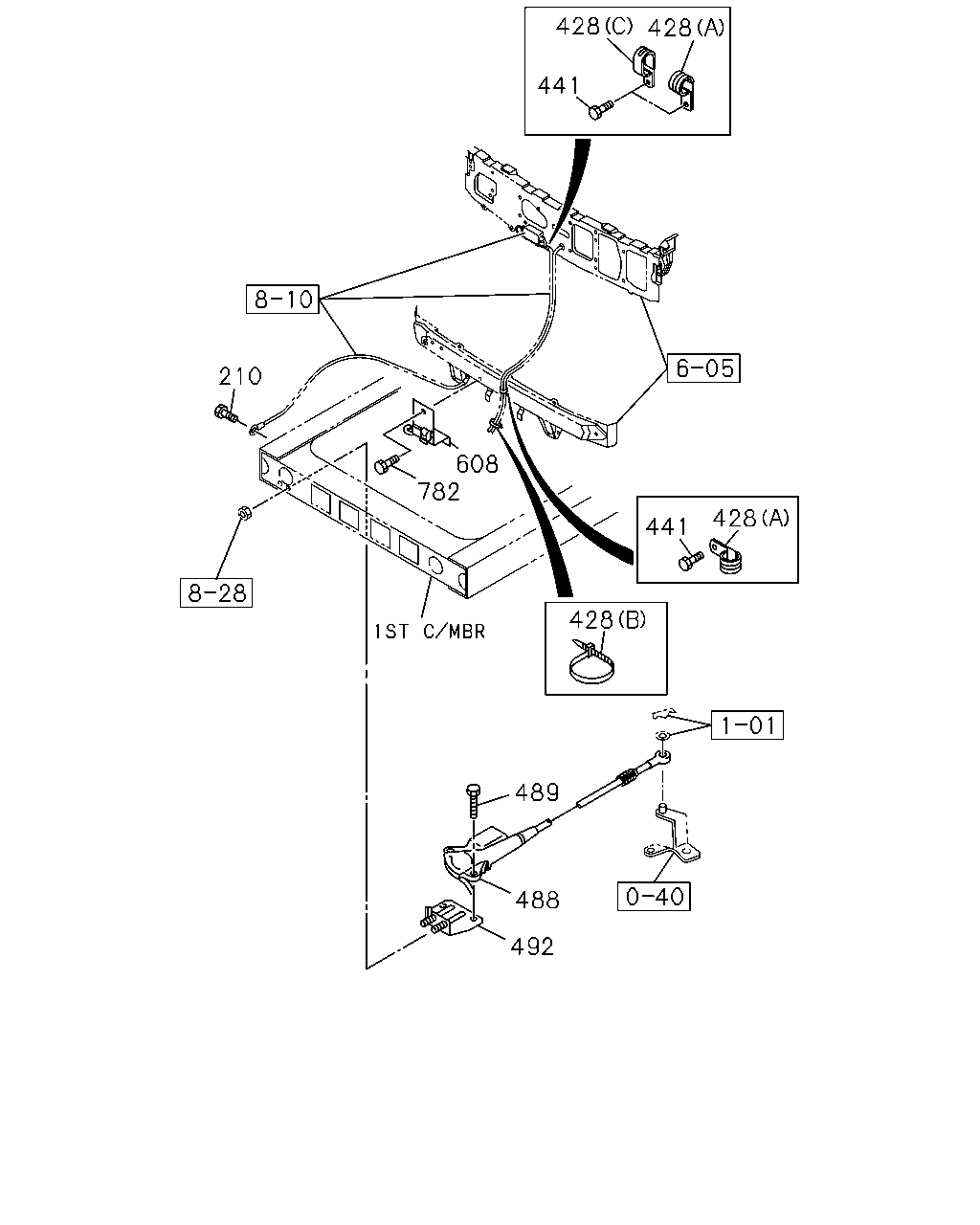

428 428 441 210 608 782 428 441 428 489 488 492

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
210	BOLT; CABLE FIX M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9510-9609	●	●
210	BOLT; CABLE FIX M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9610-9907	●	●		●	●
210	BOLT; CABLE FIX M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	9908-0004	●	●		●	●
210	BOLT; CABLE FIX M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0005-0512	●	●	●		●
210	BOLT; CABLE FIX M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0601-1201	●	●	●		●	●
210	BOLT; CABLE FIX M8X14 W/PL WASHER	8-98164-837-0	01	1	1202-	●	●	●		●
428	CLIP; HARNESS (B) L=300	1-09707-001-1	02	1	0601-						●
428	CLIP; HARNESS STD CAB(FR*M) EURO2 SPECIFICATION<THN> (C) ID=30X2 L=28	1-09701-266-0	01	1	0105-	●	●				●
428	CLIP; HARNESS EURO2 SPECIFICATION<THN> (C) ID=30X2 L=28	1-09701-266-0	01	1	0105-			●	●	●
428	CLIP; HARNESS (C) ID=30X2 L=28	1-09701-266-0	01	1	0105-			●
428	CLIP; HARNESS STD CAB(FR*M) EXC. EURO2 SPECIFICATION<THN> (A) ID=35 L=50	1-09701-214-0	02	1	0105-0512	●	●
428	CLIP; HARNESS EXC. EURO2 SPECIFICATION<THN> (A) ID=35 L=50	1-09701-214-0	02	1	0105-0512					●
428	CLIP; HARNESS EXC. EURO2 SPECIFICATION<THN> (A) ID=35 L=50	1-09701-214-0	02	1	0601-	●	●			●	●
428	CLIP; HARNESS (A) ID=35 L=50	1-09701-214-0	02	1	9510-9802	●	●			●
428	CLIP; HARNESS (A) ID=35 L=50	1-09701-214-0	02	1	9803-0004	●	●		●	●
428	CLIP; HARNESS (A) ID=35 L=50	1-09701-214-0	02	1	0005-0104	●	●	●		●
428	CLIP; HARNESS STD CAB(FR*M) EURO2 SPECIFICATION<THN> (A) ID=35 L=50	1-09701-214-0	01	1	0105-	●	●				●
428	CLIP; HARNESS EURO2 SPECIFICATION<THN> (A) ID=35 L=50	1-09701-214-0	01	1	0105-			●	●	●
428	CLIP; HARNESS (A) ID=35 L=50	1-09701-214-0	01	1	0105-			●
428	CLIP; HARNESS (B) L=300	1-09707-001-1	03	1	9610-0010					●
428	CLIP; HARNESS (B) L=300	1-09707-001-1	03	1	0011-			●		●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●			●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9607-9802	●	●			●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9803-0004	●	●		●	●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●	●	●		●
441	BOLT; HARNESS TO FRAME NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
441	BOLT; HARNESS TO FRAME EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ> M8X25 FLANGE	0-28650-825-0	02	1	0601-						●
488	STOPPER; ENG	1-82840-128-2	01	1	9510-9912	●	●
488	STOPPER; ENG	1-82840-128-2	01	1	0001-0004	●	●
488	STOPPER; ENG EXC. EURO2 SPECIFICATION<THN>	1-82840-128-2	01	1	0001-0004				●	●
488	STOPPER; ENG	1-82840-128-2	01	1	0005-0403	●	●	●
488	STOPPER; ENG EXC. EURO2 SPECIFICATION<THN>	1-82840-128-2	01	1	0005-0403			●		●
488	STOPPER; ENG STD CAB(FR*M)	1-82840-128-3	01	1	0404-	●	●
488	STOPPER; ENG EXC. EURO2 SPECIFICATION<THN>	1-82840-128-3	01	1	0404-					●
488	STOPPER; ENG	1-82840-128-3	01	1	0404-			●
488	STOPPER; ENG	1-82840-153-1	01	1	9610-9912					●
488	STOPPER; ENG EURO2 SPECIFICATION<THN>	1-82840-153-1	01	1	0001-0004				●	●
488	STOPPER; ENG EURO2 SPECIFICATION<THN>	1-82840-153-2	01	1	0005-					●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9510-9802	●	●			●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9803-0004	●	●		●	●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	0005-0512	●	●	●		●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50640-825-0	02	1	0601-	●	●	●		●
492	BRACKET; ENG STOPPER	1-82849-067-0	01	1	9510-9802	●	●			●
492	BRACKET; ENG STOPPER	1-82849-067-0	01	1	9803-0004	●	●		●	●
492	BRACKET; ENG STOPPER	1-82849-067-0	01	1	0005-	●	●	●		●
608	SENSOR; AIR TEMP	1-83544-031-0	01	1	0601-						●
608	SENSOR; AIR TEMP NEW ZEALAND EQUIPMENT(PK5)	1-83544-031-0	01	1	0101-0304			●
782	BOLT; SENSOR NEW ZEALAND EQUIPMENT(PK5) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0201-0512			●
782	BOLT; SENSOR NEW ZEALAND EQUIPMENT(PK5) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0601-			●			●

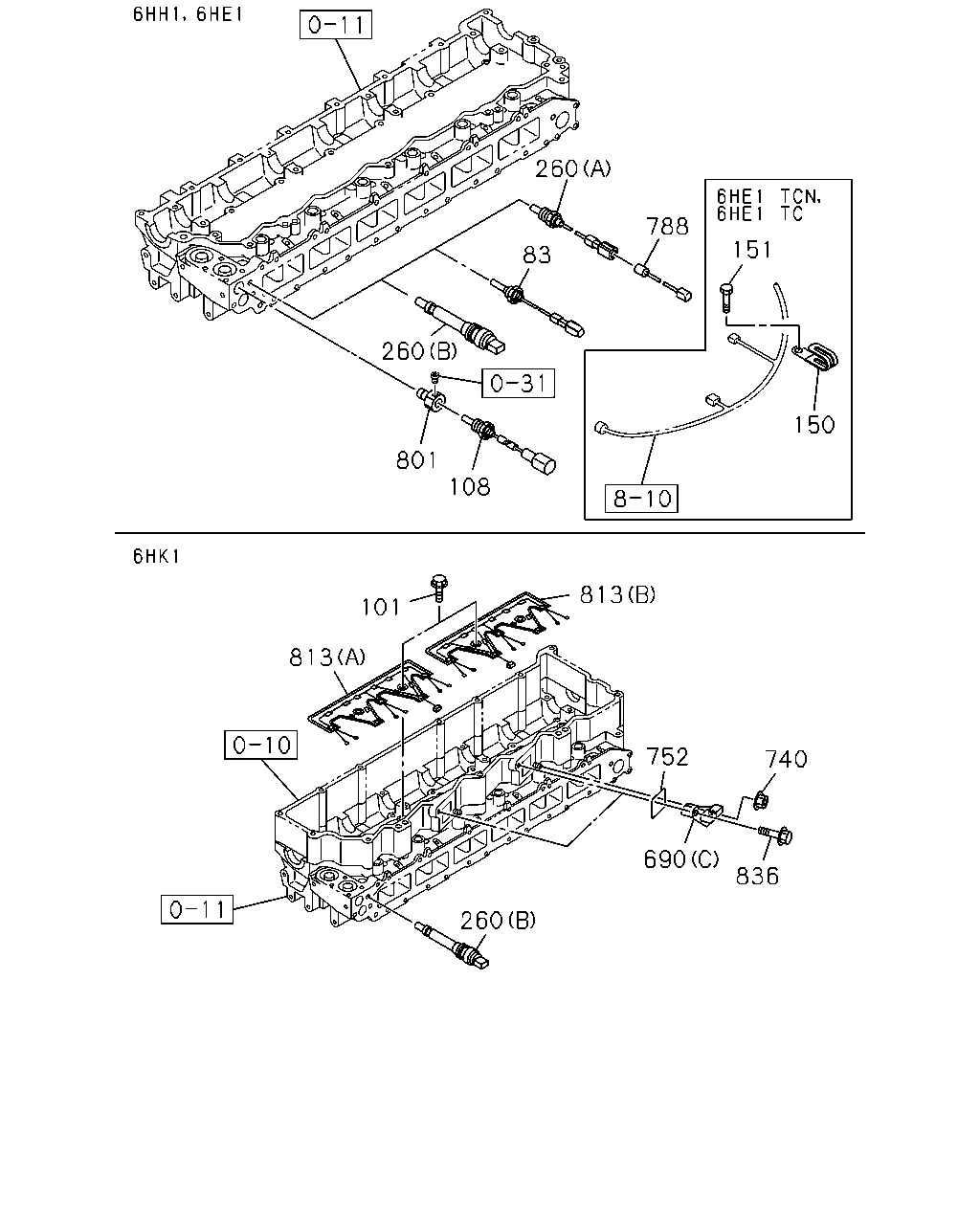

260 788 151 83 260 150 801 108 813 101 813 752 740 690 836 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
83	THERMOMETER UNIT	1-83161-031-1	01	1	9510-	●	●
101	BOLT; HARNESS M8X40 FLANGE	0-28650-840-0	04	1	0601-						●
108	SWITCH; THERMO	1-83161-030-0	01	1	9510-9702	●
108	SWITCH; THERMO AUSTRALIA EQUIPMENT(RR3)	1-83161-030-0	01	1	9510-9702		●
108	SWITCH; THERMO AUSTRALIA EQUIPMENT(RR3)	1-83161-030-0	01	1	9703-0004	●	●
150	CLIP; HARNESS,SOLENOID VLV ID=18 L=44	8-94225-185-0	02	1	9703-9802					●
150	CLIP; HARNESS,SOLENOID VLV ID=18 L=44	8-94225-185-0	02	1	9803-0004				●	●
150	CLIP; HARNESS,SOLENOID VLV ID=18 L=44	8-94225-185-0	02	1	0005-0801					●
150	CLIP; HARNESS,SOLENOID VLV ID=18 L=44	8-97367-985-1	02	1	0802-					●
151	BOLT; HARNESS CLIP,SOLENOID VLV M8X12 FLANGE	0-28080-812-0	02	1	9703-9802					●
151	BOLT; HARNESS CLIP,SOLENOID VLV M8X12 FLANGE	0-28080-812-0	02	1	9803-0004				●	●
151	BOLT; HARNESS CLIP,SOLENOID VLV M8X12 FLANGE	0-28080-812-0	02	1	0005-0512					●
151	BOLT; HARNESS CLIP,SOLENOID VLV M8X12 FLANGE	0-28050-812-0	02	1	0601-					●
260	SENSOR; WATER TEMP (A)	1-80210-004-0	01	1	9610-9802					●
260	SENSOR; WATER TEMP (A)	1-80210-004-0	01	1	9803-0004				●	●
260	SENSOR; WATER TEMP (A)	1-80210-004-0	01	1	0005-					●
260	SENSOR; WATER TEMP EURO2 SPECIFICATION<THN> (B)	1-80210-005-0	01	1	0005-0010			●
260	SENSOR; WATER TEMP (B)	1-80210-005-1	01	1	0011-0512			●
260	SENSOR; WATER TEMP (B)	1-80210-005-1	01	1	0601-			●			●
690	CONNECTOR (C)	8-94390-858-1	02	1	0601-						●
690	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0011-			●
690	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (B) M12 & PT1/4 ELBOW	1-09650-430-0	05	1	0011-			●
740	NUT M8 FLANGE	0-91150-108-0	04	1	0601-0602						●
740	NUT M8 FLANGE	0-91180-108-0	04	1	0603-1011						●
740	NUT M8 FLANGE	0-91180-108-0	02	1	1012-						●
752	GASKET ALSO INCLUDED IN GASKET SET(ENGINE).	8-94391-310-0	02	1	0601-						●
788	HARNESS; EXT,WATER TEMP SENSOR	8-94395-142-1	01	1	9610-9612					●
801	ADAPTER; THERMO SWITCH	8-94395-352-0	01	1	9510-9702	●
801	ADAPTER; THERMO SWITCH AUSTRALIA EQUIPMENT(RR3)	8-94395-352-0	01	1	9510-9702		●
801	ADAPTER; THERMO SWITCH AUSTRALIA EQUIPMENT(RR3)	8-94395-352-0	01	1	9703-0004	●	●
801	ADAPTER; THERMO SWITCH EXC. EURO2 SPECIFICATION<THN>	8-94395-851-1	01	1	0011-1008			●
801	ADAPTER; THERMO SWITCH EXC. EURO2 SPECIFICATION<THN>	8-98177-501-0	01	1	1009-			●
813	HARNESS; INJECTOR (A) FRONT	8-94391-302-3	01	1	0601-						●
813	HARNESS; INJECTOR (B) REAR	8-94391-303-3	01	1	0601-						●
836	BOLT; CONNECTOR M8X12 FLANGE	0-28050-812-0	02	1	1012-						●

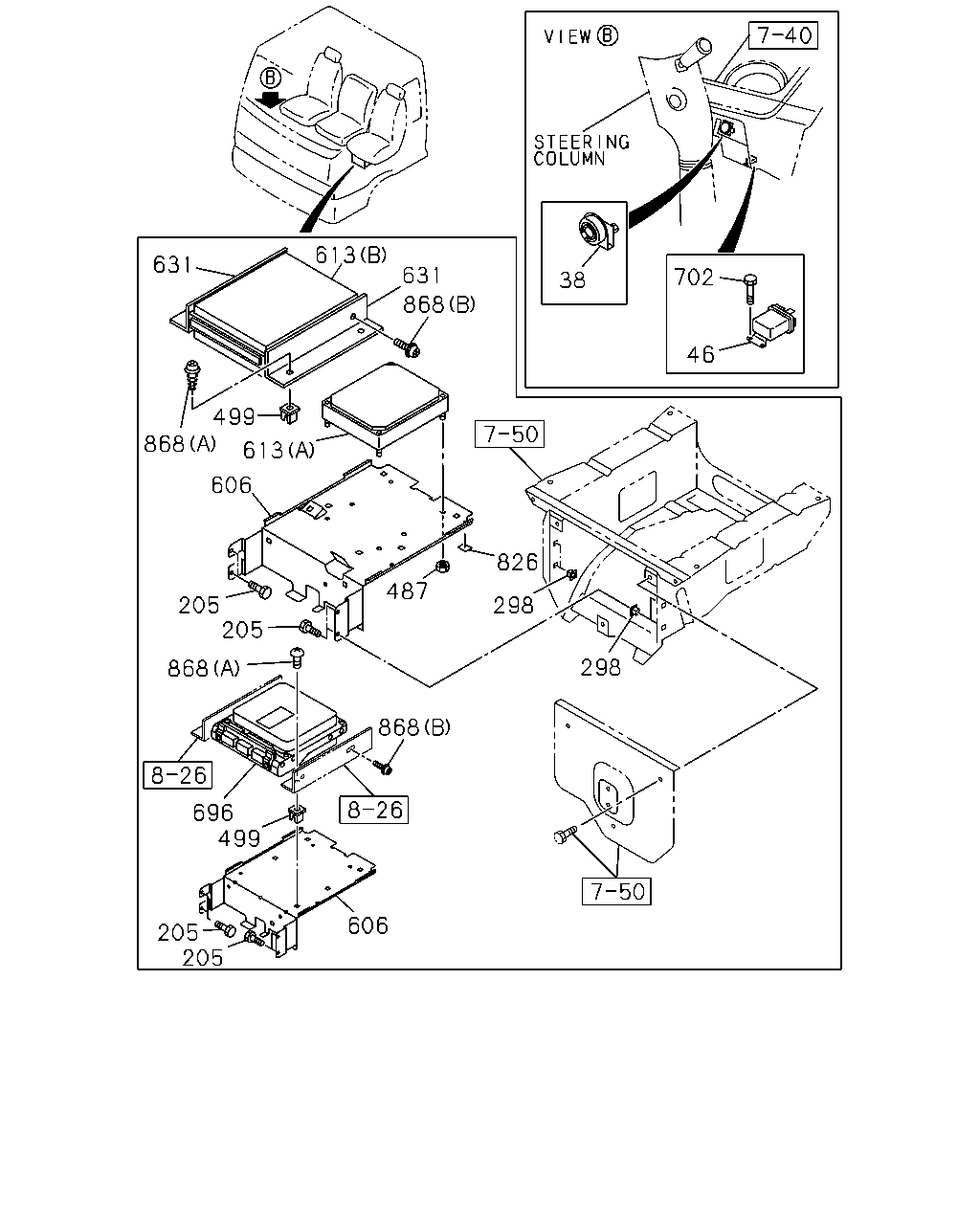

613 631 631 702 38 868 46 499 868 613 606 826 487 205 205 298 298 868 868 696 499 205 205 606

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
38	RESISTOR; CONT,GLOW PLUG	1-81402-008-0	01	1	9510-9802	●	●			●
38	RESISTOR; CONT,GLOW PLUG	1-81402-008-0	01	1	9803-0004	●	●		●	●
38	RESISTOR; CONT,GLOW PLUG	1-81402-008-0	01	1	0005-0012	●	●	●		●
38	RESISTOR; CONT,GLOW PLUG	1-81402-008-0	01	1	0101-0512	●
38	RESISTOR; CONT,GLOW PLUG EXC. NEW ZEALAND EQUIPMENT(PK5)	1-81402-008-0	01	1	0101-0512			●	●	●
38	RESISTOR; CONT,GLOW PLUG	1-81402-008-0	01	1	0601-	●					●
38	RESISTOR; CONT,GLOW PLUG EXC. NEW ZEALAND EQUIPMENT(PK5)	1-81402-008-0	01	1	0601-			●	●	●
46	RELAY; GLOW PLUG	8-94258-014-0	01	1	9510-9802	●	●			●
46	RELAY; GLOW PLUG	8-94258-014-0	01	1	9803-0004	●	●		●	●
46	RELAY; GLOW PLUG	8-94258-014-0	01	1	0005-0512	●	●	●		●
46	RELAY; GLOW PLUG	8-94258-014-0	01	1	0601-	●	●	●		●	●
205	SCREW; BRKT M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	9611-9802					●
205	SCREW; BRKT A/T<X9D> M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	9803-9804		●
205	SCREW; BRKT M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	9803-9804					●
205	SCREW; BRKT M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	9805-0012					●
205	SCREW; BRKT M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	0101-0512			●		●
205	SCREW; BRKT M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	0601-			●		●	●
298	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	04	1	9611-9802					●
298	GROMMET; SCREW A/T<X9D> D=9.7X9.7 L=8	8-94222-314-0	04	1	9803-9804		●
298	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	04	1	9803-9804					●
298	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	04	1	9805-0012					●
298	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	04	1	0101-0512			●		●
298	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	04	1	0601-			●		●	●
487	NUT M6 FLANGE	0-91150-106-0	04	1	9611-0602					●
487	NUT M6 FLANGE	0-91180-106-0	04	1	0603-					●
499	GROMMET NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8	8-94222-314-0	04	1	0101-0512			●
499	GROMMET NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8	8-94222-314-0	04	1	0601-			●
499	GROMMET EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ> D=9.7X9.7 L=8	8-94222-314-0	04	1	0601-						●
606	BRACKET; CONT UNIT A/T<X9D>	1-75557-465-2	01	1	9803-9804		●
606	BRACKET; CONT UNIT	1-75558-534-9	01	1	9611-					●
606	BRACKET; CONT UNIT NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN>	1-75558-552-9	01	1	0101-0512			●
606	BRACKET; CONT UNIT NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN>	1-75558-552-9	01	1	0601-			●
606	BRACKET; CONT UNIT EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ>	1-75558-552-9	01	1	0601-						●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<THN> (A)	1-80110-102-0	01	1	9610-9612					●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<THN> (A)	1-80110-133-0	01	1	9701-9701					●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<THN> (A)	1-80110-179-0	01	1	9702-					●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<THN> (A)	1-80110-178-0	01	1	9803-0004				●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<THN> (A)	8-94392-232-2	01	1	0005-			●
613	CONTROL UNIT; ENG NEW ZEALAND EQUIPMENT(PK5) (B)	8-97600-397-1	01	1	0101-			●
631	BRACKET; CONT UNIT "TICS" NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN>	1-75558-579-1	02	1	0101-			●
696	CONTROL UNIT	8-94392-865-1	01	1	0601-						●
702	BOLT; RELAY M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9510-9802	●	●			●
702	BOLT; RELAY M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9803-0004	●	●		●	●
702	BOLT; RELAY M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0512	●	●	●		●
702	BOLT; RELAY M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0601-	●	●	●		●	●
826	SEAL; NOISE INSULATION 30X30	8-97866-626-0	03	1	9611-9802					●
826	SEAL; NOISE INSULATION A/T<X9D> 30X30	8-97866-626-0	03	1	9803-9804		●
826	SEAL; NOISE INSULATION 30X30	8-97866-626-0	03	1	9803-9804					●
826	SEAL; NOISE INSULATION 30X30	8-97866-626-0	03	1	9805-0012					●
826	SEAL; NOISE INSULATION 30X30	8-97866-626-0	03	1	0101-0309			●		●
826	SEAL; NOISE INSULATION 30X30	1-74998-128-1	03	1	0310-0512			●		●
826	SEAL; NOISE INSULATION 30X30	1-74998-128-1	03	1	0601-0908			●		●	●
826	SEAL; NOISE INSULATION 30X30	8-98142-344-0	03	1	0909-			●		●	●
868	SCREW NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> (A) M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	0101-0512			●
868	SCREW NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> (A) M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	0601-			●
868	SCREW (A) M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	0601-						●
868	SCREW NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> (B) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0101-0512			●
868	SCREW NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> (B) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0601-0604			●
868	SCREW (B) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0601-0604						●
868	SCREW NEW ZEALAND EQUIPMENT(PK5) EXC. EURO2 SPECIFICATION<THN> (B) M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0605-			●
868	SCREW (B) M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0605-						●

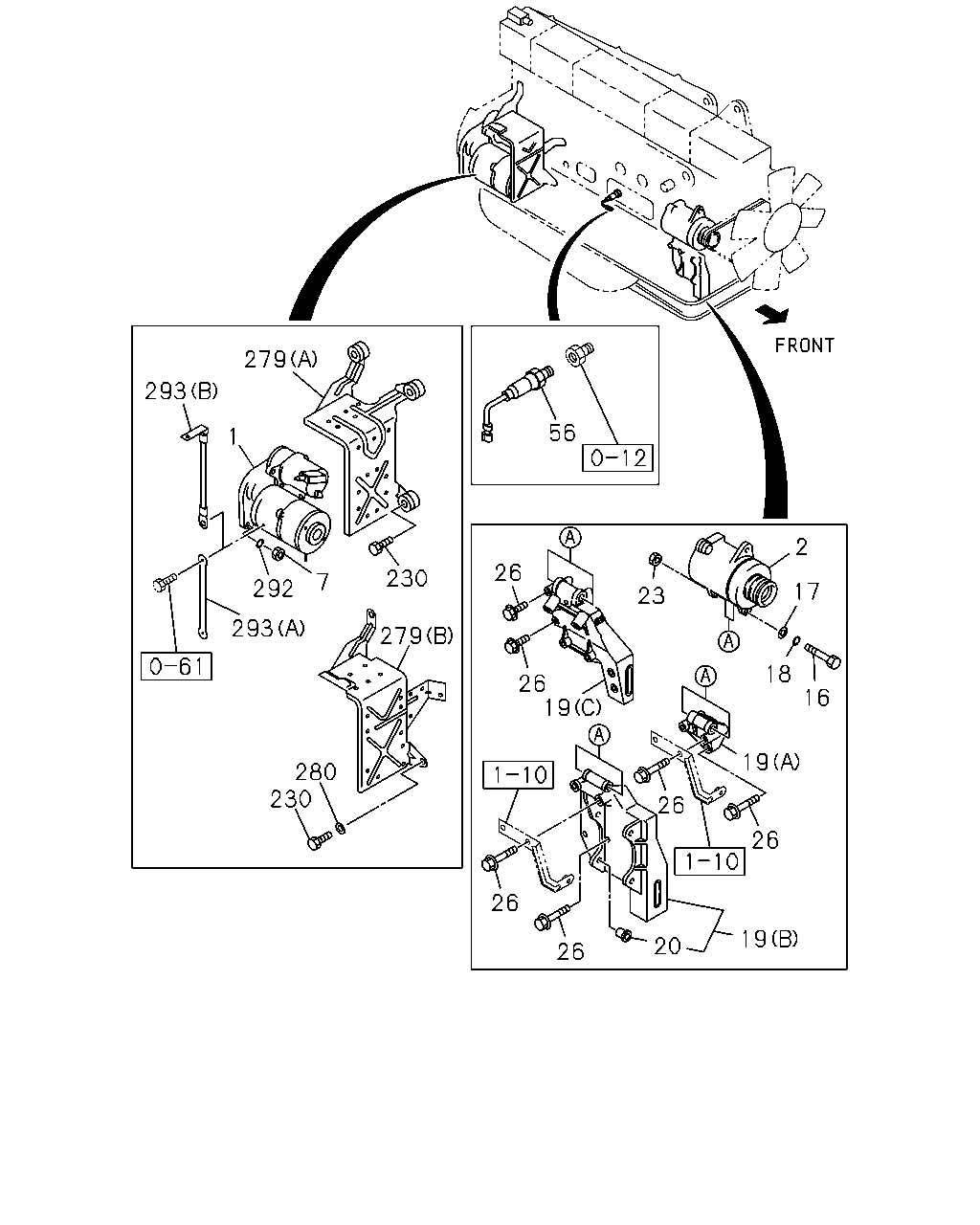

279 293 56 1 2 26 230 7 292 17 23 279 293 18 26 19 16 19 280 230 26 26 26 19 20 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO	1-81100-307-0	01	1	9510-9708	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO	1-81100-323-0	01	1	9709-0004	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT.	1-81100-323-1	01	1	0005-	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<THN> 24V 4.5KW NIKKO	1-81100-323-1	01	1	0005-			●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-94399-159-4	01	1	9905-9907	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-94394-151-1	01	1	9610-9802					●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-94394-151-2	01	1	9803-0004				●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-94394-151-2	01	1	0005-0108					●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-97602-169-1	01	1	0109-0512					●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-97602-169-1	01	1	0601-					●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 5.0KW MITSUBISHI	1-81100-414-2	01	1	0011-0609			●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 5.0KW MITSUBISHI	8-98060-854-0	01	1	0610-0909			●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 5.0KW MITSUBISHI	8-98141-206-3	01	1	0910-1409			●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 5.0KW MITSUBISHI	8-98261-669-0	01	1	1410-			●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A MITSUBISHI	1-81200-599-5	01	1	0601-						●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-3	01	1	9510-9609	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-4	01	1	9610-9802	●	●			●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-4	01	1	9803-0004	●	●		●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-5	01	1	0005-	●	●	●		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI	1-81200-521-0	01	1	9904-9905	●	●		●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI	1-81200-577-0	01	1	9906-9907	●	●		●	●
7	NUT; STARTER M14	9-99110-414-0	02	1	9510-9609	●	●
7	NUT; STARTER M14	9-99110-414-0	02	1	9610-9802	●	●			●
7	NUT; STARTER M14	9-99110-414-0	02	1	9803-0004	●	●		●	●
7	NUT; STARTER M14	9-99110-414-0	02	1	0005-0512	●	●	●		●
7	NUT; STARTER M14	0-91110-514-0	02	1	0601-0601	●	●	●		●
7	NUT; STARTER M14	0-91110-514-0	02	1	0601-	●	●	●		●	●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	9510-9609	●	●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	9610-9802	●	●			●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	9803-0004	●	●		●	●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	0005-0512	●	●	●		●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	0601-	●	●	●		●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9510-9609	●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9610-9802	●	●			●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9803-0004	●	●		●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	0005-0512	●	●	●		●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	0601-0605	●	●	●		●	●
17	WASHER; PL,GEN ID=15	0-91610-514-0	01	1	0606-	●	●	●		●	●
18	WASHER; LK,GEN ID=14.2	9-09150-514-0	01	1	9510-9609	●	●
18	WASHER; LK,GEN ID=14.2	9-09150-514-0	01	1	9610-9802	●	●			●
18	WASHER; LK,GEN ID=14.2	9-09150-514-0	01	1	9803-0004	●	●		●	●
18	WASHER; LK,GEN ID=14.2	9-09150-514-0	01	1	0005-0512	●	●	●		●
18	WASHER; LK,GEN ID=14.2	9-09150-514-0	01	1	0601-0603	●	●	●		●	●
18	WASHER; LK,GEN ID=14.2	0-91510-514-0	01	1	0604-	●	●	●		●	●
19	BRACKET; GEN (C)	8-94390-589-1	01	1	0601-0704						●
19	BRACKET; GEN (C)	8-97609-149-0	01	1	0705-0803						●
19	BRACKET; GEN (C)	8-98082-615-1	01	1	0804-						●
19	BRACKET; GEN (A)	8-94396-297-0	01	1	9510-9609	●	●
19	BRACKET; GEN (A)	8-94396-297-0	01	1	9610-9802	●	●			●
19	BRACKET; GEN (A)	8-94396-297-0	01	1	9803-9911	●	●
19	BRACKET; GEN HEATER & DEFROSTER(C41) (A)	8-94396-297-0	01	1	9803-9911				●	●
19	BRACKET; GEN (A)	8-94396-297-0	01	1	9912-0004	●	●		●
19	BRACKET; GEN HEATER & DEFROSTER(C41) (A)	8-94396-297-0	01	1	9912-0004					●
19	BRACKET; GEN (A)	8-94396-297-0	01	1	0005-0112	●	●	●
19	BRACKET; GEN HEATER & DEFROSTER(C41) (A)	8-94396-297-0	01	1	0005-0112					●
19	BRACKET; GEN (A)	8-97602-318-0	01	1	0201-	●	●	●
19	BRACKET; GEN HEATER & DEFROSTER(C41) (A)	8-97602-318-0	01	1	0201-					●
19	BRACKET; GEN AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94395-470-2	01	1	9803-0010					●
19	BRACKET; GEN AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94395-470-2	01	1	0011-0109					●
19	BRACKET; GEN EXC. EURO2 SPECIFICATION<THN> (B)	8-94395-470-2	01	1	0011-0109			●
19	BRACKET; GEN AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94395-470-5	01	1	0110-		●			●
19	BRACKET; GEN EXC. EURO2 SPECIFICATION<THN> (B)	8-94395-470-5	01	1	0110-			●
20	COLLAR; BRKT,GEN AIR CONDITIONER MANUAL CONTROL(C60)	8-94201-057-1	02	1	9803-0010					●
20	COLLAR; BRKT,GEN AIR CONDITIONER MANUAL CONTROL(C60)	8-94201-057-1	02	1	0011-0109					●
20	COLLAR; BRKT,GEN EXC. EURO2 SPECIFICATION<THN>	8-94201-057-1	02	1	0011-0109			●
20	COLLAR; BRKT,GEN AIR CONDITIONER MANUAL CONTROL(C60)	8-94201-057-1	02	1	0110-1302		●			●
20	COLLAR; BRKT,GEN EXC. EURO2 SPECIFICATION<THN>	8-94201-057-1	02	1	0110-1302			●
23	NUT; GEN M14	9-99110-414-0	01	1	9510-9609	●	●
23	NUT; GEN M14	9-99110-414-0	01	1	9610-9802	●	●			●
23	NUT; GEN M14	9-99110-414-0	01	1	9803-0004	●	●		●	●
23	NUT; GEN M14	9-99110-414-0	01	1	0005-0512	●	●	●		●
23	NUT; GEN M14	0-91110-514-0	01	1	0601-0601	●	●	●		●
23	NUT; GEN M14	0-91110-514-0	01	1	0601-	●	●	●		●	●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	9510-9609	●	●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	9610-9802	●	●			●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	9803-9810	●	●		●	●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	9811-9911	●	●
26	BOLT; GEN BRKT HEATER & DEFROSTER(C41) M10X40 FLANGE	0-28181-040-0	01	1	9811-9911				●	●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	9912-0004	●	●		●
26	BOLT; GEN BRKT HEATER & DEFROSTER(C41) M10X40 FLANGE	0-28181-040-0	01	1	9912-0004					●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	0005-0512	●	●	●
26	BOLT; GEN BRKT HEATER & DEFROSTER(C41) M10X40 FLANGE	0-28181-040-0	01	1	0005-0512					●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28151-040-0	01	1	0601-	●	●	●
26	BOLT; GEN BRKT HEATER & DEFROSTER(C41) M10X40 FLANGE	0-28151-040-0	01	1	0601-					●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28181-080-0	02	1	9510-9609	●	●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28181-080-0	02	1	9610-9802	●	●			●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28181-080-0	02	1	9803-0004	●	●		●	●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28181-080-0	02	1	0005-0512	●	●	●		●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28151-080-0	02	1	0601-0601	●	●	●		●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28151-080-0	02	1	0601-	●	●	●		●	●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28181-040-0	02	1	9803-0010					●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28181-040-0	02	1	0011-0109					●
26	BOLT; GEN BRKT EXC. EURO2 SPECIFICATION<THN> M10X40 FLANGE	0-28181-040-0	02	1	0011-0109			●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28181-040-0	02	1	0110-0512		●			●
26	BOLT; GEN BRKT EXC. EURO2 SPECIFICATION<THN> M10X40 FLANGE	0-28181-040-0	02	1	0110-0512			●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28151-040-0	02	1	0601-0601		●			●
26	BOLT; GEN BRKT EXC. EURO2 SPECIFICATION<THN> M10X40 FLANGE	0-28151-040-0	02	1	0601-0601			●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28151-040-0	02	1	0601-		●			●
26	BOLT; GEN BRKT EXC. EURO2 SPECIFICATION<THN> M10X40 FLANGE	0-28151-040-0	02	1	0601-			●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28151-040-0	02	1	0601-						●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-0	01	1	9510-9609	●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-0	01	1	9610-9802	●	●			●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-0	01	1	9803-0004	●	●		●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-0	01	1	0005-0512	●	●	●		●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-1	01	1	0601-	●	●	●		●	●
230	BOLT; HEAT PROTECTOR M8X14	0-20800-814-0	03	1	9510-9702	●
230	BOLT; HEAT PROTECTOR AUSTRALIA EQUIPMENT(RR3) M8X14	0-20800-814-0	03	1	9703-9802	●
230	BOLT; HEAT PROTECTOR STD CAB(FR*M) HEATER & DEFROSTER(C41) AUSTRALIA EQUIPMENT(RR3) 14" CLUTCH(WF6) M8X14	0-20800-814-0	03	1	9803-9808	●
230	BOLT; HEAT PROTECTOR DOUBLE CAB(FR*W) M8X14	0-20800-814-0	03	1	9803-9808	●
230	BOLT; HEAT PROTECTOR AUSTRALIA EQUIPMENT(RR3) M8X14	0-20800-814-0	03	1	9809-0004	●
230	BOLT; HEAT PROTECTOR ANTI NOISE EQUIPMENT VAR2<TAK> M8X14	0-20800-814-0	03	1	0005-			●
230	BOLT; HEAT PROTECTOR M8X28 FLANGE	0-28080-828-0	01	1	9510-9702		●
230	BOLT; HEAT PROTECTOR EXC. AUSTRALIA EQUIPMENT(RR3) M8X28 FLANGE	0-28080-828-0	01	1	9703-0004	●
230	BOLT; HEAT PROTECTOR M8X28 FLANGE	0-28080-828-0	01	1	9703-0004		●
230	BOLT; HEAT PROTECTOR M8X28 FLANGE	0-28080-828-0	01	1	0005-0109	●	●	●
230	BOLT; HEAT PROTECTOR M8X28 FLANGE	0-28080-828-0	01	1	0005-0109		●
230	BOLT; HEAT PROTECTOR M8X28 FLANGE	0-28080-828-0	01	1	0110-	●	●
230	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<THN> M8X28 FLANGE	0-28080-828-0	01	1	0110-			●
230	BOLT; HEAT PROTECTOR M10X30 FLANGE	0-28181-030-0	01	1	9510-9702		●
230	BOLT; HEAT PROTECTOR EXC. AUSTRALIA EQUIPMENT(RR3) M10X30 FLANGE	0-28181-030-0	01	1	9703-0004	●
230	BOLT; HEAT PROTECTOR M10X30 FLANGE	0-28181-030-0	01	1	9703-0004		●
230	BOLT; HEAT PROTECTOR M10X30 FLANGE	0-28181-030-0	01	1	0005-0109	●	●	●
230	BOLT; HEAT PROTECTOR M10X30 FLANGE	0-28181-030-0	01	1	0005-0109		●
230	BOLT; HEAT PROTECTOR M10X30 FLANGE	0-28181-030-0	01	1	0110-0512	●	●
230	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<THN> M10X30 FLANGE	0-28181-030-0	01	1	0110-0512			●
230	BOLT; HEAT PROTECTOR M10X30 FLANGE	0-28151-030-0	01	1	0601-	●	●
230	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<THN> M10X30 FLANGE	0-28151-030-0	01	1	0601-			●
279	PROTECTOR; STARTER (B)	8-94394-435-2	01	1	9510-9702	●
279	PROTECTOR; STARTER AUSTRALIA EQUIPMENT(RR3) (B)	8-94394-435-2	01	1	9703-9802	●
279	PROTECTOR; STARTER STD CAB(FR*M) HEATER & DEFROSTER(C41) AUSTRALIA EQUIPMENT(RR3) 14" CLUTCH(WF6) (B)	8-94394-435-2	01	1	9803-9808	●
279	PROTECTOR; STARTER DOUBLE CAB(FR*W) (B)	8-94394-435-2	01	1	9803-9808	●
279	PROTECTOR; STARTER AUSTRALIA EQUIPMENT(RR3) (B)	8-94394-435-2	01	1	9809-0004	●
279	PROTECTOR; STARTER ANTI NOISE EQUIPMENT VAR2<TAK> (B)	8-94394-435-2	01	1	0005-			●
279	PROTECTOR; STARTER (A)	8-94394-952-1	01	1	9510-9702		●
279	PROTECTOR; STARTER EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94394-952-1	01	1	9703-0004	●
279	PROTECTOR; STARTER (A)	8-94394-952-1	01	1	9703-0004		●
279	PROTECTOR; STARTER (A)	8-94394-952-1	01	1	0005-0109	●	●
279	PROTECTOR; STARTER (A)	8-94394-952-1	01	1	0005-0109		●
279	PROTECTOR; STARTER EXC. ANTI NOISE EQUIPMENT VAR2<TAK> (A)	8-94394-952-1	01	1	0005-0109			●
279	PROTECTOR; STARTER (A)	8-94394-952-1	01	1	0110-	●	●
279	PROTECTOR; STARTER EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT VAR2<TAK> (A)	8-94394-952-1	01	1	0110-			●
280	WASHER; PL,HEAT PROTECTOR ID=8.4 OD=18	9-09160-608-0	03	1	9510-9702	●
280	WASHER; PL,HEAT PROTECTOR AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=18	9-09160-608-0	03	1	9703-0004	●
280	WASHER; PL,HEAT PROTECTOR ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=18	9-09160-608-0	03	1	0005-0605			●
280	WASHER; PL,HEAT PROTECTOR ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=18	0-91610-608-0	03	1	0606-			●
292	WASHER; LK,STARTER ID=14.2	9-09150-514-0	02	1	9510-9609	●	●
292	WASHER; LK,STARTER ID=14.2	9-09150-514-0	02	1	9610-9802	●	●			●
292	WASHER; LK,STARTER ID=14.2	9-09150-514-0	02	1	9803-0004	●	●		●	●
292	WASHER; LK,STARTER ID=14.2	9-09150-514-0	02	1	0005-0512	●	●	●		●
292	WASHER; LK,STARTER ID=14.2	9-09150-514-0	02	1	0601-0603	●	●	●		●	●
292	WASHER; LK,STARTER ID=14.2	0-91510-514-0	02	1	0604-	●	●	●		●	●
293	CABLE; STARTER EARTH (B) L=320	1-82650-324-0	01	1	0601-						●
293	CABLE; STARTER EARTH (A) L=360	1-82650-230-1	01	1	9510-0004	●	●
293	CABLE; STARTER EARTH (A) L=360	1-82650-230-1	01	1	0005-0109	●	●	●
293	CABLE; STARTER EARTH (A) L=360	1-82650-230-1	01	1	0110-	●	●
293	CABLE; STARTER EARTH EURO2 SPECIFICATION<THN> (A) L=360	1-82650-230-1	01	1	0110-			●
293	CABLE; STARTER EARTH (A) L=290	1-82650-279-0	01	1	9610-9802					●
293	CABLE; STARTER EARTH (A) L=290	1-82650-279-0	01	1	9803-0004				●	●
293	CABLE; STARTER EARTH (A) L=290	1-82650-279-0	01	1	0005-0012					●
293	CABLE; STARTER EARTH (A) L=290	1-82650-279-0	01	1	0101-					●
293	CABLE; STARTER EARTH EXC. EURO2 SPECIFICATION<THN> (A) L=290	1-82650-279-0	01	1	0101-			●
293	CABLE; STARTER EARTH EXC. EURO2 SPECIFICATION<THN> (B) L=320	1-82650-324-0	01	1	0011-0012			●

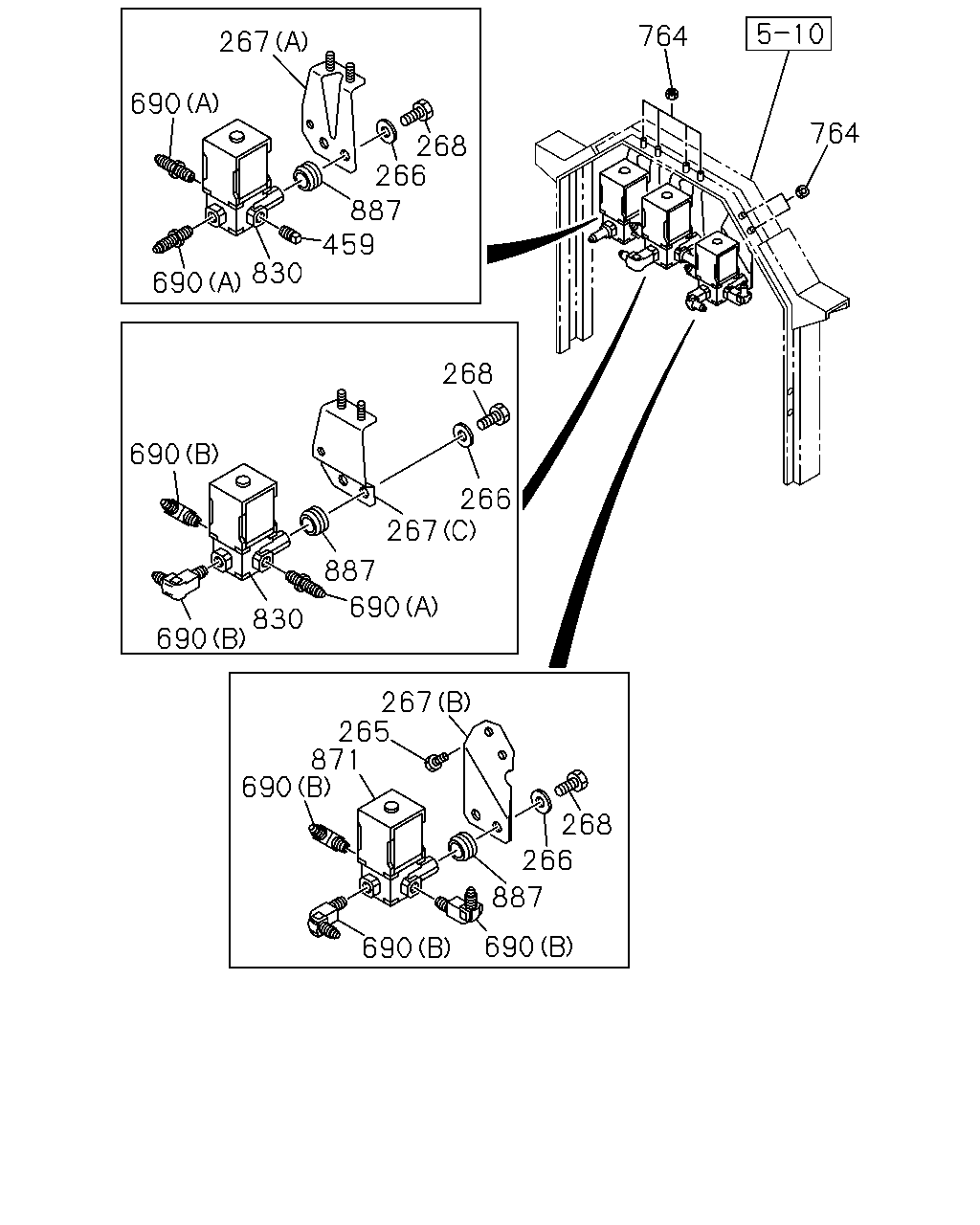

764 267 690 764 268 266 887 459 830 690 268 690 266 267 887 690 830 690 267 265 871 690 268 266 887 690 690

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	F
265	BOLT; MAG VLV FIX NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28680-820-0	02	1	0011-0512			●
265	BOLT; MAG VLV FIX NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28650-820-0	02	1	0601-			●
266	WASHER; PL,MAG VLV FIX NEW ZEALAND EQUIPMENT(PK5) ID=12.5 OD=26	9-09160-612-0	06	1	0011-0605			●
266	WASHER; PL,MAG VLV FIX NEW ZEALAND EQUIPMENT(PK5) ID=12.5 OD=26	0-91610-612-0	06	1	0606-			●
267	BRACKET; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (A)	1-47478-245-0	01	1	0011-			●
267	BRACKET; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (B)	1-47478-401-0	01	1	0011-			●
267	BRACKET; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (C)	1-47478-644-0	01	1	0011-			●
268	BOLT; BRKT,MAG VLV NEW ZEALAND EQUIPMENT(PK5) M8X30	1-09009-020-1	06	1	0011-			●
459	PLUG AUSTRALIA EQUIPMENT(RR3) PT1/4	9-99204-513-0	01	1	9510-9802	●	●
459	PLUG AUSTRALIA EQUIPMENT(RR3) PT1/4	9-99204-513-0	01	1	0002-0004	●	●
459	PLUG NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	0011-			●
690	CONNECTOR (C)	8-94390-858-1	02	1	0601-				●
690	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0011-			●
690	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (B) M12 & PT1/4 ELBOW	1-09650-430-0	05	1	0011-			●
764	NUT; MAG VLV NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91150-108-0	06	1	0011-0602			●
764	NUT; MAG VLV NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91180-108-0	06	1	0603-			●
830	VALVE; MAG,EGR NEW ZEALAND EQUIPMENT(PK5)	1-82563-798-4	02	1	0011-			●
871	VALVE; MAG,INTAKE SHUTTER NEW ZEALAND EQUIPMENT(PK5)	1-82563-798-4	01	1	0011-			●
887	GROMMET; MAG VLV NEW ZEALAND EQUIPMENT(PK5)	1-09332-117-0	06	1	0011-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
