1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
|
8-94392-714-6 |
01 |
1 |
0601- |
● |
|
|
|
|
|
| |
1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
|
8-94395-906-0 |
01 |
1 |
9510-9611 |
|
● |
|
|
|
|
| |
1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
|
8-94391-333-0 |
01 |
1 |
9612-9702 |
|
● |
|
|
|
|
| |
1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
AUSTRALIA EQUIPMENT(RR3)
|
8-94391-333-0 |
01 |
1 |
9703-9802 |
|
● |
|
|
|
|
| |
1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
STD CAB(FR**M*)
AUSTRALIA EQUIPMENT(RR3)
14" CLUTCH(WF6)
|
8-94391-333-0 |
01 |
1 |
9803-0004 |
|
● |
|
|
|
|
| |
1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
DOUBLE CAB(FR**W*)
|
8-94391-333-0 |
01 |
1 |
9803-0004 |
|
● |
|
|
|
|
| |
1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
A/T<X9D>
|
8-94391-336-0 |
01 |
1 |
9809-0004 |
|
● |
|
|
|
|
| |
1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
EXC. AUSTRALIA EQUIPMENT(RR3)
|
8-94390-081-1 |
01 |
1 |
9703-9802 |
|
● |
|
|
|
|
| |
1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
13" CLUTCH(WD4)
EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)
|
8-94390-081-1 |
01 |
1 |
9803-0004 |
|
● |
|
|
|
|
| |
1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
13" CLUTCH(WD4)
INJ PUMP Q SET SPECIAL +5%Q(T1A)
|
8-94395-901-1 |
01 |
1 |
9803-0004 |
|
● |
|
|
|
|
| |
1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
|
8-94395-901-1 |
01 |
1 |
0005- |
|
● |
|
|
|
|
| |
1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
A/T<X9D>
|
8-94395-908-1 |
01 |
1 |
9510-9611 |
|
|
● |
|
|
|
| |
1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
A/T<X9D>
|
8-94391-335-0 |
01 |
1 |
9612-0004 |
|
|
● |
|
|
|
| |
1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
13" CLUTCH(WD4)
AUSTRALIA EQUIPMENT(RR3)
|
8-94395-907-0 |
01 |
1 |
9510-9611 |
|
|
● |
|
|
|
| |
1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
13" CLUTCH(WD4)
AUSTRALIA EQUIPMENT(RR3)
|
8-94391-334-0 |
01 |
1 |
9612-9802 |
|
|
● |
|
|
|
| |
1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
14" CLUTCH(WF6)
|
8-94391-334-0 |
01 |
1 |
9803-0004 |
|
|
● |
|
|
|
| |
1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
13" CLUTCH(WD4)
HONG KONG EQUIPMENT(PQ1)
|
8-94395-905-2 |
01 |
1 |
9510-9609 |
|
|
● |
|
|
|
| |
1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
HONG KONG EQUIPMENT(PQ1)
|
8-94395-905-2 |
01 |
1 |
9610-9702 |
|
|
● |
|
|
|
| |
1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
13" CLUTCH(WD4)
HONG KONG EQUIPMENT(PQ1)
|
8-94395-905-2 |
01 |
1 |
9703-9802 |
|
|
● |
|
|
|
| |
1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
13" CLUTCH(WD4)
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3),INJ PUMP HIGH ALTITUDE ANEROID
COMPENSATOR(YC4)
|
8-94395-902-2 |
01 |
1 |
9510-9802 |
|
|
● |
|
|
|
| |
1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
13" CLUTCH(WD4)
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO
R(YC4)
|
8-94395-902-2 |
01 |
1 |
9803-0004 |
|
|
● |
|
|
|
| |
1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO
R(YC4)
|
8-94395-902-2 |
01 |
1 |
0005- |
|
|
● |
|
|
|
| |
1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
13" CLUTCH(WD4)
INJ PUMP HIGH ALTITUDE ANEROID
COMPENSATOR(YC4)
|
8-94395-812-1 |
01 |
1 |
9510-0004 |
|
|
● |
|
|
|
| |
1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
INJ PUMP HIGH ALTITUDE ANEROID
COMPENSATOR(YC4)
|
8-94395-812-1 |
01 |
1 |
0005- |
|
|
● |
|
|
|
| |
1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
|
8-94391-109-3 |
01 |
1 |
9610- |
|
|
|
● |
|
|
| |
1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
|
8-94390-618-3 |
01 |
1 |
9803-0004 |
|
|
|
|
● |
|
| |
1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
EURO2 SPECIFICATION<THN>
|
8-94392-231-8 |
01 |
1 |
0005- |
|
|
|
|
|
● |
| |
1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
EXC. EURO2 SPECIFICATION<THN>
|
8-97600-576-1 |
01 |
1 |
0011-0108 |
|
|
|
|
|
● |
| |
1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
EXC. EURO2 SPECIFICATION<THN>
|
8-97602-131-0 |
01 |
1 |
0109- |
|
|
|
|
|
● |
| |
2 |
BOLT; INJ PUMP
M8X75
|
0-10810-875-0 |
04 |
1 |
9510- |
|
● |
● |
|
|
|
| |
2 |
BOLT; INJ PUMP
M8X80 FLANGE
|
0-28080-880-0 |
04 |
1 |
9610-9802 |
|
|
|
● |
|
|
| |
2 |
BOLT; INJ PUMP
M8X80 FLANGE
|
0-28080-880-0 |
04 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
2 |
BOLT; INJ PUMP
M8X80 FLANGE
|
0-28080-880-0 |
04 |
1 |
0005-0512 |
|
|
|
● |
|
● |
| |
2 |
BOLT; INJ PUMP
M8X80 FLANGE
|
0-28050-880-0 |
04 |
1 |
0601-0601 |
|
|
|
● |
|
● |
| |
2 |
BOLT; INJ PUMP
M8X80 FLANGE
|
0-28050-880-0 |
04 |
1 |
0601- |
● |
|
|
● |
|
● |
| |
6 |
BRACKET; INJ PUMP TO C/BL
|
8-94393-689-2 |
01 |
1 |
9510- |
|
● |
● |
|
|
|
| |
6 |
BRACKET; INJ PUMP TO C/BL
|
8-94395-540-1 |
01 |
1 |
9610-9802 |
|
|
|
● |
|
|
| |
6 |
BRACKET; INJ PUMP TO C/BL
|
8-94395-540-1 |
01 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
6 |
BRACKET; INJ PUMP TO C/BL
|
8-94395-540-1 |
01 |
1 |
0005- |
|
|
|
● |
|
|
| |
6 |
BRACKET; INJ PUMP TO C/BL
EURO2 SPECIFICATION<THN>
|
8-94390-959-0 |
01 |
1 |
0005-0010 |
|
|
|
|
|
● |
| |
6 |
BRACKET; INJ PUMP TO C/BL
|
8-94390-959-0 |
01 |
1 |
0011- |
|
|
|
|
|
● |
| |
7 |
BOLT; INJ PUMP BRKT
(D)
M10X100 FLANGE
|
0-28151-000-0 |
02 |
1 |
0601- |
● |
|
|
|
|
|
| |
7 |
BOLT; INJ PUMP BRKT
(E)
M10X60 FLANGE
|
0-28151-060-0 |
03 |
1 |
0601- |
● |
|
|
|
|
|
| |
7 |
BOLT; INJ PUMP BRKT
(A)
M10X80 FLANGE
|
0-28181-080-0 |
02 |
1 |
9510-0512 |
|
● |
● |
|
|
|
| |
7 |
BOLT; INJ PUMP BRKT
(A)
M10X80 FLANGE
|
0-28151-080-0 |
02 |
1 |
0601- |
|
● |
● |
|
|
|
| |
7 |
BOLT; INJ PUMP BRKT
(B)
M10X75 FLANGE
|
8-94399-669-1 |
01 |
1 |
9510- |
|
● |
● |
|
|
|
| |
7 |
BOLT; INJ PUMP BRKT
(C)
M10X55 FLANGE
|
8-94399-863-1 |
01 |
1 |
9510-0805 |
|
● |
● |
|
|
|
| |
7 |
BOLT; INJ PUMP BRKT
(C)
M10X55 FLANGE
|
8-97365-449-0 |
01 |
1 |
0806- |
|
● |
● |
|
|
|
| |
7 |
BOLT; INJ PUMP BRKT
(A)
M10X40 FLANGE
|
0-28181-040-0 |
03 |
1 |
9610-9802 |
|
|
|
● |
|
|
| |
7 |
BOLT; INJ PUMP BRKT
(B)
M10X80 FLANGE
|
0-28181-080-0 |
03 |
1 |
9610-9802 |
|
|
|
● |
|
|
| |
7 |
BOLT; INJ PUMP BRKT
(A)
M10X40 FLANGE
|
0-28181-040-0 |
03 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
7 |
BOLT; INJ PUMP BRKT
(A)
M10X40 FLANGE
|
0-28181-040-0 |
03 |
1 |
0005-0512 |
|
|
|
● |
|
|
| |
7 |
BOLT; INJ PUMP BRKT
(A)
M10X40 FLANGE
|
0-28151-040-0 |
03 |
1 |
0601- |
|
|
|
● |
|
|
| |
7 |
BOLT; INJ PUMP BRKT
(B)
M10X80 FLANGE
|
0-28181-080-0 |
03 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
7 |
BOLT; INJ PUMP BRKT
(B)
M10X80 FLANGE
|
0-28181-080-0 |
03 |
1 |
0005-0512 |
|
|
|
● |
|
|
| |
7 |
BOLT; INJ PUMP BRKT
(B)
M10X80 FLANGE
|
0-28151-080-0 |
03 |
1 |
0601- |
|
|
|
● |
|
|
| |
7 |
BOLT; INJ PUMP BRKT
EURO2 SPECIFICATION<THN>
(A)
M10X40 FLANGE
|
0-28181-040-0 |
01 |
1 |
0005-0010 |
|
|
|
|
|
● |
| |
7 |
BOLT; INJ PUMP BRKT
(A)
M10X40 FLANGE
|
0-28181-040-0 |
01 |
1 |
0011-0512 |
|
|
|
|
|
● |
| |
7 |
BOLT; INJ PUMP BRKT
(A)
M10X40 FLANGE
|
0-28151-040-0 |
01 |
1 |
0601- |
|
|
|
|
|
● |
| |
7 |
BOLT; INJ PUMP BRKT
EURO2 SPECIFICATION<THN>
(B)
M10X75 FLANGE
|
8-94399-669-1 |
02 |
1 |
0005-0010 |
|
|
|
|
|
● |
| |
7 |
BOLT; INJ PUMP BRKT
(B)
M10X75 FLANGE
|
8-94399-669-1 |
02 |
1 |
0011- |
|
|
|
|
|
● |
| |
7 |
BOLT; INJ PUMP BRKT
EURO2 SPECIFICATION<THN>
(C)
M10X55 FLANGE
|
8-94399-863-1 |
02 |
1 |
0005-0010 |
|
|
|
|
|
● |
| |
7 |
BOLT; INJ PUMP BRKT
(C)
M10X55 FLANGE
|
8-94399-863-1 |
02 |
1 |
0011-0805 |
|
|
|
|
|
● |
| |
7 |
BOLT; INJ PUMP BRKT
(C)
M10X55 FLANGE
|
8-97365-449-0 |
02 |
1 |
0806- |
|
|
|
|
|
● |
| |
10 |
DOWEL; INJ PUMP
OD=14 L=9
|
9-19759-019-1 |
02 |
1 |
9610-9802 |
|
|
|
● |
|
|
| |
10 |
DOWEL; INJ PUMP
OD=14 L=9
|
9-19759-019-1 |
02 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
10 |
DOWEL; INJ PUMP
OD=14 L=9
|
9-19759-019-1 |
02 |
1 |
0005- |
|
|
|
● |
|
● |
| |
15 |
COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT.
|
8-94391-467-0 |
01 |
1 |
0601- |
● |
|
|
|
|
|
| |
15 |
COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT.
EXC. AUSTRALIA EQUIPMENT(RR3)
|
8-94393-962-2 |
01 |
1 |
9703-0004 |
|
● |
|
|
|
|
| |
15 |
COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT.
EURO2 SPECIFICATION<THN>
|
8-94392-050-0 |
01 |
1 |
0005-0010 |
|
|
|
|
|
● |
| |
15 |
COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT.
|
8-94392-050-0 |
01 |
1 |
0011- |
|
|
|
|
|
● |
| |
15 |
COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT.
|
8-94395-308-0 |
01 |
1 |
9510-9702 |
|
● |
● |
|
|
|
| |
15 |
COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT.
AUSTRALIA EQUIPMENT(RR3)
|
8-94395-308-0 |
01 |
1 |
9703-0004 |
|
● |
|
|
|
|
| |
15 |
COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT.
|
8-94395-308-0 |
01 |
1 |
9703-0004 |
|
|
● |
|
|
|
| |
15 |
COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT.
|
8-94395-308-0 |
01 |
1 |
0005- |
|
● |
● |
|
|
|
| |
15 |
COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT.
|
8-94396-483-1 |
01 |
1 |
9610-9802 |
|
|
|
● |
|
|
| |
15 |
COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT.
|
8-94396-483-1 |
01 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
15 |
COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT.
|
8-94396-483-1 |
01 |
1 |
0005- |
|
|
|
● |
|
|
| |
16 |
PIPE; INJ NO.1
|
8-94390-230-6 |
01 |
1 |
0601- |
● |
|
|
|
|
|
| |
16 |
PIPE; INJ NO.1
|
8-94393-845-1 |
01 |
1 |
9510-9702 |
|
● |
|
|
|
|
| |
16 |
PIPE; INJ NO.1
HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
|
8-94393-845-1 |
01 |
1 |
9510-9702 |
|
|
● |
|
|
|
| |
16 |
PIPE; INJ NO.1
AUSTRALIA EQUIPMENT(RR3)
|
8-94393-845-1 |
01 |
1 |
9703-0004 |
|
● |
● |
|
|
|
| |
16 |
PIPE; INJ NO.1
EURO2 SPECIFICATION<THN>
|
8-94392-519-0 |
01 |
1 |
0005- |
|
|
|
|
|
● |
| |
16 |
PIPE; INJ NO.1
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
|
8-94394-546-0 |
01 |
1 |
9703-0004 |
|
● |
● |
|
|
|
| |
16 |
PIPE; INJ NO.1
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
|
8-94396-007-2 |
01 |
1 |
9510-9609 |
|
|
● |
|
|
|
| |
16 |
PIPE; INJ NO.1
13" CLUTCH(WD4)
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
|
8-94396-007-2 |
01 |
1 |
9610-9702 |
|
|
● |
|
|
|
| |
16 |
PIPE; INJ NO.1
EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM
ECE REQUIREMENTS<SFV>
|
8-94396-007-2 |
01 |
1 |
9703-0004 |
|
● |
● |
|
|
|
| |
16 |
PIPE; INJ NO.1
|
8-94396-007-2 |
01 |
1 |
0005- |
|
● |
● |
|
|
|
| |
16 |
PIPE; INJ NO.1
|
8-94394-223-1 |
01 |
1 |
9610-9802 |
|
|
|
● |
|
|
| |
16 |
PIPE; INJ NO.1
|
8-94394-223-1 |
01 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
16 |
PIPE; INJ NO.1
|
8-94394-223-1 |
01 |
1 |
0005-0108 |
|
|
|
● |
|
|
| |
16 |
PIPE; INJ NO.1
|
8-94391-422-0 |
01 |
1 |
0109- |
|
|
|
● |
|
|
| |
16 |
PIPE; INJ NO.1
EXC. EURO2 SPECIFICATION<THN>
|
8-94391-965-1 |
01 |
1 |
0011- |
|
|
|
|
|
● |
| |
17 |
PIPE; INJ NO.2
|
8-94390-231-6 |
01 |
1 |
0601- |
● |
|
|
|
|
|
| |
17 |
PIPE; INJ NO.2
|
8-94393-846-1 |
01 |
1 |
9510-9702 |
|
● |
|
|
|
|
| |
17 |
PIPE; INJ NO.2
HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
|
8-94393-846-1 |
01 |
1 |
9510-9702 |
|
|
● |
|
|
|
| |
17 |
PIPE; INJ NO.2
AUSTRALIA EQUIPMENT(RR3)
|
8-94393-846-1 |
01 |
1 |
9703-0004 |
|
● |
● |
|
|
|
| |
17 |
PIPE; INJ NO.2
EURO2 SPECIFICATION<THN>
|
8-94392-520-0 |
01 |
1 |
0005- |
|
|
|
|
|
● |
| |
17 |
PIPE; INJ NO.2
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
|
8-94394-547-0 |
01 |
1 |
9703-0004 |
|
● |
● |
|
|
|
| |
17 |
PIPE; INJ NO.2
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
|
8-94396-008-3 |
01 |
1 |
9510-9609 |
|
|
● |
|
|
|
| |
17 |
PIPE; INJ NO.2
13" CLUTCH(WD4)
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
|
8-94396-008-3 |
01 |
1 |
9610-9702 |
|
|
● |
|
|
|
| |
17 |
PIPE; INJ NO.2
EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM
ECE REQUIREMENTS<SFV>
|
8-94396-008-3 |
01 |
1 |
9703-0004 |
|
● |
● |
|
|
|
| |
17 |
PIPE; INJ NO.2
|
8-94396-008-3 |
01 |
1 |
0005- |
|
● |
● |
|
|
|
| |
17 |
PIPE; INJ NO.2
|
8-94394-224-1 |
01 |
1 |
9610-9802 |
|
|
|
● |
|
|
| |
17 |
PIPE; INJ NO.2
|
8-94394-224-1 |
01 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
17 |
PIPE; INJ NO.2
|
8-94394-224-1 |
01 |
1 |
0005-0108 |
|
|
|
● |
|
|
| |
17 |
PIPE; INJ NO.2
|
8-94391-423-0 |
01 |
1 |
0109-0109 |
|
|
|
● |
|
|
| |
17 |
PIPE; INJ NO.2
|
8-97602-329-0 |
01 |
1 |
0110- |
|
|
|
● |
|
|
| |
17 |
PIPE; INJ NO.2
EXC. EURO2 SPECIFICATION<THN>
|
8-94391-966-1 |
01 |
1 |
0011- |
|
|
|
|
|
● |
| |
18 |
PIPE; INJ NO.3
|
8-94390-232-6 |
01 |
1 |
0601- |
● |
|
|
|
|
|
| |
18 |
PIPE; INJ NO.3
|
8-94393-897-1 |
01 |
1 |
9510-9702 |
|
● |
|
|
|
|
| |
18 |
PIPE; INJ NO.3
HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
|
8-94393-897-1 |
01 |
1 |
9510-9702 |
|
|
● |
|
|
|
| |
18 |
PIPE; INJ NO.3
AUSTRALIA EQUIPMENT(RR3)
|
8-94393-897-1 |
01 |
1 |
9703-0004 |
|
● |
● |
|
|
|
| |
18 |
PIPE; INJ NO.3
EURO2 SPECIFICATION<THN>
|
8-94392-521-0 |
01 |
1 |
0005- |
|
|
|
|
|
● |
| |
18 |
PIPE; INJ NO.3
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
|
8-94394-548-0 |
01 |
1 |
9703-0004 |
|
● |
● |
|
|
|
| |
18 |
PIPE; INJ NO.3
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
|
8-94396-009-3 |
01 |
1 |
9510-9609 |
|
|
● |
|
|
|
| |
18 |
PIPE; INJ NO.3
13" CLUTCH(WD4)
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
|
8-94396-009-3 |
01 |
1 |
9610-9702 |
|
|
● |
|
|
|
| |
18 |
PIPE; INJ NO.3
EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM
ECE REQUIREMENTS<SFV>
|
8-94396-009-3 |
01 |
1 |
9703-0004 |
|
● |
● |
|
|
|
| |
18 |
PIPE; INJ NO.3
|
8-94396-009-3 |
01 |
1 |
0005- |
|
● |
● |
|
|
|
| |
18 |
PIPE; INJ NO.3
|
8-94390-830-0 |
01 |
1 |
9610-9802 |
|
|
|
● |
|
|
| |
18 |
PIPE; INJ NO.3
|
8-94390-830-0 |
01 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
18 |
PIPE; INJ NO.3
|
8-94390-830-0 |
01 |
1 |
0005-0108 |
|
|
|
● |
|
|
| |
18 |
PIPE; INJ NO.3
|
8-97602-257-0 |
01 |
1 |
0109- |
|
|
|
● |
|
|
| |
18 |
PIPE; INJ NO.3
EXC. EURO2 SPECIFICATION<THN>
|
8-94391-967-1 |
01 |
1 |
0011- |
|
|
|
|
|
● |
| |
19 |
PIPE; INJ NO.4
|
8-94390-233-6 |
01 |
1 |
0601- |
● |
|
|
|
|
|
| |
19 |
PIPE; INJ NO.4
|
8-94394-145-0 |
01 |
1 |
9510-9702 |
|
● |
|
|
|
|
| |
19 |
PIPE; INJ NO.4
HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
|
8-94394-145-0 |
01 |
1 |
9510-9702 |
|
|
● |
|
|
|
| |
19 |
PIPE; INJ NO.4
AUSTRALIA EQUIPMENT(RR3)
|
8-94394-145-0 |
01 |
1 |
9703-0004 |
|
● |
● |
|
|
|
| |
19 |
PIPE; INJ NO.4
EURO2 SPECIFICATION<THN>
|
8-94392-522-1 |
01 |
1 |
0005- |
|
|
|
|
|
● |
| |
19 |
PIPE; INJ NO.4
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
|
8-94394-549-0 |
01 |
1 |
9703-0004 |
|
● |
● |
|
|
|
| |
19 |
PIPE; INJ NO.4
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
|
8-94396-010-4 |
01 |
1 |
9510-9609 |
|
|
● |
|
|
|
| |
19 |
PIPE; INJ NO.4
13" CLUTCH(WD4)
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
|
8-94396-010-4 |
01 |
1 |
9610-9702 |
|
|
● |
|
|
|
| |
19 |
PIPE; INJ NO.4
EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM
ECE REQUIREMENTS<SFV>
|
8-94396-010-4 |
01 |
1 |
9703-0004 |
|
● |
● |
|
|
|
| |
19 |
PIPE; INJ NO.4
|
8-94396-010-4 |
01 |
1 |
0005- |
|
● |
● |
|
|
|
| |
19 |
PIPE; INJ NO.4
|
8-94394-226-1 |
01 |
1 |
9610-9802 |
|
|
|
● |
|
|
| |
19 |
PIPE; INJ NO.4
|
8-94394-226-1 |
01 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
19 |
PIPE; INJ NO.4
|
8-94394-226-1 |
01 |
1 |
0005-0108 |
|
|
|
● |
|
|
| |
19 |
PIPE; INJ NO.4
|
8-94391-425-0 |
01 |
1 |
0109- |
|
|
|
● |
|
|
| |
19 |
PIPE; INJ NO.4
EXC. EURO2 SPECIFICATION<THN>
|
8-94391-968-1 |
01 |
1 |
0011- |
|
|
|
|
|
● |
| |
20 |
PIPE; INJ NO.5
|
8-94390-234-6 |
01 |
1 |
0601- |
● |
|
|
|
|
|
| |
20 |
PIPE; INJ NO.5
|
8-94394-146-0 |
01 |
1 |
9510-9702 |
|
● |
|
|
|
|
| |
20 |
PIPE; INJ NO.5
HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
|
8-94394-146-0 |
01 |
1 |
9510-9702 |
|
|
● |
|
|
|
| |
20 |
PIPE; INJ NO.5
AUSTRALIA EQUIPMENT(RR3)
|
8-94394-146-0 |
01 |
1 |
9703-0004 |
|
● |
● |
|
|
|
| |
20 |
PIPE; INJ NO.5
EURO2 SPECIFICATION<THN>
|
8-94392-523-0 |
01 |
1 |
0005- |
|
|
|
|
|
● |
| |
20 |
PIPE; INJ NO.5
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
|
8-94394-550-0 |
01 |
1 |
9703-0004 |
|
● |
● |
|
|
|
| |
20 |
PIPE; INJ NO.5
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
|
8-94396-011-2 |
01 |
1 |
9510-9609 |
|
|
● |
|
|
|
| |
20 |
PIPE; INJ NO.5
13" CLUTCH(WD4)
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
|
8-94396-011-2 |
01 |
1 |
9610-9702 |
|
|
● |
|
|
|
| |
20 |
PIPE; INJ NO.5
EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM
ECE REQUIREMENTS<SFV>
|
8-94396-011-2 |
01 |
1 |
9703-0004 |
|
● |
● |
|
|
|
| |
20 |
PIPE; INJ NO.5
|
8-94396-011-2 |
01 |
1 |
0005- |
|
● |
● |
|
|
|
| |
20 |
PIPE; INJ NO.5
|
8-94394-227-1 |
01 |
1 |
9610-9802 |
|
|
|
● |
|
|
| |
20 |
PIPE; INJ NO.5
|
8-94394-227-1 |
01 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
20 |
PIPE; INJ NO.5
|
8-94394-227-1 |
01 |
1 |
0005-0108 |
|
|
|
● |
|
|
| |
20 |
PIPE; INJ NO.5
|
8-94391-426-0 |
01 |
1 |
0109- |
|
|
|
● |
|
|
| |
20 |
PIPE; INJ NO.5
EXC. EURO2 SPECIFICATION<THN>
|
8-94391-969-2 |
01 |
1 |
0011- |
|
|
|
|
|
● |
| |
21 |
PIPE; INJ NO.6
|
8-94390-235-6 |
01 |
1 |
0601- |
● |
|
|
|
|
|
| |
21 |
PIPE; INJ NO.6
|
8-94394-147-0 |
01 |
1 |
9510-9702 |
|
● |
|
|
|
|
| |
21 |
PIPE; INJ NO.6
HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
|
8-94394-147-0 |
01 |
1 |
9510-9702 |
|
|
● |
|
|
|
| |
21 |
PIPE; INJ NO.6
AUSTRALIA EQUIPMENT(RR3)
|
8-94394-147-0 |
01 |
1 |
9703-0004 |
|
● |
● |
|
|
|
| |
21 |
PIPE; INJ NO.6
EURO2 SPECIFICATION<THN>
|
8-94392-524-0 |
01 |
1 |
0005- |
|
|
|
|
|
● |
| |
21 |
PIPE; INJ NO.6
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
|
8-94394-551-0 |
01 |
1 |
9703-0004 |
|
● |
● |
|
|
|
| |
21 |
PIPE; INJ NO.6
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
|
8-94396-494-3 |
01 |
1 |
9510-9609 |
|
|
● |
|
|
|
| |
21 |
PIPE; INJ NO.6
13" CLUTCH(WD4)
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
|
8-94396-494-3 |
01 |
1 |
9610-9702 |
|
|
● |
|
|
|
| |
21 |
PIPE; INJ NO.6
EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM
ECE REQUIREMENTS<SFV>
|
8-94396-494-3 |
01 |
1 |
9703-0004 |
|
● |
● |
|
|
|
| |
21 |
PIPE; INJ NO.6
|
8-94396-494-3 |
01 |
1 |
0005- |
|
● |
● |
|
|
|
| |
21 |
PIPE; INJ NO.6
|
8-94394-228-1 |
01 |
1 |
9610-9802 |
|
|
|
● |
|
|
| |
21 |
PIPE; INJ NO.6
|
8-94394-228-1 |
01 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
21 |
PIPE; INJ NO.6
|
8-94394-228-1 |
01 |
1 |
0005-0108 |
|
|
|
● |
|
|
| |
21 |
PIPE; INJ NO.6
|
8-94391-427-0 |
01 |
1 |
0109- |
|
|
|
● |
|
|
| |
21 |
PIPE; INJ NO.6
EXC. EURO2 SPECIFICATION<THN>
|
8-94391-970-1 |
01 |
1 |
0011- |
|
|
|
|
|
● |
| |
31 |

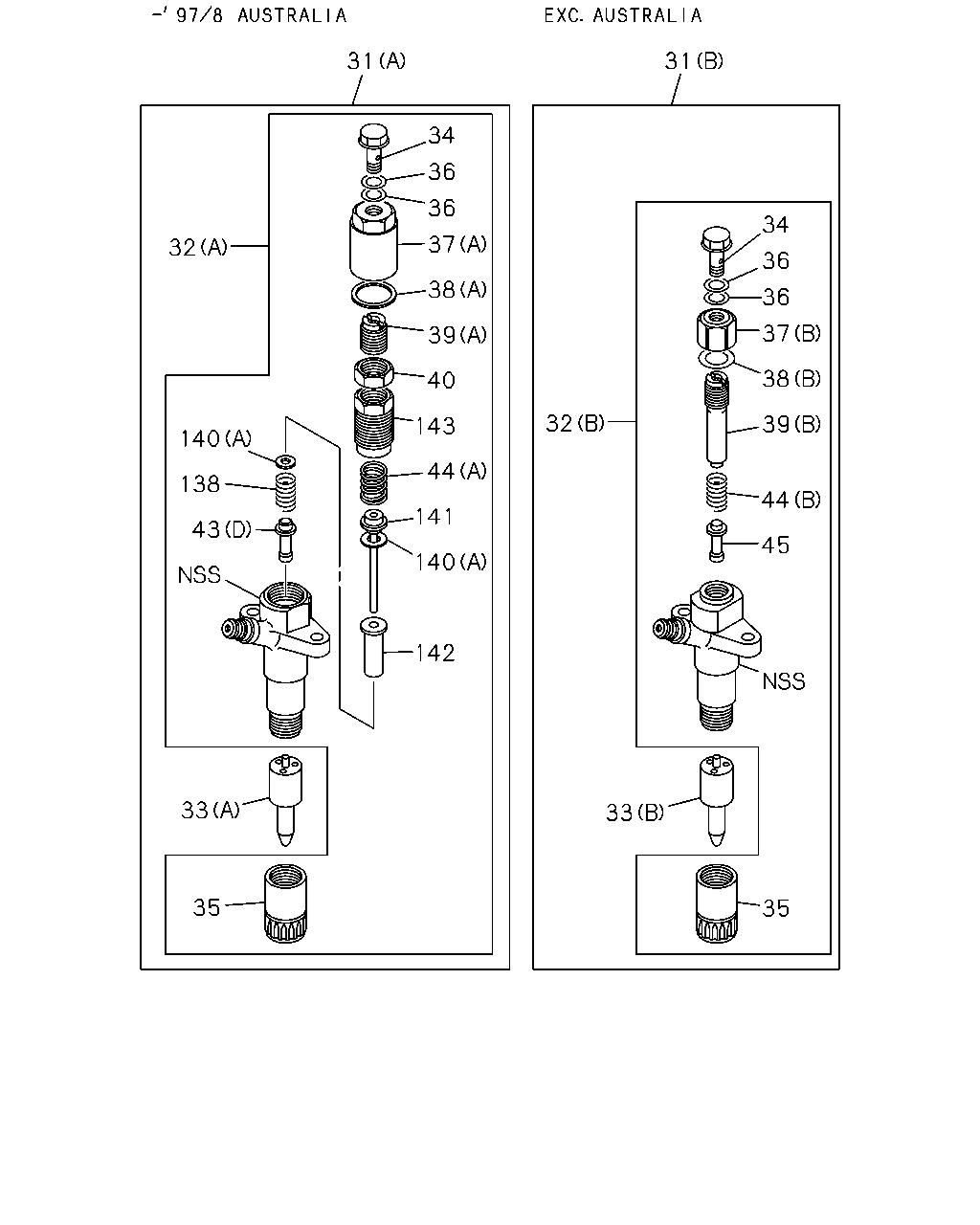

NOZZLE ASM; INJ
(E)
|
8-94392-261-4 |
06 |
1 |
0601- |
● |
|
|
|
|
|
| |
31 |
NOZZLE ASM; INJ
(A)
|
8-94395-696-2 |
06 |
1 |
9510-9702 |
|
● |
|
|
|
|
| |
31 |
NOZZLE ASM; INJ
AUSTRALIA EQUIPMENT(RR3)
(A)
|
8-94395-696-2 |
06 |
1 |
9510-9702 |
|
|
● |
|
|
|
| |
31 |
NOZZLE ASM; INJ
AUSTRALIA EQUIPMENT(RR3)
(A)
|
8-94395-696-3 |
06 |
1 |
9703-0004 |
|
● |
● |
|
|
|
| |
31 |
NOZZLE ASM; INJ
EURO2 SPECIFICATION<THN>
(D)
|
8-94392-233-2 |
06 |
1 |
0005- |
|
|
|
|
|
● |
| |
31 |
NOZZLE ASM; INJ
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
(B)
|
8-94395-498-2 |
06 |
1 |
9703-0004 |
|
● |
● |
|
|
|
| |
31 |
NOZZLE ASM; INJ
HONG KONG EQUIPMENT(PQ1)
(B)
|
8-94390-499-0 |
06 |
1 |
9510-9802 |
|
|
● |
|
|
|
| |
31 |
NOZZLE ASM; INJ
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
(B)
|
8-94395-511-1 |
06 |
1 |
9510-9609 |
|
|
● |
|
|
|
| |
31 |
NOZZLE ASM; INJ
13" CLUTCH(WD4)
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
(B)
|
8-94395-511-1 |
06 |
1 |
9610-9702 |
|
|
● |
|
|
|
| |
31 |
NOZZLE ASM; INJ
EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM
ECE REQUIREMENTS<SFV>
(B)
|
8-94395-511-2 |
06 |
1 |
9703-0004 |
|
● |
● |
|
|
|
| |
31 |
NOZZLE ASM; INJ
(B)
|
8-94395-511-2 |
06 |
1 |
0005- |
|
● |
● |
|
|
|
| |
31 |
NOZZLE ASM; INJ
(C)
|
8-94394-606-5 |
06 |
1 |
9610-9802 |
|
|
|
● |
|
|
| |
31 |
NOZZLE ASM; INJ
(C)
|
8-94394-606-6 |
06 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
31 |
NOZZLE ASM; INJ
(C)
|
8-94394-606-6 |
06 |
1 |
0005- |
|
|
|
● |
|
|
| |
31 |
NOZZLE ASM; INJ
EXC. EURO2 SPECIFICATION<THN>
(D)
|
8-94390-795-4 |
06 |
1 |
0011- |
|
|
|
|
|
● |
| |
66 |
GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
ID=9.2 T=8.1
|
1-15315-013-1 |
06 |
1 |
9510-0004 |
|
● |
● |
|
|
|
| |
66 |
GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
ID=9.2 T=8.1
|
1-15315-013-1 |
06 |
1 |
0005-0006 |
|
● |
● |
|
|
● |
| |
66 |
GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
ID=9.2 T=8.1
|
8-97601-447-2 |
06 |
1 |
0007-0512 |
|
● |
● |
|
|
● |
| |
66 |
GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
ID=9.2 T=8.1
|
8-97601-447-2 |
06 |
1 |
0601-0909 |
● |
● |
● |
|
|
● |
| |
66 |
GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
ID=9.2 T=8.1
|
8-98079-248-0 |
06 |
1 |
0910- |
● |
● |
● |
|
|
● |
| |
66 |
GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
8-94394-607-1 |
06 |
1 |
9610-9703 |
|
|
|
● |
|
|
| |
66 |
GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
8-94391-472-0 |
12 |
1 |
9704-9802 |
|
|
|
● |
|
|
| |
66 |
GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
8-94391-472-0 |
12 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
66 |
GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
8-94391-472-0 |
12 |
1 |
0005- |
|
|
|
● |
|
|
| |
94 |
BRACKET; INJ NOZZLE
EURO2 SPECIFICATION<THN>
|
8-94390-988-0 |
06 |
1 |
0005-0010 |
|
|
|
|
|
● |
| |
94 |
BRACKET; INJ NOZZLE
|
8-94390-988-0 |
06 |
1 |
0011-0410 |
|
|
|
|
|
● |
| |
94 |
BRACKET; INJ NOZZLE
|
8-97306-074-1 |
06 |
1 |
0411-0512 |
|
|
|
|
|
● |
| |
94 |
BRACKET; INJ NOZZLE
|
8-97306-074-1 |
06 |
1 |
0601-0606 |
● |
|
|
|
|
● |
| |
94 |
BRACKET; INJ NOZZLE
|
8-98028-999-1 |
06 |
1 |
0607- |
● |
|
|
|
|
● |
| |
107 |
NUT; INJ PIPE CLIP
M6 FLANGE
|
0-91150-106-0 |
04 |
1 |
9510-9702 |
|
● |
|
|
|
|
| |
107 |
NUT; INJ PIPE CLIP
HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
M6 FLANGE
|
0-91150-106-0 |
04 |
1 |
9510-9702 |
|
|
● |
|
|
|
| |
107 |
NUT; INJ PIPE CLIP
AUSTRALIA EQUIPMENT(RR3)
M6 FLANGE
|
0-91150-106-0 |
04 |
1 |
9703-0004 |
|
● |
● |
|
|
|
| |
107 |
NUT; INJ PIPE CLIP
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
M6 FLANGE
|
0-91150-106-0 |
04 |
1 |
9703-0004 |
|
● |
● |
|
|
|
| |
107 |
NUT; INJ PIPE CLIP
EURO2 SPECIFICATION<THN>
M6 FLANGE
|
0-91150-106-0 |
04 |
1 |
0005-0010 |
|
|
|
|
|
● |
| |
107 |
NUT; INJ PIPE CLIP
M6 FLANGE
|
0-91150-106-0 |
04 |
1 |
0011-0602 |
|
|
|
|
|
● |
| |
107 |
NUT; INJ PIPE CLIP
M6 FLANGE
|
0-91180-106-0 |
04 |
1 |
0603- |
|
|
|
|
|
● |
| |
107 |
NUT; INJ PIPE CLIP
M6 FLANGE
|
0-91150-106-0 |
05 |
1 |
9610-9802 |
|
|
|
● |
|
|
| |
107 |
NUT; INJ PIPE CLIP
M6 FLANGE
|
0-91150-106-0 |
05 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
107 |
NUT; INJ PIPE CLIP
M6 FLANGE
|
0-91150-106-0 |
05 |
1 |
0005-0108 |
|
|
|
● |
|
|
| |
107 |
NUT; INJ PIPE CLIP
M6 FLANGE
|
0-91150-106-0 |
06 |
1 |
0109-0602 |
|
|
|
● |
|
|
| |
107 |
NUT; INJ PIPE CLIP
M6 FLANGE
|
0-91180-106-0 |
06 |
1 |
0603- |
|
|
|
● |
|
|
| |

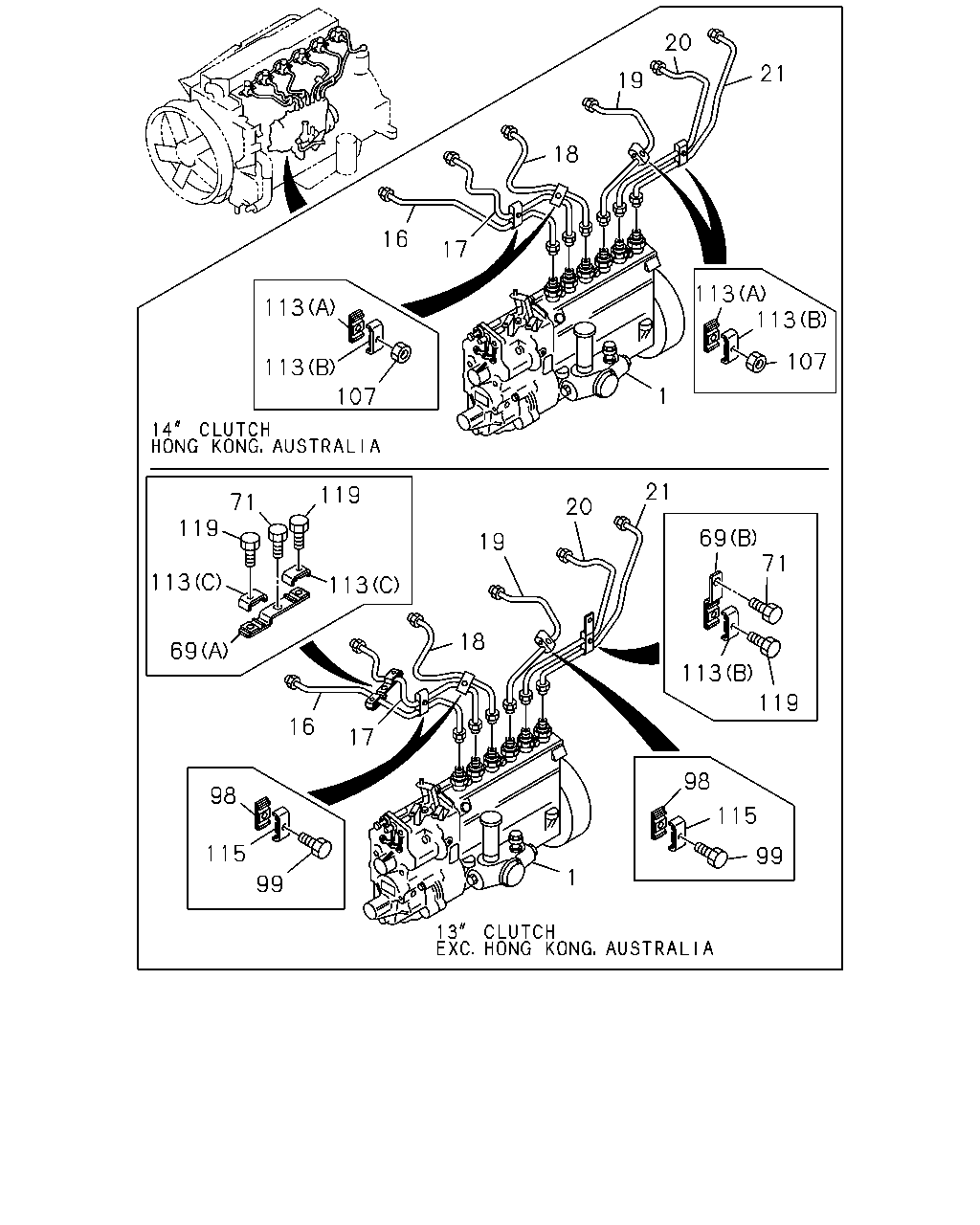

113 |
CLIP; INJ PIPE
(A)
|
8-94396-793-0 |
04 |
1 |
9510-9609 |
|
● |
|
|
|
|
| |
113 |
CLIP; INJ PIPE
HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
(A)
|
8-94396-793-0 |
04 |
1 |
9510-9609 |
|
|
● |
|
|
|
| |
113 |
CLIP; INJ PIPE
AUSTRALIA EQUIPMENT(RR3)
(A)
|
8-94396-793-0 |
04 |
1 |
9610-9702 |
|
● |
● |
|
|
|
| |
113 |
CLIP; INJ PIPE
(A)
|
8-94396-793-0 |
04 |
1 |
9610-9702 |
|
|
|
● |
|
|
| |
113 |
CLIP; INJ PIPE
(A)
|
8-94396-793-0 |
04 |
1 |
9703-9802 |
|
● |
|
● |
|
|
| |
113 |
CLIP; INJ PIPE
AUSTRALIA EQUIPMENT(RR3)
(A)
|
8-94396-793-0 |
04 |
1 |
9703-9802 |
|
|
● |
|
|
|
| |
113 |
CLIP; INJ PIPE
(B)
|
8-94397-444-0 |
04 |
1 |
9510-9702 |
|
● |
|
|
|
|
| |
113 |
CLIP; INJ PIPE
HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
(B)
|
8-94397-444-0 |
04 |
1 |
9510-9702 |
|
|
● |
|
|
|
| |
113 |
CLIP; INJ PIPE
AUSTRALIA EQUIPMENT(RR3)
(B)
|
8-94397-444-0 |
04 |
1 |
9703-9808 |
|
● |
● |
|
|
|
| |
113 |
CLIP; INJ PIPE
(B)
|
8-94397-444-0 |
04 |
1 |
9809-0004 |
|
● |
● |
|
|
|
| |
113 |
CLIP; INJ PIPE
EURO2 SPECIFICATION<THN>
(D)
|
1-09701-132-0 |
08 |
1 |
0005-0010 |
|
|
|
|
|
● |
| |
113 |
CLIP; INJ PIPE
(D)
|
1-09701-132-1 |
08 |
1 |
0011-1202 |
|
|
|
|
|
● |
| |
113 |
CLIP; INJ PIPE
(D)
|
1-09701-240-0 |
08 |
1 |
1203- |
|
|
|
|
|
● |
| |
113 |
CLIP; INJ PIPE
AUSTRALIA EQUIPMENT(RR3)
(A)
|
8-94396-793-0 |
04 |
1 |
9803-9806 |
|
● |
● |
|
|
|
| |
113 |
CLIP; INJ PIPE
(A)
|
8-94396-793-0 |
04 |
1 |
9803-9806 |
|
|
|
● |
● |
|
| |
113 |
CLIP; INJ PIPE
(A)
|
8-94396-793-0 |
04 |
1 |
9807-9808 |
|
|
|
● |
● |
|
| |
113 |
CLIP; INJ PIPE
AUSTRALIA EQUIPMENT(RR3)
(A)
|
8-94396-793-0 |
04 |
1 |
9809-0004 |
|
● |
● |
|
|
|
| |
113 |
CLIP; INJ PIPE
(A)
|
8-94396-793-0 |
04 |
1 |
9809-0004 |
|
|
|
● |
● |
|
| |
113 |
CLIP; INJ PIPE
(A)
|
8-94396-793-0 |
04 |
1 |
0005-0108 |
|
|
|
● |
|
|
| |
113 |
CLIP; INJ PIPE
(D)
|
1-09701-132-1 |
10 |
1 |
0109-1202 |
|
|
|
● |
|
|
| |
113 |
CLIP; INJ PIPE
(D)
|
1-09701-240-0 |
10 |
1 |
1203- |
|
|
|
● |
|
|
| |
113 |
CLIP; INJ PIPE
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
(C)
|
1-09701-091-0 |
02 |
1 |
9510-9609 |
|
|
● |
|
|
|
| |
113 |
CLIP; INJ PIPE
13" CLUTCH(WD4)
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
(C)
|
1-09701-091-0 |
02 |
1 |
9610-9702 |
|
|
● |
|
|
|
| |
113 |
CLIP; INJ PIPE
EXC. AUSTRALIA EQUIPMENT(RR3)
(C)
|
1-09701-091-0 |
02 |
1 |
9703-9802 |
|
● |
● |
|
|
|
| |
113 |
CLIP; INJ PIPE
EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM
ECE REQUIREMENTS<SFV>
(C)
|
1-09701-091-0 |
02 |
1 |
9803-0004 |
|
● |
● |
|
|
|
| |
113 |
CLIP; INJ PIPE
(C)
|
1-09701-091-0 |
02 |
1 |
0005- |
|
● |
● |
|
|
|
| |
113 |
CLIP; INJ PIPE
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
(B)
|
8-94397-444-0 |
01 |
1 |
9510-9609 |
|
|
● |
|
|
|
| |
113 |
CLIP; INJ PIPE
13" CLUTCH(WD4)
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
(B)
|
8-94397-444-0 |
01 |
1 |
9610-9702 |
|
|
● |
|
|
|
| |
113 |
CLIP; INJ PIPE
EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM
ECE REQUIREMENTS<SFV>
(B)
|
8-94397-444-0 |
01 |
1 |
9703-0004 |
|
● |
● |
|
|
|
| |
113 |
CLIP; INJ PIPE
(B)
|
8-94397-444-0 |
01 |
1 |
0005- |
|
● |
● |
|
|
|
| |
113 |
CLIP; INJ PIPE
(B)
|
8-94397-444-0 |
05 |
1 |
9610-9802 |
|
|
|
● |
|
|
| |
113 |
CLIP; INJ PIPE
(B)
|
8-94397-444-0 |
05 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
113 |
CLIP; INJ PIPE
(B)
|
8-94397-444-0 |
05 |
1 |
0005-0108 |
|
|
|
● |
|
|
| |
121 |
PIPE; FUEL,FEED PUMP,SUCTION
|
8-94390-837-2 |
01 |
1 |
0601- |
● |
|
|
|
|
|
| |
121 |
PIPE; FUEL,FEED PUMP,SUCTION
|
8-94394-408-0 |
01 |
1 |
9510- |
|
● |
● |
|
|
|
| |
121 |
PIPE; FUEL,FEED PUMP,SUCTION
|
8-94395-043-1 |
01 |
1 |
9610-9802 |
|
|
|
● |
|
|
| |
121 |
PIPE; FUEL,FEED PUMP,SUCTION
|
8-94395-043-2 |
01 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
121 |
PIPE; FUEL,FEED PUMP,SUCTION
|
8-94395-043-2 |
01 |
1 |
0005- |
|
|
|
● |
|
|
| |
121 |
PIPE; FUEL,FEED PUMP,SUCTION
EURO2 SPECIFICATION<THN>
|
8-94390-864-3 |
01 |
1 |
0005-0010 |
|
|
|
|
|
● |
| |
121 |
PIPE; FUEL,FEED PUMP,SUCTION
|
8-94390-864-3 |
01 |
1 |
0011- |
|
|
|
|
|
● |
| |
124 |
BOLT; EYE LEAK OFF PIPE
(A)
M8X30 FLANGE
|
1-09675-039-1 |
01 |
1 |
9510-9609 |
|
● |
|
|
|
|
| |
124 |
BOLT; EYE LEAK OFF PIPE
AUSTRALIA EQUIPMENT(RR3)
(A)
M8X30 FLANGE
|
1-09675-039-1 |
01 |
1 |
9510-9609 |
|
|
● |
|
|
|
| |
124 |
BOLT; EYE LEAK OFF PIPE
AUSTRALIA EQUIPMENT(RR3)
(A)
M8X30 FLANGE
|
1-09675-039-1 |
01 |
1 |
9610-9802 |
|
● |
● |
|
|
|
| |
124 |
BOLT; EYE LEAK OFF PIPE
(A)
M8X30 FLANGE
|
1-09675-039-1 |
01 |
1 |
9610-9802 |
|
|
|
● |
|
|
| |
124 |
BOLT; EYE LEAK OFF PIPE
AUSTRALIA EQUIPMENT(RR3)
(A)
M8X30 FLANGE
|
1-09675-039-1 |
01 |
1 |
9803-0004 |
|
● |
● |
|
|
|
| |
124 |
BOLT; EYE LEAK OFF PIPE
(A)
M8X30 FLANGE
|
1-09675-039-1 |
01 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
124 |
BOLT; EYE LEAK OFF PIPE
(A)
M8X30 FLANGE
|
1-09675-039-1 |
01 |
1 |
0005- |
|
|
|
● |
|
|
| |
124 |
BOLT; EYE LEAK OFF PIPE
(B)
M8X18 EYE-BOLT
|
1-09675-037-1 |
06 |
1 |
0005- |
|
● |
● |
|
|
|
| |
124 |
BOLT; EYE LEAK OFF PIPE
AUSTRALIA EQUIPMENT(RR3)
(B)
M8X18 EYE-BOLT
|
1-09675-037-1 |
05 |
1 |
9709-9802 |
|
● |
● |
|
|
|
| |
124 |
BOLT; EYE LEAK OFF PIPE
(B)
M8X18 EYE-BOLT
|
1-09675-037-1 |
05 |
1 |
9709-9802 |
|
|
|
● |
|
|
| |
124 |
BOLT; EYE LEAK OFF PIPE
AUSTRALIA EQUIPMENT(RR3)
(B)
M8X18 EYE-BOLT
|
1-09675-037-1 |
05 |
1 |
9803-0004 |
|
● |
● |
|
|
|
| |
124 |
BOLT; EYE LEAK OFF PIPE
(B)
M8X18 EYE-BOLT
|
1-09675-037-1 |
05 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
124 |
BOLT; EYE LEAK OFF PIPE
(B)
M8X18 EYE-BOLT
|
1-09675-037-1 |
05 |
1 |
0005- |
|
|
|
● |
|
|
| |
124 |
BOLT; EYE LEAK OFF PIPE
EURO2 SPECIFICATION<THN>
(C)
M10X21 FLANGE
|
8-94396-711-0 |
01 |
1 |
0005-0010 |
|
|
|
|
|
● |
| |
124 |
BOLT; EYE LEAK OFF PIPE
(C)
M10X21 FLANGE
|
8-94396-711-0 |
01 |
1 |
0011- |
|
|
|
|
|
● |
| |
130 |
BRACKET; OVERFLOW TO LEAK OFF
|
8-94394-980-2 |
01 |
1 |
9610-9802 |
|
|
|
● |
|
|
| |
130 |
BRACKET; OVERFLOW TO LEAK OFF
|
8-94394-980-2 |
01 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
130 |
BRACKET; OVERFLOW TO LEAK OFF
|
8-94394-980-2 |
01 |
1 |
0005- |
|
|
|
● |
|
|
| |
130 |
BRACKET; OVERFLOW TO LEAK OFF
EURO2 SPECIFICATION<THN>
|
8-94390-945-0 |
01 |
1 |
0005-0010 |
|
|
|
|
|
● |
| |
130 |
BRACKET; OVERFLOW TO LEAK OFF
|
8-94390-945-0 |
01 |
1 |
0011- |
|
|
|
|
|
● |
| |
131 |
CLIP; OVERFLOW LEAK OFF
|
1-09701-091-0 |
01 |
1 |
9610-9802 |
|
|
|
● |
|
|
| |
131 |
CLIP; OVERFLOW LEAK OFF
|
1-09701-091-0 |
01 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
131 |
CLIP; OVERFLOW LEAK OFF
|
1-09701-091-0 |
01 |
1 |
0005- |
|
|
|
● |
|
|
| |
131 |
CLIP; OVERFLOW LEAK OFF
EURO2 SPECIFICATION<THN>
|
1-09701-091-0 |
03 |
1 |
0005-0010 |
|
|
|
|
|
● |
| |
131 |
CLIP; OVERFLOW LEAK OFF
|
1-09701-091-0 |
03 |
1 |
0011- |
|
|
|
|
|
● |
| |
133 |
PIPE; INJ NOZZLE LEAK OFF
(E)
|
8-94391-311-0 |
01 |
1 |
0601-1206 |
● |
|
|
|
|
|
| |
133 |
PIPE; INJ NOZZLE LEAK OFF
(E)
|
8-98203-705-1 |
01 |
1 |
1207- |
● |
|
|
|
|
|
| |
133 |
PIPE; INJ NOZZLE LEAK OFF
(F)
|
8-94391-356-1 |
01 |
1 |
0601- |
● |
|
|
|
|
|
| |
133 |
PIPE; INJ NOZZLE LEAK OFF
(A)
|
8-94390-071-0 |
01 |
1 |
9510-9609 |
|
● |
|
|
|
|
| |
133 |
PIPE; INJ NOZZLE LEAK OFF
AUSTRALIA EQUIPMENT(RR3)
(A)
|
8-94390-071-0 |
01 |
1 |
9510-9609 |
|
|
● |
|
|
|
| |
133 |
PIPE; INJ NOZZLE LEAK OFF
AUSTRALIA EQUIPMENT(RR3)
(A)
|
8-94390-071-0 |
01 |
1 |
9610-9802 |
|
● |
● |
|
|
|
| |
133 |
PIPE; INJ NOZZLE LEAK OFF
(A)
|
8-94390-071-0 |
01 |
1 |
9610-9802 |
|
|
|
● |
|
|
| |
133 |
PIPE; INJ NOZZLE LEAK OFF
(B)
|
8-94390-178-0 |
01 |
1 |
9510-9702 |
|
● |
|
|
|
|
| |
133 |
PIPE; INJ NOZZLE LEAK OFF
AUSTRALIA EQUIPMENT(RR3)
(B)
|
8-94390-178-0 |
01 |
1 |
9510-9702 |
|
|
● |
|
|
|
| |
133 |
PIPE; INJ NOZZLE LEAK OFF
AUSTRALIA EQUIPMENT(RR3)
(B)
|
8-94390-178-0 |
01 |
1 |
9703-0004 |
|
● |
● |
|
|
|
| |
133 |
PIPE; INJ NOZZLE LEAK OFF
EURO2 SPECIFICATION<THN>
(D)
|
8-94390-451-0 |
01 |
1 |
0005-0010 |
|
|
|
|
|
● |
| |
133 |
PIPE; INJ NOZZLE LEAK OFF
(D)
|
8-94390-451-0 |
01 |
1 |
0011- |
|
|
|
|
|
● |
| |
133 |
PIPE; INJ NOZZLE LEAK OFF
AUSTRALIA EQUIPMENT(RR3)
(A)
|
8-94390-071-0 |
01 |
1 |
9803-0004 |
|
● |
● |
|
|
|
| |
133 |
PIPE; INJ NOZZLE LEAK OFF
(A)
|
8-94390-071-0 |
01 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
133 |
PIPE; INJ NOZZLE LEAK OFF
(A)
|
8-94390-071-0 |
01 |
1 |
0005- |
|
|
|
● |
|
|
| |
133 |
PIPE; INJ NOZZLE LEAK OFF
EXC. AUSTRALIA EQUIPMENT(RR3)
(C)
|
8-94395-805-0 |
01 |
1 |
9510-9702 |
|
|
● |
|
|
|
| |
133 |
PIPE; INJ NOZZLE LEAK OFF
EXC. AUSTRALIA EQUIPMENT(RR3)
(C)
|
8-94395-805-0 |
01 |
1 |
9703-0004 |
|
● |
● |
|
|
|
| |
133 |
PIPE; INJ NOZZLE LEAK OFF
(C)
|
8-94395-805-0 |
01 |
1 |
0005- |
|
● |
● |
|
|
|
| |
134 |
BOLT; JOINT,LEAK OFF PIPE
(B)
M10X21 FLANGE
|
8-94396-711-0 |
02 |
1 |
0601- |
● |
|
|
|
|
|
| |
134 |
BOLT; JOINT,LEAK OFF PIPE
(A)
M8X18 EYE-BOLT
|
1-09675-037-1 |
01 |
1 |
9510- |
|
● |
● |
|
|
|
| |
134 |
BOLT; JOINT,LEAK OFF PIPE
EURO2 SPECIFICATION<THN>
(A)
M8X18 EYE-BOLT
|
1-09675-037-1 |
06 |
1 |
0005-0010 |
|
|
|
|
|
● |
| |
134 |
BOLT; JOINT,LEAK OFF PIPE
(A)
M8X18 EYE-BOLT
|
1-09675-037-1 |
06 |
1 |
0011-0512 |
|
|
|
|
|
● |
| |
134 |
BOLT; JOINT,LEAK OFF PIPE
(A)
M8X18 EYE-BOLT
|
1-09675-037-1 |
06 |
1 |
0601- |
● |
|
|
|
|
● |
| |
134 |
BOLT; JOINT,LEAK OFF PIPE
EURO2 SPECIFICATION<THN>
(B)
M10X21 FLANGE
|
8-94396-711-0 |
01 |
1 |
0005-0010 |
|
|
|
|
|
● |
| |
134 |
BOLT; JOINT,LEAK OFF PIPE
(B)
M10X21 FLANGE
|
8-94396-711-0 |
01 |
1 |
0011- |
|
|
|
|
|
● |
| |
135 |
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(A)
ID=10.2 OD=17
|
8-98079-755-0 |
01 |
1 |
0909- |
● |
|
|
|
|
● |
| |
135 |
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(A)
ID=8.2 OD=13.2
|
1-09630-082-0 |
02 |
1 |
9510-0004 |
|
● |
● |
|
|
|
| |
135 |
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(A)
ID=8.2 OD=13.2
|
1-09630-082-0 |
14 |
1 |
0005- |
|
● |
● |
|
|
|
| |
135 |
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(A)
ID=8.2 OD=13.2
|
1-09630-082-0 |
01 |
1 |
9510-9609 |
|
● |
|
|
|
|
| |
135 |
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
AUSTRALIA EQUIPMENT(RR3)
(A)
ID=8.2 OD=13.2
|
1-09630-082-0 |
01 |
1 |
9510-9609 |
|
|
● |
|
|
|
| |
135 |
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
AUSTRALIA EQUIPMENT(RR3)
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(A)
ID=8.2 OD=13.2
|
1-09630-082-0 |
01 |
1 |
9610-9708 |
|
● |
● |
|
|
|
| |
135 |
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(A)
ID=8.2 OD=13.2
|
1-09630-082-0 |
01 |
1 |
9610-9708 |
|
|
|
● |
|
|
| |
135 |
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
AUSTRALIA EQUIPMENT(RR3)
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(A)
ID=8.2 OD=13.2
|
1-09630-082-0 |
13 |
1 |
9709-9802 |
|
● |
● |
|
|
|
| |
135 |
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(A)
ID=8.2 OD=13.2
|
1-09630-082-0 |
13 |
1 |
9709-9802 |
|
|
|
● |
|
|
| |
135 |
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
AUSTRALIA EQUIPMENT(RR3)
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(A)
ID=8.2 OD=13.2
|
1-09630-082-0 |
13 |
1 |
9803-0004 |
|
● |
● |
|
|
|
| |
135 |
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(A)
ID=8.2 OD=13.2
|
1-09630-082-0 |
13 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
135 |
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(A)
ID=8.2 OD=13.2
|
1-09630-082-0 |
13 |
1 |
0005- |
|
|
|
● |
|
|
| |
135 |
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
EURO2 SPECIFICATION<THN>
(A)
ID=10.2 OD=15.2
|
1-09630-083-0 |
03 |
1 |
0005-0005 |
|
|
|
|
|
● |
| |
135 |
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
EURO2 SPECIFICATION<THN>
(A)
ID=10.2 OD=15.2
|
1-09630-083-0 |
04 |
1 |
0005-0010 |
|
|
|
|
|
● |
| |
135 |
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(A)
ID=10.2 OD=15.2
|
1-09630-083-0 |
04 |
1 |
0011-0512 |
|
|
|
|
|
● |
| |
135 |
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(A)
ID=10.2 OD=15.2
|
1-09630-083-0 |
04 |
1 |
0601-0908 |
● |
|
|
|
|
● |
| |
135 |
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(A)
ID=10.2 OD=15.2
|
1-09630-083-0 |
02 |
1 |
0909- |
● |
|
|
|
|
● |
| |
135 |
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
EURO2 SPECIFICATION<THN>
(B)
ID=8.3
|
8-97600-925-0 |
06 |
1 |
0005-0010 |
|
|
|
|
|
● |
| |
135 |
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(B)
ID=8.3
|
8-97600-925-0 |
06 |
1 |
0011-0512 |
|
|
|
|
|
● |
| |
135 |
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(B)
ID=8.3
|
8-97600-925-0 |
06 |
1 |
0601-0908 |
● |
|
|
|
|
● |
| |
135 |
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(B)
ID=8.3 OD=15.0
|
8-98065-992-0 |
06 |
1 |
0909- |
● |
|
|
|
|
● |
| |
160 |
SPACER; INJ PUMP
(B)
|
8-94390-169-0 |
01 |
1 |
9510-9702 |
|
● |
|
|
|
|
| |
160 |
SPACER; INJ PUMP
HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
(B)
|
8-94390-169-0 |
01 |
1 |
9510-9702 |
|
|
● |
|
|
|
| |
160 |
SPACER; INJ PUMP
AUSTRALIA EQUIPMENT(RR3)
(B)
|
8-94390-169-0 |
01 |
1 |
9703-0004 |
|
● |
● |
|
|
|
| |
160 |
SPACER; INJ PUMP
ANTI NOISE EQUIPMENT VAR2<TAK>
(C)
|
8-94392-263-0 |
01 |
1 |
0005-0010 |
|
|
|
|
|
● |
| |
160 |
SPACER; INJ PUMP
ANTI NOISE EQUIPMENT VAR2<TAK>
EURO2 SPECIFICATION<THN>
(C)
|
8-94392-263-0 |
01 |
1 |
0011- |
|
|
|
|
|
● |
| |
160 |
SPACER; INJ PUMP
EXC. EURO2 SPECIFICATION<THN>
(C)
|
8-94392-263-0 |
01 |
1 |
0011- |
|
|
|
|
|
● |
| |
160 |
SPACER; INJ PUMP
(A)
|
8-94395-673-1 |
01 |
1 |
9510-9702 |
|
● |
|
|
|
|
| |
160 |
SPACER; INJ PUMP
HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
(A)
|
8-94395-673-1 |
01 |
1 |
9510-9702 |
|
|
● |
|
|
|
| |
160 |
SPACER; INJ PUMP
AUSTRALIA EQUIPMENT(RR3)
(A)
|
8-94395-673-1 |
01 |
1 |
9703-0004 |
|
● |
● |
|
|
|
| |

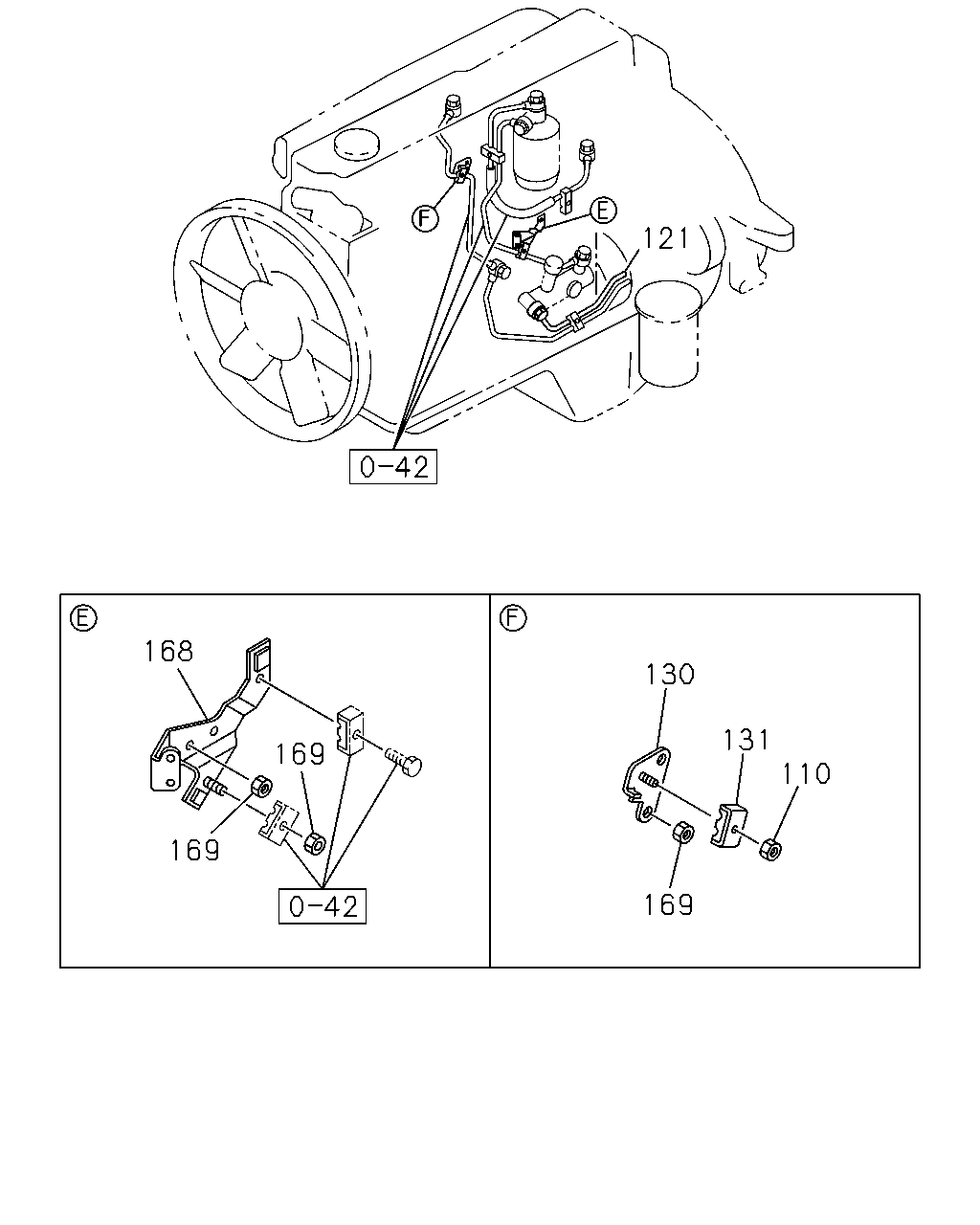

169 |
NUT; BRKT
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9610-9802 |
|
|
|
● |
|
|
| |
169 |
NUT; BRKT
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
169 |
NUT; BRKT
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0005-0602 |
|
|
|
● |
|
● |
| |
169 |
NUT; BRKT
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0005-0602 |
|
|
|
● |
|
|
| |
169 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
|
|
|
● |
|
● |
| |
169 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
|
|
|
● |
|
|
| |
184 |
BOLT; NOZZLE HOLDER
M8X40 FLANGE
|
0-28080-840-0 |
12 |
1 |
9510-0512 |
|
● |
● |
|
|
|
| |
184 |
BOLT; NOZZLE HOLDER
M8X40 FLANGE
|
0-28050-840-0 |
12 |
1 |
0601- |
|
● |
● |
|
|
|
| |
184 |
BOLT; NOZZLE HOLDER
EURO2 SPECIFICATION<THN>
M8X54
|
8-94390-989-1 |
06 |
1 |
0005-0010 |
|
|
|
|
|
● |
| |
184 |
BOLT; NOZZLE HOLDER
M8X54
|
8-94390-989-1 |
06 |
1 |
0011-0412 |
|
|
|
|
|
● |
| |
184 |
BOLT; NOZZLE HOLDER
M8X54
|
8-98008-895-0 |
06 |
1 |
0501- |
|
|
|
|
|
● |
