Sayfa 0-39 - Isuzu EPC

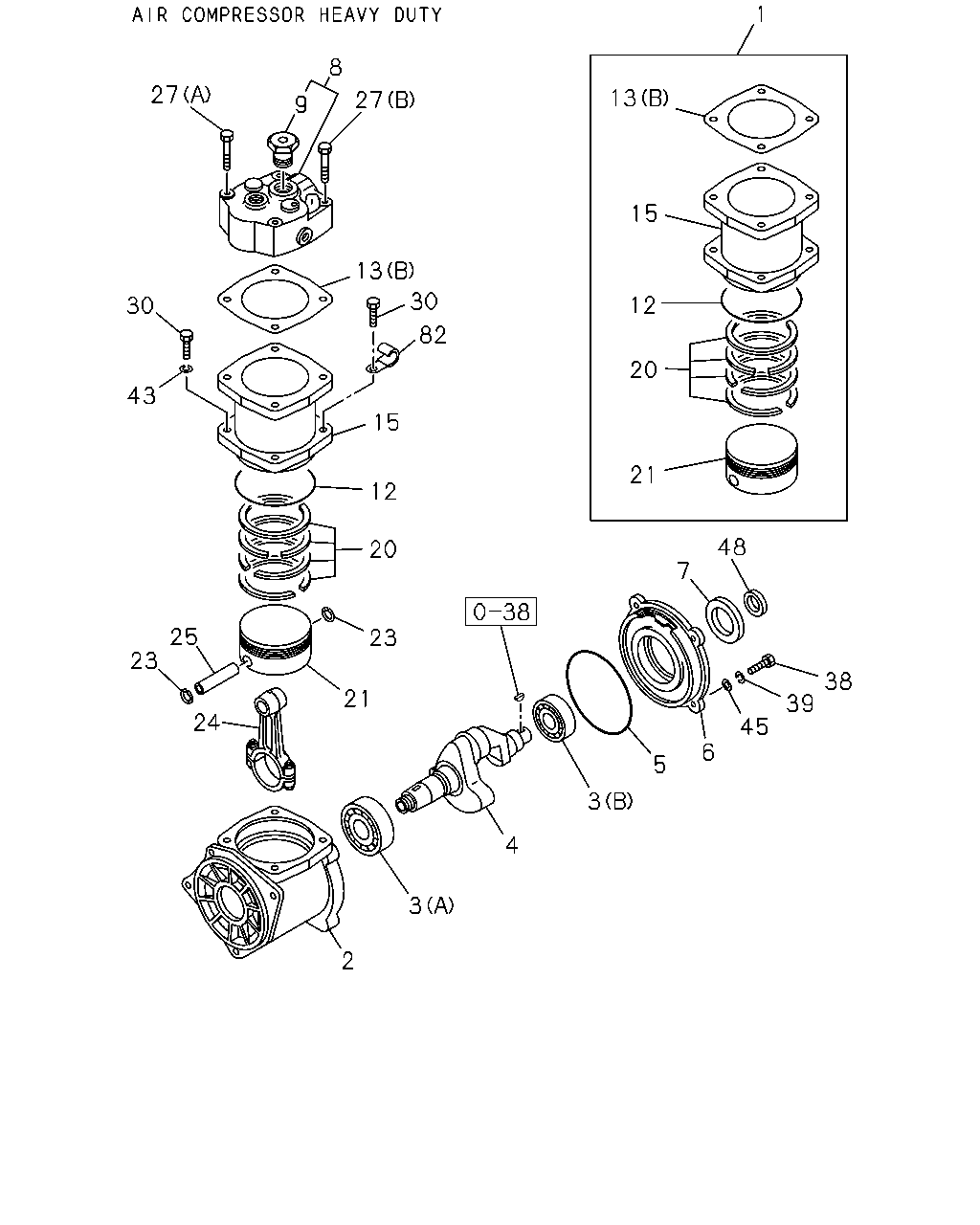

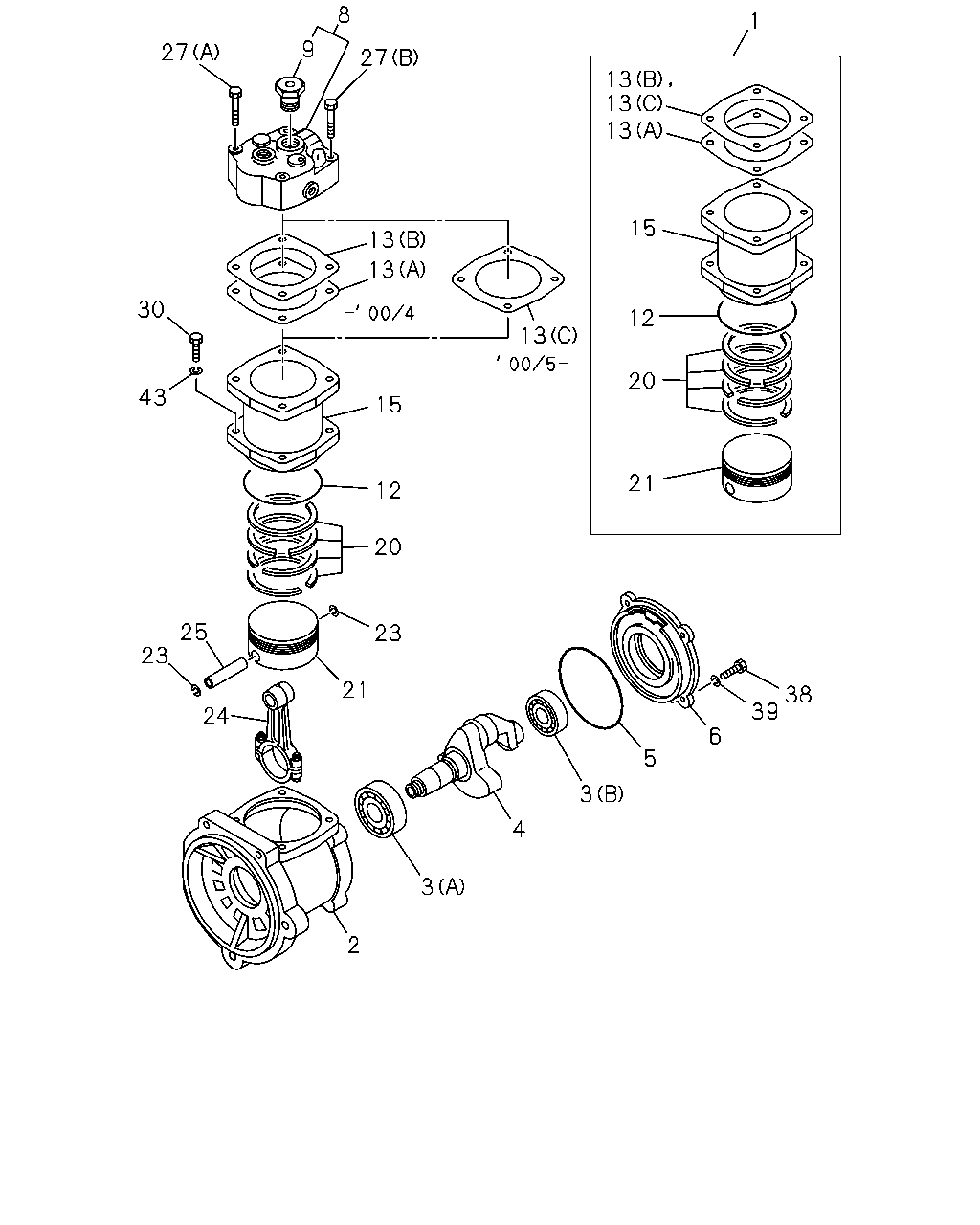

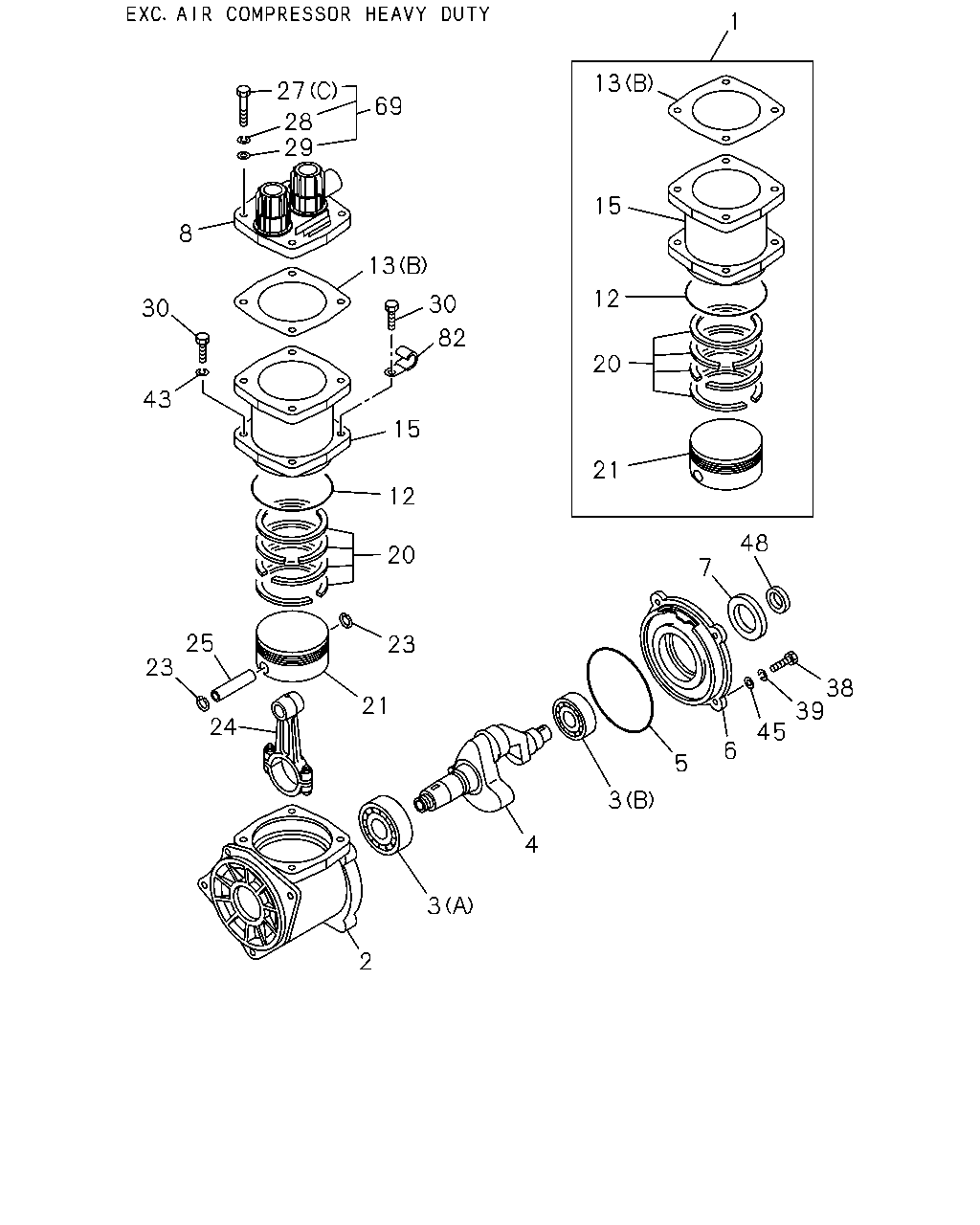

0-39 — AIR COMPRESSOR; BRAKE (#37256) — 716 parça

12 20 21 15 13 1 69 29 28 27 8 30 43 13 30 82 15 12 20 23 25 23 21 24 4 3 6 5 45 39 38 48 7 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	LINER KIT; CYL,AIR CMPR	1-19163-076-0	01	1	0901-	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-053-2	01	1	9510-0812		●	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-074-0	01	1	0901-		●	●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-050-1	01	1	9510-0109		●	●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-050-1	01	1	0110-0210		●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V>	1-19163-050-1	01	1	0110-0210			●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-050-1	01	1	0211-		●	●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	9610-9802				●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	9803-0004				●	●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	0005-0812				●
1	LINER KIT; CYL,AIR CMPR	1-19163-075-0	01	1	0901-				●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-062-1	01	1	0005-0512						●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-062-1	01	1	0601-0812						●
1	LINER KIT; CYL,AIR CMPR	1-19163-062-1	01	1	0601-0812	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-062-1	01	1	0901-						●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-063-0	01	1	0005-						●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9510-		●	●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	9610-9802				●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	9803-0004				●	●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	0005-				●
2	CRANKCASE; AIR CMPR	1-19151-282-2	01	1	0005-0512						●
2	CRANKCASE; AIR CMPR	1-19151-282-2	01	1	0601-	●					●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9510-9802		●	●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9510-9802		●	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9803-0004		●	●	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	0005-1202		●	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	1203-		●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9803-0004		●	●	●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	0005-		●	●	●
3	BEARING; AIR CMPR (A)	1-19177-009-0	01	1	0005-0512						●
3	BEARING; AIR CMPR (A)	1-19177-009-0	01	1	0601-	●					●
3	BEARING; AIR CMPR (B)	1-19177-010-0	01	1	0005-0512						●
3	BEARING; AIR CMPR (B)	1-19177-010-0	01	1	0601-	●					●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-048-1	01	1	9510-		●	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-047-1	01	1	9510-0109		●	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-047-1	01	1	0110-0210		●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V>	1-19171-047-1	01	1	0110-0210			●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-047-1	01	1	0211-		●	●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	9610-9802				●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	9803-0004				●	●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	0005-1202				●
4	CRANKSHAFT; AIR CMPR	8-98209-089-0	01	1	1203-				●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-074-1	01	1	0005-0512						●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-074-0	01	1	0601-						●
4	CRANKSHAFT; AIR CMPR	1-19171-074-0	01	1	0601-	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-077-0	01	1	0005-						●
5	GASKET; AIR CMPR	8-98192-464-0	01	1	1108-						●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9510-9802		●	●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9803-0004		●	●	●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	0005-1107		●	●	●
5	GASKET; AIR CMPR	8-98192-460-0	01	1	1108-		●	●	●
5	GASKET; AIR CMPR	1-09623-627-0	01	1	0005-0512						●
5	GASKET; AIR CMPR	1-09623-627-0	01	1	0601-1107	●					●
5	GASKET; AIR CMPR	1-09623-627-0	01	1	1108-	●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9510-		●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9610-9802				●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9803-0004				●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	0005-1202				●
6	COVER ASM; BRG,AIR CMPR	8-98209-092-0	01	1	1203-				●
6	COVER ASM; BRG,AIR CMPR	1-19156-075-1	01	1	0005-0512						●
6	COVER ASM; BRG,AIR CMPR	1-19156-075-1	01	1	0601-	●					●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	9510-		●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	0005-0512						●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	0601-	●					●
8	HEAD ASM; CYL,AIR CMPR	1-19110-055-0	01	1	0601-0812	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-052-1	01	1	9510-1107		●	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-052-1	01	1	1108-		●	●			●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-019-0	01	1	9510-0004		●	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-051-0	01	1	0005-1107						●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-019-0	01	1	0005-0407		●	●			●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-019-0	01	1	0408-		●	●
8	HEAD ASM; CYL,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-019-0	01	1	0408-						●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	9610-9802				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	9803-0004				●	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	0005-0812				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	0901-	●			●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1108-		●	●	●		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9510-9802		●	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9803-0004		●	●	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	0005-0512		●	●	●		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	0601-1107	●	●	●	●		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	1108-	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-98112-947-0	01	1	0005-0512		●	●			●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-98112-947-0	01	1	0601-		●	●			●
13	GASKET; AIR CMPR (B)	8-98112-947-0	01	1	0601-	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-98113-036-0	01	1	0005-0407		●	●			●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-98113-036-0	01	1	0408-		●	●
13	GASKET; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-98113-036-0	01	1	0408-						●
13	GASKET; AIR CMPR (C)	1-19139-016-0	01	1	0005-				●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) T=0.8	1-19139-004-0	01	1	9510-9802		●	●
13	GASKET; AIR CMPR (B) T=0.8	1-19139-004-0	01	1	9510-9802				●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) T=0.8	1-19139-004-0	01	1	9803-9805		●	●
13	GASKET; AIR CMPR (B) T=0.8	1-19139-004-0	01	1	9803-9805				●	●
13	GASKET; AIR CMPR (B) T=0.8	1-19139-004-0	01	1	9806-0004				●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-09623-626-0	01	1	9806-0004		●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19115-006-1	01	1	9510-0004		●	●
13	GASKET; AIR CMPR (A)	1-19139-002-0	01	1	9610-9802				●
13	GASKET; AIR CMPR (A)	1-19139-002-0	01	1	9803-0004				●	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	9510-		●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-250-0	01	1	9510-0109		●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-250-0	01	1	0110-0210		●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V>	1-19151-250-0	01	1	0110-0210			●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-250-0	01	1	0211-		●	●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	9610-9802				●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	9803-0004				●	●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	0005-				●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-283-1	01	1	0005-0512						●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-283-1	01	1	0601-						●
15	CYLINDER; AIR CMPR	1-19151-283-1	01	1	0601-	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-285-0	01	1	0005-						●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-058-0	01	1	0901-		●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	0901-	●			●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	9510-9802		●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9510-9802				●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	9803-0004		●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9803-0004				●	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	0005-0512		●	●			●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	0005-0512				●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	0601-0812		●	●			●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	0601-0812	●			●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	0901-						●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-043-0	01	1	9510-0004		●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-043-0	01	1	0005-0407		●	●			●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-043-0	01	1	0408-		●	●
20	RING KIT; PISTON,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-043-0	01	1	0408-						●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-027-0	01	1	0901-		●	●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	0901-	●			●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	9510-9802		●	●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9510-9802				●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	9803-0004		●	●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9803-0004				●	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	0005-0512		●	●			●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	0005-0512				●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	0601-0812		●	●			●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	0601-0812	●			●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	0901-						●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-021-0	01	1	9510-0004		●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-021-0	01	1	0005-0407		●	●			●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-021-0	01	1	0408-		●	●
21	PISTON; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-021-0	01	1	0408-						●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19169-004-0	02	1	0302-0812						●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19169-004-0	02	1	0901-1107		●	●			●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	0901-1107	●			●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	1108-	●	●	●	●		●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9510-0004		●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0005-0301		●	●			●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0302-0512		●	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	02	1	0302-0512						●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0601-0812	●	●	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	02	1	0601-0812						●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	02	1	0901-1107		●	●
23	RING; SNAP,PISTON,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	02	1	0901-1107						●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	9610-9802				●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	9803-0004				●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	0005-0812				●
24	ROD ASM; CONN,AIR CMPR	8-98209-093-0	01	1	1203-				●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	9510-9802		●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9510-9802				●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	9803-0004		●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9803-0004				●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	0005-1202		●		●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	0005-1202			●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	1203-		●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-017-0	01	1	9510-0109		●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-017-0	01	1	0110-0210		●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V>	1-19173-017-0	01	1	0110-0210			●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-017-0	01	1	0211-		●	●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-007-0	01	1	0005-0512						●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-007-0	01	1	0601-						●
24	ROD ASM; CONN,AIR CMPR	1-19173-007-0	01	1	0601-	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-020-0	01	1	0005-						●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19167-003-0	01	1	0302-0812						●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19167-003-0	01	1	0901-		●	●			●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	0901-	●			●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	9510-9802		●	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9510-9802				●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	9803-0004		●	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9803-0004				●	●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	0005-0301		●	●			●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0005-0301				●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0302-0512		●		●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	0302-0512			●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	0601-0812		●	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0601-0812	●			●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-006-0	01	1	9510-0004		●	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-006-0	01	1	0005-0407		●	●			●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-006-0	01	1	0408-		●	●
25	PIN; PISTON,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-006-0	01	1	0408-						●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X45	9-01066-045-0	02	1	9510-9802		●	●
27	BOLT; HD (B) M10X45	9-01066-045-0	02	1	9510-9802				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X45	9-01066-045-0	02	1	9803-0004		●	●
27	BOLT; HD (B) M10X45	9-01066-045-0	02	1	9803-0004				●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X45	9-01066-045-0	02	1	0005-0512		●	●			●
27	BOLT; HD (B) M10X45	9-01066-045-0	02	1	0005-0512				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X45	9-01066-045-0	02	1	0601-		●	●			●
27	BOLT; HD (B) M10X45	9-01066-045-0	02	1	0601-	●			●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X60	9-01066-060-0	02	1	9510-9802		●	●
27	BOLT; HD (A) M10X60	9-01066-060-0	02	1	9510-9802				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X60	9-01066-060-0	02	1	9803-0004		●	●
27	BOLT; HD (A) M10X60	9-01066-060-0	02	1	9803-0004				●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X60	9-01066-060-0	02	1	0005-0512		●	●			●
27	BOLT; HD (A) M10X60	9-01066-060-0	02	1	0005-0512				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X60	9-01066-060-0	02	1	0601-		●	●			●
27	BOLT; HD (A) M10X60	9-01066-060-0	02	1	0601-	●			●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M10X30	9-02061-030-0	04	1	9510-9805		●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19119-031-0	04	1	0005-						●
28	WASHER; LK,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-610-0	04	1	9510-9805		●	●
29	WASHER; PL,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.5	9-09164-510-0	04	1	9510-9805		●	●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	04	1	9510-9802		●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9510-9802				●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	04	1	9803-9805		●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9803-9805				●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9806-0004				●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	0005-				●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09000-332-0	04	1	9510-9805		●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9806-0004		●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	0005-0512		●	●			●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	0601-	●	●	●			●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9510-		●	●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9610-9802				●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9803-0004				●	●
38	BOLT; COVER FIX	1-19179-011-0	04	1	0005-				●
38	BOLT; COVER FIX	1-09100-018-0	02	1	0005-0512						●
38	BOLT; COVER FIX	1-09100-018-0	02	1	0601-	●					●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9510-9802		●	●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9803-0004		●	●	●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	0005-		●	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9510-9802		●	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9803-9805		●	●	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9806-0004				●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	0005-				●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	9510-		●	●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	9510-		●	●
48	SLEEVE; CR/SHF	1-19179-024-0	01	1	0005-0512						●
48	SLEEVE; CR/SHF	1-19179-024-0	01	1	0601-	●					●
69	BOLT ASM; AIR COMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-031-0	04	1	9806-0109		●	●
69	BOLT ASM; AIR COMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-031-0	04	1	0110-0210		●
69	BOLT ASM; AIR COMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V>	1-19119-031-0	04	1	0110-0210			●
69	BOLT ASM; AIR COMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-031-0	04	1	0211-		●	●
82	CLIP; AIR COMPRESSOR	1-19159-017-0	01	1	0005-						●

27 8 9 27 1 13 15 12 20 21 13 30 82 15 12 30 43 25 23 24 20 23 21 2 3 4 3 5 6 7 48 38 39 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	LINER KIT; CYL,AIR CMPR	1-19163-076-0	01	1	0901-	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-053-2	01	1	9510-0812		●	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-074-0	01	1	0901-		●	●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-050-1	01	1	9510-0109		●	●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-050-1	01	1	0110-0210		●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V>	1-19163-050-1	01	1	0110-0210			●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-050-1	01	1	0211-		●	●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	9610-9802				●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	9803-0004				●	●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	0005-0812				●
1	LINER KIT; CYL,AIR CMPR	1-19163-075-0	01	1	0901-				●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-062-1	01	1	0005-0512						●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-062-1	01	1	0601-0812						●
1	LINER KIT; CYL,AIR CMPR	1-19163-062-1	01	1	0601-0812	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-062-1	01	1	0901-						●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-063-0	01	1	0005-						●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9510-		●	●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	9610-9802				●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	9803-0004				●	●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	0005-				●
2	CRANKCASE; AIR CMPR	1-19151-282-2	01	1	0005-0512						●
2	CRANKCASE; AIR CMPR	1-19151-282-2	01	1	0601-	●					●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9510-9802		●	●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9510-9802		●	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9803-0004		●	●	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	0005-1202		●	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	1203-		●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9803-0004		●	●	●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	0005-		●	●	●
3	BEARING; AIR CMPR (A)	1-19177-009-0	01	1	0005-0512						●
3	BEARING; AIR CMPR (A)	1-19177-009-0	01	1	0601-	●					●
3	BEARING; AIR CMPR (B)	1-19177-010-0	01	1	0005-0512						●
3	BEARING; AIR CMPR (B)	1-19177-010-0	01	1	0601-	●					●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-048-1	01	1	9510-		●	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-047-1	01	1	9510-0109		●	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-047-1	01	1	0110-0210		●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V>	1-19171-047-1	01	1	0110-0210			●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-047-1	01	1	0211-		●	●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	9610-9802				●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	9803-0004				●	●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	0005-1202				●
4	CRANKSHAFT; AIR CMPR	8-98209-089-0	01	1	1203-				●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-074-1	01	1	0005-0512						●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-074-0	01	1	0601-						●
4	CRANKSHAFT; AIR CMPR	1-19171-074-0	01	1	0601-	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-077-0	01	1	0005-						●
5	GASKET; AIR CMPR	8-98192-464-0	01	1	1108-						●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9510-9802		●	●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9803-0004		●	●	●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	0005-1107		●	●	●
5	GASKET; AIR CMPR	8-98192-460-0	01	1	1108-		●	●	●
5	GASKET; AIR CMPR	1-09623-627-0	01	1	0005-0512						●
5	GASKET; AIR CMPR	1-09623-627-0	01	1	0601-1107	●					●
5	GASKET; AIR CMPR	1-09623-627-0	01	1	1108-	●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9510-		●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9610-9802				●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9803-0004				●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	0005-1202				●
6	COVER ASM; BRG,AIR CMPR	8-98209-092-0	01	1	1203-				●
6	COVER ASM; BRG,AIR CMPR	1-19156-075-1	01	1	0005-0512						●
6	COVER ASM; BRG,AIR CMPR	1-19156-075-1	01	1	0601-	●					●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	9510-		●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	0005-0512						●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	0601-	●					●
8	HEAD ASM; CYL,AIR CMPR	1-19110-055-0	01	1	0601-0812	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-052-1	01	1	9510-1107		●	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-052-1	01	1	1108-		●	●			●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-019-0	01	1	9510-0004		●	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-051-0	01	1	0005-1107						●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-019-0	01	1	0005-0407		●	●			●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-019-0	01	1	0408-		●	●
8	HEAD ASM; CYL,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-019-0	01	1	0408-						●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	9610-9802				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	9803-0004				●	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	0005-0812				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	0901-	●			●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-017-1	01	1	9510-9802		●	●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	9510-9802				●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-017-1	01	1	9803-0004		●	●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	9803-0004				●	●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-017-1	01	1	0005-0512		●	●			●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	0005-0512				●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-017-1	01	1	0601-		●	●			●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	0601-	●			●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1108-		●	●	●		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9510-9802		●	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9803-0004		●	●	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	0005-0512		●	●	●		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	0601-1107	●	●	●	●		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	1108-	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-98112-947-0	01	1	0005-0512		●	●			●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-98112-947-0	01	1	0601-		●	●			●
13	GASKET; AIR CMPR (B)	8-98112-947-0	01	1	0601-	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-98113-036-0	01	1	0005-0407		●	●			●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-98113-036-0	01	1	0408-		●	●
13	GASKET; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-98113-036-0	01	1	0408-						●
13	GASKET; AIR CMPR (C)	1-19139-016-0	01	1	0005-				●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) T=0.8	1-19139-004-0	01	1	9510-9802		●	●
13	GASKET; AIR CMPR (B) T=0.8	1-19139-004-0	01	1	9510-9802				●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) T=0.8	1-19139-004-0	01	1	9803-9805		●	●
13	GASKET; AIR CMPR (B) T=0.8	1-19139-004-0	01	1	9803-9805				●	●
13	GASKET; AIR CMPR (B) T=0.8	1-19139-004-0	01	1	9806-0004				●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-09623-626-0	01	1	9806-0004		●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19115-006-1	01	1	9510-0004		●	●
13	GASKET; AIR CMPR (A)	1-19139-002-0	01	1	9610-9802				●
13	GASKET; AIR CMPR (A)	1-19139-002-0	01	1	9803-0004				●	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	9510-		●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-250-0	01	1	9510-0109		●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-250-0	01	1	0110-0210		●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V>	1-19151-250-0	01	1	0110-0210			●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-250-0	01	1	0211-		●	●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	9610-9802				●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	9803-0004				●	●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	0005-				●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-283-1	01	1	0005-0512						●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-283-1	01	1	0601-						●
15	CYLINDER; AIR CMPR	1-19151-283-1	01	1	0601-	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-285-0	01	1	0005-						●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-058-0	01	1	0901-		●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	0901-	●			●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	9510-9802		●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9510-9802				●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	9803-0004		●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9803-0004				●	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	0005-0512		●	●			●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	0005-0512				●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	0601-0812		●	●			●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	0601-0812	●			●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	0901-						●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-043-0	01	1	9510-0004		●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-043-0	01	1	0005-0407		●	●			●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-043-0	01	1	0408-		●	●
20	RING KIT; PISTON,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-043-0	01	1	0408-						●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-027-0	01	1	0901-		●	●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	0901-	●			●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	9510-9802		●	●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9510-9802				●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	9803-0004		●	●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9803-0004				●	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	0005-0512		●	●			●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	0005-0512				●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	0601-0812		●	●			●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	0601-0812	●			●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	0901-						●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-021-0	01	1	9510-0004		●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-021-0	01	1	0005-0407		●	●			●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-021-0	01	1	0408-		●	●
21	PISTON; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-021-0	01	1	0408-						●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19169-004-0	02	1	0302-0812						●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19169-004-0	02	1	0901-1107		●	●			●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	0901-1107	●			●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	1108-	●	●	●	●		●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9510-0004		●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0005-0301		●	●			●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0302-0512		●	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	02	1	0302-0512						●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0601-0812	●	●	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	02	1	0601-0812						●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	02	1	0901-1107		●	●
23	RING; SNAP,PISTON,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	02	1	0901-1107						●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	9610-9802				●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	9803-0004				●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	0005-0812				●
24	ROD ASM; CONN,AIR CMPR	8-98209-093-0	01	1	1203-				●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	9510-9802		●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9510-9802				●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	9803-0004		●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9803-0004				●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	0005-1202		●		●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	0005-1202			●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	1203-		●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-017-0	01	1	9510-0109		●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-017-0	01	1	0110-0210		●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V>	1-19173-017-0	01	1	0110-0210			●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-017-0	01	1	0211-		●	●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-007-0	01	1	0005-0512						●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-007-0	01	1	0601-						●
24	ROD ASM; CONN,AIR CMPR	1-19173-007-0	01	1	0601-	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-020-0	01	1	0005-						●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19167-003-0	01	1	0302-0812						●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19167-003-0	01	1	0901-		●	●			●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	0901-	●			●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	9510-9802		●	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9510-9802				●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	9803-0004		●	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9803-0004				●	●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	0005-0301		●	●			●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0005-0301				●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0302-0512		●		●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	0302-0512			●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	0601-0812		●	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0601-0812	●			●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-006-0	01	1	9510-0004		●	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-006-0	01	1	0005-0407		●	●			●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-006-0	01	1	0408-		●	●
25	PIN; PISTON,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-006-0	01	1	0408-						●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X45	9-01066-045-0	02	1	9510-9802		●	●
27	BOLT; HD (B) M10X45	9-01066-045-0	02	1	9510-9802				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X45	9-01066-045-0	02	1	9803-0004		●	●
27	BOLT; HD (B) M10X45	9-01066-045-0	02	1	9803-0004				●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X45	9-01066-045-0	02	1	0005-0512		●	●			●
27	BOLT; HD (B) M10X45	9-01066-045-0	02	1	0005-0512				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X45	9-01066-045-0	02	1	0601-		●	●			●
27	BOLT; HD (B) M10X45	9-01066-045-0	02	1	0601-	●			●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X60	9-01066-060-0	02	1	9510-9802		●	●
27	BOLT; HD (A) M10X60	9-01066-060-0	02	1	9510-9802				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X60	9-01066-060-0	02	1	9803-0004		●	●
27	BOLT; HD (A) M10X60	9-01066-060-0	02	1	9803-0004				●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X60	9-01066-060-0	02	1	0005-0512		●	●			●
27	BOLT; HD (A) M10X60	9-01066-060-0	02	1	0005-0512				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X60	9-01066-060-0	02	1	0601-		●	●			●
27	BOLT; HD (A) M10X60	9-01066-060-0	02	1	0601-	●			●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M10X30	9-02061-030-0	04	1	9510-9805		●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19119-031-0	04	1	0005-						●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	04	1	9510-9802		●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9510-9802				●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	04	1	9803-9805		●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9803-9805				●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9806-0004				●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	0005-				●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09000-332-0	04	1	9510-9805		●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9806-0004		●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	0005-0512		●	●			●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	0601-	●	●	●			●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9510-		●	●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9610-9802				●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9803-0004				●	●
38	BOLT; COVER FIX	1-19179-011-0	04	1	0005-				●
38	BOLT; COVER FIX	1-09100-018-0	02	1	0005-0512						●
38	BOLT; COVER FIX	1-09100-018-0	02	1	0601-	●					●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9510-9802		●	●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9803-0004		●	●	●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	0005-		●	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9510-9802		●	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9803-9805		●	●	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9806-0004				●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	0005-				●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	9510-		●	●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	9510-		●	●
48	SLEEVE; CR/SHF	1-19179-024-0	01	1	0005-0512						●
48	SLEEVE; CR/SHF	1-19179-024-0	01	1	0601-	●					●
82	CLIP; AIR COMPRESSOR	1-19159-017-0	01	1	0005-						●

27 30 43 25 23 24 2 3 4 3 5 6 39 38 21 23 20 12 15 13 13 9 8 27 1 13 21 20 12 15 13 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	LINER KIT; CYL,AIR CMPR	1-19163-076-0	01	1	0901-	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-053-2	01	1	9510-0812		●	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-074-0	01	1	0901-		●	●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-050-1	01	1	9510-0109		●	●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-050-1	01	1	0110-0210		●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V>	1-19163-050-1	01	1	0110-0210			●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-050-1	01	1	0211-		●	●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	9610-9802				●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	9803-0004				●	●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	0005-0812				●
1	LINER KIT; CYL,AIR CMPR	1-19163-075-0	01	1	0901-				●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-062-1	01	1	0005-0512						●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-062-1	01	1	0601-0812						●
1	LINER KIT; CYL,AIR CMPR	1-19163-062-1	01	1	0601-0812	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-062-1	01	1	0901-						●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-063-0	01	1	0005-						●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9510-		●	●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	9610-9802				●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	9803-0004				●	●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	0005-				●
2	CRANKCASE; AIR CMPR	1-19151-282-2	01	1	0005-0512						●
2	CRANKCASE; AIR CMPR	1-19151-282-2	01	1	0601-	●					●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9510-9802		●	●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9510-9802		●	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9803-0004		●	●	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	0005-1202		●	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	1203-		●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9803-0004		●	●	●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	0005-		●	●	●
3	BEARING; AIR CMPR (A)	1-19177-009-0	01	1	0005-0512						●
3	BEARING; AIR CMPR (A)	1-19177-009-0	01	1	0601-	●					●
3	BEARING; AIR CMPR (B)	1-19177-010-0	01	1	0005-0512						●
3	BEARING; AIR CMPR (B)	1-19177-010-0	01	1	0601-	●					●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-048-1	01	1	9510-		●	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-047-1	01	1	9510-0109		●	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-047-1	01	1	0110-0210		●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V>	1-19171-047-1	01	1	0110-0210			●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-047-1	01	1	0211-		●	●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	9610-9802				●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	9803-0004				●	●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	0005-1202				●
4	CRANKSHAFT; AIR CMPR	8-98209-089-0	01	1	1203-				●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-074-1	01	1	0005-0512						●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-074-0	01	1	0601-						●
4	CRANKSHAFT; AIR CMPR	1-19171-074-0	01	1	0601-	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-077-0	01	1	0005-						●
5	GASKET; AIR CMPR	8-98192-464-0	01	1	1108-						●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9510-9802		●	●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9803-0004		●	●	●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	0005-1107		●	●	●
5	GASKET; AIR CMPR	8-98192-460-0	01	1	1108-		●	●	●
5	GASKET; AIR CMPR	1-09623-627-0	01	1	0005-0512						●
5	GASKET; AIR CMPR	1-09623-627-0	01	1	0601-1107	●					●
5	GASKET; AIR CMPR	1-09623-627-0	01	1	1108-	●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9510-		●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9610-9802				●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9803-0004				●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	0005-1202				●
6	COVER ASM; BRG,AIR CMPR	8-98209-092-0	01	1	1203-				●
6	COVER ASM; BRG,AIR CMPR	1-19156-075-1	01	1	0005-0512						●
6	COVER ASM; BRG,AIR CMPR	1-19156-075-1	01	1	0601-	●					●
8	HEAD ASM; CYL,AIR CMPR	1-19110-055-0	01	1	0601-0812	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-052-1	01	1	9510-1107		●	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-052-1	01	1	1108-		●	●			●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-019-0	01	1	9510-0004		●	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-051-0	01	1	0005-1107						●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-019-0	01	1	0005-0407		●	●			●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-019-0	01	1	0408-		●	●
8	HEAD ASM; CYL,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-019-0	01	1	0408-						●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	9610-9802				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	9803-0004				●	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	0005-0812				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	0901-	●			●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-017-1	01	1	9510-9802		●	●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	9510-9802				●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-017-1	01	1	9803-0004		●	●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	9803-0004				●	●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-017-1	01	1	0005-0512		●	●			●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	0005-0512				●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-017-1	01	1	0601-		●	●			●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	0601-	●			●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1108-		●	●	●		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9510-9802		●	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9803-0004		●	●	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	0005-0512		●	●	●		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	0601-1107	●	●	●	●		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	1108-	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-98112-947-0	01	1	0005-0512		●	●			●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-98112-947-0	01	1	0601-		●	●			●
13	GASKET; AIR CMPR (B)	8-98112-947-0	01	1	0601-	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-98113-036-0	01	1	0005-0407		●	●			●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-98113-036-0	01	1	0408-		●	●
13	GASKET; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-98113-036-0	01	1	0408-						●
13	GASKET; AIR CMPR (C)	1-19139-016-0	01	1	0005-				●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) T=0.8	1-19139-004-0	01	1	9510-9802		●	●
13	GASKET; AIR CMPR (B) T=0.8	1-19139-004-0	01	1	9510-9802				●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) T=0.8	1-19139-004-0	01	1	9803-9805		●	●
13	GASKET; AIR CMPR (B) T=0.8	1-19139-004-0	01	1	9803-9805				●	●
13	GASKET; AIR CMPR (B) T=0.8	1-19139-004-0	01	1	9806-0004				●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-09623-626-0	01	1	9806-0004		●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19115-006-1	01	1	9510-0004		●	●
13	GASKET; AIR CMPR (A)	1-19139-002-0	01	1	9610-9802				●
13	GASKET; AIR CMPR (A)	1-19139-002-0	01	1	9803-0004				●	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	9510-		●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-250-0	01	1	9510-0109		●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-250-0	01	1	0110-0210		●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V>	1-19151-250-0	01	1	0110-0210			●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-250-0	01	1	0211-		●	●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	9610-9802				●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	9803-0004				●	●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	0005-				●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-283-1	01	1	0005-0512						●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-283-1	01	1	0601-						●
15	CYLINDER; AIR CMPR	1-19151-283-1	01	1	0601-	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-285-0	01	1	0005-						●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-058-0	01	1	0901-		●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	0901-	●			●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	9510-9802		●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9510-9802				●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	9803-0004		●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9803-0004				●	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	0005-0512		●	●			●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	0005-0512				●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	0601-0812		●	●			●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	0601-0812	●			●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	0901-						●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-043-0	01	1	9510-0004		●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-043-0	01	1	0005-0407		●	●			●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-043-0	01	1	0408-		●	●
20	RING KIT; PISTON,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-043-0	01	1	0408-						●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-027-0	01	1	0901-		●	●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	0901-	●			●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	9510-9802		●	●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9510-9802				●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	9803-0004		●	●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9803-0004				●	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	0005-0512		●	●			●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	0005-0512				●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	0601-0812		●	●			●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	0601-0812	●			●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	0901-						●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-021-0	01	1	9510-0004		●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-021-0	01	1	0005-0407		●	●			●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-021-0	01	1	0408-		●	●
21	PISTON; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-021-0	01	1	0408-						●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19169-004-0	02	1	0302-0812						●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19169-004-0	02	1	0901-1107		●	●			●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	0901-1107	●			●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	1108-	●	●	●	●		●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9510-0004		●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0005-0301		●	●			●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0302-0512		●	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	02	1	0302-0512						●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0601-0812	●	●	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	02	1	0601-0812						●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	02	1	0901-1107		●	●
23	RING; SNAP,PISTON,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	02	1	0901-1107						●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	9610-9802				●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	9803-0004				●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	0005-0812				●
24	ROD ASM; CONN,AIR CMPR	8-98209-093-0	01	1	1203-				●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	9510-9802		●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9510-9802				●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	9803-0004		●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9803-0004				●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	0005-1202		●		●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	0005-1202			●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	1203-		●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-017-0	01	1	9510-0109		●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-017-0	01	1	0110-0210		●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V>	1-19173-017-0	01	1	0110-0210			●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-017-0	01	1	0211-		●	●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-007-0	01	1	0005-0512						●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-007-0	01	1	0601-						●
24	ROD ASM; CONN,AIR CMPR	1-19173-007-0	01	1	0601-	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-020-0	01	1	0005-						●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19167-003-0	01	1	0302-0812						●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19167-003-0	01	1	0901-		●	●			●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	0901-	●			●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	9510-9802		●	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9510-9802				●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	9803-0004		●	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9803-0004				●	●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	0005-0301		●	●			●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0005-0301				●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0302-0512		●		●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	0302-0512			●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	0601-0812		●	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0601-0812	●			●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-006-0	01	1	9510-0004		●	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-006-0	01	1	0005-0407		●	●			●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-006-0	01	1	0408-		●	●
25	PIN; PISTON,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-006-0	01	1	0408-						●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X45	9-01066-045-0	02	1	9510-9802		●	●
27	BOLT; HD (B) M10X45	9-01066-045-0	02	1	9510-9802				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X45	9-01066-045-0	02	1	9803-0004		●	●
27	BOLT; HD (B) M10X45	9-01066-045-0	02	1	9803-0004				●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X45	9-01066-045-0	02	1	0005-0512		●	●			●
27	BOLT; HD (B) M10X45	9-01066-045-0	02	1	0005-0512				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X45	9-01066-045-0	02	1	0601-		●	●			●
27	BOLT; HD (B) M10X45	9-01066-045-0	02	1	0601-	●			●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X60	9-01066-060-0	02	1	9510-9802		●	●
27	BOLT; HD (A) M10X60	9-01066-060-0	02	1	9510-9802				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X60	9-01066-060-0	02	1	9803-0004		●	●
27	BOLT; HD (A) M10X60	9-01066-060-0	02	1	9803-0004				●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X60	9-01066-060-0	02	1	0005-0512		●	●			●
27	BOLT; HD (A) M10X60	9-01066-060-0	02	1	0005-0512				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X60	9-01066-060-0	02	1	0601-		●	●			●
27	BOLT; HD (A) M10X60	9-01066-060-0	02	1	0601-	●			●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M10X30	9-02061-030-0	04	1	9510-9805		●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19119-031-0	04	1	0005-						●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	04	1	9510-9802		●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9510-9802				●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	04	1	9803-9805		●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9803-9805				●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9806-0004				●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	0005-				●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09000-332-0	04	1	9510-9805		●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9806-0004		●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	0005-0512		●	●			●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	0601-	●	●	●			●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9510-		●	●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9610-9802				●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9803-0004				●	●
38	BOLT; COVER FIX	1-19179-011-0	04	1	0005-				●
38	BOLT; COVER FIX	1-09100-018-0	02	1	0005-0512						●
38	BOLT; COVER FIX	1-09100-018-0	02	1	0601-	●					●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9510-9802		●	●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9803-0004		●	●	●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	0005-		●	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9510-9802		●	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9803-9805		●	●	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9806-0004				●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	0005-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
