Sayfa 0-38 - Isuzu EPC

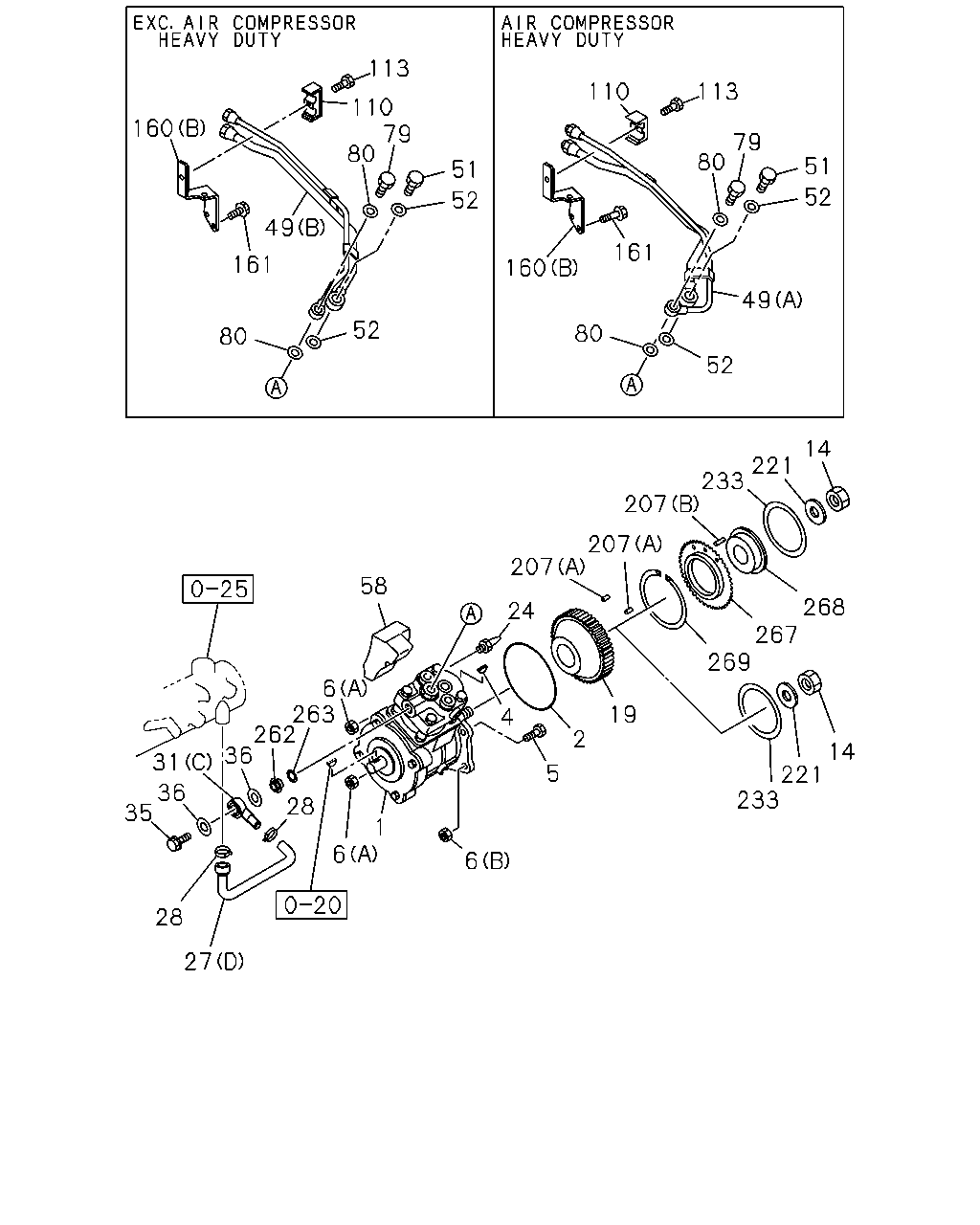

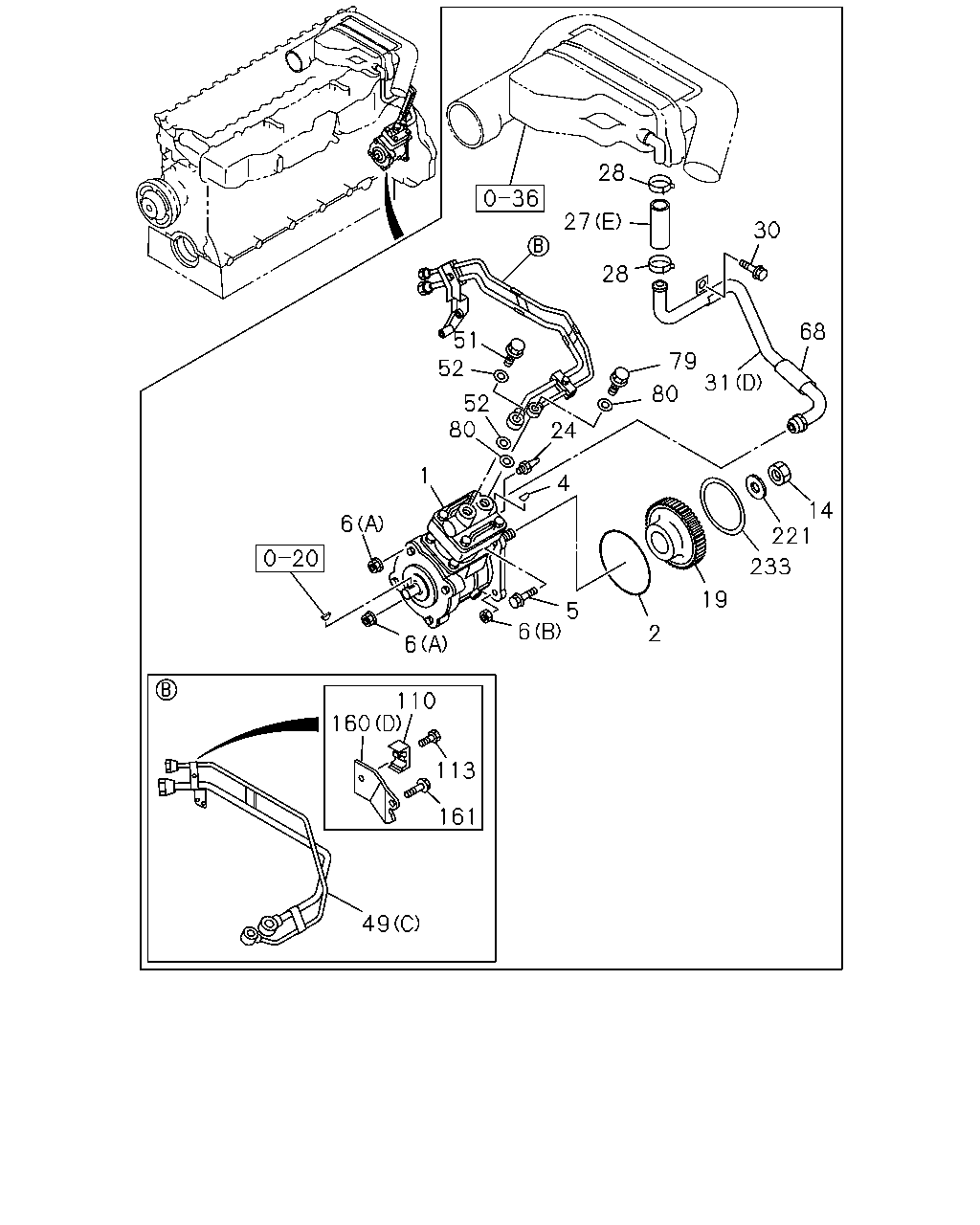

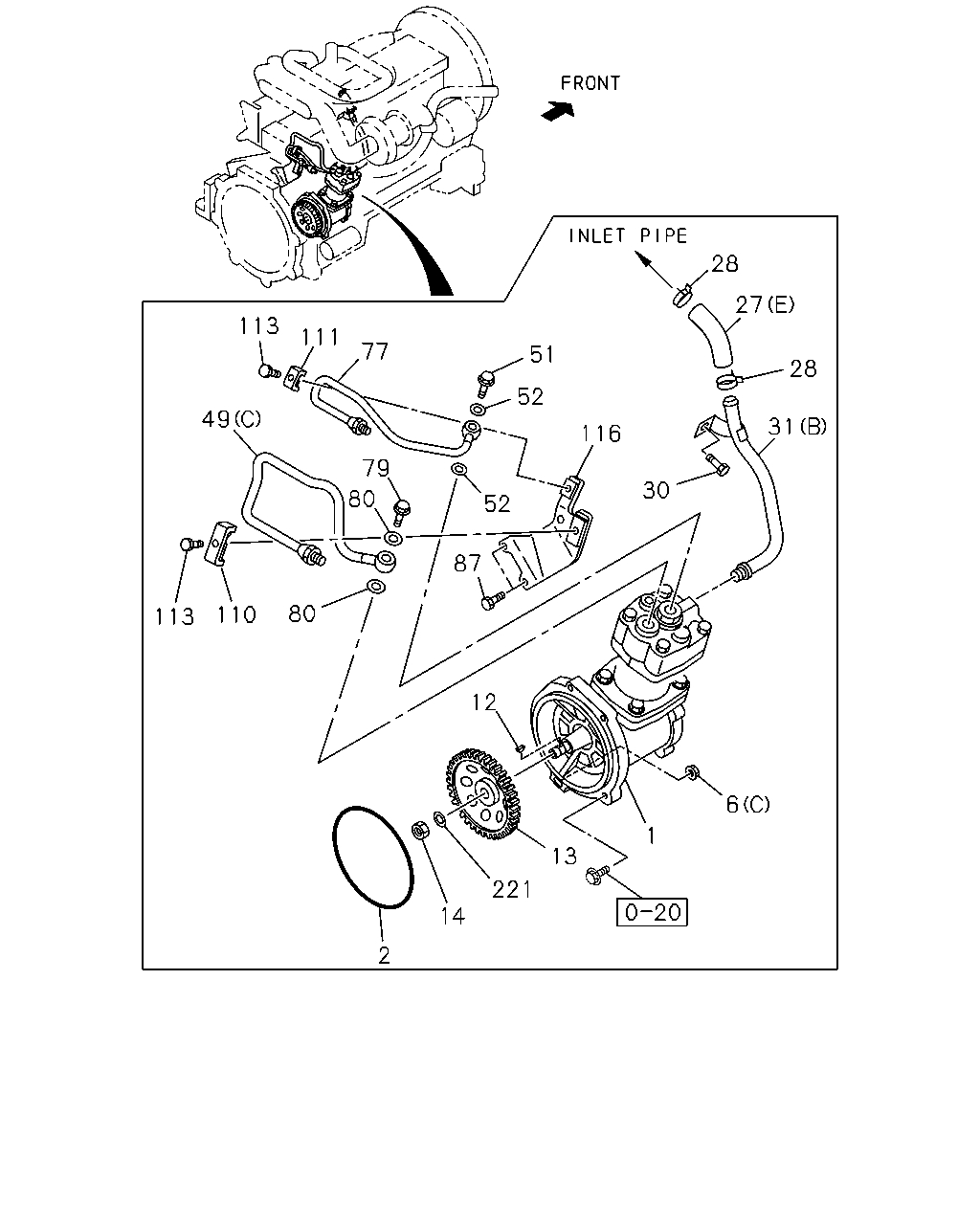

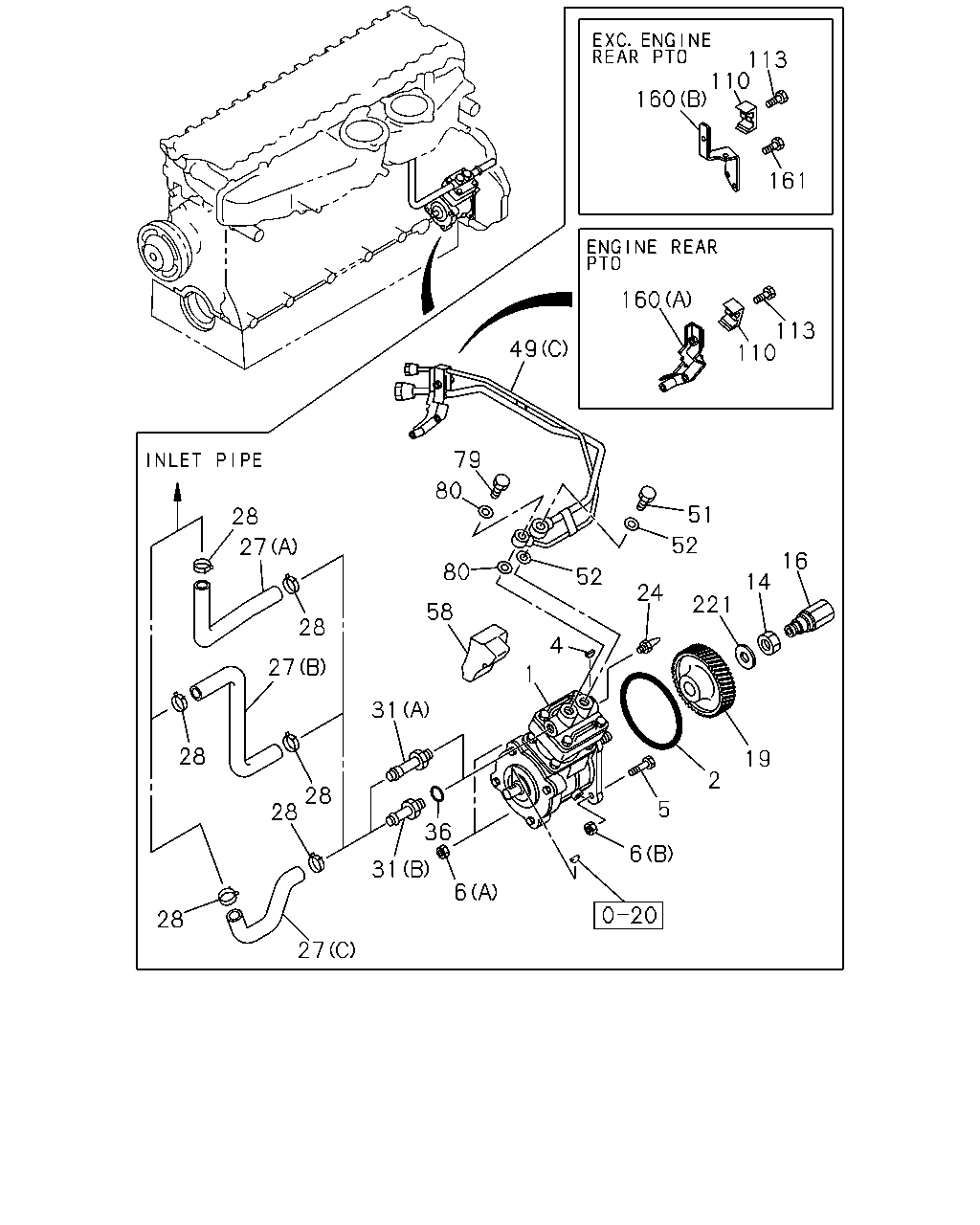

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#37255) — 1081 parça

113 110 160 161 160 113 110 49 79 80 51 28 52 27 16 80 52 14 24 221 58 28 4 27 1 31 28 19 2 28 28 5 36 31 6 6 28 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97600-704-2	01	1	0601-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-892-9	01	1	9510-1107		●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-310-1	01	1	1108-		●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	9510-0109		●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	0110-0210		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V>	8-94396-891-4	01	1	0110-0210			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	0211-1107		●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-309-1	01	1	1108-		●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	9610-9802				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	9803-0004				●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	0005-1107				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-705-1	01	1	0005-1107						●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-306-0	01	1	1108-						●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-699-1	01	1	0005-1107						●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-305-0	01	1	1108-						●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9510-0004		●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-0010		●	●			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-464-0	01	1	0011-0109		●	●			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). HEATER & DEFROSTER(C41) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=139.6	1-09623-464-0	01	1	0011-0109						●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0110-0512		●	●			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0601-	●	●	●			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	9610-9802				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	9803-0004				●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	0005-				●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9510-		●	●
4	KEY; INJ PUMP GEAR EURO2 SPECIFICATION<THN>	9-08055-519-0	01	1	0005-0010						●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0011-0512						●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0601-	●					●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9510-		●	●
5	BOLT; AIR CMPR FIX EURO2 SPECIFICATION<THN> M12X110	0-28186-211-0	01	1	0005-0010						●
5	BOLT; AIR CMPR FIX M12X110	0-28186-211-0	01	1	0011-0512						●
5	BOLT; AIR CMPR FIX M12X110 FLANGE	0-28156-211-0	01	1	0601-0601						●
5	BOLT; AIR CMPR FIX M12X110 FLANGE	0-28156-211-0	01	1	0601-	●					●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9510-0004		●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0005-0010		●	●			●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0011-0109		●	●			●
6	NUT; AIR CMPR HEATER & DEFROSTER(C41) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10 FLANGE	0-91150-110-0	02	1	0011-0109						●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0110-0512		●	●			●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0601-0602	●	●	●			●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91180-110-0	02	1	0603-	●	●	●			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9510-0004		●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0005-0010		●	●			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0011-0109		●	●			●
6	NUT; AIR CMPR HEATER & DEFROSTER(C41) AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M12 FLANGE	0-91150-112-0	01	1	0011-0109						●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0110-0512		●	●			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0601-0602	●	●	●			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	01	1	0603-	●	●	●			●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	9610-9802				●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	9803-0004				●	●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0005-0602				●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91180-212-0	01	1	0603-				●
14	NUT; GEAR M20	9-99110-520-0	01	1	9510-9802		●	●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	9803-0004		●	●	●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0005-0512		●	●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-		●	●	●
14	NUT; GEAR EURO2 SPECIFICATION<THN> M24	9-99110-524-0	01	1	0005-0010						●
14	NUT; GEAR M24	9-99110-524-0	01	1	0011-0512						●
14	NUT; GEAR M24	0-91110-524-0	01	1	0601-0601						●
14	NUT; GEAR M24	0-91110-524-0	01	1	0601-	●					●
16	ADAPTER AUSTRALIA EQUIPMENT(RR3) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9803-0004		●	●			●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9510-		●	●
19	GEAR; INJ PUMP EURO2 SPECIFICATION<THN> Z=35	8-94390-998-2	01	1	0005-0512						●
19	GEAR; INJ PUMP EURO2 SPECIFICATION<THN> Z=35	8-94390-998-2	01	1	0601-						●
19	GEAR; INJ PUMP Z=35	8-94390-998-2	01	1	0601-	●
19	GEAR; INJ PUMP EXC. EURO2 SPECIFICATION<THN> Z=35	8-94392-642-1	01	1	0011-						●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9510-0004		●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0005-0010		●	●			●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0011-0109		●	●			●
24	POINTER; AIR CMPR HEATER & DEFROSTER(C41) AIR COMPRESSOR HEAVY DUTY(E1Q) L=21	9-11327-602-0	01	1	0011-0109						●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0110-0512		●	●			●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0601-	●	●	●			●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) AIR COMPRESSOR HEAVY DUTY(E1Q) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (C)	8-94394-967-0	01	1	9510-9702		●	●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) AIR COMPRESSOR HEAVY DUTY(E1Q) AUSTRALIA EQUIPMENT(RR3) (C)	8-94394-967-0	01	1	9703-0004		●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94391-030-2	01	1	0005-						●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) AUSTRALIA EQUIPMENT(RR3) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),HONG KONG EQUIPMENT(PQ1) (C)	8-94394-809-1	01	1	9510-9702		●	●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) AUSTRALIA EQUIPMENT(RR3) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94394-809-1	01	1	9703-0004		●	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94390-542-2	01	1	0005-						●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FR*W) AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94395-085-0	01	1	9510-0004		●	●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FR*W) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94395-084-0	01	1	9510-0004		●	●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A)	8-94395-083-0	01	1	9510-9702			●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94395-083-0	01	1	9703-9802			●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94395-083-0	01	1	9803-0004		●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-083-0	01	1	0005-		●	●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A)	8-94395-082-0	01	1	9510-9702			●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),AUSTRALIA EQUIPMENT(RR3) (A)	8-94395-082-0	01	1	9703-9810			●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94395-082-0	01	1	9811-9911			●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94395-082-0	01	1	9912-0004		●	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-082-0	01	1	0005-0109		●	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-082-0	01	1	0110-0210		●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V> (A)	8-94395-082-0	01	1	0110-0210			●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-082-0	01	1	0211-		●	●
27	HOSE; AIR CMPR,SUCTION (E) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	9703-9802				●
27	HOSE; AIR CMPR,SUCTION (E) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	9803-0004				●	●
27	HOSE; AIR CMPR,SUCTION (E) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0005-0512				●
27	HOSE; AIR CMPR,SUCTION (E) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0601-	●			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9510-9802		●	●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9803-0004		●	●	●	●
28	CLIP; HOSE,AIR CMPR EURO2 SPECIFICATION<THN> ID=26	1-09707-091-0	01	1	0005-0010						●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	01	1	0011-						●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0005-0512		●	●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0601-	●	●	●	●
28	CLIP; HOSE,AIR CMPR EURO2 SPECIFICATION<THN> ID=22.7	8-94466-382-0	01	1	0005-0010						●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	01	1	0011-						●
31	PIPE; AIR,AIR CMPR SUCTION (D)	8-94390-859-1	01	1	0601-	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-954-0	01	1	9511-		●	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-942-1	01	1	9510-0109		●	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-942-1	01	1	0110-0210		●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V> (B)	8-94399-942-1	01	1	0110-0210			●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-942-1	01	1	0211-		●	●
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-94390-405-0	01	1	9610-9802				●
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-94390-405-0	01	1	9803-0004				●	●
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-94390-405-0	01	1	0005-				●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<THN> (C)	8-94390-949-0	01	1	0005-0010						●
31	PIPE; AIR,AIR CMPR SUCTION (C)	8-94390-949-0	01	1	0011-						●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	01	1	9510-0109		●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	01	1	0110-0210		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V> ID=24.5 OD=32	9-09571-424-0	01	1	0110-0210			●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	01	1	0211-		●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> ID=24.5 OD=32	9-09571-424-0	02	1	0005-0010						●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0011-						●
49	PIPE; AIR,CHARGE (C)	8-97600-184-1	01	1	0601-	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) ENGINE REAR PTO(SV1) (C)	8-94390-192-0	01	1	9510-0004		●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94392-073-0	01	1	0005-						●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (C)	8-94395-087-2	01	1	9510-0004		●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94395-087-2	01	1	0005-		●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE REAR PTO(SV1) (C)	8-94390-063-0	01	1	9510-0004		●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94390-063-1	01	1	0005-0109		●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94390-063-1	01	1	0110-0112		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V> (C)	8-94390-063-1	01	1	0110-0112			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94394-275-1	01	1	0201-0210		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V> (C)	8-94394-275-1	01	1	0201-0210			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94394-275-1	01	1	0211-		●	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94394-708-1	01	1	9510-0004		●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94392-087-0	01	1	0005-						●
49	PIPE; AIR,CHARGE (C)	8-94395-723-0	01	1	9610-9802				●
49	PIPE; AIR,CHARGE (C)	8-94395-723-0	01	1	9803-0004				●	●
49	PIPE; AIR,CHARGE (C)	8-94395-723-0	01	1	0005-				●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9510-9802		●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9510-9802				●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9803-0004		●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9803-0004				●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	0005-0512		●		●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	0005-0512			●			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0601-1404	●	●		●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-1	01	1	0601-1404			●			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●	●		●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-175-2	01	1	1405-			●			●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	9510-0004		●	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	0005-0407		●	●			●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-1	01	1	0408-		●	●
51	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-1	01	1	0408-						●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q). ID=24.5 OD=32	9-09571-424-0	02	1	9510-9802		●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9510-9802				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q). ID=24.5 OD=32	9-09571-424-0	02	1	9803-0004		●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9803-0004				●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0005-0512		●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	0005-0512			●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0601-	●	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	0601-			●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	9510-0004		●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0005-0407		●	●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0408-		●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0408-						●
58	SPACER; AIR CMPR	8-94395-675-1	01	1	9510-9702		●
58	SPACER; AIR CMPR HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-94395-675-1	01	1	9510-9702			●
58	SPACER; AIR CMPR AUSTRALIA EQUIPMENT(RR3)	8-94395-675-1	01	1	9703-0004		●	●
58	SPACER; AIR CMPR ANTI NOISE EQUIPMENT VAR2<TAK>	8-94391-440-1	01	1	0005-						●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9510-9802		●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9510-9802				●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9803-0004		●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9803-0004				●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0005-0512		●		●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0005-0512			●			●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0601-	●	●		●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0601-			●			●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	9510-0004		●	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0005-0407		●	●			●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0408-		●	●
79	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0408-						●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-9802		●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-9802				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9803-0004		●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9803-0004				●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0512		●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0512			●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0601-1312	●	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	0601-1312			●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9510-0004		●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0005-0407		●	●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0408-		●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0408-						●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	9510-0004		●	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0005-0512		●	●			●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0601-	●	●	●			●
110	CLIP; AIR PIPE	8-94393-037-0	02	1	9703-9802				●
110	CLIP; AIR PIPE	8-94393-037-0	02	1	9803-0004				●	●
110	CLIP; AIR PIPE	8-94393-037-0	02	1	0005-				●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	01	1	9510-9709		●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9710-0004		●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0005-0512		●	●			●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-0601		●	●			●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-	●	●	●			●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28680-620-0	01	1	9610-9802				●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28680-620-0	01	1	9803-0004				●	●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28680-620-0	01	1	0005-0512				●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28650-620-0	01	1	0601-0611				●
113	BOLT; CLIP,AIR PIPE M6X30 FLANGE	0-28050-630-0	01	1	0612-				●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	01	1	9610-9702				●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	02	1	9703-9709				●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	9710-9802				●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	9803-0004				●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	0005-0512				●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	02	1	0601-				●
160	BRACKET; AIR PIPE (D)	8-94392-031-1	01	1	0601-	●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (A)	8-94394-371-0	01	1	9608-0004		●	●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (B)	8-94394-569-0	01	1	9510-0004		●	●
160	BRACKET; AIR PIPE (B)	8-94394-569-0	01	1	0005-		●	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<THN> (B)	8-94394-569-0	01	1	0005-						●
160	BRACKET; AIR PIPE (C)	8-94391-073-0	01	1	9807-0004					●
160	BRACKET; AIR PIPE EXC. EURO2 SPECIFICATION<THN> (B)	8-94390-664-1	01	1	0011-						●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28080-816-0	02	1	9510-0004		●	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0005-0512		●	●			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-0601		●	●			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●	●			●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9510-9802		●	●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9803-0004		●	●	●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0005-0605		●	●	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-		●	●	●
221	WASHER; PL,GEAR EURO2 SPECIFICATION<THN> ID=25	9-09160-524-0	01	1	0005-0512						●
221	WASHER; PL,GEAR EURO2 SPECIFICATION<THN> ID=25	9-09160-524-0	01	1	0601-						●
221	WASHER; PL,GEAR ID=25	9-09160-524-0	01	1	0601-	●

28 27 113 111 77 51 28 52 49 31 116 79 30 80 52 87 80 110 113 12 6 1 13 221 14 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97600-704-2	01	1	0601-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-892-9	01	1	9510-1107		●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-310-1	01	1	1108-		●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	9510-0109		●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	0110-0210		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V>	8-94396-891-4	01	1	0110-0210			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	0211-1107		●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-309-1	01	1	1108-		●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	9610-9802				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	9803-0004				●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	0005-1107				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-705-1	01	1	0005-1107						●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-306-0	01	1	1108-						●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-699-1	01	1	0005-1107						●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-305-0	01	1	1108-						●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9510-0004		●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-0010		●	●			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-464-0	01	1	0011-0109		●	●			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). HEATER & DEFROSTER(C41) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=139.6	1-09623-464-0	01	1	0011-0109						●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0110-0512		●	●			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0601-	●	●	●			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	9610-9802				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	9803-0004				●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	0005-				●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9510-0004		●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0005-0010		●	●			●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0011-0109		●	●			●
6	NUT; AIR CMPR HEATER & DEFROSTER(C41) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10 FLANGE	0-91150-110-0	02	1	0011-0109						●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0110-0512		●	●			●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0601-0602	●	●	●			●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91180-110-0	02	1	0603-	●	●	●			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9510-0004		●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0005-0010		●	●			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0011-0109		●	●			●
6	NUT; AIR CMPR HEATER & DEFROSTER(C41) AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M12 FLANGE	0-91150-112-0	01	1	0011-0109						●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0110-0512		●	●			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0601-0602	●	●	●			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	01	1	0603-	●	●	●			●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	9610-9802				●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	9803-0004				●	●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0005-0602				●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91180-212-0	01	1	0603-				●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	9610-9802				●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	9803-0004				●	●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	0005-				●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	9610-9802				●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	9803-0004				●	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0005-				●
14	NUT; GEAR M20	9-99110-520-0	01	1	9510-9802		●	●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	9803-0004		●	●	●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0005-0512		●	●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-		●	●	●
14	NUT; GEAR EURO2 SPECIFICATION<THN> M24	9-99110-524-0	01	1	0005-0010						●
14	NUT; GEAR M24	9-99110-524-0	01	1	0011-0512						●
14	NUT; GEAR M24	0-91110-524-0	01	1	0601-0601						●
14	NUT; GEAR M24	0-91110-524-0	01	1	0601-	●					●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) AIR COMPRESSOR HEAVY DUTY(E1Q) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (C)	8-94394-967-0	01	1	9510-9702		●	●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) AIR COMPRESSOR HEAVY DUTY(E1Q) AUSTRALIA EQUIPMENT(RR3) (C)	8-94394-967-0	01	1	9703-0004		●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94391-030-2	01	1	0005-						●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) AUSTRALIA EQUIPMENT(RR3) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),HONG KONG EQUIPMENT(PQ1) (C)	8-94394-809-1	01	1	9510-9702		●	●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) AUSTRALIA EQUIPMENT(RR3) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94394-809-1	01	1	9703-0004		●	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94390-542-2	01	1	0005-						●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FR*W) AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94395-085-0	01	1	9510-0004		●	●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FR*W) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94395-084-0	01	1	9510-0004		●	●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A)	8-94395-083-0	01	1	9510-9702			●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94395-083-0	01	1	9703-9802			●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94395-083-0	01	1	9803-0004		●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-083-0	01	1	0005-		●	●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A)	8-94395-082-0	01	1	9510-9702			●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),AUSTRALIA EQUIPMENT(RR3) (A)	8-94395-082-0	01	1	9703-9810			●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94395-082-0	01	1	9811-9911			●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94395-082-0	01	1	9912-0004		●	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-082-0	01	1	0005-0109		●	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-082-0	01	1	0110-0210		●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V> (A)	8-94395-082-0	01	1	0110-0210			●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-082-0	01	1	0211-		●	●
27	HOSE; AIR CMPR,SUCTION (E) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	9703-9802				●
27	HOSE; AIR CMPR,SUCTION (E) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	9803-0004				●	●
27	HOSE; AIR CMPR,SUCTION (E) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0005-0512				●
27	HOSE; AIR CMPR,SUCTION (E) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0601-	●			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9510-9802		●	●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9803-0004		●	●	●	●
28	CLIP; HOSE,AIR CMPR EURO2 SPECIFICATION<THN> ID=26	1-09707-091-0	01	1	0005-0010						●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	01	1	0011-						●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0005-0512		●	●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0601-	●	●	●	●
28	CLIP; HOSE,AIR CMPR EURO2 SPECIFICATION<THN> ID=22.7	8-94466-382-0	01	1	0005-0010						●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	01	1	0011-						●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	9610-9802				●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	9803-0004				●	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0005-0512				●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0601-0601				●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0601-	●			●
31	PIPE; AIR,AIR CMPR SUCTION (D)	8-94390-859-1	01	1	0601-	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-954-0	01	1	9511-		●	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-942-1	01	1	9510-0109		●	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-942-1	01	1	0110-0210		●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V> (B)	8-94399-942-1	01	1	0110-0210			●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-942-1	01	1	0211-		●	●
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-94390-405-0	01	1	9610-9802				●
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-94390-405-0	01	1	9803-0004				●	●
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-94390-405-0	01	1	0005-				●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<THN> (C)	8-94390-949-0	01	1	0005-0010						●
31	PIPE; AIR,AIR CMPR SUCTION (C)	8-94390-949-0	01	1	0011-						●
49	PIPE; AIR,CHARGE (C)	8-97600-184-1	01	1	0601-	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) ENGINE REAR PTO(SV1) (C)	8-94390-192-0	01	1	9510-0004		●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94392-073-0	01	1	0005-						●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (C)	8-94395-087-2	01	1	9510-0004		●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94395-087-2	01	1	0005-		●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE REAR PTO(SV1) (C)	8-94390-063-0	01	1	9510-0004		●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94390-063-1	01	1	0005-0109		●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94390-063-1	01	1	0110-0112		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V> (C)	8-94390-063-1	01	1	0110-0112			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94394-275-1	01	1	0201-0210		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V> (C)	8-94394-275-1	01	1	0201-0210			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94394-275-1	01	1	0211-		●	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94394-708-1	01	1	9510-0004		●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94392-087-0	01	1	0005-						●
49	PIPE; AIR,CHARGE (C)	8-94395-723-0	01	1	9610-9802				●
49	PIPE; AIR,CHARGE (C)	8-94395-723-0	01	1	9803-0004				●	●
49	PIPE; AIR,CHARGE (C)	8-94395-723-0	01	1	0005-				●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9510-9802		●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9510-9802				●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9803-0004		●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9803-0004				●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	0005-0512		●		●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	0005-0512			●			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0601-1404	●	●		●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-1	01	1	0601-1404			●			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●	●		●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-175-2	01	1	1405-			●			●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	9510-0004		●	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	0005-0407		●	●			●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-1	01	1	0408-		●	●
51	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-1	01	1	0408-						●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q). ID=24.5 OD=32	9-09571-424-0	02	1	9510-9802		●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9510-9802				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q). ID=24.5 OD=32	9-09571-424-0	02	1	9803-0004		●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9803-0004				●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0005-0512		●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	0005-0512			●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0601-	●	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	0601-			●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	9510-0004		●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0005-0407		●	●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0408-		●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0408-						●
77	PIPE; AIR,GOV	8-94394-960-0	01	1	9610-9802				●
77	PIPE; AIR,GOV	8-94394-960-0	01	1	9803-0004				●	●
77	PIPE; AIR,GOV	8-94394-960-1	01	1	0005-				●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9510-9802		●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9510-9802				●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9803-0004		●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9803-0004				●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0005-0512		●		●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0005-0512			●			●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0601-	●	●		●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0601-			●			●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	9510-0004		●	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0005-0407		●	●			●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0408-		●	●
79	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0408-						●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-9802		●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-9802				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9803-0004		●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9803-0004				●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0512		●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0512			●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0601-1312	●	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	0601-1312			●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9510-0004		●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0005-0407		●	●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0408-		●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0408-						●
87	BOLT; BRKT FIX M8X16 FLANGE	0-28080-816-0	02	1	9610-9802				●
87	BOLT; BRKT FIX M8X16 FLANGE	0-28080-816-0	02	1	9803-0004				●	●
87	BOLT; BRKT FIX M8X16 FLANGE	0-28080-816-0	02	1	0005-0512				●
87	BOLT; BRKT FIX M8X16 FLANGE	0-28050-816-0	02	1	0601-				●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	9510-0004		●	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0005-0512		●	●			●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0601-	●	●	●			●
110	CLIP; AIR PIPE	8-94393-037-0	02	1	9703-9802				●
110	CLIP; AIR PIPE	8-94393-037-0	02	1	9803-0004				●	●
110	CLIP; AIR PIPE	8-94393-037-0	02	1	0005-				●
111	CLIP; AIR PIPE	1-09701-091-0	01	1	9610-9802				●
111	CLIP; AIR PIPE	1-09701-091-0	01	1	9803-0004				●	●
111	CLIP; AIR PIPE	1-09701-091-0	01	1	0005-				●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	01	1	9510-9709		●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9710-0004		●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0005-0512		●	●			●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-0601		●	●			●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-	●	●	●			●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28680-620-0	01	1	9610-9802				●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28680-620-0	01	1	9803-0004				●	●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28680-620-0	01	1	0005-0512				●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28650-620-0	01	1	0601-0611				●
113	BOLT; CLIP,AIR PIPE M6X30 FLANGE	0-28050-630-0	01	1	0612-				●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	01	1	9610-9702				●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	02	1	9703-9709				●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	9710-9802				●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	9803-0004				●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	0005-0512				●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	02	1	0601-				●
116	BRACKET; AIR PIPE	8-94394-594-1	01	1	9610-9802				●
116	BRACKET; AIR PIPE	8-94394-594-1	01	1	9803-0004				●	●
116	BRACKET; AIR PIPE	8-94394-594-2	01	1	0005-				●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9510-9802		●	●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9803-0004		●	●	●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0005-0605		●	●	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-		●	●	●
221	WASHER; PL,GEAR EURO2 SPECIFICATION<THN> ID=25	9-09160-524-0	01	1	0005-0512						●
221	WASHER; PL,GEAR EURO2 SPECIFICATION<THN> ID=25	9-09160-524-0	01	1	0601-						●
221	WASHER; PL,GEAR ID=25	9-09160-524-0	01	1	0601-	●

113 110 113 110 79 80 160 79 80 51 51 52 52 49 161 161 160 49 52 80 80 52 14 221 233 207 207 207 58 268 267 269 24 6 263 262 36 19 4 2 14 31 5 221 233 36 35 28 1 6 6 28 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97600-704-2	01	1	0601-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-892-9	01	1	9510-1107		●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-310-1	01	1	1108-		●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	9510-0109		●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	0110-0210		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V>	8-94396-891-4	01	1	0110-0210			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	0211-1107		●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-309-1	01	1	1108-		●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	9610-9802				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	9803-0004				●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	0005-1107				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-705-1	01	1	0005-1107						●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-306-0	01	1	1108-						●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-699-1	01	1	0005-1107						●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-305-0	01	1	1108-						●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9510-0004		●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-0010		●	●			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-464-0	01	1	0011-0109		●	●			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). HEATER & DEFROSTER(C41) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=139.6	1-09623-464-0	01	1	0011-0109						●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0110-0512		●	●			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0601-	●	●	●			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	9610-9802				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	9803-0004				●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	0005-				●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9510-		●	●
4	KEY; INJ PUMP GEAR EURO2 SPECIFICATION<THN>	9-08055-519-0	01	1	0005-0010						●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0011-0512						●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0601-	●					●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9510-		●	●
5	BOLT; AIR CMPR FIX EURO2 SPECIFICATION<THN> M12X110	0-28186-211-0	01	1	0005-0010						●
5	BOLT; AIR CMPR FIX M12X110	0-28186-211-0	01	1	0011-0512						●
5	BOLT; AIR CMPR FIX M12X110 FLANGE	0-28156-211-0	01	1	0601-0601						●
5	BOLT; AIR CMPR FIX M12X110 FLANGE	0-28156-211-0	01	1	0601-	●					●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9510-0004		●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0005-0010		●	●			●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0011-0109		●	●			●
6	NUT; AIR CMPR HEATER & DEFROSTER(C41) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10 FLANGE	0-91150-110-0	02	1	0011-0109						●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0110-0512		●	●			●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0601-0602	●	●	●			●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91180-110-0	02	1	0603-	●	●	●			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9510-0004		●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0005-0010		●	●			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0011-0109		●	●			●
6	NUT; AIR CMPR HEATER & DEFROSTER(C41) AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M12 FLANGE	0-91150-112-0	01	1	0011-0109						●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0110-0512		●	●			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0601-0602	●	●	●			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	01	1	0603-	●	●	●			●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	9610-9802				●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	9803-0004				●	●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0005-0602				●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91180-212-0	01	1	0603-				●
14	NUT; GEAR M20	9-99110-520-0	01	1	9510-9802		●	●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	9803-0004		●	●	●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0005-0512		●	●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-		●	●	●
14	NUT; GEAR EURO2 SPECIFICATION<THN> M24	9-99110-524-0	01	1	0005-0010						●
14	NUT; GEAR M24	9-99110-524-0	01	1	0011-0512						●
14	NUT; GEAR M24	0-91110-524-0	01	1	0601-0601						●
14	NUT; GEAR M24	0-91110-524-0	01	1	0601-	●					●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9510-		●	●
19	GEAR; INJ PUMP EURO2 SPECIFICATION<THN> Z=35	8-94390-998-2	01	1	0005-0512						●
19	GEAR; INJ PUMP EURO2 SPECIFICATION<THN> Z=35	8-94390-998-2	01	1	0601-						●
19	GEAR; INJ PUMP Z=35	8-94390-998-2	01	1	0601-	●
19	GEAR; INJ PUMP EXC. EURO2 SPECIFICATION<THN> Z=35	8-94392-642-1	01	1	0011-						●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9510-0004		●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0005-0010		●	●			●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0011-0109		●	●			●
24	POINTER; AIR CMPR HEATER & DEFROSTER(C41) AIR COMPRESSOR HEAVY DUTY(E1Q) L=21	9-11327-602-0	01	1	0011-0109						●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0110-0512		●	●			●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0601-	●	●	●			●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) AIR COMPRESSOR HEAVY DUTY(E1Q) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (C)	8-94394-967-0	01	1	9510-9702		●	●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) AIR COMPRESSOR HEAVY DUTY(E1Q) AUSTRALIA EQUIPMENT(RR3) (C)	8-94394-967-0	01	1	9703-0004		●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94391-030-2	01	1	0005-						●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) AUSTRALIA EQUIPMENT(RR3) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),HONG KONG EQUIPMENT(PQ1) (C)	8-94394-809-1	01	1	9510-9702		●	●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) AUSTRALIA EQUIPMENT(RR3) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94394-809-1	01	1	9703-0004		●	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94390-542-2	01	1	0005-						●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FR*W) AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94395-085-0	01	1	9510-0004		●	●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FR*W) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94395-084-0	01	1	9510-0004		●	●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A)	8-94395-083-0	01	1	9510-9702			●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94395-083-0	01	1	9703-9802			●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94395-083-0	01	1	9803-0004		●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-083-0	01	1	0005-		●	●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A)	8-94395-082-0	01	1	9510-9702			●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),AUSTRALIA EQUIPMENT(RR3) (A)	8-94395-082-0	01	1	9703-9810			●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94395-082-0	01	1	9811-9911			●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94395-082-0	01	1	9912-0004		●	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-082-0	01	1	0005-0109		●	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-082-0	01	1	0110-0210		●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V> (A)	8-94395-082-0	01	1	0110-0210			●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-082-0	01	1	0211-		●	●
27	HOSE; AIR CMPR,SUCTION (E) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	9703-9802				●
27	HOSE; AIR CMPR,SUCTION (E) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	9803-0004				●	●
27	HOSE; AIR CMPR,SUCTION (E) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0005-0512				●
27	HOSE; AIR CMPR,SUCTION (E) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0601-	●			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9510-9802		●	●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9803-0004		●	●	●	●
28	CLIP; HOSE,AIR CMPR EURO2 SPECIFICATION<THN> ID=26	1-09707-091-0	01	1	0005-0010						●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	01	1	0011-						●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0005-0512		●	●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0601-	●	●	●	●
28	CLIP; HOSE,AIR CMPR EURO2 SPECIFICATION<THN> ID=22.7	8-94466-382-0	01	1	0005-0010						●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	01	1	0011-						●
31	PIPE; AIR,AIR CMPR SUCTION (D)	8-94390-859-1	01	1	0601-	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-954-0	01	1	9511-		●	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-942-1	01	1	9510-0109		●	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-942-1	01	1	0110-0210		●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V> (B)	8-94399-942-1	01	1	0110-0210			●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-942-1	01	1	0211-		●	●
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-94390-405-0	01	1	9610-9802				●
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-94390-405-0	01	1	9803-0004				●	●
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-94390-405-0	01	1	0005-				●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<THN> (C)	8-94390-949-0	01	1	0005-0010						●
31	PIPE; AIR,AIR CMPR SUCTION (C)	8-94390-949-0	01	1	0011-						●
35	BOLT; EYE,AIR PIPE EURO2 SPECIFICATION<THN> M24X39	1-09675-132-0	01	1	0005-0010						●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	0011-1404						●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	1405-						●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	01	1	9510-0109		●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	01	1	0110-0210		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V> ID=24.5 OD=32	9-09571-424-0	01	1	0110-0210			●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	01	1	0211-		●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> ID=24.5 OD=32	9-09571-424-0	02	1	0005-0010						●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0011-						●
49	PIPE; AIR,CHARGE (C)	8-97600-184-1	01	1	0601-	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) ENGINE REAR PTO(SV1) (C)	8-94390-192-0	01	1	9510-0004		●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94392-073-0	01	1	0005-						●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (C)	8-94395-087-2	01	1	9510-0004		●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94395-087-2	01	1	0005-		●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE REAR PTO(SV1) (C)	8-94390-063-0	01	1	9510-0004		●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94390-063-1	01	1	0005-0109		●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94390-063-1	01	1	0110-0112		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V> (C)	8-94390-063-1	01	1	0110-0112			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94394-275-1	01	1	0201-0210		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V> (C)	8-94394-275-1	01	1	0201-0210			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94394-275-1	01	1	0211-		●	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94394-708-1	01	1	9510-0004		●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94392-087-0	01	1	0005-						●
49	PIPE; AIR,CHARGE (C)	8-94395-723-0	01	1	9610-9802				●
49	PIPE; AIR,CHARGE (C)	8-94395-723-0	01	1	9803-0004				●	●
49	PIPE; AIR,CHARGE (C)	8-94395-723-0	01	1	0005-				●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9510-9802		●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9510-9802				●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9803-0004		●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9803-0004				●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	0005-0512		●		●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	0005-0512			●			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0601-1404	●	●		●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-1	01	1	0601-1404			●			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●	●		●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-175-2	01	1	1405-			●			●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	9510-0004		●	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	0005-0407		●	●			●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-1	01	1	0408-		●	●
51	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-1	01	1	0408-						●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q). ID=24.5 OD=32	9-09571-424-0	02	1	9510-9802		●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9510-9802				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q). ID=24.5 OD=32	9-09571-424-0	02	1	9803-0004		●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9803-0004				●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0005-0512		●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	0005-0512			●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0601-	●	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	0601-			●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	9510-0004		●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0005-0407		●	●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0408-		●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0408-						●
58	SPACER; AIR CMPR	8-94395-675-1	01	1	9510-9702		●
58	SPACER; AIR CMPR HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-94395-675-1	01	1	9510-9702			●
58	SPACER; AIR CMPR AUSTRALIA EQUIPMENT(RR3)	8-94395-675-1	01	1	9703-0004		●	●
58	SPACER; AIR CMPR ANTI NOISE EQUIPMENT VAR2<TAK>	8-94391-440-1	01	1	0005-						●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9510-9802		●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9510-9802				●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9803-0004		●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9803-0004				●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0005-0512		●		●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0005-0512			●			●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0601-	●	●		●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0601-			●			●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	9510-0004		●	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0005-0407		●	●			●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0408-		●	●
79	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0408-						●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-9802		●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-9802				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9803-0004		●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9803-0004				●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0512		●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0512			●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0601-1312	●	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	0601-1312			●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9510-0004		●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0005-0407		●	●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0408-		●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0408-						●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	9510-0004		●	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0005-0512		●	●			●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0601-	●	●	●			●
110	CLIP; AIR PIPE	8-94393-037-0	02	1	9703-9802				●
110	CLIP; AIR PIPE	8-94393-037-0	02	1	9803-0004				●	●
110	CLIP; AIR PIPE	8-94393-037-0	02	1	0005-				●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	01	1	9510-9709		●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9710-0004		●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0005-0512		●	●			●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-0601		●	●			●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-	●	●	●			●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28680-620-0	01	1	9610-9802				●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28680-620-0	01	1	9803-0004				●	●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28680-620-0	01	1	0005-0512				●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28650-620-0	01	1	0601-0611				●
113	BOLT; CLIP,AIR PIPE M6X30 FLANGE	0-28050-630-0	01	1	0612-				●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	01	1	9610-9702				●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	02	1	9703-9709				●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	9710-9802				●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	9803-0004				●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	0005-0512				●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	02	1	0601-				●
160	BRACKET; AIR PIPE (D)	8-94392-031-1	01	1	0601-	●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (A)	8-94394-371-0	01	1	9608-0004		●	●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (B)	8-94394-569-0	01	1	9510-0004		●	●
160	BRACKET; AIR PIPE (B)	8-94394-569-0	01	1	0005-		●	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<THN> (B)	8-94394-569-0	01	1	0005-						●
160	BRACKET; AIR PIPE (C)	8-94391-073-0	01	1	9807-0004					●
160	BRACKET; AIR PIPE EXC. EURO2 SPECIFICATION<THN> (B)	8-94390-664-1	01	1	0011-						●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28080-816-0	02	1	9510-0004		●	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0005-0512		●	●			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-0601		●	●			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●	●			●
207	PIN; INJ PUMP GEAR SET EXC. EURO2 SPECIFICATION<THN> (B)	8-94392-647-0	01	1	0011-						●
207	PIN; INJ PUMP GEAR SET EXC. EURO2 SPECIFICATION<THN> (A)	8-97600-188-0	02	1	0011-						●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9510-9802		●	●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9803-0004		●	●	●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0005-0605		●	●	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-		●	●	●
221	WASHER; PL,GEAR EURO2 SPECIFICATION<THN> ID=25	9-09160-524-0	01	1	0005-0512						●
221	WASHER; PL,GEAR EURO2 SPECIFICATION<THN> ID=25	9-09160-524-0	01	1	0601-						●
221	WASHER; PL,GEAR ID=25	9-09160-524-0	01	1	0601-	●
233	RING; FRICTION EURO2 SPECIFICATION<THN>	8-94390-562-0	01	1	0005-0311						●
233	RING; FRICTION EURO2 SPECIFICATION<THN>	8-97603-297-0	01	1	0312-0512						●
233	RING; FRICTION EURO2 SPECIFICATION<THN>	8-97603-297-0	01	1	0601-						●
233	RING; FRICTION	8-97603-297-0	01	1	0601-	●
262	ADAPTER; AIR SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94391-995-0	01	1	0005-						●
263	GASKET; ADAPTER AIR COMPRESSOR HEAVY DUTY(E1Q) ID=30.5 OD=38.0	9-09571-430-0	01	1	0005-						●
267	GEAR; SUB,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	8-94392-643-1	01	1	0011-						●
268	PLATE; THRUST,GEAR EXC. EURO2 SPECIFICATION<THN>	8-94392-168-0	01	1	0011-						●
269	SPRING; GEAR EXC. EURO2 SPECIFICATION<THN>	8-94392-644-0	01	1	0011-						●

210 41 40 153 171 128 92 152 184 155 154 177 210 176

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	F
40	CLIP; AIR PIPE ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9510-9802	●
40	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9510-9802		●
41	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	02	1	9510-9802	●
41	BOLT; CLIP AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	02	1	9510-9802		●
92	NUT; UNION M12	9-09840-280-0	01	1	9510-9802	●
92	NUT; UNION AUSTRALIA EQUIPMENT(RR3) M12	9-09840-280-0	01	1	9510-9802		●
92	NUT; UNION AUSTRALIA EQUIPMENT(RR3) M12	9-09840-280-0	01	1	9803-0004	●	●	●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	9510-9802	●
128	WASHER; LK,UNION AUSTRALIA EQUIPMENT(RR3) ID=12.2	9-09150-512-0	01	1	9510-9802		●
128	WASHER; LK,UNION AUSTRALIA EQUIPMENT(RR3) ID=12.2	9-09150-512-0	01	1	9803-0004	●	●	●
152	HOSE; FLEX L=300	0-07120-300-0	01	1	9512-9602	●
152	HOSE; FLEX AUSTRALIA EQUIPMENT(RR3) L=300	0-07120-300-0	01	1	9512-9602		●
152	HOSE; FLEX L=290	0-07120-290-0	01	1	9603-9802	●
152	HOSE; FLEX AUSTRALIA EQUIPMENT(RR3) L=290	0-07120-290-0	01	1	9603-9802		●
153	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9510-9802	●
153	GASKET; FLEX HOSE AUSTRALIA EQUIPMENT(RR3) ID=11 OD=18	9-09572-510-0	01	1	9510-9802		●
154	NUT; FLEX HOSE FIX M12	9-09840-280-0	01	1	9510-9802	●
154	NUT; FLEX HOSE FIX AUSTRALIA EQUIPMENT(RR3) M12	9-09840-280-0	01	1	9510-9802		●
155	WASHER; LK,FLEX HOSE FIX ID=12.2	9-09150-512-0	01	1	9510-9802	●
155	WASHER; LK,FLEX HOSE FIX AUSTRALIA EQUIPMENT(RR3) ID=12.2	9-09150-512-0	01	1	9510-9802		●
171	UNION	1-09654-185-1	01	1	9510-9802	●
171	UNION AUSTRALIA EQUIPMENT(RR3)	1-09654-185-1	01	1	9510-9802		●
171	UNION AUSTRALIA EQUIPMENT(RR3) M12 L=56.5	9-09223-106-1	01	1	9803-0004	●	●	●
176	BOLT; BRKT FIX M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●
176	BOLT; BRKT FIX AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28080-825-0	02	1	9510-9606		●
176	BOLT; BRKT FIX M8X30 FLANGE	0-28680-830-0	02	1	9607-9802	●
176	BOLT; BRKT FIX AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE	0-28680-830-0	02	1	9607-9802		●
177	NUT; BRKT FIX M8	9-09110-408-0	02	1	9510-9606	●
177	NUT; BRKT FIX AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9510-9606		●
177	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	02	1	9607-9802	●
177	NUT; BRKT FIX AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91150-108-0	02	1	9607-9802		●
184	BRACKET; FLEX HOSE	1-47477-270-0	01	1	9510-9802	●
184	BRACKET; FLEX HOSE AUSTRALIA EQUIPMENT(RR3)	1-47477-270-0	01	1	9510-9802		●
210	PIPE; AIR,MAG VLV	1-49116-268-0	01	1	9510-9802	●
210	PIPE; AIR,MAG VLV AUSTRALIA EQUIPMENT(RR3)	1-49116-268-0	01	1	9510-9802		●

229 16 171 128 92 160 156 229 258 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	E	F
16	ADAPTER AUSTRALIA EQUIPMENT(RR3) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9803-0004		●	●		●
92	NUT; UNION M12	9-09840-280-0	01	1	9510-9802		●
92	NUT; UNION AUSTRALIA EQUIPMENT(RR3) M12	9-09840-280-0	01	1	9510-9802			●
92	NUT; UNION AUSTRALIA EQUIPMENT(RR3) M12	9-09840-280-0	01	1	9803-0004		●	●		●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	9510-9802		●
128	WASHER; LK,UNION AUSTRALIA EQUIPMENT(RR3) ID=12.2	9-09150-512-0	01	1	9510-9802			●
128	WASHER; LK,UNION AUSTRALIA EQUIPMENT(RR3) ID=12.2	9-09150-512-0	01	1	9803-0004		●	●		●
156	SLEEVE A/T<X9D> ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	9804-0004			●
160	BRACKET; AIR PIPE (D)	8-94392-031-1	01	1	0601-	●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (A)	8-94394-371-0	01	1	9608-0004		●	●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (B)	8-94394-569-0	01	1	9510-0004		●	●
160	BRACKET; AIR PIPE (B)	8-94394-569-0	01	1	0005-		●	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<THN> (B)	8-94394-569-0	01	1	0005-					●
160	BRACKET; AIR PIPE (C)	8-94391-073-0	01	1	9807-0004				●
160	BRACKET; AIR PIPE EXC. EURO2 SPECIFICATION<THN> (B)	8-94390-664-1	01	1	0011-					●
171	UNION	1-09654-185-1	01	1	9510-9802		●
171	UNION AUSTRALIA EQUIPMENT(RR3)	1-09654-185-1	01	1	9510-9802			●
171	UNION AUSTRALIA EQUIPMENT(RR3) M12 L=56.5	9-09223-106-1	01	1	9803-0004		●	●		●
229	TUBE; NYLON AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9804-9804		●	●		●
229	TUBE; NYLON AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9805-0004		●	●	●
229	TUBE; NYLON AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9805-0004		●	●	●
230	TUBE; CORRUGATE AUSTRALIA EQUIPMENT(RR3) EXC. EXHAUST BRAKE<NF8> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9805-9808		●	●	●
230	TUBE; CORRUGATE AUSTRALIA EQUIPMENT(RR3) SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. EXHAUST BRAKE<NF8> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9809-0004		●	●	●
230	TUBE; CORRUGATE AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9804-9804		●	●		●
258	CLIP; BAND,NYLON TUBE A/T<X9D> L=250	1-09707-126-0	01	1	9804-0004			●

190 217 215 216 218 190 220 166 220 190 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	E	F
166	BOLT; COVER FIX M10X25 FLANGE	0-28181-025-0	02	1	9510-9702	●
166	BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) M10X25 FLANGE	0-28181-025-0	02	1	9510-9702		●
166	BOLT; COVER FIX AUSTRALIA EQUIPMENT(RR3) M10X25 FLANGE	0-28181-025-0	02	1	9703-9802	●	●
166	BOLT; COVER FIX AUSTRALIA EQUIPMENT(RR3) M10X25 FLANGE	0-28181-025-0	02	1	9803-9805	●	●	●
166	BOLT; COVER FIX AUSTRALIA EQUIPMENT(RR3) M10X25 FLANGE	0-28781-025-0	02	1	9806-0004	●	●
166	BOLT; COVER FIX ANTI NOISE EQUIPMENT VAR2<TAK> M10X25 FLANGE	0-28781-025-0	03	1	0005-0512				●
166	BOLT; COVER FIX ANTI NOISE EQUIPMENT VAR2<TAK> M10X25 FLANGE	0-28751-025-0	03	1	0601-				●
190	WASHER; PL,COVER ID=10.5 OD=26	9-09160-710-0	03	1	9510-9702	●
190	WASHER; PL,COVER HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) ID=10.5 OD=26	9-09160-710-0	03	1	9510-9702		●
190	WASHER; PL,COVER AUSTRALIA EQUIPMENT(RR3) ID=10.5 OD=26	9-09160-710-0	03	1	9703-9802	●	●
190	WASHER; PL,COVER AUSTRALIA EQUIPMENT(RR3) ID=10.5 OD=26	9-09160-710-0	03	1	9803-9808	●	●	●
190	WASHER; PL,COVER AUSTRALIA EQUIPMENT(RR3) ID=10.5 OD=26	9-09160-710-0	03	1	9809-0004	●	●
190	WASHER; PL,COVER ANTI NOISE EQUIPMENT VAR2<TAK> ID=10.5 OD=26	9-09160-710-0	03	1	0005-				●
215	COVER; AIR CMPR	8-94394-993-2	01	1	9510-9608	●
215	COVER; AIR CMPR HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-94394-993-2	01	1	9510-9608		●
215	COVER; AIR CMPR	8-94390-408-0	01	1	9609-9702	●
215	COVER; AIR CMPR HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-94390-408-0	01	1	9609-9702		●
215	COVER; AIR CMPR AUSTRALIA EQUIPMENT(RR3)	8-94390-408-0	01	1	9703-9802	●	●
215	COVER; AIR CMPR AUSTRALIA EQUIPMENT(RR3)	8-94390-408-0	01	1	9803-9808	●	●	●
215	COVER; AIR CMPR AUSTRALIA EQUIPMENT(RR3)	8-94390-408-0	01	1	9809-0004	●	●
215	COVER; AIR CMPR ANTI NOISE EQUIPMENT VAR2<TAK>	8-97600-108-0	01	1	0005-0112				●
215	COVER; AIR CMPR ANTI NOISE EQUIPMENT VAR2<TAK>	8-97602-469-1	01	1	0201-0208				●
215	COVER; AIR CMPR ANTI NOISE EQUIPMENT VAR2<TAK>	8-97602-627-0	01	1	0209-				●
216	SPACER; COVER	8-94394-990-1	01	1	9510-9702	●
216	SPACER; COVER HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-94394-990-1	01	1	9510-9702		●
216	SPACER; COVER AUSTRALIA EQUIPMENT(RR3)	8-94394-990-1	01	1	9703-9802	●	●
216	SPACER; COVER AUSTRALIA EQUIPMENT(RR3)	8-94394-990-1	01	1	9803-9808	●	●	●
216	SPACER; COVER AUSTRALIA EQUIPMENT(RR3)	8-94394-990-1	01	1	9809-0004	●	●
217	NUT; COVER M10	9-09110-410-0	01	1	9510-9702	●
217	NUT; COVER HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) M10	9-09110-410-0	01	1	9510-9702		●
217	NUT; COVER AUSTRALIA EQUIPMENT(RR3) M10	9-09110-410-0	01	1	9703-9802	●	●
217	NUT; COVER AUSTRALIA EQUIPMENT(RR3) M10	9-09110-410-0	01	1	9803-9808	●	●	●
217	NUT; COVER AUSTRALIA EQUIPMENT(RR3) M10	9-09110-410-0	01	1	9809-0004	●	●
218	INSULATOR; COVER	8-94394-995-2	01	1	9510-9702	●
218	INSULATOR; COVER HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-94394-995-2	01	1	9510-9702		●
218	INSULATOR; COVER AUSTRALIA EQUIPMENT(RR3)	8-94394-995-2	01	1	9703-0004	●	●
218	INSULATOR; COVER ANTI NOISE EQUIPMENT VAR2<TAK>	8-97600-109-0	01	1	0005-0208				●
218	INSULATOR; COVER ANTI NOISE EQUIPMENT VAR2<TAK>	8-97602-628-0	01	1	0209-				●
220	TUBE; DIST OD=13 T=9.5	8-94140-427-1	03	1	9510-9702	●
220	TUBE; DIST HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) OD=13 T=9.5	8-94140-427-1	03	1	9510-9702		●
220	TUBE; DIST AUSTRALIA EQUIPMENT(RR3) OD=13 T=9.5	8-94140-427-1	03	1	9703-0004	●	●
220	TUBE; DIST ANTI NOISE EQUIPMENT VAR2<TAK> OD=13 T=9.5	8-94140-427-1	03	1	0005-				●

190 217 215 216 218 190 220 166 219 220 219 190 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	E	F
166	BOLT; COVER FIX M10X25 FLANGE	0-28181-025-0	02	1	9510-9702	●
166	BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) M10X25 FLANGE	0-28181-025-0	02	1	9510-9702		●
166	BOLT; COVER FIX AUSTRALIA EQUIPMENT(RR3) M10X25 FLANGE	0-28181-025-0	02	1	9703-9802	●	●
166	BOLT; COVER FIX AUSTRALIA EQUIPMENT(RR3) M10X25 FLANGE	0-28181-025-0	02	1	9803-9805	●	●	●
166	BOLT; COVER FIX AUSTRALIA EQUIPMENT(RR3) M10X25 FLANGE	0-28781-025-0	02	1	9806-0004	●	●
166	BOLT; COVER FIX ANTI NOISE EQUIPMENT VAR2<TAK> M10X25 FLANGE	0-28781-025-0	03	1	0005-0512				●
166	BOLT; COVER FIX ANTI NOISE EQUIPMENT VAR2<TAK> M10X25 FLANGE	0-28751-025-0	03	1	0601-				●
190	WASHER; PL,COVER ID=10.5 OD=26	9-09160-710-0	03	1	9510-9702	●
190	WASHER; PL,COVER HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) ID=10.5 OD=26	9-09160-710-0	03	1	9510-9702		●
190	WASHER; PL,COVER AUSTRALIA EQUIPMENT(RR3) ID=10.5 OD=26	9-09160-710-0	03	1	9703-9802	●	●
190	WASHER; PL,COVER AUSTRALIA EQUIPMENT(RR3) ID=10.5 OD=26	9-09160-710-0	03	1	9803-9808	●	●	●
190	WASHER; PL,COVER AUSTRALIA EQUIPMENT(RR3) ID=10.5 OD=26	9-09160-710-0	03	1	9809-0004	●	●
190	WASHER; PL,COVER ANTI NOISE EQUIPMENT VAR2<TAK> ID=10.5 OD=26	9-09160-710-0	03	1	0005-				●
215	COVER; AIR CMPR	8-94394-993-2	01	1	9510-9608	●
215	COVER; AIR CMPR HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-94394-993-2	01	1	9510-9608		●
215	COVER; AIR CMPR	8-94390-408-0	01	1	9609-9702	●
215	COVER; AIR CMPR HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-94390-408-0	01	1	9609-9702		●
215	COVER; AIR CMPR AUSTRALIA EQUIPMENT(RR3)	8-94390-408-0	01	1	9703-9802	●	●
215	COVER; AIR CMPR AUSTRALIA EQUIPMENT(RR3)	8-94390-408-0	01	1	9803-9808	●	●	●
215	COVER; AIR CMPR AUSTRALIA EQUIPMENT(RR3)	8-94390-408-0	01	1	9809-0004	●	●
215	COVER; AIR CMPR ANTI NOISE EQUIPMENT VAR2<TAK>	8-97600-108-0	01	1	0005-0112				●
215	COVER; AIR CMPR ANTI NOISE EQUIPMENT VAR2<TAK>	8-97602-469-1	01	1	0201-0208				●
215	COVER; AIR CMPR ANTI NOISE EQUIPMENT VAR2<TAK>	8-97602-627-0	01	1	0209-				●
216	SPACER; COVER	8-94394-990-1	01	1	9510-9702	●
216	SPACER; COVER HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-94394-990-1	01	1	9510-9702		●
216	SPACER; COVER AUSTRALIA EQUIPMENT(RR3)	8-94394-990-1	01	1	9703-9802	●	●
216	SPACER; COVER AUSTRALIA EQUIPMENT(RR3)	8-94394-990-1	01	1	9803-9808	●	●	●
216	SPACER; COVER AUSTRALIA EQUIPMENT(RR3)	8-94394-990-1	01	1	9809-0004	●	●
217	NUT; COVER M10	9-09110-410-0	01	1	9510-9702	●
217	NUT; COVER HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) M10	9-09110-410-0	01	1	9510-9702		●
217	NUT; COVER AUSTRALIA EQUIPMENT(RR3) M10	9-09110-410-0	01	1	9703-9802	●	●
217	NUT; COVER AUSTRALIA EQUIPMENT(RR3) M10	9-09110-410-0	01	1	9803-9808	●	●	●
217	NUT; COVER AUSTRALIA EQUIPMENT(RR3) M10	9-09110-410-0	01	1	9809-0004	●	●
218	INSULATOR; COVER	8-94394-995-2	01	1	9510-9702	●
218	INSULATOR; COVER HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3)	8-94394-995-2	01	1	9510-9702		●
218	INSULATOR; COVER AUSTRALIA EQUIPMENT(RR3)	8-94394-995-2	01	1	9703-0004	●	●
218	INSULATOR; COVER ANTI NOISE EQUIPMENT VAR2<TAK>	8-97600-109-0	01	1	0005-0208				●
218	INSULATOR; COVER ANTI NOISE EQUIPMENT VAR2<TAK>	8-97602-628-0	01	1	0209-				●
219	RUBBER; MTG OD=22	8-94140-428-1	03	1	9510-9608	●
219	RUBBER; MTG HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) OD=22	8-94140-428-1	03	1	9510-9608		●
219	RUBBER; MTG ANTI NOISE EQUIPMENT VAR2<TAK>	8-97602-472-0	03	1	0201-				●
220	TUBE; DIST OD=13 T=9.5	8-94140-427-1	03	1	9510-9702	●
220	TUBE; DIST HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) OD=13 T=9.5	8-94140-427-1	03	1	9510-9702		●
220	TUBE; DIST AUSTRALIA EQUIPMENT(RR3) OD=13 T=9.5	8-94140-427-1	03	1	9703-0004	●	●
220	TUBE; DIST ANTI NOISE EQUIPMENT VAR2<TAK> OD=13 T=9.5	8-94140-427-1	03	1	0005-				●

28 27 30 28 68 51 79 31 52 80 52 80 24 1 4 14 221 6 233 19 5 6 2 6 110 160 113 161 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97600-704-2	01	1	0601-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-892-9	01	1	9510-1107		●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-310-1	01	1	1108-		●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	9510-0109		●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	0110-0210		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V>	8-94396-891-4	01	1	0110-0210			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	0211-1107		●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-309-1	01	1	1108-		●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	9610-9802				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	9803-0004				●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	0005-1107				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-705-1	01	1	0005-1107						●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-306-0	01	1	1108-						●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-699-1	01	1	0005-1107						●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-98187-305-0	01	1	1108-						●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9510-0004		●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-0010		●	●			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-464-0	01	1	0011-0109		●	●			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). HEATER & DEFROSTER(C41) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=139.6	1-09623-464-0	01	1	0011-0109						●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0110-0512		●	●			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0601-	●	●	●			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	9610-9802				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	9803-0004				●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	0005-				●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9510-		●	●
4	KEY; INJ PUMP GEAR EURO2 SPECIFICATION<THN>	9-08055-519-0	01	1	0005-0010						●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0011-0512						●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0601-	●					●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9510-		●	●
5	BOLT; AIR CMPR FIX EURO2 SPECIFICATION<THN> M12X110	0-28186-211-0	01	1	0005-0010						●
5	BOLT; AIR CMPR FIX M12X110	0-28186-211-0	01	1	0011-0512						●
5	BOLT; AIR CMPR FIX M12X110 FLANGE	0-28156-211-0	01	1	0601-0601						●
5	BOLT; AIR CMPR FIX M12X110 FLANGE	0-28156-211-0	01	1	0601-	●					●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9510-0004		●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0005-0010		●	●			●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0011-0109		●	●			●
6	NUT; AIR CMPR HEATER & DEFROSTER(C41) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10 FLANGE	0-91150-110-0	02	1	0011-0109						●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0110-0512		●	●			●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0601-0602	●	●	●			●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91180-110-0	02	1	0603-	●	●	●			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9510-0004		●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0005-0010		●	●			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0011-0109		●	●			●
6	NUT; AIR CMPR HEATER & DEFROSTER(C41) AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M12 FLANGE	0-91150-112-0	01	1	0011-0109						●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0110-0512		●	●			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0601-0602	●	●	●			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	01	1	0603-	●	●	●			●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	9610-9802				●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	9803-0004				●	●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0005-0602				●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91180-212-0	01	1	0603-				●
14	NUT; GEAR M20	9-99110-520-0	01	1	9510-9802		●	●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	9803-0004		●	●	●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0005-0512		●	●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-		●	●	●
14	NUT; GEAR EURO2 SPECIFICATION<THN> M24	9-99110-524-0	01	1	0005-0010						●
14	NUT; GEAR M24	9-99110-524-0	01	1	0011-0512						●
14	NUT; GEAR M24	0-91110-524-0	01	1	0601-0601						●
14	NUT; GEAR M24	0-91110-524-0	01	1	0601-	●					●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9510-		●	●
19	GEAR; INJ PUMP EURO2 SPECIFICATION<THN> Z=35	8-94390-998-2	01	1	0005-0512						●
19	GEAR; INJ PUMP EURO2 SPECIFICATION<THN> Z=35	8-94390-998-2	01	1	0601-						●
19	GEAR; INJ PUMP Z=35	8-94390-998-2	01	1	0601-	●
19	GEAR; INJ PUMP EXC. EURO2 SPECIFICATION<THN> Z=35	8-94392-642-1	01	1	0011-						●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9510-0004		●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0005-0010		●	●			●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0011-0109		●	●			●
24	POINTER; AIR CMPR HEATER & DEFROSTER(C41) AIR COMPRESSOR HEAVY DUTY(E1Q) L=21	9-11327-602-0	01	1	0011-0109						●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0110-0512		●	●			●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0601-	●	●	●			●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) AIR COMPRESSOR HEAVY DUTY(E1Q) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (C)	8-94394-967-0	01	1	9510-9702		●	●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) AIR COMPRESSOR HEAVY DUTY(E1Q) AUSTRALIA EQUIPMENT(RR3) (C)	8-94394-967-0	01	1	9703-0004		●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94391-030-2	01	1	0005-						●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) AUSTRALIA EQUIPMENT(RR3) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),HONG KONG EQUIPMENT(PQ1) (C)	8-94394-809-1	01	1	9510-9702		●	●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) AUSTRALIA EQUIPMENT(RR3) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94394-809-1	01	1	9703-0004		●	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	8-94390-542-2	01	1	0005-						●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FR*W) AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94395-085-0	01	1	9510-0004		●	●
27	HOSE; AIR CMPR,SUCTION DOUBLE CAB(FR*W) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94395-084-0	01	1	9510-0004		●	●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A)	8-94395-083-0	01	1	9510-9702			●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94395-083-0	01	1	9703-9802			●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94395-083-0	01	1	9803-0004		●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-083-0	01	1	0005-		●	●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A)	8-94395-082-0	01	1	9510-9702			●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),AUSTRALIA EQUIPMENT(RR3) (A)	8-94395-082-0	01	1	9703-9810			●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94395-082-0	01	1	9811-9911			●
27	HOSE; AIR CMPR,SUCTION STD CAB(FR*M) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94395-082-0	01	1	9912-0004		●	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-082-0	01	1	0005-0109		●	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-082-0	01	1	0110-0210		●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V> (A)	8-94395-082-0	01	1	0110-0210			●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-082-0	01	1	0211-		●	●
27	HOSE; AIR CMPR,SUCTION (E) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	9703-9802				●
27	HOSE; AIR CMPR,SUCTION (E) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	9803-0004				●	●
27	HOSE; AIR CMPR,SUCTION (E) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0005-0512				●
27	HOSE; AIR CMPR,SUCTION (E) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0601-	●			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9510-9802		●	●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9803-0004		●	●	●	●
28	CLIP; HOSE,AIR CMPR EURO2 SPECIFICATION<THN> ID=26	1-09707-091-0	01	1	0005-0010						●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	01	1	0011-						●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0005-0512		●	●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0601-	●	●	●	●
28	CLIP; HOSE,AIR CMPR EURO2 SPECIFICATION<THN> ID=22.7	8-94466-382-0	01	1	0005-0010						●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	01	1	0011-						●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	9610-9802				●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	9803-0004				●	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0005-0512				●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0601-0601				●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0601-	●			●
31	PIPE; AIR,AIR CMPR SUCTION (D)	8-94390-859-1	01	1	0601-	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-954-0	01	1	9511-		●	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-942-1	01	1	9510-0109		●	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-942-1	01	1	0110-0210		●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V> (B)	8-94399-942-1	01	1	0110-0210			●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-942-1	01	1	0211-		●	●
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-94390-405-0	01	1	9610-9802				●
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-94390-405-0	01	1	9803-0004				●	●
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-94390-405-0	01	1	0005-				●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<THN> (C)	8-94390-949-0	01	1	0005-0010						●
31	PIPE; AIR,AIR CMPR SUCTION (C)	8-94390-949-0	01	1	0011-						●
49	PIPE; AIR,CHARGE (C)	8-97600-184-1	01	1	0601-	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) ENGINE REAR PTO(SV1) (C)	8-94390-192-0	01	1	9510-0004		●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94392-073-0	01	1	0005-						●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (C)	8-94395-087-2	01	1	9510-0004		●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94395-087-2	01	1	0005-		●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE REAR PTO(SV1) (C)	8-94390-063-0	01	1	9510-0004		●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94390-063-1	01	1	0005-0109		●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94390-063-1	01	1	0110-0112		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V> (C)	8-94390-063-1	01	1	0110-0112			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94394-275-1	01	1	0201-0210		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V> (C)	8-94394-275-1	01	1	0201-0210			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94394-275-1	01	1	0211-		●	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94394-708-1	01	1	9510-0004		●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94392-087-0	01	1	0005-						●
49	PIPE; AIR,CHARGE (C)	8-94395-723-0	01	1	9610-9802				●
49	PIPE; AIR,CHARGE (C)	8-94395-723-0	01	1	9803-0004				●	●
49	PIPE; AIR,CHARGE (C)	8-94395-723-0	01	1	0005-				●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9510-9802		●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9510-9802				●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9803-0004		●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9803-0004				●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	0005-0512		●		●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	0005-0512			●			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0601-1404	●	●		●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-1	01	1	0601-1404			●			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●	●		●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-175-2	01	1	1405-			●			●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	9510-0004		●	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	0005-0407		●	●			●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-1	01	1	0408-		●	●
51	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-1	01	1	0408-						●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q). ID=24.5 OD=32	9-09571-424-0	02	1	9510-9802		●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9510-9802				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q). ID=24.5 OD=32	9-09571-424-0	02	1	9803-0004		●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9803-0004				●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0005-0512		●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	0005-0512			●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0601-	●	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	0601-			●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	9510-0004		●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0005-0407		●	●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0408-		●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	0408-						●
68	SLEEVE; RUBBER ID=17 OD=21 L=40	1-09337-012-0	01	1	0601-	●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9510-9802		●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9510-9802				●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9803-0004		●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9803-0004				●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0005-0512		●		●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0005-0512			●			●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0601-	●	●		●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0601-			●			●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	9510-0004		●	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0005-0407		●	●			●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0408-		●	●
79	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	0408-						●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-9802		●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-9802				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9803-0004		●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9803-0004				●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0512		●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0512			●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0601-1312	●	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	0601-1312			●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9510-0004		●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0005-0407		●	●			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0408-		●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	0408-						●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	9510-0004		●	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0005-0512		●	●			●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0601-	●	●	●			●
110	CLIP; AIR PIPE	8-94393-037-0	02	1	9703-9802				●
110	CLIP; AIR PIPE	8-94393-037-0	02	1	9803-0004				●	●
110	CLIP; AIR PIPE	8-94393-037-0	02	1	0005-				●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	01	1	9510-9709		●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9710-0004		●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0005-0512		●	●			●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-0601		●	●			●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-	●	●	●			●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28680-620-0	01	1	9610-9802				●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28680-620-0	01	1	9803-0004				●	●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28680-620-0	01	1	0005-0512				●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28650-620-0	01	1	0601-0611				●
113	BOLT; CLIP,AIR PIPE M6X30 FLANGE	0-28050-630-0	01	1	0612-				●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	01	1	9610-9702				●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	02	1	9703-9709				●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	9710-9802				●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	9803-0004				●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	0005-0512				●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	02	1	0601-				●
160	BRACKET; AIR PIPE (D)	8-94392-031-1	01	1	0601-	●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (A)	8-94394-371-0	01	1	9608-0004		●	●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (B)	8-94394-569-0	01	1	9510-0004		●	●
160	BRACKET; AIR PIPE (B)	8-94394-569-0	01	1	0005-		●	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<THN> (B)	8-94394-569-0	01	1	0005-						●
160	BRACKET; AIR PIPE (C)	8-94391-073-0	01	1	9807-0004					●
160	BRACKET; AIR PIPE EXC. EURO2 SPECIFICATION<THN> (B)	8-94390-664-1	01	1	0011-						●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28080-816-0	02	1	9510-0004		●	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0005-0512		●	●			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-0601		●	●			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●	●			●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9510-9802		●	●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9803-0004		●	●	●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0005-0605		●	●	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-		●	●	●
221	WASHER; PL,GEAR EURO2 SPECIFICATION<THN> ID=25	9-09160-524-0	01	1	0005-0512						●
221	WASHER; PL,GEAR EURO2 SPECIFICATION<THN> ID=25	9-09160-524-0	01	1	0601-						●
221	WASHER; PL,GEAR ID=25	9-09160-524-0	01	1	0601-	●
233	RING; FRICTION EURO2 SPECIFICATION<THN>	8-94390-562-0	01	1	0005-0311						●
233	RING; FRICTION EURO2 SPECIFICATION<THN>	8-97603-297-0	01	1	0312-0512						●
233	RING; FRICTION EURO2 SPECIFICATION<THN>	8-97603-297-0	01	1	0601-						●
233	RING; FRICTION	8-97603-297-0	01	1	0601-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
