0-37 — TURBOCHARGER (#37254) — 102 parça

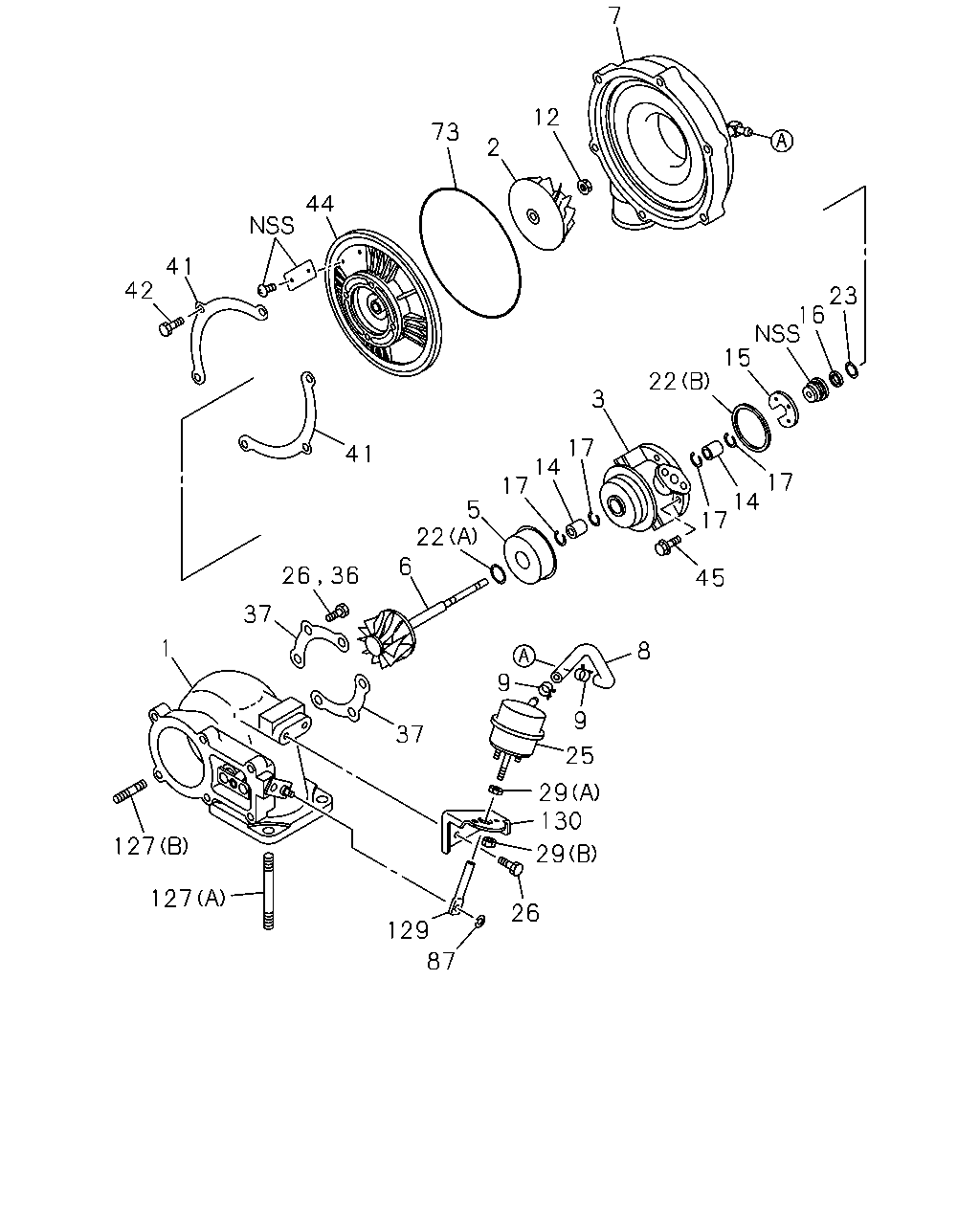

7 12 73 2 44 41 42 23 16 15 22 3 17 14 17 41 17 14 17 5 22 6 45 37 1 8 9 9 37 25 29 130 127 29 127 26 129 87 26 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: A = 8-94390-650-0	1-14415-103-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: B = 8-94390-651-0	1-14415-104-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: C = 8-97602-809-0	1-14415-110-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: A = 8-94390-650-0	1-14452-018-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: B = 8-94390-651-0	1-14452-019-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	1-14411-029-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	5-14429-003-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	1-14451-038-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: B = 8-94390-651-0	1-14414-086-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: A = 8-94390-650-0	1-14414-100-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: C = 8-97602-809-0	1-14414-109-0	01	1	-
8	HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: C = 8-97602-809-0	1-14419-133-0	01	1	-
8	HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: A = 8-94390-650-0	1-14419-145-0	01	1	-
9	CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: A = 8-94390-650-0, C = 8-97602-809-0	1-14419-134-0	02	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	1-14459-021-0	01	1	-
14	BEARING; JOURNAL,TURBOCHARGER ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	1-14453-044-0	02	1	-
15	BEARING; THRUST,TURBOCHARGER ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	1-14453-061-0	01	1	-
16	COLLAR; THRUST,TURBOCHARGER ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	1-14459-019-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	1-14419-083-0	04	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (A) ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	1-14419-102-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (B) ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	1-14429-059-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	5-14419-010-0	01	1	-
25	ACTUATOR; TURBOCHARGER ASM PART: A = 8-94390-650-0	1-14419-132-0	01	1	-
26	BOLT; WASTE GATE,ACTUATOR,TURBOCHARGER ASM PART: A = 8-94390-650-0	1-14419-104-0	02	1	-
29	NUT; WASTE GATE CONT,TURBOCHARGER (A) ASM PART: A = 8-94390-650-0	1-14419-136-0	01	1	-
29	NUT; WASTE GATE CONT,TURBOCHARGER (B) ASM PART: A = 8-94390-650-0	1-14419-139-0	02	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: B = 8-94390-651-0	1-14419-104-0	08	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: A = 8-94390-650-0	1-14419-104-0	06	1	-
37	PLATE; LK,TURBINE HSG,TURBOCHARGER ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	1-14419-103-0	02	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	1-14419-093-0	02	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: C = 8-97602-809-0	1-14419-151-0	03	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	1-14419-105-0	06	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: C = 8-97602-809-0	1-14419-150-0	16	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: A = 8-94390-650-0	1-14459-053-0	01	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: B = 8-94390-651-0	1-14459-054-0	01	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: A = 8-94390-650-0	1-14419-143-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: B = 8-94390-651-0	1-14419-144-0	04	1	-
73	GASKET; BRG HSG,TURBOCHARGER ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	1-14459-037-0	01	1	-
87	RING; ACTUATOR,TURBOCHARGER ASM PART: A = 8-94390-650-0	1-14419-108-0	01	1	-
127	STUD; TURBOCHARGER (A) ASM PART: A = 8-94390-650-0, C = 8-97602-809-0	1-14419-137-0	02	1	-
127	STUD; TURBOCHARGER (A) ASM PART: B = 8-94390-651-0	1-14419-138-0	02	1	-
127	STUD; TURBOCHARGER (B) ASM PART: A = 8-94390-650-0, C = 8-97602-809-0	1-14419-141-0	01	1	-
127	STUD; TURBOCHARGER (B) ASM PART: B = 8-94390-651-0	1-14419-142-0	01	1	-
129	ROD END; TURBO ASM PART: A = 8-94390-650-0	1-14419-135-0	01	1	-
130	BRACKET; ACTUATOR,TURBO ASM PART: A = 8-94390-650-0	1-14419-140-0	01	1	-
130	BRACKET; ACTUATOR,TURBO ASM PART: C = 8-97602-809-0	1-14419-152-0	01	1	-

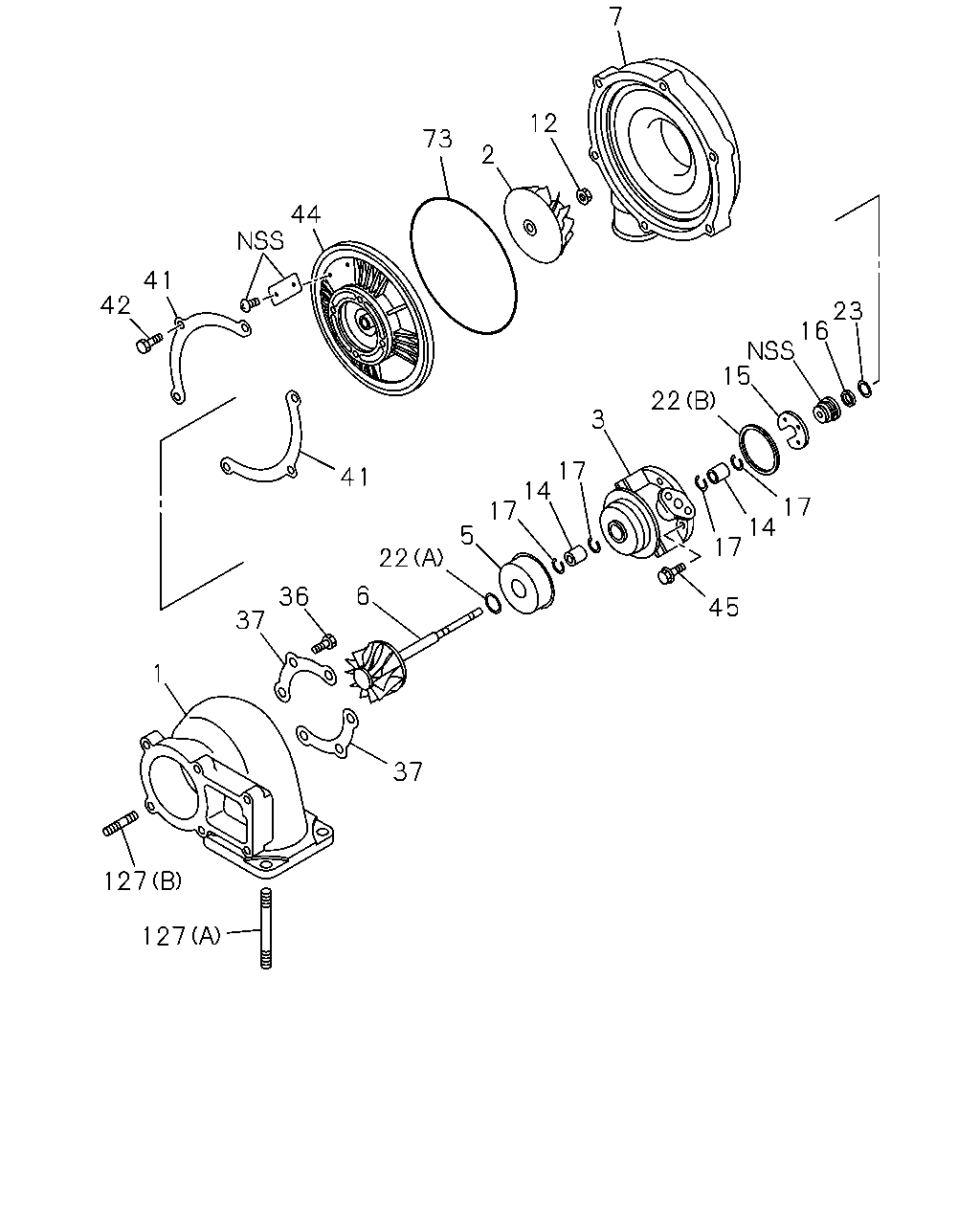

7 12 73 2 44 41 42 23 16 15 22 3 17 14 17 41 17 14 17 5 22 6 36 45 37 1 37 17 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: A = 8-94390-650-0	1-14415-103-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: B = 8-94390-651-0	1-14415-104-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: C = 8-97602-809-0	1-14415-110-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: A = 8-94390-650-0	1-14452-018-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: B = 8-94390-651-0	1-14452-019-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	1-14411-029-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	5-14429-003-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	1-14451-038-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: B = 8-94390-651-0	1-14414-086-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: A = 8-94390-650-0	1-14414-100-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: C = 8-97602-809-0	1-14414-109-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	1-14459-021-0	01	1	-
14	BEARING; JOURNAL,TURBOCHARGER ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	1-14453-044-0	02	1	-
15	BEARING; THRUST,TURBOCHARGER ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	1-14453-061-0	01	1	-
16	COLLAR; THRUST,TURBOCHARGER ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	1-14459-019-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	1-14419-083-0	04	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (A) ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	1-14419-102-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (B) ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	1-14429-059-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	5-14419-010-0	01	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: B = 8-94390-651-0	1-14419-104-0	08	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: A = 8-94390-650-0	1-14419-104-0	06	1	-
37	PLATE; LK,TURBINE HSG,TURBOCHARGER ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	1-14419-103-0	02	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	1-14419-093-0	02	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: C = 8-97602-809-0	1-14419-151-0	03	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	1-14419-105-0	06	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: C = 8-97602-809-0	1-14419-150-0	16	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: A = 8-94390-650-0	1-14459-053-0	01	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: B = 8-94390-651-0	1-14459-054-0	01	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: A = 8-94390-650-0	1-14419-143-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: B = 8-94390-651-0	1-14419-144-0	04	1	-
73	GASKET; BRG HSG,TURBOCHARGER ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	1-14459-037-0	01	1	-
127	STUD; TURBOCHARGER (A) ASM PART: A = 8-94390-650-0, C = 8-97602-809-0	1-14419-137-0	02	1	-
127	STUD; TURBOCHARGER (A) ASM PART: B = 8-94390-651-0	1-14419-138-0	02	1	-
127	STUD; TURBOCHARGER (B) ASM PART: A = 8-94390-650-0, C = 8-97602-809-0	1-14419-141-0	01	1	-
127	STUD; TURBOCHARGER (B) ASM PART: B = 8-94390-651-0	1-14419-142-0	01	1	-

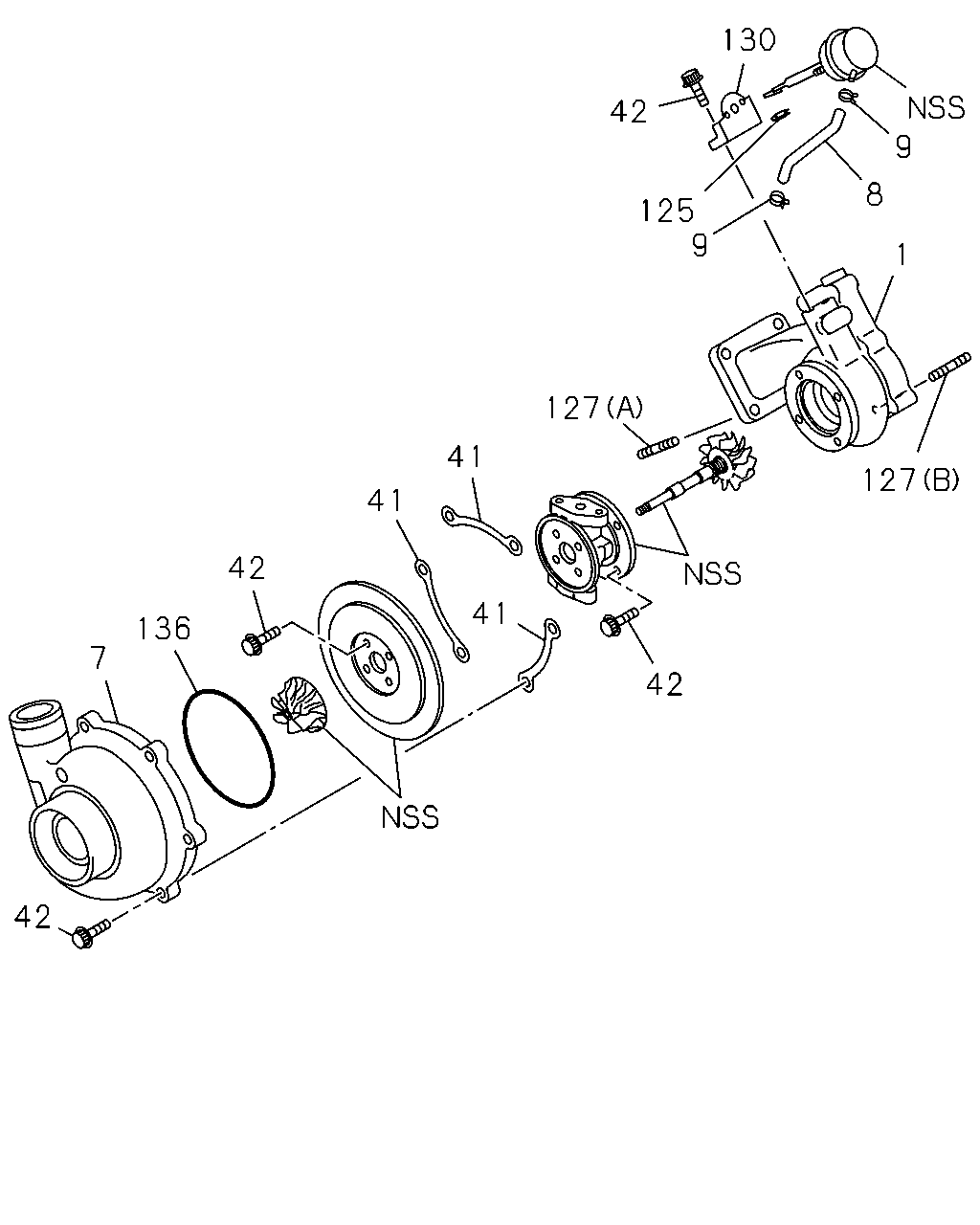

130 42 9 8 125 9 1 127 41 127 41 42 41 136 7 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: A = 8-94390-650-0	1-14415-103-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: B = 8-94390-651-0	1-14415-104-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: C = 8-97602-809-0	1-14415-110-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: B = 8-94390-651-0	1-14414-086-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: A = 8-94390-650-0	1-14414-100-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: C = 8-97602-809-0	1-14414-109-0	01	1	-
8	HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: C = 8-97602-809-0	1-14419-133-0	01	1	-
8	HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: A = 8-94390-650-0	1-14419-145-0	01	1	-
9	CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: A = 8-94390-650-0, C = 8-97602-809-0	1-14419-134-0	02	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	1-14419-093-0	02	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: C = 8-97602-809-0	1-14419-151-0	03	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: A = 8-94390-650-0, B = 8-94390-651-0	1-14419-105-0	06	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: C = 8-97602-809-0	1-14419-150-0	16	1	-
125	RING; SNAP,CONT LINK ASM PART: C = 8-97602-809-0	1-14419-108-0	01	1	-
127	STUD; TURBOCHARGER (A) ASM PART: A = 8-94390-650-0, C = 8-97602-809-0	1-14419-137-0	02	1	-
127	STUD; TURBOCHARGER (A) ASM PART: B = 8-94390-651-0	1-14419-138-0	02	1	-
127	STUD; TURBOCHARGER (B) ASM PART: A = 8-94390-650-0, C = 8-97602-809-0	1-14419-141-0	01	1	-
127	STUD; TURBOCHARGER (B) ASM PART: B = 8-94390-651-0	1-14419-142-0	01	1	-
130	BRACKET; ACTUATOR,TURBO ASM PART: A = 8-94390-650-0	1-14419-140-0	01	1	-
130	BRACKET; ACTUATOR,TURBO ASM PART: C = 8-97602-809-0	1-14419-152-0	01	1	-
136	GASKET; TURBINE HSG,TURBOCHARGER ASM PART: C = 8-97602-809-0	1-14459-064-0	01	1	-
