0-36 — TURBOCHARGER SYSTEM (#37253) — 193 parça

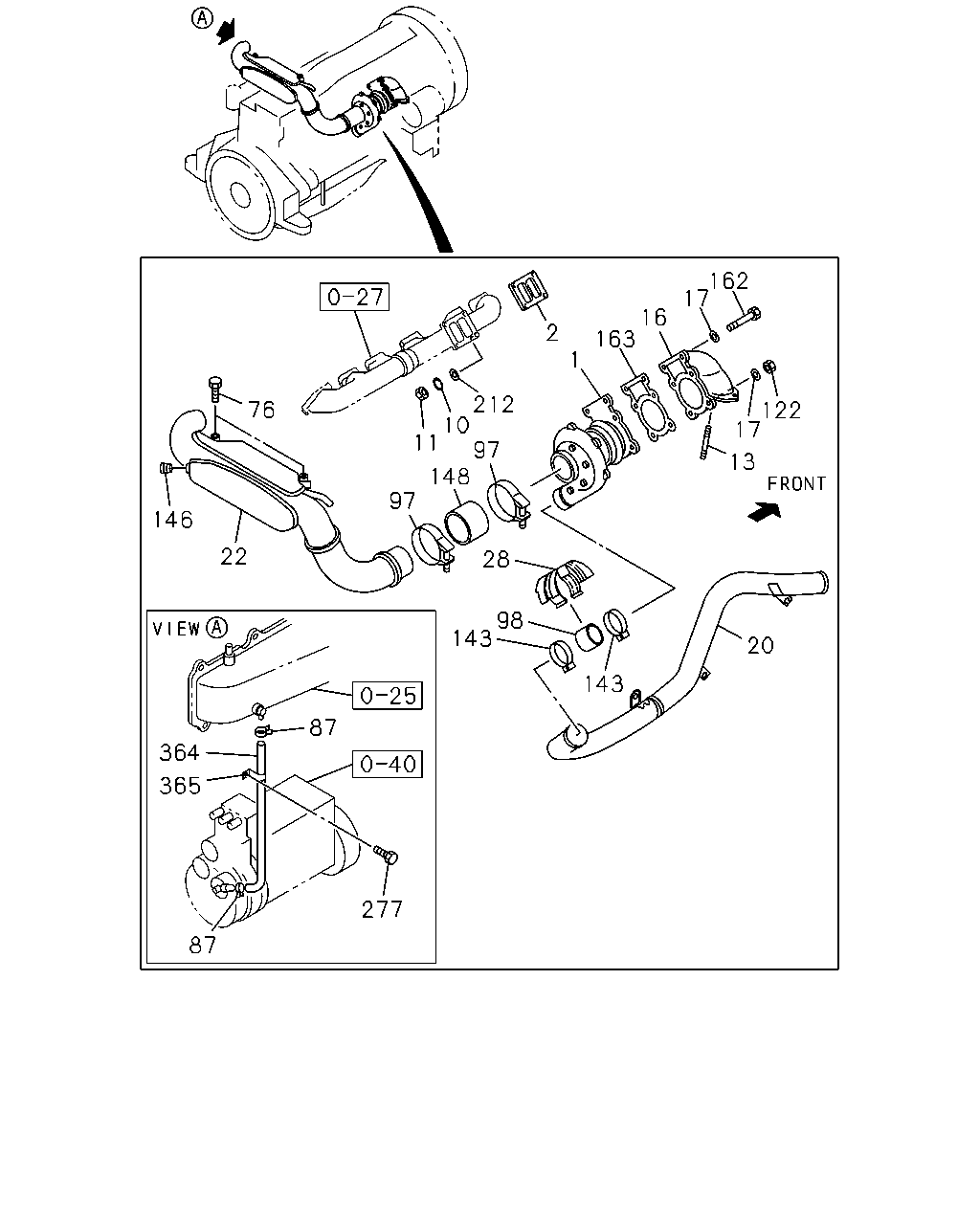

çizim 151139
162 17 16 163 2 1 212 10 97 148 76 122 17 11 13 97 146 22 28 98 143 20 143 87 364 365 277 87
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-809-0 01 1 0601- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-94390-651-0 01 1 9610- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-94390-650-0 01 1 9803-0004 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 9610-9802 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 9803-0004 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 0005-0512 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 0601- ● ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 02 1 9610-9802 ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 02 1 9803-0004 ● ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 02 1 0005-0512 ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 02 1 0601- ● ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 9610-9802 ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 9803-0004 ● ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 0005-0512 ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 0601- ● ●
13 STUD; EXH PIPE
M12X123 L=141 		1-09302-012-0 02 1 0601- ●
13 STUD; EXH PIPE
M12X103 L=123 		8-94394-656-0 01 1 9610-9802 ●
13 STUD; EXH PIPE
M12X103 L=123 		8-94394-656-0 01 1 9803-0004 ● ●
13 STUD; EXH PIPE
M12X103 L=123 		8-94394-656-0 01 1 0005- ●
16 ADAPTER; EXH PIPE 8-97600-283-0 01 1 0601- ●
16 ADAPTER; EXH PIPE 8-94391-161-1 01 1 9610-9802 ●
16 ADAPTER; EXH PIPE 8-94391-161-1 01 1 9803-0004 ● ●
16 ADAPTER; EXH PIPE 8-94391-161-1 01 1 0005- ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 9610-9802 ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 9803-0004 ● ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 0005-0512 ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 0601- ● ●
20 PIPE; INL,TURBOCHARGER OUT 8-97600-383-1 01 1 0601- ●
20 PIPE; INL,TURBOCHARGER OUT 8-94390-649-0 01 1 9610-9802 ●
20 PIPE; INL,TURBOCHARGER OUT 8-94390-649-0 01 1 9803-0004 ● ●
20 PIPE; INL,TURBOCHARGER OUT 8-94390-649-2 01 1 0005- ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-97600-071-1 01 1 0601- ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-94390-407-0 01 1 9610-9802 ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-94390-407-0 01 1 9803-0004 ● ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-94390-407-0 01 1 0005- ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 8-94393-182-0 01 1 0601- ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 1-14181-264-0 01 1 9610-9802 ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 1-14181-264-0 01 1 9803-0004 ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 1-14181-264-0 01 1 0005- ●
76 BOLT; AIR DUCT
M8X35 FLANGE 		0-28650-835-0 02 1 0601- ●
76 BOLT; AIR DUCT
M8X50 FLANGE 		0-28080-850-0 02 1 9610-9802 ●
76 BOLT; AIR DUCT
M8X50 FLANGE 		0-28080-850-0 02 1 9803-0004 ● ●
76 BOLT; AIR DUCT
M8X50 FLANGE 		0-28080-850-0 02 1 0005-0512 ●
76 BOLT; AIR DUCT
M8X50 FLANGE 		0-28050-850-0 02 1 0601- ●
87 CLIP; RUBBER HOSE FIX
ID=11 		8-94238-570-0 02 1 9610-9802 ●
87 CLIP; RUBBER HOSE FIX
ID=11 		8-94238-570-0 02 1 9803-0004 ● ●
87 CLIP; RUBBER HOSE FIX
ID=11 		8-94238-570-0 02 1 0005- ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-113 		1-09707-199-0 04 1 0601-0810 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-113 		1-09707-199-0 02 1 0811-0811 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-116 		1-09707-144-0 02 1 0811-0811 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-116 		1-09707-144-0 04 1 0812- ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=77-95 		1-09707-114-0 02 1 9703-9802 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=77-95 		1-09707-114-0 02 1 9803-0004 ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=77-95 		1-09707-114-0 02 1 0005-0306 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=77-95 		1-09707-198-0 04 1 0307-0810 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=77-95 		1-09707-114-0 04 1 0811- ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=58.5 OD=65.5 L=80 		8-94392-854-0 01 1 0601- ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-782-0 01 1 9610-9802 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-782-0 01 1 9803-0004 ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-782-0 01 1 0005- ●
122 NUT; ADAPTER
M8 		1-09400-118-1 01 1 9610-9802 ●
122 NUT; ADAPTER
M8 		1-09400-118-1 01 1 9803-0004 ● ●
122 NUT; ADAPTER
M8 		1-09400-118-1 01 1 0005-0512 ●
122 NUT; ADAPTER
M8 		1-09400-118-1 01 1 0601- ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-76 		1-09707-203-0 02 1 0601-0811 ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79 		8-94126-771-0 02 1 0812- ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=50-69 		8-94316-991-0 02 1 9610-9802 ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=50-69 		8-94316-991-0 02 1 9803-0004 ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=50-69 		8-94316-991-0 02 1 0005-0306 ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=50-65 		1-09707-204-0 02 1 0307-0810 ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=50-69 		8-94316-991-0 02 1 0811- ●
146 PLUG; INL PIPE
PT1 		1-09605-021-0 01 1 9710-9802 ●
146 PLUG; INL PIPE
PT1 		1-09605-021-0 01 1 9803-0004 ● ●
146 PLUG; INL PIPE
PT1 		1-09605-021-1 01 1 0005- ●
148 HOSE; TURBOCHARGER,INL 8-94392-853-0 01 1 0601- ●
148 HOSE; TURBOCHARGER,INL 5-09360-846-0 01 1 9703-9802 ●
148 HOSE; TURBOCHARGER,INL 5-09360-846-0 01 1 9803-0004 ● ●
148 HOSE; TURBOCHARGER,INL 5-09360-846-0 01 1 0005- ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 05 1 9610-9802 ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 05 1 9803-0004 ● ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 05 1 0005-0512 ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 05 1 0601- ● ●
163 GASKET; ADAPTER TO EXH PIPE 1-14145-162-0 01 1 9610-9802 ●
163 GASKET; ADAPTER TO EXH PIPE 1-14145-162-0 01 1 9803-0004 ● ●
163 GASKET; ADAPTER TO EXH PIPE 1-14145-162-0 01 1 0005-0512 ●
163 GASKET; ADAPTER TO EXH PIPE 1-14145-162-2 01 1 0601- ● ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 9610-9802 ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 9803-0004 ● ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0005-0512 ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0601- ● ●
277 BOLT; CLIP
M6X10 FLANGE 		0-28080-610-0 01 1 9610-9802 ●
277 BOLT; CLIP
M6X10 FLANGE 		0-28080-610-0 01 1 9803-0004 ● ●
277 BOLT; CLIP
M6X10 FLANGE 		0-28080-610-0 01 1 0005-0512 ●
277 BOLT; CLIP
M6X10 FLANGE 		0-28050-610-0 01 1 0601- ●
364 HOSE; BOOST
L=200 SERVICED BY L=3000 		0-04770-300-0 01 1 9610-9802 ●
364 HOSE; BOOST
L=200 SERVICED BY L=3000 		0-04770-300-0 01 1 9803-0004 ● ●
364 HOSE; BOOST
L=200 SERVICED BY L=3000 		0-04770-300-0 01 1 0005- ●
365 CLIP; RUBBER HOSE,BOOST
D=11 H=40 L=20 		8-94246-610-0 01 1 9610-9802 ●
365 CLIP; RUBBER HOSE,BOOST
D=11 H=40 L=20 		8-94246-610-0 01 1 9803-0004 ● ●
365 CLIP; RUBBER HOSE,BOOST
D=11 H=40 L=20 		8-94246-610-0 01 1 0005- ●

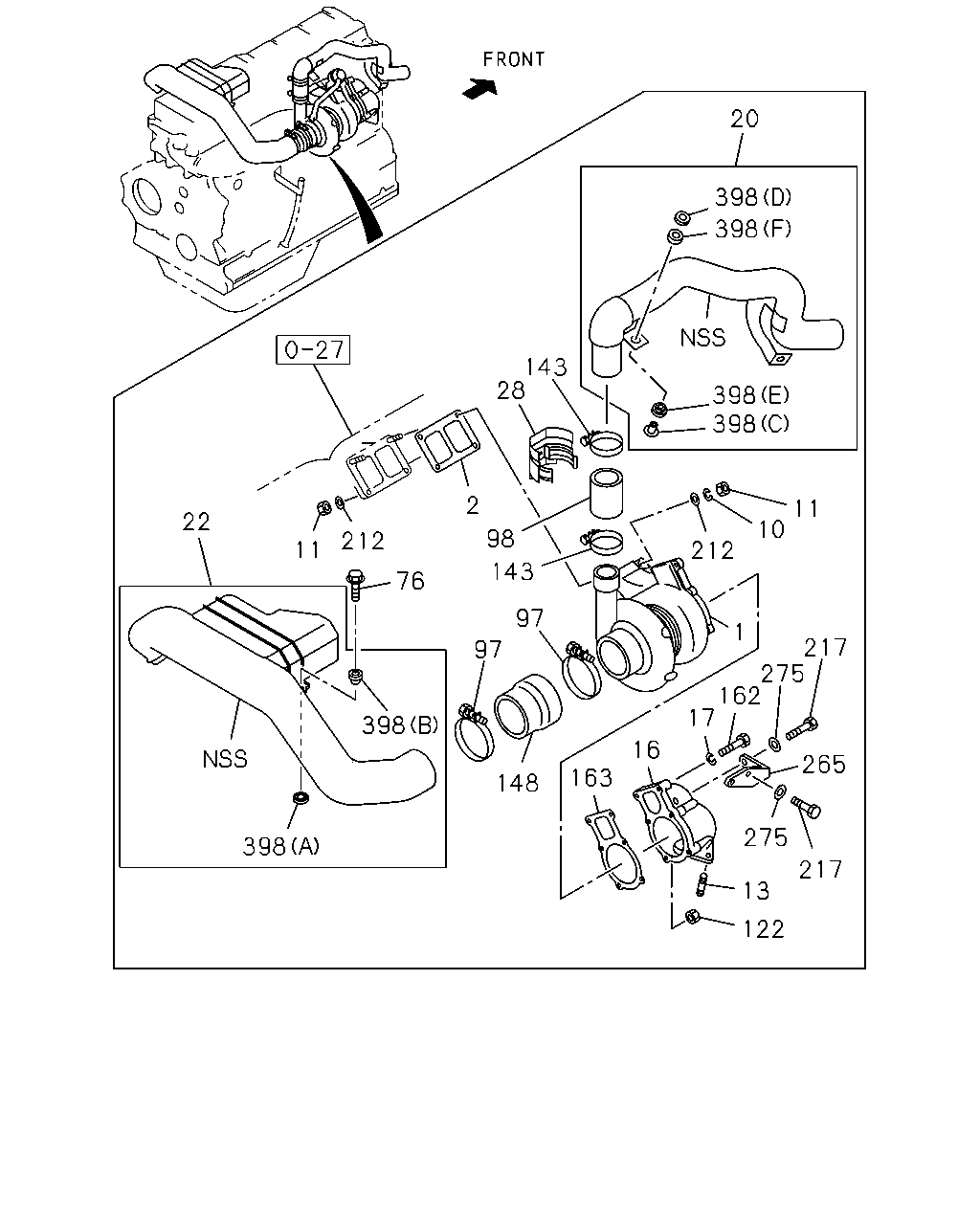

çizim 151438
20 398 398 143 28 398 398 2 11 22 10 98 212 212 11 143 76 97 1 217 275 162 17 97 398 16 265 163 148 275 398 217 13 122
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-809-0 01 1 0601- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-94390-651-0 01 1 9610- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-94390-650-0 01 1 9803-0004 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 9610-9802 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 9803-0004 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 0005-0512 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 0601- ● ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 02 1 9610-9802 ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 02 1 9803-0004 ● ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 02 1 0005-0512 ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 02 1 0601- ● ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 9610-9802 ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 9803-0004 ● ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 0005-0512 ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 0601- ● ●
13 STUD; EXH PIPE
M12X123 L=141 		1-09302-012-0 02 1 0601- ●
13 STUD; EXH PIPE
M12X103 L=123 		8-94394-656-0 01 1 9610-9802 ●
13 STUD; EXH PIPE
M12X103 L=123 		8-94394-656-0 01 1 9803-0004 ● ●
13 STUD; EXH PIPE
M12X103 L=123 		8-94394-656-0 01 1 0005- ●
16 ADAPTER; EXH PIPE 8-97600-283-0 01 1 0601- ●
16 ADAPTER; EXH PIPE 8-94391-161-1 01 1 9610-9802 ●
16 ADAPTER; EXH PIPE 8-94391-161-1 01 1 9803-0004 ● ●
16 ADAPTER; EXH PIPE 8-94391-161-1 01 1 0005- ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 9610-9802 ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 9803-0004 ● ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 0005-0512 ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 0601- ● ●
20 PIPE; INL,TURBOCHARGER OUT 8-97600-383-1 01 1 0601- ●
20 PIPE; INL,TURBOCHARGER OUT 8-94390-649-0 01 1 9610-9802 ●
20 PIPE; INL,TURBOCHARGER OUT 8-94390-649-0 01 1 9803-0004 ● ●
20 PIPE; INL,TURBOCHARGER OUT 8-94390-649-2 01 1 0005- ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-97600-071-1 01 1 0601- ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-94390-407-0 01 1 9610-9802 ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-94390-407-0 01 1 9803-0004 ● ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-94390-407-0 01 1 0005- ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 8-94393-182-0 01 1 0601- ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 1-14181-264-0 01 1 9610-9802 ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 1-14181-264-0 01 1 9803-0004 ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 1-14181-264-0 01 1 0005- ●
76 BOLT; AIR DUCT
M8X35 FLANGE 		0-28650-835-0 02 1 0601- ●
76 BOLT; AIR DUCT
M8X50 FLANGE 		0-28080-850-0 02 1 9610-9802 ●
76 BOLT; AIR DUCT
M8X50 FLANGE 		0-28080-850-0 02 1 9803-0004 ● ●
76 BOLT; AIR DUCT
M8X50 FLANGE 		0-28080-850-0 02 1 0005-0512 ●
76 BOLT; AIR DUCT
M8X50 FLANGE 		0-28050-850-0 02 1 0601- ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-113 		1-09707-199-0 04 1 0601-0810 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-113 		1-09707-199-0 02 1 0811-0811 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-116 		1-09707-144-0 02 1 0811-0811 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-116 		1-09707-144-0 04 1 0812- ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=77-95 		1-09707-114-0 02 1 9703-9802 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=77-95 		1-09707-114-0 02 1 9803-0004 ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=77-95 		1-09707-114-0 02 1 0005-0306 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=77-95 		1-09707-198-0 04 1 0307-0810 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=77-95 		1-09707-114-0 04 1 0811- ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=58.5 OD=65.5 L=80 		8-94392-854-0 01 1 0601- ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-782-0 01 1 9610-9802 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-782-0 01 1 9803-0004 ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-782-0 01 1 0005- ●
122 NUT; ADAPTER
M8 		1-09400-118-1 01 1 9610-9802 ●
122 NUT; ADAPTER
M8 		1-09400-118-1 01 1 9803-0004 ● ●
122 NUT; ADAPTER
M8 		1-09400-118-1 01 1 0005-0512 ●
122 NUT; ADAPTER
M8 		1-09400-118-1 01 1 0601- ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-76 		1-09707-203-0 02 1 0601-0811 ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79 		8-94126-771-0 02 1 0812- ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=50-69 		8-94316-991-0 02 1 9610-9802 ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=50-69 		8-94316-991-0 02 1 9803-0004 ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=50-69 		8-94316-991-0 02 1 0005-0306 ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=50-65 		1-09707-204-0 02 1 0307-0810 ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=50-69 		8-94316-991-0 02 1 0811- ●
148 HOSE; TURBOCHARGER,INL 8-94392-853-0 01 1 0601- ●
148 HOSE; TURBOCHARGER,INL 5-09360-846-0 01 1 9703-9802 ●
148 HOSE; TURBOCHARGER,INL 5-09360-846-0 01 1 9803-0004 ● ●
148 HOSE; TURBOCHARGER,INL 5-09360-846-0 01 1 0005- ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 05 1 9610-9802 ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 05 1 9803-0004 ● ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 05 1 0005-0512 ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 05 1 0601- ● ●
163 GASKET; ADAPTER TO EXH PIPE 1-14145-162-0 01 1 9610-9802 ●
163 GASKET; ADAPTER TO EXH PIPE 1-14145-162-0 01 1 9803-0004 ● ●
163 GASKET; ADAPTER TO EXH PIPE 1-14145-162-0 01 1 0005-0512 ●
163 GASKET; ADAPTER TO EXH PIPE 1-14145-162-2 01 1 0601- ● ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 9610-9802 ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 9803-0004 ● ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0005-0512 ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0601- ● ●
217 BOLT; BRKT
M12X30 		8-94394-324-0 03 1 0601- ●
265 BRACKET; EXH PIPE 8-94395-764-2 01 1 0601- ●
275 WASHER; PL
ID=12.2 		1-09503-008-0 03 1 0601- ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 0601- ●
398 MOUNTING
(A) ID=19.5 		8-94202-456-3 02 1 0601- ●
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 0601- ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 0601- ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 0601- ●
398 MOUNTING
(B) 		8-97600-053-0 02 1 0601- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
