Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#37250) — 257 parça

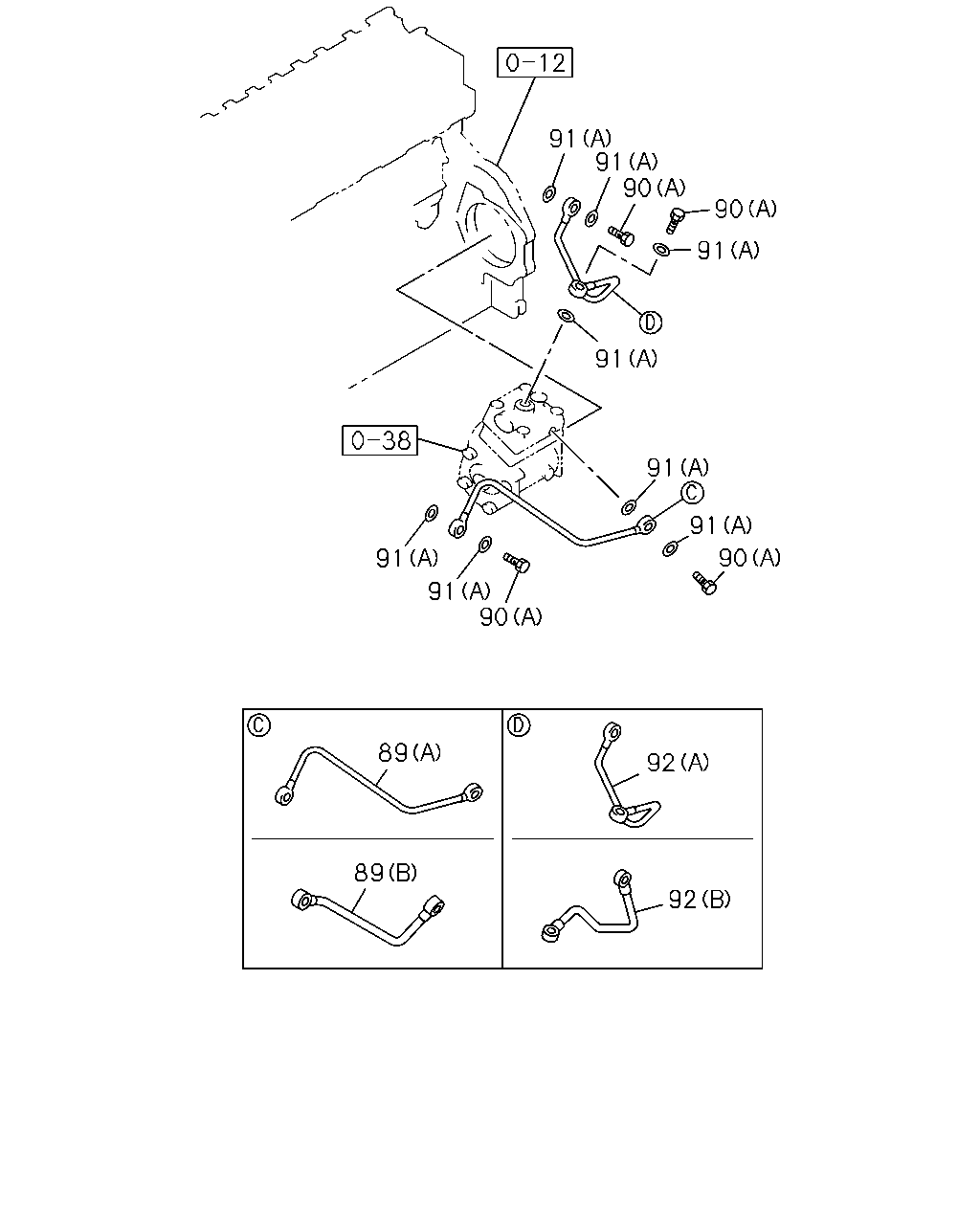

91 91 90 90 91 91 91 91 90 91 91 90 89 92 89 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
89	PIPE; WATER,AIR CMPR,IN (B)	8-94391-114-0	01	1	0601-	●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-178-1	01	1	9510-		●	●
89	PIPE; WATER,AIR CMPR,IN (A)	8-94395-452-2	01	1	9610-9802				●
89	PIPE; WATER,AIR CMPR,IN (A)	8-94395-452-2	01	1	9803-0004				●	●
89	PIPE; WATER,AIR CMPR,IN (A)	8-94395-452-2	01	1	0005-				●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94391-037-0	01	1	0005-						●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	9510-0512		●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0601-		●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0601-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	9610-9802				●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	9803-0004				●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	0005-				●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X25	5-09675-028-2	01	1	9610-9802				●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X25	5-09675-028-2	01	1	9803-0004				●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X25	5-09675-028-2	01	1	0005-				●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0005-				●
90	BOLT; EYE,WATER PIPE,AIR CMPR EXC. ANTI NOISE EQUIPMENT VAR2<TAK> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0005-						●
90	BOLT; EYE,WATER PIPE,AIR CMPR EXC. EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0011-						●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	9510-0512		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	0601-1312		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	0601-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	9610-9802				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	9803-0004				●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	9610-9802				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	9803-0004				●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	0005-				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0005-1312				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ANTI NOISE EQUIPMENT VAR2<TAK> (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0005-1312						●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ANTI NOISE EQUIPMENT VAR2<TAK> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-						●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	0011-1312						●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-						●
92	PIPE; WATER,AIR CMPR,OUT (B)	8-97603-477-0	01	1	0601-	●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-742-1	01	1	9510-		●	●
92	PIPE; WATER,AIR CMPR,OUT (A)	8-94390-070-0	01	1	9610-9802				●
92	PIPE; WATER,AIR CMPR,OUT (A)	8-94390-070-0	01	1	9803-0004				●	●
92	PIPE; WATER,AIR CMPR,OUT (A)	8-94390-070-0	01	1	0005-				●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94390-952-1	01	1	0005-0307						●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-97603-546-0	01	1	0308-						●
92	PIPE; WATER,AIR CMPR,OUT EXC. EURO2 SPECIFICATION<THN> (A)	8-97600-475-0	01	1	0011-						●

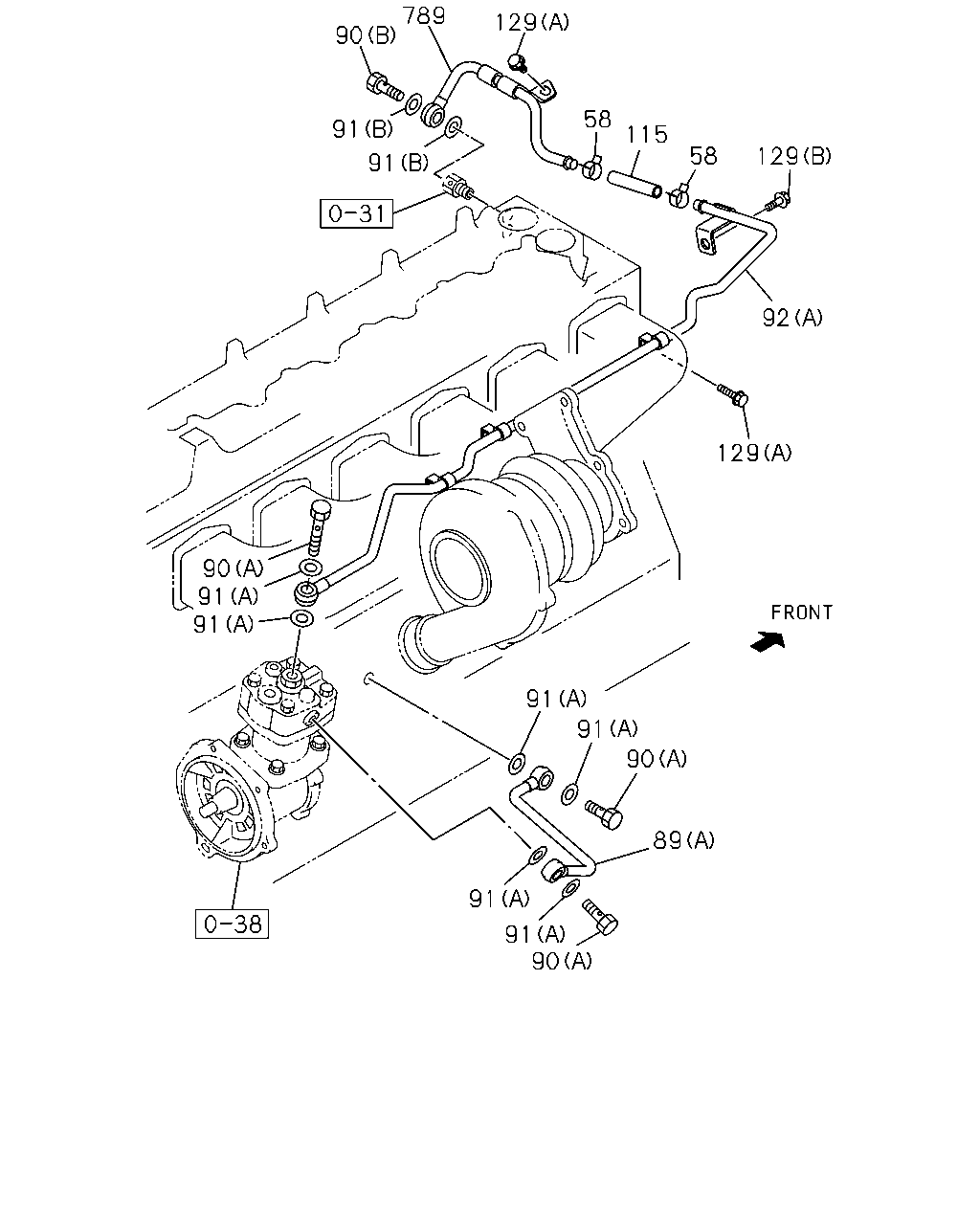

789 90 129 58 91 115 58 129 91 92 129 90 91 91 91 91 90 89 91 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
58	CLIP; RUBBER HOSE ID=19	9-09915-505-1	02	1	9610-9802				●
58	CLIP; RUBBER HOSE ID=19	9-09915-505-1	02	1	9803-9808				●	●
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	9809-0004				●	●
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	0005-				●
89	PIPE; WATER,AIR CMPR,IN (B)	8-94391-114-0	01	1	0601-	●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-178-1	01	1	9510-		●	●
89	PIPE; WATER,AIR CMPR,IN (A)	8-94395-452-2	01	1	9610-9802				●
89	PIPE; WATER,AIR CMPR,IN (A)	8-94395-452-2	01	1	9803-0004				●	●
89	PIPE; WATER,AIR CMPR,IN (A)	8-94395-452-2	01	1	0005-				●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94391-037-0	01	1	0005-						●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	9510-0512		●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0601-		●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0601-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	9610-9802				●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	9803-0004				●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	0005-				●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X25	5-09675-028-2	01	1	9610-9802				●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X25	5-09675-028-2	01	1	9803-0004				●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X25	5-09675-028-2	01	1	0005-				●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0005-				●
90	BOLT; EYE,WATER PIPE,AIR CMPR EXC. ANTI NOISE EQUIPMENT VAR2<TAK> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0005-						●
90	BOLT; EYE,WATER PIPE,AIR CMPR EXC. EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0011-						●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	9510-0512		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	0601-1312		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	0601-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	9610-9802				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	9803-0004				●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	9610-9802				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	9803-0004				●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	0005-				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0005-1312				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ANTI NOISE EQUIPMENT VAR2<TAK> (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0005-1312						●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ANTI NOISE EQUIPMENT VAR2<TAK> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-						●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	0011-1312						●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-						●
92	PIPE; WATER,AIR CMPR,OUT (B)	8-97603-477-0	01	1	0601-	●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-742-1	01	1	9510-		●	●
92	PIPE; WATER,AIR CMPR,OUT (A)	8-94390-070-0	01	1	9610-9802				●
92	PIPE; WATER,AIR CMPR,OUT (A)	8-94390-070-0	01	1	9803-0004				●	●
92	PIPE; WATER,AIR CMPR,OUT (A)	8-94390-070-0	01	1	0005-				●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94390-952-1	01	1	0005-0307						●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-97603-546-0	01	1	0308-						●
92	PIPE; WATER,AIR CMPR,OUT EXC. EURO2 SPECIFICATION<THN> (A)	8-97600-475-0	01	1	0011-						●
115	HOSE; RUBBER L=60	0-03211-060-0	01	1	9610-9802				●
115	HOSE; RUBBER L=60 SERVICED BY L=3000	0-03711-300-0	01	1	9803-0004				●	●
115	HOSE; RUBBER L=60 SERVICED BY L=3000	0-03711-300-0	01	1	0005-0206				●
115	HOSE; RUBBER L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0207-				●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28080-816-0	04	1	9610-9802				●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28080-816-0	04	1	9803-0004				●	●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28080-816-0	04	1	0005-0512				●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28050-816-0	04	1	0601-				●
129	BOLT; WATER PIPE TO BRKT (B) M12X20 W/LK WASHER	0-50051-220-0	01	1	9610-9802				●
129	BOLT; WATER PIPE TO BRKT (B) M12X20 W/LK WASHER	0-50051-220-0	01	1	9803-0004				●	●
129	BOLT; WATER PIPE TO BRKT (B) M12X20 W/LK WASHER	0-50051-220-0	01	1	0005-				●
789	PIPE; WATER,AIR CMPR TO CYL HD	8-94395-454-3	01	1	9610-9802				●
789	PIPE; WATER,AIR CMPR TO CYL HD	8-94395-454-4	01	1	9803-0004				●	●
789	PIPE; WATER,AIR CMPR TO CYL HD	8-94395-454-4	01	1	0005-				●

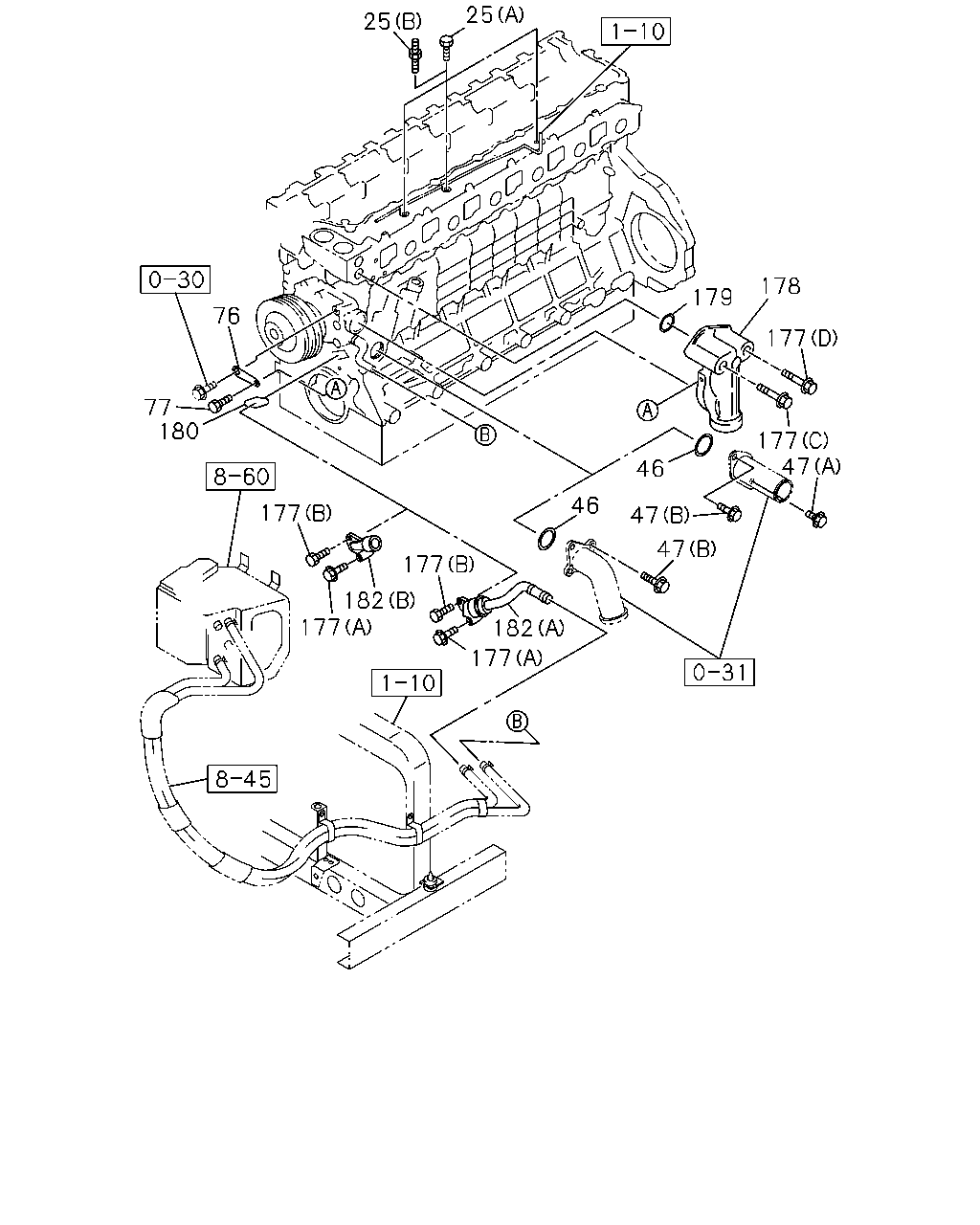

25 25 76 77 177 180 46 46 47 177 177 178 179 47 47 182 177 177 177 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
25	BOLT; WATER PIPE (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-	●
25	BOLT; WATER PIPE (A) M8X12 FLANGE	0-28080-812-0	03	1	9510-0512		●	●
25	BOLT; WATER PIPE (A) M8X12 FLANGE	0-28050-812-0	03	1	0601-		●	●
25	BOLT; WATER PIPE EURO2 SPECIFICATION<THN> (B) M8X14,M8X14 L=33	1-09300-058-1	02	1	0005-0010						●
25	BOLT; WATER PIPE (B) M8X14,M8X14 L=33	1-09300-058-1	02	1	0011-						●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	9510-9802		●	●	●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	9803-0004		●	●	●	●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	0005-0512		●	●	●		●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	0601-	●	●	●	●		●
47	BOLT; DUCT,TO OIL COOLER (A) M8X16 FLANGE	0-28080-816-0	01	1	9510-9611		●	●	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X40 FLANGE	0-28080-840-0	01	1	9510-9611		●	●	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X45 FLANGE	0-28080-845-0	01	1	9612-9802		●	●	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X25 FLANGE	0-28680-825-0	01	1	9612-9802		●	●	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X45 FLANGE	0-28080-845-0	01	1	9803-0004		●	●	●	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X45 FLANGE	0-28080-845-0	01	1	0005-0109		●	●	●		●
47	BOLT; DUCT,TO OIL COOLER (B) M8X45 FLANGE	0-28080-845-0	01	1	0110-0512		●	●	●
47	BOLT; DUCT,TO OIL COOLER EURO2 SPECIFICATION<THN> (B) M8X45 FLANGE	0-28080-845-0	01	1	0110-0512						●
47	BOLT; DUCT,TO OIL COOLER (B) M8X45 FLANGE	0-28050-845-0	01	1	0601-	●	●	●	●
47	BOLT; DUCT,TO OIL COOLER EURO2 SPECIFICATION<THN> (B) M8X45 FLANGE	0-28050-845-0	01	1	0601-						●
47	BOLT; DUCT,TO OIL COOLER (A) M8X25 FLANGE	0-28680-825-0	01	1	9803-0004		●	●	●	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X25 FLANGE	0-28680-825-0	01	1	0005-0109		●	●	●		●
47	BOLT; DUCT,TO OIL COOLER (A) M8X25 FLANGE	0-28680-825-0	01	1	0110-0512		●	●	●
47	BOLT; DUCT,TO OIL COOLER EURO2 SPECIFICATION<THN> (A) M8X25 FLANGE	0-28680-825-0	01	1	0110-0512						●
47	BOLT; DUCT,TO OIL COOLER (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●
47	BOLT; DUCT,TO OIL COOLER EURO2 SPECIFICATION<THN> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-						●
47	BOLT; DUCT,TO OIL COOLER EXC. EURO2 SPECIFICATION<THN> (B) M8X45 FLANGE	0-28080-845-0	03	1	0011-0512						●
47	BOLT; DUCT,TO OIL COOLER EXC. EURO2 SPECIFICATION<THN> (B) M8X45 FLANGE	0-28050-845-0	03	1	0601-						●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	9510-9802		●	●	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	9803-0004		●	●	●	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	0005-0512		●	●	●		●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	0601-	●	●	●	●		●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	9907-0004		●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	9510-9802		●	●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	9803-9906		●	●	●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	02	1	9907-0004				●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	0005-0512		●	●	●		●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	0005-0512				●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	0601-	●	●	●	●		●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	0601-				●
177	BOLT; WATER DUCT (C) M8X79 FLANGE	8-94311-617-1	01	1	9510-9611		●	●
177	BOLT; WATER DUCT (B) M8X22 FLANGE	0-28080-822-0	01	1	9510-9709		●	●	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	9710-9802		●	●	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	9510-9802		●	●	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-0	01	1	9510-9802		●	●	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	9803-0004		●	●	●	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	0005-0512		●	●	●		●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	0601-	●	●	●	●		●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	9803-0004		●	●	●	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	0005-0512		●	●	●		●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●		●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	9803-0004		●	●	●	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	0005-0512		●	●	●		●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	0601-	●	●	●	●		●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	9803-0004		●	●	●	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	0005-0512		●	●	●		●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	0601-	●	●	●	●		●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	9610-9611				●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	9612-9802		●	●	●
178	DUCT; WATER,BYPASS	8-94396-627-2	01	1	9510-9802		●	●	●
178	DUCT; WATER,BYPASS	8-94396-627-2	01	1	9803-0004		●	●	●	●
178	DUCT; WATER,BYPASS	8-94396-627-2	01	1	0005-0512		●	●	●		●
178	DUCT; WATER,BYPASS	8-94396-627-3	01	1	0601-	●	●	●	●		●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	9510-9802		●	●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	9803-0004		●	●	●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	0005-0512		●	●	●		●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	0601-1408	●	●	●	●		●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-98276-756-0	01	1	1409-	●	●	●	●		●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	9510-9802		●	●	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	9803-0004		●	●	●	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	0005-0512		●	●	●		●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	0601-	●	●	●	●		●
182	DUCT; WATER,HTR (A)	8-94396-724-3	01	1	9510-9702		●
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41) (A)	8-94396-724-3	01	1	9510-9702			●
182	DUCT; WATER,HTR STD CAB(FR*M) HEATER & DEFROSTER(C41) (A)	8-94396-724-4	01	1	9703-9810		●	●
182	DUCT; WATER,HTR DOUBLE CAB(FR*W) (A)	8-94396-724-4	01	1	9703-9810		●	●
182	DUCT; WATER,HTR AUSTRALIA EQUIPMENT(RR3) (A)	8-94396-724-4	01	1	9811-0001		●	●
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94396-724-4	01	1	9811-0001		●	●
182	DUCT; WATER,HTR 14" CLUTCH(WF6) AUSTRALIA EQUIPMENT(RR3) (A)	8-94396-724-4	01	1	0002-0004		●
182	DUCT; WATER,HTR EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94396-724-4	01	1	0002-0004		●
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41) (A)	8-94396-724-4	01	1	0002-0004			●
182	DUCT; WATER,HTR (A)	8-94394-348-5	01	1	0005-0512				●
182	DUCT; WATER,HTR (A)	8-94394-348-5	01	1	0601-	●			●
182	DUCT; WATER,HTR EXC. HEATER & DEFROSTER(C41) (B)	8-94390-283-0	01	1	9511-9702			●
182	DUCT; WATER,HTR EXC. HEATER & DEFROSTER(C41) (B)	8-94390-283-0	01	1	9703-9704		●	●
182	DUCT; WATER,HTR STD CAB(FR*M) EXC. HEATER & DEFROSTER(C41) (B)	8-94390-283-0	01	1	9705-9810		●	●
182	DUCT; WATER,HTR EXC. HEATER & DEFROSTER(C41),AUSTRALIA EQUIPMENT(RR3) (B)	8-94390-283-0	01	1	9811-0004		●
182	DUCT; WATER,HTR EXC. HEATER & DEFROSTER(C41) (B)	8-94390-283-0	01	1	9811-0004			●
182	DUCT; WATER,HTR EXC. HEATER & DEFROSTER(C41) (B)	8-94390-283-0	01	1	0005-0302			●			●
182	DUCT; WATER,HTR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94390-283-0	01	1	0303-			●			●
182	DUCT; WATER,HTR (A)	8-94394-348-5	01	1	9610-9802				●
182	DUCT; WATER,HTR (A)	8-94394-348-5	01	1	9803-0001				●	●
182	DUCT; WATER,HTR A/T<X9D> AUSTRALIA EQUIPMENT(RR3) (A)	8-94394-348-5	01	1	0002-0004		●
182	DUCT; WATER,HTR (A)	8-94394-348-5	01	1	0002-0004				●	●
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41) (A)	8-94396-724-4	01	1	0005-0010		●	●			●
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41) (A)	8-94396-724-4	01	1	0005-0010			●
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41) (A)	8-94396-724-4	01	1	0011-0302			●			●
182	DUCT; WATER,HTR (A)	8-94396-724-4	01	1	0303-		●
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (A)	8-94396-724-4	01	1	0303-			●
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41) (A)	8-94396-724-4	01	1	0303-						●

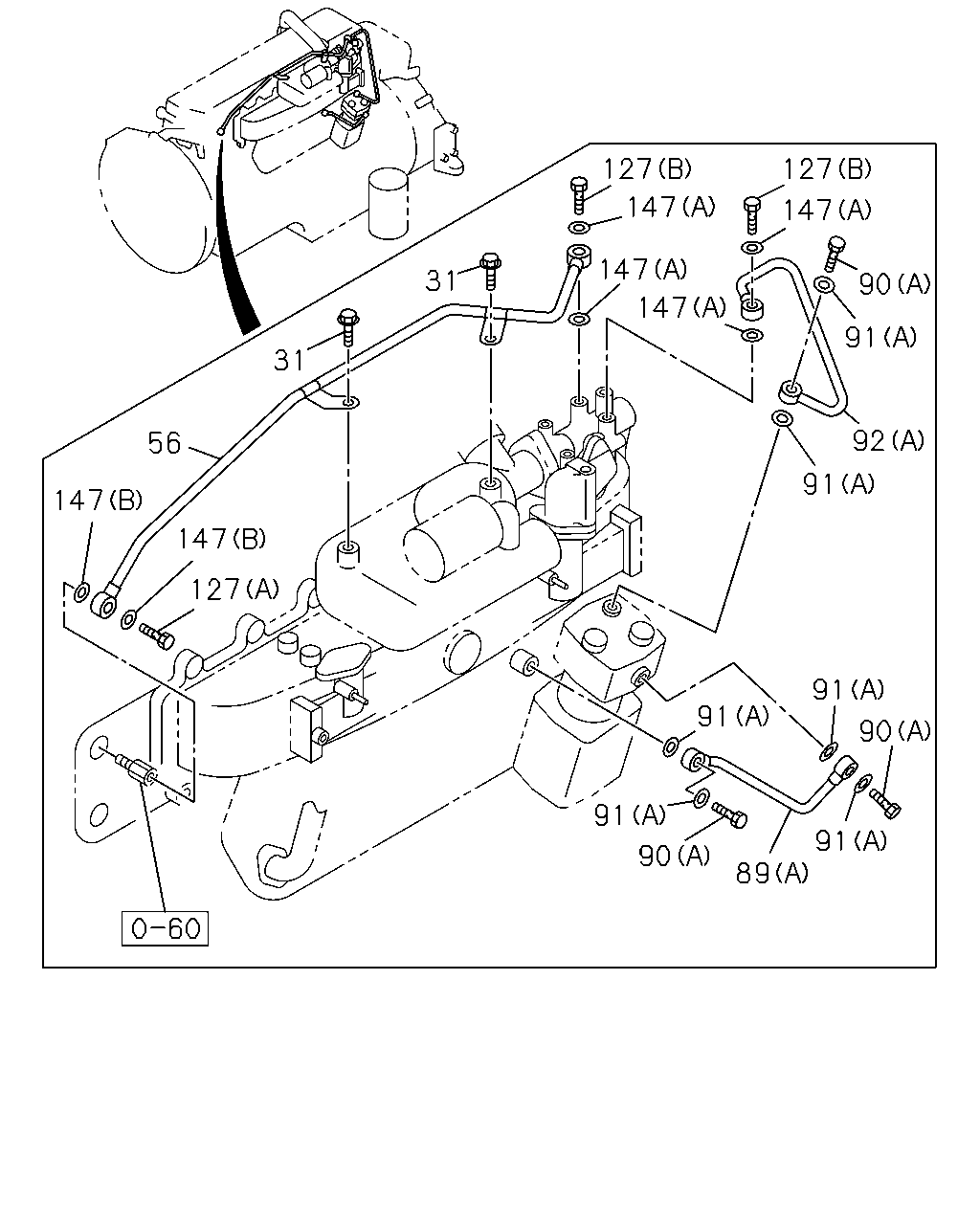

31 31 56 147 147 127 91 90 89 91 91 90 91 91 92 91 90 147 127 147 147 147 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
31	BOLT; CLIP EXC. EURO2 SPECIFICATION<THN> M8X16 FLANGE	0-28080-816-0	05	1	0011-0512						●
31	BOLT; CLIP EXC. EURO2 SPECIFICATION<THN> M8X16 FLANGE	0-28050-816-0	05	1	0601-						●
56	PIPE; WATER OUTLET EXC. EURO2 SPECIFICATION<THN>	8-94392-324-2	01	1	0011-						●
89	PIPE; WATER,AIR CMPR,IN (B)	8-94391-114-0	01	1	0601-	●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-178-1	01	1	9510-		●	●
89	PIPE; WATER,AIR CMPR,IN (A)	8-94395-452-2	01	1	9610-9802				●
89	PIPE; WATER,AIR CMPR,IN (A)	8-94395-452-2	01	1	9803-0004				●	●
89	PIPE; WATER,AIR CMPR,IN (A)	8-94395-452-2	01	1	0005-				●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94391-037-0	01	1	0005-						●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	9510-0512		●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0601-		●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0601-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	9610-9802				●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	9803-0004				●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	0005-				●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X25	5-09675-028-2	01	1	9610-9802				●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X25	5-09675-028-2	01	1	9803-0004				●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X25	5-09675-028-2	01	1	0005-				●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0005-				●
90	BOLT; EYE,WATER PIPE,AIR CMPR EXC. ANTI NOISE EQUIPMENT VAR2<TAK> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0005-						●
90	BOLT; EYE,WATER PIPE,AIR CMPR EXC. EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0011-						●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	9510-0512		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	0601-1312		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	0601-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	9610-9802				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	9803-0004				●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	9610-9802				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	9803-0004				●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	0005-				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0005-1312				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ANTI NOISE EQUIPMENT VAR2<TAK> (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0005-1312						●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ANTI NOISE EQUIPMENT VAR2<TAK> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-						●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	0011-1312						●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-						●
92	PIPE; WATER,AIR CMPR,OUT (B)	8-97603-477-0	01	1	0601-	●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-742-1	01	1	9510-		●	●
92	PIPE; WATER,AIR CMPR,OUT (A)	8-94390-070-0	01	1	9610-9802				●
92	PIPE; WATER,AIR CMPR,OUT (A)	8-94390-070-0	01	1	9803-0004				●	●
92	PIPE; WATER,AIR CMPR,OUT (A)	8-94390-070-0	01	1	0005-				●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94390-952-1	01	1	0005-0307						●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-97603-546-0	01	1	0308-						●
92	PIPE; WATER,AIR CMPR,OUT EXC. EURO2 SPECIFICATION<THN> (A)	8-97600-475-0	01	1	0011-						●
127	BOLT; EYE EXC. EURO2 SPECIFICATION<THN> (B) M12X33 FLANGE	1-09675-083-0	02	1	0011-						●
127	BOLT; EYE EXC. EURO2 SPECIFICATION<THN> (A) M16X25	5-09675-028-2	01	1	0011-						●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> (A) ID=12.2	1-09630-084-0	04	1	0011-1312						●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> (A) ID=12.2	8-98251-344-0	04	1	1401-						●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> (B) ID=16.2	1-09630-086-0	02	1	0011-						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
