◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10698 - FRR RHD EXC.EURO3 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#37249) — 118 parça

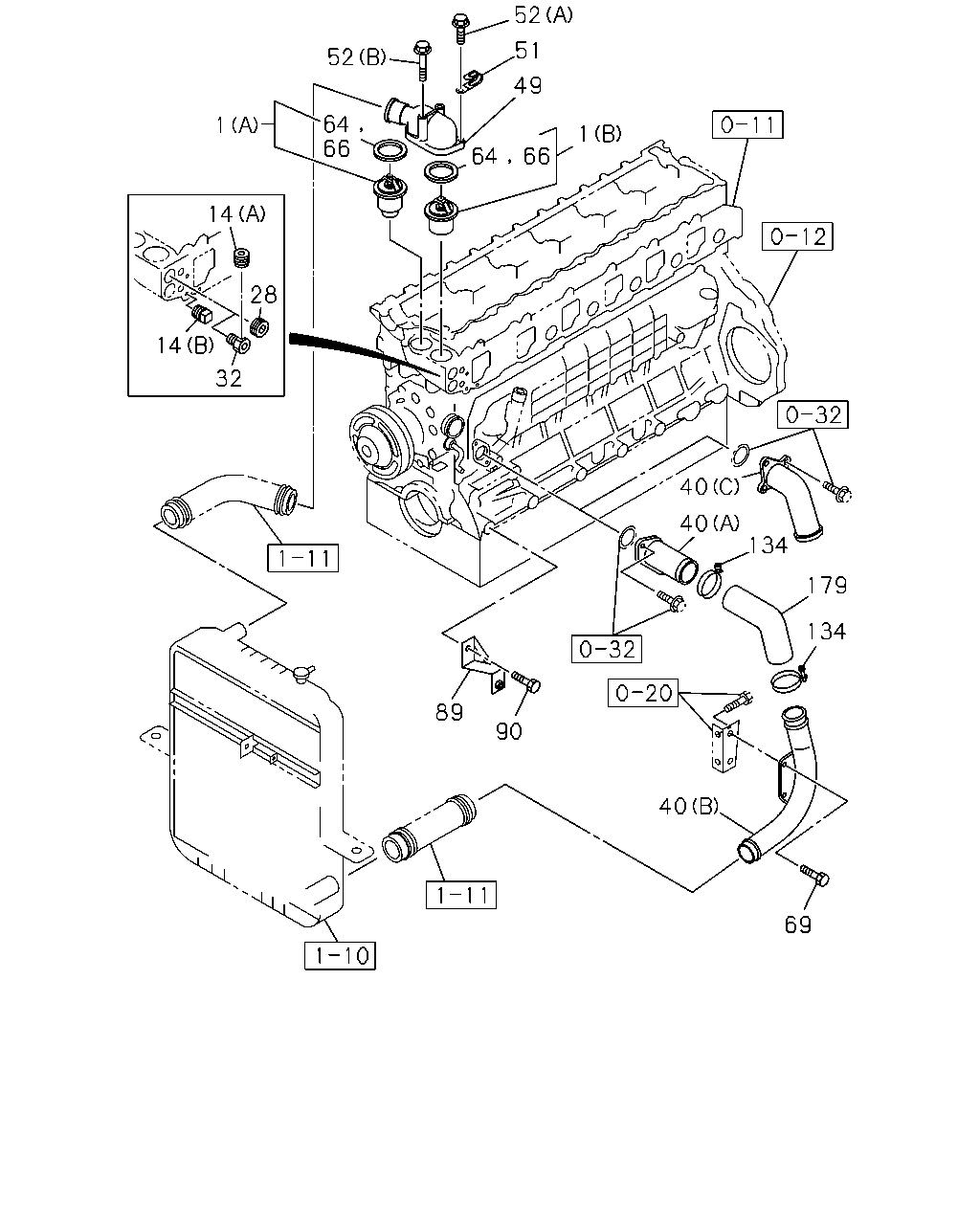

çizim 151132
52 51 52 49 64 66 1 1 64 66 14 28 14 32 40 40 134 179 134 89 90 40 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 THERMOSTAT
ENG OIL PUMP HEAVY DUTY<Q1V> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 76.5 CELSIUS 		8-97602-035-3 01 1 0211- ●
1 THERMOSTAT
ENG OIL PUMP HEAVY DUTY<Q1V> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 76.5 CELSIUS 		8-97602-392-2 01 1 0211- ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9510-9802 ● ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94397-311-0 01 1 9510-9802 ● ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9803-0004 ● ● ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 0005-0105 ● ● ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-0 01 1 0106-0109 ● ● ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-1 01 1 0110-0512 ● ● ●
1 THERMOSTAT
EXC. THERMOSTAT EXPORT VAR 1<Q1U> (A) 82 CELSIUS 		8-97602-048-1 01 1 0110-0512 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-3 01 1 0601- ● ● ● ●
1 THERMOSTAT
EXC. THERMOSTAT EXPORT VAR 1<Q1U> (A) 82 CELSIUS 		8-97602-048-3 01 1 0601- ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94397-311-0 01 1 9803-9807 ● ● ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 9808-0004 ● ● ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 0005-0105 ● ● ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-037-0 01 1 0106-0109 ● ● ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-037-0 01 1 0110-0112 ● ● ●
1 THERMOSTAT
EXC. THERMOSTAT EXPORT VAR 1<Q1U> (B) 82 CELSIUS 		8-97602-037-0 01 1 0110-0112 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-0 01 1 0201-0512 ● ● ●
1 THERMOSTAT
EXC. THERMOSTAT EXPORT VAR 1<Q1U> (B) 82 CELSIUS 		8-97602-393-0 01 1 0201-0512 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-1 01 1 0601-1501 ● ● ● ●
1 THERMOSTAT
EXC. THERMOSTAT EXPORT VAR 1<Q1U> (B) 82 CELSIUS 		8-97602-393-1 01 1 0601-1501 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-98295-921-0 01 1 1502- ● ● ● ●
1 THERMOSTAT
EXC. THERMOSTAT EXPORT VAR 1<Q1U> (B) 82 CELSIUS 		8-98295-921-0 01 1 1502- ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 9510-9802 ● ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 9803-0004 ● ● ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0005-0512 ● ● ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0601- ● ● ● ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9701-9802 ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9803-0004 ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 0005-0010 ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 0011-1008 ●
14 PLUG; SW
EXC. EURO2 SPECIFICATION<THN> (A) PT1/4 		1-09605-019-0 01 1 0011-1008 ●
28 PLUG; HTR
EXC. AUSTRALIA EQUIPMENT(RR3) PT3/4 		1-09605-020-0 01 1 9510-9702 ●
28 PLUG; HTR
EXC. AUSTRALIA EQUIPMENT(RR3) PT3/4 		1-09605-020-0 01 1 9703-0004 ● ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 0005-0109 ● ● ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 0110-0512 ● ●
28 PLUG; HTR
EURO2 SPECIFICATION<THN> PT3/4 		1-09605-020-0 01 1 0110-0512 ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 0601- ● ● ●
28 PLUG; HTR
EURO2 SPECIFICATION<THN> PT3/4 		1-09605-020-0 01 1 0601- ●
32 CONNECTOR; HTR 8-94395-851-1 01 1 9610-9802 ●
32 CONNECTOR; HTR 8-94395-851-1 01 1 9803-0004 ● ●
32 CONNECTOR; HTR 8-94395-851-1 01 1 0005-1008 ●
32 CONNECTOR; HTR 8-98177-501-0 01 1 1009- ●
40 DUCT; WATER,SUCTION
(A) 		8-94394-403-1 01 1 9510-9611 ● ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 9612-9802 ● ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 9803-0004 ● ● ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 0005-0109 ● ● ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-1 01 1 0110-0512 ● ● ●
40 DUCT; WATER,SUCTION
EURO2 SPECIFICATION<THN> (A) 		8-94391-091-1 01 1 0110-0512 ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-1 01 1 0601- ● ● ● ●
40 DUCT; WATER,SUCTION
EURO2 SPECIFICATION<THN> (A) 		8-94391-091-1 01 1 0601- ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 9510-9802 ● ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 9803-0004 ● ● ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0005-0010 ● ● ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0011-0512 ●
40 DUCT; WATER,SUCTION
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		8-94394-404-1 01 1 0011-0512 ● ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0601- ● ●
40 DUCT; WATER,SUCTION
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		8-94394-404-1 01 1 0601- ● ● ●
40 DUCT; WATER,SUCTION
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94391-080-1 01 1 0011- ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 9510-9802 ● ● ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 9803-0004 ● ● ● ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 0005-0105 ● ● ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0106-0512 ● ● ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0601- ● ● ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9510-9802 ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9803-0004 ● ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 0005-0512 ● ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 0601-0801 ● ● ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 0802- ● ● ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X79 FLANGE 		8-94311-617-1 02 1 9510-9611 ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X22 FLANGE 		0-28080-822-0 02 1 9510-9709 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9710-9802 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9803-9806 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9807-0004 ● ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 0005-0512 ● ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28050-880-0 02 1 0601- ● ● ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9803-0004 ● ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ● ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9610-9611 ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9612-9802 ● ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 9510-9802 ● ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 9803-0004 ● ● ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 0005-0105 ● ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0106-0109 ● ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0110-0210 ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. THERMOSTAT EXPORT VAR 1<Q1U> ID=49.5 OD=56.5 		8-97300-793-0 02 1 0110-0210 ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0211-0512 ● ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0601-1501 ● ● ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ● ● ● ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9712 ● ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28680-820-0 02 1 9801-9802 ● ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28680-820-0 02 1 9803-0004 ● ● ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0010 ● ● ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28680-820-0 02 1 0011-0512 ●
69 BOLT; DUCT,WATER OUTLET
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE 		0-28680-820-0 02 1 0011-0512 ● ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
69 BOLT; DUCT,WATER OUTLET
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
89 BRACKET
EXC. EURO2 SPECIFICATION<THN> 		8-94390-983-2 01 1 0011-0512 ●
89 BRACKET
EXC. EURO2 SPECIFICATION<THN> 		8-94390-983-2 01 1 0601- ●
89 BRACKET 8-94390-983-2 01 1 0601- ●
90 BOLT; BRKT
EXC. EURO2 SPECIFICATION<THN> M10X16 FLANGE 		0-28181-016-0 01 1 0011-0512 ●
90 BOLT; BRKT
EXC. EURO2 SPECIFICATION<THN> M10X16 FLANGE 		0-28151-016-0 01 1 0601- ●
90 BOLT; BRKT
M10X16 FLANGE 		0-28151-016-0 01 1 0601- ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9510-9802 ● ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9803-0004 ● ● ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0005-0010 ● ● ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0011-0512 ●
134 CLIP; RUBBER HOSE
EXC. NEW ZEALAND EQUIPMENT(PK5) ID=63 		1-09704-067-0 02 1 0011-0512 ● ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0601- ● ●
134 CLIP; RUBBER HOSE
EXC. NEW ZEALAND EQUIPMENT(PK5) ID=63 		1-09704-067-0 02 1 0601- ● ● ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-1 01 1 9510-9802 ● ● ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-1 01 1 9803-0004 ● ● ● ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-1 01 1 0005-0010 ● ● ● ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-2 01 1 0011-0512 ●
179 HOSE; RUBBER,WATER DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5) 		8-94394-535-2 01 1 0011-0512 ● ● ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-2 01 1 0601- ● ●
179 HOSE; RUBBER,WATER DUCT
EXC. NEW ZEALAND EQUIPMENT(PK5) 		8-94394-535-2 01 1 0601- ● ● ●
