Sayfa 0-27 - Isuzu EPC

0-27 — EXHAUST MANIFOLD (#37246) — 265 parça

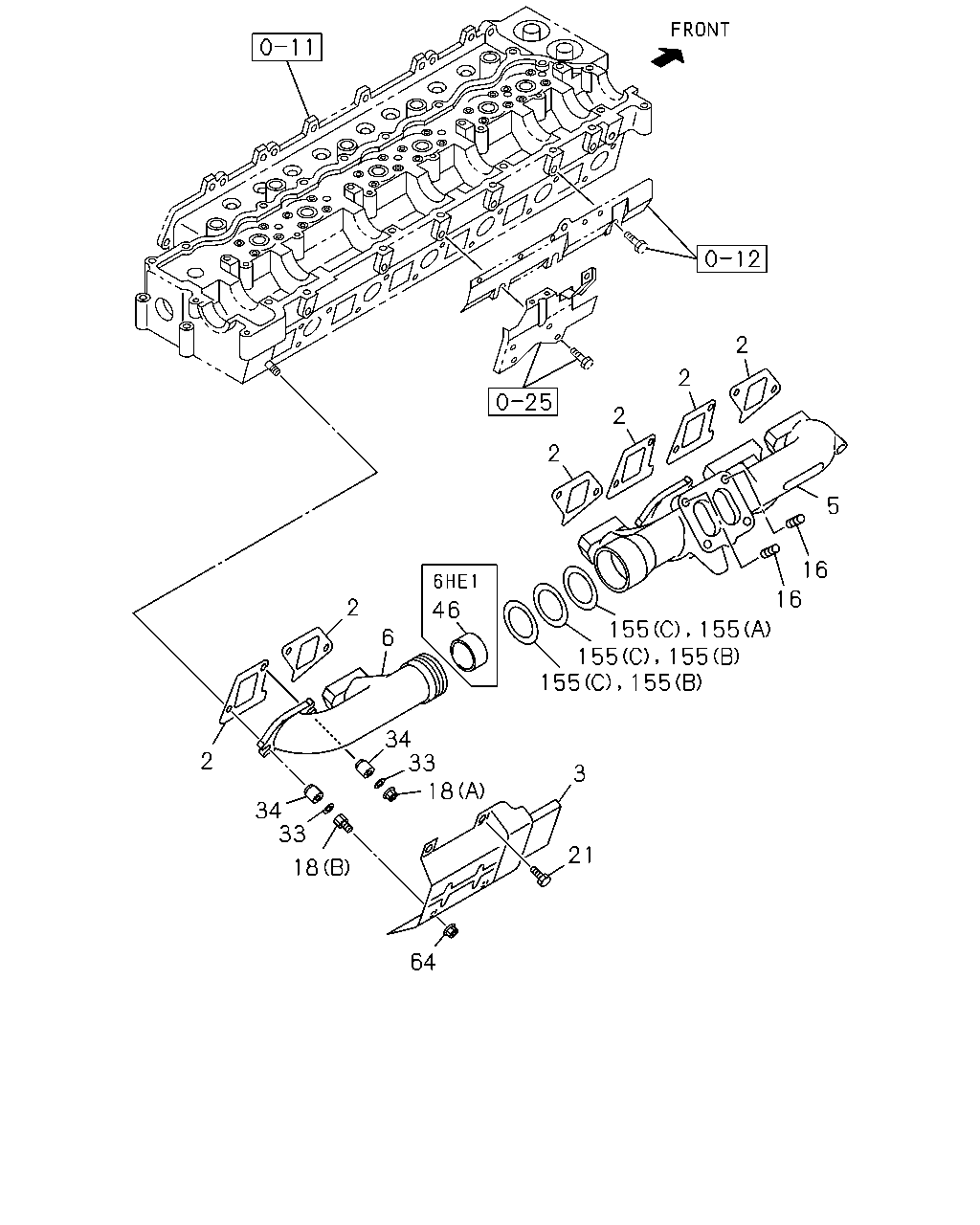

2 2 2 2 5 16 16 2 46 155 155 155 155 155 155 6 34 33 18 2 3 34 33 21 18 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9510-9802	●	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9803-0004	●	●	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-2	06	1	0005-0512	●	●	●		●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	0601-	●	●	●		●	●
3	PROTECTOR; HEAT,EXH MANIF	8-97602-394-0	01	1	0601-						●
3	PROTECTOR; HEAT,EXH MANIF	8-94394-385-1	01	1	9610-9802	●
3	PROTECTOR; HEAT,EXH MANIF	8-94394-385-1	01	1	9803-9901	●			●
3	PROTECTOR; HEAT,EXH MANIF	8-94391-582-0	01	1	9902-0004	●			●
3	PROTECTOR; HEAT,EXH MANIF	8-94391-582-1	01	1	0005-	●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	9510-0004		●	●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	0005-		●	●		●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	9610-9802	●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	9803-0004	●			●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	0005-0104	●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0105-0512	●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0601-	●					●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	9510-0004		●	●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	0005-		●	●
6	MANIFOLD; EXH,RR EURO2 SPECIFICATION<THN>	8-94394-755-4	01	1	0005-					●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	9610-9802	●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	9803-0004	●			●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	0005-0104	●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0105-0512	●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0601-	●					●
6	MANIFOLD; EXH,RR EXC. EURO2 SPECIFICATION<THN>	8-94391-564-1	01	1	0011-					●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	9510-0004		●	●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	0005-		●	●		●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	9610-9802	●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	9803-0004	●			●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0005-0512	●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0601-	●					●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	9510-0004		●	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	0005-0010		●	●		●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	0011-0109		●	●		●
18	NUT; EXH MANIF HEATER & DEFROSTER(C41) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10 FLANGE	0-91150-210-0	12	1	0011-0109					●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	0110-0602		●	●		●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	12	1	0603-		●	●		●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	9610-9802	●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	9610-9802	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	9803-0004	●			●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0005-0512	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0601-0602	●					●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	10	1	0603-	●					●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	9803-0004	●			●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0005-0512	●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0601-1202	●					●
18	NUT; EXH MANIF (B) M10	8-98205-394-0	02	1	1203-	●					●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	9610-9802	●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	9803-0004	●			●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	0005-0512	●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28050-816-0	02	1	0601-0601	●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28050-816-0	02	1	0601-	●					●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	12	1	9510-9802	●	●	●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	12	1	9803-0004	●	●	●	●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	12	1	0005-0512	●	●	●		●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	12	1	0601-	●	●	●		●	●
34	COLLAR; DIST,EXH MANIF L=28	8-94395-679-0	12	1	9510-9802	●	●	●
34	COLLAR; DIST,EXH MANIF L=28	8-94395-679-0	12	1	9803-0004	●	●	●	●
34	COLLAR; DIST,EXH MANIF L=28	8-94395-679-0	12	1	0005-0209	●	●	●		●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	0210-0512	●	●	●		●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	0601-	●	●	●		●	●
46	PIPE; SEAL,EXH MANIF OD=49.5 L=43	1-14149-131-1	01	1	9610-9802	●
46	PIPE; SEAL,EXH MANIF OD=49.5 L=43	1-14149-131-1	01	1	9803-0004	●			●
46	PIPE; SEAL,EXH MANIF OD=49.5 L=43	1-14149-131-1	01	1	0005-0104	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	9610-9802	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	9803-0004	●			●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0005-0010	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0011-0512	●
64	NUT; HEAT PROTECTOR EXC. EURO2 SPECIFICATION<THN> M10 FLANGE	0-91150-210-0	02	1	0011-0512					●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0601-0602	●					●
64	NUT; HEAT PROTECTOR EXC. EURO2 SPECIFICATION<THN> M10 FLANGE	0-91150-210-0	02	1	0601-0602					●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91180-210-0	02	1	0603-	●					●
64	NUT; HEAT PROTECTOR EXC. EURO2 SPECIFICATION<THN> M10 FLANGE	0-91180-210-0	02	1	0603-					●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	01	1	9510-0004		●	●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	01	1	0005-0501		●	●		●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	9510-0004		●	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0005-0501		●	●		●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0502-0512	●	●	●		●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0601-	●	●	●		●	●
155	RING; SEAL,EXH MANIF (C) STAMP RH	1-14149-151-0	03	1	9610-9802	●
155	RING; SEAL,EXH MANIF (C) STAMP RH	1-14149-151-0	03	1	9803-0004	●			●
155	RING; SEAL,EXH MANIF (C) STAMP RH	1-14149-151-0	03	1	0005-0501	●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	01	1	0502-0512	●	●	●		●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	01	1	0601-	●	●	●		●	●

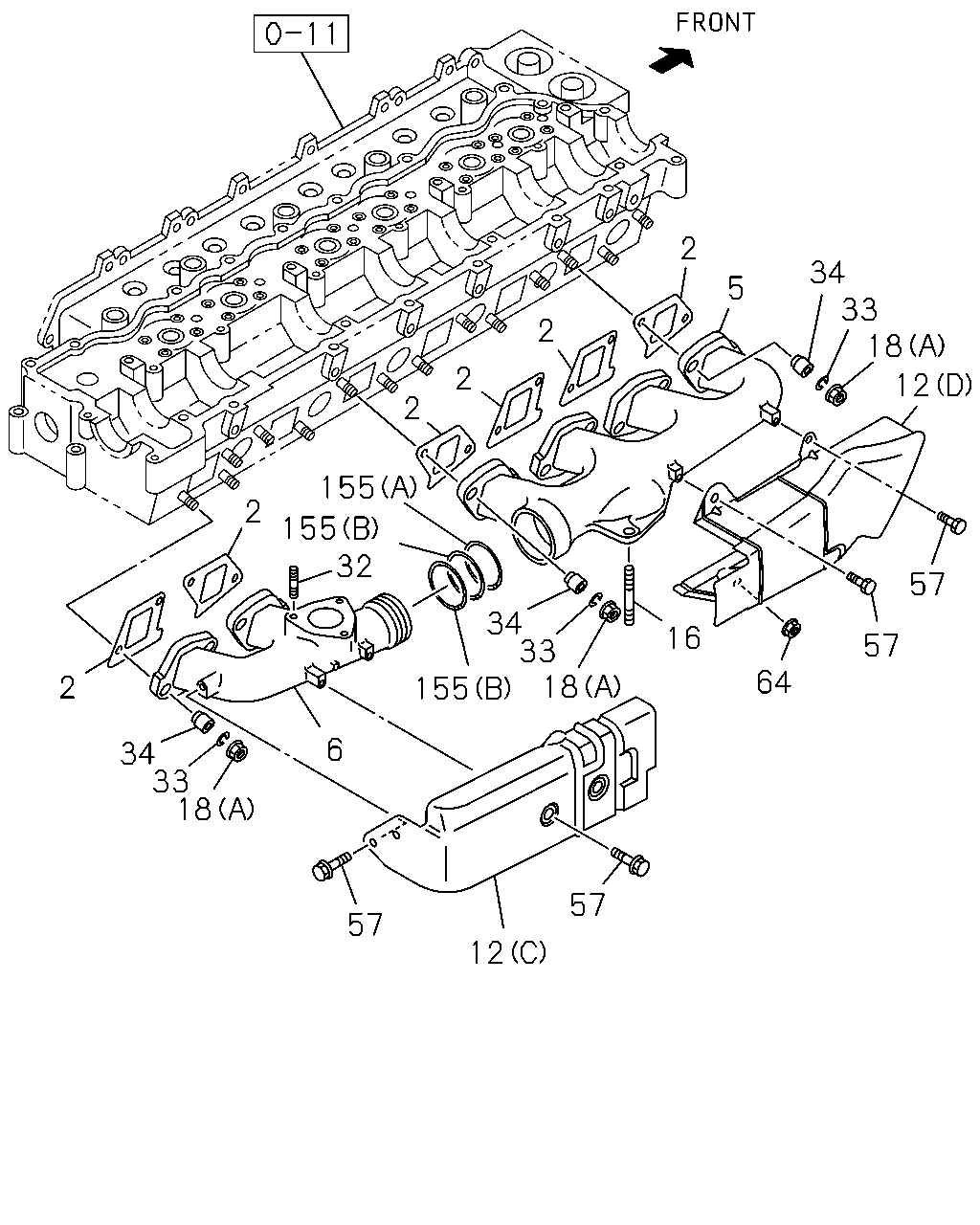

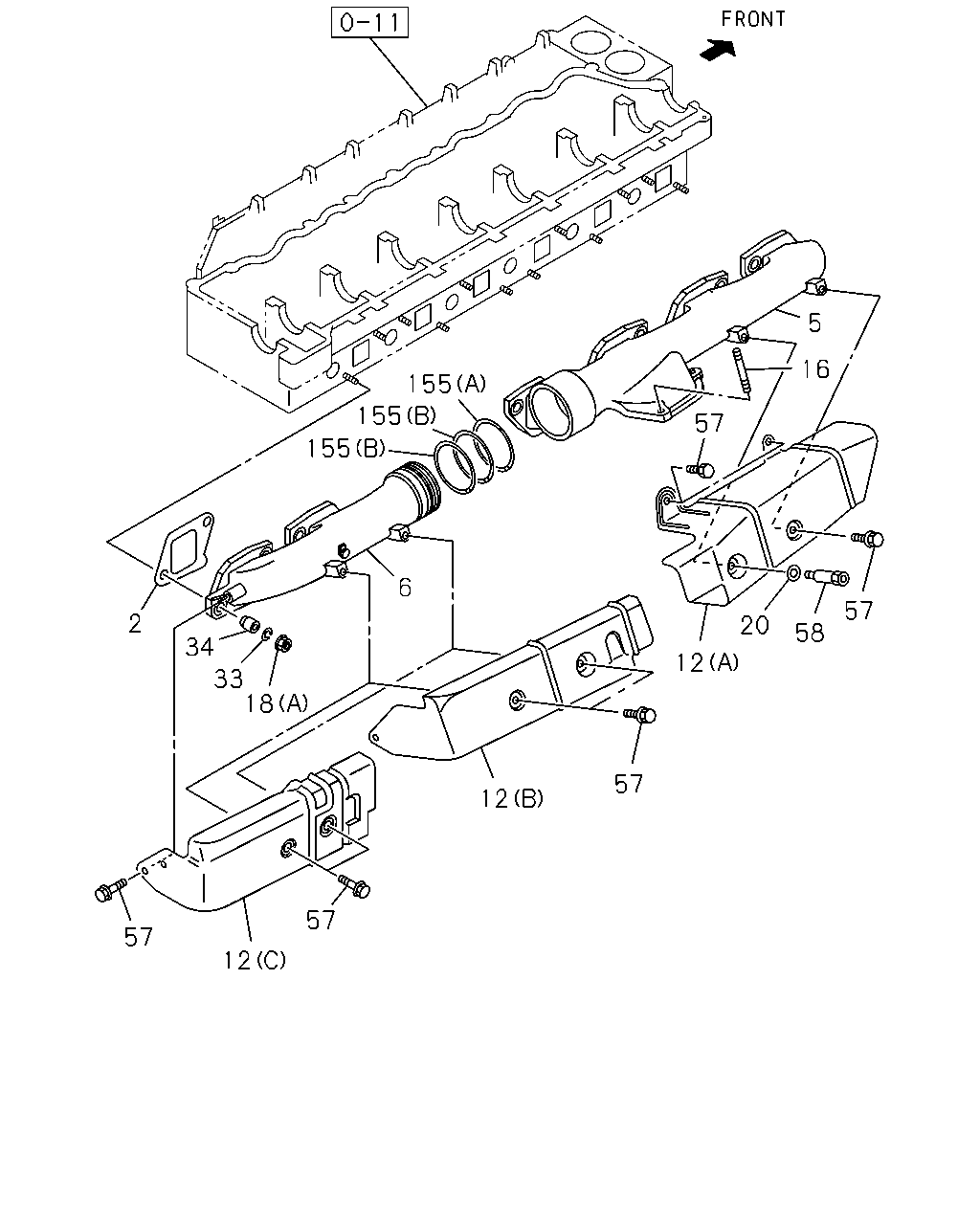

5 16 155 155 57 155 6 57 2 20 58 34 12 33 18 57 12 57 57 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9510-9802	●	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9803-0004	●	●	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-2	06	1	0005-0512	●	●	●		●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	0601-	●	●	●		●	●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	9510-0004		●	●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	0005-		●	●		●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	9610-9802	●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	9803-0004	●			●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	0005-0104	●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0105-0512	●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0601-	●					●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	9510-0004		●	●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	0005-		●	●
6	MANIFOLD; EXH,RR EURO2 SPECIFICATION<THN>	8-94394-755-4	01	1	0005-					●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	9610-9802	●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	9803-0004	●			●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	0005-0104	●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0105-0512	●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0601-	●					●
6	MANIFOLD; EXH,RR EXC. EURO2 SPECIFICATION<THN>	8-94391-564-1	01	1	0011-					●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94395-204-0	01	1	9510-0004		●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94395-204-0	01	1	0005-		●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO2 SPECIFICATION<THN> (A)	8-94395-204-0	01	1	0005-					●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94395-413-1	01	1	9510-9609		●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94391-040-0	01	1	9610-9809		●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (C)	8-94392-947-0	01	1	9810-0004		●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (C)	8-94392-947-0	01	1	0005-		●	●		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EXC. EURO2 SPECIFICATION<THN> (D)	8-94391-190-1	01	1	0011-0407					●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EXC. EURO2 SPECIFICATION<THN> (D)	8-97604-919-0	01	1	0408-0608					●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EXC. EURO2 SPECIFICATION<THN> (D)	8-97611-120-0	01	1	0609-					●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	9510-0004		●	●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	0005-		●	●		●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	9610-9802	●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	9803-0004	●			●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0005-0512	●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0601-	●					●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	9510-0004		●	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	0005-0010		●	●		●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	0011-0109		●	●		●
18	NUT; EXH MANIF HEATER & DEFROSTER(C41) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10 FLANGE	0-91150-210-0	12	1	0011-0109					●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	0110-0602		●	●		●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	12	1	0603-		●	●		●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	9610-9802	●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	9610-9802	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	9803-0004	●			●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0005-0512	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0601-0602	●					●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	10	1	0603-	●					●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	9803-0004	●			●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0005-0512	●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0601-1202	●					●
18	NUT; EXH MANIF (B) M10	8-98205-394-0	02	1	1203-	●					●
20	WASHER; PL,HEAT PROTECTOR ID=8.4 OD=18	9-09160-608-0	01	1	9510-9803		●	●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	12	1	9510-9802	●	●	●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	12	1	9803-0004	●	●	●	●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	12	1	0005-0512	●	●	●		●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	12	1	0601-	●	●	●		●	●
34	COLLAR; DIST,EXH MANIF L=28	8-94395-679-0	12	1	9510-9802	●	●	●
34	COLLAR; DIST,EXH MANIF L=28	8-94395-679-0	12	1	9803-0004	●	●	●	●
34	COLLAR; DIST,EXH MANIF L=28	8-94395-679-0	12	1	0005-0209	●	●	●		●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	0210-0512	●	●	●		●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	0601-	●	●	●		●	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X12 FLANGE	0-28080-812-0	02	1	0005-0512		●	●		●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X12 FLANGE	0-28050-812-0	02	1	0601-		●	●		●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X14 FLANGE	8-94312-699-1	05	1	0005-0109		●	●		●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X14 FLANGE	8-94312-699-1	05	1	0110-0408		●	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO2 SPECIFICATION<THN> M8X14 FLANGE	8-94312-699-1	05	1	0110-0408					●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X14 FLANGE	8-97378-075-0	05	1	0409-		●	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO2 SPECIFICATION<THN> M8X14 FLANGE	8-97378-075-0	05	1	0409-					●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. EURO2 SPECIFICATION<THN> M8X14 FLANGE	8-94312-699-1	03	1	0011-0408					●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. EURO2 SPECIFICATION<THN> M8X14 FLANGE	8-97378-075-0	03	1	0409-					●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X12 FLANGE	0-28080-812-0	02	1	9510-0004		●	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X14 FLANGE	8-94312-699-1	04	1	9510-9803		●	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X14 FLANGE	8-94312-699-1	05	1	9804-0004		●	●
58	STUD; HEAT PROTECTOR	8-94396-828-2	01	1	9510-9803		●	●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	01	1	9510-0004		●	●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	01	1	0005-0501		●	●		●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	9510-0004		●	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0005-0501		●	●		●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0502-0512	●	●	●		●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0601-	●	●	●		●	●
155	RING; SEAL,EXH MANIF (C) STAMP RH	1-14149-151-0	03	1	9610-9802	●
155	RING; SEAL,EXH MANIF (C) STAMP RH	1-14149-151-0	03	1	9803-0004	●			●
155	RING; SEAL,EXH MANIF (C) STAMP RH	1-14149-151-0	03	1	0005-0501	●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	01	1	0502-0512	●	●	●		●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	01	1	0601-	●	●	●		●	●

2 34 33 18 5 2 2 12 2 155 2 155 32 57 34 33 155 18 16 57 64 2 6 34 33 18 57 57 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9510-9802	●	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9803-0004	●	●	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-2	06	1	0005-0512	●	●	●		●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	0601-	●	●	●		●	●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	9510-0004		●	●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	0005-		●	●		●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	9610-9802	●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	9803-0004	●			●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	0005-0104	●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0105-0512	●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0601-	●					●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	9510-0004		●	●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	0005-		●	●
6	MANIFOLD; EXH,RR EURO2 SPECIFICATION<THN>	8-94394-755-4	01	1	0005-					●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	9610-9802	●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	9803-0004	●			●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	0005-0104	●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0105-0512	●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0601-	●					●
6	MANIFOLD; EXH,RR EXC. EURO2 SPECIFICATION<THN>	8-94391-564-1	01	1	0011-					●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94395-204-0	01	1	9510-0004		●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94395-204-0	01	1	0005-		●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO2 SPECIFICATION<THN> (A)	8-94395-204-0	01	1	0005-					●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94395-413-1	01	1	9510-9609		●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94391-040-0	01	1	9610-9809		●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (C)	8-94392-947-0	01	1	9810-0004		●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (C)	8-94392-947-0	01	1	0005-		●	●		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EXC. EURO2 SPECIFICATION<THN> (D)	8-94391-190-1	01	1	0011-0407					●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EXC. EURO2 SPECIFICATION<THN> (D)	8-97604-919-0	01	1	0408-0608					●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EXC. EURO2 SPECIFICATION<THN> (D)	8-97611-120-0	01	1	0609-					●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	9510-0004		●	●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	0005-		●	●		●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	9610-9802	●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	9803-0004	●			●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0005-0512	●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0601-	●					●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	9510-0004		●	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	0005-0010		●	●		●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	0011-0109		●	●		●
18	NUT; EXH MANIF HEATER & DEFROSTER(C41) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10 FLANGE	0-91150-210-0	12	1	0011-0109					●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	0110-0602		●	●		●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	12	1	0603-		●	●		●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	9610-9802	●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	9610-9802	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	9803-0004	●			●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0005-0512	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0601-0602	●					●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	10	1	0603-	●					●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	9803-0004	●			●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0005-0512	●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0601-1202	●					●
18	NUT; EXH MANIF (B) M10	8-98205-394-0	02	1	1203-	●					●
32	STUD; EXH PIPE EXC. EURO2 SPECIFICATION<THN> M8X22 L=33	8-94141-773-1	03	1	0011-0408					●
32	STUD; EXH PIPE EXC. EURO2 SPECIFICATION<THN> M8X22 L=33	8-97378-061-0	03	1	0409-					●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	12	1	9510-9802	●	●	●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	12	1	9803-0004	●	●	●	●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	12	1	0005-0512	●	●	●		●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	12	1	0601-	●	●	●		●	●
34	COLLAR; DIST,EXH MANIF L=28	8-94395-679-0	12	1	9510-9802	●	●	●
34	COLLAR; DIST,EXH MANIF L=28	8-94395-679-0	12	1	9803-0004	●	●	●	●
34	COLLAR; DIST,EXH MANIF L=28	8-94395-679-0	12	1	0005-0209	●	●	●		●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	0210-0512	●	●	●		●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	0601-	●	●	●		●	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X12 FLANGE	0-28080-812-0	02	1	0005-0512		●	●		●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X12 FLANGE	0-28050-812-0	02	1	0601-		●	●		●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X14 FLANGE	8-94312-699-1	05	1	0005-0109		●	●		●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X14 FLANGE	8-94312-699-1	05	1	0110-0408		●	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO2 SPECIFICATION<THN> M8X14 FLANGE	8-94312-699-1	05	1	0110-0408					●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X14 FLANGE	8-97378-075-0	05	1	0409-		●	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO2 SPECIFICATION<THN> M8X14 FLANGE	8-97378-075-0	05	1	0409-					●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. EURO2 SPECIFICATION<THN> M8X14 FLANGE	8-94312-699-1	03	1	0011-0408					●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. EURO2 SPECIFICATION<THN> M8X14 FLANGE	8-97378-075-0	03	1	0409-					●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X12 FLANGE	0-28080-812-0	02	1	9510-0004		●	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X14 FLANGE	8-94312-699-1	04	1	9510-9803		●	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X14 FLANGE	8-94312-699-1	05	1	9804-0004		●	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	9610-9802	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	9803-0004	●			●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0005-0010	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0011-0512	●
64	NUT; HEAT PROTECTOR EXC. EURO2 SPECIFICATION<THN> M10 FLANGE	0-91150-210-0	02	1	0011-0512					●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0601-0602	●					●
64	NUT; HEAT PROTECTOR EXC. EURO2 SPECIFICATION<THN> M10 FLANGE	0-91150-210-0	02	1	0601-0602					●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91180-210-0	02	1	0603-	●					●
64	NUT; HEAT PROTECTOR EXC. EURO2 SPECIFICATION<THN> M10 FLANGE	0-91180-210-0	02	1	0603-					●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	01	1	9510-0004		●	●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	01	1	0005-0501		●	●		●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	9510-0004		●	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0005-0501		●	●		●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0502-0512	●	●	●		●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0601-	●	●	●		●	●
155	RING; SEAL,EXH MANIF (C) STAMP RH	1-14149-151-0	03	1	9610-9802	●
155	RING; SEAL,EXH MANIF (C) STAMP RH	1-14149-151-0	03	1	9803-0004	●			●
155	RING; SEAL,EXH MANIF (C) STAMP RH	1-14149-151-0	03	1	0005-0501	●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	01	1	0502-0512	●	●	●		●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	01	1	0601-	●	●	●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
