1 |

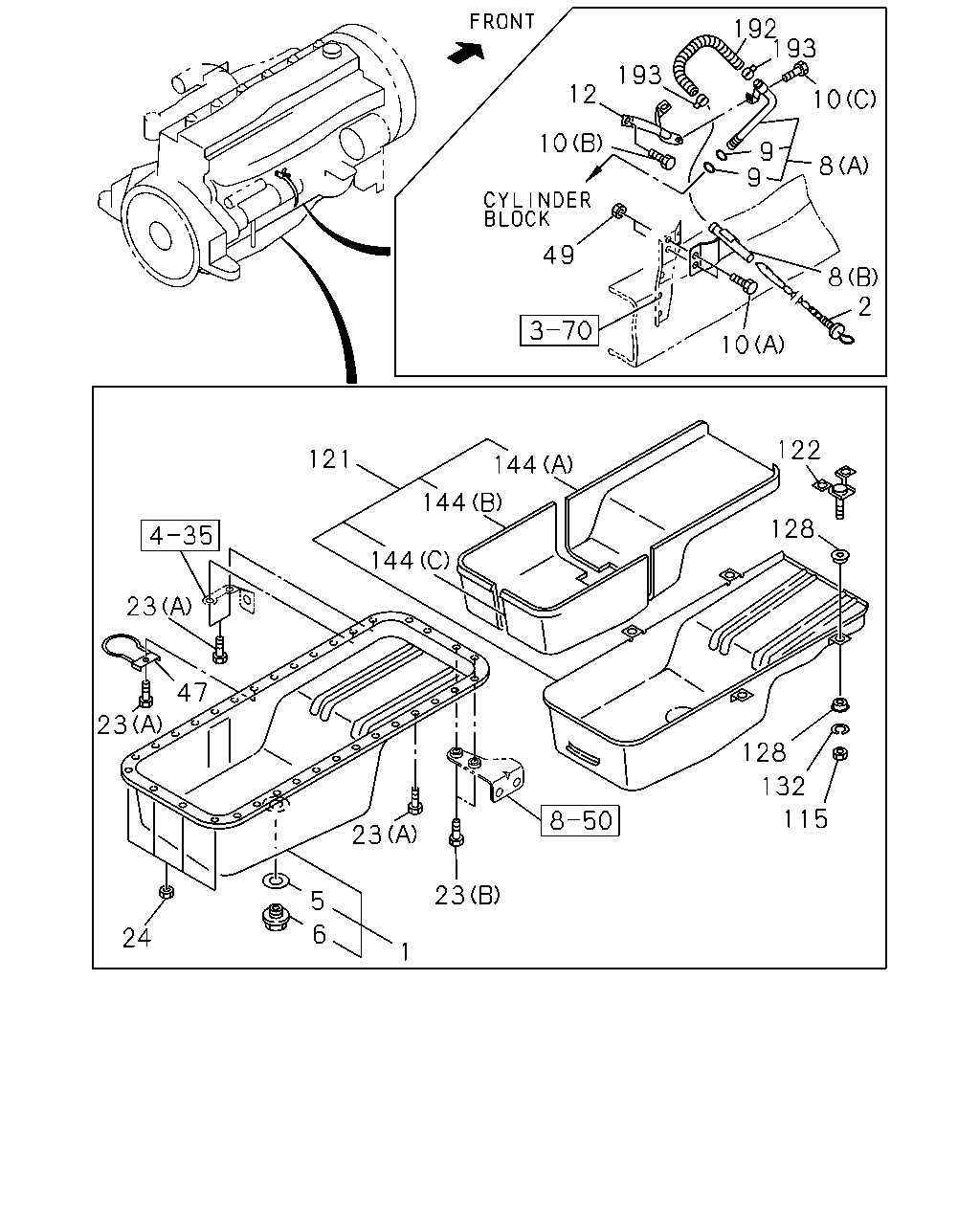

PAN ASM; OIL
|
8-94395-608-0 |
01 |
1 |
9510-9702 |
● |
|
|
|
|
|
| |
1 |
PAN ASM; OIL
HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
|
8-94395-608-0 |
01 |
1 |
9510-9702 |
|
● |
|
|
|
|
| |
1 |
PAN ASM; OIL
AUSTRALIA EQUIPMENT(RR3)
|
8-94395-608-1 |
01 |
1 |
9703-0004 |
● |
● |
|
|
|
|
| |
1 |
PAN ASM; OIL
ANTI NOISE EQUIPMENT VAR2<TAK>
|
8-94395-608-1 |
01 |
1 |
0005-0010 |
|
|
● |
|
|
|
| |
1 |
PAN ASM; OIL
ANTI NOISE EQUIPMENT VAR2<TAK>
EURO2 SPECIFICATION<THN>
|
8-94395-608-2 |
01 |
1 |
0011- |
|
|
● |
|
|
|
| |
1 |
PAN ASM; OIL
EXC. EURO2 SPECIFICATION<THN>
|
8-94395-608-2 |
01 |
1 |
0011- |
|
|
● |
|
|
|
| |
1 |
PAN ASM; OIL
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
|
8-94395-861-0 |
01 |
1 |
9510-9609 |
|
● |
|
|
|
|
| |
1 |
PAN ASM; OIL
13" CLUTCH(WD4)
EXC. HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
|
8-94395-861-0 |
01 |
1 |
9610-9702 |
|
● |
|
|
|
|
| |
1 |
PAN ASM; OIL
EXC. AUSTRALIA EQUIPMENT(RR3)
|
8-94395-861-1 |
01 |
1 |
9703-0004 |
● |
● |
|
|
|
|
| |
1 |
PAN ASM; OIL
|
8-94395-861-1 |
01 |
1 |
0005-0109 |
● |
● |
|
|
|
|
| |
1 |
PAN ASM; OIL
EXC. ANTI NOISE EQUIPMENT VAR2<TAK>
|
8-94395-861-1 |
01 |
1 |
0005-0109 |
|
|
● |
|
|
|
| |
1 |
PAN ASM; OIL
|
8-94395-861-1 |
01 |
1 |
0110- |
● |
● |
|
|
|
|
| |
1 |
PAN ASM; OIL
EURO2 SPECIFICATION<THN>
EXC. ANTI NOISE EQUIPMENT VAR2<TAK>
|
8-94395-861-1 |
01 |
1 |
0110- |
|
|
● |
|
|
|
| |
1 |
PAN ASM; OIL
|
8-94394-711-0 |
01 |
1 |
9610-9802 |
|
|
|
● |
|
|
| |
1 |
PAN ASM; OIL
|
8-94394-711-1 |
01 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
1 |
PAN ASM; OIL
|
8-94394-711-1 |
01 |
1 |
0005-0512 |
|
|
|
● |
|
|
| |
1 |
PAN ASM; OIL
|
8-94394-711-2 |
01 |
1 |
0601- |
|
|
|
● |
|
● |
| |
2 |
GAUGE; OIL LEVEL
|
1-11760-396-0 |
01 |
1 |
9510-9802 |
● |
● |
|
● |
|
|
| |
2 |
GAUGE; OIL LEVEL
|
1-11760-396-0 |
01 |
1 |
9803-0004 |
● |
● |
|
● |
● |
|
| |
2 |
GAUGE; OIL LEVEL
|
1-11760-396-1 |
01 |
1 |
0005-0512 |
● |
● |
● |
● |
|
|
| |
2 |
GAUGE; OIL LEVEL
|
1-11760-396-1 |
01 |
1 |
0601- |
● |
● |
● |
● |
|
● |
| |
5 |
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=24.4
|
1-09623-183-0 |
01 |
1 |
9510-9802 |
● |
● |
|
● |
|
|
| |
5 |
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=24.4
|
1-09623-183-0 |
01 |
1 |
9803-0004 |
● |
● |
|
● |
● |
|
| |
5 |
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=24.4
|
1-09623-057-0 |
01 |
1 |
0005-0512 |
● |
● |
● |
● |
|
|
| |
5 |
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=24.4
|
1-09623-057-0 |
01 |
1 |
0601- |
● |
● |
● |
● |
|
● |
| |
6 |
PLUG; OIL DRAIN
M20X16.5
|
9-09662-012-0 |
01 |
1 |
9510-9802 |
● |
● |
|
● |
|
|
| |
6 |
PLUG; OIL DRAIN
M20X16.5
|
9-09662-012-0 |
01 |
1 |
9803-0004 |
● |
● |
|
● |
● |
|
| |
6 |
PLUG; OIL DRAIN
M20X16.5
|
9-09662-012-0 |
01 |
1 |
0005-0512 |
● |
● |
● |
● |
|
|
| |
6 |
PLUG; OIL DRAIN
M20X16.5
|
9-09662-012-0 |
01 |
1 |
0601- |
● |
● |
● |
● |
|
● |
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
STD CAB(FR**M*)
(B)
|
1-11766-452-0 |
01 |
1 |
9510-9802 |
● |
● |
|
|
|
|
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
|
1-11766-452-0 |
01 |
1 |
9510-9802 |
|
|
|
● |
|
|
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
STD CAB(FR**M*)
(B)
|
1-11766-452-0 |
01 |
1 |
9803-0004 |
● |
● |
|
|
|
|
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
|
1-11766-452-0 |
01 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
|
1-11766-452-0 |
01 |
1 |
0005-0512 |
● |
● |
● |
● |
|
|
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
|
1-11766-452-0 |
01 |
1 |
0601- |
● |
● |
● |
● |
|
● |
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
DOUBLE CAB(FR**W*)
(B)
|
1-11766-479-0 |
01 |
1 |
9510-9601 |
● |
● |
|
|
|
|
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
DOUBLE CAB(FR**W*)
(B)
|
1-11766-474-0 |
01 |
1 |
9602-0004 |
● |
● |
|
|
|
|
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
|
8-94395-114-2 |
01 |
1 |
9510-9802 |
● |
● |
|
● |
|
|
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
|
8-94395-114-2 |
01 |
1 |
9803-0004 |
● |
● |
|
● |
● |
|
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
|
8-94395-114-3 |
01 |
1 |
0005- |
● |
● |
|
● |
|
|
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
EURO2 SPECIFICATION<THN>
(A)
|
8-94395-114-3 |
01 |
1 |
0005- |
|
|
● |
|
|
|
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
EXC. EURO2 SPECIFICATION<THN>
(A)
|
8-94392-176-1 |
01 |
1 |
0011-0512 |
|
|
● |
|
|
|
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
EXC. EURO2 SPECIFICATION<THN>
(A)
|
8-94392-176-1 |
01 |
1 |
0601- |
|
|
● |
|
|
|
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
|
8-94392-176-1 |
01 |
1 |
0601- |
|
|
|
|
|
● |
| |
9 |
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=11
|
5-09623-002-0 |
02 |
1 |
9510-9802 |
● |
● |
|
● |
|
|
| |
9 |
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=11
|
5-09623-002-0 |
02 |
1 |
9803-0004 |
● |
● |
|
● |
● |
|
| |
9 |
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=11
|
5-09623-002-0 |
02 |
1 |
0005-0112 |
● |
● |
● |
● |
|
|
| |
9 |
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=11
|
1-09623-469-0 |
02 |
1 |
0201-0512 |
● |
● |
● |
● |
|
|
| |
9 |
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=11
|
1-09623-469-0 |
02 |
1 |
0601- |
● |
● |
● |
● |
|
● |
| |
10 |
BOLT; GUIDE TUBE
(B)
M8X30 FLANGE
|
0-28080-830-0 |
02 |
1 |
9510-9702 |
● |
|
|
|
|
|
| |
10 |
BOLT; GUIDE TUBE
AUSTRALIA EQUIPMENT(RR3)
(B)
M8X30 FLANGE
|
0-28080-830-0 |
02 |
1 |
9703-9802 |
● |
|
|
|
|
|
| |
10 |
BOLT; GUIDE TUBE
AUSTRALIA EQUIPMENT(RR3)
(B)
M8X30 FLANGE
|
0-28080-830-0 |
02 |
1 |
9803-0004 |
● |
● |
|
|
|
|
| |
10 |
BOLT; GUIDE TUBE
ANTI NOISE EQUIPMENT VAR2<TAK>
(B)
M8X30 FLANGE
|
0-28080-830-0 |
02 |
1 |
0005-0512 |
|
|
● |
|
|
|
| |
10 |
BOLT; GUIDE TUBE
ANTI NOISE EQUIPMENT VAR2<TAK>
(B)
M8X30 FLANGE
|
0-28050-830-0 |
02 |
1 |
0601- |
|
|
● |
|
|
|
| |
10 |
BOLT; GUIDE TUBE
EXC. AUSTRALIA EQUIPMENT(RR3)
(B)
M8X30 FLANGE
|
0-28080-830-0 |
01 |
1 |
9703-9802 |
● |
|
|
|
|
|
| |
10 |
BOLT; GUIDE TUBE
(B)
M8X30 FLANGE
|
0-28080-830-0 |
01 |
1 |
9703-9802 |
|
● |
|
|
|
|
| |
10 |
BOLT; GUIDE TUBE
EXC. AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA
EQUIPMENT(SEQ)
(B)
M8X30 FLANGE
|
0-28080-830-0 |
01 |
1 |
9803-0004 |
● |
● |
|
|
|
|
| |
10 |
BOLT; GUIDE TUBE
(B)
M8X30 FLANGE
|
0-28080-830-0 |
01 |
1 |
0005-0109 |
● |
● |
|
|
|
|
| |
10 |
BOLT; GUIDE TUBE
EXC. ANTI NOISE EQUIPMENT VAR2<TAK>
(B)
M8X30 FLANGE
|
0-28080-830-0 |
01 |
1 |
0005-0109 |
|
|
● |
|
|
|
| |
10 |
BOLT; GUIDE TUBE
(B)
M8X30 FLANGE
|
0-28080-830-0 |
01 |
1 |
0110-0512 |
● |
● |
|
|
|
|
| |
10 |
BOLT; GUIDE TUBE
EURO2 SPECIFICATION<THN>
EXC. ANTI NOISE EQUIPMENT VAR2<TAK>
(B)
M8X30 FLANGE
|
0-28080-830-0 |
01 |
1 |
0110-0512 |
|
|
● |
|
|
|
| |
10 |
BOLT; GUIDE TUBE
(B)
M8X30 FLANGE
|
0-28050-830-0 |
01 |
1 |
0601- |
● |
● |
|
|
|
|
| |
10 |
BOLT; GUIDE TUBE
EURO2 SPECIFICATION<THN>
EXC. ANTI NOISE EQUIPMENT VAR2<TAK>
(B)
M8X30 FLANGE
|
0-28050-830-0 |
01 |
1 |
0601- |
|
|
● |
|
|
|
| |
10 |
BOLT; GUIDE TUBE
(C)
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9510-9802 |
● |
● |
|
● |
|
|
| |
10 |
BOLT; GUIDE TUBE
(A)
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9510-9606 |
● |
● |
|
● |
|
|
| |
10 |
BOLT; GUIDE TUBE
(A)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9607-9612 |
● |
● |
|
● |
|
|
| |
10 |
BOLT; GUIDE TUBE
(A)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9701-9802 |
● |
● |
|
● |
|
|
| |
10 |
BOLT; GUIDE TUBE
(A)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9803-0004 |
● |
● |
|
● |
● |
|
| |
10 |
BOLT; GUIDE TUBE
(A)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0005-0512 |
● |
● |
● |
● |
|
|
| |
10 |
BOLT; GUIDE TUBE
(A)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
● |
● |
● |
● |
|
● |
| |
10 |
BOLT; GUIDE TUBE
(C)
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9803-9804 |
● |
● |
|
● |
● |
|
| |
10 |
BOLT; GUIDE TUBE
EXC. AUSTRALIA EQUIPMENT(RR3)
(C)
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9805-9806 |
● |
|
|
|
|
|
| |
10 |
BOLT; GUIDE TUBE
(C)
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9805-9806 |
|
● |
|
|
|
|
| |
10 |
BOLT; GUIDE TUBE
(C)
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9807-0004 |
● |
● |
|
● |
● |
|
| |
10 |
BOLT; GUIDE TUBE
(C)
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
0005-0512 |
● |
● |
● |
● |
|
|
| |
10 |
BOLT; GUIDE TUBE
(C)
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0601- |
● |
● |
● |
● |
|
● |
| |
10 |
BOLT; GUIDE TUBE
(B)
M8X12 FLANGE
|
0-28080-812-0 |
01 |
1 |
9510-9702 |
|
● |
|
|
|
|
| |
10 |
BOLT; GUIDE TUBE
EXC. AUSTRALIA EQUIPMENT(RR3)
(B)
M8X12 FLANGE
|
0-28080-812-0 |
01 |
1 |
9703-0004 |
● |
|
|
|
|
|
| |
10 |
BOLT; GUIDE TUBE
(B)
M8X12 FLANGE
|
0-28080-812-0 |
01 |
1 |
9703-0004 |
|
● |
|
|
|
|
| |
10 |
BOLT; GUIDE TUBE
(B)
M8X12 FLANGE
|
0-28080-812-0 |
01 |
1 |
0005-0512 |
● |
● |
|
|
|
|
| |
10 |
BOLT; GUIDE TUBE
EXC. ANTI NOISE EQUIPMENT VAR2<TAK>
(B)
M8X12 FLANGE
|
0-28080-812-0 |
01 |
1 |
0005-0512 |
|
|
● |
|
|
|
| |
10 |
BOLT; GUIDE TUBE
(B)
M8X12 FLANGE
|
0-28050-812-0 |
01 |
1 |
0601- |
● |
● |
|
|
|
● |
| |
10 |
BOLT; GUIDE TUBE
EXC. ANTI NOISE EQUIPMENT VAR2<TAK>
(B)
M8X12 FLANGE
|
0-28050-812-0 |
01 |
1 |
0601- |
|
|
● |
|
|
|
| |
10 |
BOLT; GUIDE TUBE
(B)
M8X30 FLANGE
|
0-28080-830-0 |
01 |
1 |
9510-9702 |
|
● |
|
|
|
|
| |
10 |
BOLT; GUIDE TUBE
(B)
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9610-9802 |
|
|
|
● |
|
|
| |
10 |
BOLT; GUIDE TUBE
(B)
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
10 |
BOLT; GUIDE TUBE
(B)
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
0005-0512 |
|
|
|
● |
|
|
| |
10 |
BOLT; GUIDE TUBE
(B)
M8X20 FLANGE
|
0-28050-820-0 |
02 |
1 |
0601- |
|
|
|
● |
|
|
| |
10 |
BOLT; GUIDE TUBE
EXC. EURO2 SPECIFICATION<THN>
(B)
M8X35 FLANGE
|
0-28680-835-0 |
01 |
1 |
0011-0512 |
|
|
● |
|
|
|
| |
10 |
BOLT; GUIDE TUBE
EXC. EURO2 SPECIFICATION<THN>
(B)
M8X35 FLANGE
|
0-28650-835-0 |
01 |
1 |
0601- |
|
|
● |
|
|
|
| |
10 |
BOLT; GUIDE TUBE
(B)
M8X35 FLANGE
|
0-28650-835-0 |
01 |
1 |
0601- |
|
|
|
|
|
● |
| |
12 |
BRACKET; TUBE,OIL LEVEL GAUGE
ENGINE REAR PTO(SV1)
|
8-94394-904-0 |
01 |
1 |
9510-9802 |
● |
|
|
|
|
|
| |
12 |
BRACKET; TUBE,OIL LEVEL GAUGE
ENGINE REAR PTO(SV1)
AUSTRALIA EQUIPMENT(RR3)
|
8-94394-904-0 |
01 |
1 |
9803-0004 |
● |
|
|
|
|
|
| |
12 |
BRACKET; TUBE,OIL LEVEL GAUGE
EXC. ENGINE REAR PTO(SV1)
|
8-94394-903-0 |
01 |
1 |
9510-9802 |
● |
|
|
|
|
|
| |
12 |
BRACKET; TUBE,OIL LEVEL GAUGE
AUSTRALIA EQUIPMENT(RR3)
EXC. ENGINE REAR PTO(SV1)
|
8-94394-903-0 |
01 |
1 |
9803-0004 |
● |
|
|
|
|
|
| |
12 |
BRACKET; TUBE,OIL LEVEL GAUGE
ANTI NOISE EQUIPMENT VAR2<TAK>
|
8-94394-903-0 |
01 |
1 |
0005- |
|
|
● |
|
|
|
| |
12 |
BRACKET; TUBE,OIL LEVEL GAUGE
|
8-94395-150-0 |
01 |
1 |
9510-9802 |
|
● |
|
|
|
|
| |
12 |
BRACKET; TUBE,OIL LEVEL GAUGE
EXC. AUSTRALIA EQUIPMENT(RR3)
|
8-94395-150-0 |
01 |
1 |
9803-0004 |
● |
|
|
|
|
|
| |
12 |
BRACKET; TUBE,OIL LEVEL GAUGE
|
8-94395-150-0 |
01 |
1 |
9803-0004 |
|
● |
|
|
|
|
| |
12 |
BRACKET; TUBE,OIL LEVEL GAUGE
|
8-94395-150-0 |
01 |
1 |
0005-0109 |
● |
● |
|
|
|
|
| |
12 |
BRACKET; TUBE,OIL LEVEL GAUGE
EXC. ANTI NOISE EQUIPMENT VAR2<TAK>
|
8-94395-150-0 |
01 |
1 |
0005-0109 |
|
|
● |
|
|
|
| |
12 |
BRACKET; TUBE,OIL LEVEL GAUGE
|
8-94395-150-0 |
01 |
1 |
0110- |
● |
● |
|
|
|
|
| |
12 |
BRACKET; TUBE,OIL LEVEL GAUGE
EURO2 SPECIFICATION<THN>
EXC. ANTI NOISE EQUIPMENT VAR2<TAK>
|
8-94395-150-0 |
01 |
1 |
0110- |
|
|
● |
|
|
|
| |
12 |
BRACKET; TUBE,OIL LEVEL GAUGE
|
8-94395-843-0 |
01 |
1 |
9610-9802 |
|
|
|
● |
|
|
| |
12 |
BRACKET; TUBE,OIL LEVEL GAUGE
|
8-94395-843-0 |
01 |
1 |
9803-0004 |
|
|
|
● |
● |
|
| |
12 |
BRACKET; TUBE,OIL LEVEL GAUGE
|
8-94395-843-0 |
01 |
1 |
0005- |
|
|
|
● |
|
|
| |
12 |
BRACKET; TUBE,OIL LEVEL GAUGE
EXC. EURO2 SPECIFICATION<THN>
|
8-94392-600-0 |
01 |
1 |
0011-0512 |
|
|
● |
|
|
|
| |
12 |
BRACKET; TUBE,OIL LEVEL GAUGE
EXC. EURO2 SPECIFICATION<THN>
|
8-94392-600-0 |
01 |
1 |
0601- |
|
|
● |
|
|
|
| |
12 |
BRACKET; TUBE,OIL LEVEL GAUGE
|
8-94392-600-0 |
01 |
1 |
0601- |
|
|
|
|
|
● |
| |
23 |
BOLT; OIL PAN
(A)
M8X18 FLANGE
|
0-28080-818-0 |
30 |
1 |
9510-9811 |
● |
● |
|
|
|
|
| |
23 |
BOLT; OIL PAN
(A)
M8X18 FLANGE
|
0-28080-818-0 |
28 |
1 |
9610-9802 |
|
|
|
● |
|
|
| |
23 |
BOLT; OIL PAN
(B)
M8X28 FLANGE
|
0-28080-828-0 |
02 |
1 |
9610-9802 |
|
|
|
● |
|
|
| |
23 |
BOLT; OIL PAN
(B)
M8X28 FLANGE
|
0-28080-828-0 |
02 |
1 |
9803-9811 |
|
|
|
● |
● |
|
| |
23 |
BOLT; OIL PAN
AIR CONDITIONER MANUAL CONTROL(C60)
(A)
M8X18 FLANGE
|
0-28080-818-0 |
28 |
1 |
9902-0010 |
|
|
|
● |
|
|
| |
23 |
BOLT; OIL PAN
AIR CONDITIONER MANUAL CONTROL(C60)
(A)
M8X18 FLANGE
|
0-28080-818-0 |
28 |
1 |
0011-0109 |
|
|
|
● |
|
|
| |
23 |
BOLT; OIL PAN
EXC. EURO2 SPECIFICATION<THN>
(A)
M8X18 FLANGE
|
0-28080-818-0 |
28 |
1 |
0011-0109 |
|
|
● |
|
|
|
| |
23 |
BOLT; OIL PAN
AIR CONDITIONER MANUAL CONTROL(C60)
(A)
M8X18 FLANGE
|
0-28080-818-0 |
28 |
1 |
0110-0512 |
|
● |
|
● |
|
|
| |
23 |
BOLT; OIL PAN
EXC. EURO2 SPECIFICATION<THN>
(A)
M8X18 FLANGE
|
0-28080-818-0 |
28 |
1 |
0110-0512 |
|
|
● |
|
|
|
| |
23 |
BOLT; OIL PAN
AIR CONDITIONER MANUAL CONTROL(C60)
(A)
M8X18 FLANGE
|
0-28080-818-0 |
28 |
1 |
0601- |
|
● |
|
● |
|
|
| |
23 |
BOLT; OIL PAN
EXC. EURO2 SPECIFICATION<THN>
(A)
M8X18 FLANGE
|
0-28080-818-0 |
28 |
1 |
0601- |
|
|
● |
|
|
|
| |
23 |
BOLT; OIL PAN
(A)
M8X18 FLANGE
|
0-28080-818-0 |
28 |
1 |
0601- |
|
|
|
|
|
● |
| |
23 |
BOLT; OIL PAN
AIR CONDITIONER MANUAL CONTROL(C60)
(B)
M8X28 FLANGE
|
0-28080-828-0 |
02 |
1 |
9902-0010 |
|
|
|
● |
|
|
| |
23 |
BOLT; OIL PAN
AIR CONDITIONER MANUAL CONTROL(C60)
(B)
M8X28 FLANGE
|
0-28080-828-0 |
02 |
1 |
0011-0109 |
|
|
|
● |
|
|
| |
23 |
BOLT; OIL PAN
EXC. EURO2 SPECIFICATION<THN>
(B)
M8X28 FLANGE
|
0-28080-828-0 |
02 |
1 |
0011-0109 |
|
|
● |
|
|
|
| |
23 |
BOLT; OIL PAN
AIR CONDITIONER MANUAL CONTROL(C60)
(B)
M8X28 FLANGE
|
0-28080-828-0 |
02 |
1 |
0110-0512 |
|
● |
|
● |
|
|
| |
23 |
BOLT; OIL PAN
EXC. EURO2 SPECIFICATION<THN>
(B)
M8X28 FLANGE
|
0-28080-828-0 |
02 |
1 |
0110-0512 |
|
|
● |
|
|
|
| |
23 |
BOLT; OIL PAN
AIR CONDITIONER MANUAL CONTROL(C60)
(B)
M8X28 FLANGE
|
0-28080-828-0 |
02 |
1 |
0601- |
|
● |
|
● |
|
|
| |
23 |
BOLT; OIL PAN
EXC. EURO2 SPECIFICATION<THN>
(B)
M8X28 FLANGE
|
0-28080-828-0 |
02 |
1 |
0601- |
|
|
● |
|
|
|
| |
23 |
BOLT; OIL PAN
(B)
M8X28 FLANGE
|
0-28080-828-0 |
02 |
1 |
0601- |
|
|
|
|
|
● |
| |
23 |
BOLT; OIL PAN
(A)
M8X18 FLANGE
|
0-28080-818-0 |
28 |
1 |
9803-9811 |
|
|
|
● |
● |
|
| |
23 |
BOLT; OIL PAN
(A)
M8X18 FLANGE
|
0-28080-818-0 |
30 |
1 |
9812-0004 |
● |
● |
|
● |
● |
|
| |
23 |
BOLT; OIL PAN
(A)
M8X18 FLANGE
|
0-28080-818-0 |
30 |
1 |
0005-0305 |
● |
● |
● |
● |
|
|
| |
23 |
BOLT; OIL PAN
EXC. AIR CONDITIONER MANUAL CONTROL(C60)
(A)
M8X18 FLANGE
|
0-28080-818-0 |
30 |
1 |
0306- |
● |
● |
|
● |
|
|
| |
23 |
BOLT; OIL PAN
EURO2 SPECIFICATION<THN>
(A)
M8X18 FLANGE
|
0-28080-818-0 |
30 |
1 |
0306- |
|
|
● |
|
|
|
| |
24 |
NUT; OIL PAN
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9510-9802 |
● |
● |
|
● |
|
|
| |
24 |
NUT; OIL PAN
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9803-0004 |
● |
● |
|
● |
● |
|
| |
24 |
NUT; OIL PAN
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0005-0512 |
● |
● |
● |
● |
|
|
| |
24 |
NUT; OIL PAN
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0601-0602 |
● |
● |
● |
● |
|
● |
| |
24 |
NUT; OIL PAN
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0603- |
● |
● |
● |
● |
|
● |
| |
47 |
CLIP; HOSE,AIR BREATHER
|
1-11369-115-0 |
01 |
1 |
9510-9802 |
● |
● |
|
● |
|
|
| |
47 |
CLIP; HOSE,AIR BREATHER
|
1-11369-115-0 |
01 |
1 |
9803-0004 |
● |
● |
|
● |
● |
|
| |
47 |
CLIP; HOSE,AIR BREATHER
|
1-11369-115-0 |
01 |
1 |
0005-0512 |
● |
● |
● |
● |
|
|
| |
47 |
CLIP; HOSE,AIR BREATHER
|
1-11369-115-0 |
01 |
1 |
0601-1506 |
● |
● |
● |
● |
|
● |
| |
47 |
CLIP; HOSE,AIR BREATHER
|
8-98303-447-0 |
01 |
1 |
1507- |
● |
● |
● |
● |
|
● |
| |
49 |
NUT; GUIDE TUBE
M8
|
9-09110-408-0 |
02 |
1 |
9510-9606 |
● |
● |
|
● |
|
|
| |
49 |
NUT; GUIDE TUBE
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9802 |
● |
● |
|
● |
|
|
| |
49 |
NUT; GUIDE TUBE
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9803-0004 |
● |
● |
|
● |
● |
|
| |
49 |
NUT; GUIDE TUBE
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0005-0512 |
● |
● |
● |
● |
|
|
| |
49 |
NUT; GUIDE TUBE
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0601-0602 |
● |
● |
● |
● |
|
● |
| |
49 |
NUT; GUIDE TUBE
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
● |
● |
● |
|
● |
| |
115 |
NUT; OIL PAN COVER
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9510-9702 |
● |
|
|
|
|
|
| |
115 |
NUT; OIL PAN COVER
HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9510-9702 |
|
● |
|
|
|
|
| |
115 |
NUT; OIL PAN COVER
AUSTRALIA EQUIPMENT(RR3)
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9703-0004 |
● |
● |
|
|
|
|
| |
115 |
NUT; OIL PAN COVER
ANTI NOISE EQUIPMENT VAR2<TAK>
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0005-0602 |
|
|
● |
|
|
|
| |
115 |
NUT; OIL PAN COVER
ANTI NOISE EQUIPMENT VAR2<TAK>
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0603- |
|
|
● |
|
|
|
| |
121 |
COVER; OIL PAN
|
8-94395-613-2 |
01 |
1 |
9510-9702 |
● |
|
|
|
|
|
| |
121 |
COVER; OIL PAN
HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
|
8-94395-613-2 |
01 |
1 |
9510-9702 |
|
● |
|
|
|
|
| |
121 |
COVER; OIL PAN
AUSTRALIA EQUIPMENT(RR3)
|
8-94395-613-2 |
01 |
1 |
9703-0004 |
● |
● |
|
|
|
|
| |
121 |
COVER; OIL PAN
ANTI NOISE EQUIPMENT VAR2<TAK>
|
8-94395-613-2 |
01 |
1 |
0005- |
|
|
● |
|
|
|
| |
122 |
BRACKET; OIL PAN COVER
|
8-94396-827-0 |
04 |
1 |
9510-9702 |
● |
|
|
|
|
|
| |
122 |
BRACKET; OIL PAN COVER
HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
|
8-94396-827-0 |
04 |
1 |
9510-9702 |
|
● |
|
|
|
|
| |
122 |
BRACKET; OIL PAN COVER
AUSTRALIA EQUIPMENT(RR3)
|
8-94396-827-0 |
04 |
1 |
9703-0004 |
● |
● |
|
|
|
|
| |
122 |
BRACKET; OIL PAN COVER
ANTI NOISE EQUIPMENT VAR2<TAK>
|
8-94396-827-0 |
04 |
1 |
0005- |
|
|
● |
|
|
|
| |
128 |
RUBBER; MTG,OIL PAN
|
1-09337-024-0 |
08 |
1 |
9510-9702 |
● |
|
|
|
|
|
| |
128 |
RUBBER; MTG,OIL PAN
HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
|
1-09337-024-0 |
08 |
1 |
9510-9702 |
|
● |
|
|
|
|
| |
128 |
RUBBER; MTG,OIL PAN
AUSTRALIA EQUIPMENT(RR3)
|
1-09337-024-0 |
08 |
1 |
9703-0004 |
● |
● |
|
|
|
|
| |
128 |
RUBBER; MTG,OIL PAN
ANTI NOISE EQUIPMENT VAR2<TAK>
|
1-09337-024-0 |
08 |
1 |
0005- |
|
|
● |
|
|
|
| |
132 |
WASHER; PL,OIL PAN COVER
ID=8.4 OD=22
|
9-09160-708-0 |
04 |
1 |
9510-9702 |
● |
|
|
|
|
|
| |
132 |
WASHER; PL,OIL PAN COVER
HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
ID=8.4 OD=22
|
9-09160-708-0 |
04 |
1 |
9510-9702 |
|
● |
|
|
|
|
| |
132 |
WASHER; PL,OIL PAN COVER
AUSTRALIA EQUIPMENT(RR3)
ID=8.4 OD=22
|
9-09160-708-0 |
04 |
1 |
9703-0004 |
● |
● |
|
|
|
|
| |
132 |
WASHER; PL,OIL PAN COVER
ANTI NOISE EQUIPMENT VAR2<TAK>
ID=8.4 OD=22
|
9-09160-708-0 |
04 |
1 |
0005-0605 |
|
|
● |
|
|
|
| |
132 |
WASHER; PL,OIL PAN COVER
ANTI NOISE EQUIPMENT VAR2<TAK>
ID=8.4 OD=22
|
0-91610-708-0 |
04 |
1 |
0606- |
|
|
● |
|
|
|
| |
144 |
INSULATOR; OIL PAN
(C)
|
8-94395-874-0 |
01 |
1 |
9510-9702 |
● |
|
|
|
|
|
| |
144 |
INSULATOR; OIL PAN
HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
(C)
|
8-94395-874-0 |
01 |
1 |
9510-9702 |
|
● |
|
|
|
|
| |
144 |
INSULATOR; OIL PAN
AUSTRALIA EQUIPMENT(RR3)
(C)
|
8-94395-874-0 |
01 |
1 |
9703-0004 |
● |
● |
|
|
|
|
| |
144 |
INSULATOR; OIL PAN
ANTI NOISE EQUIPMENT VAR2<TAK>
(C)
|
8-94395-874-0 |
01 |
1 |
0005- |
|
|
● |
|
|
|
| |
144 |
INSULATOR; OIL PAN
(A)
|
8-94395-875-0 |
01 |
1 |
9510-9702 |
● |
|
|
|
|
|
| |
144 |
INSULATOR; OIL PAN
HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
(A)
|
8-94395-875-0 |
01 |
1 |
9510-9702 |
|
● |
|
|
|
|
| |
144 |
INSULATOR; OIL PAN
AUSTRALIA EQUIPMENT(RR3)
(A)
|
8-94395-875-0 |
01 |
1 |
9703-0004 |
● |
● |
|
|
|
|
| |
144 |
INSULATOR; OIL PAN
ANTI NOISE EQUIPMENT VAR2<TAK>
(A)
|
8-94395-875-0 |
01 |
1 |
0005- |
|
|
● |
|
|
|
| |
144 |
INSULATOR; OIL PAN
(B)
|
8-94395-876-0 |
01 |
1 |
9510-9702 |
● |
|
|
|
|
|
| |
144 |
INSULATOR; OIL PAN
HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
(B)
|
8-94395-876-0 |
01 |
1 |
9510-9702 |
|
● |
|
|
|
|
| |
144 |
INSULATOR; OIL PAN
AUSTRALIA EQUIPMENT(RR3)
(B)
|
8-94395-876-0 |
01 |
1 |
9703-0004 |
● |
● |
|
|
|
|
| |
144 |
INSULATOR; OIL PAN
ANTI NOISE EQUIPMENT VAR2<TAK>
(B)
|
8-94395-876-0 |
01 |
1 |
0005- |
|
|
● |
|
|
|
| |
192 |
HOSE; GUIDE TUBE
L=300
|
1-09360-945-1 |
01 |
1 |
9510-9802 |
● |
● |
|
● |
|
|
| |
192 |
HOSE; GUIDE TUBE
L=300
|
1-09360-945-1 |
01 |
1 |
9803-0004 |
● |
● |
|
● |
● |
|
| |
192 |
HOSE; GUIDE TUBE
L=300
|
1-09360-945-1 |
01 |
1 |
0005-0305 |
● |
● |
● |
● |
|
|
| |
192 |
HOSE; GUIDE TUBE
L=300
|
1-09360-978-0 |
01 |
1 |
0306-0512 |
● |
● |
● |
● |
|
|
| |
192 |
HOSE; GUIDE TUBE
L=300
|
1-09360-978-0 |
01 |
1 |
0601- |
● |
● |
● |
● |
|
● |
| |
193 |
CLIP; HOSE,GUIDE TUBE
ID=17
|
1-09707-158-0 |
02 |
1 |
9510-9802 |
● |
● |
|
● |
|
|
| |
193 |
CLIP; HOSE,GUIDE TUBE
ID=17
|
1-09707-158-0 |
02 |
1 |
9803-0004 |
● |
● |
|
● |
● |
|
| |
193 |
CLIP; HOSE,GUIDE TUBE
ID=17
|
1-09707-158-0 |
02 |
1 |
0005-0512 |
● |
● |
● |
● |
|
|
| |
193 |
CLIP; HOSE,GUIDE TUBE
ID=17
|
1-09707-158-0 |
02 |
1 |
0601- |
● |
● |
● |
● |
|
● |
