◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10698 - FRR RHD EXC.EURO3 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#37238) — 509 parça

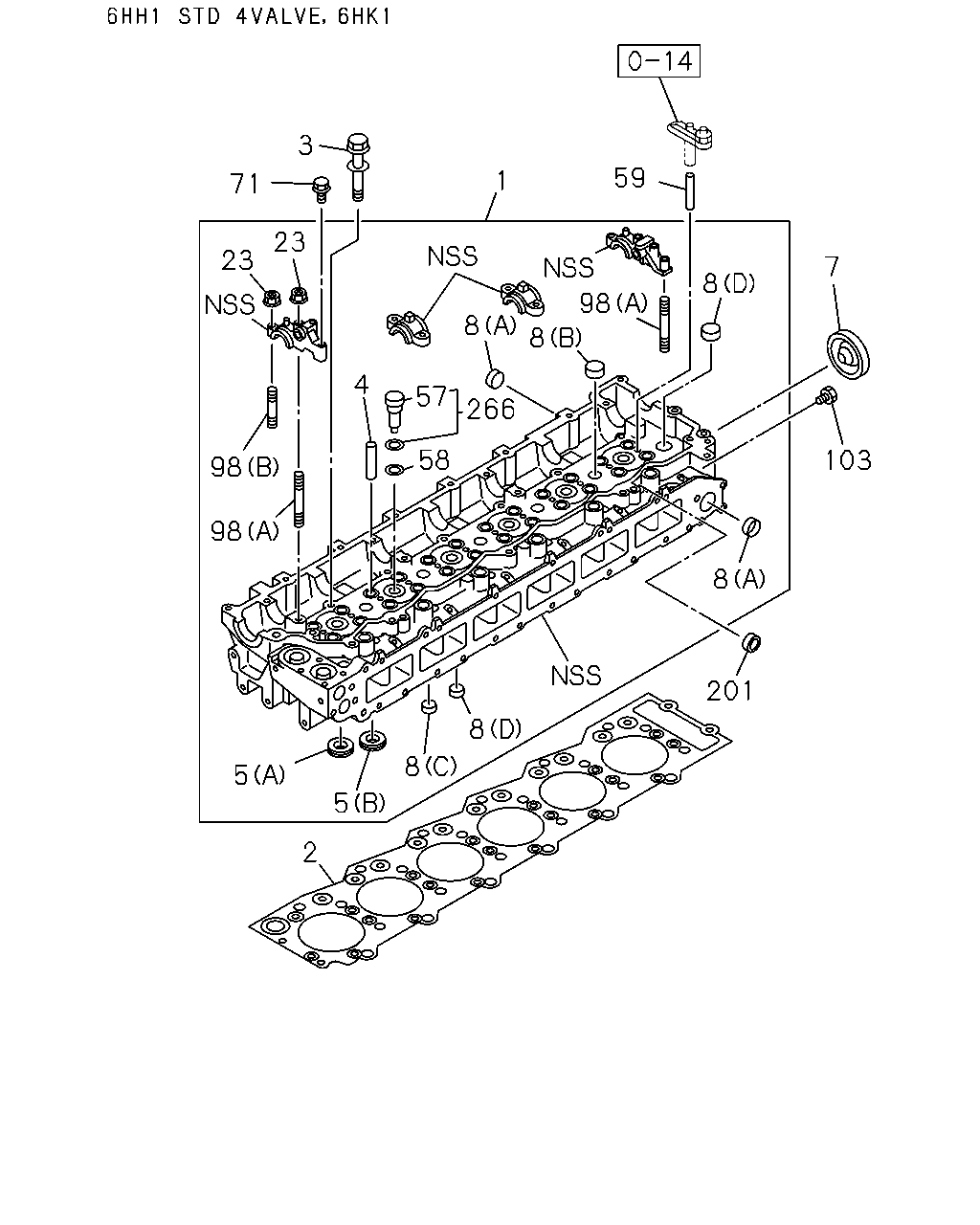

çizim 151105
3 71 23 23 98 98 5 5 2 8 8 201 8 103 8 7 59 1 8 266 58 4 57 8 98
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HEAD ASM; CYL 8-97606-991-6 01 1 0601-1004 ●
1 HEAD ASM; CYL 8-98170-622-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-561-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-815-0 01 1 1306- ●
1 HEAD ASM; CYL 8-94393-375-2 01 1 9510-9608 ● ●
1 HEAD ASM; CYL 8-94390-082-7 01 1 9609-1012 ● ●
1 HEAD ASM; CYL 8-98180-572-1 01 1 1101- ● ●
1 HEAD ASM; CYL 8-94391-162-2 01 1 9610-9802 ●
1 HEAD ASM; CYL 8-94391-162-2 01 1 9803-0004 ● ●
1 HEAD ASM; CYL 8-94391-162-6 01 1 0005-1012 ●
1 HEAD ASM; CYL 8-98180-577-1 01 1 1101- ●
1 HEAD ASM; CYL
EURO2 SPECIFICATION<THN> 		8-94392-455-5 01 1 0005-0010 ●
1 HEAD ASM; CYL 8-94392-455-9 01 1 0011-0207 ●
1 HEAD ASM; CYL 8-97602-584-2 01 1 0208-0406 ●
1 HEAD ASM; CYL 8-97605-007-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-994-5 01 1 0508-1004 ●
1 HEAD ASM; CYL 8-98170-625-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-564-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-818-0 01 1 1306- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-346-3 01 1 9510- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-1 01 1 9610-9802 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-1 01 1 9803-0004 ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-2 01 1 0005- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> 		8-94390-787-2 01 1 0005-0010 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-787-4 01 1 0011-0407 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97605-228-0 01 1 0408-0512 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97605-228-0 01 1 0601- ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-1 26 1 9510-9802 ● ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 9803-0004 ● ● ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 0005-0512 ● ● ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 0601-0901 ● ● ● ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-97077-638-0 26 1 0902-1407 ● ● ● ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-98260-005-0 26 1 1408- ● ● ● ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 9510-9802 ● ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 9803-0004 ● ● ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 0005- ● ● ●
4 GUIDE; VLV
EURO2 SPECIFICATION<THN> L=57 		8-94390-780-0 24 1 0005-0010 ●
4 GUIDE; VLV
L=57 		8-94390-780-0 24 1 0011-0512 ●
4 GUIDE; VLV
L=57 		8-94390-780-0 24 1 0601-0707 ● ●
4 GUIDE; VLV
L=57 		8-97376-719-2 24 1 0708- ● ●
5 SEAT; VLV INSERT
(B) INLET OD=38 		8-94395-888-2 12 1 0601- ●
5 SEAT; VLV INSERT
(B) INLET OD=52 		8-94394-127-0 06 1 9510- ● ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 9510-9802 ● ● ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 9803-0004 ● ● ● ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 0005- ● ● ●
5 SEAT; VLV INSERT
(B) INLET OD=48 		8-94394-462-0 06 1 9610-9802 ●
5 SEAT; VLV INSERT
(B) INLET OD=48 		8-94394-462-0 06 1 9803-0004 ● ●
5 SEAT; VLV INSERT
(B) INLET OD=48 		8-94394-462-0 06 1 0005- ●
5 SEAT; VLV INSERT
EURO2 SPECIFICATION<THN> (B) INLET OD=40 		8-94395-624-0 12 1 0005-0010 ●
5 SEAT; VLV INSERT
(B) INLET OD=40 		8-94395-624-0 12 1 0011-0106 ●
5 SEAT; VLV INSERT
(B) INLET OD=40 		8-97216-510-0 12 1 0107- ●
5 SEAT; VLV INSERT
EURO2 SPECIFICATION<THN> (A) EXHAUST OD=38 		8-94395-625-0 12 1 0005-0010 ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=38 		8-94395-625-0 12 1 0011-0106 ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=38 		8-97216-511-0 12 1 0107-0512 ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=38 		8-97216-511-0 12 1 0601-0703 ● ●
5 SEAT; VLV INSERT
(A) EXHAUST ID=31 OD=38 		8-98028-875-0 12 1 0704- ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 9510-9802 ● ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 9803-0004 ● ● ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 0005-0303 ● ● ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 0304-0512 ● ● ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 0601- ● ● ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9510-9704 ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9705-9802 ● ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9510-9802 ● ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9510-9802 ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 17 1 0005- ● ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 0005- ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9803-0004 ● ● ● ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (A) OD=32 		1-09600-012-2 06 1 0005-0512 ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (A) OD=32 		1-09600-012-2 06 1 0601- ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 06 1 0601- ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9803-0004 ● ● ● ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (B) OD=25 		1-09600-016-0 06 1 0005-0010 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 06 1 0011-0512 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 06 1 0601- ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9803-0004 ● ● ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 0005- ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 18 1 9610-9704 ●
8 CUP; SEALING,WATER JACKET
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32 		1-09600-012-1 01 1 9510-0004 ● ●
8 CUP; SEALING,WATER JACKET
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32 		1-09600-012-1 01 1 0005-0407 ● ● ●
8 CUP; SEALING,WATER JACKET
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32 		1-09600-012-2 01 1 0408- ● ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32 		1-09600-012-2 01 1 0408- ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (C) OD=16 		5-11129-006-0 07 1 0005-0010 ●
8 CUP; SEALING,WATER JACKET
(C) OD=16 		5-11129-006-0 07 1 0011-0512 ●
8 CUP; SEALING,WATER JACKET
(C) OD=16 		5-11129-006-0 07 1 0601- ● ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (D) OD=20 		9-11129-128-0 11 1 0005-0010 ●
8 CUP; SEALING,WATER JACKET
(D) OD=20 		9-11129-128-0 11 1 0011-0512 ●
8 CUP; SEALING,WATER JACKET
(D) OD=20 		9-11129-128-0 11 1 0601- ● ●
8 CUP; SEALING,WATER JACKET
EXC. EURO2 SPECIFICATION<THN> (A) OD=32 		1-09600-012-2 07 1 0011- ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 14 1 9510-9608 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9609-9802 ● ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9803-0004 ● ● ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 0005-0512 ● ● ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 0601-0602 ● ● ● ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0603- ● ● ● ● ●
57 SLEEVE; NOZZLE HOLDER
EURO2 SPECIFICATION<THN> 		8-97600-972-0 06 1 0005-0010 ●
57 SLEEVE; NOZZLE HOLDER 8-97600-972-0 06 1 0011-0109 ●
57 SLEEVE; NOZZLE HOLDER 8-97602-301-1 06 1 0110-0507 ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ID=27 		1-09623-355-0 06 1 0005-0010 ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=27 		1-09623-355-0 06 1 0011-0406 ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4 		8-97604-916-0 06 1 0407-0512 ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4 		8-97604-916-0 06 1 0601- ● ●
59 GUIDE; BRIDGE
EURO2 SPECIFICATION<THN> 		8-94395-889-1 12 1 0005-0010 ●
59 GUIDE; BRIDGE 8-94395-889-1 12 1 0011-0409 ●
59 GUIDE; BRIDGE 8-97381-603-0 12 1 0410-0512 ●
59 GUIDE; BRIDGE 8-97381-603-1 12 1 0601- ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9510-9802 ● ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9803-0004 ● ● ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0005-0512 ● ● ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0601- ● ● ● ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9510-9802 ● ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 12 1 9510-9608 ● ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9609-9802 ● ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9803-0004 ● ● ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0005-0512 ● ● ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0601- ● ● ● ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9803-0004 ● ● ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0005-0512 ● ● ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0601- ● ● ● ● ●
103 PLUG; HD
EURO2 SPECIFICATION<THN> M8X6 		8-94399-421-0 01 1 0005-0010 ●
103 PLUG; HD
M8X6 		8-94399-421-0 01 1 0011-0501 ●
103 PLUG; HD
M8X10 		8-98003-416-0 01 1 0502-0512 ●
103 PLUG; HD
M8X10 		8-98003-416-0 01 1 0601- ● ●
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> OD=30 		1-09639-034-0 06 1 0005-0010 ●
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30 		1-09639-034-0 06 1 0011-0512 ●
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30 		1-09639-034-0 06 1 0601- ● ●
266 SLEEVE ASM; NOZZLE HOLDER 8-98018-462-0 06 1 0508-0512 ●
266 SLEEVE ASM; NOZZLE HOLDER 8-98018-462-0 06 1 0601- ● ●

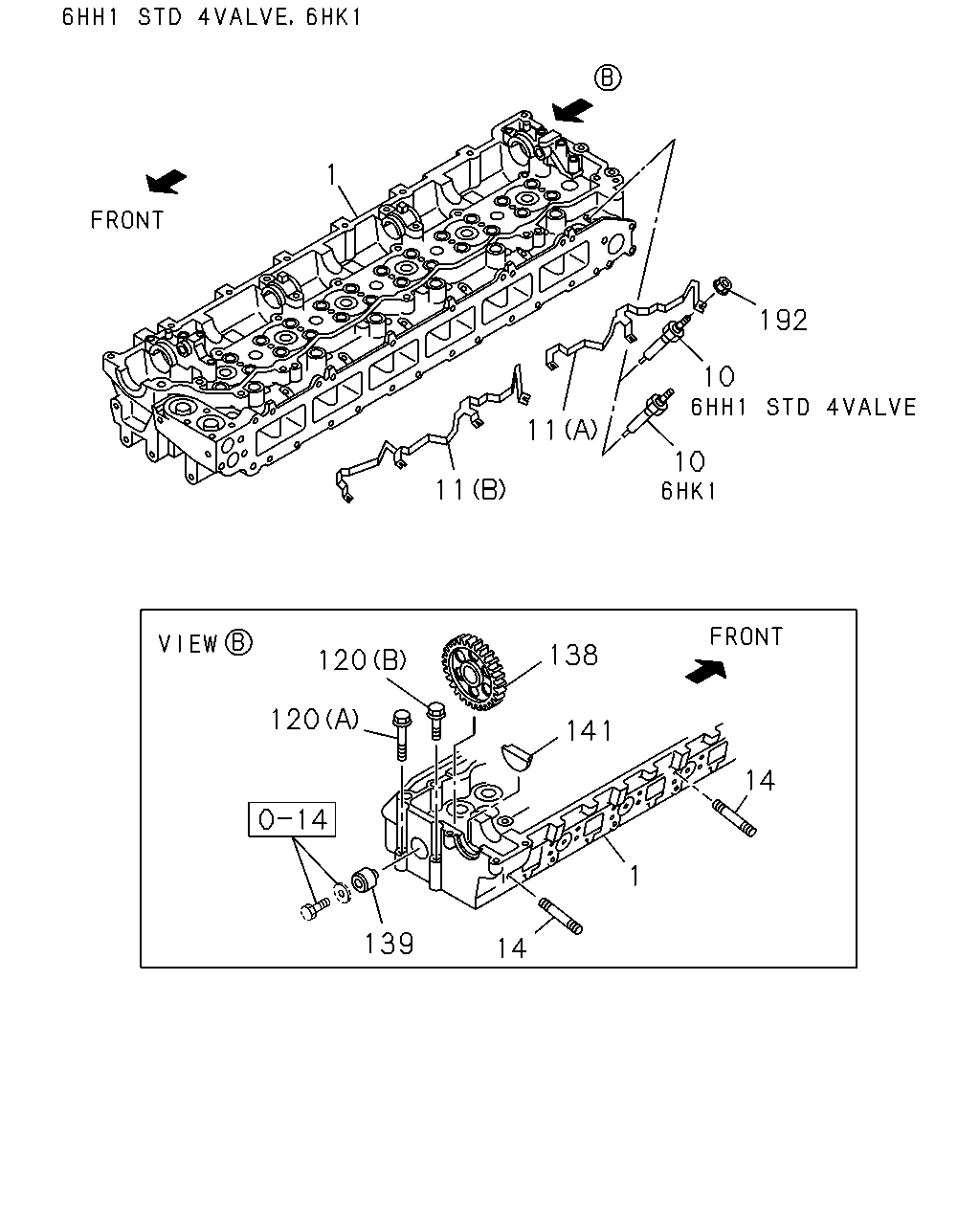

çizim 151111
1 11 11 10 10 192 120 120 139 14 1 14 141 138
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HEAD ASM; CYL 8-97606-991-6 01 1 0601-1004 ●
1 HEAD ASM; CYL 8-98170-622-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-561-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-815-0 01 1 1306- ●
1 HEAD ASM; CYL 8-94393-375-2 01 1 9510-9608 ● ●
1 HEAD ASM; CYL 8-94390-082-7 01 1 9609-1012 ● ●
1 HEAD ASM; CYL 8-98180-572-1 01 1 1101- ● ●
1 HEAD ASM; CYL 8-94391-162-2 01 1 9610-9802 ●
1 HEAD ASM; CYL 8-94391-162-2 01 1 9803-0004 ● ●
1 HEAD ASM; CYL 8-94391-162-6 01 1 0005-1012 ●
1 HEAD ASM; CYL 8-98180-577-1 01 1 1101- ●
1 HEAD ASM; CYL
EURO2 SPECIFICATION<THN> 		8-94392-455-5 01 1 0005-0010 ●
1 HEAD ASM; CYL 8-94392-455-9 01 1 0011-0207 ●
1 HEAD ASM; CYL 8-97602-584-2 01 1 0208-0406 ●
1 HEAD ASM; CYL 8-97605-007-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-994-5 01 1 0508-1004 ●
1 HEAD ASM; CYL 8-98170-625-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-564-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-818-0 01 1 1306- ●
10 PLUG; GLOW 9-82513-928-9 06 1 9510-9802 ● ● ●
10 PLUG; GLOW 9-82513-928-9 06 1 9803-9809 ● ● ● ●
10 PLUG; GLOW 1-82513-043-0 06 1 9810-0004 ● ● ● ●
10 PLUG; GLOW 1-82513-043-2 06 1 0005- ● ● ●
10 PLUG; GLOW
EURO2 SPECIFICATION<THN> 		8-94392-815-3 06 1 0005-0512 ●
10 PLUG; GLOW
EURO2 SPECIFICATION<THN> 		8-94392-815-4 06 1 0601- ●
10 PLUG; GLOW 8-94392-815-4 06 1 0601- ●
10 PLUG; GLOW
EXC. EURO2 SPECIFICATION<THN> NGK 		8-94390-777-6 06 1 0011- ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9510-9802 ● ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9510-9802 ● ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9803-0004 ● ● ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 0005-0206 ● ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-97136-565-0 01 1 0207- ● ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9803-0004 ● ● ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-3 01 1 0005- ● ● ●
11 CONNECTOR; GLOW PLUG
EURO2 SPECIFICATION<THN> (A) 		8-94391-925-2 01 1 0005-0010 ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94391-925-3 01 1 0011-0512 ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94391-925-3 01 1 0601-0804 ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-98040-648-0 01 1 0805- ● ●
11 CONNECTOR; GLOW PLUG
EURO2 SPECIFICATION<THN> (B) 		8-94392-843-0 01 1 0005-0010 ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94392-843-1 01 1 0011-0512 ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94392-843-1 01 1 0601-0804 ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-98040-649-0 01 1 0805- ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 9510-9802 ● ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 9803-0004 ● ● ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0005-0512 ● ● ●
14 STUD; EXH MANIF
EURO2 SPECIFICATION<THN> M10X60 L=75 		8-94397-286-0 12 1 0005-0512 ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0601- ● ● ● ●
14 STUD; EXH MANIF
EURO2 SPECIFICATION<THN> M10X60 L=75 		8-94397-286-0 12 1 0601- ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> M10X68 L=83 		8-94392-483-0 02 1 0011-0608 ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> M10X85 L=100 		8-98037-215-0 02 1 0609- ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> M10X60 L=75 		8-94397-286-0 10 1 0011- ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9510-9802 ● ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9510-9802 ● ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9803-0004 ● ● ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0005-0512 ● ● ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0601- ● ● ● ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9803-0004 ● ● ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0005-0512 ● ● ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0601- ● ● ● ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9510-9802 ● ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9803-0004 ● ● ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 0005-0512 ● ● ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-1 01 1 0601- ● ● ● ● ●
139 SHAFT; IDLE GEAR 8-97065-555-1 01 1 9510-9711 ● ● ●
139 SHAFT; IDLE GEAR 8-97186-398-0 01 1 9712-9802 ● ● ●
139 SHAFT; IDLE GEAR 8-97186-398-0 01 1 9803-0004 ● ● ● ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 0005-0512 ● ● ● ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 0601- ● ● ● ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9510-9802 ● ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9803-0004 ● ● ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0005-0512 ● ● ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0601-1005 ● ● ● ● ●
141 PLUG; RUBBER,CYL HD 8-98163-813-0 02 1 1006- ● ● ● ● ●
192 NUT; GLOW PLUG
EXC. EURO2 SPECIFICATION<THN> M4 FLANGE 		8-97368-853-0 06 1 0011- ●

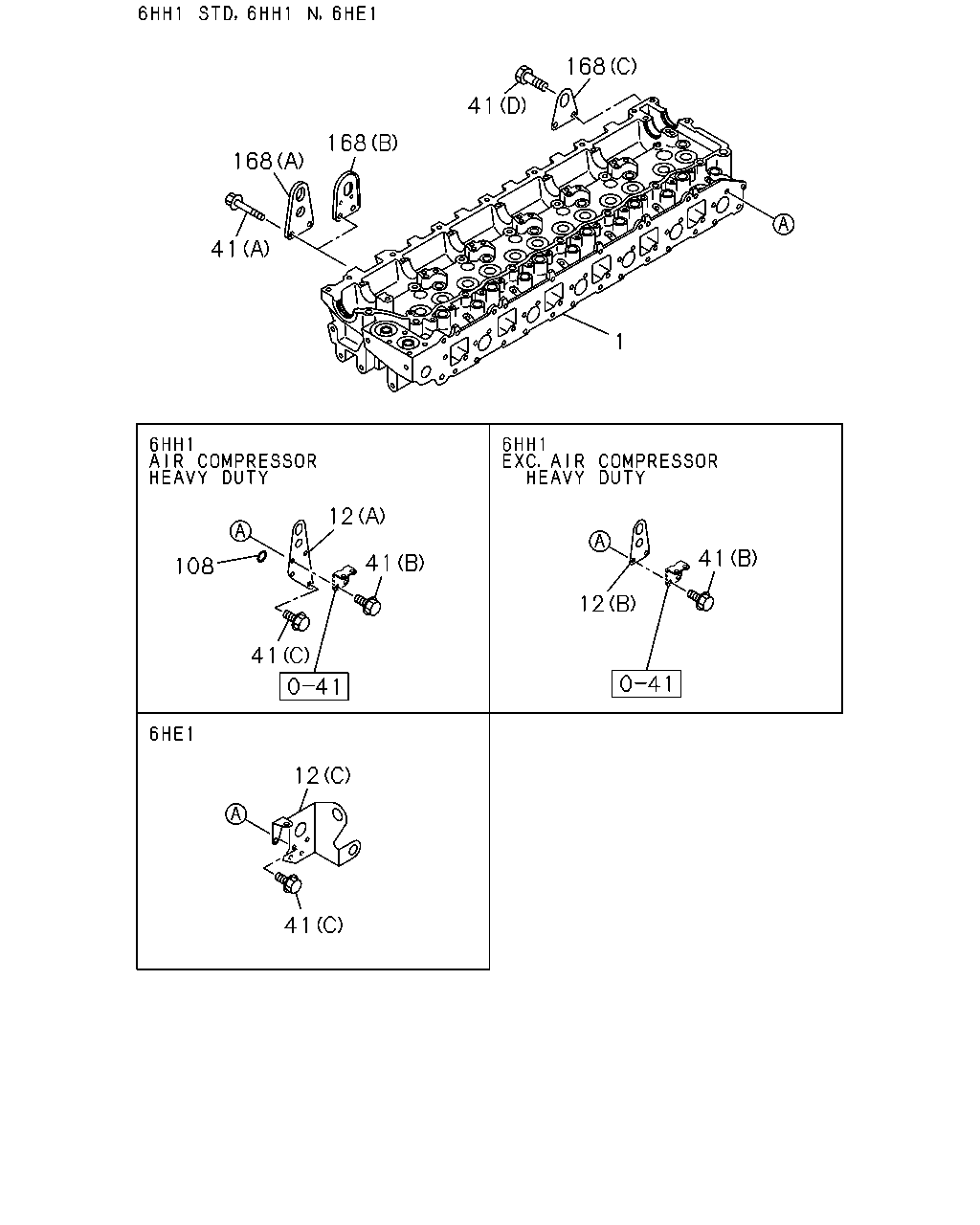

çizim 151114
168 41 168 168 41 1 12 41 41 108 12 41 12 41
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HEAD ASM; CYL 8-97606-991-6 01 1 0601-1004 ●
1 HEAD ASM; CYL 8-98170-622-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-561-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-815-0 01 1 1306- ●
1 HEAD ASM; CYL 8-94393-375-2 01 1 9510-9608 ● ●
1 HEAD ASM; CYL 8-94390-082-7 01 1 9609-1012 ● ●
1 HEAD ASM; CYL 8-98180-572-1 01 1 1101- ● ●
1 HEAD ASM; CYL 8-94391-162-2 01 1 9610-9802 ●
1 HEAD ASM; CYL 8-94391-162-2 01 1 9803-0004 ● ●
1 HEAD ASM; CYL 8-94391-162-6 01 1 0005-1012 ●
1 HEAD ASM; CYL 8-98180-577-1 01 1 1101- ●
1 HEAD ASM; CYL
EURO2 SPECIFICATION<THN> 		8-94392-455-5 01 1 0005-0010 ●
1 HEAD ASM; CYL 8-94392-455-9 01 1 0011-0207 ●
1 HEAD ASM; CYL 8-97602-584-2 01 1 0208-0406 ●
1 HEAD ASM; CYL 8-97605-007-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-994-5 01 1 0508-1004 ●
1 HEAD ASM; CYL 8-98170-625-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-564-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-818-0 01 1 1306- ●
12 HANGER; ENG,RR
(F) 		8-94390-417-2 01 1 0601- ●
12 HANGER; ENG,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		8-94399-405-0 01 1 9510- ● ●
12 HANGER; ENG,RR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		8-94399-404-2 01 1 9510-0109 ● ●
12 HANGER; ENG,RR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		8-94399-404-2 01 1 0110-0210 ●
12 HANGER; ENG,RR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V> (B) 		8-94399-404-2 01 1 0110-0210 ●
12 HANGER; ENG,RR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		8-94399-404-3 01 1 0211- ● ●
12 HANGER; ENG,RR
(C) 		8-94394-337-1 01 1 9610-9802 ●
12 HANGER; ENG,RR
(C) 		8-94394-337-1 01 1 9803-0004 ● ●
12 HANGER; ENG,RR
(C) 		8-94394-337-1 01 1 0005- ●
12 HANGER; ENG,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) (D) 		8-94392-080-0 01 1 0005- ●
12 HANGER; ENG,RR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (E) 		8-94392-081-1 01 1 0005- ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 02 1 9510-0004 ● ●
41 BOLT; ENG HANGER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M12X22 FLANGE 		0-28181-222-0 02 1 0005- ●
41 BOLT; ENG HANGER
(B) M12X28 FLANGE 		0-28181-228-0 02 1 9510- ● ●
41 BOLT; ENG HANGER
AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M12X22 FLANGE 		0-28181-222-0 01 1 9510- ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 02 1 0005-0512 ● ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 02 1 0601- ● ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9610-9802 ●
41 BOLT; ENG HANGER
(C) M12X22 FLANGE 		0-28181-222-0 03 1 9610-9802 ●
41 BOLT; ENG HANGER
(D) M10X25 FLANGE 		0-28781-025-0 02 1 9610-9802 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9803-0004 ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 0005-0512 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 03 1 0601- ● ●
41 BOLT; ENG HANGER
(C) M12X22 FLANGE 		0-28181-222-0 03 1 9803-0004 ● ●
41 BOLT; ENG HANGER
(C) M12X22 FLANGE 		0-28181-222-0 03 1 0005-0512 ●
41 BOLT; ENG HANGER
AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M12X22 FLANGE 		0-28181-222-0 03 1 0005-0512 ●
41 BOLT; ENG HANGER
(C) M12X22 FLANGE 		0-28181-222-0 03 1 0601- ● ●
41 BOLT; ENG HANGER
AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M12X22 FLANGE 		0-28181-222-0 03 1 0601- ●
41 BOLT; ENG HANGER
(D) M10X25 FLANGE 		0-28781-025-0 02 1 9803-0004 ● ●
41 BOLT; ENG HANGER
(D) M10X25 FLANGE 		0-28781-025-0 02 1 0005-0512 ●
41 BOLT; ENG HANGER
(D) M10X25 FLANGE 		0-28751-025-0 02 1 0601- ● ●
108 GASKET; HANGER,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2 		1-09623-375-0 01 1 9510-0004 ● ●
108 GASKET; HANGER,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2 		1-09623-375-0 01 1 0005-0512 ● ● ●
108 GASKET; HANGER,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2 		1-09623-375-0 01 1 0601- ● ● ●
108 GASKET; HANGER,RR
ID=35.2 		1-09623-375-0 01 1 0601- ●
168 HANGER; ENG,FRT
(D) 		8-94392-799-0 01 1 0601- ●
168 HANGER; ENG,FRT
(A) 		8-94399-403-0 01 1 9510-0004 ● ●
168 HANGER; ENG,FRT
(A) 		8-94399-403-1 01 1 0005-0512 ● ● ●
168 HANGER; ENG,FRT
(A) 		8-94399-403-1 01 1 0601- ● ● ● ●
168 HANGER; ENG,FRT
(B) 		8-94394-071-1 01 1 9610-9701 ●
168 HANGER; ENG,FRT
(B) 		8-94391-505-0 01 1 9702-9802 ●
168 HANGER; ENG,FRT
(C) 		8-94394-398-0 01 1 9610-9802 ●
168 HANGER; ENG,FRT
(B) 		8-94391-505-0 01 1 9803-0004 ● ●
168 HANGER; ENG,FRT
(B) 		8-94391-505-0 01 1 0005- ●
168 HANGER; ENG,FRT
(C) 		8-94394-398-0 01 1 9803-0004 ● ●
168 HANGER; ENG,FRT
(C) 		8-94394-398-1 01 1 0005- ●

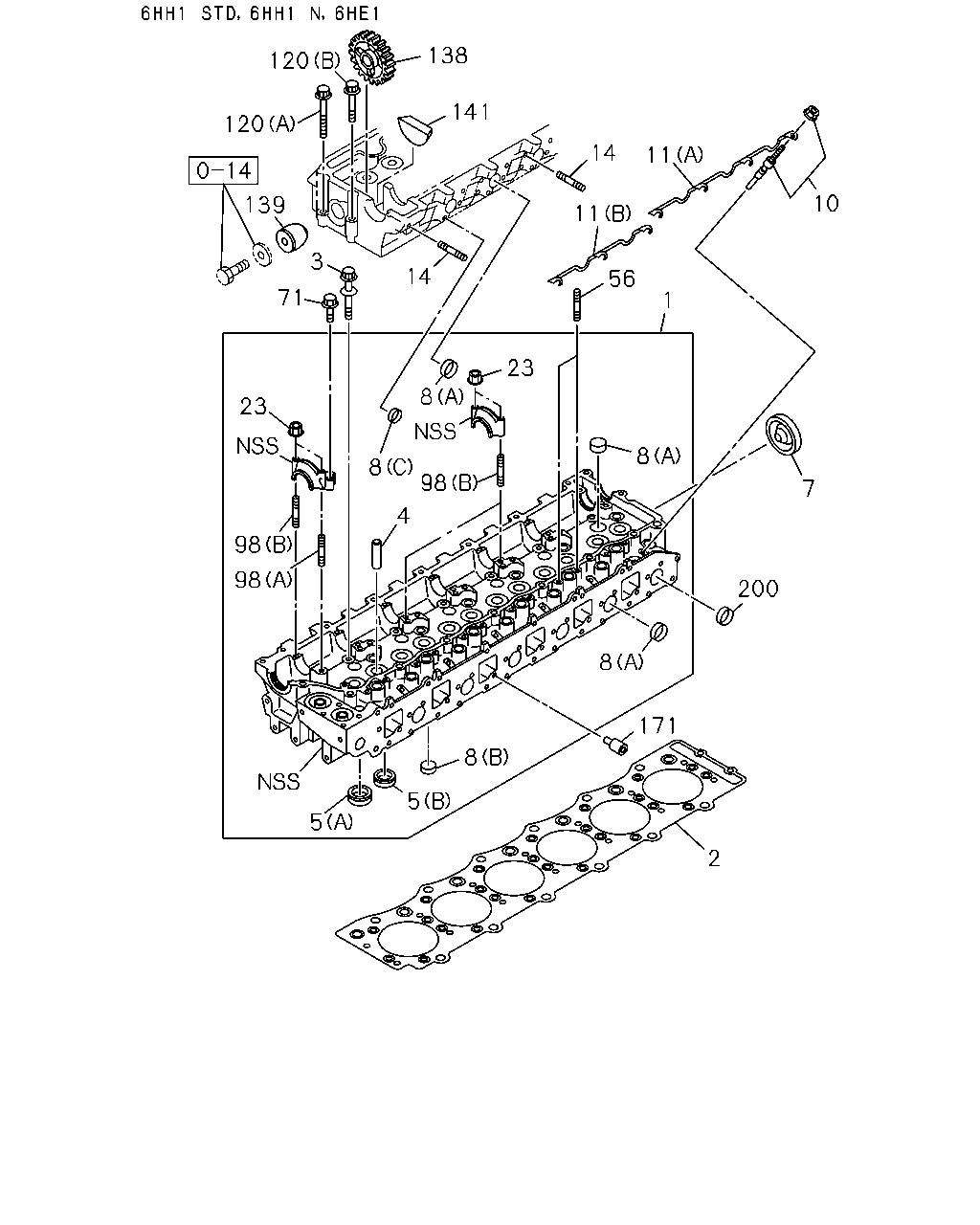

çizim 151115
120 138 120 141 14 11 14 139 3 71 11 56 1 10 23 23 8 8 98 4 98 98 8 7 200 8 8 5 5 171 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HEAD ASM; CYL 8-97606-991-6 01 1 0601-1004 ●
1 HEAD ASM; CYL 8-98170-622-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-561-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-815-0 01 1 1306- ●
1 HEAD ASM; CYL 8-94393-375-2 01 1 9510-9608 ● ●
1 HEAD ASM; CYL 8-94390-082-7 01 1 9609-1012 ● ●
1 HEAD ASM; CYL 8-98180-572-1 01 1 1101- ● ●
1 HEAD ASM; CYL 8-94391-162-2 01 1 9610-9802 ●
1 HEAD ASM; CYL 8-94391-162-2 01 1 9803-0004 ● ●
1 HEAD ASM; CYL 8-94391-162-6 01 1 0005-1012 ●
1 HEAD ASM; CYL 8-98180-577-1 01 1 1101- ●
1 HEAD ASM; CYL
EURO2 SPECIFICATION<THN> 		8-94392-455-5 01 1 0005-0010 ●
1 HEAD ASM; CYL 8-94392-455-9 01 1 0011-0207 ●
1 HEAD ASM; CYL 8-97602-584-2 01 1 0208-0406 ●
1 HEAD ASM; CYL 8-97605-007-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-994-5 01 1 0508-1004 ●
1 HEAD ASM; CYL 8-98170-625-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-564-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-818-0 01 1 1306- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-346-3 01 1 9510- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-1 01 1 9610-9802 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-1 01 1 9803-0004 ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-2 01 1 0005- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> 		8-94390-787-2 01 1 0005-0010 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-787-4 01 1 0011-0407 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97605-228-0 01 1 0408-0512 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97605-228-0 01 1 0601- ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-1 26 1 9510-9802 ● ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 9803-0004 ● ● ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 0005-0512 ● ● ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 0601-0901 ● ● ● ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-97077-638-0 26 1 0902-1407 ● ● ● ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-98260-005-0 26 1 1408- ● ● ● ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 9510-9802 ● ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 9803-0004 ● ● ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 0005- ● ● ●
4 GUIDE; VLV
EURO2 SPECIFICATION<THN> L=57 		8-94390-780-0 24 1 0005-0010 ●
4 GUIDE; VLV
L=57 		8-94390-780-0 24 1 0011-0512 ●
4 GUIDE; VLV
L=57 		8-94390-780-0 24 1 0601-0707 ● ●
4 GUIDE; VLV
L=57 		8-97376-719-2 24 1 0708- ● ●
5 SEAT; VLV INSERT
(B) INLET OD=38 		8-94395-888-2 12 1 0601- ●
5 SEAT; VLV INSERT
(B) INLET OD=52 		8-94394-127-0 06 1 9510- ● ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 9510-9802 ● ● ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 9803-0004 ● ● ● ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 0005- ● ● ●
5 SEAT; VLV INSERT
(B) INLET OD=48 		8-94394-462-0 06 1 9610-9802 ●
5 SEAT; VLV INSERT
(B) INLET OD=48 		8-94394-462-0 06 1 9803-0004 ● ●
5 SEAT; VLV INSERT
(B) INLET OD=48 		8-94394-462-0 06 1 0005- ●
5 SEAT; VLV INSERT
EURO2 SPECIFICATION<THN> (B) INLET OD=40 		8-94395-624-0 12 1 0005-0010 ●
5 SEAT; VLV INSERT
(B) INLET OD=40 		8-94395-624-0 12 1 0011-0106 ●
5 SEAT; VLV INSERT
(B) INLET OD=40 		8-97216-510-0 12 1 0107- ●
5 SEAT; VLV INSERT
EURO2 SPECIFICATION<THN> (A) EXHAUST OD=38 		8-94395-625-0 12 1 0005-0010 ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=38 		8-94395-625-0 12 1 0011-0106 ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=38 		8-97216-511-0 12 1 0107-0512 ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=38 		8-97216-511-0 12 1 0601-0703 ● ●
5 SEAT; VLV INSERT
(A) EXHAUST ID=31 OD=38 		8-98028-875-0 12 1 0704- ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 9510-9802 ● ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 9803-0004 ● ● ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 0005-0303 ● ● ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 0304-0512 ● ● ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 0601- ● ● ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9510-9704 ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9705-9802 ● ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9510-9802 ● ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9510-9802 ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 17 1 0005- ● ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 0005- ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9803-0004 ● ● ● ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (A) OD=32 		1-09600-012-2 06 1 0005-0512 ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (A) OD=32 		1-09600-012-2 06 1 0601- ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 06 1 0601- ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9803-0004 ● ● ● ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (B) OD=25 		1-09600-016-0 06 1 0005-0010 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 06 1 0011-0512 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 06 1 0601- ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9803-0004 ● ● ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 0005- ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 18 1 9610-9704 ●
8 CUP; SEALING,WATER JACKET
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32 		1-09600-012-1 01 1 9510-0004 ● ●
8 CUP; SEALING,WATER JACKET
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32 		1-09600-012-1 01 1 0005-0407 ● ● ●
8 CUP; SEALING,WATER JACKET
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32 		1-09600-012-2 01 1 0408- ● ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32 		1-09600-012-2 01 1 0408- ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (C) OD=16 		5-11129-006-0 07 1 0005-0010 ●
8 CUP; SEALING,WATER JACKET
(C) OD=16 		5-11129-006-0 07 1 0011-0512 ●
8 CUP; SEALING,WATER JACKET
(C) OD=16 		5-11129-006-0 07 1 0601- ● ●
8 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<THN> (D) OD=20 		9-11129-128-0 11 1 0005-0010 ●
8 CUP; SEALING,WATER JACKET
(D) OD=20 		9-11129-128-0 11 1 0011-0512 ●
8 CUP; SEALING,WATER JACKET
(D) OD=20 		9-11129-128-0 11 1 0601- ● ●
8 CUP; SEALING,WATER JACKET
EXC. EURO2 SPECIFICATION<THN> (A) OD=32 		1-09600-012-2 07 1 0011- ●
10 PLUG; GLOW 9-82513-928-9 06 1 9510-9802 ● ● ●
10 PLUG; GLOW 9-82513-928-9 06 1 9803-9809 ● ● ● ●
10 PLUG; GLOW 1-82513-043-0 06 1 9810-0004 ● ● ● ●
10 PLUG; GLOW 1-82513-043-2 06 1 0005- ● ● ●
10 PLUG; GLOW
EURO2 SPECIFICATION<THN> 		8-94392-815-3 06 1 0005-0512 ●
10 PLUG; GLOW
EURO2 SPECIFICATION<THN> 		8-94392-815-4 06 1 0601- ●
10 PLUG; GLOW 8-94392-815-4 06 1 0601- ●
10 PLUG; GLOW
EXC. EURO2 SPECIFICATION<THN> NGK 		8-94390-777-6 06 1 0011- ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9510-9802 ● ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9510-9802 ● ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9803-0004 ● ● ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 0005-0206 ● ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-97136-565-0 01 1 0207- ● ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9803-0004 ● ● ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-3 01 1 0005- ● ● ●
11 CONNECTOR; GLOW PLUG
EURO2 SPECIFICATION<THN> (A) 		8-94391-925-2 01 1 0005-0010 ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94391-925-3 01 1 0011-0512 ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94391-925-3 01 1 0601-0804 ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-98040-648-0 01 1 0805- ● ●
11 CONNECTOR; GLOW PLUG
EURO2 SPECIFICATION<THN> (B) 		8-94392-843-0 01 1 0005-0010 ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94392-843-1 01 1 0011-0512 ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94392-843-1 01 1 0601-0804 ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-98040-649-0 01 1 0805- ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 9510-9802 ● ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 9803-0004 ● ● ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0005-0512 ● ● ●
14 STUD; EXH MANIF
EURO2 SPECIFICATION<THN> M10X60 L=75 		8-94397-286-0 12 1 0005-0512 ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0601- ● ● ● ●
14 STUD; EXH MANIF
EURO2 SPECIFICATION<THN> M10X60 L=75 		8-94397-286-0 12 1 0601- ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> M10X68 L=83 		8-94392-483-0 02 1 0011-0608 ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> M10X85 L=100 		8-98037-215-0 02 1 0609- ●
14 STUD; EXH MANIF
EXC. EURO2 SPECIFICATION<THN> M10X60 L=75 		8-94397-286-0 10 1 0011- ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 14 1 9510-9608 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9609-9802 ● ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9803-0004 ● ● ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 0005-0512 ● ● ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 0601-0602 ● ● ● ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0603- ● ● ● ● ●
56 STUD; NOZZLE HOLDER
M8X66 L=90 		1-09300-014-0 12 1 9610-9802 ●
56 STUD; NOZZLE HOLDER
M8X66 L=90 		1-09300-014-0 12 1 9803-0004 ● ●
56 STUD; NOZZLE HOLDER
M8X66 L=90 		1-09300-014-0 12 1 0005- ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9510-9802 ● ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9803-0004 ● ● ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0005-0512 ● ● ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0601- ● ● ● ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9510-9802 ● ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 12 1 9510-9608 ● ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9609-9802 ● ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9803-0004 ● ● ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0005-0512 ● ● ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0601- ● ● ● ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9803-0004 ● ● ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0005-0512 ● ● ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0601- ● ● ● ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9510-9802 ● ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9510-9802 ● ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9803-0004 ● ● ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0005-0512 ● ● ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0601- ● ● ● ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9803-0004 ● ● ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0005-0512 ● ● ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0601- ● ● ● ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9510-9802 ● ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9803-0004 ● ● ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 0005-0512 ● ● ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-1 01 1 0601- ● ● ● ● ●
139 SHAFT; IDLE GEAR 8-97065-555-1 01 1 9510-9711 ● ● ●
139 SHAFT; IDLE GEAR 8-97186-398-0 01 1 9712-9802 ● ● ●
139 SHAFT; IDLE GEAR 8-97186-398-0 01 1 9803-0004 ● ● ● ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 0005-0512 ● ● ● ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 0601- ● ● ● ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9510-9802 ● ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9803-0004 ● ● ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0005-0512 ● ● ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0601-1005 ● ● ● ● ●
141 PLUG; RUBBER,CYL HD 8-98163-813-0 02 1 1006- ● ● ● ● ●
171 SEAT; VLV
ID=5.5 L=35 YELLOW 		8-94395-210-0 06 1 9510-9702 ●
171 SEAT; VLV
AUSTRALIA EQUIPMENT(RR3) ID=5.5 L=35 YELLOW 		8-94395-210-0 06 1 9510-9702 ●
171 SEAT; VLV
AUSTRALIA EQUIPMENT(RR3) ID=5.5 L=35 YELLOW 		8-94395-210-0 06 1 9703-0004 ● ●
171 SEAT; VLV
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94395-571-1 06 1 9510-9702 ●
171 SEAT; VLV
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94395-571-1 06 1 9703-0004 ● ●
171 SEAT; VLV 8-94395-571-1 06 1 0005- ● ●
171 SEAT; VLV 8-94394-678-1 06 1 9610-9802 ●
171 SEAT; VLV 8-94394-678-1 06 1 9803-0004 ● ●
171 SEAT; VLV 8-94394-678-1 06 1 0005- ●
200 CUP; SEALING,INLET MANIFOLD
OD=32 		1-09600-012-1 01 1 9705-9802 ●
200 CUP; SEALING,INLET MANIFOLD
OD=32 		1-09600-012-1 01 1 9803-0004 ● ●
200 CUP; SEALING,INLET MANIFOLD
OD=32 		1-09600-012-2 01 1 0005- ●

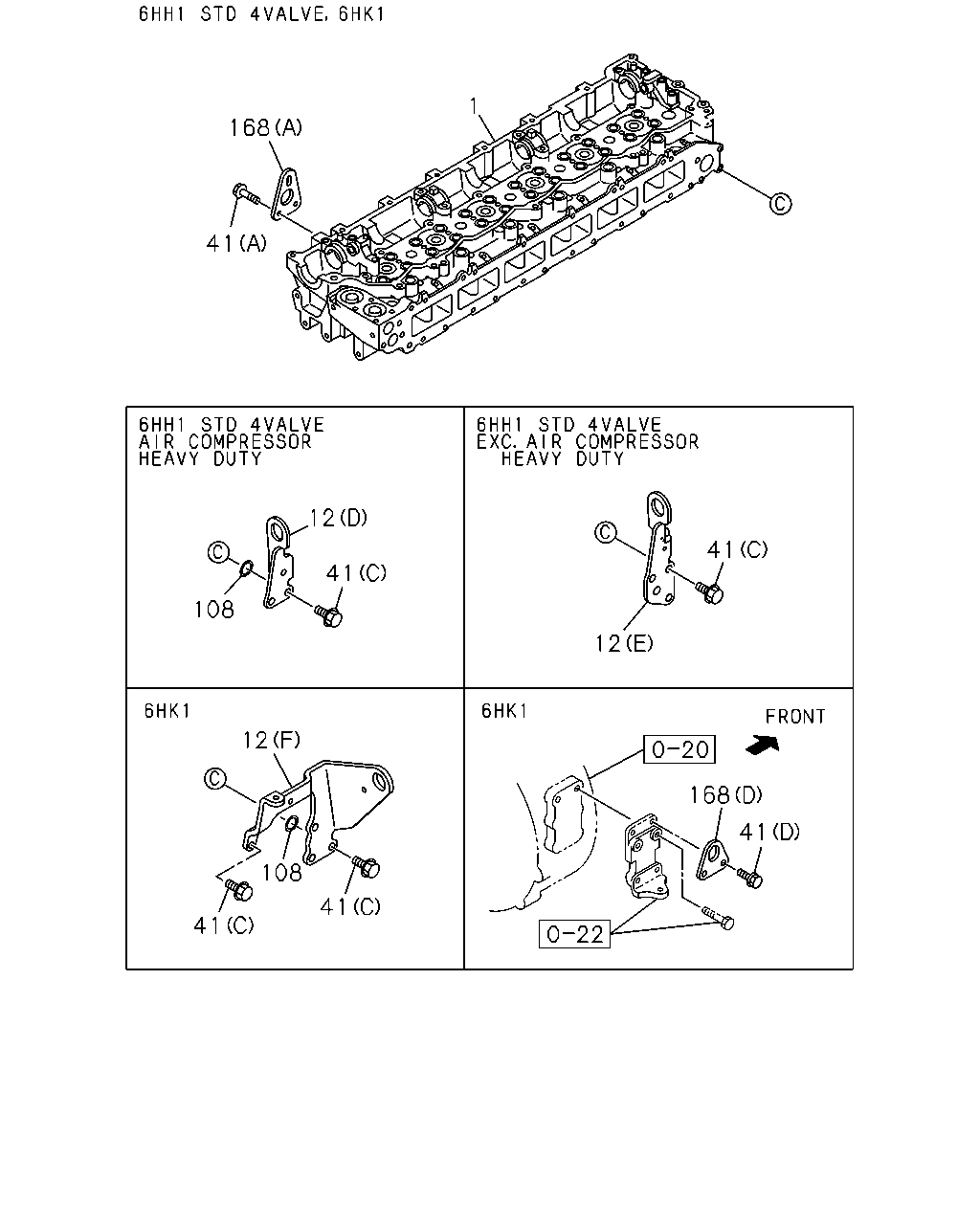

çizim 151118
168 41 1 108 12 41 12 41 168 41 41 41 108 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HEAD ASM; CYL 8-97606-991-6 01 1 0601-1004 ●
1 HEAD ASM; CYL 8-98170-622-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-561-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-815-0 01 1 1306- ●
1 HEAD ASM; CYL 8-94393-375-2 01 1 9510-9608 ● ●
1 HEAD ASM; CYL 8-94390-082-7 01 1 9609-1012 ● ●
1 HEAD ASM; CYL 8-98180-572-1 01 1 1101- ● ●
1 HEAD ASM; CYL 8-94391-162-2 01 1 9610-9802 ●
1 HEAD ASM; CYL 8-94391-162-2 01 1 9803-0004 ● ●
1 HEAD ASM; CYL 8-94391-162-6 01 1 0005-1012 ●
1 HEAD ASM; CYL 8-98180-577-1 01 1 1101- ●
1 HEAD ASM; CYL
EURO2 SPECIFICATION<THN> 		8-94392-455-5 01 1 0005-0010 ●
1 HEAD ASM; CYL 8-94392-455-9 01 1 0011-0207 ●
1 HEAD ASM; CYL 8-97602-584-2 01 1 0208-0406 ●
1 HEAD ASM; CYL 8-97605-007-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-994-5 01 1 0508-1004 ●
1 HEAD ASM; CYL 8-98170-625-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-564-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-818-0 01 1 1306- ●
12 HANGER; ENG,RR
(F) 		8-94390-417-2 01 1 0601- ●
12 HANGER; ENG,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		8-94399-405-0 01 1 9510- ● ●
12 HANGER; ENG,RR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		8-94399-404-2 01 1 9510-0109 ● ●
12 HANGER; ENG,RR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		8-94399-404-2 01 1 0110-0210 ●
12 HANGER; ENG,RR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V> (B) 		8-94399-404-2 01 1 0110-0210 ●
12 HANGER; ENG,RR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		8-94399-404-3 01 1 0211- ● ●
12 HANGER; ENG,RR
(C) 		8-94394-337-1 01 1 9610-9802 ●
12 HANGER; ENG,RR
(C) 		8-94394-337-1 01 1 9803-0004 ● ●
12 HANGER; ENG,RR
(C) 		8-94394-337-1 01 1 0005- ●
12 HANGER; ENG,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) (D) 		8-94392-080-0 01 1 0005- ●
12 HANGER; ENG,RR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (E) 		8-94392-081-1 01 1 0005- ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 02 1 9510-0004 ● ●
41 BOLT; ENG HANGER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M12X22 FLANGE 		0-28181-222-0 02 1 0005- ●
41 BOLT; ENG HANGER
(B) M12X28 FLANGE 		0-28181-228-0 02 1 9510- ● ●
41 BOLT; ENG HANGER
AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M12X22 FLANGE 		0-28181-222-0 01 1 9510- ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 02 1 0005-0512 ● ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 02 1 0601- ● ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9610-9802 ●
41 BOLT; ENG HANGER
(C) M12X22 FLANGE 		0-28181-222-0 03 1 9610-9802 ●
41 BOLT; ENG HANGER
(D) M10X25 FLANGE 		0-28781-025-0 02 1 9610-9802 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9803-0004 ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 0005-0512 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 03 1 0601- ● ●
41 BOLT; ENG HANGER
(C) M12X22 FLANGE 		0-28181-222-0 03 1 9803-0004 ● ●
41 BOLT; ENG HANGER
(C) M12X22 FLANGE 		0-28181-222-0 03 1 0005-0512 ●
41 BOLT; ENG HANGER
AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M12X22 FLANGE 		0-28181-222-0 03 1 0005-0512 ●
41 BOLT; ENG HANGER
(C) M12X22 FLANGE 		0-28181-222-0 03 1 0601- ● ●
41 BOLT; ENG HANGER
AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M12X22 FLANGE 		0-28181-222-0 03 1 0601- ●
41 BOLT; ENG HANGER
(D) M10X25 FLANGE 		0-28781-025-0 02 1 9803-0004 ● ●
41 BOLT; ENG HANGER
(D) M10X25 FLANGE 		0-28781-025-0 02 1 0005-0512 ●
41 BOLT; ENG HANGER
(D) M10X25 FLANGE 		0-28751-025-0 02 1 0601- ● ●
108 GASKET; HANGER,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2 		1-09623-375-0 01 1 9510-0004 ● ●
108 GASKET; HANGER,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2 		1-09623-375-0 01 1 0005-0512 ● ● ●
108 GASKET; HANGER,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2 		1-09623-375-0 01 1 0601- ● ● ●
108 GASKET; HANGER,RR
ID=35.2 		1-09623-375-0 01 1 0601- ●
168 HANGER; ENG,FRT
(D) 		8-94392-799-0 01 1 0601- ●
168 HANGER; ENG,FRT
(A) 		8-94399-403-0 01 1 9510-0004 ● ●
168 HANGER; ENG,FRT
(A) 		8-94399-403-1 01 1 0005-0512 ● ● ●
168 HANGER; ENG,FRT
(A) 		8-94399-403-1 01 1 0601- ● ● ● ●
168 HANGER; ENG,FRT
(B) 		8-94394-071-1 01 1 9610-9701 ●
168 HANGER; ENG,FRT
(B) 		8-94391-505-0 01 1 9702-9802 ●
168 HANGER; ENG,FRT
(C) 		8-94394-398-0 01 1 9610-9802 ●
168 HANGER; ENG,FRT
(B) 		8-94391-505-0 01 1 9803-0004 ● ●
168 HANGER; ENG,FRT
(B) 		8-94391-505-0 01 1 0005- ●
168 HANGER; ENG,FRT
(C) 		8-94394-398-0 01 1 9803-0004 ● ●
168 HANGER; ENG,FRT
(C) 		8-94394-398-1 01 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
