◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10698 - FRR RHD EXC.EURO3 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-10 - CYLINDER HEAD COVER ▶
0-10 — CYLINDER HEAD COVER (#37237) — 159 parça

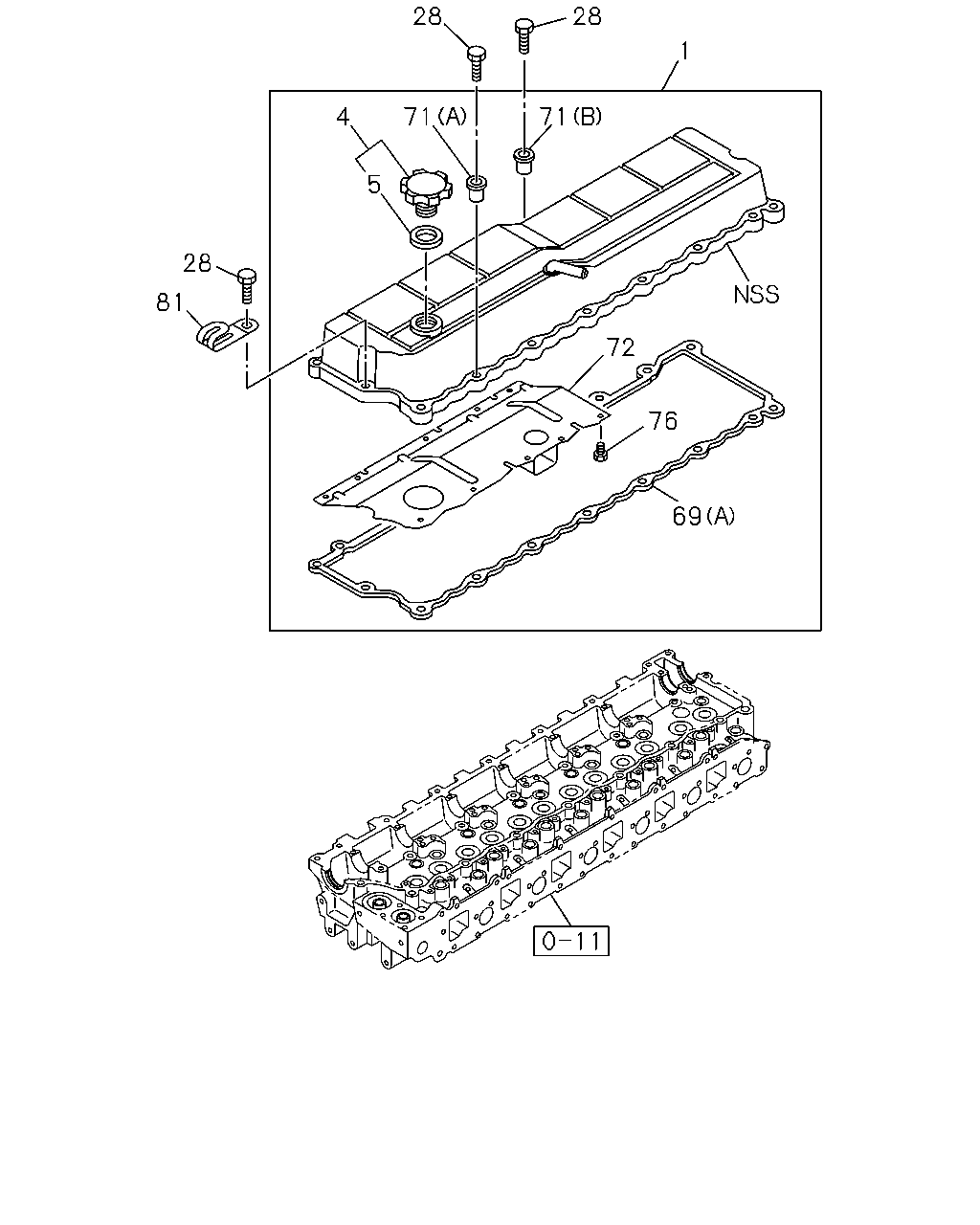

çizim 151096
28 28 1 71 71 4 5 28 81 72 76 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 COVER; CYL HD 8-94392-657-5 01 1 0601-1112 ●
1 COVER; CYL HD 8-98208-876-0 01 1 1201- ●
1 COVER; CYL HD 8-94394-862-1 01 1 9510-9802 ● ● ●
1 COVER; CYL HD 8-94394-862-1 01 1 9803-0004 ● ● ● ●
1 COVER; CYL HD 8-94394-862-2 01 1 0005- ● ● ●
1 COVER; CYL HD
EURO2 SPECIFICATION<THN> 		8-94392-656-1 01 1 0005-0010 ●
1 COVER; CYL HD 8-94392-656-4 01 1 0011-1112 ●
1 COVER; CYL HD 8-98208-875-0 01 1 1201- ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 9510-9802 ● ● ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 9803-0004 ● ● ● ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 0005-0512 ● ● ● ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 0601- ● ● ● ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 9510-9802 ● ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 9803-0004 ● ● ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 0005-0512 ● ● ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 0601- ● ● ● ● ●
28 BOLT; HD COVER
M8X45 FLANGE 		0-28050-845-0 04 1 0601- ●
28 BOLT; HD COVER
M8X70 FLANGE 		0-28050-870-0 11 1 0601- ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28280-835-0 19 1 9510-9802 ● ● ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28280-835-0 19 1 9803-9812 ● ● ● ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28680-835-0 19 1 9901-0004 ● ● ● ●
28 BOLT; HD COVER
EURO2 SPECIFICATION<THN> M8X35 FLANGE 		0-28680-835-0 11 1 0005-0010 ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28680-835-0 11 1 0011-0512 ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28650-835-0 11 1 0601- ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28680-835-0 19 1 0005-0512 ● ● ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28650-835-0 19 1 0601- ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-94391-380-0 01 1 0601- ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-94396-383-0 01 1 9510-9802 ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-94396-383-0 01 1 9803-0004 ● ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-94396-383-0 01 1 0005- ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (A) 		8-94391-379-0 01 1 0005-0010 ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-94391-379-0 01 1 0011-0512 ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-94391-379-0 01 1 0601- ● ●
71 COLLAR; HD COVER
(A) OD=12.3 		8-94396-971-1 18 1 9510-9802 ● ● ●
71 COLLAR; HD COVER
(B) OD=11 		8-94396-972-1 01 1 9510-9802 ● ● ●
71 COLLAR; HD COVER
(A) OD=12.3 		8-94396-971-1 18 1 9803-0004 ● ● ● ●
71 COLLAR; HD COVER
(A) OD=12.3 		8-94396-971-1 18 1 0005- ● ● ●
71 COLLAR; HD COVER
(B) OD=11 		8-94396-972-1 01 1 9803-0004 ● ● ● ●
71 COLLAR; HD COVER
(B) OD=11 		8-94396-972-1 01 1 0005- ● ● ●
72 PLATE; INNER HD COVER 8-94393-609-1 01 1 9510-9802 ● ● ●
72 PLATE; INNER HD COVER 8-94393-609-1 01 1 9803-0004 ● ● ● ●
72 PLATE; INNER HD COVER 8-94393-609-1 01 1 0005- ● ● ●
72 PLATE; INNER HD COVER
EURO2 SPECIFICATION<THN> 		8-94392-655-0 01 1 0005-0010 ●
72 PLATE; INNER HD COVER 8-94392-655-0 01 1 0011-0512 ●
72 PLATE; INNER HD COVER 8-94392-655-0 01 1 0601- ● ●
76 SCREW; INNER PLATE
M4X12 TAPPING 		0-71180-412-0 07 1 9510-9802 ● ● ●
76 SCREW; INNER PLATE
M4X12 TAPPING 		0-71180-412-0 07 1 9803-0004 ● ● ● ●
76 SCREW; INNER PLATE
M4X12 TAPPING 		0-71180-412-0 07 1 0005-0603 ● ● ●
76 SCREW; INNER PLATE
M4X12 TAPPING 		0-71240-412-0 07 1 0604- ● ● ●
81 CLIP; HARNESS
ID=18 L=44 		8-94225-185-0 01 1 9510-9802 ● ● ●
81 CLIP; HARNESS
ID=18 L=44 		8-94225-185-0 01 1 9803-0004 ● ● ● ●
81 CLIP; HARNESS
ID=18 L=44 		8-94225-185-0 01 1 0005-0009 ● ● ●
81 CLIP; HARNESS
ID=18 L=44 		8-94225-185-0 01 1 0010-0512 ● ● ● ●
81 CLIP; HARNESS
ID=18 L=44 		8-94225-185-0 01 1 0601-0801 ● ● ● ● ●
81 CLIP; HARNESS
ID=18 L=44 		8-97367-985-1 01 1 0802- ● ● ● ● ●

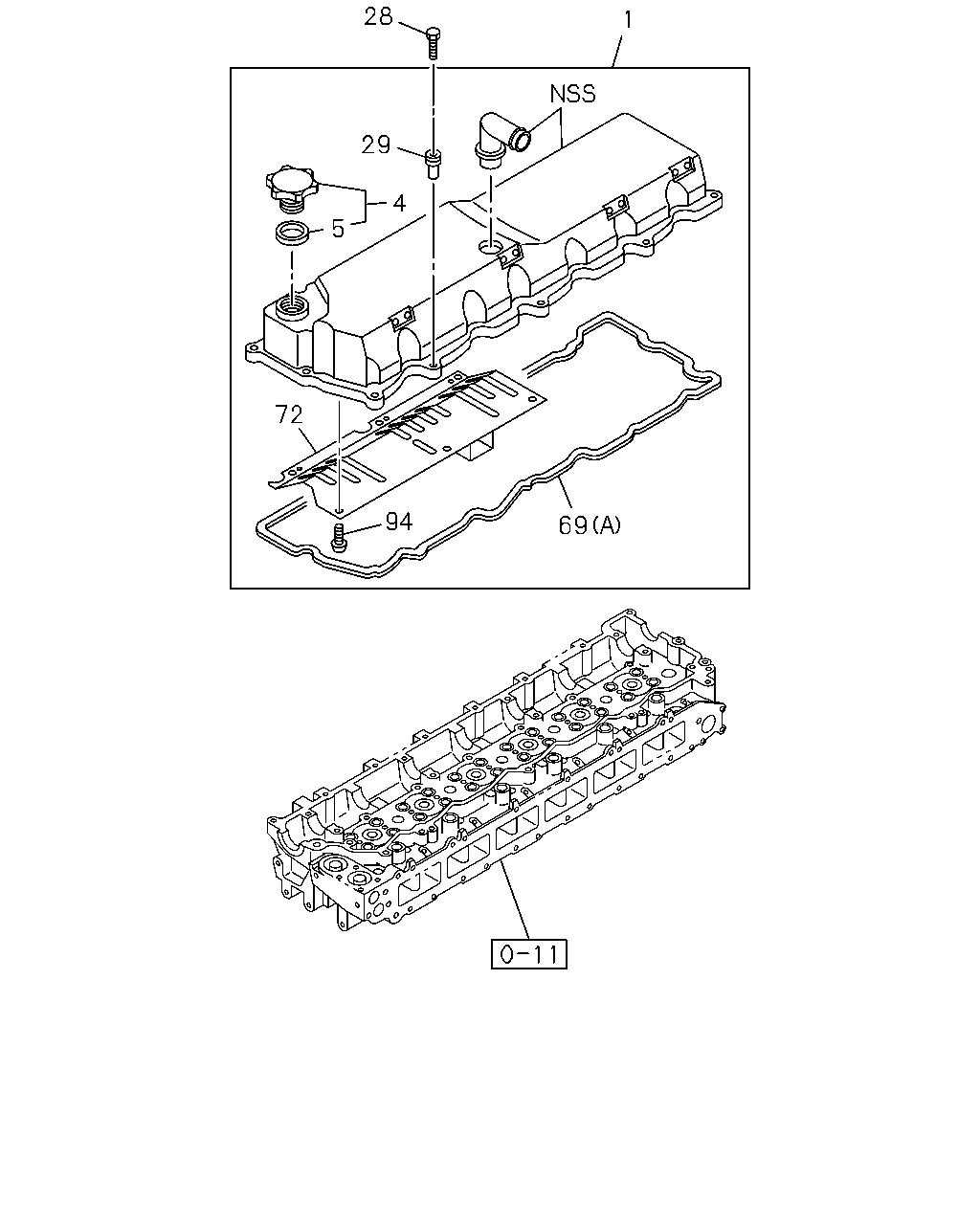

çizim 151108
28 1 29 4 5 72 94 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 COVER; CYL HD 8-94392-657-5 01 1 0601-1112 ●
1 COVER; CYL HD 8-98208-876-0 01 1 1201- ●
1 COVER; CYL HD 8-94394-862-1 01 1 9510-9802 ● ● ●
1 COVER; CYL HD 8-94394-862-1 01 1 9803-0004 ● ● ● ●
1 COVER; CYL HD 8-94394-862-2 01 1 0005- ● ● ●
1 COVER; CYL HD
EURO2 SPECIFICATION<THN> 		8-94392-656-1 01 1 0005-0010 ●
1 COVER; CYL HD 8-94392-656-4 01 1 0011-1112 ●
1 COVER; CYL HD 8-98208-875-0 01 1 1201- ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 9510-9802 ● ● ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 9803-0004 ● ● ● ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 0005-0512 ● ● ● ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 0601- ● ● ● ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 9510-9802 ● ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 9803-0004 ● ● ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 0005-0512 ● ● ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 0601- ● ● ● ● ●
28 BOLT; HD COVER
M8X45 FLANGE 		0-28050-845-0 04 1 0601- ●
28 BOLT; HD COVER
M8X70 FLANGE 		0-28050-870-0 11 1 0601- ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28280-835-0 19 1 9510-9802 ● ● ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28280-835-0 19 1 9803-9812 ● ● ● ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28680-835-0 19 1 9901-0004 ● ● ● ●
28 BOLT; HD COVER
EURO2 SPECIFICATION<THN> M8X35 FLANGE 		0-28680-835-0 11 1 0005-0010 ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28680-835-0 11 1 0011-0512 ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28650-835-0 11 1 0601- ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28680-835-0 19 1 0005-0512 ● ● ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28650-835-0 19 1 0601- ● ● ●
29 RUBBER; MTG,HD COVER
EURO2 SPECIFICATION<THN> 		8-94392-097-0 11 1 0005-0010 ●
29 RUBBER; MTG,HD COVER 8-94392-097-0 11 1 0011-0512 ●
29 RUBBER; MTG,HD COVER 8-94392-097-0 11 1 0601- ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-94391-380-0 01 1 0601- ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-94396-383-0 01 1 9510-9802 ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-94396-383-0 01 1 9803-0004 ● ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-94396-383-0 01 1 0005- ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (A) 		8-94391-379-0 01 1 0005-0010 ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-94391-379-0 01 1 0011-0512 ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-94391-379-0 01 1 0601- ● ●
72 PLATE; INNER HD COVER 8-94393-609-1 01 1 9510-9802 ● ● ●
72 PLATE; INNER HD COVER 8-94393-609-1 01 1 9803-0004 ● ● ● ●
72 PLATE; INNER HD COVER 8-94393-609-1 01 1 0005- ● ● ●
72 PLATE; INNER HD COVER
EURO2 SPECIFICATION<THN> 		8-94392-655-0 01 1 0005-0010 ●
72 PLATE; INNER HD COVER 8-94392-655-0 01 1 0011-0512 ●
72 PLATE; INNER HD COVER 8-94392-655-0 01 1 0601- ● ●
94 SCREW; BAFFLE PLATE,CYL HD COVER
EURO2 SPECIFICATION<THN> M4X8 		9-03800-408-0 06 1 0005-0010 ●
94 SCREW; BAFFLE PLATE,CYL HD COVER
M4X8 		9-03800-408-0 06 1 0011-0512 ●
94 SCREW; BAFFLE PLATE,CYL HD COVER
M4X8 		9-03800-408-0 06 1 0601-0604 ● ●
94 SCREW; BAFFLE PLATE,CYL HD COVER
M4X8 		0-35050-408-0 06 1 0605- ● ●

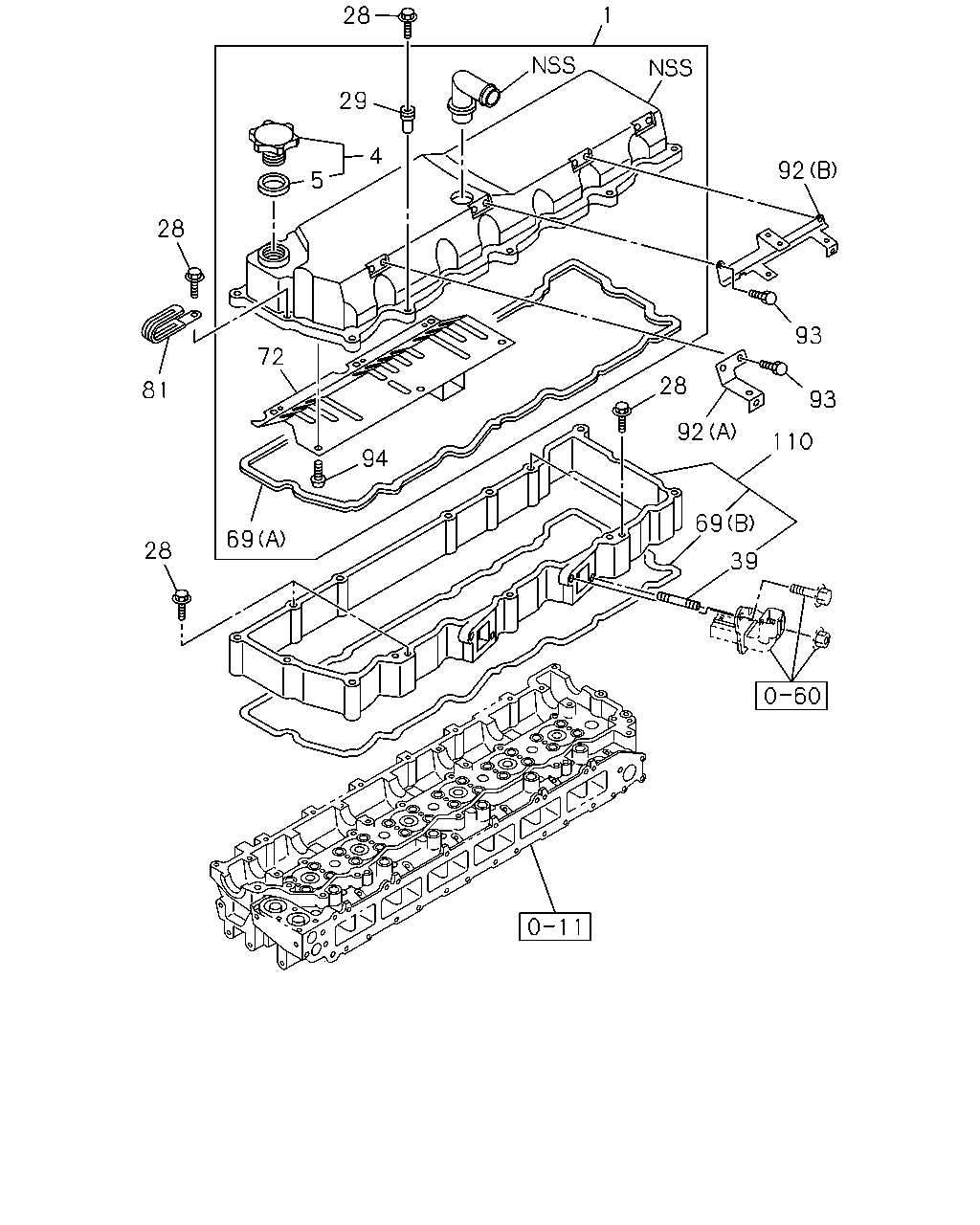

çizim 151424
28 1 29 4 92 5 28 93 72 28 81 93 92 110 94 69 69 28 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 COVER; CYL HD 8-94392-657-5 01 1 0601-1112 ●
1 COVER; CYL HD 8-98208-876-0 01 1 1201- ●
1 COVER; CYL HD 8-94394-862-1 01 1 9510-9802 ● ● ●
1 COVER; CYL HD 8-94394-862-1 01 1 9803-0004 ● ● ● ●
1 COVER; CYL HD 8-94394-862-2 01 1 0005- ● ● ●
1 COVER; CYL HD
EURO2 SPECIFICATION<THN> 		8-94392-656-1 01 1 0005-0010 ●
1 COVER; CYL HD 8-94392-656-4 01 1 0011-1112 ●
1 COVER; CYL HD 8-98208-875-0 01 1 1201- ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 9510-9802 ● ● ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 9803-0004 ● ● ● ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 0005-0512 ● ● ● ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 0601- ● ● ● ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 9510-9802 ● ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 9803-0004 ● ● ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 0005-0512 ● ● ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 0601- ● ● ● ● ●
28 BOLT; HD COVER
M8X45 FLANGE 		0-28050-845-0 04 1 0601- ●
28 BOLT; HD COVER
M8X70 FLANGE 		0-28050-870-0 11 1 0601- ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28280-835-0 19 1 9510-9802 ● ● ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28280-835-0 19 1 9803-9812 ● ● ● ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28680-835-0 19 1 9901-0004 ● ● ● ●
28 BOLT; HD COVER
EURO2 SPECIFICATION<THN> M8X35 FLANGE 		0-28680-835-0 11 1 0005-0010 ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28680-835-0 11 1 0011-0512 ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28650-835-0 11 1 0601- ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28680-835-0 19 1 0005-0512 ● ● ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28650-835-0 19 1 0601- ● ● ●
29 RUBBER; MTG,HD COVER
EURO2 SPECIFICATION<THN> 		8-94392-097-0 11 1 0005-0010 ●
29 RUBBER; MTG,HD COVER 8-94392-097-0 11 1 0011-0512 ●
29 RUBBER; MTG,HD COVER 8-94392-097-0 11 1 0601- ● ●
39 STUD; COVER,HD
M8X28 L=38 		8-94396-512-0 04 1 0601-1011 ●
39 STUD; COVER,HD
M8X28 L=38 		8-94396-512-0 02 1 1012- ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-94391-380-0 01 1 0601- ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-94396-383-0 01 1 9510-9802 ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-94396-383-0 01 1 9803-0004 ● ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-94396-383-0 01 1 0005- ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (A) 		8-94391-379-0 01 1 0005-0010 ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-94391-379-0 01 1 0011-0512 ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-94391-379-0 01 1 0601- ● ●
72 PLATE; INNER HD COVER 8-94393-609-1 01 1 9510-9802 ● ● ●
72 PLATE; INNER HD COVER 8-94393-609-1 01 1 9803-0004 ● ● ● ●
72 PLATE; INNER HD COVER 8-94393-609-1 01 1 0005- ● ● ●
72 PLATE; INNER HD COVER
EURO2 SPECIFICATION<THN> 		8-94392-655-0 01 1 0005-0010 ●
72 PLATE; INNER HD COVER 8-94392-655-0 01 1 0011-0512 ●
72 PLATE; INNER HD COVER 8-94392-655-0 01 1 0601- ● ●
81 CLIP; HARNESS
ID=18 L=44 		8-94225-185-0 01 1 9510-9802 ● ● ●
81 CLIP; HARNESS
ID=18 L=44 		8-94225-185-0 01 1 9803-0004 ● ● ● ●
81 CLIP; HARNESS
ID=18 L=44 		8-94225-185-0 01 1 0005-0009 ● ● ●
81 CLIP; HARNESS
ID=18 L=44 		8-94225-185-0 01 1 0010-0512 ● ● ● ●
81 CLIP; HARNESS
ID=18 L=44 		8-94225-185-0 01 1 0601-0801 ● ● ● ● ●
81 CLIP; HARNESS
ID=18 L=44 		8-97367-985-1 01 1 0802- ● ● ● ● ●
92 BRACKET; CLIP
(A) 		8-94391-313-0 01 1 0601- ●
92 BRACKET; CLIP
(B) 		8-94392-143-3 01 1 0601- ●
93 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 0601- ●
94 SCREW; BAFFLE PLATE,CYL HD COVER
EURO2 SPECIFICATION<THN> M4X8 		9-03800-408-0 06 1 0005-0010 ●
94 SCREW; BAFFLE PLATE,CYL HD COVER
M4X8 		9-03800-408-0 06 1 0011-0512 ●
94 SCREW; BAFFLE PLATE,CYL HD COVER
M4X8 		9-03800-408-0 06 1 0601-0604 ● ●
94 SCREW; BAFFLE PLATE,CYL HD COVER
M4X8 		0-35050-408-0 06 1 0605- ● ●
110 COVER; CYL HEAD LWR 8-94390-862-3 01 1 0601- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
