5-30 — SPARE TIRE CARRIER AND COVER (#37231) — 72 parça

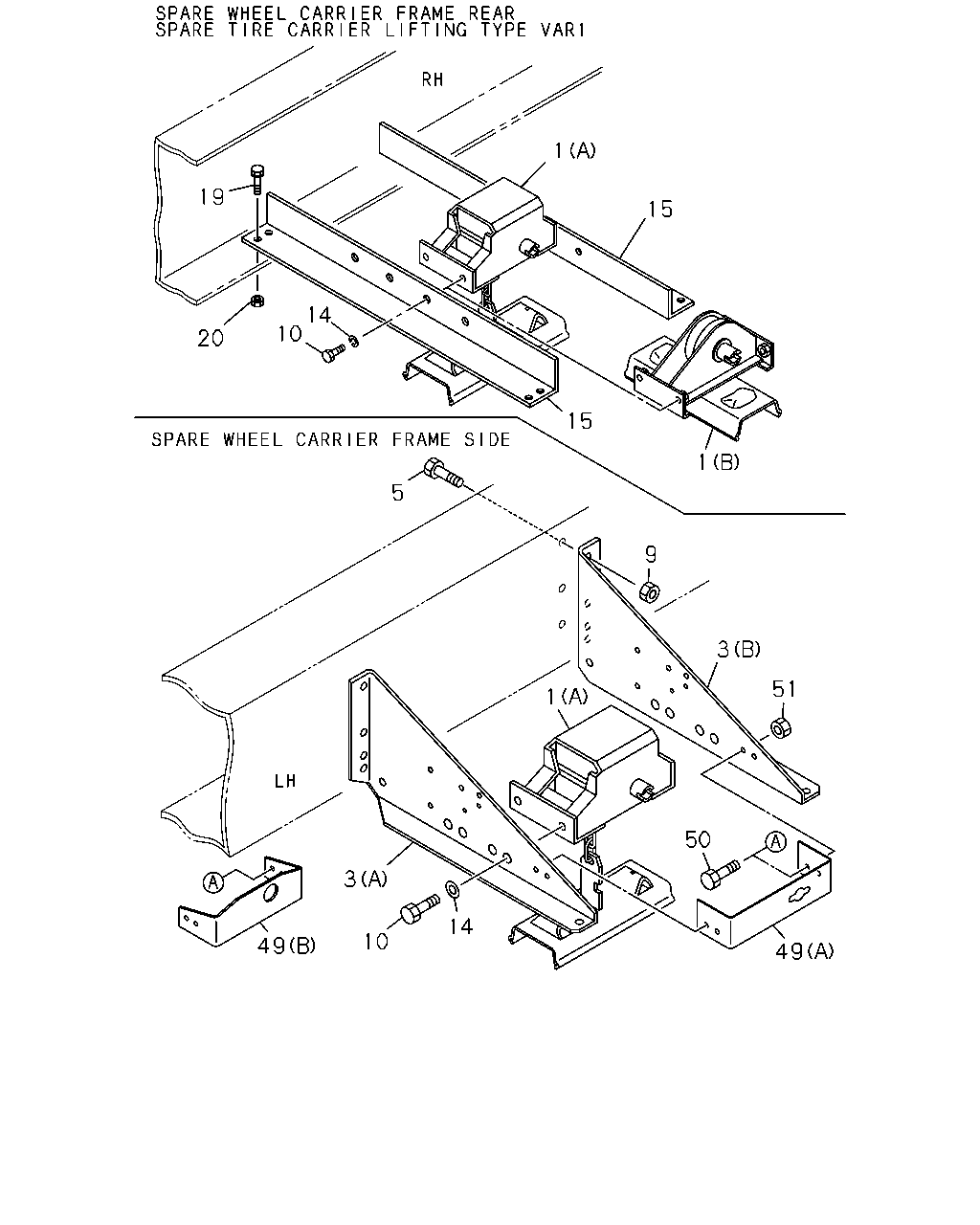

çizim 152884
1 19 15 14 10 20 15 1 5 9 3 51 1 50 3 14 10 49 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10> (A) 		1-53630-147-2 01 1 9604-9608 ● ● ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEELCARRIER FRAME SIDE<P13> (A) 		1-53630-147-2 01 1 9604-9608 ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10> (A) 		1-53630-147-2 01 1 9609-9705 ● ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEELCARRIER FRAME SIDE<P13> (A) 		1-53630-147-2 01 1 9609-9705 ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10> (B) 		1-53630-208-1 01 1 9706-9809 ● ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEELCARRIER FRAME SIDE<P13> (B) 		1-53630-208-1 01 1 9706-9809 ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEELCARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIF TING TYPE VAR1<SY8> (B) 		1-53630-208-1 01 1 9810-0004 ● ● ● ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEELCARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIF TING TYPE VAR1<SY8> (B) 		1-53630-208-3 01 1 0005- ● ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53631-180-2 01 1 9604-9705 ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53631-374-0 01 1 9706-0504 ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		8-98017-633-0 01 1 0505- ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		1-53631-181-3 01 1 9604-9705 ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		1-53631-375-0 01 1 9706-0504 ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		8-98017-634-0 01 1 0505- ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28081-235-0 06 1 9604-9606 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28681-235-0 06 1 9607-9705 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28681-235-0 04 1 9706-0512 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28651-235-0 04 1 0601- ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 06 1 9604-9606 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 FLANGE 		0-91150-212-0 06 1 9607-9705 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 FLANGE 		0-91150-212-0 04 1 9706-9710 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 04 1 9711-0512 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 04 1 0601- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M16X30 		0-20801-630-0 04 1 9604-9608 ● ● ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEELCARRIER FRAME SIDE<P13> M16X30 		0-20801-630-0 04 1 9604-9608 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M16X30 		0-20801-630-0 04 1 9609-9705 ● ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEELCARRIER FRAME SIDE<P13> M16X30 		0-20801-630-0 04 1 9609-9705 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M12X25 FLANGE 		0-28681-225-0 04 1 9706-9707 ● ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEELCARRIER FRAME SIDE<P13> M12X25 FLANGE 		0-28681-225-0 04 1 9706-9707 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE 		0-28681-230-0 04 1 9708-9809 ● ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEELCARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 04 1 9708-9809 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEELCARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIF TING TYPE VAR1<SY8> M12X30 FLANGE 		0-28681-230-0 04 1 9810-0004 ● ● ● ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEELCARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIF TING TYPE VAR1<SY8> M12X30 FLANGE 		0-28681-230-0 04 1 0005-0512 ● ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEELCARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIF TING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ● ●
14 WASHER; LK,TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> ID=16.2 		9-09150-516-0 04 1 9604-9608 ● ● ● ●
14 WASHER; LK,TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEELCARRIER FRAME SIDE<P13> ID=16.2 		9-09150-516-0 04 1 9604-9608 ●
14 WASHER; LK,TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> ID=16.2 		9-09150-516-0 04 1 9609-9710 ● ● ●
14 WASHER; LK,TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEELCARRIER FRAME SIDE<P13> ID=16.2 		9-09150-516-0 04 1 9609-9710 ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-201-0 02 1 9604-9705 ● ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-394-0 02 1 9706-0004 ● ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-394-0 02 1 0005- ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-209-2 02 1 9604-9608 ● ● ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-209-2 02 1 9609-9705 ● ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-373-0 02 1 9706-0004 ● ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-373-0 02 1 0005- ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE 		0-28681-025-0 08 1 9607-9608 ● ● ● ● ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE 		0-28681-025-0 08 1 9609-9611 ● ● ● ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X30 FLANGE 		0-28681-030-0 08 1 9612-9707 ● ● ● ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE 		0-28081-025-0 08 1 9708-0004 ● ● ● ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE 		0-28081-025-0 08 1 0005-0512 ● ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE 		0-28051-025-0 08 1 0601- ● ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 		9-09110-510-0 08 1 9604-9606 ● ● ● ● ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91150-210-0 08 1 9607-9608 ● ● ● ● ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91150-210-0 08 1 9609-0004 ● ● ● ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91150-210-0 08 1 0005-0602 ● ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91180-210-0 08 1 0603- ● ●
49 STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53631-278-1 01 1 9604-9705 ●
49 STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53631-376-0 01 1 9706-0410 ●
49 STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		1-53631-466-1 01 1 0411- ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X20 FLANGE 		0-28080-820-0 01 1 9604-9606 ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X20 FLANGE 		0-28680-820-0 01 1 9607-9705 ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X20 FLANGE 		0-28081-220-0 02 1 9706-9803 ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 02 1 9804-0410 ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE 		0-28680-830-0 04 1 0411-0512 ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE 		0-28650-830-0 04 1 0601- ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 		9-09110-408-0 04 1 9604-9606 ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE 		0-91150-108-0 04 1 9607-9705 ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 FLANGE 		0-91150-112-0 04 1 9706-9707 ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 FLANGE 		0-91150-212-0 02 1 9708-9710 ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 02 1 9711-0410 ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 		9-09110-508-0 04 1 0411-0512 ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 		0-91110-508-0 04 1 0601- ●
