5-20 — BATTERY CARRIER (#37230) — 63 parça

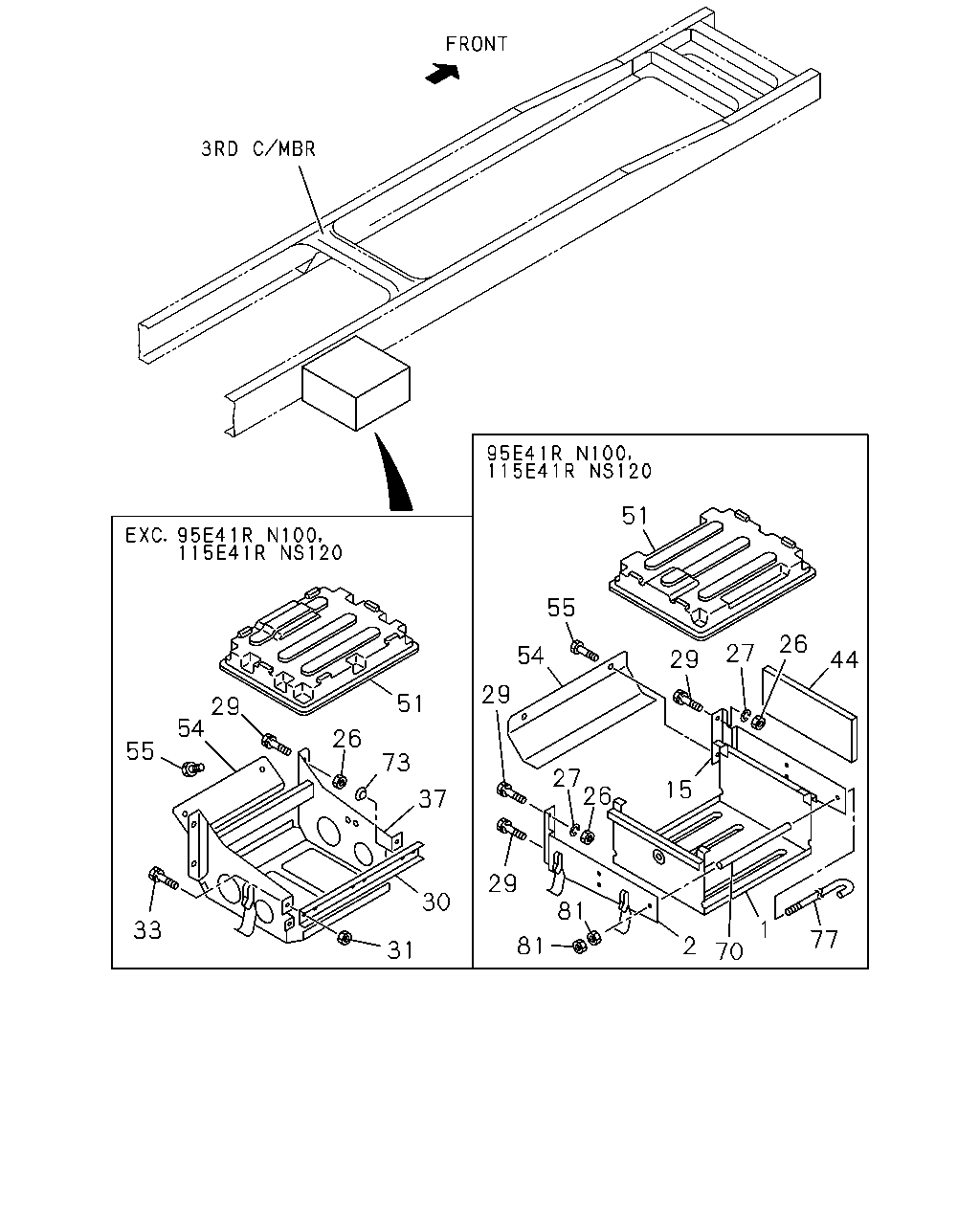

çizim 152893
51 55 26 27 54 29 44 29 51 29 54 26 55 73 27 26 15 37 29 30 81 1 33 77 81 2 31 70
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CARRIER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53613-398-1 01 1 9604- ● ● ●
2 BRACKET; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53613-339-3 01 1 9604- ● ● ●
15 BRACKET; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53613-340-3 01 1 9604- ● ● ●
26 NUT; BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14 		9-99110-414-0 04 1 9604-0512 ● ● ●
26 NUT; BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14 		0-91110-514-0 04 1 0601- ● ● ●
26 NUT; BRKT
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10 FLANGE 		0-91150-210-0 04 1 9607-9608 ● ● ●
26 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9607-9608 ● ●
26 NUT; BRKT
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10 		9-09110-510-0 04 1 9609-0004 ● ● ●
26 NUT; BRKT
M10 		9-09110-510-0 04 1 9609-0004 ● ●
26 NUT; BRKT
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10 		9-09110-510-0 04 1 0005-0512 ● ● ●
26 NUT; BRKT
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10 		0-91110-510-0 04 1 0601- ● ● ●
27 WASHER; LK,BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=14.2 		9-09150-514-0 04 1 9604-0603 ● ● ●
27 WASHER; LK,BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=14.2 		0-91510-514-0 04 1 0604- ● ● ●
29 BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14X35 		0-20801-435-0 04 1 9604-0512 ●
29 BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14X35 		0-20851-435-0 04 1 0601- ●
29 BOLT; BRKT TO FRAME
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X30 FLANGE 		0-28081-030-0 04 1 9604-9606 ● ● ●
29 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28081-030-0 04 1 9604-9606 ● ●
29 BOLT; BRKT TO FRAME
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X30 FLANGE 		0-28681-030-0 04 1 9607-9608 ● ● ●
29 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28681-030-0 04 1 9607-9608 ● ●
29 BOLT; BRKT TO FRAME
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X35 FLANGE 		0-28681-035-0 04 1 9609-0004 ● ● ●
29 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28681-035-0 04 1 9609-0004 ● ●
29 BOLT; BRKT TO FRAME
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X35 FLANGE 		0-28681-035-0 04 1 0005-0512 ● ● ●
29 BOLT; BRKT TO FRAME
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ● ●
29 BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14X40 		0-20801-440-0 04 1 9604-0512 ● ●
29 BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14X40 		0-20851-440-0 04 1 0601- ● ●
30 PLATE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53616-046-3 01 1 9604-0004 ● ● ●
30 PLATE; BATTERY 1-53616-046-3 01 1 9604-0004 ● ●
30 PLATE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53616-046-3 01 1 0005- ● ● ●
31 NUT; PLATE
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 FLANGE 		0-91150-108-0 02 1 9607-9608 ● ● ●
31 NUT; PLATE
M8 FLANGE 		0-91150-108-0 02 1 9607-9608 ● ●
31 NUT; PLATE
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		9-09110-408-0 02 1 9609-0004 ● ● ●
31 NUT; PLATE
M8 		9-09110-408-0 02 1 9609-0004 ● ●
31 NUT; PLATE
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		9-09110-408-0 02 1 0005-0512 ● ● ●
31 NUT; PLATE
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		0-91110-508-0 02 1 0601- ● ● ●
33 BOLT; PLATE TO BRKT
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X20 FLANGE 		0-28080-820-0 02 1 9604-9606 ● ● ●
33 BOLT; PLATE TO BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9604-9606 ● ●
33 BOLT; PLATE TO BRKT
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X20 FLANGE 		0-28680-820-0 02 1 9607-0004 ● ● ●
33 BOLT; PLATE TO BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9607-0004 ● ●
33 BOLT; PLATE TO BRKT
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ● ● ●
33 BOLT; PLATE TO BRKT
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
37 BRACKET; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53613-405-0 01 1 9604-0004 ● ● ●
37 BRACKET; BATTERY 1-53613-405-0 01 1 9604-0004 ● ●
37 BRACKET; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53613-405-0 01 1 0005- ● ● ●
44 SPACER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53619-006-0 02 1 9604- ● ● ●
51 COVER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53612-029-1 01 1 9604- ● ● ●
51 COVER; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53612-019-1 01 1 9604-0004 ● ● ●
51 COVER; BATTERY 1-53612-019-1 01 1 9604-0004 ● ●
51 COVER; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53612-019-1 01 1 0005- ● ● ●
54 PROTECTOR; HEAT,BATTERY 1-53619-083-2 01 1 9604-0004 ● ●
54 PROTECTOR; HEAT,BATTERY 1-53619-083-3 01 1 0005- ●
54 PROTECTOR; HEAT,BATTERY 1-53619-095-2 01 1 9604-0004 ● ● ●
54 PROTECTOR; HEAT,BATTERY 1-53619-095-3 01 1 0005- ● ●
55 BOLT; HEAT PROTECTOR
M8X16 FLANGE 		0-28280-816-0 04 1 9604-0004 ● ● ● ● ●
55 BOLT; HEAT PROTECTOR
M8X20 FLANGE 		0-28680-820-0 04 1 0005-0512 ● ● ●
55 BOLT; HEAT PROTECTOR
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ● ●
70 SPACER; BATTERY CARRIER
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53619-023-0 01 1 9609- ● ● ●
73 RUBBER; CUSHION,PLATE
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-09337-002-0 04 1 9604-0004 ● ● ●
73 RUBBER; CUSHION,PLATE 1-09337-002-0 04 1 9604-0004 ● ●
73 RUBBER; CUSHION,PLATE
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-09337-002-0 04 1 0005- ● ● ●
77 BOLT; BATTERY BRKT,FRT TO RR
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53616-101-0 02 1 9604- ● ● ●
81 NUT; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 FLANGE 		0-91150-108-0 04 1 9607-9710 ● ● ●
81 NUT; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		9-09110-408-0 04 1 9711-0512 ● ● ●
81 NUT; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		0-91110-508-0 04 1 0601- ● ● ●
