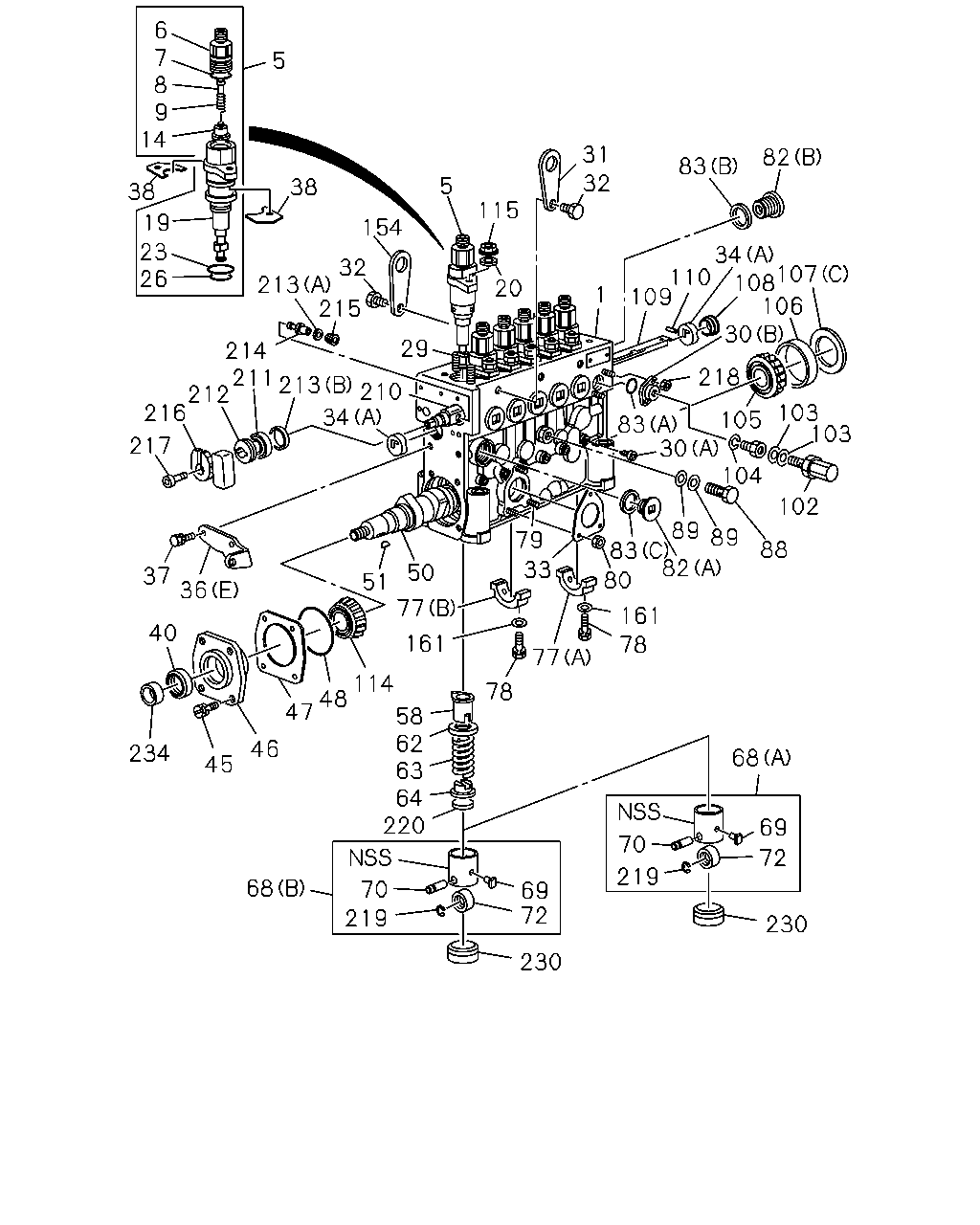

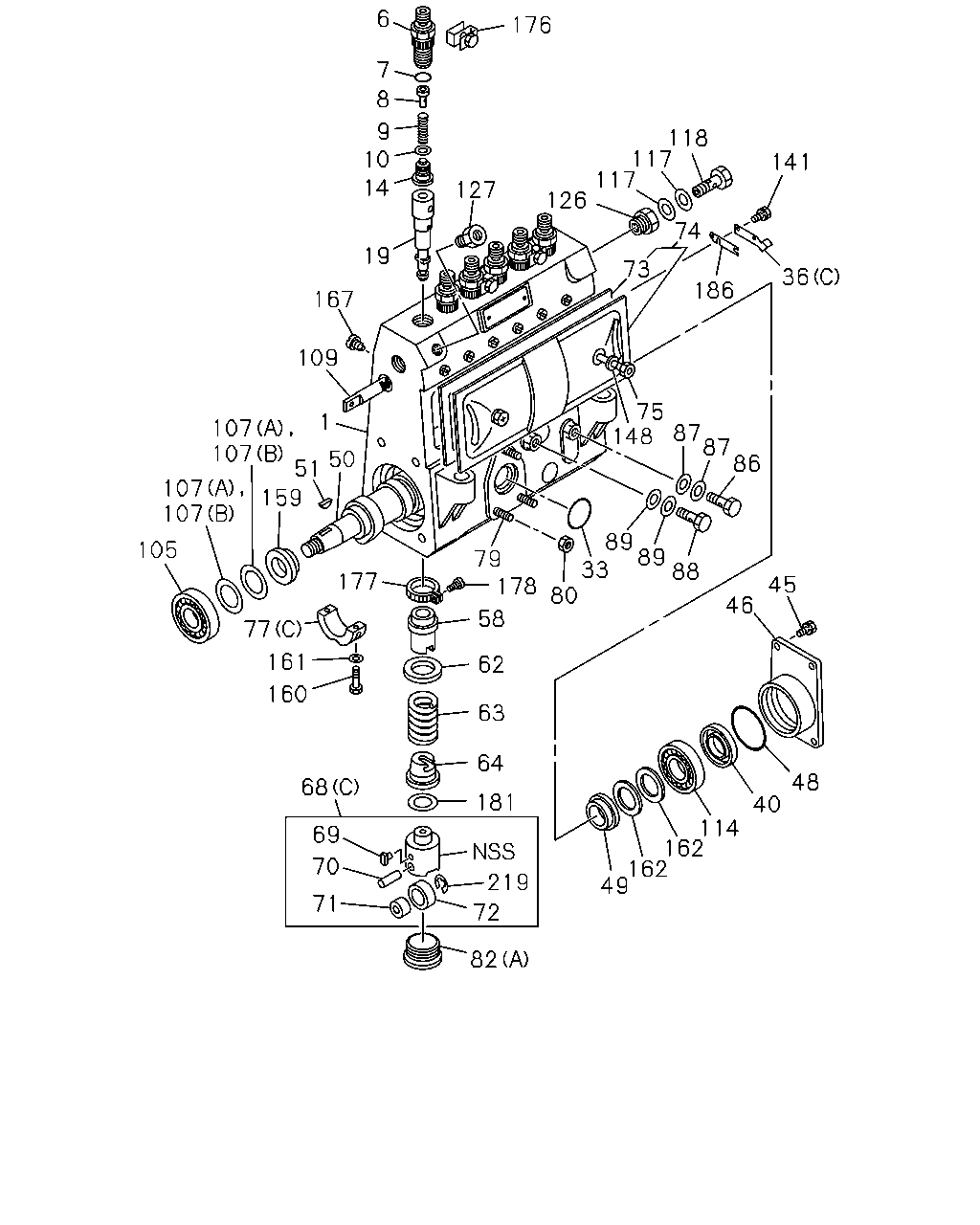

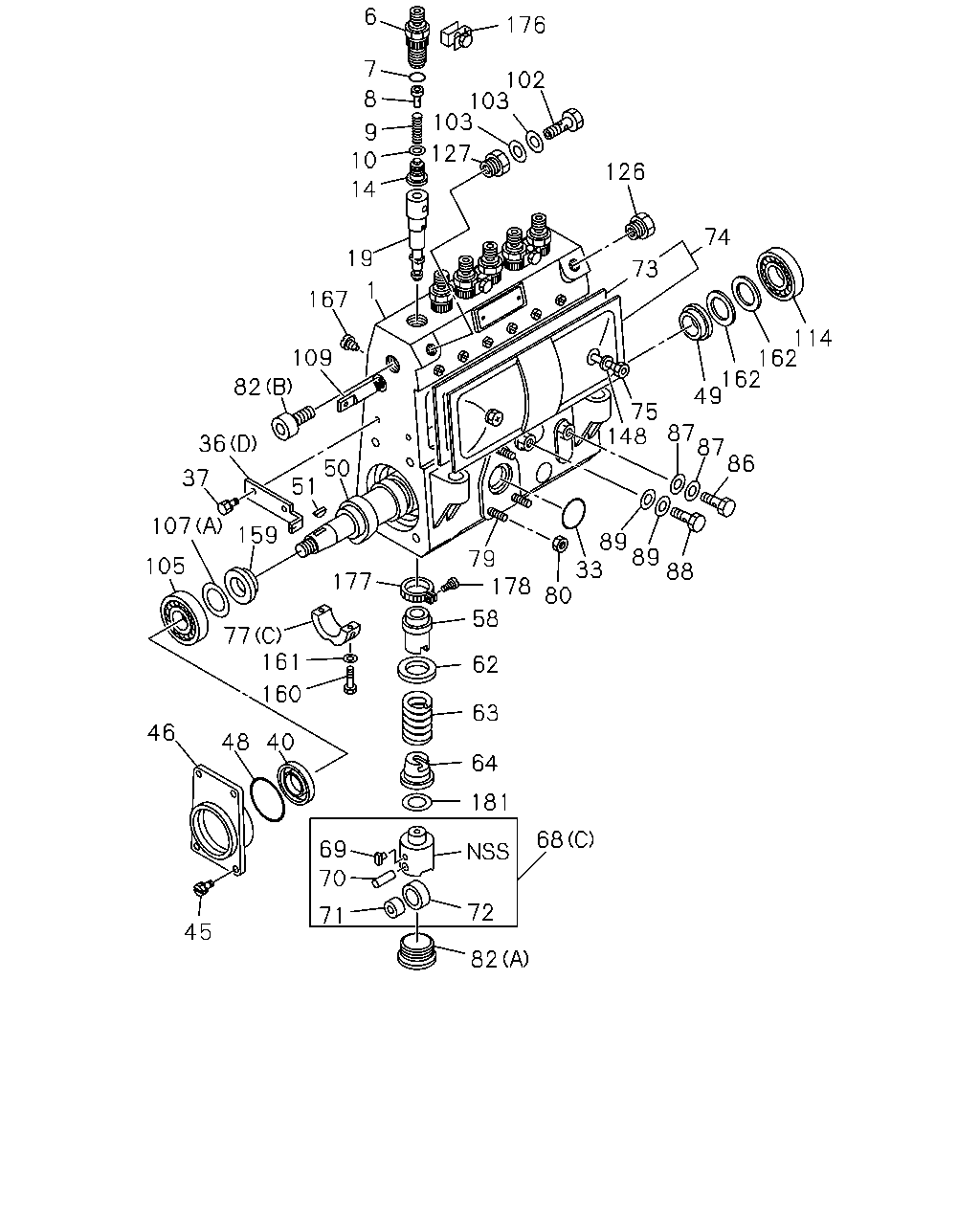

0-80B — INJECTION PUMP (#3723) — 646 parça

6 176 7 8 9 10 118 117 117 141 14 127 74 126 19 73 36 186 167 109 75 148 1 107 107 87 87 86 50 51 107 107 159 89 89 33 88 80 105 79 178 177 45 46 58 77 161 62 160 63 64 48 68 181 40 114 162 162 49 69 70 219 71 72 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15603-236-0	1-15611-068-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: F = 8-94392-708-1	1-15611-115-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: E = 8-94390-929-0	1-15611-173-1	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15611-181-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15611-193-0	01	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-236-0, E = 8-94390-929-0, F = 8-94392-708-1	1-15644-009-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15644-016-1	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-97084-986-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15629-095-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81235-046-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-104-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-236-0, E = 8-94390-929-0, F = 8-94392-708-1	1-15649-005-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-97084-987-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: E = 8-94390-929-0, F = 8-94392-708-1	1-15634-012-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15603-236-0	1-15643-003-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15643-010-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15643-130-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-236-0, E = 8-94390-929-0, F = 8-94392-708-1	1-15619-103-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	9-81245-018-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: E = 8-94390-929-0	1-15619-401-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15619-406-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-458-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: F = 8-94392-708-1	1-15641-020-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15603-236-0	1-15641-031-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15603-236-0	1-15631-043-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: F = 8-94392-708-1	1-15631-143-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: E = 8-94390-929-0	1-15632-022-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15632-030-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15632-050-0	06	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15603-236-0	1-09623-013-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-320-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15629-058-0	01	1	-
36	POINTER; TIMING,INJ PUMP (D) ASM PART: A = 1-15603-236-0	1-15619-188-0	01	1	-
36	POINTER; TIMING,INJ PUMP (C) ASM PART: E = 8-94390-929-0, F = 8-94392-708-1	1-15619-304-0	01	1	-
36	POINTER; TIMING,INJ PUMP (C) ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15619-402-0	01	1	-
36	POINTER; TIMING,INJ PUMP (E) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-408-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15629-100-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81225-071-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-338-0	04	1	-
45	BOLT; FRT COVER TO HSG M6X14 W/LK WASHER ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-01900-614-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15612-042-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15629-034-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15603-236-0	1-09623-053-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15629-059-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15629-101-0	01	1	-
49	RING; FRT BRG,CM/SHF ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15629-004-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15603-236-0	1-15621-059-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: F = 8-94392-708-1	1-15621-090-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: E = 8-94390-929-0	1-15621-105-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15621-109-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15621-119-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-09735-041-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-83539-024-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15635-003-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81231-523-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15634-017-1	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15639-022-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15634-007-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15634-019-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-125-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15603-236-0, E = 8-94390-929-0, F = 8-94392-708-1	1-15639-023-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15643-009-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15612-126-0	04	1	0109-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15612-127-0	02	1	0109-
68	TAPPET; CM/SHF,INJ PUMP (C) ASM PART: A = 1-15603-236-0, E = 8-94390-929-0, F = 8-94392-708-1	1-15622-006-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15622-009-0	02	1	-0108
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15622-010-0	04	1	-0108
68	TAPPET; CM/SHF,INJ PUMP (C) ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15622-011-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15629-018-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15629-063-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-313-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-123-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-236-0, E = 8-94390-929-0, F = 8-94392-708-1	9-81215-185-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-236-0, E = 8-94390-929-0, F = 8-94392-708-1	1-15619-162-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-122-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-312-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 1-15603-236-0, E = 8-94390-929-0, F = 8-94392-708-1	1-15629-010-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-121-0	06	1	-
73	GASKET; COVER TO HSG ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15729-960-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15612-050-0	01	1	-
75	SCREW; COVER TO HSG ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15619-003-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (C) ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	1-15619-237-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (C) ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15619-264-0	03	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (C) ASM PART: E = 8-94390-929-0	1-15619-264-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (A) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-396-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (B) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-397-0	02	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15603-236-0, B = 1-15603-294-4, C = 1-15603-366-5, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15603-236-0, B = 1-15603-294-4, C = 1-15603-366-5, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: A = 1-15603-236-0	1-15619-073-0	01	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15619-160-0	06	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-329-0	01	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	9-81215-129-0	01	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15619-091-0	01	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP L=96 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15729-066-0	02	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15603-236-0, B = 1-15603-294-4, C = 1-15603-366-5, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15603-236-0, B = 1-15603-294-4, C = 1-15603-366-5, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15719-093-0	02	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	1-15629-002-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP TOYO ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	1-15629-003-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NTN ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-09800-038-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	9-00090-677-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	9-81225-068-0	01	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.30 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	1-15629-007-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=1.00 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	1-15629-008-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.70 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	1-15629-105-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=2.40 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	1-15639-088-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (C), T=1.60 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-105-0	01	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.70 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-15619-039-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.10 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-15629-015-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.12 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-15629-016-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.14 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-15629-017-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.16 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-15629-018-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.18 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-15629-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.50 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-15629-020-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=1.00 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-15629-038-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=1.40 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-15629-090-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.30 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	9-81225-033-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.10 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	9-81225-049-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.12 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	9-81225-050-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.14 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	9-81225-051-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.16 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	9-81225-052-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.18 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	9-81225-053-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.50 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	9-81225-054-0	AR	1	-
109	RACK; CONT,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15637-040-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15637-003-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP NSK ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15629-002-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP TOYO ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15629-003-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15629-099-0	01	1	-
117	GASKET; EYE BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-09630-085-0	02	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	5-15729-099-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15759-011-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	9-81215-148-0	01	1	-
126	ADAPTER; EYE BOLT,PUMP HSG ASM PART: A = 1-15603-236-0	1-15619-262-0	01	1	-
126	ADAPTER; EYE BOLT,PUMP HSG ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81235-017-0	01	1	-
127	ADAPTER; FUEL PIPE ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15619-190-0	01	1	-
141	BOLT; POINTER ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15729-758-0	02	1	-
148	GASKET; COVER FIX BOLT ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81215-144-0	02	1	-
159	RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	1-15629-004-0	01	1	-
159	RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	9-81225-059-0	01	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: A = 1-15603-236-0, E = 8-94390-929-0, F = 8-94392-708-1	1-15629-017-0	02	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-017-0	06	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	5-15729-099-0	06	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: A = 1-15603-236-0, E = 8-94390-929-0, F = 8-94392-708-1	9-81225-043-0	02	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	9-81225-043-0	06	1	-
162	SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15629-007-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15629-008-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.70 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	1-15629-105-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81225-049-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81225-050-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81225-051-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81225-052-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81225-053-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81225-054-0	AR	1	-
167	BOLT; CONT RACK,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15639-003-0	01	1	-
176	PLATE; LK,DELIVERY VLV HOLDER ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15649-034-0	03	1	-
176	PLATE; LK,DELIVERY VLV HOLDER ASM PART: A = 1-15603-236-0, E = 8-94390-929-0, F = 8-94392-708-1	5-15625-001-0	03	1	-
177	PINION; CONT SLEEVE,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81225-057-0	06	1	-
178	SCREW; PINION,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81235-003-0	06	1	-
181	SHIM; TAPPET,INJ PUMP T=0.60 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-001-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.70 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-002-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.80 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-003-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.90 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-004-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.00 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-005-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.10 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-007-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.20 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-008-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.30 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-009-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.40 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-010-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.55 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-011-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.65 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-012-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.75 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-013-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.85 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-015-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.20 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-025-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.25 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-026-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.35 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-027-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.30 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-034-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.40 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-035-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.50 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-036-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.45 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-037-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.50 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-106-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.60 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-107-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.35 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-108-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.45 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-109-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.55 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-110-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.95 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81235-042-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.05 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81235-043-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.15 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81235-044-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.25 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81235-045-0	AR	1	-
186	SHIM; POINTER T=0.20 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15639-093-0	AR	1	-
186	SHIM; POINTER T=0.30 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15639-094-0	AR	1	-
186	SHIM; POINTER T=0.50 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15639-095-0	AR	1	-
186	SHIM; POINTER T=1.00 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15639-096-0	AR	1	-
219	RING; SNAP,ROLLER ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-314-0	06	1	-
219	RING; SNAP,ROLLER ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-124-0	06	1	-

6 7 8 9 14 5 31 82 83 32 5 38 38 115 19 154 23 26 34 110 107 108 109 106 30 32 213 215 20 1 29 214 211 213 212 210 216 34 218 103 103 83 30 105 217 104 102 89 83 82 89 79 88 33 50 37 36 80 51 77 161 40 161 78 77 114 48 47 78 58 62 63 64 220 46 234 68 45 69 70 72 219 68 70 69 72 219 230 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15603-236-0	1-15611-068-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: F = 8-94392-708-1	1-15611-115-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: E = 8-94390-929-0	1-15611-173-1	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15611-181-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15611-193-0	01	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15631-213-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-236-0, E = 8-94390-929-0, F = 8-94392-708-1	1-15644-009-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15644-016-1	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-97084-986-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15629-095-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81235-046-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-104-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-236-0, E = 8-94390-929-0, F = 8-94392-708-1	1-15649-005-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-97084-987-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: E = 8-94390-929-0, F = 8-94392-708-1	1-15634-012-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15603-236-0	1-15643-003-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15643-010-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15643-130-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: E = 8-94390-929-0	1-15619-401-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15619-406-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-458-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: F = 8-94392-708-1	1-15641-020-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15603-236-0	1-15641-031-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15603-236-0	1-15631-043-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: F = 8-94392-708-1	1-15631-143-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: E = 8-94390-929-0	1-15632-022-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15632-030-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15632-050-0	06	1	-
20	WASHER; PLUNGER BARREL ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-020-0	12	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15629-096-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15629-097-0	06	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-328-0	12	1	-
30	PLUG; SCREW,INJ PUMP HSG (B) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-345-0	01	1	-
30	PLUG; SCREW,INJ PUMP HSG (A) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	9-81215-130-0	06	1	-
31	HANGER; FRT,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-347-0	01	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15789-098-0	02	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15603-236-0	1-09623-013-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-320-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15629-058-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (A) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	9-81215-123-0	02	1	-
36	POINTER; TIMING,INJ PUMP (D) ASM PART: A = 1-15603-236-0	1-15619-188-0	01	1	-
36	POINTER; TIMING,INJ PUMP (C) ASM PART: E = 8-94390-929-0, F = 8-94392-708-1	1-15619-304-0	01	1	-
36	POINTER; TIMING,INJ PUMP (C) ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15619-402-0	01	1	-
36	POINTER; TIMING,INJ PUMP (E) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-408-0	01	1	-
37	BOLT; POINTER FIX,INJ PUMP ASM PART: A = 1-15603-236-0	1-15619-034-0	02	1	-
37	BOLT; POINTER FIX,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	5-15729-063-0	02	1	-0108
37	BOLT; POINTER FIX,INJ PUMP M6X16 W/LK WASHER ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	9-01900-616-0	02	1	0109-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.500 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-024-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.525 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-025-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.550 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-026-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.575 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-027-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.600 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-028-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.625 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-029-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.650 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-030-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.675 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-031-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.700 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-032-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.725 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-033-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.750 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-034-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.775 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-035-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.800 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-036-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.825 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-037-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.850 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-038-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.875 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-039-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.900 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-040-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.925 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-041-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.950 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-042-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.975 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-043-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.000 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-044-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.025 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-045-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.050 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-046-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.075 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-047-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.100 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-048-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.125 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-049-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.150 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-050-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.175 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-051-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.200 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-052-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.225 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-053-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.250 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-054-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.275 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-055-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.300 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-056-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.325 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-057-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.350 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-058-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.375 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-059-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.400 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-060-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.425 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-061-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.450 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-062-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.475 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-063-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.500 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-064-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.525 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-065-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.550 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-066-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.575 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-067-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.600 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-068-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.625 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-069-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.650 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-070-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.675 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-071-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.700 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-072-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.725 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-073-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.750 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-074-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.775 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-075-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.800 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-076-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.825 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-077-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.850 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-078-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.875 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-079-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.900 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-080-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.925 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-081-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.950 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-082-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.975 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-083-0	AR	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15629-100-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81225-071-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-338-0	04	1	-
45	BOLT; FRT COVER TO HSG M6X14 W/LK WASHER ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-01900-614-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15612-042-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15629-034-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-097-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-098-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-099-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-100-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-101-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-102-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-103-0	AR	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15603-236-0	1-09623-053-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15629-059-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15629-101-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15603-236-0	1-15621-059-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: F = 8-94392-708-1	1-15621-090-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: E = 8-94390-929-0	1-15621-105-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15621-109-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15621-119-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-09735-041-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-83539-024-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15635-003-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81231-523-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15634-017-1	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15639-022-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15634-007-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15634-019-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-125-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15603-236-0, E = 8-94390-929-0, F = 8-94392-708-1	1-15639-023-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15643-009-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15612-126-0	04	1	0109-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15612-127-0	02	1	0109-
68	TAPPET; CM/SHF,INJ PUMP (C) ASM PART: A = 1-15603-236-0, E = 8-94390-929-0, F = 8-94392-708-1	1-15622-006-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15622-009-0	02	1	-0108
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15622-010-0	04	1	-0108
68	TAPPET; CM/SHF,INJ PUMP (C) ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15622-011-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15629-018-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15629-063-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-313-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-123-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-236-0, E = 8-94390-929-0, F = 8-94392-708-1	9-81215-185-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-312-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 1-15603-236-0, E = 8-94390-929-0, F = 8-94392-708-1	1-15629-010-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-121-0	06	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (C) ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	1-15619-237-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (C) ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15619-264-0	03	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (C) ASM PART: E = 8-94390-929-0	1-15619-264-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (A) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-396-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (B) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-397-0	02	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-09054-022-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: B = 1-15603-294-4	1-09054-022-0	04	1	0109-0111
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15603-236-0, B = 1-15603-294-4, C = 1-15603-366-5, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15603-236-0, B = 1-15603-294-4, C = 1-15603-366-5, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: A = 1-15603-236-0	1-15619-073-0	01	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15619-160-0	06	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-329-0	01	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	9-81215-129-0	01	1	-
83	GASKET; HSG PLUG (C) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-067-0	01	1	-
83	GASKET; HSG PLUG (A) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15629-102-0	01	1	-
83	GASKET; HSG PLUG (B) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	5-15729-022-0	01	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15603-236-0, B = 1-15603-294-4, C = 1-15603-366-5, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15603-236-0, B = 1-15603-294-4, C = 1-15603-366-5, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15719-093-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15719-346-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15603-236-0	1-15759-011-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-09630-085-0	02	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 1-15603-236-0	1-15759-012-0	02	1	-
104	GASKET; OVERFLOW VLV ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15729-850-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	1-15629-002-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP TOYO ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	1-15629-003-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NTN ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-09800-038-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	9-00090-677-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	9-81225-064-0	01	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.30 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	1-15629-007-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=1.00 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	1-15629-008-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.70 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	1-15629-105-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=2.40 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	1-15639-088-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (C), T=1.60 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-105-0	01	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.70 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-15619-039-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.10 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-15629-015-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.12 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-15629-016-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.14 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-15629-017-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.16 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-15629-018-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.18 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-15629-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.50 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-15629-020-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=1.00 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-15629-038-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=1.40 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-15629-090-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.30 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	9-81225-033-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.10 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	9-81225-049-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.12 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	9-81225-050-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.14 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	9-81225-051-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.16 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	9-81225-052-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.18 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	9-81225-053-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.50 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	9-81225-054-0	AR	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15637-040-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15637-003-0	01	1	-
110	PIN; CONT RACK,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	9-88410-440-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP NSK ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15629-002-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP TOYO ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15629-003-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15629-099-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-337-0	12	1	-
154	HANGER; RR,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-347-0	01	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	5-15729-099-0	06	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: A = 1-15603-236-0, E = 8-94390-929-0, F = 8-94392-708-1	9-81225-043-0	02	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	9-81225-043-0	06	1	-
210	ROD; CONT ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15637-019-0	01	1	-
211	BEARING; CONT ROD ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15629-098-0	01	1	-
212	BUSHING; CONT ROD ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-330-0	01	1	-
213	WASHER; CONT ROD (A) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-331-0	06	1	-
213	WASHER; CONT ROD (B) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-336-0	01	1	-
214	PIN; CONT ROD ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-332-0	06	1	-
215	SCREW; CONT ROD ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-333-0	06	1	-
216	CONNECTOR; CONT ROD ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-334-0	01	1	-
217	BOLT; CONT ROD ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-335-0	01	1	-
218	NUT; PLUG ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-344-0	02	1	-
219	RING; SNAP,ROLLER ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-314-0	06	1	-
219	RING; SNAP,ROLLER ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-124-0	06	1	-
220	SEAT; TAPPET ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-311-0	06	1	-
230	PLUG; TAPPET ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-388-0	06	1	-
234	SLEEVE; FRT COVER ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15635-004-0	01	1	-

6 176 7 102 103 103 8 127 9 10 126 14 74 19 73 1 167 114 162 162 49 109 82 75 148 87 87 86 36 50 37 51 107 159 89 89 33 88 80 79 178 105 177 58 77 161 62 160 63 46 48 40 64 181 68 69 70 72 71 45 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15603-236-0	1-15611-068-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: F = 8-94392-708-1	1-15611-115-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: E = 8-94390-929-0	1-15611-173-1	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15611-181-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15611-193-0	01	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-236-0, E = 8-94390-929-0, F = 8-94392-708-1	1-15644-009-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15644-016-1	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-97084-986-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15629-095-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81235-046-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-104-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-236-0, E = 8-94390-929-0, F = 8-94392-708-1	1-15649-005-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	8-97084-987-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: E = 8-94390-929-0, F = 8-94392-708-1	1-15634-012-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15603-236-0	1-15643-003-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15643-010-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15643-130-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-236-0, E = 8-94390-929-0, F = 8-94392-708-1	1-15619-103-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	9-81245-018-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: E = 8-94390-929-0	1-15619-401-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15619-406-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-458-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: F = 8-94392-708-1	1-15641-020-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15603-236-0	1-15641-031-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15603-236-0	1-15631-043-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: F = 8-94392-708-1	1-15631-143-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: E = 8-94390-929-0	1-15632-022-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15632-030-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15632-050-0	06	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15603-236-0	1-09623-013-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-320-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15629-058-0	01	1	-
36	POINTER; TIMING,INJ PUMP (D) ASM PART: A = 1-15603-236-0	1-15619-188-0	01	1	-
36	POINTER; TIMING,INJ PUMP (C) ASM PART: E = 8-94390-929-0, F = 8-94392-708-1	1-15619-304-0	01	1	-
36	POINTER; TIMING,INJ PUMP (C) ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15619-402-0	01	1	-
36	POINTER; TIMING,INJ PUMP (E) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-408-0	01	1	-
37	BOLT; POINTER FIX,INJ PUMP ASM PART: A = 1-15603-236-0	1-15619-034-0	02	1	-
37	BOLT; POINTER FIX,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	5-15729-063-0	02	1	-0108
37	BOLT; POINTER FIX,INJ PUMP M6X16 W/LK WASHER ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	9-01900-616-0	02	1	0109-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15629-100-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81225-071-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-338-0	04	1	-
45	BOLT; FRT COVER TO HSG M6X14 W/LK WASHER ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-01900-614-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15612-042-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15629-034-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15603-236-0	1-09623-053-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15629-059-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15629-101-0	01	1	-
49	RING; FRT BRG,CM/SHF ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15629-004-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15603-236-0	1-15621-059-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: F = 8-94392-708-1	1-15621-090-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: E = 8-94390-929-0	1-15621-105-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15621-109-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15621-119-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-09735-041-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-83539-024-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15635-003-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81231-523-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15634-017-1	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15639-022-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15634-007-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15634-019-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-125-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15603-236-0, E = 8-94390-929-0, F = 8-94392-708-1	1-15639-023-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15643-009-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15612-126-0	04	1	0109-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15612-127-0	02	1	0109-
68	TAPPET; CM/SHF,INJ PUMP (C) ASM PART: A = 1-15603-236-0, E = 8-94390-929-0, F = 8-94392-708-1	1-15622-006-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15622-009-0	02	1	-0108
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15622-010-0	04	1	-0108
68	TAPPET; CM/SHF,INJ PUMP (C) ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15622-011-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15629-018-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15629-063-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-313-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-123-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-236-0, E = 8-94390-929-0, F = 8-94392-708-1	9-81215-185-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-236-0, E = 8-94390-929-0, F = 8-94392-708-1	1-15619-162-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-122-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-312-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 1-15603-236-0, E = 8-94390-929-0, F = 8-94392-708-1	1-15629-010-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-121-0	06	1	-
73	GASKET; COVER TO HSG ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15729-960-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15612-050-0	01	1	-
75	SCREW; COVER TO HSG ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15619-003-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (C) ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	1-15619-237-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (C) ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15619-264-0	03	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (C) ASM PART: E = 8-94390-929-0	1-15619-264-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (A) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-396-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (B) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-397-0	02	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15603-236-0, B = 1-15603-294-4, C = 1-15603-366-5, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15603-236-0, B = 1-15603-294-4, C = 1-15603-366-5, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: A = 1-15603-236-0	1-15619-073-0	01	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15619-160-0	06	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-329-0	01	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	9-81215-129-0	01	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15619-091-0	01	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP L=96 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15729-066-0	02	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15603-236-0, B = 1-15603-294-4, C = 1-15603-366-5, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15603-236-0, B = 1-15603-294-4, C = 1-15603-366-5, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15719-093-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15719-346-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15603-236-0	1-15759-011-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-09630-085-0	02	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 1-15603-236-0	1-15759-012-0	02	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	1-15629-002-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP TOYO ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	1-15629-003-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NTN ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-09800-038-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	9-00090-677-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	9-81225-068-0	01	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.30 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	1-15629-007-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=1.00 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	1-15629-008-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.70 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	1-15629-105-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=2.40 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	1-15639-088-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (C), T=1.60 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15639-105-0	01	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.70 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-15619-039-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.10 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-15629-015-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.12 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-15629-016-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.14 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-15629-017-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.16 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-15629-018-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.18 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-15629-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.50 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-15629-020-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=1.00 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-15629-038-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=1.40 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	5-15629-090-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (A), T=0.30 ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	9-81225-033-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.10 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	9-81225-049-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.12 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	9-81225-050-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.14 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	9-81225-051-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.16 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	9-81225-052-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.18 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	9-81225-053-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF (B), T=0.50 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	9-81225-054-0	AR	1	-
109	RACK; CONT,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15637-040-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15637-003-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP NSK ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15629-002-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP TOYO ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15629-003-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15629-099-0	01	1	-
126	ADAPTER; EYE BOLT,PUMP HSG ASM PART: A = 1-15603-236-0	1-15619-262-0	01	1	-
126	ADAPTER; EYE BOLT,PUMP HSG ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81235-017-0	01	1	-
127	ADAPTER; FUEL PIPE ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15619-190-0	01	1	-
148	GASKET; COVER FIX BOLT ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81215-144-0	02	1	-
159	RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	1-15629-004-0	01	1	-
159	RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: A = 1-15603-236-0, F = 8-94392-708-1	9-81225-059-0	01	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: A = 1-15603-236-0, E = 8-94390-929-0, F = 8-94392-708-1	1-15629-017-0	02	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15629-017-0	06	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	5-15729-099-0	06	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: A = 1-15603-236-0, E = 8-94390-929-0, F = 8-94392-708-1	9-81225-043-0	02	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	9-81225-043-0	06	1	-
162	SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15629-007-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15629-008-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.70 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, G = 8-97600-180-0	1-15629-105-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81225-049-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81225-050-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81225-051-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81225-052-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81225-053-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81225-054-0	AR	1	-
167	BOLT; CONT RACK,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15639-003-0	01	1	-
176	PLATE; LK,DELIVERY VLV HOLDER ASM PART: D = 8-94390-081-1, G = 8-97600-180-0	1-15649-034-0	03	1	-
176	PLATE; LK,DELIVERY VLV HOLDER ASM PART: A = 1-15603-236-0, E = 8-94390-929-0, F = 8-94392-708-1	5-15625-001-0	03	1	-
177	PINION; CONT SLEEVE,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81225-057-0	06	1	-
178	SCREW; PINION,INJ PUMP ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81235-003-0	06	1	-
181	SHIM; TAPPET,INJ PUMP T=0.60 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-001-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.70 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-002-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.80 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-003-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.90 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-004-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.00 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-005-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.10 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-007-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.20 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-008-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.30 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-009-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.40 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-010-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.55 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-011-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.65 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-012-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.75 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-013-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.85 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-015-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.20 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-025-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.25 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-026-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.35 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-027-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.30 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-034-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.40 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-035-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.50 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-036-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.45 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-037-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.50 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-106-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.60 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-107-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.35 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-108-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.45 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-109-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.55 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	5-15619-110-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.95 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81235-042-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.05 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81235-043-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.15 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81235-044-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.25 ASM PART: A = 1-15603-236-0, D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	9-81235-045-0	AR	1	-

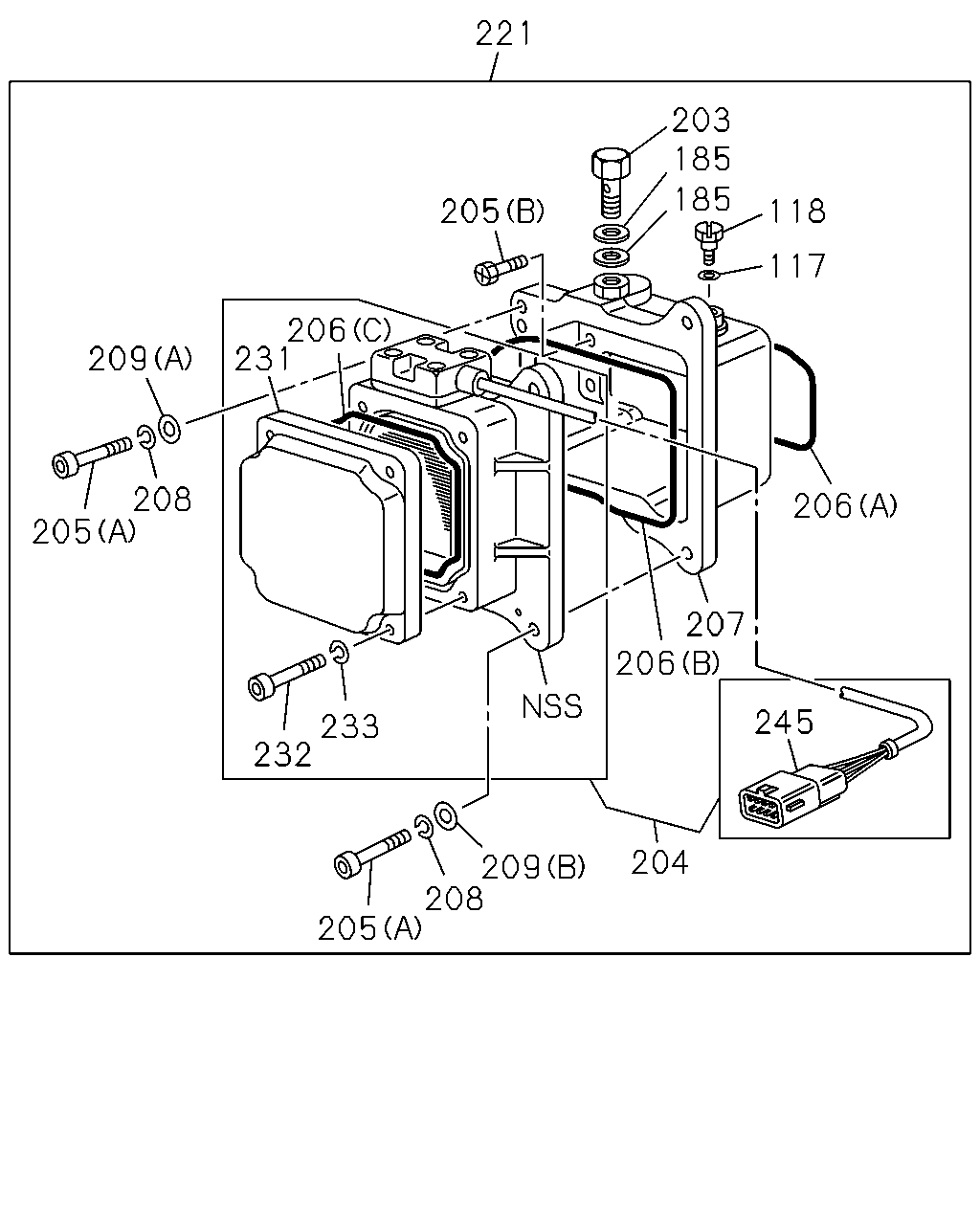

221 203 185 185 205 118 117 206 231 209 208 206 205 207 206 245 233 232 204 209 208 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
117	GASKET; EYE BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-09630-085-0	02	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	5-15729-099-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: D = 8-94390-081-1, E = 8-94390-929-0, F = 8-94392-708-1, G = 8-97600-180-0	1-15759-011-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	9-81215-148-0	01	1	-
185	GASKET; PLUG ID=14.2 OD=19.2 ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-09630-085-0	02	1	-
203	BOLT; FUEL INL ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15759-011-0	01	1	-
204	ACTUATOR; INJ PUMP ASM PART: B = 1-15603-294-4	1-15612-065-2	01	1	-0409
204	ACTUATOR; INJ PUMP ASM PART: C = 1-15603-366-5	1-15612-065-2	01	1	-0108
204	ACTUATOR; INJ PUMP ASM PART: B = 1-15603-294-4	1-15612-145-0	01	1	0410-
204	ACTUATOR; INJ PUMP ASM PART: C = 1-15603-366-5	1-15612-145-0	01	1	0109-
205	BOLT; ACTUATOR (A) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-09054-032-0	04	1	-
205	BOLT; ACTUATOR (B) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-348-0	06	1	-
206	GASKET; ACTUATOR (A) ASM PART: C = 1-15603-366-5	1-15629-145-0	01	1	-0108
206	GASKET; ACTUATOR (A) ASM PART: B = 1-15603-294-4	1-15629-145-0	01	1	-0409
206	GASKET; ACTUATOR (B) ASM PART: B = 1-15603-294-4	1-15629-146-0	01	1	-0409
206	GASKET; ACTUATOR (B) ASM PART: C = 1-15603-366-5	1-15629-146-0	01	1	-0108
206	GASKET; ACTUATOR (C) ASM PART: C = 1-15603-366-5	1-15629-147-0	01	1	-0108
206	GASKET; ACTUATOR (C) ASM PART: B = 1-15603-294-4	1-15629-147-0	01	1	-0409
206	GASKET; ACTUATOR (A) ASM PART: C = 1-15603-366-5	1-15629-154-0	01	1	0109-
206	GASKET; ACTUATOR (A) ASM PART: B = 1-15603-294-4	1-15629-154-0	01	1	0410-
206	GASKET; ACTUATOR (B) ASM PART: C = 1-15603-366-5	1-15629-155-0	01	1	0109-
206	GASKET; ACTUATOR (B) ASM PART: B = 1-15603-294-4	1-15629-155-0	01	1	0410-
206	GASKET; ACTUATOR (C) ASM PART: C = 1-15603-366-5	1-15629-156-0	01	1	0109-
206	GASKET; ACTUATOR (C) ASM PART: B = 1-15603-294-4	1-15629-156-0	01	1	0410-
207	HOUSING; ACTUATOR ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15611-177-1	01	1	-
208	WASHER; LK,ACTUATOR ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	8-94128-928-0	04	1	-
209	WASHER; PL,ACTUATOR (A) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-351-0	01	1	-
209	WASHER; PL,ACTUATOR (B) ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-352-0	03	1	-
221	ACTUATOR ASM; INJ PUMP ASM PART: C = 1-15603-366-5	1-15612-066-1	01	1	-0108
221	ACTUATOR ASM; INJ PUMP ASM PART: B = 1-15603-294-4	1-15612-066-1	01	1	-0409
221	ACTUATOR ASM; INJ PUMP ASM PART: B = 1-15603-294-4	1-15612-144-0	01	1	0410-
221	ACTUATOR ASM; INJ PUMP ASM PART: C = 1-15603-366-5	1-15612-144-0	01	1	0109-
231	COVER; ACTUATOR ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-378-0	01	1	-
232	BOLT; ACTUATOR COVER ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-09054-032-0	04	1	-
233	WASHER; ACTUATOR COVER ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	8-94128-928-0	04	1	-
245	HOUSING; SOCKET,INJ PUMP ASM PART: B = 1-15603-294-4, C = 1-15603-366-5	1-15619-416-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
