◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10716 - FSS/FTS-RHD ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#37226) — 694 parça

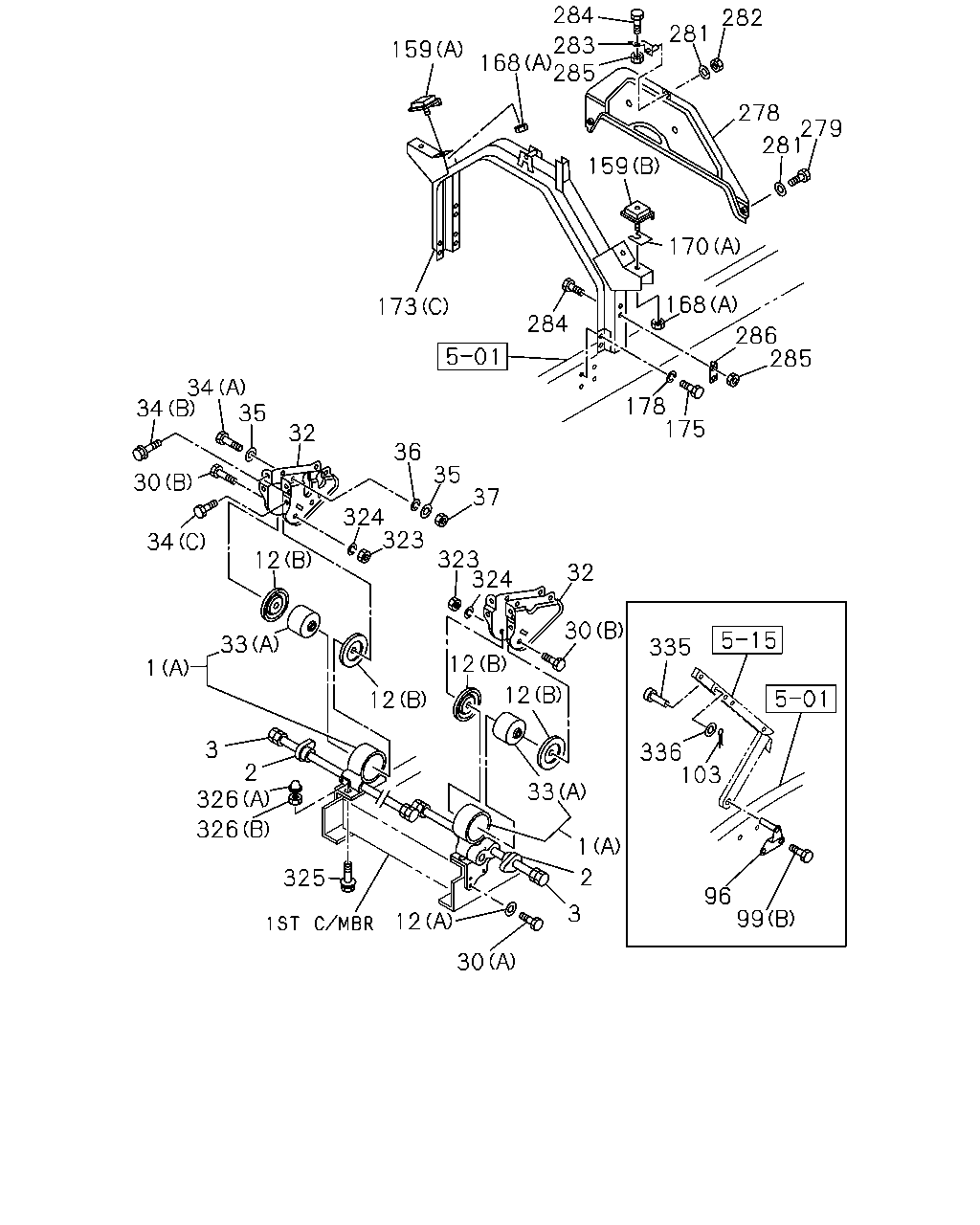

çizim 152858
284 282 281 283 285 159 168 278 279 281 159 170 168 173 284 286 285 34 34 35 178 175 32 36 35 30 37 324 323 34 323 324 12 12 32 30 33 335 1 12 12 3 336 103 2 326 33 326 1 325 2 96 99 3 12 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5) CAB UP +50MM<W60> (A) 		1-53453-339-0 01 1 0406- ●
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5) CAB UP +50MM<W60> (A) 		1-53453-340-0 01 1 0406- ●
1 BRACKET; CAB MTG
(A) 		1-53453-277-0 01 1 9604-0004 ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-277-0 01 1 0005- ●
1 BRACKET; CAB MTG
(A) 		1-53453-276-0 01 1 9604-0004 ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-276-0 01 1 0005- ●
1 BRACKET; CAB MTG
(B) 		1-53454-557-3 02 1 9604-9908 ●
1 BRACKET; CAB MTG
(B) 		1-53454-841-0 02 1 9909-0004 ●
1 BRACKET; CAB MTG
(A) 		1-53453-291-0 01 1 9604-9606 ●
1 BRACKET; CAB MTG
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53453-291-0 01 1 9604-9606 ●
1 BRACKET; CAB MTG
(A) 		1-53453-289-0 01 1 9607-0004 ●
1 BRACKET; CAB MTG
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53453-289-0 01 1 9607-0004 ●
1 BRACKET; CAB MTG
(A) 		1-53453-289-0 01 1 0005- ●
1 BRACKET; CAB MTG
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-53453-289-0 01 1 0005- ●
1 BRACKET; CAB MTG
(A) 		1-53453-290-0 01 1 9604-9606 ●
1 BRACKET; CAB MTG
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53453-290-0 01 1 9604-9606 ●
1 BRACKET; CAB MTG
(A) 		1-53453-288-0 01 1 9607-0004 ●
1 BRACKET; CAB MTG
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53453-288-0 01 1 9607-0004 ●
1 BRACKET; CAB MTG
(A) 		1-53453-288-0 01 1 0005- ●
1 BRACKET; CAB MTG
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-53453-288-0 01 1 0005- ●
1 BRACKET; CAB MTG
(B) 		1-53454-648-1 02 1 9804- ● ●
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53453-267-0 01 1 9604-0004 ●
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-53453-267-0 01 1 0005-0405 ●
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5) EXC. CAB UP +50MM<W60> (A) 		1-53453-267-0 01 1 0406- ●
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53453-268-0 01 1 9604-0004 ●
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-53453-268-0 01 1 0005-0405 ●
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5) EXC. CAB UP +50MM<W60> (A) 		1-53453-268-0 01 1 0406- ●
1 BRACKET; CAB MTG
(B) 		1-53454-635-1 02 1 9604-0004 ●
1 BRACKET; CAB MTG
(A) 		1-53453-279-0 01 1 9604-0004 ●
1 BRACKET; CAB MTG
(A) 		1-53453-278-0 01 1 9604-0004 ●
2 BUSHING; TORSION BAR 1-53458-282-0 02 1 9604- ● ● ●
3 TORSION BAR 1-09585-130-0 01 1 9604- ● ● ●
3 TORSION BAR 1-09585-129-0 01 1 9604- ● ● ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 9604-0004 ● ● ● ● ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 0005-1201 ● ● ●
12 WASHER; LK,BRKT
(A) ID=15 		8-98010-627-1 10 1 1202- ● ● ●
12 WASHER; LK,BRKT
(B) ID=34.5 		1-53458-281-1 04 1 9604-0004 ● ● ●
12 WASHER; LK,BRKT
(B) ID=34.5 		1-53458-281-1 04 1 0005- ●
12 WASHER; LK,BRKT
(C) ID=12.2 		9-09150-612-0 08 1 9604-0004 ● ●
12 WASHER; LK,BRKT
(B) 		1-53459-929-0 04 1 9604-9611 ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53458-693-1 04 1 9612-0306 ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53457-076-1 04 1 0307- ● ●
30 BOLT; CAB FRT FOOT
(B) M16X115 		5-51361-002-1 02 1 9604-0004 ● ● ● ● ●
30 BOLT; CAB FRT FOOT
(B) M16X115 		5-51361-002-1 02 1 0005- ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X40 		9-92061-440-0 10 1 9604-0004 ● ● ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X40 		9-92061-440-0 10 1 0005-0512 ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X40 		0-20951-440-0 10 1 0601- ● ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE
DUAL AIR GAUGE<UG2> 		1-62580-291-1 01 1 9604-0004 ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-291-1 01 1 9604-0004 ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> 		1-62580-232-4 01 1 9604-0004 ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-232-4 01 1 0005- ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-233-4 01 1 9604-0004 ● ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-233-4 01 1 0005- ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-230-4 01 1 9604- ●
32 BRACKET; CAB FRT MTG,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> 		1-62580-230-4 01 1 9604- ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-231-4 01 1 9604- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE
DUAL AIR GAUGE<UG2> 		1-62580-290-1 01 1 9604- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		1-53458-636-1 02 1 9604-0004 ● ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		1-53458-636-1 02 1 0005- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		1-53458-681-0 02 1 9604-0004 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53458-681-0 02 1 9604-0004 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		1-53458-681-0 02 1 0005- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-53458-681-0 02 1 0005- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(B) 		1-53458-635-0 02 1 9604-9803 ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53458-634-0 02 1 9604-0004 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-53458-634-0 02 1 0005- ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL<C60> (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0311-0904 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL<C60> (C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-0 04 1 9604-0004 ● ● ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-1 04 1 0005- ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9604-0004 ● ● ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0005-0310 ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0311-0602 ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL<C60> (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0311-0602 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0603-0904 ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL<C60> (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0603-0904 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL<C60> (C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 9604-0004 ● ● ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 0005- ● ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 9604-0004 ● ● ● ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 0005- ● ● ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 9604-0004 ● ● ● ● ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 0005- ● ● ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 9604-0004 ● ● ● ● ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 0005- ● ● ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 9604- ● ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28091-030-0 02 1 9604-0004 ● ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28691-030-0 02 1 0005-0512 ● ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28661-030-0 02 1 0601- ● ● ●
99 BOLT; BRKT
(A) M12X25 FLANGE 		0-28081-225-0 02 1 9604-9606 ● ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28681-230-0 02 1 9607-0004 ● ●
99 BOLT; BRKT
(B) M12X35 		9-92061-235-0 08 1 9604-0004 ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28080-820-0 08 1 9604-9606 ● ●
99 BOLT; BRKT
(C) M8X25 FLANGE 		0-28680-825-0 08 1 9607-9803 ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28680-820-0 08 1 9804-0512 ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 08 1 0601- ● ●
99 BOLT; BRKT
(A) M12X25 FLANGE 		0-28081-225-0 04 1 9604-9803 ● ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28681-230-0 04 1 9804-0512 ● ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28651-230-0 04 1 0601-0612 ● ●
99 BOLT; BRKT
(A) M12X25 FLANGE 		0-28651-225-0 04 1 0701- ● ●
103 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 9604- ● ● ●
159 RUBBER; CUSHION,CAB MTG
(A) 		1-53459-619-3 02 1 9604-0004 ● ● ●
159 RUBBER; CUSHION,CAB MTG
(A) 		1-53459-619-3 02 1 0005- ●
159 RUBBER; CUSHION,CAB MTG
(B) 		1-53459-620-3 02 1 9604-0004 ● ● ●
159 RUBBER; CUSHION,CAB MTG
(B) 		1-53459-620-3 02 1 0005- ●
159 RUBBER; CUSHION,CAB MTG
(C) 		9-54347-160-1 02 1 9604-0004 ● ●
159 RUBBER; CUSHION,CAB MTG
(D) 		1-53458-285-0 02 1 9604- ● ●
168 NUT; CUSHION RUBBER,BODY MTG
(A) M12 FLANGE 		0-91150-112-0 04 1 9604-9608 ● ● ●
168 NUT; CUSHION RUBBER,BODY MTG
(A) M12 FLANGE 		0-91150-212-0 04 1 9609-0004 ● ● ●
168 NUT; CUSHION RUBBER,BODY MTG
(A) M12 FLANGE 		0-91150-212-0 04 1 0005-0602 ●
168 NUT; CUSHION RUBBER,BODY MTG
(A) M12 FLANGE 		0-91180-212-0 04 1 0603- ●
168 NUT; CUSHION RUBBER,BODY MTG
(B) M12 FLANGE 		0-91150-112-0 02 1 9604-9608 ● ●
168 NUT; CUSHION RUBBER,BODY MTG
(B) M12 FLANGE 		0-91150-212-0 02 1 9609-0004 ● ●
170 SHIM; CUSHION RUBBER
(A) T=1.6 		1-53459-621-0 AR 1 9604-0004 ● ●
170 SHIM; CUSHION RUBBER
(A) T=1.6 		1-53459-621-0 AR 1 0005- ●
170 SHIM; CUSHION RUBBER
(B) T=1.6 		9-54347-136-1 AR 1 9604-0004 ● ●
173 MEMBER; CAB MTG RR
CAB UP +50MM<W60> (D) 		1-53454-906-0 01 1 0406- ●
173 MEMBER; CAB MTG RR
(C) 		1-53454-674-0 01 1 9604- ●
173 MEMBER; CAB MTG RR
(A) 		1-53454-670-0 01 1 9604-0004 ●
173 MEMBER; CAB MTG RR
(B) 		1-53454-568-1 01 1 9604-0004 ● ●
173 MEMBER; CAB MTG RR
(D) 		1-53454-599-3 01 1 9604-9803 ● ●
173 MEMBER; CAB MTG RR
(D) 		1-53454-705-3 01 1 9804-0405 ● ●
173 MEMBER; CAB MTG RR
(D) 		1-53454-705-3 01 1 0406- ●
173 MEMBER; CAB MTG RR
EXC. CAB UP +50MM<W60> (D) 		1-53454-705-3 01 1 0406- ●
173 MEMBER; CAB MTG RR
(A) 		1-53454-636-2 01 1 9604-0004 ●
175 BOLT; MEMBER TO FRAME
M12X35 		9-92061-235-0 08 1 9604-0004 ● ● ● ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		9-92061-235-0 08 1 0005-0512 ● ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 0601- ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 9604-0004 ● ● ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 0005-0603 ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 0604- ● ● ●
278 COVER
AUSTRALIA EQUIPMENT(RR3) 		1-53192-309-0 01 1 9604-0004 ● ●
278 COVER
AUSTRALIA EQUIPMENT(RR3) 		1-53192-204-0 01 1 9604-0004 ● ●
279 BOLT
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28280-825-0 02 1 9604-9606 ● ● ● ●
279 BOLT
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9607-0004 ● ● ● ●
281 WASHER; PL,BACK COVER
AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=26 		9-09164-808-0 03 1 9604-9606 ● ● ● ●
282 NUT; BACK COVER
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9604-0004 ● ● ● ●
283 BRACKET; UPR
AUSTRALIA EQUIPMENT(RR3) 		1-53459-630-2 01 1 9604-0004 ● ● ● ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 06 1 9604-9606 ● ● ● ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 06 1 9607-9803 ● ● ● ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 06 1 9804-0004 ● ● ● ●
285 NUT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 06 1 9604-9609 ● ● ● ●
285 NUT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 06 1 9610-0004 ● ● ● ●
286 BRACKET; LOW
AUSTRALIA EQUIPMENT(RR3) 		1-53459-631-3 01 1 9604-0004 ● ● ● ●
286 BRACKET; LOW
AUSTRALIA EQUIPMENT(RR3) 		1-53459-632-3 01 1 9604-0004 ● ● ● ●
323 NUT; CAB FRT FOOT
M16 		9-99110-516-0 02 1 9604-0004 ● ● ● ● ●
323 NUT; CAB FRT FOOT
M16 		9-99110-516-0 02 1 0005-0512 ● ● ●
323 NUT; CAB FRT FOOT
M16 		0-91110-516-0 02 1 0601- ● ● ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 9604-0004 ● ● ● ● ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 0005-0603 ● ● ●
324 WASHER; LK
ID=16.2 		0-91510-816-0 02 1 0604- ● ● ●
325 BOLT; GUIDE NUT
M12X30 FLANGE 		0-28081-230-0 02 1 9604-9612 ● ● ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 9701-0004 ● ● ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 0005-0512 ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28651-240-0 02 1 0601- ● ● ●
326 NUT; GUIDE NUT
(A) M12 		1-53459-803-0 02 1 9604-9612 ● ● ● ● ●
326 NUT; GUIDE NUT
(B) M12 		9-99110-512-0 02 1 9604-0004 ● ● ● ● ●
326 NUT; GUIDE NUT
(B) M12 		9-99110-512-0 02 1 0005-0512 ● ● ●
326 NUT; GUIDE NUT
(B) M12 		0-91110-512-0 02 1 0601- ● ● ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 9604- ● ● ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 9604- ● ● ●

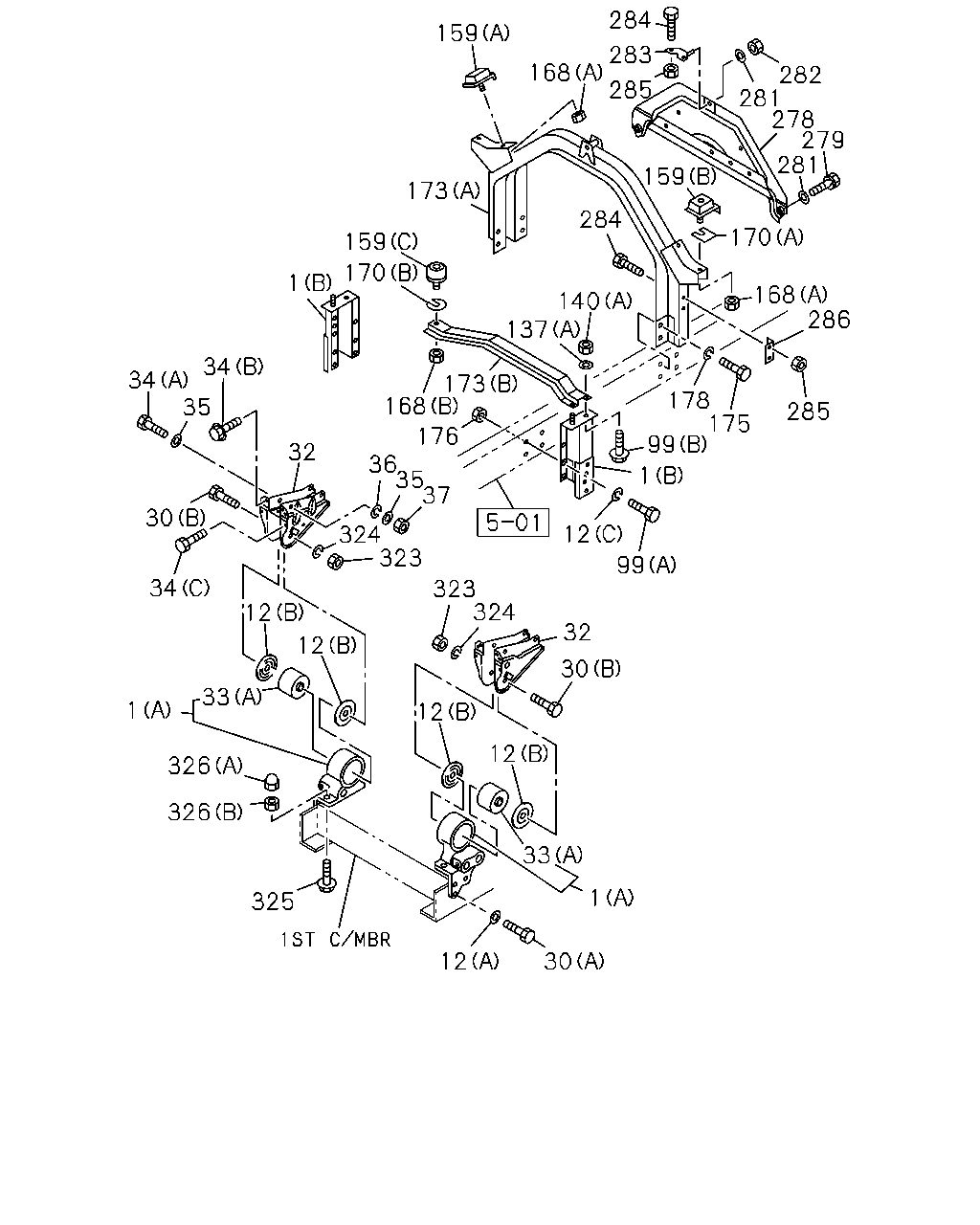

çizim 152873
284 159 283 285 168 282 281 278 279 281 159 173 284 170 159 170 1 168 286 140 137 178 2 175 99 34 34 35 173 168 285 176 32 36 35 37 1 30 324 323 12 99 34 323 324 12 32 2 30 33 1 12 12 326 326 33 1 325 12 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5) CAB UP +50MM<W60> (A) 		1-53453-339-0 01 1 0406- ●
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5) CAB UP +50MM<W60> (A) 		1-53453-340-0 01 1 0406- ●
1 BRACKET; CAB MTG
(A) 		1-53453-277-0 01 1 9604-0004 ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-277-0 01 1 0005- ●
1 BRACKET; CAB MTG
(A) 		1-53453-276-0 01 1 9604-0004 ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-276-0 01 1 0005- ●
1 BRACKET; CAB MTG
(B) 		1-53454-557-3 02 1 9604-9908 ●
1 BRACKET; CAB MTG
(B) 		1-53454-841-0 02 1 9909-0004 ●
1 BRACKET; CAB MTG
(A) 		1-53453-291-0 01 1 9604-9606 ●
1 BRACKET; CAB MTG
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53453-291-0 01 1 9604-9606 ●
1 BRACKET; CAB MTG
(A) 		1-53453-289-0 01 1 9607-0004 ●
1 BRACKET; CAB MTG
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53453-289-0 01 1 9607-0004 ●
1 BRACKET; CAB MTG
(A) 		1-53453-289-0 01 1 0005- ●
1 BRACKET; CAB MTG
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-53453-289-0 01 1 0005- ●
1 BRACKET; CAB MTG
(A) 		1-53453-290-0 01 1 9604-9606 ●
1 BRACKET; CAB MTG
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53453-290-0 01 1 9604-9606 ●
1 BRACKET; CAB MTG
(A) 		1-53453-288-0 01 1 9607-0004 ●
1 BRACKET; CAB MTG
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53453-288-0 01 1 9607-0004 ●
1 BRACKET; CAB MTG
(A) 		1-53453-288-0 01 1 0005- ●
1 BRACKET; CAB MTG
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-53453-288-0 01 1 0005- ●
1 BRACKET; CAB MTG
(B) 		1-53454-648-1 02 1 9804- ● ●
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53453-267-0 01 1 9604-0004 ●
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-53453-267-0 01 1 0005-0405 ●
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5) EXC. CAB UP +50MM<W60> (A) 		1-53453-267-0 01 1 0406- ●
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53453-268-0 01 1 9604-0004 ●
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-53453-268-0 01 1 0005-0405 ●
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5) EXC. CAB UP +50MM<W60> (A) 		1-53453-268-0 01 1 0406- ●
1 BRACKET; CAB MTG
(B) 		1-53454-635-1 02 1 9604-0004 ●
1 BRACKET; CAB MTG
(A) 		1-53453-279-0 01 1 9604-0004 ●
1 BRACKET; CAB MTG
(A) 		1-53453-278-0 01 1 9604-0004 ●
2 BUSHING; TORSION BAR 1-53458-282-0 02 1 9604- ● ● ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 9604-0004 ● ● ● ● ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 0005-1201 ● ● ●
12 WASHER; LK,BRKT
(A) ID=15 		8-98010-627-1 10 1 1202- ● ● ●
12 WASHER; LK,BRKT
(B) ID=34.5 		1-53458-281-1 04 1 9604-0004 ● ● ●
12 WASHER; LK,BRKT
(B) ID=34.5 		1-53458-281-1 04 1 0005- ●
12 WASHER; LK,BRKT
(C) ID=12.2 		9-09150-612-0 08 1 9604-0004 ● ●
12 WASHER; LK,BRKT
(B) 		1-53459-929-0 04 1 9604-9611 ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53458-693-1 04 1 9612-0306 ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53457-076-1 04 1 0307- ● ●
30 BOLT; CAB FRT FOOT
(B) M16X115 		5-51361-002-1 02 1 9604-0004 ● ● ● ● ●
30 BOLT; CAB FRT FOOT
(B) M16X115 		5-51361-002-1 02 1 0005- ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X40 		9-92061-440-0 10 1 9604-0004 ● ● ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X40 		9-92061-440-0 10 1 0005-0512 ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X40 		0-20951-440-0 10 1 0601- ● ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE
DUAL AIR GAUGE<UG2> 		1-62580-291-1 01 1 9604-0004 ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-291-1 01 1 9604-0004 ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> 		1-62580-232-4 01 1 9604-0004 ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-232-4 01 1 0005- ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-233-4 01 1 9604-0004 ● ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-233-4 01 1 0005- ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-230-4 01 1 9604- ●
32 BRACKET; CAB FRT MTG,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> 		1-62580-230-4 01 1 9604- ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-231-4 01 1 9604- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE
DUAL AIR GAUGE<UG2> 		1-62580-290-1 01 1 9604- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		1-53458-636-1 02 1 9604-0004 ● ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		1-53458-636-1 02 1 0005- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		1-53458-681-0 02 1 9604-0004 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53458-681-0 02 1 9604-0004 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		1-53458-681-0 02 1 0005- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-53458-681-0 02 1 0005- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(B) 		1-53458-635-0 02 1 9604-9803 ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53458-634-0 02 1 9604-0004 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-53458-634-0 02 1 0005- ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL<C60> (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0311-0904 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL<C60> (C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-0 04 1 9604-0004 ● ● ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-1 04 1 0005- ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9604-0004 ● ● ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0005-0310 ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0311-0602 ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL<C60> (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0311-0602 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0603-0904 ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL<C60> (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0603-0904 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL<C60> (C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 9604-0004 ● ● ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 0005- ● ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 9604-0004 ● ● ● ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 0005- ● ● ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 9604-0004 ● ● ● ● ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 0005- ● ● ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 9604-0004 ● ● ● ● ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 0005- ● ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28091-030-0 02 1 9604-0004 ● ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28691-030-0 02 1 0005-0512 ● ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28661-030-0 02 1 0601- ● ● ●
99 BOLT; BRKT
(A) M12X25 FLANGE 		0-28081-225-0 02 1 9604-9606 ● ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28681-230-0 02 1 9607-0004 ● ●
99 BOLT; BRKT
(B) M12X35 		9-92061-235-0 08 1 9604-0004 ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28080-820-0 08 1 9604-9606 ● ●
99 BOLT; BRKT
(C) M8X25 FLANGE 		0-28680-825-0 08 1 9607-9803 ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28680-820-0 08 1 9804-0512 ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 08 1 0601- ● ●
99 BOLT; BRKT
(A) M12X25 FLANGE 		0-28081-225-0 04 1 9604-9803 ● ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28681-230-0 04 1 9804-0512 ● ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28651-230-0 04 1 0601-0612 ● ●
99 BOLT; BRKT
(A) M12X25 FLANGE 		0-28651-225-0 04 1 0701- ● ●
137 WASHER; PL,BRKT
(A) ID=12.5 OD=26 		9-09160-612-0 04 1 9604-9606 ● ●
137 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 16 1 9604-0004 ● ●
140 NUT; BRKT
(A) M12 		9-99110-512-0 04 1 9604-9606 ● ●
140 NUT; BRKT
(A) M12 FLANGE 		0-91150-212-0 04 1 9607-0004 ● ●
140 NUT; BRKT
(B) M14 		9-99110-514-0 08 1 9604-0004 ● ●
159 RUBBER; CUSHION,CAB MTG
(A) 		1-53459-619-3 02 1 9604-0004 ● ● ●
159 RUBBER; CUSHION,CAB MTG
(A) 		1-53459-619-3 02 1 0005- ●
159 RUBBER; CUSHION,CAB MTG
(B) 		1-53459-620-3 02 1 9604-0004 ● ● ●
159 RUBBER; CUSHION,CAB MTG
(B) 		1-53459-620-3 02 1 0005- ●
159 RUBBER; CUSHION,CAB MTG
(C) 		9-54347-160-1 02 1 9604-0004 ● ●
159 RUBBER; CUSHION,CAB MTG
(D) 		1-53458-285-0 02 1 9604- ● ●
168 NUT; CUSHION RUBBER,BODY MTG
(A) M12 FLANGE 		0-91150-112-0 04 1 9604-9608 ● ● ●
168 NUT; CUSHION RUBBER,BODY MTG
(A) M12 FLANGE 		0-91150-212-0 04 1 9609-0004 ● ● ●
168 NUT; CUSHION RUBBER,BODY MTG
(A) M12 FLANGE 		0-91150-212-0 04 1 0005-0602 ●
168 NUT; CUSHION RUBBER,BODY MTG
(A) M12 FLANGE 		0-91180-212-0 04 1 0603- ●
168 NUT; CUSHION RUBBER,BODY MTG
(B) M12 FLANGE 		0-91150-112-0 02 1 9604-9608 ● ●
168 NUT; CUSHION RUBBER,BODY MTG
(B) M12 FLANGE 		0-91150-212-0 02 1 9609-0004 ● ●
170 SHIM; CUSHION RUBBER
(A) T=1.6 		1-53459-621-0 AR 1 9604-0004 ● ●
170 SHIM; CUSHION RUBBER
(A) T=1.6 		1-53459-621-0 AR 1 0005- ●
170 SHIM; CUSHION RUBBER
(B) T=1.6 		9-54347-136-1 AR 1 9604-0004 ● ●
173 MEMBER; CAB MTG RR
CAB UP +50MM<W60> (D) 		1-53454-906-0 01 1 0406- ●
173 MEMBER; CAB MTG RR
(C) 		1-53454-674-0 01 1 9604- ●
173 MEMBER; CAB MTG RR
(A) 		1-53454-670-0 01 1 9604-0004 ●
173 MEMBER; CAB MTG RR
(B) 		1-53454-568-1 01 1 9604-0004 ● ●
173 MEMBER; CAB MTG RR
(D) 		1-53454-599-3 01 1 9604-9803 ● ●
173 MEMBER; CAB MTG RR
(D) 		1-53454-705-3 01 1 9804-0405 ● ●
173 MEMBER; CAB MTG RR
(D) 		1-53454-705-3 01 1 0406- ●
173 MEMBER; CAB MTG RR
EXC. CAB UP +50MM<W60> (D) 		1-53454-705-3 01 1 0406- ●
173 MEMBER; CAB MTG RR
(A) 		1-53454-636-2 01 1 9604-0004 ●
175 BOLT; MEMBER TO FRAME
M12X35 		9-92061-235-0 08 1 9604-0004 ● ● ● ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		9-92061-235-0 08 1 0005-0512 ● ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 0601- ● ● ●
176 NUT; MEMBER
M12 		9-99110-512-0 04 1 9604-0004 ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 9604-0004 ● ● ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 0005-0603 ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 0604- ● ● ●
278 COVER
AUSTRALIA EQUIPMENT(RR3) 		1-53192-309-0 01 1 9604-0004 ● ●
278 COVER
AUSTRALIA EQUIPMENT(RR3) 		1-53192-204-0 01 1 9604-0004 ● ●
279 BOLT
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28280-825-0 02 1 9604-9606 ● ● ● ●
279 BOLT
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9607-0004 ● ● ● ●
281 WASHER; PL,BACK COVER
AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=26 		9-09164-808-0 03 1 9604-9606 ● ● ● ●
282 NUT; BACK COVER
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9604-0004 ● ● ● ●
283 BRACKET; UPR
AUSTRALIA EQUIPMENT(RR3) 		1-53459-630-2 01 1 9604-0004 ● ● ● ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 06 1 9604-9606 ● ● ● ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 06 1 9607-9803 ● ● ● ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 06 1 9804-0004 ● ● ● ●
285 NUT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 06 1 9604-9609 ● ● ● ●
285 NUT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 06 1 9610-0004 ● ● ● ●
286 BRACKET; LOW
AUSTRALIA EQUIPMENT(RR3) 		1-53459-631-3 01 1 9604-0004 ● ● ● ●
286 BRACKET; LOW
AUSTRALIA EQUIPMENT(RR3) 		1-53459-632-3 01 1 9604-0004 ● ● ● ●
323 NUT; CAB FRT FOOT
M16 		9-99110-516-0 02 1 9604-0004 ● ● ● ● ●
323 NUT; CAB FRT FOOT
M16 		9-99110-516-0 02 1 0005-0512 ● ● ●
323 NUT; CAB FRT FOOT
M16 		0-91110-516-0 02 1 0601- ● ● ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 9604-0004 ● ● ● ● ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 0005-0603 ● ● ●
324 WASHER; LK
ID=16.2 		0-91510-816-0 02 1 0604- ● ● ●
325 BOLT; GUIDE NUT
M12X30 FLANGE 		0-28081-230-0 02 1 9604-9612 ● ● ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 9701-0004 ● ● ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 0005-0512 ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28651-240-0 02 1 0601- ● ● ●
326 NUT; GUIDE NUT
(A) M12 		1-53459-803-0 02 1 9604-9612 ● ● ● ● ●
326 NUT; GUIDE NUT
(B) M12 		9-99110-512-0 02 1 9604-0004 ● ● ● ● ●
326 NUT; GUIDE NUT
(B) M12 		9-99110-512-0 02 1 0005-0512 ● ● ●
326 NUT; GUIDE NUT
(B) M12 		0-91110-512-0 02 1 0601- ● ● ●

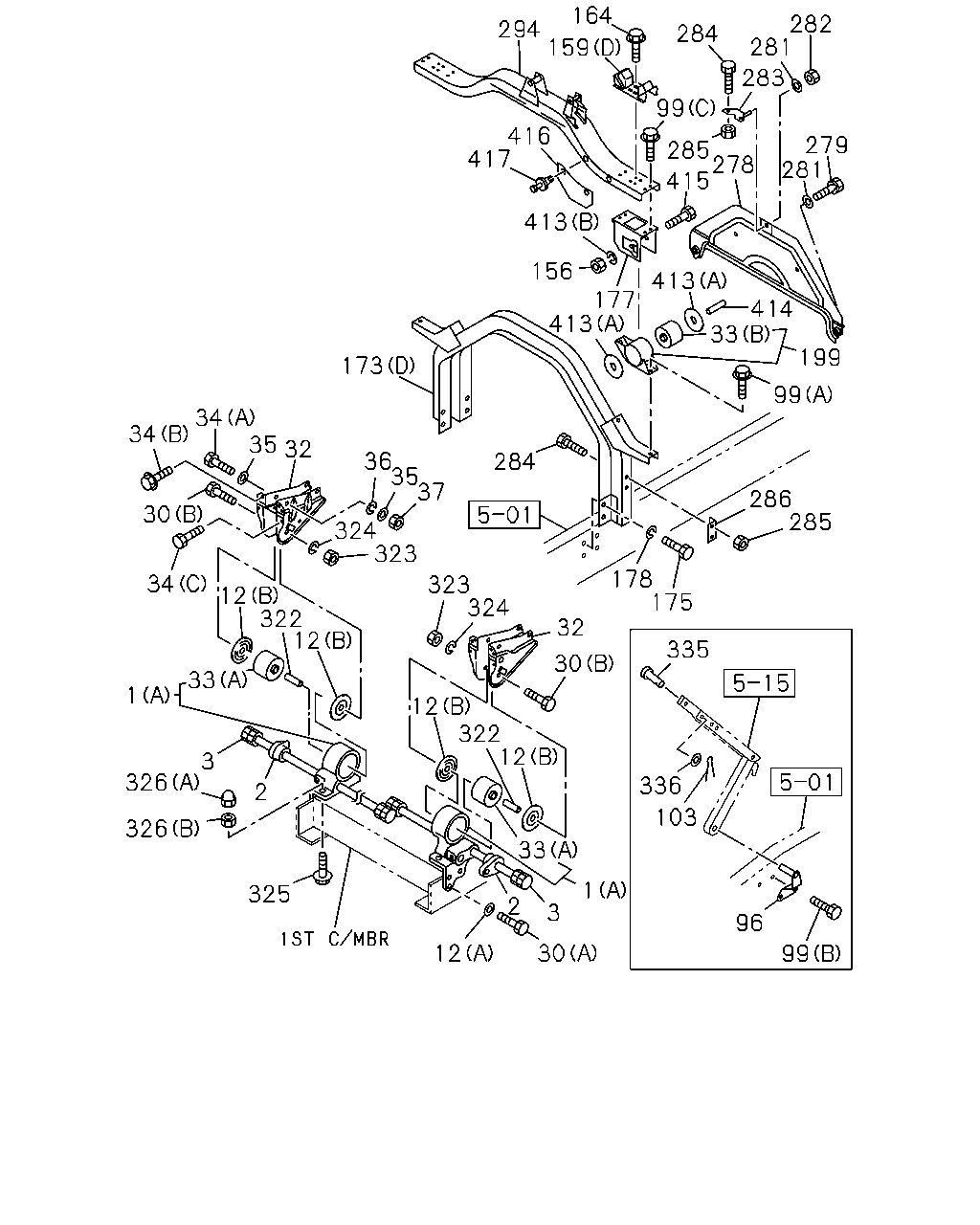

çizim 152878
164 282 281 294 159 284 283 99 416 417 279 281 285 278 415 413 156 413 177 413 414 33 199 173 99 34 34 35 32 36 35 37 284 286 285 30 324 323 178 175 34 323 324 12 322 2 32 33 335 30 1 12 322 12 3 326 336 2 103 326 33 1 325 2 3 96 12 30 99
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5) CAB UP +50MM<W60> (A) 		1-53453-339-0 01 1 0406- ●
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5) CAB UP +50MM<W60> (A) 		1-53453-340-0 01 1 0406- ●
1 BRACKET; CAB MTG
(A) 		1-53453-277-0 01 1 9604-0004 ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-277-0 01 1 0005- ●
1 BRACKET; CAB MTG
(A) 		1-53453-276-0 01 1 9604-0004 ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-276-0 01 1 0005- ●
1 BRACKET; CAB MTG
(B) 		1-53454-557-3 02 1 9604-9908 ●
1 BRACKET; CAB MTG
(B) 		1-53454-841-0 02 1 9909-0004 ●
1 BRACKET; CAB MTG
(A) 		1-53453-291-0 01 1 9604-9606 ●
1 BRACKET; CAB MTG
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53453-291-0 01 1 9604-9606 ●
1 BRACKET; CAB MTG
(A) 		1-53453-289-0 01 1 9607-0004 ●
1 BRACKET; CAB MTG
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53453-289-0 01 1 9607-0004 ●
1 BRACKET; CAB MTG
(A) 		1-53453-289-0 01 1 0005- ●
1 BRACKET; CAB MTG
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-53453-289-0 01 1 0005- ●
1 BRACKET; CAB MTG
(A) 		1-53453-290-0 01 1 9604-9606 ●
1 BRACKET; CAB MTG
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53453-290-0 01 1 9604-9606 ●
1 BRACKET; CAB MTG
(A) 		1-53453-288-0 01 1 9607-0004 ●
1 BRACKET; CAB MTG
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53453-288-0 01 1 9607-0004 ●
1 BRACKET; CAB MTG
(A) 		1-53453-288-0 01 1 0005- ●
1 BRACKET; CAB MTG
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-53453-288-0 01 1 0005- ●
1 BRACKET; CAB MTG
(B) 		1-53454-648-1 02 1 9804- ● ●
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53453-267-0 01 1 9604-0004 ●
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-53453-267-0 01 1 0005-0405 ●
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5) EXC. CAB UP +50MM<W60> (A) 		1-53453-267-0 01 1 0406- ●
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53453-268-0 01 1 9604-0004 ●
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-53453-268-0 01 1 0005-0405 ●
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5) EXC. CAB UP +50MM<W60> (A) 		1-53453-268-0 01 1 0406- ●
1 BRACKET; CAB MTG
(B) 		1-53454-635-1 02 1 9604-0004 ●
1 BRACKET; CAB MTG
(A) 		1-53453-279-0 01 1 9604-0004 ●
1 BRACKET; CAB MTG
(A) 		1-53453-278-0 01 1 9604-0004 ●
2 BUSHING; TORSION BAR 1-53458-282-0 02 1 9604- ● ● ●
3 TORSION BAR 1-09585-130-0 01 1 9604- ● ● ●
3 TORSION BAR 1-09585-129-0 01 1 9604- ● ● ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 9604-0004 ● ● ● ● ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 0005-1201 ● ● ●
12 WASHER; LK,BRKT
(A) ID=15 		8-98010-627-1 10 1 1202- ● ● ●
12 WASHER; LK,BRKT
(B) ID=34.5 		1-53458-281-1 04 1 9604-0004 ● ● ●
12 WASHER; LK,BRKT
(B) ID=34.5 		1-53458-281-1 04 1 0005- ●
12 WASHER; LK,BRKT
(C) ID=12.2 		9-09150-612-0 08 1 9604-0004 ● ●
12 WASHER; LK,BRKT
(B) 		1-53459-929-0 04 1 9604-9611 ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53458-693-1 04 1 9612-0306 ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53457-076-1 04 1 0307- ● ●
30 BOLT; CAB FRT FOOT
(B) M16X115 		5-51361-002-1 02 1 9604-0004 ● ● ● ● ●
30 BOLT; CAB FRT FOOT
(B) M16X115 		5-51361-002-1 02 1 0005- ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X40 		9-92061-440-0 10 1 9604-0004 ● ● ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X40 		9-92061-440-0 10 1 0005-0512 ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X40 		0-20951-440-0 10 1 0601- ● ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE
DUAL AIR GAUGE<UG2> 		1-62580-291-1 01 1 9604-0004 ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-291-1 01 1 9604-0004 ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> 		1-62580-232-4 01 1 9604-0004 ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-232-4 01 1 0005- ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-233-4 01 1 9604-0004 ● ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-233-4 01 1 0005- ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-230-4 01 1 9604- ●
32 BRACKET; CAB FRT MTG,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> 		1-62580-230-4 01 1 9604- ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-231-4 01 1 9604- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE
DUAL AIR GAUGE<UG2> 		1-62580-290-1 01 1 9604- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		1-53458-636-1 02 1 9604-0004 ● ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		1-53458-636-1 02 1 0005- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		1-53458-681-0 02 1 9604-0004 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53458-681-0 02 1 9604-0004 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		1-53458-681-0 02 1 0005- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-53458-681-0 02 1 0005- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(B) 		1-53458-635-0 02 1 9604-9803 ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53458-634-0 02 1 9604-0004 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-53458-634-0 02 1 0005- ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL<C60> (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0311-0904 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL<C60> (C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-0 04 1 9604-0004 ● ● ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-1 04 1 0005- ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9604-0004 ● ● ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0005-0310 ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0311-0602 ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL<C60> (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0311-0602 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0603-0904 ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL<C60> (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0603-0904 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL<C60> (C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 9604-0004 ● ● ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 0005- ● ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 9604-0004 ● ● ● ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 0005- ● ● ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 9604-0004 ● ● ● ● ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 0005- ● ● ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 9604-0004 ● ● ● ● ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 0005- ● ● ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 9604- ● ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28091-030-0 02 1 9604-0004 ● ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28691-030-0 02 1 0005-0512 ● ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28661-030-0 02 1 0601- ● ● ●
99 BOLT; BRKT
(A) M12X25 FLANGE 		0-28081-225-0 02 1 9604-9606 ● ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28681-230-0 02 1 9607-0004 ● ●
99 BOLT; BRKT
(B) M12X35 		9-92061-235-0 08 1 9604-0004 ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28080-820-0 08 1 9604-9606 ● ●
99 BOLT; BRKT
(C) M8X25 FLANGE 		0-28680-825-0 08 1 9607-9803 ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28680-820-0 08 1 9804-0512 ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 08 1 0601- ● ●
99 BOLT; BRKT
(A) M12X25 FLANGE 		0-28081-225-0 04 1 9604-9803 ● ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28681-230-0 04 1 9804-0512 ● ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28651-230-0 04 1 0601-0612 ● ●
99 BOLT; BRKT
(A) M12X25 FLANGE 		0-28651-225-0 04 1 0701- ● ●
103 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 9604- ● ● ●
156 NUT; CAB MTG RR
M16 		9-99110-516-0 02 1 9604-0512 ● ●
156 NUT; CAB MTG RR
M16 		0-91110-516-0 02 1 0601- ● ●
159 RUBBER; CUSHION,CAB MTG
(A) 		1-53459-619-3 02 1 9604-0004 ● ● ●
159 RUBBER; CUSHION,CAB MTG
(A) 		1-53459-619-3 02 1 0005- ●
159 RUBBER; CUSHION,CAB MTG
(B) 		1-53459-620-3 02 1 9604-0004 ● ● ●
159 RUBBER; CUSHION,CAB MTG
(B) 		1-53459-620-3 02 1 0005- ●
159 RUBBER; CUSHION,CAB MTG
(C) 		9-54347-160-1 02 1 9604-0004 ● ●
159 RUBBER; CUSHION,CAB MTG
(D) 		1-53458-285-0 02 1 9604- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28080-820-0 04 1 9604-9803 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28680-820-0 04 1 9804-0512 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
173 MEMBER; CAB MTG RR
CAB UP +50MM<W60> (D) 		1-53454-906-0 01 1 0406- ●
173 MEMBER; CAB MTG RR
(C) 		1-53454-674-0 01 1 9604- ●
173 MEMBER; CAB MTG RR
(A) 		1-53454-670-0 01 1 9604-0004 ●
173 MEMBER; CAB MTG RR
(B) 		1-53454-568-1 01 1 9604-0004 ● ●
173 MEMBER; CAB MTG RR
(D) 		1-53454-599-3 01 1 9604-9803 ● ●
173 MEMBER; CAB MTG RR
(D) 		1-53454-705-3 01 1 9804-0405 ● ●
173 MEMBER; CAB MTG RR
(D) 		1-53454-705-3 01 1 0406- ●
173 MEMBER; CAB MTG RR
EXC. CAB UP +50MM<W60> (D) 		1-53454-705-3 01 1 0406- ●
173 MEMBER; CAB MTG RR
(A) 		1-53454-636-2 01 1 9604-0004 ●
175 BOLT; MEMBER TO FRAME
M12X35 		9-92061-235-0 08 1 9604-0004 ● ● ● ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		9-92061-235-0 08 1 0005-0512 ● ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 0601- ● ● ●
177 BRACKET; MEMBER 1-53454-529-1 01 1 9604-9803 ● ●
177 BRACKET; MEMBER 1-53454-528-1 01 1 9604-9803 ● ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 9604-0004 ● ● ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 0005-0603 ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 0604- ● ● ●
199 BRACKET; CAB RR MTG 1-53454-627-1 02 1 9604-9803 ● ●
199 BRACKET; CAB RR MTG 1-53454-644-2 02 1 9804-0207 ● ●
199 BRACKET; CAB RR MTG 1-53454-911-0 02 1 0208-1403 ● ●
199 BRACKET; CAB RR MTG 8-98269-637-0 02 1 1404- ● ●
278 COVER
AUSTRALIA EQUIPMENT(RR3) 		1-53192-309-0 01 1 9604-0004 ● ●
278 COVER
AUSTRALIA EQUIPMENT(RR3) 		1-53192-204-0 01 1 9604-0004 ● ●
279 BOLT
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28280-825-0 02 1 9604-9606 ● ● ● ●
279 BOLT
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9607-0004 ● ● ● ●
281 WASHER; PL,BACK COVER
AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=26 		9-09164-808-0 03 1 9604-9606 ● ● ● ●
282 NUT; BACK COVER
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9604-0004 ● ● ● ●
283 BRACKET; UPR
AUSTRALIA EQUIPMENT(RR3) 		1-53459-630-2 01 1 9604-0004 ● ● ● ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 06 1 9604-9606 ● ● ● ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 06 1 9607-9803 ● ● ● ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 06 1 9804-0004 ● ● ● ●
285 NUT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 06 1 9604-9609 ● ● ● ●
285 NUT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 06 1 9610-0004 ● ● ● ●
286 BRACKET; LOW
AUSTRALIA EQUIPMENT(RR3) 		1-53459-631-3 01 1 9604-0004 ● ● ● ●
286 BRACKET; LOW
AUSTRALIA EQUIPMENT(RR3) 		1-53459-632-3 01 1 9604-0004 ● ● ● ●
294 MEMBER; FLOATING 1-53454-530-1 01 1 9604- ● ●
322 COLLAR; CAB FRT FOOT 1-53459-941-1 02 1 9604- ● ●
323 NUT; CAB FRT FOOT
M16 		9-99110-516-0 02 1 9604-0004 ● ● ● ● ●
323 NUT; CAB FRT FOOT
M16 		9-99110-516-0 02 1 0005-0512 ● ● ●
323 NUT; CAB FRT FOOT
M16 		0-91110-516-0 02 1 0601- ● ● ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 9604-0004 ● ● ● ● ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 0005-0603 ● ● ●
324 WASHER; LK
ID=16.2 		0-91510-816-0 02 1 0604- ● ● ●
325 BOLT; GUIDE NUT
M12X30 FLANGE 		0-28081-230-0 02 1 9604-9612 ● ● ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 9701-0004 ● ● ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 0005-0512 ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28651-240-0 02 1 0601- ● ● ●
326 NUT; GUIDE NUT
(A) M12 		1-53459-803-0 02 1 9604-9612 ● ● ● ● ●
326 NUT; GUIDE NUT
(B) M12 		9-99110-512-0 02 1 9604-0004 ● ● ● ● ●
326 NUT; GUIDE NUT
(B) M12 		9-99110-512-0 02 1 0005-0512 ● ● ●
326 NUT; GUIDE NUT
(B) M12 		0-91110-512-0 02 1 0601- ● ● ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 9604- ● ● ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 9604- ● ● ●
413 WASHER; LK,CAB MTG RR
(A) ID=23 		1-53458-693-1 04 1 9604-0306 ● ●
413 WASHER; LK,CAB MTG RR
(A) ID=23 		1-53457-076-1 04 1 0307- ● ●
413 WASHER; LK,CAB MTG RR
(B) ID=16.2 		9-09150-816-0 02 1 9604-0603 ● ●
413 WASHER; LK,CAB MTG RR
(B) ID=16.2 		0-91510-816-0 02 1 0604- ● ●
414 COLLAR; CAB MTG RR 1-53459-941-1 02 1 9604- ● ●
415 PIN; CAB MTG RR
M16X115 		5-51361-002-1 02 1 9604- ● ●
416 RUBBER; SHUTTER 1-53446-730-0 02 1 9604-9807 ● ●
417 RIVET 1-09470-001-0 04 1 9604-9807 ● ●

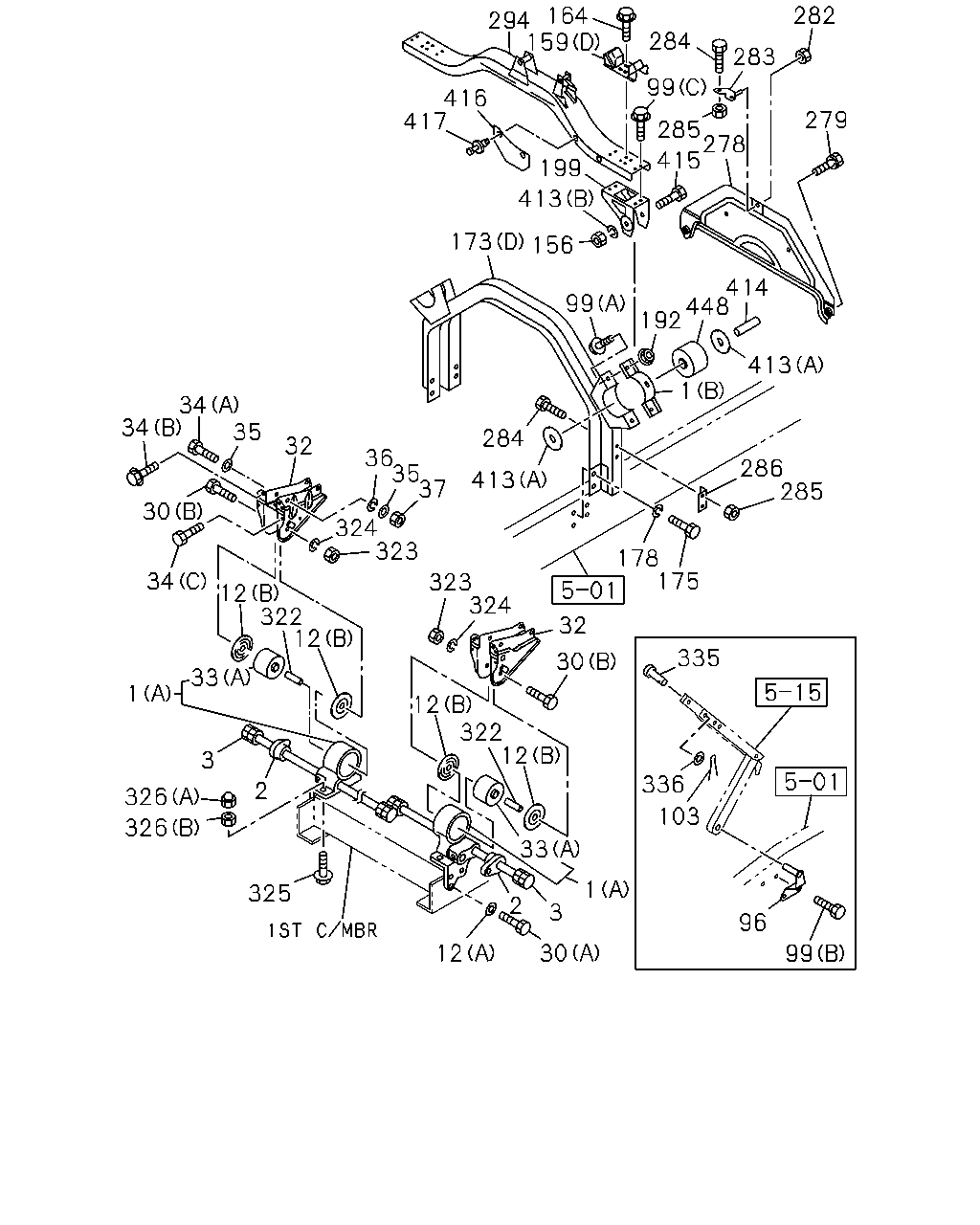

çizim 152880
282 164 294 159 284 283 99 416 417 279 285 278 415 199 413 173 156 414 448 192 99 413 1 34 34 35 284 32 36 35 37 286 285 413 30 324 323 178 175 34 323 324 12 322 2 32 33 335 30 1 12 322 12 3 336 2 326 103 326 33 1 325 2 3 96 12 30 99
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5) CAB UP +50MM<W60> (A) 		1-53453-339-0 01 1 0406- ●
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5) CAB UP +50MM<W60> (A) 		1-53453-340-0 01 1 0406- ●
1 BRACKET; CAB MTG
(A) 		1-53453-277-0 01 1 9604-0004 ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-277-0 01 1 0005- ●
1 BRACKET; CAB MTG
(A) 		1-53453-276-0 01 1 9604-0004 ● ●
1 BRACKET; CAB MTG
(A) 		1-53453-276-0 01 1 0005- ●
1 BRACKET; CAB MTG
(B) 		1-53454-557-3 02 1 9604-9908 ●
1 BRACKET; CAB MTG
(B) 		1-53454-841-0 02 1 9909-0004 ●
1 BRACKET; CAB MTG
(A) 		1-53453-291-0 01 1 9604-9606 ●
1 BRACKET; CAB MTG
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53453-291-0 01 1 9604-9606 ●
1 BRACKET; CAB MTG
(A) 		1-53453-289-0 01 1 9607-0004 ●
1 BRACKET; CAB MTG
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53453-289-0 01 1 9607-0004 ●
1 BRACKET; CAB MTG
(A) 		1-53453-289-0 01 1 0005- ●
1 BRACKET; CAB MTG
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-53453-289-0 01 1 0005- ●
1 BRACKET; CAB MTG
(A) 		1-53453-290-0 01 1 9604-9606 ●
1 BRACKET; CAB MTG
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53453-290-0 01 1 9604-9606 ●
1 BRACKET; CAB MTG
(A) 		1-53453-288-0 01 1 9607-0004 ●
1 BRACKET; CAB MTG
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53453-288-0 01 1 9607-0004 ●
1 BRACKET; CAB MTG
(A) 		1-53453-288-0 01 1 0005- ●
1 BRACKET; CAB MTG
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-53453-288-0 01 1 0005- ●
1 BRACKET; CAB MTG
(B) 		1-53454-648-1 02 1 9804- ● ●
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53453-267-0 01 1 9604-0004 ●
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-53453-267-0 01 1 0005-0405 ●
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5) EXC. CAB UP +50MM<W60> (A) 		1-53453-267-0 01 1 0406- ●
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53453-268-0 01 1 9604-0004 ●
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-53453-268-0 01 1 0005-0405 ●
1 BRACKET; CAB MTG
NEW ZEALAND EQUIPMENT(PK5) EXC. CAB UP +50MM<W60> (A) 		1-53453-268-0 01 1 0406- ●
1 BRACKET; CAB MTG
(B) 		1-53454-635-1 02 1 9604-0004 ●
1 BRACKET; CAB MTG
(A) 		1-53453-279-0 01 1 9604-0004 ●
1 BRACKET; CAB MTG
(A) 		1-53453-278-0 01 1 9604-0004 ●
2 BUSHING; TORSION BAR 1-53458-282-0 02 1 9604- ● ● ●
3 TORSION BAR 1-09585-130-0 01 1 9604- ● ● ●
3 TORSION BAR 1-09585-129-0 01 1 9604- ● ● ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 9604-0004 ● ● ● ● ●
12 WASHER; LK,BRKT
(A) ID=15 		9-09651-069-0 10 1 0005-1201 ● ● ●
12 WASHER; LK,BRKT
(A) ID=15 		8-98010-627-1 10 1 1202- ● ● ●
12 WASHER; LK,BRKT
(B) ID=34.5 		1-53458-281-1 04 1 9604-0004 ● ● ●
12 WASHER; LK,BRKT
(B) ID=34.5 		1-53458-281-1 04 1 0005- ●
12 WASHER; LK,BRKT
(C) ID=12.2 		9-09150-612-0 08 1 9604-0004 ● ●
12 WASHER; LK,BRKT
(B) 		1-53459-929-0 04 1 9604-9611 ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53458-693-1 04 1 9612-0306 ● ●
12 WASHER; LK,BRKT
(B) ID=23 		1-53457-076-1 04 1 0307- ● ●
30 BOLT; CAB FRT FOOT
(B) M16X115 		5-51361-002-1 02 1 9604-0004 ● ● ● ● ●
30 BOLT; CAB FRT FOOT
(B) M16X115 		5-51361-002-1 02 1 0005- ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X40 		9-92061-440-0 10 1 9604-0004 ● ● ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X40 		9-92061-440-0 10 1 0005-0512 ● ● ●
30 BOLT; CAB FRT FOOT
(A) M14X40 		0-20951-440-0 10 1 0601- ● ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE
DUAL AIR GAUGE<UG2> 		1-62580-291-1 01 1 9604-0004 ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-291-1 01 1 9604-0004 ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> 		1-62580-232-4 01 1 9604-0004 ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-232-4 01 1 0005- ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-233-4 01 1 9604-0004 ● ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-233-4 01 1 0005- ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-230-4 01 1 9604- ●
32 BRACKET; CAB FRT MTG,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> 		1-62580-230-4 01 1 9604- ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-231-4 01 1 9604- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE
DUAL AIR GAUGE<UG2> 		1-62580-290-1 01 1 9604- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		1-53458-636-1 02 1 9604-0004 ● ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		1-53458-636-1 02 1 0005- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		1-53458-681-0 02 1 9604-0004 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53458-681-0 02 1 9604-0004 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		1-53458-681-0 02 1 0005- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-53458-681-0 02 1 0005- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(B) 		1-53458-635-0 02 1 9604-9803 ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		1-53458-634-0 02 1 9604-0004 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-53458-634-0 02 1 0005- ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL<C60> (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0311-0904 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL<C60> (C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-0 04 1 9604-0004 ● ● ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X105 		1-79198-008-1 04 1 0005- ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9604-0004 ● ● ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0005-0310 ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0311-0602 ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL<C60> (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0311-0602 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0603-0904 ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL<C60> (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0603-0904 ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ●
34 BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL<C60> (C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 9604-0004 ● ● ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X20 W/LK&PL WASHER 		8-94279-219-0 08 1 0005- ● ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 9604-0004 ● ● ● ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 0005- ● ● ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 9604-0004 ● ● ● ● ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 0005- ● ● ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 9604-0004 ● ● ● ● ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 0005- ● ● ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 9604- ● ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28091-030-0 02 1 9604-0004 ● ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28691-030-0 02 1 0005-0512 ● ● ●
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28661-030-0 02 1 0601- ● ● ●
99 BOLT; BRKT
(A) M12X25 FLANGE 		0-28081-225-0 02 1 9604-9606 ● ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28681-230-0 02 1 9607-0004 ● ●
99 BOLT; BRKT
(B) M12X35 		9-92061-235-0 08 1 9604-0004 ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28080-820-0 08 1 9604-9606 ● ●
99 BOLT; BRKT
(C) M8X25 FLANGE 		0-28680-825-0 08 1 9607-9803 ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28680-820-0 08 1 9804-0512 ● ●
99 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 08 1 0601- ● ●
99 BOLT; BRKT
(A) M12X25 FLANGE 		0-28081-225-0 04 1 9604-9803 ● ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28681-230-0 04 1 9804-0512 ● ●
99 BOLT; BRKT
(A) M12X30 FLANGE 		0-28651-230-0 04 1 0601-0612 ● ●
99 BOLT; BRKT
(A) M12X25 FLANGE 		0-28651-225-0 04 1 0701- ● ●
103 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 9604- ● ● ●
156 NUT; CAB MTG RR
M16 		9-99110-516-0 02 1 9604-0512 ● ●
156 NUT; CAB MTG RR
M16 		0-91110-516-0 02 1 0601- ● ●
159 RUBBER; CUSHION,CAB MTG
(A) 		1-53459-619-3 02 1 9604-0004 ● ● ●
159 RUBBER; CUSHION,CAB MTG
(A) 		1-53459-619-3 02 1 0005- ●
159 RUBBER; CUSHION,CAB MTG
(B) 		1-53459-620-3 02 1 9604-0004 ● ● ●
159 RUBBER; CUSHION,CAB MTG
(B) 		1-53459-620-3 02 1 0005- ●
159 RUBBER; CUSHION,CAB MTG
(C) 		9-54347-160-1 02 1 9604-0004 ● ●
159 RUBBER; CUSHION,CAB MTG
(D) 		1-53458-285-0 02 1 9604- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28080-820-0 04 1 9604-9803 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28680-820-0 04 1 9804-0512 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
173 MEMBER; CAB MTG RR
CAB UP +50MM<W60> (D) 		1-53454-906-0 01 1 0406- ●
173 MEMBER; CAB MTG RR
(C) 		1-53454-674-0 01 1 9604- ●
173 MEMBER; CAB MTG RR
(A) 		1-53454-670-0 01 1 9604-0004 ●
173 MEMBER; CAB MTG RR
(B) 		1-53454-568-1 01 1 9604-0004 ● ●
173 MEMBER; CAB MTG RR
(D) 		1-53454-599-3 01 1 9604-9803 ● ●
173 MEMBER; CAB MTG RR
(D) 		1-53454-705-3 01 1 9804-0405 ● ●
173 MEMBER; CAB MTG RR
(D) 		1-53454-705-3 01 1 0406- ●
173 MEMBER; CAB MTG RR
EXC. CAB UP +50MM<W60> (D) 		1-53454-705-3 01 1 0406- ●
173 MEMBER; CAB MTG RR
(A) 		1-53454-636-2 01 1 9604-0004 ●
175 BOLT; MEMBER TO FRAME
M12X35 		9-92061-235-0 08 1 9604-0004 ● ● ● ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		9-92061-235-0 08 1 0005-0512 ● ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 0601- ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 9604-0004 ● ● ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		9-09150-612-0 08 1 0005-0603 ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 0604- ● ● ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91150-212-0 04 1 9804-0602 ● ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 04 1 0603- ● ●
199 BRACKET; CAB RR MTG 1-53454-627-1 02 1 9604-9803 ● ●
199 BRACKET; CAB RR MTG 1-53454-644-2 02 1 9804-0207 ● ●
199 BRACKET; CAB RR MTG 1-53454-911-0 02 1 0208-1403 ● ●
199 BRACKET; CAB RR MTG 8-98269-637-0 02 1 1404- ● ●
278 COVER
AUSTRALIA EQUIPMENT(RR3) 		1-53192-309-0 01 1 9604-0004 ● ●
278 COVER
AUSTRALIA EQUIPMENT(RR3) 		1-53192-204-0 01 1 9604-0004 ● ●
279 BOLT
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28280-825-0 02 1 9604-9606 ● ● ● ●
279 BOLT
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9607-0004 ● ● ● ●
282 NUT; BACK COVER
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 01 1 9604-0004 ● ● ● ●
283 BRACKET; UPR
AUSTRALIA EQUIPMENT(RR3) 		1-53459-630-2 01 1 9604-0004 ● ● ● ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 06 1 9604-9606 ● ● ● ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 06 1 9607-9803 ● ● ● ●
284 BOLT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 06 1 9804-0004 ● ● ● ●
285 NUT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 06 1 9604-9609 ● ● ● ●
285 NUT; BRKT UPR
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 06 1 9610-0004 ● ● ● ●
286 BRACKET; LOW
AUSTRALIA EQUIPMENT(RR3) 		1-53459-631-3 01 1 9604-0004 ● ● ● ●
286 BRACKET; LOW
AUSTRALIA EQUIPMENT(RR3) 		1-53459-632-3 01 1 9604-0004 ● ● ● ●
294 MEMBER; FLOATING 1-53454-530-1 01 1 9604- ● ●
322 COLLAR; CAB FRT FOOT 1-53459-941-1 02 1 9604- ● ●
323 NUT; CAB FRT FOOT
M16 		9-99110-516-0 02 1 9604-0004 ● ● ● ● ●
323 NUT; CAB FRT FOOT
M16 		9-99110-516-0 02 1 0005-0512 ● ● ●
323 NUT; CAB FRT FOOT
M16 		0-91110-516-0 02 1 0601- ● ● ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 9604-0004 ● ● ● ● ●
324 WASHER; LK
ID=16.2 		9-09150-816-0 02 1 0005-0603 ● ● ●
324 WASHER; LK
ID=16.2 		0-91510-816-0 02 1 0604- ● ● ●
325 BOLT; GUIDE NUT
M12X30 FLANGE 		0-28081-230-0 02 1 9604-9612 ● ● ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 9701-0004 ● ● ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28681-240-0 02 1 0005-0512 ● ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28651-240-0 02 1 0601- ● ● ●
326 NUT; GUIDE NUT
(A) M12 		1-53459-803-0 02 1 9604-9612 ● ● ● ● ●
326 NUT; GUIDE NUT
(B) M12 		9-99110-512-0 02 1 9604-0004 ● ● ● ● ●
326 NUT; GUIDE NUT
(B) M12 		9-99110-512-0 02 1 0005-0512 ● ● ●
326 NUT; GUIDE NUT
(B) M12 		0-91110-512-0 02 1 0601- ● ● ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 9604- ● ● ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 9604- ● ● ●
413 WASHER; LK,CAB MTG RR
(A) ID=23 		1-53458-693-1 04 1 9604-0306 ● ●
413 WASHER; LK,CAB MTG RR
(A) ID=23 		1-53457-076-1 04 1 0307- ● ●
413 WASHER; LK,CAB MTG RR
(B) ID=16.2 		9-09150-816-0 02 1 9604-0603 ● ●
413 WASHER; LK,CAB MTG RR
(B) ID=16.2 		0-91510-816-0 02 1 0604- ● ●
414 COLLAR; CAB MTG RR 1-53459-941-1 02 1 9604- ● ●
415 PIN; CAB MTG RR
M16X115 		5-51361-002-1 02 1 9604- ● ●
416 RUBBER; SHUTTER 1-53446-730-0 02 1 9604-9807 ● ●
417 RIVET 1-09470-001-0 04 1 9604-9807 ● ●
448 BUSHING; CAB MTG 1-53458-635-0 02 1 9804-0004 ●
448 BUSHING; CAB MTG
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-53458-635-0 02 1 9804-0004 ●
448 BUSHING; CAB MTG 1-53458-635-0 02 1 0005- ●
448 BUSHING; CAB MTG
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-53458-635-0 02 1 0005- ●
448 BUSHING; CAB MTG
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-53459-836-2 01 1 9804-9807 ●
448 BUSHING; CAB MTG
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-53459-836-2 02 1 9808-0004 ●
448 BUSHING; CAB MTG
NEW ZEALAND EQUIPMENT(PK5) 		1-53459-836-3 02 1 0005- ●
çizim 152881
411 410 447 141 143 137 141 143 137 137 140 137 139 136 140
BalonParca AdiParca NoAdetTipApplied Date A B C D E
136 BRACKET; OIL CYL 1-53459-568-3 01 1 9604-0004 ●
136 BRACKET; OIL CYL 1-53459-569-3 01 1 9604-0004 ●
136 BRACKET; OIL CYL 1-53458-677-0 01 1 9604-0004 ●
136 BRACKET; OIL CYL 1-53458-678-0 01 1 9604-0004 ●
137 WASHER; PL,BRKT
(A) ID=12.5 OD=26 		9-09160-612-0 04 1 9604-9606 ● ●
137 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 16 1 9604-0004 ● ●
139 PIN; OIL CYL,LWR 1-53459-490-3 02 1 9604-0004 ● ●
140 NUT; BRKT
(A) M12 		9-99110-512-0 04 1 9604-9606 ● ●
140 NUT; BRKT
(A) M12 FLANGE 		0-91150-212-0 04 1 9607-0004 ● ●
140 NUT; BRKT
(B) M14 		9-99110-514-0 08 1 9604-0004 ● ●
141 BOLT; BRKT
M14X40 		9-92061-440-0 08 1 9604-0004 ● ●
143 SPACER; OIL CYL,LWR 1-53459-491-2 04 1 9604-0004 ● ●
410 REINFORCEMENT; CAB TILT 1-62580-238-2 01 1 9604-0004 ● ●
410 REINFORCEMENT; CAB TILT 1-62580-241-2 01 1 9604-0004 ● ●
411 BOLT; REINFORCEMENT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 08 1 9604-0004 ● ●
447 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 9604-0004 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
