◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10716 - FSS/FTS-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#37223) — 101 parça

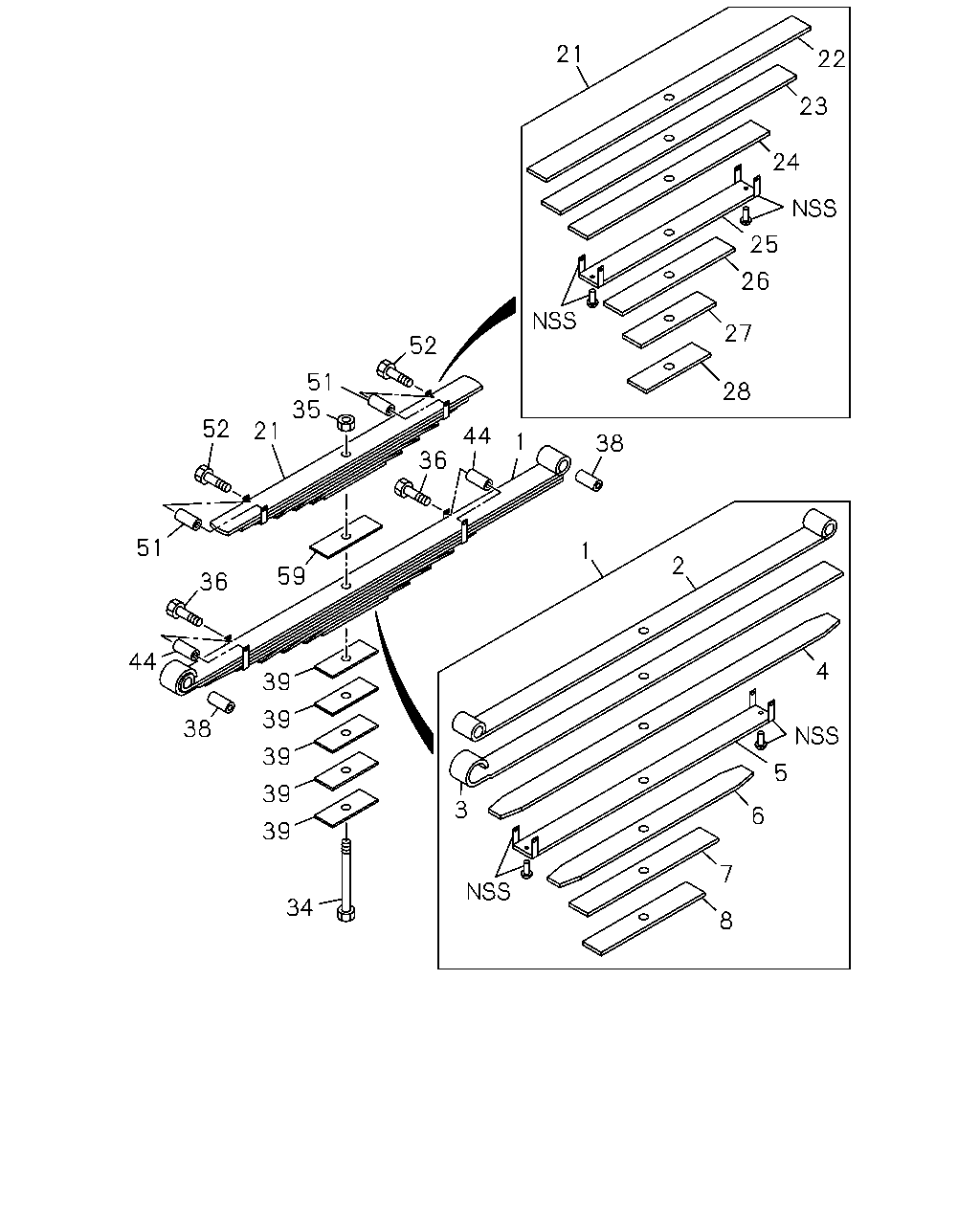

çizim 152856
21 22 23 24 25 26 27 52 51 35 28 52 21 44 1 38 36 51 1 2 59 36 44 4 39 39 38 39 5 39 3 6 39 7 34 8
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
14 LEAF ASM PART: B = 1-51300-366-0 		1-51310-766-0 01 1 -
1 SPRING ASM; LEAF,RR MAIN
16 LEAF ASM PART: A = 1-51300-358-2 		1-51310-802-1 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
14 LEAF ASM PART: B = 1-51300-366-0 		1-51311-766-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
16 LEAF ASM PART: A = 1-51300-358-2 		1-51311-802-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
14 LEAF ASM PART: B = 1-51300-366-0 		1-51312-766-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
16 LEAF ASM PART: A = 1-51300-358-2 		1-51312-802-1 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
14 LEAF ASM PART: B = 1-51300-366-0 		1-51313-766-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
16 LEAF ASM PART: A = 1-51300-358-2 		1-51313-802-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
14 LEAF, W/CLIP ASM PART: B = 1-51300-366-0 		1-51314-766-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
16 LEAF, W/CLIP ASM PART: A = 1-51300-358-2 		1-51314-802-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
14 LEAF ASM PART: B = 1-51300-366-0 		1-51315-766-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
16 LEAF ASM PART: A = 1-51300-358-2 		1-51315-802-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
14 LEAF ASM PART: B = 1-51300-366-0 		1-51316-766-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
16 LEAF ASM PART: A = 1-51300-358-2 		1-51316-802-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
14 LEAF ASM PART: B = 1-51300-366-0 		1-51317-766-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
16 LEAF ASM PART: A = 1-51300-358-2 		1-51317-802-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
14 LEAF ASM PART: B = 1-51300-366-0 		1-51340-461-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
16 LEAF ASM PART: A = 1-51300-358-2 		1-51340-487-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
14 LEAF ASM PART: B = 1-51300-366-0 		1-51341-461-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
16 LEAF ASM PART: A = 1-51300-358-2 		1-51341-487-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
14 LEAF ASM PART: B = 1-51300-366-0 		1-51342-461-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
16 LEAF ASM PART: A = 1-51300-358-2 		1-51342-487-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
14 LEAF ASM PART: B = 1-51300-366-0 		1-51343-461-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
16 LEAF ASM PART: A = 1-51300-358-2 		1-51343-487-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
14 LEAF, W/CLIP ASM PART: B = 1-51300-366-0 		1-51344-461-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
16 LEAF, W/CLIP ASM PART: A = 1-51300-358-2 		1-51344-487-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
14 LEAF ASM PART: B = 1-51300-366-0 		1-51345-461-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
16 LEAF ASM PART: A = 1-51300-358-2 		1-51345-487-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
14 LEAF ASM PART: B = 1-51300-366-0 		1-51346-461-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
16 LEAF ASM PART: A = 1-51300-358-2 		1-51346-487-0 01 1 -
28 SPRING; LEAF,NO 7,RR SUB
14 LEAF ASM PART: B = 1-51300-366-0 		1-51347-461-0 01 1 -
28 SPRING; LEAF,NO 7,RR SUB
16 LEAF ASM PART: A = 1-51300-358-2 		1-51347-487-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=220 ASM PART: A = 1-51300-358-2 		1-51356-211-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=235 ASM PART: B = 1-51300-366-0 		1-51356-244-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 1-51300-358-2, B = 1-51300-366-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X105 ASM PART: A = 1-51300-358-2 		1-09000-391-0 02 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: B = 1-51300-366-0 		1-09000-434-0 02 1 -
38 BUSHING; LEAF SPR,RR
ID=25 ASM PART: B = 1-51300-366-0 		9-51151-032-0 02 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: A = 1-51300-358-2 		9-51351-019-0 02 1 -
39 SEAT; LEAF SPR,RR MAIN
T=12 ASM PART: B = 1-51300-366-0 		1-51377-228-0 05 1 -
44 PIPE; CLIP,LEAF SPR,RR MAIN
ASM PART: B = 1-51300-366-0 		1-51153-006-0 02 1 -
44 PIPE; CLIP,LEAF SPR,RR MAIN
ASM PART: A = 1-51300-358-2 		1-51353-009-0 02 1 -
51 PIPE; CLIP,LEAF SPR,RR SUB
ASM PART: B = 1-51300-366-0 		1-51153-006-0 02 1 -
51 PIPE; CLIP,LEAF SPR,RR SUB
ASM PART: A = 1-51300-358-2 		1-51353-009-0 02 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M10X105 ASM PART: A = 1-51300-358-2 		1-09000-391-0 02 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
ASM PART: B = 1-51300-366-0 		1-09000-434-0 02 1 -
59 SEAT; RR SPRING,SUB
T=4.5 ASM PART: B = 1-51300-366-0 		1-51377-140-0 01 1 -
59 SEAT; RR SPRING,SUB
T=6 ASM PART: A = 1-51300-358-2 		1-51377-249-0 01 1 -

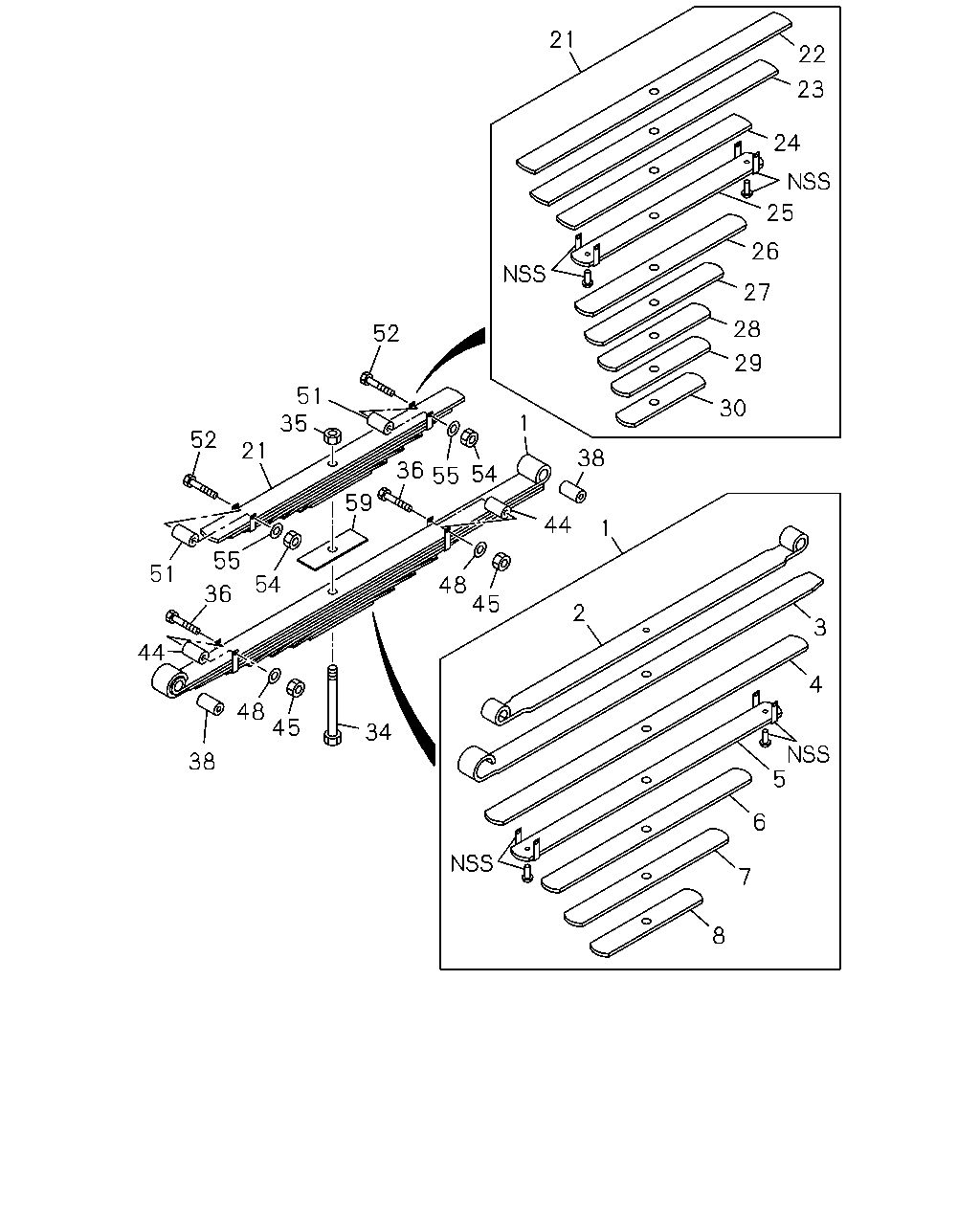

çizim 152886
21 22 23 24 25 26 27 28 52 29 51 35 30 1 52 21 38 36 55 54 59 44 1 55 51 54 48 45 36 2 3 44 4 48 45 34 5 38 6 7 8
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
14 LEAF ASM PART: B = 1-51300-366-0 		1-51310-766-0 01 1 -
1 SPRING ASM; LEAF,RR MAIN
16 LEAF ASM PART: A = 1-51300-358-2 		1-51310-802-1 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
14 LEAF ASM PART: B = 1-51300-366-0 		1-51311-766-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
16 LEAF ASM PART: A = 1-51300-358-2 		1-51311-802-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
14 LEAF ASM PART: B = 1-51300-366-0 		1-51312-766-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
16 LEAF ASM PART: A = 1-51300-358-2 		1-51312-802-1 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
14 LEAF ASM PART: B = 1-51300-366-0 		1-51313-766-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
16 LEAF ASM PART: A = 1-51300-358-2 		1-51313-802-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
14 LEAF, W/CLIP ASM PART: B = 1-51300-366-0 		1-51314-766-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
16 LEAF, W/CLIP ASM PART: A = 1-51300-358-2 		1-51314-802-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
14 LEAF ASM PART: B = 1-51300-366-0 		1-51315-766-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
16 LEAF ASM PART: A = 1-51300-358-2 		1-51315-802-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
14 LEAF ASM PART: B = 1-51300-366-0 		1-51316-766-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
16 LEAF ASM PART: A = 1-51300-358-2 		1-51316-802-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
14 LEAF ASM PART: B = 1-51300-366-0 		1-51317-766-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
16 LEAF ASM PART: A = 1-51300-358-2 		1-51317-802-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
14 LEAF ASM PART: B = 1-51300-366-0 		1-51340-461-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
16 LEAF ASM PART: A = 1-51300-358-2 		1-51340-487-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
14 LEAF ASM PART: B = 1-51300-366-0 		1-51341-461-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
16 LEAF ASM PART: A = 1-51300-358-2 		1-51341-487-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
14 LEAF ASM PART: B = 1-51300-366-0 		1-51342-461-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
16 LEAF ASM PART: A = 1-51300-358-2 		1-51342-487-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
14 LEAF ASM PART: B = 1-51300-366-0 		1-51343-461-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
16 LEAF ASM PART: A = 1-51300-358-2 		1-51343-487-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
14 LEAF, W/CLIP ASM PART: B = 1-51300-366-0 		1-51344-461-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
16 LEAF, W/CLIP ASM PART: A = 1-51300-358-2 		1-51344-487-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
14 LEAF ASM PART: B = 1-51300-366-0 		1-51345-461-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
16 LEAF ASM PART: A = 1-51300-358-2 		1-51345-487-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
14 LEAF ASM PART: B = 1-51300-366-0 		1-51346-461-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
16 LEAF ASM PART: A = 1-51300-358-2 		1-51346-487-0 01 1 -
28 SPRING; LEAF,NO 7,RR SUB
14 LEAF ASM PART: B = 1-51300-366-0 		1-51347-461-0 01 1 -
28 SPRING; LEAF,NO 7,RR SUB
16 LEAF ASM PART: A = 1-51300-358-2 		1-51347-487-0 01 1 -
29 SPRING; LEAF,NO 8,RR SUB
16 LEAF ASM PART: A = 1-51300-358-2 		1-51348-487-0 01 1 -
30 SPRING; LEAF,NO 9,RR SUB
16 LEAF ASM PART: A = 1-51300-358-2 		1-51349-487-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=220 ASM PART: A = 1-51300-358-2 		1-51356-211-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=235 ASM PART: B = 1-51300-366-0 		1-51356-244-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 1-51300-358-2, B = 1-51300-366-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X105 ASM PART: A = 1-51300-358-2 		1-09000-391-0 02 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: B = 1-51300-366-0 		1-09000-434-0 02 1 -
38 BUSHING; LEAF SPR,RR
ID=25 ASM PART: B = 1-51300-366-0 		9-51151-032-0 02 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: A = 1-51300-358-2 		9-51351-019-0 02 1 -
44 PIPE; CLIP,LEAF SPR,RR MAIN
ASM PART: B = 1-51300-366-0 		1-51153-006-0 02 1 -
44 PIPE; CLIP,LEAF SPR,RR MAIN
ASM PART: A = 1-51300-358-2 		1-51353-009-0 02 1 -
45 NUT; CLIP,LEAF SPR,RR MAIN
M8 ASM PART: A = 1-51300-358-2 		9-09110-008-0 02 1 -
48 WASHER; CLIP,LEAF SPR
ID=8.2 ASM PART: A = 1-51300-358-2 		9-09150-508-0 02 1 -
51 PIPE; CLIP,LEAF SPR,RR SUB
ASM PART: B = 1-51300-366-0 		1-51153-006-0 02 1 -
51 PIPE; CLIP,LEAF SPR,RR SUB
ASM PART: A = 1-51300-358-2 		1-51353-009-0 02 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M10X105 ASM PART: A = 1-51300-358-2 		1-09000-391-0 02 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
ASM PART: B = 1-51300-366-0 		1-09000-434-0 02 1 -
54 NUT; CLIP,LEAF SPR,RR SUB
M8 ASM PART: A = 1-51300-358-2 		9-09110-008-0 02 1 -
55 WASHER; CLIP,LEAF SPR,RR SUB
ID=8.2 ASM PART: A = 1-51300-358-2 		9-09150-508-0 02 1 -
59 SEAT; RR SPRING,SUB
T=4.5 ASM PART: B = 1-51300-366-0 		1-51377-140-0 01 1 -
59 SEAT; RR SPRING,SUB
T=6 ASM PART: A = 1-51300-358-2 		1-51377-249-0 01 1 -
