4-60 — REAR SUSPENSION (#37222) — 176 parça

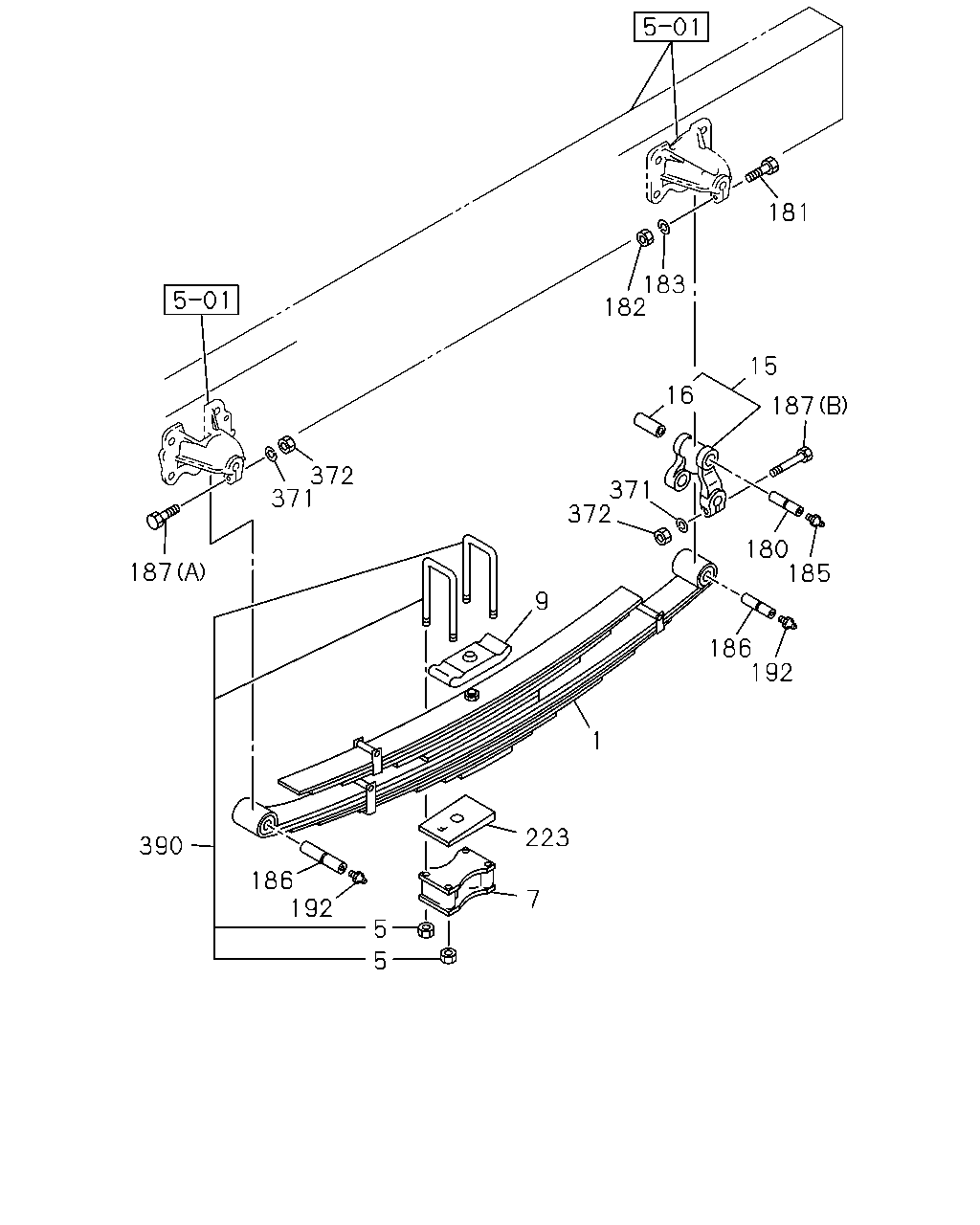

çizim 152866
181 183 182 15 16 187 372 371 371 372 180 185 187 9 186 192 1 223 390 186 192 7 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 14 LEAF 		1-51300-366-0 02 1 9604-0004 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 14 LEAF 		1-51300-366-0 02 1 0005- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 16 LEAF 		1-51300-358-2 02 1 9604-0004 ● ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 16 LEAF 		1-51300-358-2 02 1 0005- ● ●
5 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 9604-0004 ● ●
5 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 0005- ●
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 9604-0004 ● ● ●
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 0005-0512 ● ●
5 NUT; U-BOLT,RR SPR
M24 		0-91112-824-0 08 1 0601- ● ●
7 SEAT; SPR,LWR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-51385-090-1 02 1 9604-0004 ● ●
7 SEAT; SPR,LWR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-51385-086-1 02 1 9604-0004 ● ●
7 SEAT; SPR,LWR 1-51385-086-1 02 1 0005- ●
7 SEAT; SPR,LWR 1-51385-062-2 02 1 9604-0004 ● ● ●
7 SEAT; SPR,LWR 1-51385-062-2 02 1 0005- ● ●
9 PAD; U BOLT,RR SPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-51372-059-0 02 1 9604-0004 ● ●
9 PAD; U BOLT,RR SPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-51372-066-0 02 1 9604-0004 ● ●
9 PAD; U BOLT,RR SPR 1-51372-066-0 02 1 0005- ●
9 PAD; U BOLT,RR SPR 1-51372-048-1 02 1 9604-0004 ● ● ●
9 PAD; U BOLT,RR SPR 1-51372-048-1 02 1 0005- ● ●
15 SHACKLE; RR SPR 1-51362-038-1 02 1 9604-0004 ● ●
15 SHACKLE; RR SPR 1-51362-038-2 02 1 0005- ●
15 SHACKLE; RR SPR 1-51362-049-1 02 1 9604-0004 ● ● ●
15 SHACKLE; RR SPR 1-51362-049-2 02 1 0005- ● ●
16 BUSHING; SHACKLE,RR SPR
ID=25 		9-51151-032-0 02 1 9604-0004 ● ●
16 BUSHING; SHACKLE,RR SPR
ID=25 		9-51151-032-0 02 1 0005-0902 ●
16 BUSHING; SHACKLE,RR SPR
ID=25 		8-98082-176-0 02 1 0903- ●
16 BUSHING; SHACKLE,RR SPR 9-51351-019-0 02 1 9604-0004 ● ● ●
16 BUSHING; SHACKLE,RR SPR 9-51351-019-2 02 1 0005-0902 ● ●
16 BUSHING; SHACKLE,RR SPR 8-98081-830-0 02 1 0903- ● ●
16 BUSHING; SHACKLE,RR SPR
BEST VALUE PARTS 		1-87610-163-0 02 1 0903- ● ●
180 PIN; RR SPR
DO=25 L=115 PT1/8 		1-51361-016-0 02 1 9604-0004 ● ●
180 PIN; RR SPR
DO=25 L=115 PT1/8 		1-51361-016-0 02 1 0005- ●
180 PIN; RR SPR
DO=28 L=131 PT1/8 		1-51361-015-0 02 1 9604-0004 ● ● ●
180 PIN; RR SPR
DO=28 L=131 PT1/8 		1-51361-015-0 02 1 0005- ● ●
181 BOLT; SPR & SHACKLE
M12X55 		0-10811-255-0 02 1 9604-9803 ● ●
181 BOLT; SPR & SHACKLE
M12X55 		0-10811-255-0 02 1 9804-0004 ● ●
181 BOLT; SPR & SHACKLE
M12X55 		0-10811-255-0 02 1 0005- ●
181 BOLT; SPR & SHACKLE
M14X65 		0-10811-465-0 02 1 9604-0004 ● ● ●
181 BOLT; SPR & SHACKLE
M14X65 		0-10811-465-0 02 1 0005- ● ●
182 NUT; PIN,RR SPR
M12 		9-99110-512-0 02 1 9604-9802 ● ●
182 NUT; PIN,RR SPR
M12 		9-99110-512-0 02 1 9803-0004 ● ●
182 NUT; PIN,RR SPR
M12 		9-99110-512-0 02 1 0005-0512 ●
182 NUT; PIN,RR SPR
M12 		0-91110-512-0 02 1 0601- ●
182 NUT; PIN,RR SPR
M14 		9-99110-414-0 02 1 9604-0004 ● ● ●
182 NUT; PIN,RR SPR
M14 		9-99110-414-0 02 1 0005-0512 ● ●
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 02 1 0601- ● ●
183 WASHER; LK,PIN,RR SPR
ID=12.2 		9-09150-612-0 02 1 9604-0004 ● ●
183 WASHER; LK,PIN,RR SPR
ID=12.2 		9-09150-612-0 02 1 0005-0603 ●
183 WASHER; LK,PIN,RR SPR
ID=12.2 		0-91510-612-0 02 1 0604- ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		9-09150-514-0 02 1 9604-0004 ● ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		9-09150-514-0 02 1 0005-0603 ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		0-91510-514-0 02 1 0604- ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9604-0004 ● ● ● ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0005-0512 ● ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ● ● ●
186 PIN; SHACKLE,RR SPR
DO=25 L=115 PT1/8 		1-51361-016-0 04 1 9604-0004 ● ●
186 PIN; SHACKLE,RR SPR
DO=25 L=115 PT1/8 		1-51361-016-0 04 1 0005- ●
186 PIN; SHACKLE,RR SPR
DO=28 L=131 PT1/8 		1-51361-015-0 04 1 9604-0004 ● ● ●
186 PIN; SHACKLE,RR SPR
DO=28 L=131 PT1/8 		1-51361-015-0 04 1 0005- ● ●
187 BOLT; SPR & SHACKLE
(A) M12X55 		0-10811-255-0 02 1 9604-0004 ● ●
187 BOLT; SPR & SHACKLE
(A) M12X55 		0-10811-255-0 02 1 0005- ●
187 BOLT; SPR & SHACKLE
(B) M12X65 		0-10811-265-0 02 1 9604-0004 ● ●
187 BOLT; SPR & SHACKLE
(B) M12X65 		0-10811-265-0 02 1 0005- ●
187 BOLT; SPR & SHACKLE
(C) M14X65 		0-10811-465-0 04 1 9604-0004 ● ● ●
187 BOLT; SPR & SHACKLE
(C) M14X65 		0-10811-465-0 04 1 0005- ● ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9604-0004 ● ● ● ● ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		9-09031-010-0 04 1 0005-0512 ● ● ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601- ● ● ●
223 SPACER; U BOLT,RR SPR 1-51377-329-1 02 1 9604-0004 ● ●
223 SPACER; U BOLT,RR SPR 1-51377-329-1 02 1 0005- ●
223 SPACER; U BOLT,RR SPR 1-51377-246-0 01 1 9604-0004 ● ● ●
223 SPACER; U BOLT,RR SPR 1-51377-246-0 01 1 0005- ● ●
371 WASHER; LK,SHACKLE
ID=12.2 		9-09150-612-0 04 1 9604-0004 ● ●
371 WASHER; LK,SHACKLE
ID=12.2 		9-09150-612-0 04 1 0005-0603 ●
371 WASHER; LK,SHACKLE
ID=12.2 		0-91510-612-0 04 1 0604- ●
371 WASHER; LK,SHACKLE
ID=14.2 		9-09150-514-0 04 1 9604-0004 ● ● ●
371 WASHER; LK,SHACKLE
ID=14.2 		9-09150-514-0 04 1 0005-0603 ● ●
371 WASHER; LK,SHACKLE
ID=14.2 		0-91510-514-0 04 1 0604- ● ●
372 NUT; SHACKLE
M12 		9-99110-512-0 04 1 9604-0004 ● ●
372 NUT; SHACKLE
M12 		9-99110-512-0 04 1 0005-0512 ●
372 NUT; SHACKLE
M12 		0-91110-512-0 04 1 0601- ●
372 NUT; SHACKLE
M14 		9-99110-414-0 04 1 9604-0004 ● ● ●
372 NUT; SHACKLE
M14 		9-99110-414-0 04 1 0005-0512 ● ●
372 NUT; SHACKLE
M14 		0-91110-514-0 04 1 0601- ● ●
390 U-BOLT SET; RR SPRING
L=510 		1-87870-396-0 04 1 9604-0004 ● ●
390 U-BOLT SET; RR SPRING
L=510 		1-87870-396-0 04 1 0005- ●
390 U-BOLT SET; RR SPRING
L=570 		1-87870-320-0 04 1 9604-0004 ● ● ●
390 U-BOLT SET; RR SPRING
L=570 		1-87870-320-1 04 1 0005- ● ●

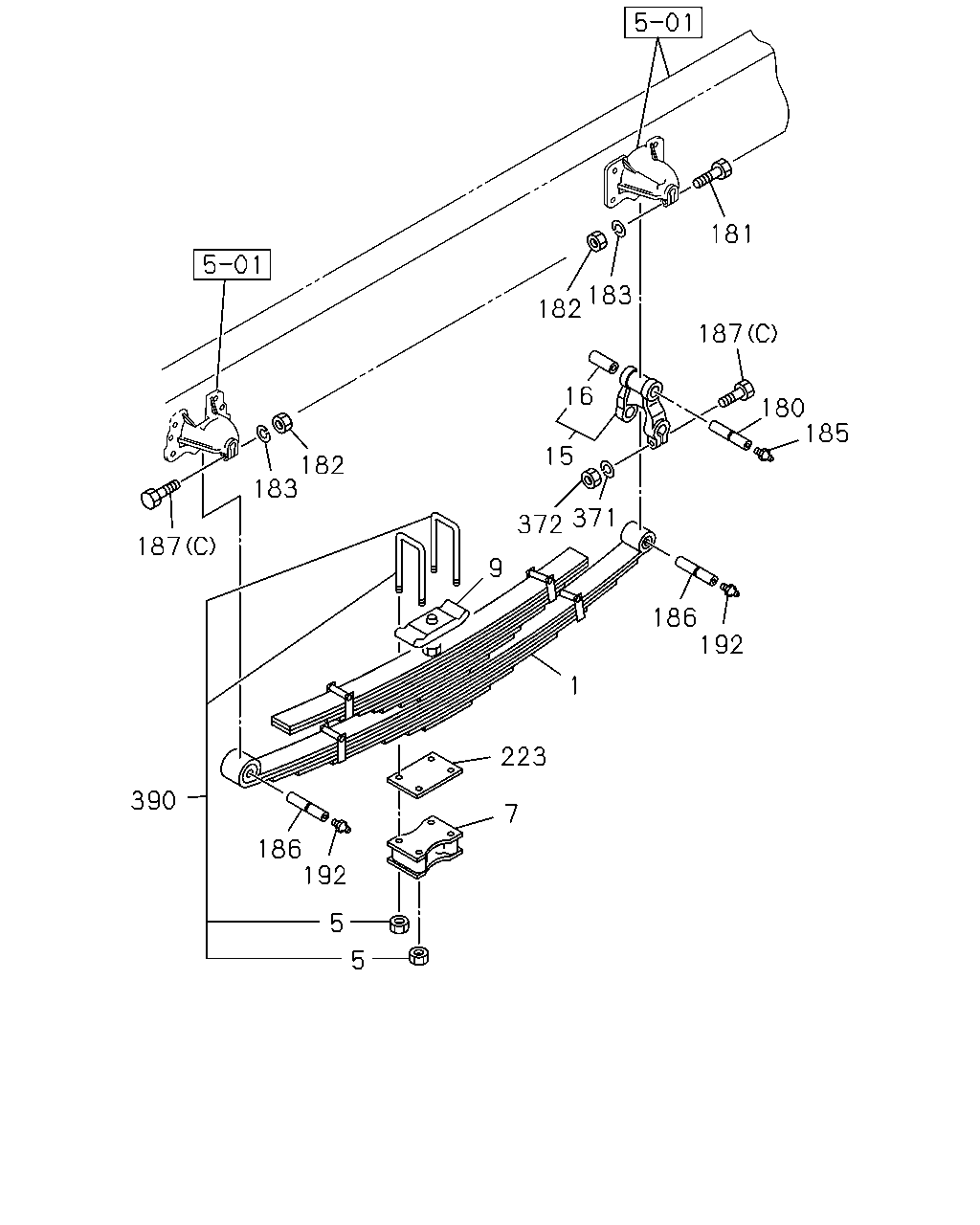

çizim 152869
181 183 182 187 16 180 185 15 182 183 371 372 187 9 186 192 1 223 390 7 186 192 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 14 LEAF 		1-51300-366-0 02 1 9604-0004 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 14 LEAF 		1-51300-366-0 02 1 0005- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 16 LEAF 		1-51300-358-2 02 1 9604-0004 ● ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 16 LEAF 		1-51300-358-2 02 1 0005- ● ●
5 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 9604-0004 ● ●
5 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 0005- ●
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 9604-0004 ● ● ●
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 0005-0512 ● ●
5 NUT; U-BOLT,RR SPR
M24 		0-91112-824-0 08 1 0601- ● ●
7 SEAT; SPR,LWR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-51385-090-1 02 1 9604-0004 ● ●
7 SEAT; SPR,LWR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-51385-086-1 02 1 9604-0004 ● ●
7 SEAT; SPR,LWR 1-51385-086-1 02 1 0005- ●
7 SEAT; SPR,LWR 1-51385-062-2 02 1 9604-0004 ● ● ●
7 SEAT; SPR,LWR 1-51385-062-2 02 1 0005- ● ●
9 PAD; U BOLT,RR SPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-51372-059-0 02 1 9604-0004 ● ●
9 PAD; U BOLT,RR SPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-51372-066-0 02 1 9604-0004 ● ●
9 PAD; U BOLT,RR SPR 1-51372-066-0 02 1 0005- ●
9 PAD; U BOLT,RR SPR 1-51372-048-1 02 1 9604-0004 ● ● ●
9 PAD; U BOLT,RR SPR 1-51372-048-1 02 1 0005- ● ●
15 SHACKLE; RR SPR 1-51362-038-1 02 1 9604-0004 ● ●
15 SHACKLE; RR SPR 1-51362-038-2 02 1 0005- ●
15 SHACKLE; RR SPR 1-51362-049-1 02 1 9604-0004 ● ● ●
15 SHACKLE; RR SPR 1-51362-049-2 02 1 0005- ● ●
16 BUSHING; SHACKLE,RR SPR
ID=25 		9-51151-032-0 02 1 9604-0004 ● ●
16 BUSHING; SHACKLE,RR SPR
ID=25 		9-51151-032-0 02 1 0005-0902 ●
16 BUSHING; SHACKLE,RR SPR
ID=25 		8-98082-176-0 02 1 0903- ●
16 BUSHING; SHACKLE,RR SPR 9-51351-019-0 02 1 9604-0004 ● ● ●
16 BUSHING; SHACKLE,RR SPR 9-51351-019-2 02 1 0005-0902 ● ●
16 BUSHING; SHACKLE,RR SPR 8-98081-830-0 02 1 0903- ● ●
16 BUSHING; SHACKLE,RR SPR
BEST VALUE PARTS 		1-87610-163-0 02 1 0903- ● ●
180 PIN; RR SPR
DO=25 L=115 PT1/8 		1-51361-016-0 02 1 9604-0004 ● ●
180 PIN; RR SPR
DO=25 L=115 PT1/8 		1-51361-016-0 02 1 0005- ●
180 PIN; RR SPR
DO=28 L=131 PT1/8 		1-51361-015-0 02 1 9604-0004 ● ● ●
180 PIN; RR SPR
DO=28 L=131 PT1/8 		1-51361-015-0 02 1 0005- ● ●
181 BOLT; SPR & SHACKLE
M12X55 		0-10811-255-0 02 1 9604-9803 ● ●
181 BOLT; SPR & SHACKLE
M12X55 		0-10811-255-0 02 1 9804-0004 ● ●
181 BOLT; SPR & SHACKLE
M12X55 		0-10811-255-0 02 1 0005- ●
181 BOLT; SPR & SHACKLE
M14X65 		0-10811-465-0 02 1 9604-0004 ● ● ●
181 BOLT; SPR & SHACKLE
M14X65 		0-10811-465-0 02 1 0005- ● ●
182 NUT; PIN,RR SPR
M12 		9-99110-512-0 02 1 9604-9802 ● ●
182 NUT; PIN,RR SPR
M12 		9-99110-512-0 02 1 9803-0004 ● ●
182 NUT; PIN,RR SPR
M12 		9-99110-512-0 02 1 0005-0512 ●
182 NUT; PIN,RR SPR
M12 		0-91110-512-0 02 1 0601- ●
182 NUT; PIN,RR SPR
M14 		9-99110-414-0 02 1 9604-0004 ● ● ●
182 NUT; PIN,RR SPR
M14 		9-99110-414-0 02 1 0005-0512 ● ●
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 02 1 0601- ● ●
183 WASHER; LK,PIN,RR SPR
ID=12.2 		9-09150-612-0 02 1 9604-0004 ● ●
183 WASHER; LK,PIN,RR SPR
ID=12.2 		9-09150-612-0 02 1 0005-0603 ●
183 WASHER; LK,PIN,RR SPR
ID=12.2 		0-91510-612-0 02 1 0604- ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		9-09150-514-0 02 1 9604-0004 ● ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		9-09150-514-0 02 1 0005-0603 ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		0-91510-514-0 02 1 0604- ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9604-0004 ● ● ● ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0005-0512 ● ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ● ● ●
186 PIN; SHACKLE,RR SPR
DO=25 L=115 PT1/8 		1-51361-016-0 04 1 9604-0004 ● ●
186 PIN; SHACKLE,RR SPR
DO=25 L=115 PT1/8 		1-51361-016-0 04 1 0005- ●
186 PIN; SHACKLE,RR SPR
DO=28 L=131 PT1/8 		1-51361-015-0 04 1 9604-0004 ● ● ●
186 PIN; SHACKLE,RR SPR
DO=28 L=131 PT1/8 		1-51361-015-0 04 1 0005- ● ●
187 BOLT; SPR & SHACKLE
(A) M12X55 		0-10811-255-0 02 1 9604-0004 ● ●
187 BOLT; SPR & SHACKLE
(A) M12X55 		0-10811-255-0 02 1 0005- ●
187 BOLT; SPR & SHACKLE
(B) M12X65 		0-10811-265-0 02 1 9604-0004 ● ●
187 BOLT; SPR & SHACKLE
(B) M12X65 		0-10811-265-0 02 1 0005- ●
187 BOLT; SPR & SHACKLE
(C) M14X65 		0-10811-465-0 04 1 9604-0004 ● ● ●
187 BOLT; SPR & SHACKLE
(C) M14X65 		0-10811-465-0 04 1 0005- ● ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9604-0004 ● ● ● ● ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		9-09031-010-0 04 1 0005-0512 ● ● ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601- ● ● ●
223 SPACER; U BOLT,RR SPR 1-51377-329-1 02 1 9604-0004 ● ●
223 SPACER; U BOLT,RR SPR 1-51377-329-1 02 1 0005- ●
223 SPACER; U BOLT,RR SPR 1-51377-246-0 01 1 9604-0004 ● ● ●
223 SPACER; U BOLT,RR SPR 1-51377-246-0 01 1 0005- ● ●
371 WASHER; LK,SHACKLE
ID=12.2 		9-09150-612-0 04 1 9604-0004 ● ●
371 WASHER; LK,SHACKLE
ID=12.2 		9-09150-612-0 04 1 0005-0603 ●
371 WASHER; LK,SHACKLE
ID=12.2 		0-91510-612-0 04 1 0604- ●
371 WASHER; LK,SHACKLE
ID=14.2 		9-09150-514-0 04 1 9604-0004 ● ● ●
371 WASHER; LK,SHACKLE
ID=14.2 		9-09150-514-0 04 1 0005-0603 ● ●
371 WASHER; LK,SHACKLE
ID=14.2 		0-91510-514-0 04 1 0604- ● ●
372 NUT; SHACKLE
M12 		9-99110-512-0 04 1 9604-0004 ● ●
372 NUT; SHACKLE
M12 		9-99110-512-0 04 1 0005-0512 ●
372 NUT; SHACKLE
M12 		0-91110-512-0 04 1 0601- ●
372 NUT; SHACKLE
M14 		9-99110-414-0 04 1 9604-0004 ● ● ●
372 NUT; SHACKLE
M14 		9-99110-414-0 04 1 0005-0512 ● ●
372 NUT; SHACKLE
M14 		0-91110-514-0 04 1 0601- ● ●
390 U-BOLT SET; RR SPRING
L=510 		1-87870-396-0 04 1 9604-0004 ● ●
390 U-BOLT SET; RR SPRING
L=510 		1-87870-396-0 04 1 0005- ●
390 U-BOLT SET; RR SPRING
L=570 		1-87870-320-0 04 1 9604-0004 ● ● ●
390 U-BOLT SET; RR SPRING
L=570 		1-87870-320-1 04 1 0005- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
