4-55 — FRONT LEAF SPRING (#37221) — 221 parça

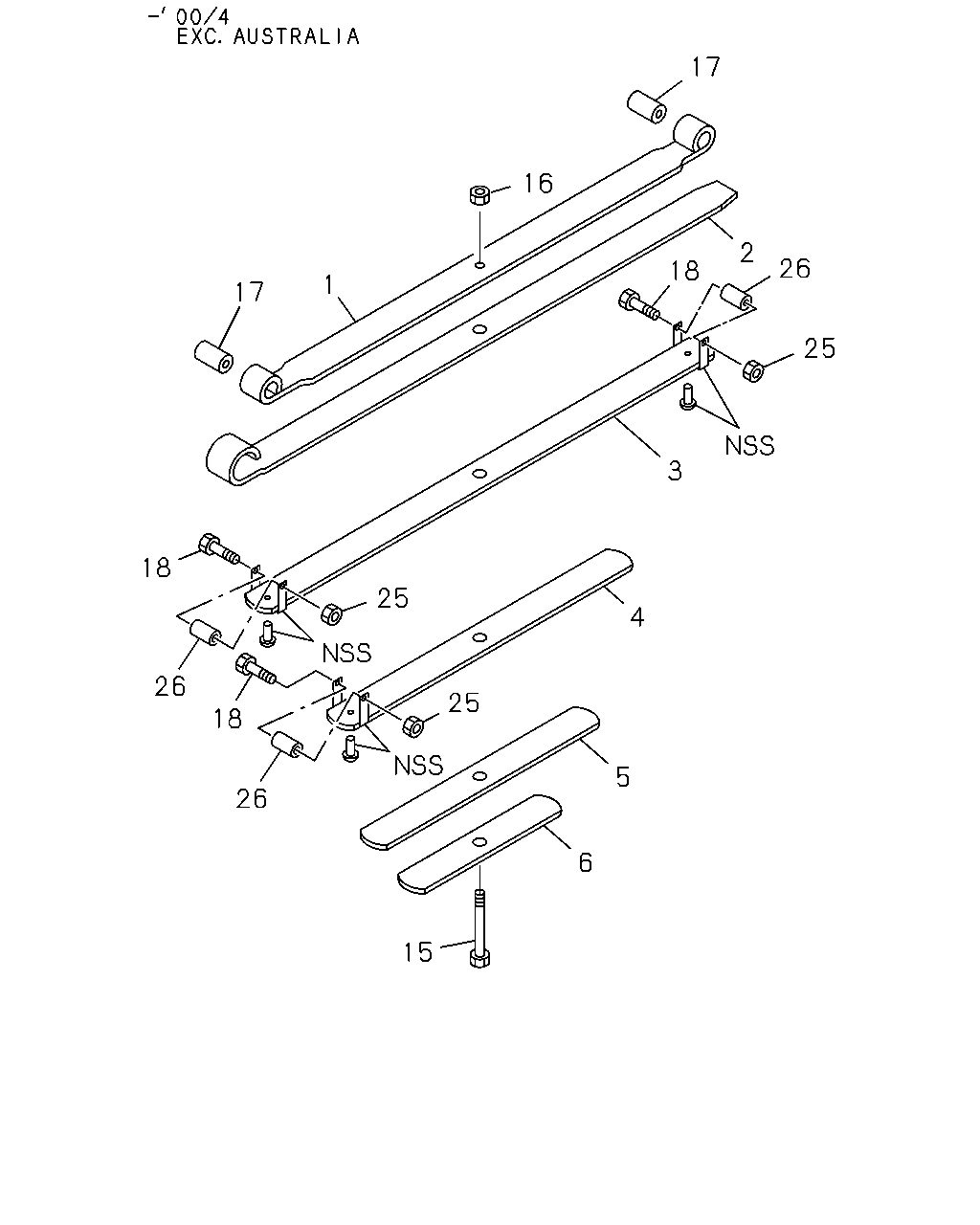

çizim 152845
17 16 2 26 18 1 17 25 3 18 25 4 26 25 18 5 26 6 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
6 LEAF ASM PART: A = 1-51110-730-0 		1-51111-730-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: B = 1-51130-415-0 		1-51131-415-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: C = 1-51130-443-0 		1-51131-443-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
5 LEAF ASM PART: D = 1-51130-473-0 		1-51131-473-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: E = 1-51130-773-0 		1-51131-773-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: F = 8-97383-538-0 		8-97386-329-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
6 LEAF ASM PART: A = 1-51110-730-0 		1-51112-730-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: B = 1-51130-415-0 		1-51132-415-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: C = 1-51130-443-0 		1-51132-443-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
5 LEAF ASM PART: D = 1-51130-473-0 		1-51132-473-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: E = 1-51130-773-0 		1-51132-773-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: F = 8-97383-538-0 		8-97386-330-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
6 LEAF, W/CLIP ASM PART: A = 1-51110-730-0 		1-51113-730-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF ASM PART: B = 1-51130-415-0 		1-51133-415-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF ASM PART: C = 1-51130-443-0 		1-51133-443-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
5 LEAF, W/CLIP ASM PART: D = 1-51130-473-0 		1-51133-473-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF ASM PART: E = 1-51130-773-0 		1-51133-773-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
W/CLIP ASM PART: F = 8-97383-538-0 		8-97386-331-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
6 LEAF, W/CLIP ASM PART: A = 1-51110-730-0 		1-51114-730-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAF, W/CLIP ASM PART: B = 1-51130-415-0 		1-51134-415-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9 LEAF ASM PART: C = 1-51130-443-0 		1-51134-443-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
5 LEAF, W/CLIP ASM PART: D = 1-51130-473-0 		1-51134-473-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9 LEAF ASM PART: E = 1-51130-773-0 		1-51134-773-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
6 LEAF ASM PART: A = 1-51110-730-0 		1-51115-730-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF ASM PART: B = 1-51130-415-0 		1-51135-415-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9 LEAF, W/CLIP ASM PART: C = 1-51130-443-0 		1-51135-443-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
5 LEAF ASM PART: D = 1-51130-473-0 		1-51135-473-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9 LEAF, W/CLIP ASM PART: E = 1-51130-773-0 		1-51135-773-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
6 LEAF ASM PART: A = 1-51110-730-0 		1-51116-730-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8 LEAF ASM PART: B = 1-51130-415-0 		1-51136-415-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9 LEAF ASM PART: C = 1-51130-443-0 		1-51136-443-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9 LEAF ASM PART: E = 1-51130-773-0 		1-51136-773-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=85 ASM PART: D = 1-51130-473-0 		1-51156-173-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=90 ASM PART: A = 1-51110-730-0 		1-51156-195-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=125 ASM PART: B = 1-51130-415-0, F = 8-97383-538-0 		1-51156-196-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: C = 1-51130-443-0, E = 1-51130-773-0 		1-51156-206-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: B = 1-51130-415-0, C = 1-51130-443-0, E = 1-51130-773-0, F = 8-97383-538-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M12 ASM PART: A = 1-51110-730-0, D = 1-51130-473-0 		9-99110-512-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: B = 1-51130-415-0, C = 1-51130-443-0, E = 1-51130-773-0, F = 8-97383-538-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
ID=25 ASM PART: A = 1-51110-730-0, D = 1-51130-473-0 		9-51151-032-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: B = 1-51130-415-0, C = 1-51130-443-0, E = 1-51130-773-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M8X90 ASM PART: A = 1-51110-730-0, D = 1-51130-473-0 		1-09000-392-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X103 ASM PART: F = 8-97383-538-0 		1-09000-536-0 02 1 -
25 NUT; CLAMP
M8 ASM PART: A = 1-51110-730-0 		9-09110-008-0 03 1 -
26 PIPE; CLIP,LEAF SPR,FRT
ASM PART: A = 1-51110-730-0, D = 1-51130-473-0 		1-51153-006-0 03 1 -

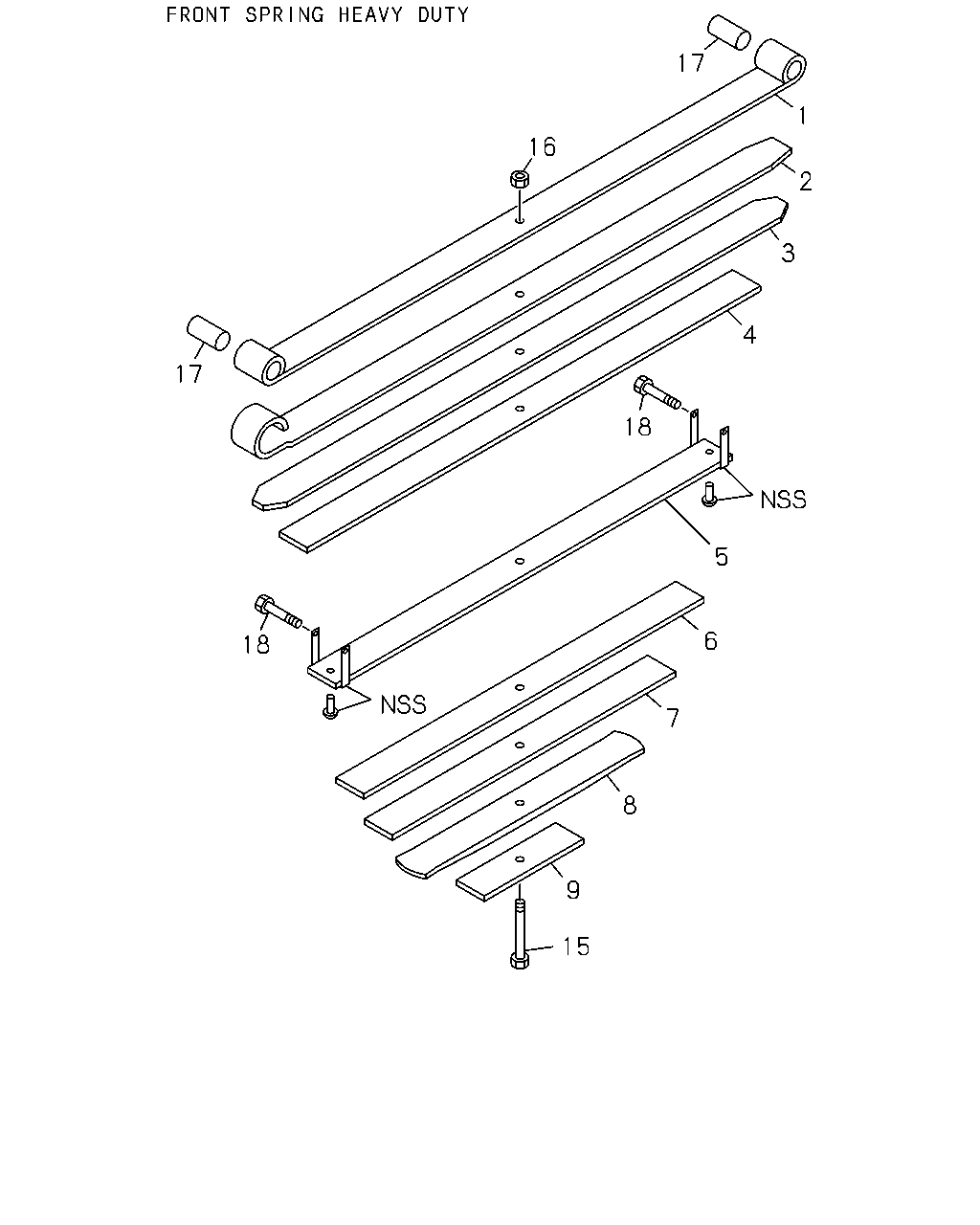

çizim 152861
17 1 16 2 3 4 17 18 5 6 18 7 8 9 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
6 LEAF ASM PART: A = 1-51110-730-0 		1-51111-730-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: B = 1-51130-415-0 		1-51131-415-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: C = 1-51130-443-0 		1-51131-443-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
5 LEAF ASM PART: D = 1-51130-473-0 		1-51131-473-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: E = 1-51130-773-0 		1-51131-773-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: F = 8-97383-538-0 		8-97386-329-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
6 LEAF ASM PART: A = 1-51110-730-0 		1-51112-730-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: B = 1-51130-415-0 		1-51132-415-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: C = 1-51130-443-0 		1-51132-443-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
5 LEAF ASM PART: D = 1-51130-473-0 		1-51132-473-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: E = 1-51130-773-0 		1-51132-773-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: F = 8-97383-538-0 		8-97386-330-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
6 LEAF, W/CLIP ASM PART: A = 1-51110-730-0 		1-51113-730-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF ASM PART: B = 1-51130-415-0 		1-51133-415-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF ASM PART: C = 1-51130-443-0 		1-51133-443-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
5 LEAF, W/CLIP ASM PART: D = 1-51130-473-0 		1-51133-473-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF ASM PART: E = 1-51130-773-0 		1-51133-773-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
W/CLIP ASM PART: F = 8-97383-538-0 		8-97386-331-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
6 LEAF, W/CLIP ASM PART: A = 1-51110-730-0 		1-51114-730-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAF, W/CLIP ASM PART: B = 1-51130-415-0 		1-51134-415-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9 LEAF ASM PART: C = 1-51130-443-0 		1-51134-443-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
5 LEAF, W/CLIP ASM PART: D = 1-51130-473-0 		1-51134-473-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9 LEAF ASM PART: E = 1-51130-773-0 		1-51134-773-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
6 LEAF ASM PART: A = 1-51110-730-0 		1-51115-730-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF ASM PART: B = 1-51130-415-0 		1-51135-415-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9 LEAF, W/CLIP ASM PART: C = 1-51130-443-0 		1-51135-443-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
5 LEAF ASM PART: D = 1-51130-473-0 		1-51135-473-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9 LEAF, W/CLIP ASM PART: E = 1-51130-773-0 		1-51135-773-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
6 LEAF ASM PART: A = 1-51110-730-0 		1-51116-730-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8 LEAF ASM PART: B = 1-51130-415-0 		1-51136-415-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9 LEAF ASM PART: C = 1-51130-443-0 		1-51136-443-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9 LEAF ASM PART: E = 1-51130-773-0 		1-51136-773-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8 LEAF ASM PART: B = 1-51130-415-0 		1-51137-415-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9 LEAF ASM PART: C = 1-51130-443-0 		1-51137-443-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9 LEAF ASM PART: E = 1-51130-773-0 		1-51137-773-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8 LEAF ASM PART: B = 1-51130-415-0 		1-51138-415-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9 LEAF ASM PART: C = 1-51130-443-0 		1-51138-443-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9 LEAF ASM PART: E = 1-51130-773-0 		1-51138-773-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
9 LEAF ASM PART: C = 1-51130-443-0 		1-51139-443-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
9 LEAF ASM PART: E = 1-51130-773-0 		1-51139-773-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=85 ASM PART: D = 1-51130-473-0 		1-51156-173-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=90 ASM PART: A = 1-51110-730-0 		1-51156-195-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=125 ASM PART: B = 1-51130-415-0, F = 8-97383-538-0 		1-51156-196-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: C = 1-51130-443-0, E = 1-51130-773-0 		1-51156-206-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: B = 1-51130-415-0, C = 1-51130-443-0, E = 1-51130-773-0, F = 8-97383-538-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M12 ASM PART: A = 1-51110-730-0, D = 1-51130-473-0 		9-99110-512-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: B = 1-51130-415-0, C = 1-51130-443-0, E = 1-51130-773-0, F = 8-97383-538-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
ID=25 ASM PART: A = 1-51110-730-0, D = 1-51130-473-0 		9-51151-032-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: B = 1-51130-415-0, C = 1-51130-443-0, E = 1-51130-773-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M8X90 ASM PART: A = 1-51110-730-0, D = 1-51130-473-0 		1-09000-392-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X103 ASM PART: F = 8-97383-538-0 		1-09000-536-0 02 1 -
çizim 152864
17 16 2 1 3 18 17 4 5 18 6 7 8 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
6 LEAF ASM PART: A = 1-51110-730-0 		1-51111-730-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: B = 1-51130-415-0 		1-51131-415-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: C = 1-51130-443-0 		1-51131-443-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
5 LEAF ASM PART: D = 1-51130-473-0 		1-51131-473-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: E = 1-51130-773-0 		1-51131-773-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: F = 8-97383-538-0 		8-97386-329-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
6 LEAF ASM PART: A = 1-51110-730-0 		1-51112-730-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: B = 1-51130-415-0 		1-51132-415-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: C = 1-51130-443-0 		1-51132-443-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
5 LEAF ASM PART: D = 1-51130-473-0 		1-51132-473-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: E = 1-51130-773-0 		1-51132-773-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: F = 8-97383-538-0 		8-97386-330-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
6 LEAF, W/CLIP ASM PART: A = 1-51110-730-0 		1-51113-730-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF ASM PART: B = 1-51130-415-0 		1-51133-415-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF ASM PART: C = 1-51130-443-0 		1-51133-443-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
5 LEAF, W/CLIP ASM PART: D = 1-51130-473-0 		1-51133-473-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF ASM PART: E = 1-51130-773-0 		1-51133-773-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
W/CLIP ASM PART: F = 8-97383-538-0 		8-97386-331-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
6 LEAF, W/CLIP ASM PART: A = 1-51110-730-0 		1-51114-730-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAF, W/CLIP ASM PART: B = 1-51130-415-0 		1-51134-415-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9 LEAF ASM PART: C = 1-51130-443-0 		1-51134-443-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
5 LEAF, W/CLIP ASM PART: D = 1-51130-473-0 		1-51134-473-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9 LEAF ASM PART: E = 1-51130-773-0 		1-51134-773-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
6 LEAF ASM PART: A = 1-51110-730-0 		1-51115-730-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF ASM PART: B = 1-51130-415-0 		1-51135-415-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9 LEAF, W/CLIP ASM PART: C = 1-51130-443-0 		1-51135-443-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
5 LEAF ASM PART: D = 1-51130-473-0 		1-51135-473-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9 LEAF, W/CLIP ASM PART: E = 1-51130-773-0 		1-51135-773-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
6 LEAF ASM PART: A = 1-51110-730-0 		1-51116-730-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8 LEAF ASM PART: B = 1-51130-415-0 		1-51136-415-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9 LEAF ASM PART: C = 1-51130-443-0 		1-51136-443-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9 LEAF ASM PART: E = 1-51130-773-0 		1-51136-773-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8 LEAF ASM PART: B = 1-51130-415-0 		1-51137-415-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9 LEAF ASM PART: C = 1-51130-443-0 		1-51137-443-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9 LEAF ASM PART: E = 1-51130-773-0 		1-51137-773-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8 LEAF ASM PART: B = 1-51130-415-0 		1-51138-415-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9 LEAF ASM PART: C = 1-51130-443-0 		1-51138-443-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9 LEAF ASM PART: E = 1-51130-773-0 		1-51138-773-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=85 ASM PART: D = 1-51130-473-0 		1-51156-173-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=90 ASM PART: A = 1-51110-730-0 		1-51156-195-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=125 ASM PART: B = 1-51130-415-0, F = 8-97383-538-0 		1-51156-196-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: C = 1-51130-443-0, E = 1-51130-773-0 		1-51156-206-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: B = 1-51130-415-0, C = 1-51130-443-0, E = 1-51130-773-0, F = 8-97383-538-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M12 ASM PART: A = 1-51110-730-0, D = 1-51130-473-0 		9-99110-512-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: B = 1-51130-415-0, C = 1-51130-443-0, E = 1-51130-773-0, F = 8-97383-538-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
ID=25 ASM PART: A = 1-51110-730-0, D = 1-51130-473-0 		9-51151-032-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: B = 1-51130-415-0, C = 1-51130-443-0, E = 1-51130-773-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M8X90 ASM PART: A = 1-51110-730-0, D = 1-51130-473-0 		1-09000-392-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X103 ASM PART: F = 8-97383-538-0 		1-09000-536-0 02 1 -

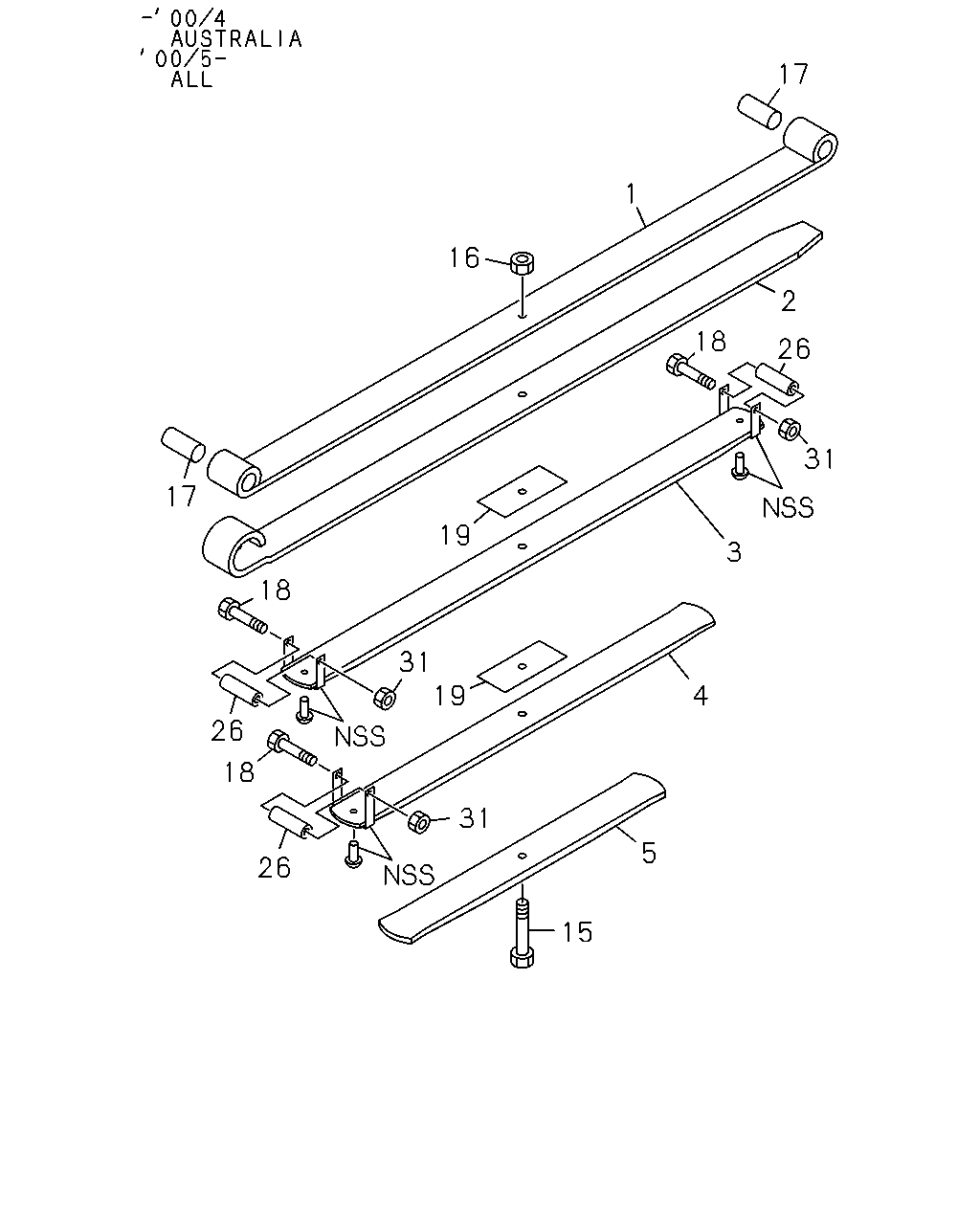

çizim 152865
17 1 16 2 18 26 31 17 19 3 18 31 19 4 26 18 31 5 26 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
6 LEAF ASM PART: A = 1-51110-730-0 		1-51111-730-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: B = 1-51130-415-0 		1-51131-415-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: C = 1-51130-443-0 		1-51131-443-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
5 LEAF ASM PART: D = 1-51130-473-0 		1-51131-473-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: E = 1-51130-773-0 		1-51131-773-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: F = 8-97383-538-0 		8-97386-329-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
6 LEAF ASM PART: A = 1-51110-730-0 		1-51112-730-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: B = 1-51130-415-0 		1-51132-415-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: C = 1-51130-443-0 		1-51132-443-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
5 LEAF ASM PART: D = 1-51130-473-0 		1-51132-473-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: E = 1-51130-773-0 		1-51132-773-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: F = 8-97383-538-0 		8-97386-330-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
6 LEAF, W/CLIP ASM PART: A = 1-51110-730-0 		1-51113-730-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF ASM PART: B = 1-51130-415-0 		1-51133-415-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF ASM PART: C = 1-51130-443-0 		1-51133-443-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
5 LEAF, W/CLIP ASM PART: D = 1-51130-473-0 		1-51133-473-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF ASM PART: E = 1-51130-773-0 		1-51133-773-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
W/CLIP ASM PART: F = 8-97383-538-0 		8-97386-331-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
6 LEAF, W/CLIP ASM PART: A = 1-51110-730-0 		1-51114-730-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAF, W/CLIP ASM PART: B = 1-51130-415-0 		1-51134-415-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9 LEAF ASM PART: C = 1-51130-443-0 		1-51134-443-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
5 LEAF, W/CLIP ASM PART: D = 1-51130-473-0 		1-51134-473-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9 LEAF ASM PART: E = 1-51130-773-0 		1-51134-773-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
6 LEAF ASM PART: A = 1-51110-730-0 		1-51115-730-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF ASM PART: B = 1-51130-415-0 		1-51135-415-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9 LEAF, W/CLIP ASM PART: C = 1-51130-443-0 		1-51135-443-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
5 LEAF ASM PART: D = 1-51130-473-0 		1-51135-473-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9 LEAF, W/CLIP ASM PART: E = 1-51130-773-0 		1-51135-773-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=85 ASM PART: D = 1-51130-473-0 		1-51156-173-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=90 ASM PART: A = 1-51110-730-0 		1-51156-195-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=125 ASM PART: B = 1-51130-415-0, F = 8-97383-538-0 		1-51156-196-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: C = 1-51130-443-0, E = 1-51130-773-0 		1-51156-206-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: B = 1-51130-415-0, C = 1-51130-443-0, E = 1-51130-773-0, F = 8-97383-538-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M12 ASM PART: A = 1-51110-730-0, D = 1-51130-473-0 		9-99110-512-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: B = 1-51130-415-0, C = 1-51130-443-0, E = 1-51130-773-0, F = 8-97383-538-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
ID=25 ASM PART: A = 1-51110-730-0, D = 1-51130-473-0 		9-51151-032-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: B = 1-51130-415-0, C = 1-51130-443-0, E = 1-51130-773-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M8X90 ASM PART: A = 1-51110-730-0, D = 1-51130-473-0 		1-09000-392-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X103 ASM PART: F = 8-97383-538-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: D = 1-51130-473-0 		1-51177-319-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: F = 8-97383-538-0 		8-97386-326-0 03 1 -
26 PIPE; CLIP,LEAF SPR,FRT
ASM PART: A = 1-51110-730-0, D = 1-51130-473-0 		1-51153-006-0 03 1 -
31 NUT; CLIP
M8 ASM PART: D = 1-51130-473-0 		9-09110-008-0 03 1 -
çizim 153045
35 17 1 16 35 20 19 2 35 17 19 18 35 19 18 3 20 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
6 LEAF ASM PART: A = 1-51110-730-0 		1-51111-730-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: B = 1-51130-415-0 		1-51131-415-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: C = 1-51130-443-0 		1-51131-443-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
5 LEAF ASM PART: D = 1-51130-473-0 		1-51131-473-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9 LEAF ASM PART: E = 1-51130-773-0 		1-51131-773-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: F = 8-97383-538-0 		8-97386-329-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
6 LEAF ASM PART: A = 1-51110-730-0 		1-51112-730-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: B = 1-51130-415-0 		1-51132-415-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: C = 1-51130-443-0 		1-51132-443-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
5 LEAF ASM PART: D = 1-51130-473-0 		1-51132-473-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9 LEAF ASM PART: E = 1-51130-773-0 		1-51132-773-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: F = 8-97383-538-0 		8-97386-330-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
6 LEAF, W/CLIP ASM PART: A = 1-51110-730-0 		1-51113-730-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF ASM PART: B = 1-51130-415-0 		1-51133-415-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF ASM PART: C = 1-51130-443-0 		1-51133-443-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
5 LEAF, W/CLIP ASM PART: D = 1-51130-473-0 		1-51133-473-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9 LEAF ASM PART: E = 1-51130-773-0 		1-51133-773-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
W/CLIP ASM PART: F = 8-97383-538-0 		8-97386-331-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=85 ASM PART: D = 1-51130-473-0 		1-51156-173-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=90 ASM PART: A = 1-51110-730-0 		1-51156-195-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=125 ASM PART: B = 1-51130-415-0, F = 8-97383-538-0 		1-51156-196-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: C = 1-51130-443-0, E = 1-51130-773-0 		1-51156-206-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: B = 1-51130-415-0, C = 1-51130-443-0, E = 1-51130-773-0, F = 8-97383-538-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M12 ASM PART: A = 1-51110-730-0, D = 1-51130-473-0 		9-99110-512-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: B = 1-51130-415-0, C = 1-51130-443-0, E = 1-51130-773-0, F = 8-97383-538-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
ID=25 ASM PART: A = 1-51110-730-0, D = 1-51130-473-0 		9-51151-032-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: B = 1-51130-415-0, C = 1-51130-443-0, E = 1-51130-773-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M8X90 ASM PART: A = 1-51110-730-0, D = 1-51130-473-0 		1-09000-392-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X103 ASM PART: F = 8-97383-538-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: D = 1-51130-473-0 		1-51177-319-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: F = 8-97383-538-0 		8-97386-326-0 03 1 -
20 SEAT; LEAF SPR,FRT
(A), T=12 ASM PART: F = 8-97383-538-0 		8-97386-324-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=14 ASM PART: F = 8-97383-538-0 		8-97386-325-0 02 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
