4-50 — FRONT SUSPENSION (#37220) — 331 parça

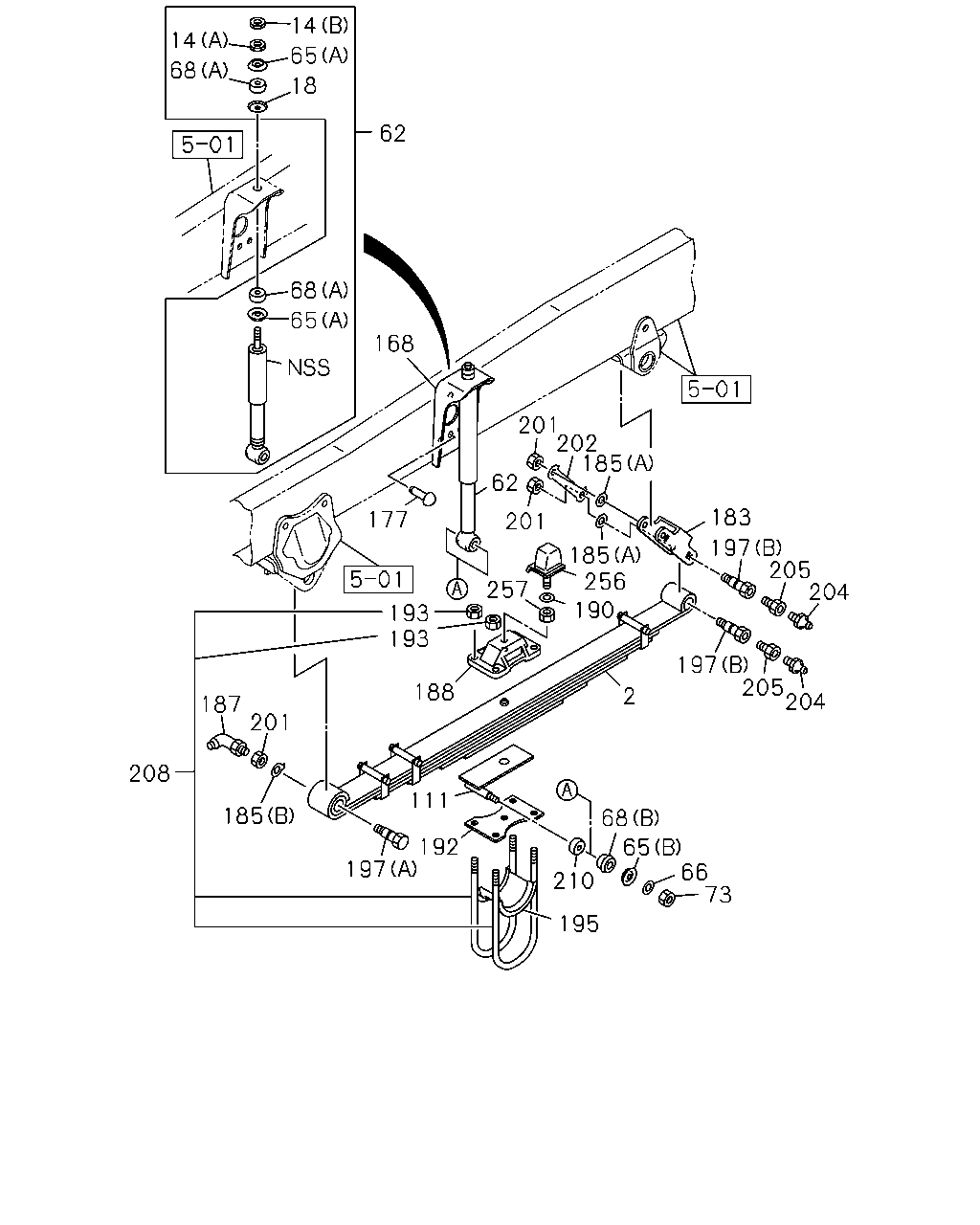

çizim 152850
14 14 65 68 18 62 68 65 168 201 202 185 62 177 183 201 197 205 204 185 256 190 257 193 193 197 205 204 188 2 187 201 208 111 185 68 192 65 66 73 197 210 195
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> NEW ZEALAND EQUIPMENT(PK5) 9 LEAF 		1-51130-773-0 02 1 0404-0601 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> NEW ZEALAND EQUIPMENT(PK5) 3-LEAF 		8-97383-538-0 02 1 0602-0605 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-97383-538-0 02 1 0606- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> 9 LEAF 		1-51130-443-0 02 1 9604-0004 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> 9 LEAF 		1-51130-443-0 02 1 0212-0403 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> EXC. NEW ZEALAND EQUIPMENT(PK5) 9 LEAF 		1-51130-443-0 02 1 0404-0605 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> EXC. FRT TAPER LEAF SUSPENSION<SAR> 		1-51130-443-0 02 1 0606- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. AUSTRALIA EQUIPMENT(RR3) 5 LEAF 		1-51130-473-0 02 1 9604-0004 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. AUSTRALIA EQUIPMENT(RR3) 6-LEAF 		1-51110-730-0 02 1 9604-0004 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		1-51110-730-0 02 1 0005- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		1-51130-415-0 02 1 9604-0004 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY<F60> 8 LEAF 		1-51130-415-0 02 1 9604-0004 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8 LEAF 		1-51130-415-0 02 1 0005-0211 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		1-51130-415-0 02 1 0212- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY<F60> 8 LEAF 		1-51130-415-0 02 1 0212- ●
14 NUT; S/ABS,UPR
(A) M10 		9-09110-410-0 02 1 9604-0004 ● ●
14 NUT; S/ABS,UPR
(A) M10 		9-09110-410-0 02 1 0005- ●
14 NUT; S/ABS,UPR
(B) M10 		9-09111-410-0 02 1 9604-0004 ● ●
14 NUT; S/ABS,UPR
(B) M10 		9-09111-410-0 02 1 0005- ●
18 WASHER; CENTERING,S/ABS 1-51631-006-0 02 1 9604-0004 ● ●
18 WASHER; CENTERING,S/ABS 1-51631-006-0 02 1 0005- ●
18 WASHER; CENTERING,S/ABS
ID=16.8 		1-51631-022-0 04 1 9604-0004 ● ● ●
18 WASHER; CENTERING,S/ABS
ID=16.8 		1-51631-022-0 04 1 0005- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-039-2 02 1 9604-0004 ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-039-2 02 1 0005- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-3 02 1 9604-0004 ● ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-4 02 1 0005- ● ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-153-0 02 1 9604-0004 ● ● ●
65 WASHER; S/ABS
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 04 1 9604-0004 ● ●
65 WASHER; S/ABS
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 04 1 0005- ●
65 WASHER; S/ABS
(B) ID=12.5 OD=26 		9-09164-612-0 02 1 9604-9612 ● ●
65 WASHER; S/ABS
(B) ID=12.5 		1-09503-171-0 02 1 9701-0004 ● ●
65 WASHER; S/ABS
(B) ID=12.5 		1-09503-171-0 02 1 0005- ●
65 WASHER; S/ABS
(C) ID=23 		1-51631-019-0 02 1 9604-0004 ● ● ●
65 WASHER; S/ABS
(C) ID=23 		1-51631-019-0 02 1 0005- ● ●
66 WASHER; LK,S/ABS SETTING
ID=12.2 		9-09150-512-0 02 1 9604-0004 ● ●
66 WASHER; LK,S/ABS SETTING
ID=12.2 		9-09150-512-0 02 1 0005-0603 ●
66 WASHER; LK,S/ABS SETTING
ID=12.2 		0-91510-512-0 02 1 0604- ●
68 BUSHING; S/ABS
(A) 		1-51631-004-0 04 1 9604-0004 ● ●
68 BUSHING; S/ABS
(A) 		1-51631-004-0 04 1 0005- ●
68 BUSHING; S/ABS
(B) 		1-51631-008-0 02 1 9604-0004 ● ●
68 BUSHING; S/ABS
(B) 		1-51631-008-0 02 1 0005- ●
73 NUT; BRKT,SHOCK
M12 		9-99110-512-0 02 1 9604-0004 ● ●
73 NUT; BRKT,SHOCK
M12 		9-99110-512-0 02 1 0005-0512 ●
73 NUT; BRKT,SHOCK
M12 		0-91110-512-0 02 1 0601- ●
73 NUT; BRKT,SHOCK
M16 SLOTTED 		9-99116-416-0 02 1 9604-0004 ● ● ●
73 NUT; BRKT,SHOCK
M16 SLOTTED 		9-99116-416-0 02 1 0005-0605 ● ●
73 NUT; BRKT,SHOCK
M16 SLOTTED 		0-91116-516-0 02 1 0606-1204 ● ●
73 NUT; BRKT,SHOCK
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-671-1 01 1 9604-0004 ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-671-1 01 1 0005- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-670-1 01 1 9604-0004 ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-670-1 01 1 0005- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-744-0 01 1 9604-0004 ● ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-744-0 01 1 0005- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-743-0 01 1 9604-0004 ● ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-743-0 01 1 0005- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-307-1 02 1 9604-0004 ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-307-1 02 1 0005- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 9604-0004 ● ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 0005- ● ●
177 RIVET; BRKT,S/ABS 1-09730-136-0 04 1 9604-9611 ● ●
177 RIVET; BRKT,S/ABS
D11X28 PLATED TAPER END 		9-06761-128-0 04 1 9612-0004 ● ●
177 RIVET; BRKT,S/ABS
D11X28 PLATED TAPER END 		9-06761-128-0 04 1 0005-0607 ●
177 RIVET; BRKT,S/ABS
D11X28 PLATED TAPER END 		0-67801-128-0 04 1 0608- ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 9604-0004 ● ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 0005- ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9604-0004 ● ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0005- ● ●
185 WASHER; LK,PIN
(A) ID=25.5 		1-09503-011-0 04 1 9604-0004 ● ●
185 WASHER; LK,PIN
(A) ID=25.5 		1-09503-011-0 04 1 0005-0910 ●
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 0911- ●
185 WASHER; LK,PIN
(B) ID=23 		1-51169-003-0 02 1 9604-0004 ● ●
185 WASHER; LK,PIN
(B) ID=23 		1-51169-003-0 02 1 0005-0910 ●
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 0911- ●
185 WASHER; LK,PIN
(C) ID=12.2 		9-09150-612-0 12 1 9604-0004 ● ● ●
185 WASHER; LK,PIN
(C) ID=12.2 		9-09150-612-0 12 1 0005-0603 ● ●
185 WASHER; LK,PIN
(C) ID=12.2 		0-91510-612-0 12 1 0604- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9604-0004 ● ● ● ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 0005-0512 ● ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51173-007-2 02 1 9604-0004 ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51173-007-2 02 1 0005- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51173-038-0 02 1 9604-0004 ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51173-038-0 02 1 0005- ● ●
190 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 02 1 9604-0004 ● ●
190 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 02 1 0005-0603 ●
190 WASHER; LK,CUSHION RUBBER
ID=12.2 		0-91510-512-0 02 1 0604- ●
192 PIECE; DIST 1-51177-218-1 01 1 9604-0004 ● ●
192 PIECE; DIST 1-51177-218-1 01 1 0005- ●
192 PIECE; DIST 1-51177-219-0 01 1 9604-0004 ● ●
192 PIECE; DIST 1-51177-219-0 01 1 0005- ●
192 PIECE; DIST 9-51377-038-0 01 1 9604-0004 ● ● ●
192 PIECE; DIST 9-51377-038-0 01 1 0005- ● ●
193 NUT; U BOLT
M16 		1-09440-028-1 08 1 9604-0004 ● ●
193 NUT; U BOLT
M16 		1-09440-028-1 08 1 0005-0503 ●
193 NUT; U BOLT
M16 		8-94107-767-0 08 1 0504-0706 ●
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 0707- ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9604-0004 ● ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0005-0512 ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601-1206 ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ●
195 BRACKET; U BOLT,FRT SUSP 1-43219-020-1 01 1 9604-0004 ● ●
195 BRACKET; U BOLT,FRT SUSP 1-43219-020-1 01 1 0005- ●
197 PIN; FRT SPR,FRT
(A) 		1-51161-004-3 02 1 9604-0004 ● ●
197 PIN; FRT SPR,FRT
(A) 		1-51161-004-3 02 1 0005-0911 ●
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 0912- ●
197 PIN; FRT SPR,FRT
(B) 		1-51161-005-3 04 1 9604-0004 ● ●
197 PIN; FRT SPR,FRT
(B) 		1-51161-005-3 04 1 0005-0911 ●
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 0912- ●
197 PIN; FRT SPR,FRT
(C) 		1-51161-031-0 06 1 9604-0004 ● ● ●
197 PIN; FRT SPR,FRT
(C) 		1-51161-031-0 06 1 0005- ● ●
201 NUT; PIN LK
M22 		9-09111-522-0 06 1 9604-0004 ● ●
201 NUT; PIN LK
M22 		9-09111-522-0 06 1 0005-0512 ●
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 0601- ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9604-0004 ● ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0005-0512 ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601- ● ●
202 PLATE; LK,SPR PIN 1-51169-016-0 02 1 9604-0004 ● ●
202 PLATE; LK,SPR PIN 1-51169-016-0 02 1 0005-0910 ●
202 PLATE; LK,SPR PIN 8-98010-648-0 02 1 0911- ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9604-0004 ● ● ● ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 0005-0512 ● ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601- ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 9604-0004 ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 0005- ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9604-0004 ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0005- ● ●
208 U-BOLT SET; FRT SPRING
FRONT SPRING HEAVY DUTY<F60> L=400 		1-87870-356-2 04 1 0212-0601 ●
208 U-BOLT SET; FRT SPRING
FRONT SPRING HEAVY DUTY<F60> EXC. FRT TAPER LEAF SUSPENSION<SAR> L=400 		1-87870-356-2 04 1 0602-1206 ●
208 U-BOLT SET; FRT SPRING
FRONT SPRING HEAVY DUTY<F60> EXC. FRT TAPER LEAF SUSPENSION<SAR> L=400 		1-87870-503-0 04 1 1207- ●
208 U-BOLT SET; FRT SPRING
L=273 		1-87870-295-0 04 1 9604-0004 ● ●
208 U-BOLT SET; FRT SPRING
L=273 		1-87870-295-0 02 1 0005-0503 ●
208 U-BOLT SET; FRT SPRING
L=273 		1-87870-450-1 02 1 0504- ●
208 U-BOLT SET; FRT SPRING
L=380 		1-87870-332-1 04 1 9604-0004 ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT SPRING HEAVY DUTY<F60> L=380 		1-87870-332-1 04 1 9604-0004 ● ●
208 U-BOLT SET; FRT SPRING
L=380 		1-87870-332-2 04 1 0005-0211 ● ●
208 U-BOLT SET; FRT SPRING
L=380 		1-87870-332-2 04 1 0212-0601 ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT SPRING HEAVY DUTY<F60> L=380 		1-87870-332-2 04 1 0212-0601 ●
208 U-BOLT SET; FRT SPRING
L=380 		1-87870-488-1 04 1 0602- ●
208 U-BOLT SET; FRT SPRING
FRONT SPRING HEAVY DUTY<F60> FRT TAPER LEAF SUSPENSION<SAR> L=380 		1-87870-488-1 04 1 0602- ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT SPRING HEAVY DUTY<F60> L=380 		1-87870-488-1 04 1 0602- ●
208 U-BOLT SET; FRT SPRING
FRONT SPRING HEAVY DUTY<F60> L=400 		1-87870-356-0 04 1 9604-0004 ● ●
210 WASHER; S/ABS,OUTER
ID=17 		9-09164-516-0 02 1 9604-0004 ● ●
210 WASHER; S/ABS,OUTER
ID=17 		9-09164-516-0 02 1 0005- ●
210 WASHER; S/ABS,OUTER
ID=17 		1-51631-020-0 02 1 9604-0004 ● ● ●
210 WASHER; S/ABS,OUTER
ID=17 		1-51631-020-0 02 1 0005- ● ●
256 RUBBER; CUSHION,FRT SPR
AUSTRALIA EQUIPMENT(RR3) 		1-51174-019-0 02 1 9604-9708 ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-019-0 02 1 9709-0004 ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-019-0 02 1 0005- ●
256 RUBBER; CUSHION,FRT SPR
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-51174-001-2 02 1 9604-9708 ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-009-1 01 1 9604-0004 ● ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-009-2 01 1 0005- ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-008-1 01 1 9604-0004 ● ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-008-2 01 1 0005- ● ●
257 NUT; CUSHION RUBBER
M12 		9-99110-512-0 02 1 9604-0004 ● ●
257 NUT; CUSHION RUBBER
M12 		9-99110-512-0 02 1 0005-0512 ●
257 NUT; CUSHION RUBBER
M12 		0-91110-512-0 02 1 0601- ●

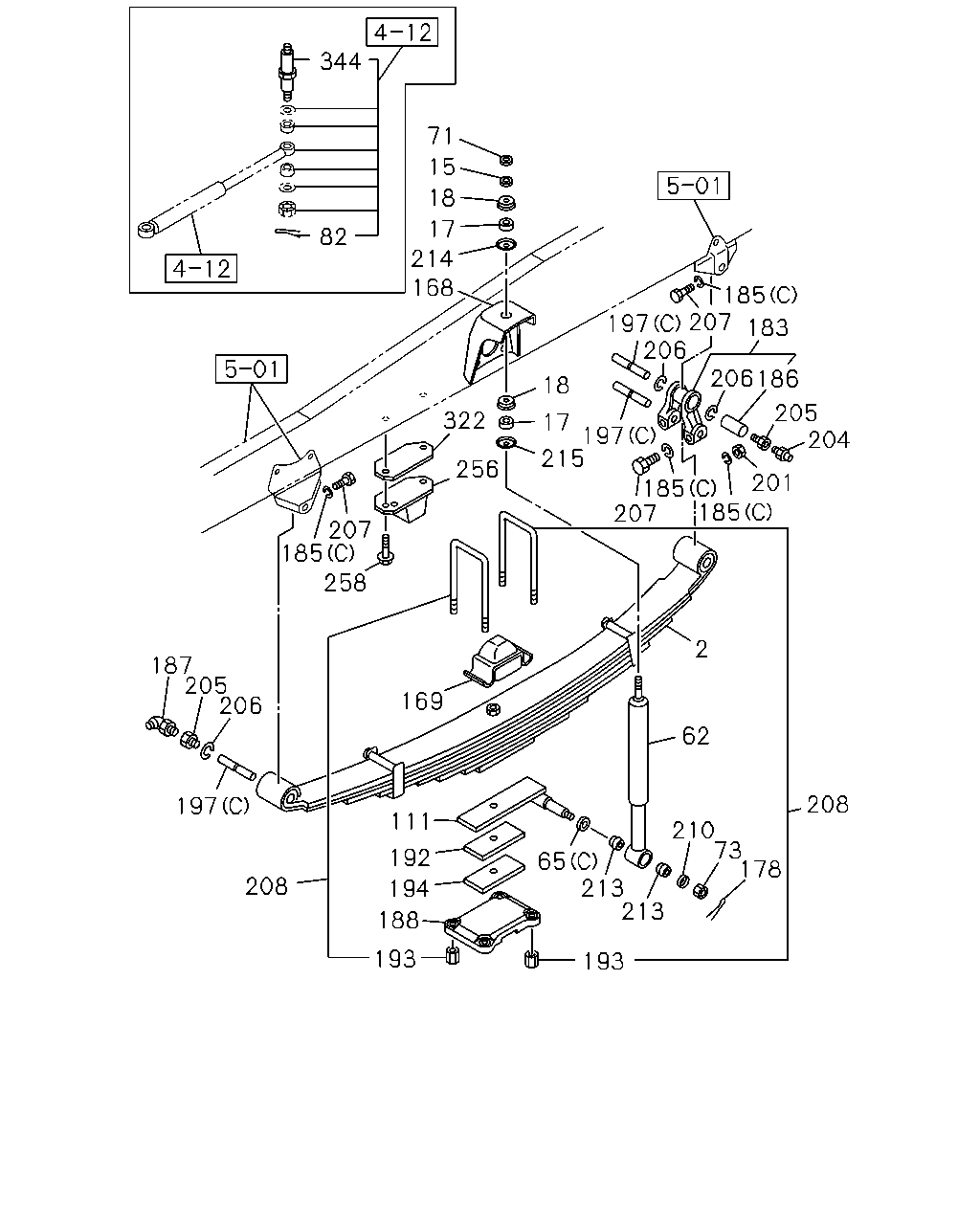

çizim 152859
344 71 15 18 17 82 214 168 185 206 183 18 322 205 204 17 197 215 256 201 185 207 185 207 185 258 2 187 205 206 169 62 208 197 111 210 73 178 192 65 213 213 208 194 188 193 193 197 207 206 186
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> NEW ZEALAND EQUIPMENT(PK5) 9 LEAF 		1-51130-773-0 02 1 0404-0601 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> NEW ZEALAND EQUIPMENT(PK5) 3-LEAF 		8-97383-538-0 02 1 0602-0605 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-97383-538-0 02 1 0606- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> 9 LEAF 		1-51130-443-0 02 1 9604-0004 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> 9 LEAF 		1-51130-443-0 02 1 0212-0403 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> EXC. NEW ZEALAND EQUIPMENT(PK5) 9 LEAF 		1-51130-443-0 02 1 0404-0605 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> EXC. FRT TAPER LEAF SUSPENSION<SAR> 		1-51130-443-0 02 1 0606- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. AUSTRALIA EQUIPMENT(RR3) 5 LEAF 		1-51130-473-0 02 1 9604-0004 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. AUSTRALIA EQUIPMENT(RR3) 6-LEAF 		1-51110-730-0 02 1 9604-0004 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		1-51110-730-0 02 1 0005- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		1-51130-415-0 02 1 9604-0004 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY<F60> 8 LEAF 		1-51130-415-0 02 1 9604-0004 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8 LEAF 		1-51130-415-0 02 1 0005-0211 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		1-51130-415-0 02 1 0212- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY<F60> 8 LEAF 		1-51130-415-0 02 1 0212- ●
15 NUT; S/ABS,UPR
M12 		1-09400-006-0 02 1 9604-0004 ● ● ●
15 NUT; S/ABS,UPR
M12 		1-09400-006-0 02 1 0005-0910 ● ●
15 NUT; S/ABS,UPR
M12 		8-98010-412-0 02 1 0911- ● ●
15 NUT; S/ABS,UPR
M10 		0-91110-510-0 02 1 0601- ●
17 BUSHING; RUBBER,S/ABS 9-51631-050-0 04 1 9604-0004 ● ● ●
17 BUSHING; RUBBER,S/ABS 9-51631-050-0 04 1 0005- ● ●
18 WASHER; CENTERING,S/ABS 1-51631-006-0 02 1 9604-0004 ● ●
18 WASHER; CENTERING,S/ABS 1-51631-006-0 02 1 0005- ●
18 WASHER; CENTERING,S/ABS
ID=16.8 		1-51631-022-0 04 1 9604-0004 ● ● ●
18 WASHER; CENTERING,S/ABS
ID=16.8 		1-51631-022-0 04 1 0005- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-039-2 02 1 9604-0004 ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-039-2 02 1 0005- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-3 02 1 9604-0004 ● ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-4 02 1 0005- ● ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-153-0 02 1 9604-0004 ● ● ●
65 WASHER; S/ABS
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 04 1 9604-0004 ● ●
65 WASHER; S/ABS
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 04 1 0005- ●
65 WASHER; S/ABS
(B) ID=12.5 OD=26 		9-09164-612-0 02 1 9604-9612 ● ●
65 WASHER; S/ABS
(B) ID=12.5 		1-09503-171-0 02 1 9701-0004 ● ●
65 WASHER; S/ABS
(B) ID=12.5 		1-09503-171-0 02 1 0005- ●
65 WASHER; S/ABS
(C) ID=23 		1-51631-019-0 02 1 9604-0004 ● ● ●
65 WASHER; S/ABS
(C) ID=23 		1-51631-019-0 02 1 0005- ● ●
71 NUT; LK,S/ABS,UPR
M12 		1-09400-006-0 02 1 9604-0004 ● ● ●
71 NUT; LK,S/ABS,UPR
M12 		1-09400-006-0 02 1 0005-0910 ● ●
71 NUT; LK,S/ABS,UPR
M12 		8-98010-412-0 02 1 0911- ● ●
71 NUT; LK,S/ABS,UPR
M10 		0-91111-510-0 02 1 0601- ●
73 NUT; BRKT,SHOCK
M12 		9-99110-512-0 02 1 9604-0004 ● ●
73 NUT; BRKT,SHOCK
M12 		9-99110-512-0 02 1 0005-0512 ●
73 NUT; BRKT,SHOCK
M12 		0-91110-512-0 02 1 0601- ●
73 NUT; BRKT,SHOCK
M16 SLOTTED 		9-99116-416-0 02 1 9604-0004 ● ● ●
73 NUT; BRKT,SHOCK
M16 SLOTTED 		9-99116-416-0 02 1 0005-0605 ● ●
73 NUT; BRKT,SHOCK
M16 SLOTTED 		0-91116-516-0 02 1 0606-1204 ● ●
73 NUT; BRKT,SHOCK
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ●
82 PIN; SPLIT,FRT S/ABS
OD=2.8 L=25 		9-08113-025-0 01 1 9604-0004 ● ● ●
82 PIN; SPLIT,FRT S/ABS
OD=2.8 L=25 		9-08113-025-0 01 1 0005- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-671-1 01 1 9604-0004 ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-671-1 01 1 0005- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-670-1 01 1 9604-0004 ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-670-1 01 1 0005- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-744-0 01 1 9604-0004 ● ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-744-0 01 1 0005- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-743-0 01 1 9604-0004 ● ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-743-0 01 1 0005- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-307-1 02 1 9604-0004 ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-307-1 02 1 0005- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 9604-0004 ● ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 0005- ● ●
169 PAD; U BOLT,FRT SPR 1-51172-106-0 02 1 9604-0004 ● ● ●
169 PAD; U BOLT,FRT SPR 1-51172-106-0 02 1 0005- ● ●
178 PIN; SPLIT,S/ABS
OD=3.7 L=25 		9-08114-025-0 02 1 9604-0004 ● ● ●
178 PIN; SPLIT,S/ABS
OD=3.7 L=25 		9-08114-025-0 02 1 0005-0606 ● ●
178 PIN; SPLIT,S/ABS
OD=3.7 L=25 		0-81124-025-0 02 1 0607- ● ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 9604-0004 ● ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 0005- ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9604-0004 ● ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0005- ● ●
185 WASHER; LK,PIN
(A) ID=25.5 		1-09503-011-0 04 1 9604-0004 ● ●
185 WASHER; LK,PIN
(A) ID=25.5 		1-09503-011-0 04 1 0005-0910 ●
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 0911- ●
185 WASHER; LK,PIN
(B) ID=23 		1-51169-003-0 02 1 9604-0004 ● ●
185 WASHER; LK,PIN
(B) ID=23 		1-51169-003-0 02 1 0005-0910 ●
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 0911- ●
185 WASHER; LK,PIN
(C) ID=12.2 		9-09150-612-0 12 1 9604-0004 ● ● ●
185 WASHER; LK,PIN
(C) ID=12.2 		9-09150-612-0 12 1 0005-0603 ● ●
185 WASHER; LK,PIN
(C) ID=12.2 		0-91510-612-0 12 1 0604- ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9604-0004 ● ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 0005-0902 ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 0903- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9604-0004 ● ● ● ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 0005-0512 ● ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51173-007-2 02 1 9604-0004 ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51173-007-2 02 1 0005- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51173-038-0 02 1 9604-0004 ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51173-038-0 02 1 0005- ● ●
192 PIECE; DIST 1-51177-218-1 01 1 9604-0004 ● ●
192 PIECE; DIST 1-51177-218-1 01 1 0005- ●
192 PIECE; DIST 1-51177-219-0 01 1 9604-0004 ● ●
192 PIECE; DIST 1-51177-219-0 01 1 0005- ●
192 PIECE; DIST 9-51377-038-0 01 1 9604-0004 ● ● ●
192 PIECE; DIST 9-51377-038-0 01 1 0005- ● ●
193 NUT; U BOLT
M16 		1-09440-028-1 08 1 9604-0004 ● ●
193 NUT; U BOLT
M16 		1-09440-028-1 08 1 0005-0503 ●
193 NUT; U BOLT
M16 		8-94107-767-0 08 1 0504-0706 ●
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 0707- ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9604-0004 ● ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0005-0512 ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601-1206 ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ●
194 PIECE; DIST,AXLE CASE SIDE
FRONT SPRING HEAVY DUTY<F60> 		1-51377-177-0 02 1 0212-0605 ●
194 PIECE; DIST,AXLE CASE SIDE
FRONT SPRING HEAVY DUTY<F60> EXC. FRT TAPER LEAF SUSPENSION<SAR> 		1-51377-177-0 02 1 0606- ●
194 PIECE; DIST,AXLE CASE SIDE
FRONT SPRING HEAVY DUTY<F60> 		1-51377-177-0 02 1 9810-0004 ● ●
197 PIN; FRT SPR,FRT
(A) 		1-51161-004-3 02 1 9604-0004 ● ●
197 PIN; FRT SPR,FRT
(A) 		1-51161-004-3 02 1 0005-0911 ●
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 0912- ●
197 PIN; FRT SPR,FRT
(B) 		1-51161-005-3 04 1 9604-0004 ● ●
197 PIN; FRT SPR,FRT
(B) 		1-51161-005-3 04 1 0005-0911 ●
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 0912- ●
197 PIN; FRT SPR,FRT
(C) 		1-51161-031-0 06 1 9604-0004 ● ● ●
197 PIN; FRT SPR,FRT
(C) 		1-51161-031-0 06 1 0005- ● ●
201 NUT; PIN LK
M22 		9-09111-522-0 06 1 9604-0004 ● ●
201 NUT; PIN LK
M22 		9-09111-522-0 06 1 0005-0512 ●
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 0601- ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9604-0004 ● ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0005-0512 ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601- ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9604-0004 ● ● ● ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 0005-0512 ● ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601- ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 9604-0004 ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 0005- ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9604-0004 ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0005- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9604-0004 ● ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0005- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9604-0004 ● ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0005-0512 ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601- ● ●
208 U-BOLT SET; FRT SPRING
FRONT SPRING HEAVY DUTY<F60> L=400 		1-87870-356-2 04 1 0212-0601 ●
208 U-BOLT SET; FRT SPRING
FRONT SPRING HEAVY DUTY<F60> EXC. FRT TAPER LEAF SUSPENSION<SAR> L=400 		1-87870-356-2 04 1 0602-1206 ●
208 U-BOLT SET; FRT SPRING
FRONT SPRING HEAVY DUTY<F60> EXC. FRT TAPER LEAF SUSPENSION<SAR> L=400 		1-87870-503-0 04 1 1207- ●
208 U-BOLT SET; FRT SPRING
L=273 		1-87870-295-0 04 1 9604-0004 ● ●
208 U-BOLT SET; FRT SPRING
L=273 		1-87870-295-0 02 1 0005-0503 ●
208 U-BOLT SET; FRT SPRING
L=273 		1-87870-450-1 02 1 0504- ●
208 U-BOLT SET; FRT SPRING
L=380 		1-87870-332-1 04 1 9604-0004 ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT SPRING HEAVY DUTY<F60> L=380 		1-87870-332-1 04 1 9604-0004 ● ●
208 U-BOLT SET; FRT SPRING
L=380 		1-87870-332-2 04 1 0005-0211 ● ●
208 U-BOLT SET; FRT SPRING
L=380 		1-87870-332-2 04 1 0212-0601 ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT SPRING HEAVY DUTY<F60> L=380 		1-87870-332-2 04 1 0212-0601 ●
208 U-BOLT SET; FRT SPRING
L=380 		1-87870-488-1 04 1 0602- ●
208 U-BOLT SET; FRT SPRING
FRONT SPRING HEAVY DUTY<F60> FRT TAPER LEAF SUSPENSION<SAR> L=380 		1-87870-488-1 04 1 0602- ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT SPRING HEAVY DUTY<F60> L=380 		1-87870-488-1 04 1 0602- ●
208 U-BOLT SET; FRT SPRING
FRONT SPRING HEAVY DUTY<F60> L=400 		1-87870-356-0 04 1 9604-0004 ● ●
210 WASHER; S/ABS,OUTER
ID=17 		9-09164-516-0 02 1 9604-0004 ● ●
210 WASHER; S/ABS,OUTER
ID=17 		9-09164-516-0 02 1 0005- ●
210 WASHER; S/ABS,OUTER
ID=17 		1-51631-020-0 02 1 9604-0004 ● ● ●
210 WASHER; S/ABS,OUTER
ID=17 		1-51631-020-0 02 1 0005- ● ●
213 BUSHING; RUBBER,LWR 1-51631-009-1 04 1 9604-0004 ● ● ●
213 BUSHING; RUBBER,LWR 1-51631-009-1 04 1 0005- ● ●
214 WASHER; S/ABS,UPR,INNER
ID=14.5 		9-51631-051-0 02 1 9604-0004 ● ● ●
214 WASHER; S/ABS,UPR,INNER
ID=14.5 		9-51631-051-0 02 1 0005- ● ●
215 WASHER; S/ABS,UPR,OUTER
ID=14.5 		9-51631-051-0 02 1 9604-0004 ● ● ●
215 WASHER; S/ABS,UPR,OUTER
ID=14.5 		9-51631-051-0 02 1 0005- ● ●
256 RUBBER; CUSHION,FRT SPR
AUSTRALIA EQUIPMENT(RR3) 		1-51174-019-0 02 1 9604-9708 ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-019-0 02 1 9709-0004 ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-019-0 02 1 0005- ●
256 RUBBER; CUSHION,FRT SPR
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-51174-001-2 02 1 9604-9708 ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-009-1 01 1 9604-0004 ● ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-009-2 01 1 0005- ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-008-1 01 1 9604-0004 ● ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-008-2 01 1 0005- ● ●
258 BOLT; CUSHION,WIND UP
M8X35 FLANGE 		0-28080-835-0 04 1 9604-0004 ● ● ●
258 BOLT; CUSHION,WIND UP
M8X35 FLANGE 		0-28080-835-0 04 1 0005-0512 ● ●
258 BOLT; CUSHION,WIND UP
M8X35 FLANGE 		0-28050-835-0 04 1 0601- ● ●
322 PLUG; RUBBER 1-51174-017-1 02 1 9604-0004 ● ● ●
322 PLUG; RUBBER 1-51174-017-1 02 1 0005- ● ●
344 PIN; FRT S/ABS 9-43219-034-0 01 1 9604-0004 ● ● ●
344 PIN; FRT S/ABS 9-43219-034-0 01 1 0005- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
