4-40 — STEERING UNIT (#37218) — 297 parça
çizim 152836
72 54 35 47 52 75 50 75 51 48 77 42 47 47 46 47 46 47 46 77 73 67 56 46 58 7 46 47 11 132 12 19 22 13 9 9 14 12 11 27 23 24 30 8 32
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44249-041-0 01 1 -1002
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-157-1 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-834-4 		8-98159-116-0 01 1 1003-
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-810-2 		1-44240-094-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44240-110-0 01 1 -1002
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-884-2 		1-44240-133-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-834-4 		8-98159-754-0 01 1 1003-
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-834-4, C = 1-44000-884-2 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-834-4 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-834-4 		1-44519-103-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-834-4 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-834-4 		1-44519-226-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44249-038-0 01 1 -1002
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-810-2 		1-44519-160-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44321-022-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44321-029-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-810-2 		1-44260-015-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44260-019-0 01 1 -1002
19 COVER; SIDE STRG UNIT
ASM PART: C = 1-44000-884-2 		1-44260-027-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-834-4 		8-98159-763-0 01 1 1003-
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44519-105-0 01 1 -1002
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-810-2 		1-44519-164-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44277-003-1 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44277-006-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44279-011-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44279-015-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44269-035-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-161-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44279-012-0 08 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44569-103-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44269-007-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
M12 ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		9-99110-512-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44150-052-2 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44150-065-1 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44560-069-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44560-073-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-834-4 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-834-4 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-152-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-834-4 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-834-4 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-834-4 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-834-4 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-165-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-834-4 		1-44519-260-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-834-4, C = 1-44000-884-2 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44560-068-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44560-072-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44561-017-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-834-4, C = 1-44000-884-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44241-088-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44241-127-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44250-006-1 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44250-007-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44259-029-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44259-058-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44259-057-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44259-017-0 04 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44159-062-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-834-4 		8-98166-307-0 01 1 1004-
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-810-2, B = 1-44000-834-4, C = 1-44000-884-2 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-810-2, B = 1-44000-834-4, C = 1-44000-884-2 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-834-4, C = 1-44000-884-2 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44159-119-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44519-227-0 01 1 -

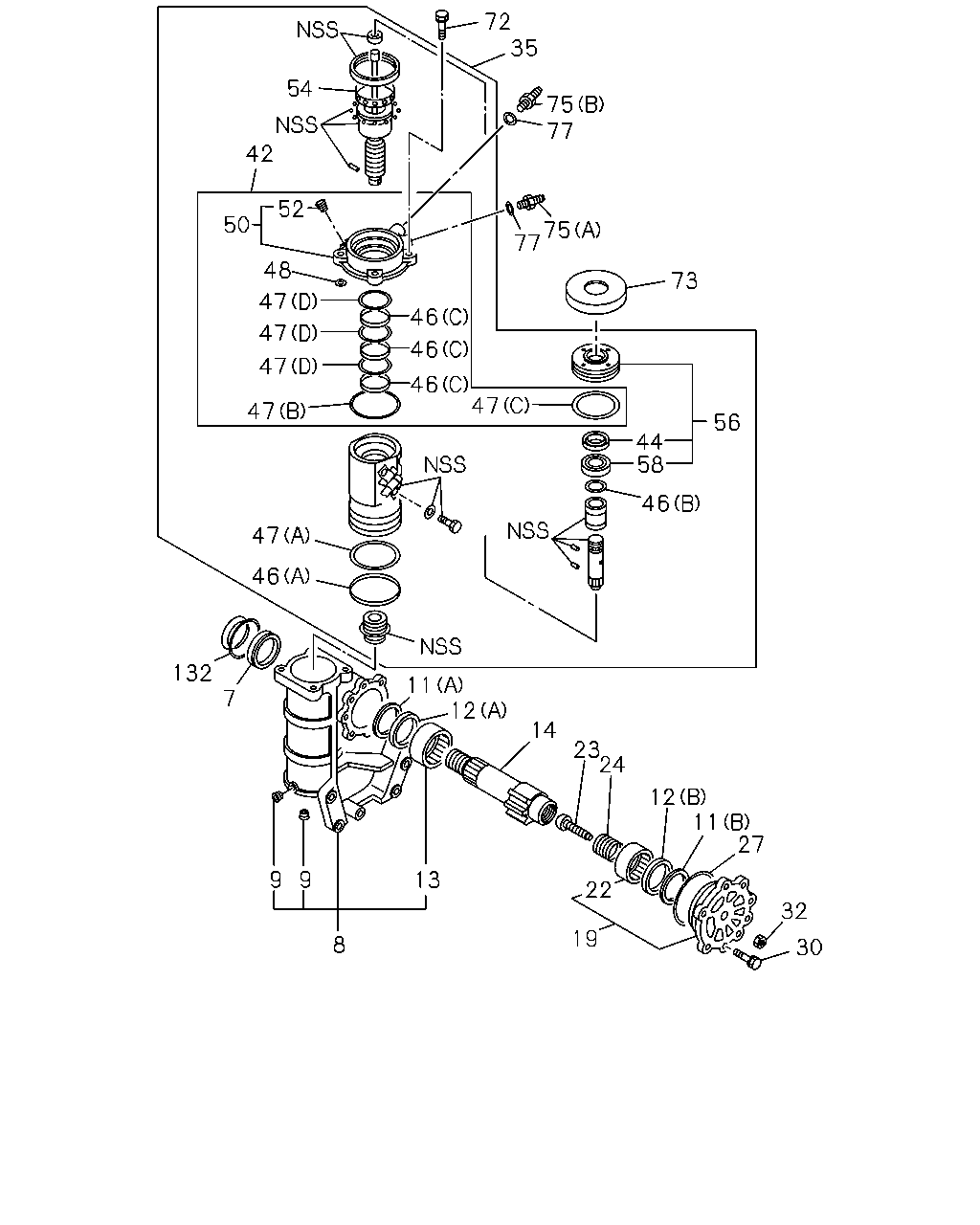

çizim 152849
72 35 54 75 77 42 52 50 75 77 48 73 47 46 47 46 47 46 47 47 56 44 58 46 47 46 132 11 12 7 14 23 24 12 11 27 9 9 13 22 32 19 8 30
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44249-041-0 01 1 -1002
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-157-1 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-834-4 		8-98159-116-0 01 1 1003-
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-810-2 		1-44240-094-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44240-110-0 01 1 -1002
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-884-2 		1-44240-133-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-834-4 		8-98159-754-0 01 1 1003-
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-834-4, C = 1-44000-884-2 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-834-4 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-834-4 		1-44519-103-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-834-4 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-834-4 		1-44519-226-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44249-038-0 01 1 -1002
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-810-2 		1-44519-160-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44321-022-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44321-029-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-810-2 		1-44260-015-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44260-019-0 01 1 -1002
19 COVER; SIDE STRG UNIT
ASM PART: C = 1-44000-884-2 		1-44260-027-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-834-4 		8-98159-763-0 01 1 1003-
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44519-105-0 01 1 -1002
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-810-2 		1-44519-164-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44277-003-1 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44277-006-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44279-011-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44279-015-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44269-035-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-161-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44279-012-0 08 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44569-103-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44269-007-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
M12 ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		9-99110-512-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44150-052-2 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44150-065-1 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44560-069-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44560-073-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-834-4 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-834-4 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-152-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-834-4 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-834-4 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-834-4 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-834-4 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-165-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-834-4 		1-44519-260-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-834-4, C = 1-44000-884-2 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44560-068-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44560-072-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-834-4, C = 1-44000-884-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44241-088-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44241-127-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44250-006-1 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44250-007-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44259-029-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44259-058-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44259-017-0 04 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44159-062-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-834-4 		8-98166-307-0 01 1 1004-
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-810-2, B = 1-44000-834-4, C = 1-44000-884-2 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-810-2, B = 1-44000-834-4, C = 1-44000-884-2 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-834-4, C = 1-44000-884-2 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44159-119-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44519-227-0 01 1 -

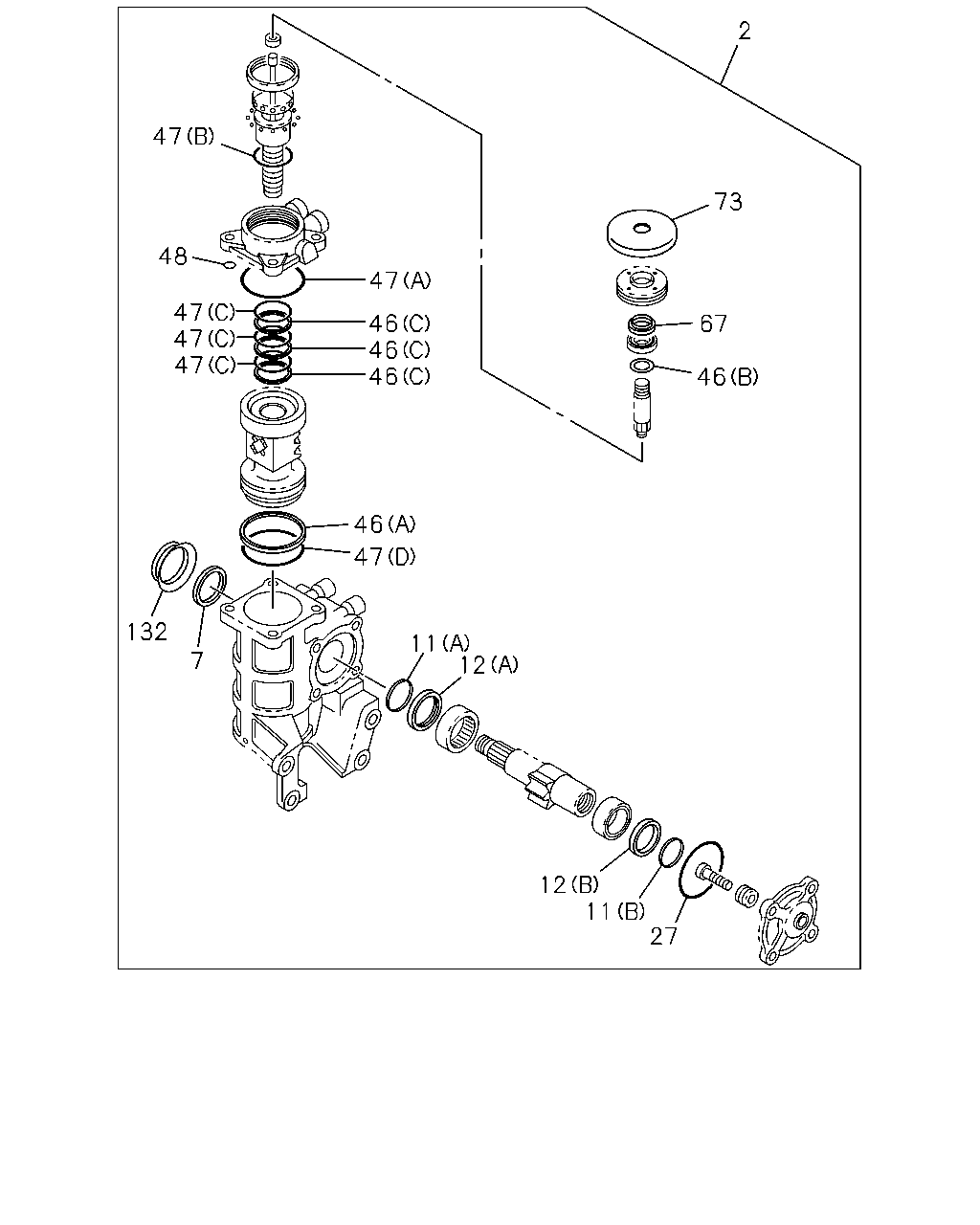

çizim 152852
2 47 73 48 47 47 47 47 46 46 46 67 46 46 47 132 11 12 7 12 11 27
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: B = 1-44000-834-4 		1-85574-030-0 01 1 -1003
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-85574-043-0 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: B = 1-44000-834-4 		8-98176-079-0 01 1 1004-
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44249-041-0 01 1 -1002
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-157-1 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-834-4 		8-98159-116-0 01 1 1003-
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-834-4 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-834-4 		1-44519-103-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-834-4 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-834-4 		1-44519-226-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44269-035-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-834-4 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-834-4 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-152-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-834-4 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-834-4 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-834-4 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-834-4 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-165-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-834-4 		1-44519-260-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-834-4, C = 1-44000-884-2 		1-44519-262-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44259-057-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44159-062-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-834-4 		8-98166-307-0 01 1 1004-
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44159-119-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44519-227-0 01 1 -

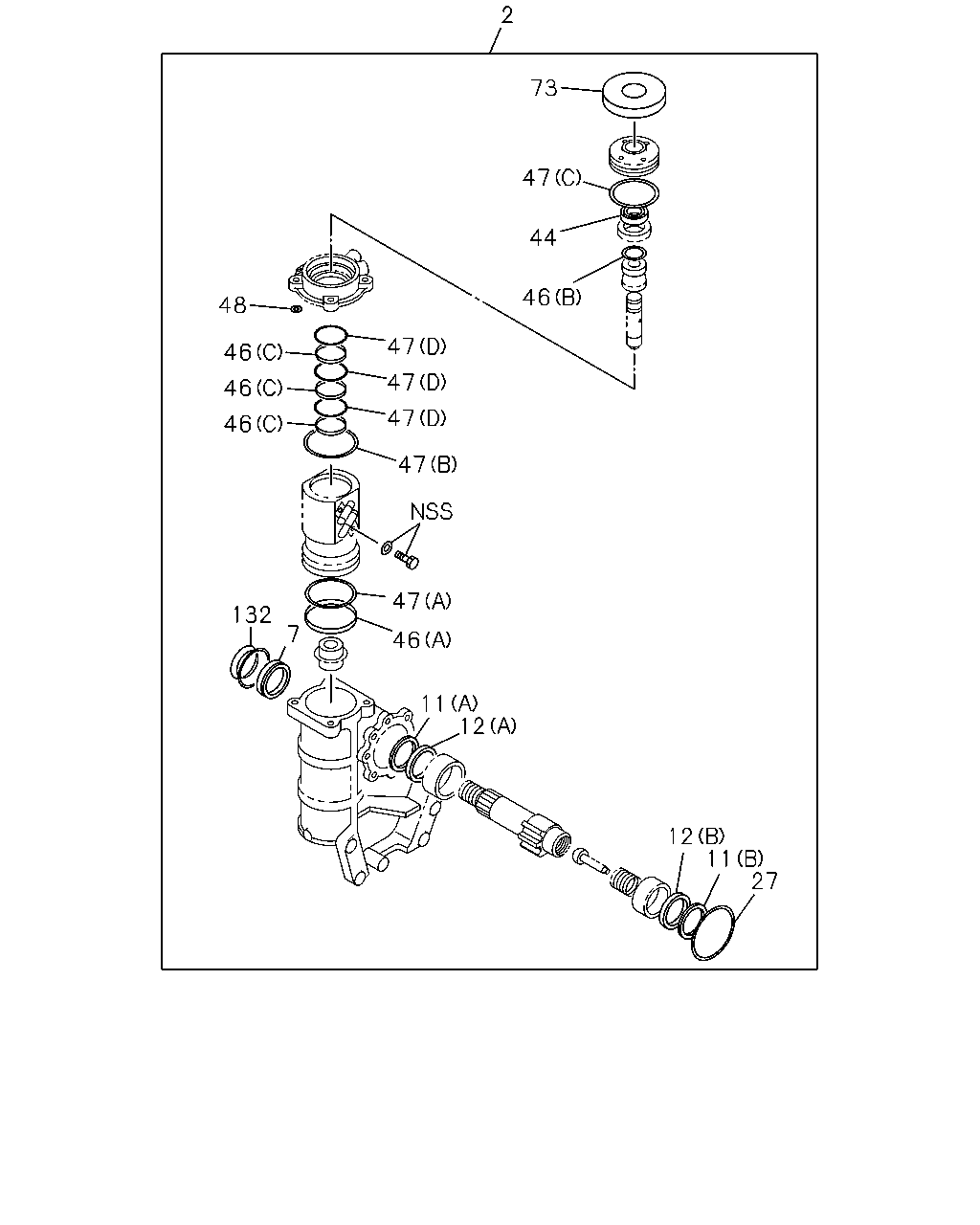

çizim 152854
2 73 47 44 46 48 47 46 47 46 47 46 47 47 132 7 46 11 12 12 11 27
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: B = 1-44000-834-4 		1-85574-030-0 01 1 -1003
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-85574-043-0 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: B = 1-44000-834-4 		8-98176-079-0 01 1 1004-
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44249-041-0 01 1 -1002
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-157-1 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-834-4 		8-98159-116-0 01 1 1003-
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-834-4 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-834-4 		1-44519-103-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-834-4 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-834-4 		1-44519-226-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44269-035-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-161-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-834-4 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-834-4 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-152-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-834-4 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-834-4 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-834-4 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-834-4 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-165-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-834-4 		1-44519-260-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-834-4, C = 1-44000-884-2 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44159-062-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-834-4 		8-98166-307-0 01 1 1004-
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44159-119-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44519-227-0 01 1 -

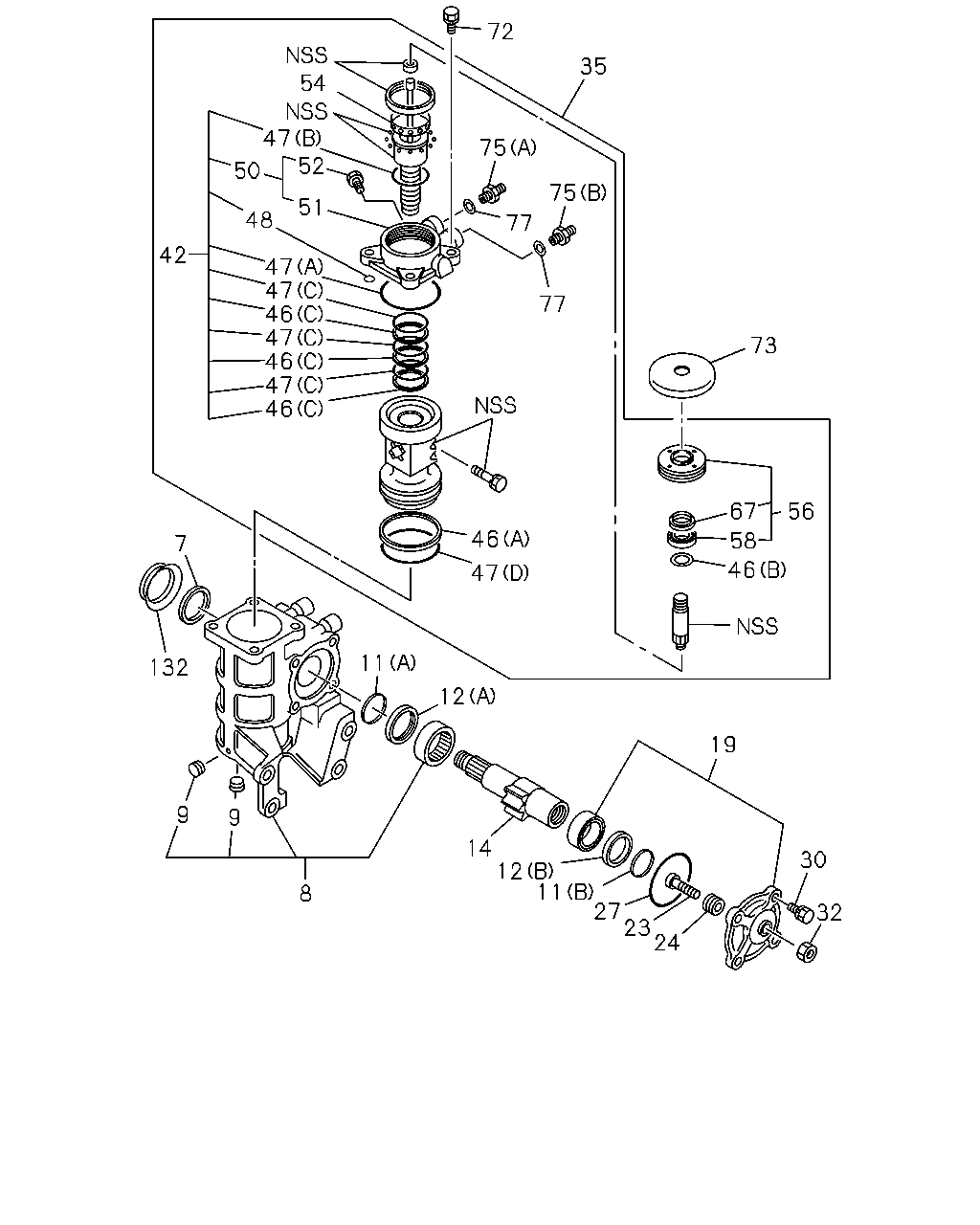

çizim 152860
72 54 35 47 52 75 50 75 51 48 77 42 47 47 46 47 46 47 46 77 73 67 56 46 58 7 46 47 11 132 12 19 9 9 14 12 11 27 23 24 30 8 32
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44249-041-0 01 1 -1002
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-157-1 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-834-4 		8-98159-116-0 01 1 1003-
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-810-2 		1-44240-094-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44240-110-0 01 1 -1002
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-884-2 		1-44240-133-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-834-4 		8-98159-754-0 01 1 1003-
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-834-4, C = 1-44000-884-2 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-834-4 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-834-4 		1-44519-103-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-834-4 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-834-4 		1-44519-226-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44321-022-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44321-029-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-810-2 		1-44260-015-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44260-019-0 01 1 -1002
19 COVER; SIDE STRG UNIT
ASM PART: C = 1-44000-884-2 		1-44260-027-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-834-4 		8-98159-763-0 01 1 1003-
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44277-003-1 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44277-006-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44279-011-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44279-015-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44269-035-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-161-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44279-012-0 08 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44569-103-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44269-007-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
M12 ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		9-99110-512-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44150-052-2 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44150-065-1 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44560-069-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44560-073-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-834-4 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-834-4 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-152-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-834-4 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-834-4 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-834-4 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-834-4 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-165-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-834-4 		1-44519-260-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-834-4, C = 1-44000-884-2 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44560-068-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44560-072-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44561-017-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-834-4, C = 1-44000-884-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44241-088-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44241-127-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44250-006-1 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44250-007-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44259-029-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44259-058-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44259-057-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44259-017-0 04 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44159-062-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-834-4 		8-98166-307-0 01 1 1004-
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-810-2, B = 1-44000-834-4, C = 1-44000-884-2 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-810-2, B = 1-44000-834-4, C = 1-44000-884-2 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-810-2, B = 1-44000-834-4, C = 1-44000-884-2 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-810-2, C = 1-44000-884-2 		1-44159-119-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-834-4 		1-44519-227-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
