4-36 — POWER STEERING CONTROL; ENGINE SIDE (#37217) — 46 parça

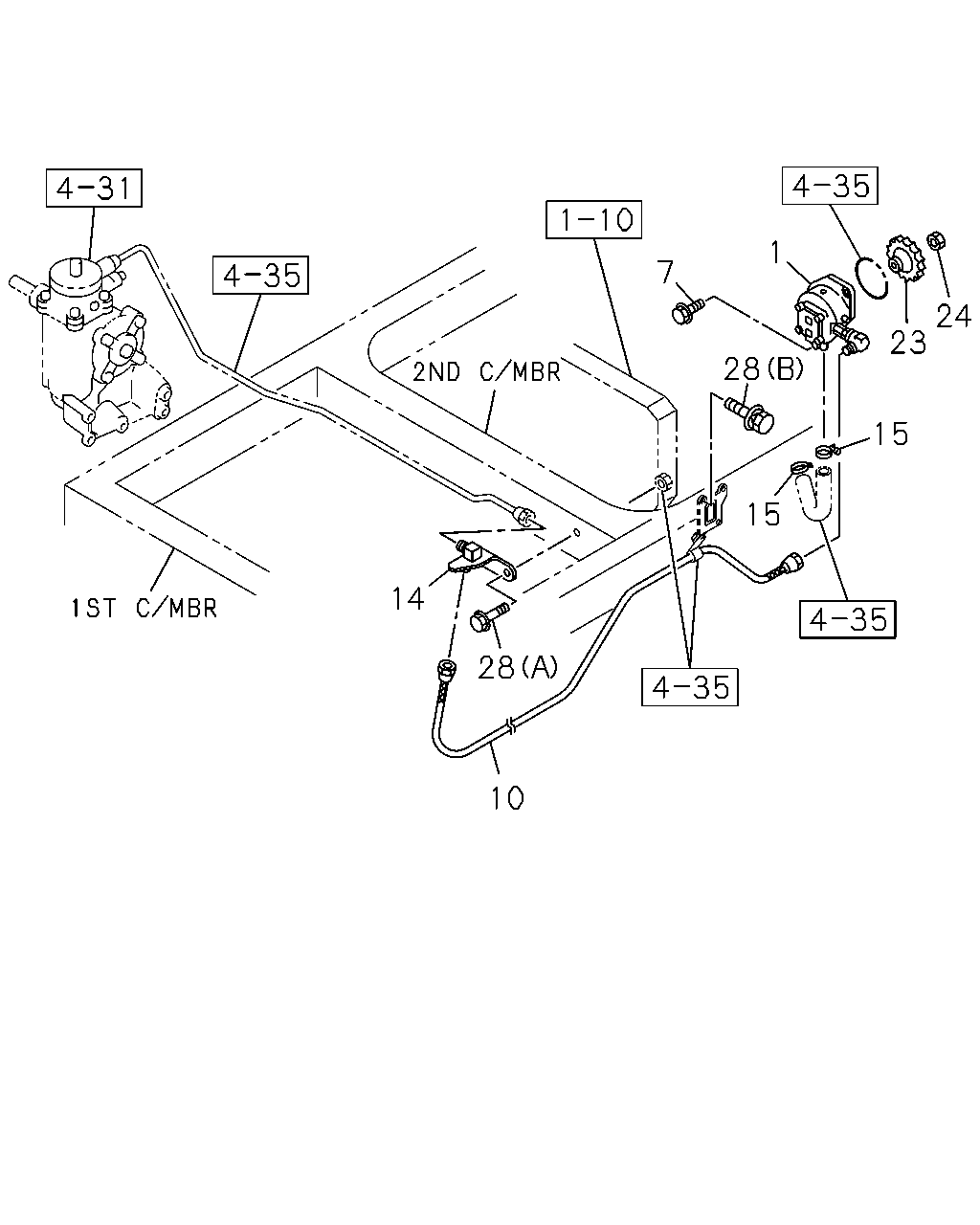

çizim 152833
1 7 24 23 28 15 15 14 28 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-465-0 01 1 9604-0004 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-465-0 01 1 0006-0006 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-465-0 01 1 0005-0202 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-589-1 01 1 0203-1112 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-98202-666-0 01 1 1201- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-530-0 01 1 9604-0004 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-530-0 01 1 0005-0202 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-595-1 01 1 0203-1112 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-98202-668-0 01 1 1201- ● ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-94399-863-1 02 1 9604-0004 ● ● ● ● ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-94399-863-1 02 1 0005-0805 ● ● ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-97365-449-0 02 1 0806- ● ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1 TCC ENG(81L) L=900 		1-09365-251-0 01 1 0406- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=810 		1-09364-808-2 01 1 9604-0004 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=810 		1-09364-808-2 01 1 0005- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=875 		1-09364-894-0 01 1 9604-9706 ● ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=875 		1-09364-980-0 01 1 9707-0004 ● ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=875 		1-09364-980-0 01 1 0005-0403 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=875 		1-09364-980-0 01 1 0404-0405 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) L=875 		1-09364-980-0 01 1 0404-0405 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=875 		1-09364-980-0 01 1 0406- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HH1 STD ENG(65L) L=875 		1-09364-980-0 01 1 0406- ●
14 UNION; FLEX HOSE,P/S 1-47470-463-0 01 1 9604-9803 ● ●
14 UNION; FLEX HOSE,P/S 1-47470-463-1 01 1 9804-0004 ● ● ● ● ●
14 UNION; FLEX HOSE,P/S 1-47470-463-1 01 1 0005-0010 ● ● ●
14 UNION; FLEX HOSE,P/S
6HH1 STD ENG(65L),6HH1 N ENG(66L) 		1-47470-463-1 01 1 0011-0405 ●
14 UNION; FLEX HOSE,P/S 1-47470-463-1 01 1 0011-0405 ●
14 UNION; FLEX HOSE,P/S
6HH1 STD ENG(65L) 		1-47470-463-1 01 1 0011-0405 ●
14 UNION; FLEX HOSE,P/S 1-47470-463-1 01 1 0406- ● ●
14 UNION; FLEX HOSE,P/S
6HH1 STD ENG(65L) 		1-47470-463-1 01 1 0406- ●
14 UNION; FLEX HOSE,P/S 1-47470-315-2 01 1 9604-9803 ● ● ●
14 UNION; FLEX HOSE,P/S
6HH1 STD 4VALVE ENG(1A6) 		1-47470-571-1 01 1 0011-0105 ●
14 UNION; FLEX HOSE,P/S
6HH1 STD 4VALVE ENG(1A6) 		1-47470-663-0 01 1 0106-0405 ●
14 UNION; FLEX HOSE,P/S
6HK1 TCC ENG(81L) 		1-47470-663-0 01 1 0406- ●
15 CLIP; OIL PIPE SUCTION
ID=32 		1-09704-085-0 02 1 9604-0004 ● ● ● ● ●
15 CLIP; OIL PIPE SUCTION
ID=32 		1-09704-085-0 02 1 0005- ● ● ●
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 9604-0004 ● ● ● ● ●
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 0005- ● ● ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91150-114-0 01 1 9604-0004 ● ● ● ● ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91150-114-0 01 1 0005-0712 ● ● ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91180-114-0 01 1 0801- ● ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9604-9606 ● ● ● ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9607-0004 ● ● ● ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ● ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9604-0004 ● ● ● ● ●
