4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#37216) — 124 parça

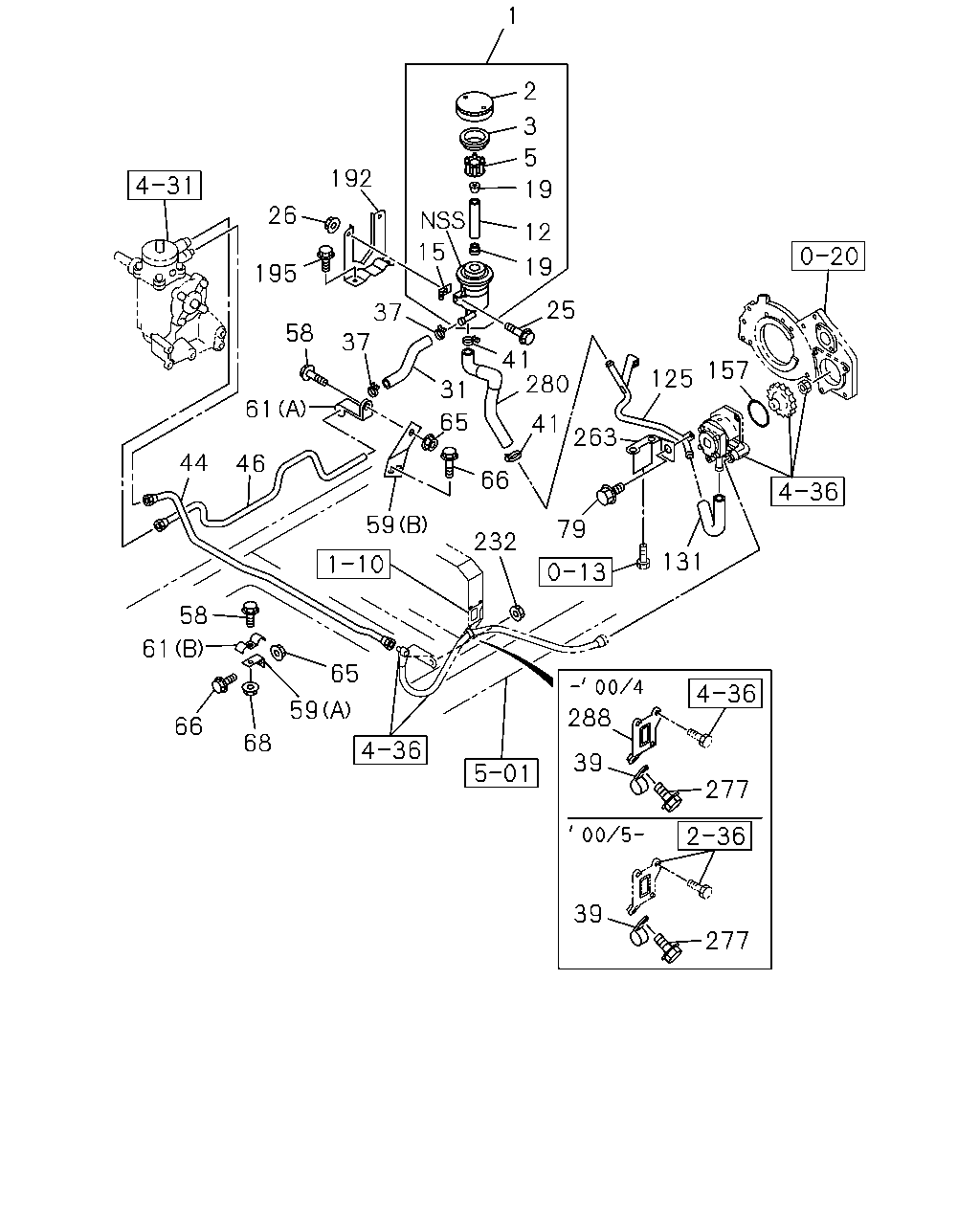

çizim 152855
1 2 3 5 192 19 26 12 15 19 195 25 37 37 157 58 41 280 125 31 61 65 41 263 44 46 66 59 79 232 131 58 61 65 59 288 66 68 39 277 39 277
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 TANK ASM; OIL,P/S 1-21210-205-0 01 1 9604-0004 ● ● ● ● ●
1 TANK ASM; OIL,P/S 1-21210-205-0 01 1 0005-0508 ● ● ●
1 TANK ASM; OIL,P/S 1-21210-238-1 01 1 0509-1006 ● ● ●
1 TANK ASM; OIL,P/S 8-98166-928-0 01 1 1007- ● ● ●
2 CAP; OIL TANK,P/S 1-21241-004-3 01 1 9604-0004 ● ● ● ● ●
2 CAP; OIL TANK,P/S 1-21241-004-4 01 1 0005-1006 ● ● ●
2 CAP; OIL TANK,P/S 8-98166-876-0 01 1 1007- ● ● ●
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 9604-0004 ● ● ● ● ●
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 0005- ● ● ●
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 9604-0004 ● ● ● ● ●
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 0005- ● ● ●
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 9604-0004 ● ● ● ● ●
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 0005- ● ● ●
15 PLATE; FILTER,OIL TANK 1-21249-007-1 02 1 9604-0004 ● ● ● ● ●
15 PLATE; FILTER,OIL TANK 1-21249-007-1 02 1 0005-0508 ● ● ●
15 PLATE; FILTER,OIL TANK 1-21249-016-0 02 1 0509- ● ● ●
19 SEAT; OIL TANK 1-21249-004-0 02 1 9604-0004 ● ● ● ● ●
19 SEAT; OIL TANK 1-21249-004-0 02 1 0005- ● ● ●
25 BOLT; OIL TANK BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9604-9606 ● ● ● ● ●
25 BOLT; OIL TANK BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9607-9801 ● ● ● ● ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9802-0004 ● ● ● ● ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ● ● ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
26 NUT; OIL TANK TO BRKT
M8 		9-09110-408-0 02 1 9604-9606 ● ● ● ● ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ● ● ● ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ● ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
31 HOSE; P/S OIL TANK,INL 1-21113-591-1 01 1 9604-0004 ● ●
31 HOSE; P/S OIL TANK,INL 1-21113-591-1 01 1 0005- ●
31 HOSE; P/S OIL TANK,INL 1-21113-590-0 01 1 9604-0004 ● ● ●
31 HOSE; P/S OIL TANK,INL 1-21113-590-0 01 1 0005- ● ●
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 9604-0004 ● ● ● ● ●
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 0005- ● ● ●
39 CLIP; FLEX HOSE
ID=40 		8-94226-553-0 01 1 9604-0004 ● ● ● ● ●
39 CLIP; FLEX HOSE
ID=40 		8-94226-553-0 01 1 0005- ● ● ●
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 9604-0004 ● ● ● ● ●
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 0005- ● ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
L=1086 L=1086 		1-21115-361-0 01 1 9604-0004 ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
L=1086 L=1086 		1-21115-361-0 01 1 0005-0408 ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
L=1089 		1-21117-616-0 01 1 0409- ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
L=912 		1-21115-591-0 01 1 9604-9803 ● ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
L=922 		1-21115-890-0 01 1 9804-0004 ● ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
L=922 		1-21115-890-0 01 1 0005-0010 ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
L=922 		1-21115-890-0 01 1 0011-0301 ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
6HH1 STD ENG(65L) L=922 		1-21115-890-0 01 1 0011-0301 ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
L=922 		1-21117-358-0 01 1 0302-0310 ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
6HH1 STD ENG(65L) L=922 		1-21117-358-0 01 1 0302-0310 ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
L=970 		1-21117-428-0 01 1 0311-0408 ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
6HH1 STD ENG(65L) L=970 		1-21117-428-0 01 1 0311-0408 ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
L=972 		1-21117-617-0 01 1 0409- ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
6HH1 STD ENG(65L) L=972 		1-21117-617-0 01 1 0409- ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
6HH1 STD 4VALVE ENG(1A6) L=931 		1-21116-900-0 01 1 0011-0105 ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
6HH1 STD 4VALVE ENG(1A6) L=935 		1-21117-056-0 01 1 0106-0301 ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
6HH1 STD 4VALVE ENG(1A6) L=929 		1-21117-359-0 01 1 0302-0405 ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
6HK1 TCC ENG(81L) L=977 		1-21117-476-0 01 1 0406- ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=702 		1-21114-768-3 01 1 9604- ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=804 		1-21114-766-0 01 1 9604-0004 ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=647 		1-21115-247-0 01 1 9604-0104 ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=788 		1-21117-001-0 01 1 0105- ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=795 		1-21115-518-0 01 1 9604-0004 ●
58 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9604-9608 ● ● ● ● ●
58 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9609-0004 ● ● ● ● ●
58 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0005-0512 ● ● ●
58 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ● ●
58 BOLT; CLIP
M8X25 FLANGE 		0-28080-825-0 01 1 9604-9606 ● ● ● ● ●
58 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 9607-0004 ● ● ● ● ●
58 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0005-0512 ● ● ●
58 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
59 BRACKET; CLIP,OIL PIPE
(A) L=60 		1-47475-455-0 01 1 9604-0004 ● ● ● ● ●
59 BRACKET; CLIP,OIL PIPE
(A) L=60 		1-47475-455-0 01 1 0005- ● ● ●
59 BRACKET; CLIP,OIL PIPE
(B) 		1-21119-091-0 01 1 9604-9807 ● ● ●
61 CLIP; OIL PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 9604-0004 ● ● ● ● ●
61 CLIP; OIL PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 0005- ● ● ●
61 CLIP; OIL PIPE
(B) ID=16 & 13 L=18 & 17 		1-09700-658-0 01 1 9604-0004 ● ● ● ● ●
61 CLIP; OIL PIPE
(B) ID=16 & 13 L=18 & 17 		1-09700-658-0 01 1 0005- ● ● ●
65 NUT; BRKT
M8 		9-09110-408-0 02 1 9604-9606 ● ● ● ● ●
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ● ● ● ●
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ● ●
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE 		0-28080-820-0 01 1 9604-9606 ● ● ● ● ●
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE 		0-28080-820-0 01 1 9604-9606 ● ● ●
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE 		0-28680-820-0 01 1 9607-9807 ● ● ● ● ●
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE 		0-28680-820-0 01 1 9607-9807 ● ● ●
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE 		0-28680-820-0 01 1 9808-0004 ● ● ● ● ●
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE 		0-28680-820-0 01 1 0005-0512 ● ● ●
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ● ●
68 NUT; CLIP,OIL PIPE
M8 		9-09110-408-0 01 1 9604-9606 ● ● ● ● ●
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 01 1 9607-0004 ● ● ● ● ●
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ● ● ●
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
79 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 9604-0004 ● ● ● ● ●
79 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 0005-0512 ● ● ●
79 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0601- ● ● ●
125 CONNECTOR; P/S PUMP 8-94394-319-0 01 1 9604-9605 ● ● ● ● ●
125 CONNECTOR; P/S PUMP 8-94390-310-0 01 1 9606-9901 ● ● ● ● ●
125 CONNECTOR; P/S PUMP 8-97600-113-0 01 1 9902-0004 ● ● ● ● ●
125 CONNECTOR; P/S PUMP 8-97600-113-0 01 1 0005- ● ● ●
131 HOSE; RUBBER,P/S 8-94396-331-1 01 1 9604-0004 ● ● ● ● ●
131 HOSE; RUBBER,P/S 8-94396-331-1 01 1 0005- ● ● ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-178-0 01 1 9604-0004 ● ● ● ● ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-178-0 01 1 0005- ● ● ●
192 BRACKET; P/S OIL TANK 1-21119-129-0 01 1 9604-0004 ● ●
192 BRACKET; P/S OIL TANK 1-21119-129-0 01 1 0005- ●
192 BRACKET; P/S OIL TANK 1-21119-142-1 01 1 9604-0004 ● ● ●
192 BRACKET; P/S OIL TANK 1-21119-142-1 01 1 0005- ● ●
195 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 02 1 9604-9606 ● ● ● ● ●
195 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 9607-0004 ● ● ● ● ●
195 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 0005-0406 ● ● ●
195 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 02 1 0407-0512 ● ● ●
195 BOLT; BRKT
M10X25 FLANGE 		0-28051-025-0 02 1 0601- ● ● ●
232 NUT; BRKT
M8 		9-09110-408-0 02 1 9604-9606 ● ● ● ● ●
232 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ● ● ● ●
232 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ● ●
232 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
263 BRACKET; P/S PIPE 8-94393-981-0 01 1 9604-9901 ● ● ● ● ●
263 BRACKET; P/S PIPE 8-97600-117-0 01 1 9902-0004 ● ● ● ● ●
263 BRACKET; P/S PIPE 8-97600-117-0 01 1 0005- ● ● ●
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9604-0004 ● ● ● ● ●
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0512 ● ● ●
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ●
280 HOSE; P/S OIL PUMP,INL 1-21115-230-1 01 1 9604-0004 ● ● ● ● ●
280 HOSE; P/S OIL PUMP,INL 1-21115-230-1 01 1 0005-0405 ● ● ●
280 HOSE; P/S OIL PUMP,INL 1-21115-230-1 01 1 0406- ● ● ●
288 BRACKET; CLIP,P/S 1-82659-149-0 01 1 9604-0004 ● ● ● ● ●
