◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10716 - FSS/FTS-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#37215) — 98 parça

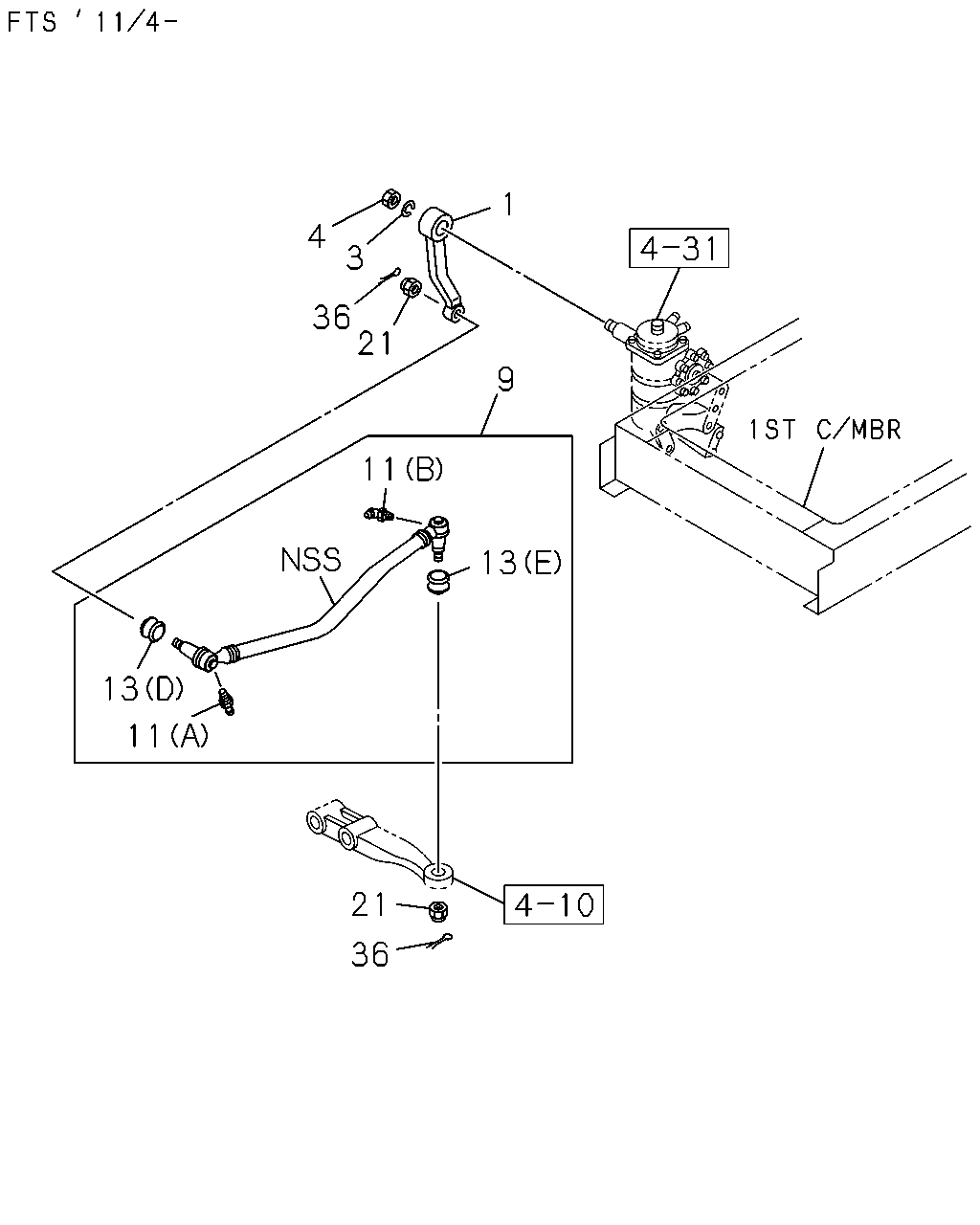

çizim 152628
1 4 3 36 21 9 11 13 13 11 21 36
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 ARM; PITMAN,STRG 1-44341-406-0 01 1 9604-0004 ● ●
1 ARM; PITMAN,STRG 1-44341-406-0 01 1 0005-0211 ●
1 ARM; PITMAN,STRG 1-44341-479-1 01 1 0212- ●
1 ARM; PITMAN,STRG 1-44341-389-0 01 1 9604-0004 ● ● ●
1 ARM; PITMAN,STRG 1-44341-389-1 01 1 0005- ● ●
3 WASHER; LK,PITMAN ARM
ID=30.5 		1-09500-026-0 01 1 9604-0004 ● ●
3 WASHER; LK,PITMAN ARM
ID=30.5 		1-09500-026-0 01 1 0005-0805 ●
3 WASHER; LK,PITMAN ARM
ID=30.5 		1-09500-055-0 01 1 0806- ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 9604-0004 ● ● ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 0005- ● ●
4 NUT; PITMAN ARM
M30 		1-09400-050-0 01 1 9604-0004 ● ●
4 NUT; PITMAN ARM
M30 		1-09400-050-0 01 1 0005-0805 ●
4 NUT; PITMAN ARM
M30 		1-09400-166-0 01 1 0806- ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 9604-0004 ● ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 0005-0805 ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-098-0 01 1 0806- ● ●
9 LINK; DRAG 1-44380-030-1 01 1 9604-0004 ● ●
9 LINK; DRAG 1-44380-030-1 01 1 0005- ●
9 LINK; DRAG 1-44380-122-0 01 1 9604-0004 ● ● ●
9 LINK; DRAG 1-44380-122-2 01 1 0005-1103 ● ●
9 LINK; DRAG 8-98177-629-0 01 1 1104- ● ●
11 NIPPLE; GREASE,DRAG LINK
(A) 		1-43159-132-0 01 1 1104- ● ●
11 NIPPLE; GREASE,DRAG LINK
(B) 		8-98160-122-0 01 1 1104- ● ●
13 BOOT; DRAG LINK
(C) 		1-85574-046-0 02 1 9604-0004 ● ●
13 BOOT; DRAG LINK
(C) 		1-85574-046-0 02 1 0005- ●
13 BOOT; DRAG LINK
(A) 		1-43159-078-0 01 1 9604-0004 ● ● ●
13 BOOT; DRAG LINK
(A) 		1-43159-078-0 01 1 0005-1103 ● ●
13 BOOT; DRAG LINK
(D) 		1-43159-131-0 01 1 1104- ● ●
13 BOOT; DRAG LINK
(B) 		1-43159-081-0 01 1 9604-0004 ● ● ●
13 BOOT; DRAG LINK
(B) 		1-43159-081-0 01 1 0005-1103 ● ●
13 BOOT; DRAG LINK
(E) 		1-43159-134-0 01 1 1104- ● ●
21 NUT; LK,JOINT BALL
M16 SLOTTED 		1-09442-021-1 02 1 9604-0004 ● ●
21 NUT; LK,JOINT BALL
M16 SLOTTED 		1-09442-021-1 02 1 0005-0805 ●
21 NUT; LK,JOINT BALL
M16 SLOTTED 		1-09442-031-0 02 1 0806- ●
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-020-0 02 1 9604-0004 ● ● ●
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-020-0 02 1 0005-0805 ● ●
21 NUT; LK,JOINT BALL
M24 		1-09442-032-0 02 1 0806- ● ●
36 PIN; SPLIT,DRAG LINK
OD=3.7 L=25 		9-08114-025-0 02 1 9604-0004 ● ●
36 PIN; SPLIT,DRAG LINK
OD=3.7 L=25 		9-08114-025-0 02 1 0005-0606 ●
36 PIN; SPLIT,DRAG LINK
OD=3.7 L=25 		0-81124-025-0 02 1 0607- ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		9-08115-035-0 02 1 9604-0004 ● ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		9-08115-035-0 02 1 0005-0606 ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		0-81125-035-0 02 1 0607- ● ●

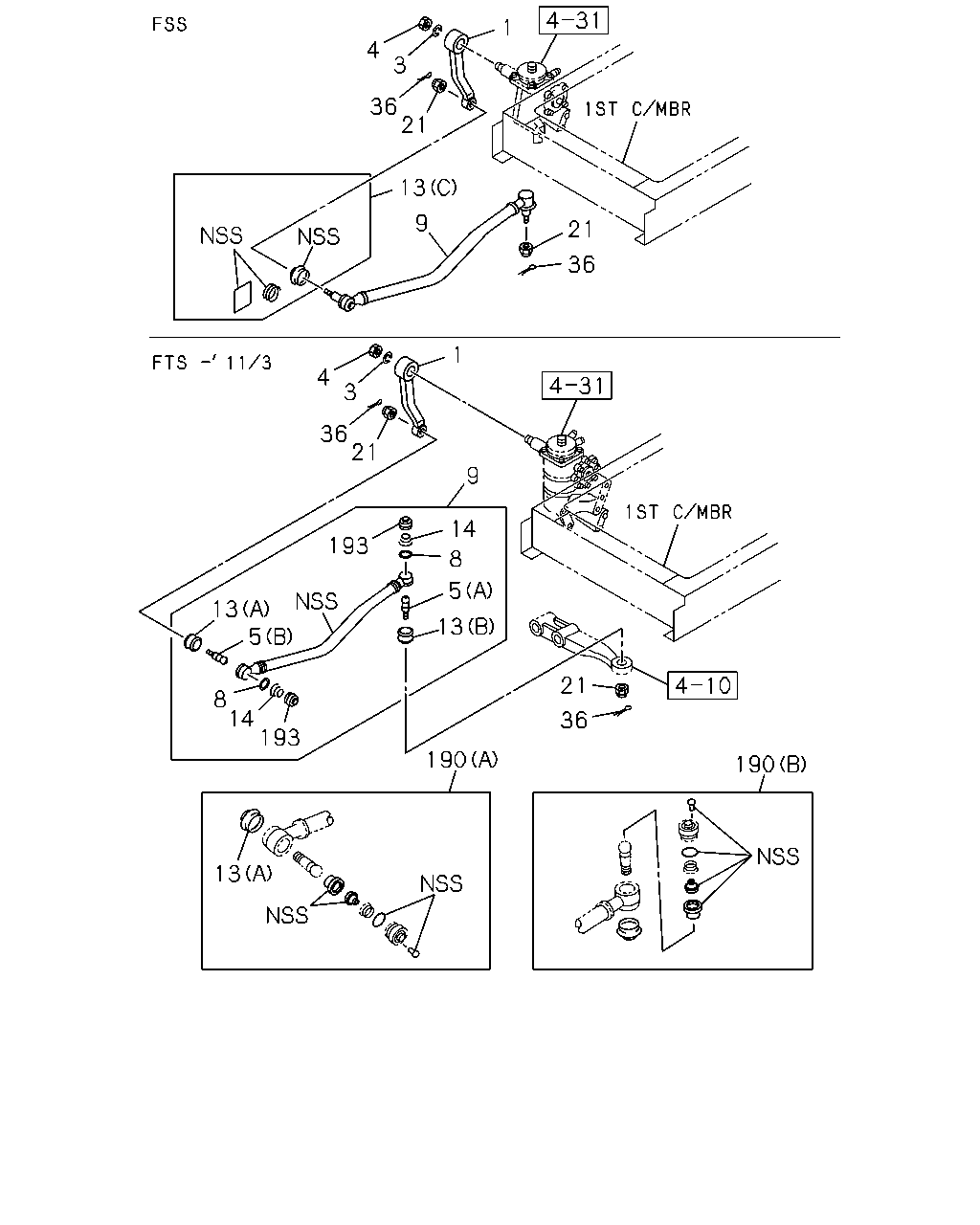

çizim 152841
1 4 3 36 21 13 21 9 36 1 4 3 36 21 9 14 193 8 5 13 5 13 21 8 14 193 36 190 190 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 ARM; PITMAN,STRG 1-44341-406-0 01 1 9604-0004 ● ●
1 ARM; PITMAN,STRG 1-44341-406-0 01 1 0005-0211 ●
1 ARM; PITMAN,STRG 1-44341-479-1 01 1 0212- ●
1 ARM; PITMAN,STRG 1-44341-389-0 01 1 9604-0004 ● ● ●
1 ARM; PITMAN,STRG 1-44341-389-1 01 1 0005- ● ●
3 WASHER; LK,PITMAN ARM
ID=30.5 		1-09500-026-0 01 1 9604-0004 ● ●
3 WASHER; LK,PITMAN ARM
ID=30.5 		1-09500-026-0 01 1 0005-0805 ●
3 WASHER; LK,PITMAN ARM
ID=30.5 		1-09500-055-0 01 1 0806- ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 9604-0004 ● ● ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 0005- ● ●
4 NUT; PITMAN ARM
M30 		1-09400-050-0 01 1 9604-0004 ● ●
4 NUT; PITMAN ARM
M30 		1-09400-050-0 01 1 0005-0805 ●
4 NUT; PITMAN ARM
M30 		1-09400-166-0 01 1 0806- ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 9604-0004 ● ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 0005-0805 ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-098-0 01 1 0806- ● ●
5 BALL; JOINT,DRAG LINK
(A) 		1-44361-098-0 01 1 9604-0004 ● ● ●
5 BALL; JOINT,DRAG LINK
(A) 		1-44361-098-0 01 1 0005-1103 ● ●
5 BALL; JOINT,DRAG LINK
(B) 		1-44361-105-1 01 1 9604-0004 ● ● ●
5 BALL; JOINT,DRAG LINK
(B) 		1-44361-105-1 01 1 0005-1103 ● ●
8 SEAT; SPR,ROD END 1-43159-075-0 02 1 9604-0004 ● ● ●
8 SEAT; SPR,ROD END 1-43159-075-0 02 1 0005-1103 ● ●
9 LINK; DRAG 1-44380-030-1 01 1 9604-0004 ● ●
9 LINK; DRAG 1-44380-030-1 01 1 0005- ●
9 LINK; DRAG 1-44380-122-0 01 1 9604-0004 ● ● ●
9 LINK; DRAG 1-44380-122-2 01 1 0005-1103 ● ●
9 LINK; DRAG 8-98177-629-0 01 1 1104- ● ●
13 BOOT; DRAG LINK
(C) 		1-85574-046-0 02 1 9604-0004 ● ●
13 BOOT; DRAG LINK
(C) 		1-85574-046-0 02 1 0005- ●
13 BOOT; DRAG LINK
(A) 		1-43159-078-0 01 1 9604-0004 ● ● ●
13 BOOT; DRAG LINK
(A) 		1-43159-078-0 01 1 0005-1103 ● ●
13 BOOT; DRAG LINK
(D) 		1-43159-131-0 01 1 1104- ● ●
13 BOOT; DRAG LINK
(B) 		1-43159-081-0 01 1 9604-0004 ● ● ●
13 BOOT; DRAG LINK
(B) 		1-43159-081-0 01 1 0005-1103 ● ●
13 BOOT; DRAG LINK
(E) 		1-43159-134-0 01 1 1104- ● ●
14 SPRING; COIL,DRAG LINK 1-43159-074-0 02 1 9604-0004 ● ● ●
14 SPRING; COIL,DRAG LINK 1-43159-074-0 02 1 0005-1103 ● ●
21 NUT; LK,JOINT BALL
M16 SLOTTED 		1-09442-021-1 02 1 9604-0004 ● ●
21 NUT; LK,JOINT BALL
M16 SLOTTED 		1-09442-021-1 02 1 0005-0805 ●
21 NUT; LK,JOINT BALL
M16 SLOTTED 		1-09442-031-0 02 1 0806- ●
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-020-0 02 1 9604-0004 ● ● ●
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-020-0 02 1 0005-0805 ● ●
21 NUT; LK,JOINT BALL
M24 		1-09442-032-0 02 1 0806- ● ●
36 PIN; SPLIT,DRAG LINK
OD=3.7 L=25 		9-08114-025-0 02 1 9604-0004 ● ●
36 PIN; SPLIT,DRAG LINK
OD=3.7 L=25 		9-08114-025-0 02 1 0005-0606 ●
36 PIN; SPLIT,DRAG LINK
OD=3.7 L=25 		0-81124-025-0 02 1 0607- ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		9-08115-035-0 02 1 9604-0004 ● ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		9-08115-035-0 02 1 0005-0606 ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		0-81125-035-0 02 1 0607- ● ●
190 REPAIR KIT; DRAG LINK
(B) 		1-85574-040-0 01 1 9604-0004 ● ● ●
190 REPAIR KIT; DRAG LINK
(B) 		1-85574-040-0 01 1 0005-1103 ● ●
190 REPAIR KIT; DRAG LINK
(A) 		1-85574-041-0 01 1 9604-0004 ● ● ●
190 REPAIR KIT; DRAG LINK
(A) 		1-85574-041-0 01 1 0005-1103 ● ●
193 PLUG; END,DRAG LINK 1-43159-093-0 02 1 9604-0004 ● ● ●
193 PLUG; END,DRAG LINK 1-43159-093-0 02 1 0005-1103 ● ●
