Sayfa 4-20 - Isuzu EPC

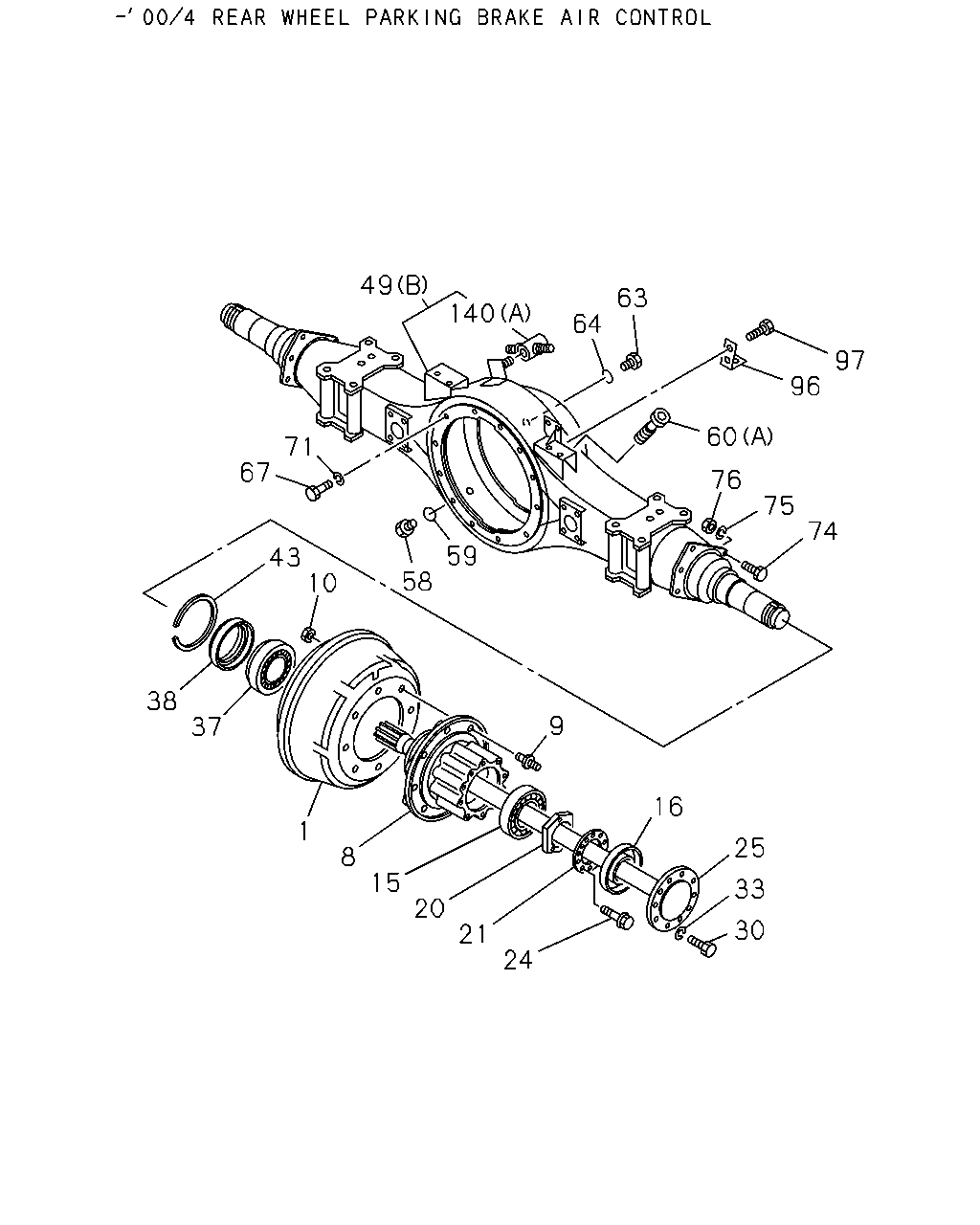

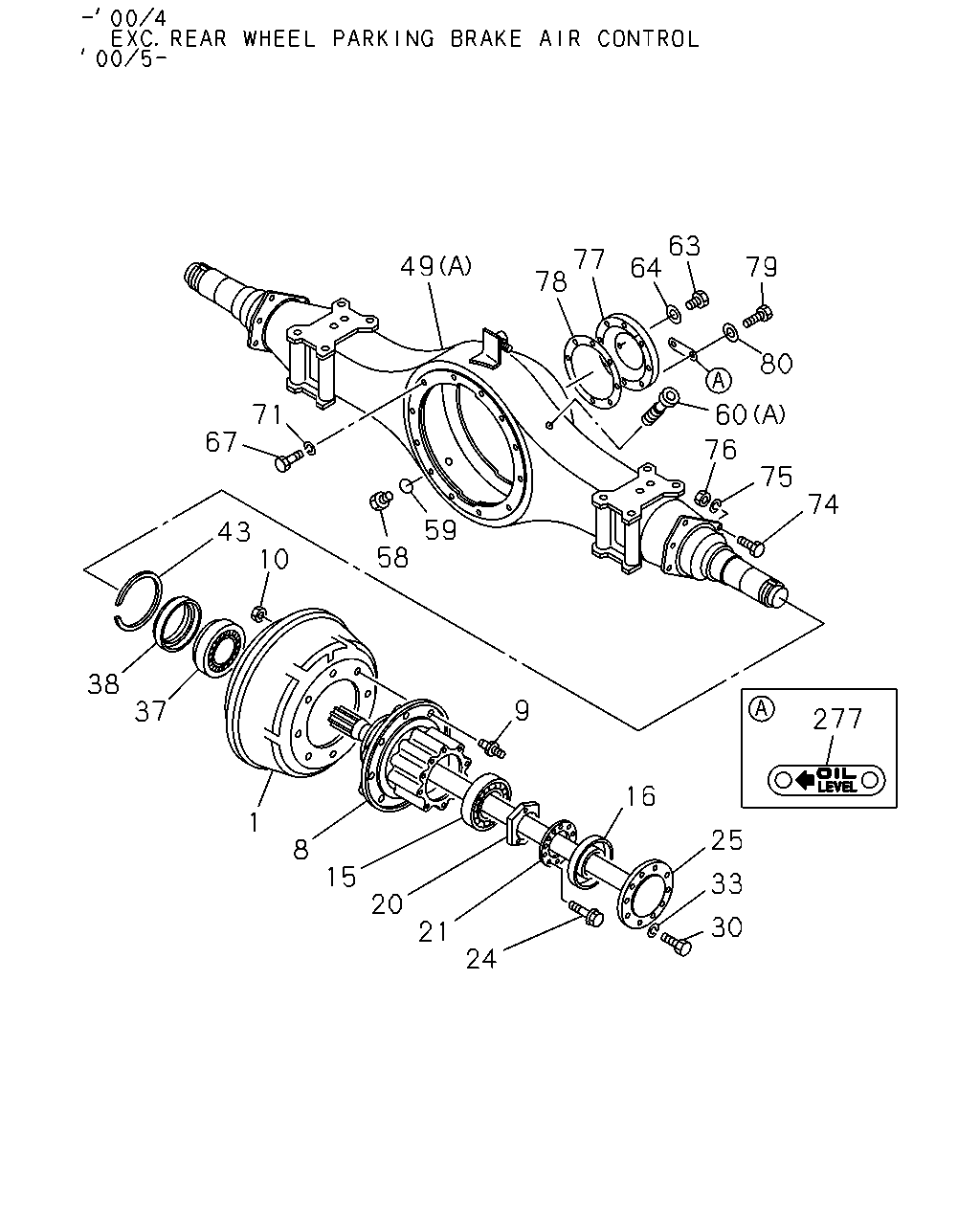

4-20 — REAR AXLE CASE AND SHAFT (#37211) — 379 parça

63 64 77 78 49 79 80 71 60 67 76 75 74 59 43 10 58 38 9 37 277 16 1 25 8 15 33 20 30 21 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DRUM; BRK,RR	1-42315-266-1	02	1	9604-9902	●	●
1	DRUM; BRK,RR	1-42315-362-1	02	1	9903-0004	●	●
1	DRUM; BRK,RR	1-42315-362-1	02	1	0005-	●
1	DRUM; BRK,RR H=195	1-42315-208-2	02	1	9604-0004			●	●	●
1	DRUM; BRK,RR H=195	1-42315-208-2	02	1	0005-			●	●
8	HUB; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-42311-021-1	02	1	9604-0004	●	●
8	HUB; RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-42311-092-0	02	1	9604-0004	●	●
8	HUB; RR AXLE	1-42311-092-0	02	1	9604-0004			●	●	●
8	HUB; RR AXLE	1-42311-092-0	02	1	0005-	●		●	●
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	9604-0004	●	●	●	●	●
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	0005-	●		●	●
9	PIN; WHEEL,RR AXLE M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	9604-0004	●	●	●	●	●
9	PIN; WHEEL,RR AXLE M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	0005-	●		●	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	16	1	9903-9904	●	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	16	1	9905-0004	●	●	●	●	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	16	1	0005-	●		●	●
10	NUT; WHEEL PIN,RR AXLE M22	9-09110-522-0	16	1	9604-9609	●	●	●	●	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-055-0	16	1	9610-9902	●	●	●	●	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-055-0	16	1	9903-9904			●	●	●
15	BEARING; HUB OUTER,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) JTEKT	1-09812-049-0	02	1	9604-0004	●	●
15	BEARING; HUB OUTER,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NSK	9-00093-159-0	02	1	9604-0004	●	●
15	BEARING; HUB OUTER,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NSK	1-09812-153-0	02	1	9604-0004	●	●
15	BEARING; HUB OUTER,RR AXLE NSK	1-09812-153-0	02	1	9604-0004			●	●	●
15	BEARING; HUB OUTER,RR AXLE NSK	1-09812-153-0	02	1	0005-	●		●	●
15	BEARING; HUB OUTER,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) JTEKT	1-09812-154-0	02	1	9604-0004	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-154-0	02	1	9604-0004			●	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-154-0	02	1	0005-	●		●	●
16	SEAL; OIL,RR HUB,OUTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TKK	1-09625-331-0	02	1	9604-0004	●	●
16	SEAL; OIL,RR HUB,OUTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NOK	9-09924-468-0	02	1	9604-0004	●	●
16	SEAL; OIL,RR HUB,OUTER NOK	9-09924-468-0	02	1	9604-0004			●	●	●
16	SEAL; OIL,RR HUB,OUTER NOK	9-09924-468-0	02	1	0005-	●		●	●
16	SEAL; OIL,RR HUB,OUTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TKK	9-09924-470-0	02	1	9604-0004	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	9-09924-470-0	02	1	9604-0004			●	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	9-09924-470-0	02	1	0005-0509	●		●	●
16	SEAL; OIL,RR HUB,OUTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) JTEKT	9-09924-499-0	02	1	9604-0004	●	●
16	SEAL; OIL,RR HUB,OUTER JTEKT	9-09924-499-0	02	1	9604-0004			●	●	●
16	SEAL; OIL,RR HUB,OUTER JTEKT	9-09924-499-0	02	1	0005-0509	●		●	●
20	NUT; BRG,RR HUB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M64	9-09843-721-2	02	1	9604-0004	●	●
20	NUT; BRG,RR HUB EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M74.6	9-09843-064-2	02	1	9604-0004	●	●
20	NUT; BRG,RR HUB M74.6	9-09843-064-2	02	1	9604-0004			●	●	●
20	NUT; BRG,RR HUB M74.6	9-09843-064-2	02	1	0005-	●		●	●
21	WASHER; LK,BRG NUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=64	9-09854-122-0	02	1	9604-0004	●	●
21	WASHER; LK,BRG NUT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=74.6	1-09533-008-0	02	1	9604-0004	●	●
21	WASHER; LK,BRG NUT ID=74.6	1-09533-008-0	02	1	9604-0004			●	●	●
21	WASHER; LK,BRG NUT ID=74.6	1-09533-008-0	02	1	0005-	●		●	●
24	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	06	1	9604-9701	●	●	●	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	9702-0004	●	●	●	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0005-0512	●		●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0601-	●		●	●
25	SHAFT; AXLE,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-42171-361-0	02	1	9604-9607	●	●
25	SHAFT; AXLE,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=921.5	1-42171-484-0	02	1	9608-0004	●	●
25	SHAFT; AXLE,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-42171-247-2	01	1	9604-9607	●	●
25	SHAFT; AXLE,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-42171-490-0	01	1	9608-0004	●	●
25	SHAFT; AXLE,RR	1-42171-490-0	01	1	0005-	●
25	SHAFT; AXLE,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-42171-246-2	01	1	9604-9607	●	●
25	SHAFT; AXLE,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-42171-489-0	01	1	9608-0004	●	●
25	SHAFT; AXLE,RR	1-42171-489-0	01	1	0005-	●
25	SHAFT; AXLE,RR L=986	1-42171-280-0	02	1	9604-9609			●	●	●
25	SHAFT; AXLE,RR L=986	1-42171-499-0	02	1	9610-0004			●	●	●
25	SHAFT; AXLE,RR L=986	1-42171-499-0	02	1	0005-			●	●
30	BOLT; HUB TO AXLE SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X45	9-09804-239-1	20	1	9604-0004	●	●
30	BOLT; HUB TO AXLE SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X58	1-09000-582-0	20	1	9604-0004	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	9604-0004			●	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	0005-	●		●	●
33	WASHER; AXLE SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	9-09150-812-0	20	1	9604-0004	●	●
33	WASHER; AXLE SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-814-0	20	1	9604-0004	●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	9604-0004			●	●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	0005-0603	●		●	●
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	0604-	●		●	●
37	BEARING; HUB INNER,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) JTEKT	1-09812-044-0	02	1	9604-0004	●	●
37	BEARING; HUB INNER,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NACHI	1-09812-053-0	02	1	9604-0004	●	●
37	BEARING; HUB INNER,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NSK	9-00093-161-0	02	1	9604-0004	●	●
37	BEARING; HUB INNER,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NSK	1-09812-150-0	02	1	9604-0004	●	●
37	BEARING; HUB INNER,RR AXLE NSK	1-09812-150-0	02	1	9604-0004			●	●	●
37	BEARING; HUB INNER,RR AXLE NSK	1-09812-150-0	02	1	0005-	●		●	●
37	BEARING; HUB INNER,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NACHI	1-09812-151-0	02	1	9604-0004	●	●
37	BEARING; HUB INNER,RR AXLE NACHI	1-09812-151-0	02	1	9604-0004			●	●	●
37	BEARING; HUB INNER,RR AXLE NACHI	1-09812-151-0	02	1	0005-	●		●	●
38	SEAL; OIL,RR HUB,INNER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TKK	1-09625-569-0	02	1	9604-0004	●	●
38	SEAL; OIL,RR HUB,INNER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TKK	9-09924-415-0	02	1	9604-0004	●	●
38	SEAL; OIL,RR HUB,INNER TKK	9-09924-415-0	02	1	9604-0004			●	●	●
38	SEAL; OIL,RR HUB,INNER TKK	9-09924-415-0	02	1	0005-	●		●	●
38	SEAL; OIL,RR HUB,INNER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NOK	9-09924-416-0	02	1	9604-0004	●	●
38	SEAL; OIL,RR HUB,INNER NOK	9-09924-416-0	02	1	9604-0004			●	●	●
38	SEAL; OIL,RR HUB,INNER NOK	9-09924-416-0	02	1	0005-0111	●		●	●
38	SEAL; OIL,RR HUB,INNER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) JTEKT	9-09924-417-0	02	1	9604-0004	●	●
38	SEAL; OIL,RR HUB,INNER JTEKT	9-09924-417-0	02	1	9604-0004			●	●	●
38	SEAL; OIL,RR HUB,INNER JTEKT	9-09924-417-0	02	1	0005-0111	●		●	●
43	RING; SNAP,HUB SEAL,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09950-201-0	02	1	9604-0004	●	●
43	RING; SNAP,HUB SEAL,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=150	9-09950-147-0	02	1	9604-0004	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=150	9-09950-147-0	02	1	9604-0004			●	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=150	9-09950-147-0	02	1	0005-	●		●	●
49	CASE; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LOAD SENSING PROPORTIONING VALVE(JR7) (B)	1-42150-961-0	01	1	9604-0004	●	●
49	CASE; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. LOAD SENSING PROPORTIONING VALVE(JR7) (B)	1-42160-150-0	01	1	9604-0004	●	●
49	CASE; RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-42160-307-0	01	1	9604-0004	●	●
49	CASE; RR AXLE (A)	1-42160-307-0	01	1	0005-1110	●
49	CASE; RR AXLE (A)	8-98201-704-0	01	1	1111-	●
49	CASE; RR AXLE (A)	1-42160-153-0	01	1	9604-0004			●
49	CASE; RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-42160-153-0	01	1	9604-0004				●	●
49	CASE; RR AXLE (A)	1-42160-153-0	01	1	0005-			●
49	CASE; RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-42160-153-0	01	1	0005-				●
49	CASE; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LOAD SENSING PROPORTIONING VALVE(JR7) (B)	1-42160-152-0	01	1	9604-0004				●	●
49	CASE; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LOAD SENSING PROPORTIONING VALVE(JR7) (B)	1-42160-152-0	01	1	0005-0210				●
49	CASE; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-42160-152-0	01	1	0211-				●
49	CASE; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. LOAD SENSING PROPORTIONING VALVE(JR7) (B)	1-42160-151-1	01	1	9604-0004				●	●
49	CASE; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. LOAD SENSING PROPORTIONING VALVE(JR7) (B)	1-42160-151-1	01	1	0005-0210				●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	9604-0004	●	●	●	●	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0005-	●		●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	9604-0004	●	●	●	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0005-	●		●	●

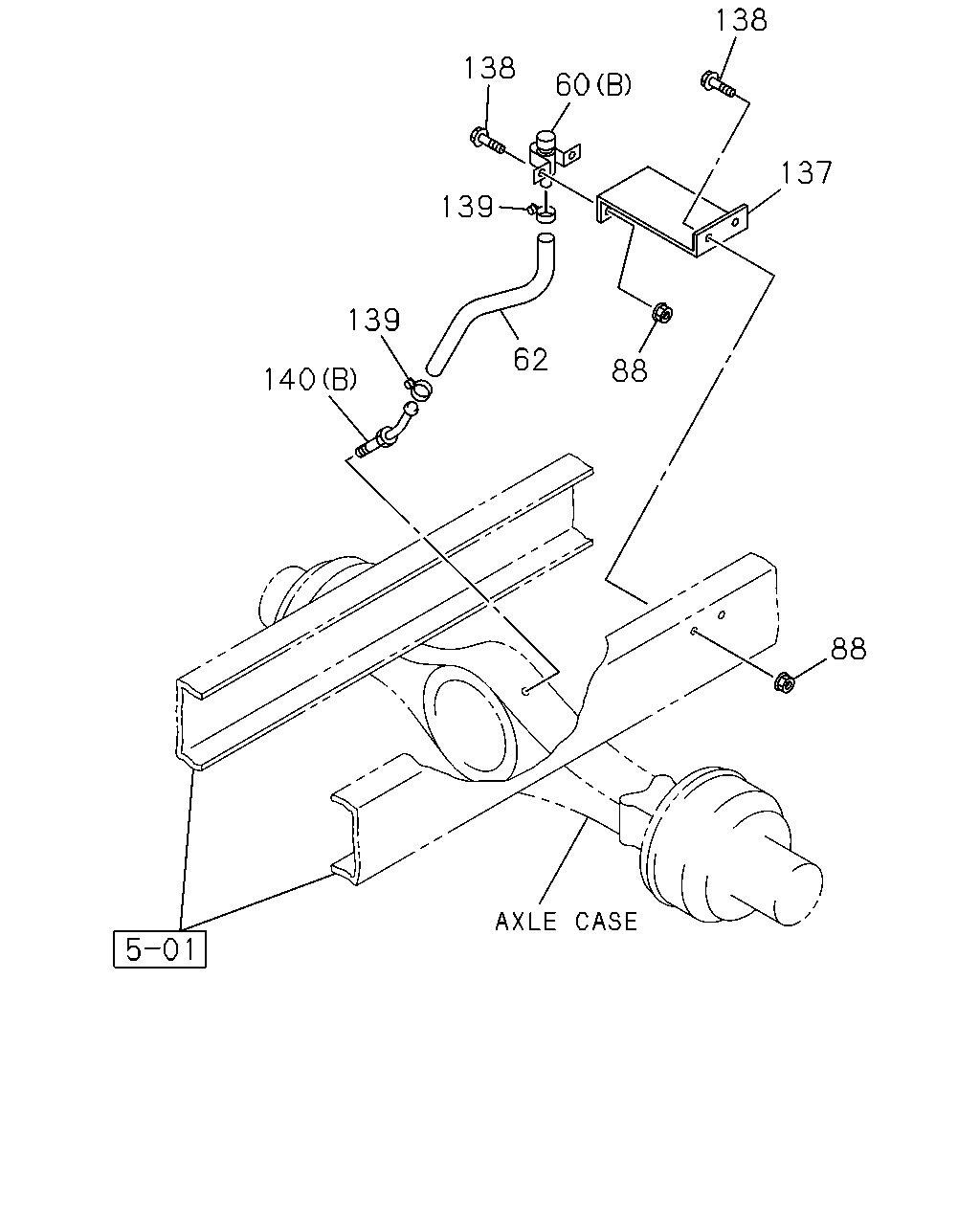

60	BREATHER; RR AXLE CASE (A)	9-36122-015-1	01	1	9604-0004	●	●
60	BREATHER; RR AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	9604-0004			●
60	BREATHER; RR AXLE CASE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	9604-0004				●	●
60	BREATHER; RR AXLE CASE (A)	9-36122-015-1	01	1	0005-	●
60	BREATHER; RR AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	0005-			●
60	BREATHER; RR AXLE CASE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	0005-				●
60	BREATHER; RR AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	1-09893-009-0	01	1	9604-0004			●	●	●
60	BREATHER; RR AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	1-09893-009-0	01	1	0005-			●	●
60	BREATHER; RR AXLE CASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	1-09893-007-0	01	1	9604-0004				●	●
60	BREATHER; RR AXLE CASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	1-09893-007-0	01	1	0005-				●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	9604-0004	●	●	●	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0005-	●		●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	9604-0004	●	●	●	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0005-	●		●	●
67	BOLT; FINAL DRIVE SETTING M12X55	9-91066-255-0	04	1	9604-0004	●	●
67	BOLT; FINAL DRIVE SETTING M12X55	9-91066-255-0	04	1	0005-	●
67	BOLT; FINAL DRIVE SETTING M12X35	9-92061-235-0	08	1	9604-0004	●	●
67	BOLT; FINAL DRIVE SETTING M12X35	9-92061-235-0	08	1	0005-0512	●
67	BOLT; FINAL DRIVE SETTING M12X35	0-20951-235-0	08	1	0601-	●
67	BOLT; FINAL DRIVE SETTING M14X65	9-91066-465-0	04	1	9604-0004			●	●	●
67	BOLT; FINAL DRIVE SETTING M14X65	9-91066-465-0	04	1	0005-0108			●	●
67	BOLT; FINAL DRIVE SETTING M14X65	9-92061-465-0	04	1	0109-			●	●
67	BOLT; FINAL DRIVE SETTING M14X40	9-92061-440-0	08	1	9604-0004			●	●	●
67	BOLT; FINAL DRIVE SETTING M14X40	9-92061-440-0	08	1	0005-0512			●	●
67	BOLT; FINAL DRIVE SETTING M14X40	0-20951-440-0	08	1	0601-			●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	9-09150-812-0	12	1	9604-0004	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	9-09150-812-0	12	1	0005-0603	●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	0-91510-812-0	12	1	0604-	●
71	WASHER; LK,FINAL DRIVE SETTING ID=14.2	9-09150-814-0	12	1	9604-0004			●	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=14.2	9-09150-814-0	12	1	0005-0603			●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=14.2	0-91510-814-0	12	1	0604-			●	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	0206-0208			●	●
74	BOLT; RR BRK ASM SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	9-92061-450-0	12	1	9604-0004	●	●
74	BOLT; RR BRK ASM SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X56	1-09060-004-0	04	1	9604-0004	●	●
74	BOLT; RR BRK ASM SETTING M14X56	1-09060-004-0	04	1	0005-	●
74	BOLT; RR BRK ASM SETTING M14X52	1-09000-310-0	04	1	9604-0004			●
74	BOLT; RR BRK ASM SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X52	1-09000-310-0	04	1	9604-0004				●	●
74	BOLT; RR BRK ASM SETTING M14X52	1-09000-310-0	04	1	0005-			●
74	BOLT; RR BRK ASM SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X52	1-09000-310-0	04	1	0005-				●
74	BOLT; RR BRK ASM SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X52	1-09000-310-0	12	1	9604-0004				●	●
74	BOLT; RR BRK ASM SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X52	1-09000-310-0	12	1	0005-				●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	9604-0004	●	●	●	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	0005-0603	●		●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0604-	●		●	●
76	NUT; RR BRK ASM SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99110-514-0	10	1	9604-0004	●	●		●	●
76	NUT; RR BRK ASM SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99110-514-0	10	1	0005-0512				●
76	NUT; RR BRK ASM SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	0-91110-514-0	10	1	0601-				●
76	NUT; RR BRK ASM SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99110-514-0	16	1	9604-0004	●	●		●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	9604-0004			●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	0005-0405	●		●
76	NUT; RR BRK ASM SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99110-514-0	16	1	0005-0405	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	0406-0512	●		●
76	NUT; RR BRK ASM SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99110-514-0	16	1	0406-0512				●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0601-	●		●
76	NUT; RR BRK ASM SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	0-91110-514-0	16	1	0601-				●
77	COVER; RR AXLE CASE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-42141-059-0	01	1	9604-0004	●	●
77	COVER; RR AXLE CASE	9-42141-059-0	01	1	0005-1110	●
78	GASKET; COVER TO RR AXLE CASE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-42142-026-1	01	1	9604-0004	●	●
78	GASKET; COVER TO RR AXLE CASE	9-42142-026-2	01	1	0005-1110	●
79	BOLT; COVER TO CASE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X16	9-09800-874-0	08	1	9604-0004	●	●
79	BOLT; COVER TO CASE M10X16	9-09800-874-0	08	1	0005-1110	●
80	GASKET; BOLT,COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2 OD=19	9-09572-010-0	01	1	9604-9609	●	●
80	GASKET; BOLT,COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2 OD=19	9-09572-010-0	08	1	9610-0004	●	●
80	GASKET; BOLT,COVER ID=10.2 OD=19	9-09572-010-0	08	1	0005-1110	●
277	PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-83996-444-1	01	1	9604-0004	●	●
277	PLATE	9-83996-444-1	01	1	0005-1110	●

49 63 140 64 97 96 60 71 67 76 75 74 59 43 10 58 38 9 37 16 1 25 8 15 33 20 30 21 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DRUM; BRK,RR	1-42315-266-1	02	1	9604-9902	●	●
1	DRUM; BRK,RR	1-42315-362-1	02	1	9903-0004	●	●
1	DRUM; BRK,RR	1-42315-362-1	02	1	0005-	●
1	DRUM; BRK,RR H=195	1-42315-208-2	02	1	9604-0004			●	●	●
1	DRUM; BRK,RR H=195	1-42315-208-2	02	1	0005-			●	●
8	HUB; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-42311-021-1	02	1	9604-0004	●	●
8	HUB; RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-42311-092-0	02	1	9604-0004	●	●
8	HUB; RR AXLE	1-42311-092-0	02	1	9604-0004			●	●	●
8	HUB; RR AXLE	1-42311-092-0	02	1	0005-	●		●	●
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	9604-0004	●	●	●	●	●
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	0005-	●		●	●
9	PIN; WHEEL,RR AXLE M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	9604-0004	●	●	●	●	●
9	PIN; WHEEL,RR AXLE M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	0005-	●		●	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	16	1	9903-9904	●	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	16	1	9905-0004	●	●	●	●	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	16	1	0005-	●		●	●
10	NUT; WHEEL PIN,RR AXLE M22	9-09110-522-0	16	1	9604-9609	●	●	●	●	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-055-0	16	1	9610-9902	●	●	●	●	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-055-0	16	1	9903-9904			●	●	●
15	BEARING; HUB OUTER,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) JTEKT	1-09812-049-0	02	1	9604-0004	●	●
15	BEARING; HUB OUTER,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NSK	9-00093-159-0	02	1	9604-0004	●	●
15	BEARING; HUB OUTER,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NSK	1-09812-153-0	02	1	9604-0004	●	●
15	BEARING; HUB OUTER,RR AXLE NSK	1-09812-153-0	02	1	9604-0004			●	●	●
15	BEARING; HUB OUTER,RR AXLE NSK	1-09812-153-0	02	1	0005-	●		●	●
15	BEARING; HUB OUTER,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) JTEKT	1-09812-154-0	02	1	9604-0004	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-154-0	02	1	9604-0004			●	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-154-0	02	1	0005-	●		●	●
16	SEAL; OIL,RR HUB,OUTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TKK	1-09625-331-0	02	1	9604-0004	●	●
16	SEAL; OIL,RR HUB,OUTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NOK	9-09924-468-0	02	1	9604-0004	●	●
16	SEAL; OIL,RR HUB,OUTER NOK	9-09924-468-0	02	1	9604-0004			●	●	●
16	SEAL; OIL,RR HUB,OUTER NOK	9-09924-468-0	02	1	0005-	●		●	●
16	SEAL; OIL,RR HUB,OUTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TKK	9-09924-470-0	02	1	9604-0004	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	9-09924-470-0	02	1	9604-0004			●	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	9-09924-470-0	02	1	0005-0509	●		●	●
16	SEAL; OIL,RR HUB,OUTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) JTEKT	9-09924-499-0	02	1	9604-0004	●	●
16	SEAL; OIL,RR HUB,OUTER JTEKT	9-09924-499-0	02	1	9604-0004			●	●	●
16	SEAL; OIL,RR HUB,OUTER JTEKT	9-09924-499-0	02	1	0005-0509	●		●	●
20	NUT; BRG,RR HUB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M64	9-09843-721-2	02	1	9604-0004	●	●
20	NUT; BRG,RR HUB EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M74.6	9-09843-064-2	02	1	9604-0004	●	●
20	NUT; BRG,RR HUB M74.6	9-09843-064-2	02	1	9604-0004			●	●	●
20	NUT; BRG,RR HUB M74.6	9-09843-064-2	02	1	0005-	●		●	●
21	WASHER; LK,BRG NUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=64	9-09854-122-0	02	1	9604-0004	●	●
21	WASHER; LK,BRG NUT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=74.6	1-09533-008-0	02	1	9604-0004	●	●
21	WASHER; LK,BRG NUT ID=74.6	1-09533-008-0	02	1	9604-0004			●	●	●
21	WASHER; LK,BRG NUT ID=74.6	1-09533-008-0	02	1	0005-	●		●	●
24	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	06	1	9604-9701	●	●	●	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	9702-0004	●	●	●	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0005-0512	●		●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0601-	●		●	●
25	SHAFT; AXLE,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-42171-361-0	02	1	9604-9607	●	●
25	SHAFT; AXLE,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=921.5	1-42171-484-0	02	1	9608-0004	●	●
25	SHAFT; AXLE,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-42171-247-2	01	1	9604-9607	●	●
25	SHAFT; AXLE,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-42171-490-0	01	1	9608-0004	●	●
25	SHAFT; AXLE,RR	1-42171-490-0	01	1	0005-	●
25	SHAFT; AXLE,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-42171-246-2	01	1	9604-9607	●	●
25	SHAFT; AXLE,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-42171-489-0	01	1	9608-0004	●	●
25	SHAFT; AXLE,RR	1-42171-489-0	01	1	0005-	●
25	SHAFT; AXLE,RR L=986	1-42171-280-0	02	1	9604-9609			●	●	●
25	SHAFT; AXLE,RR L=986	1-42171-499-0	02	1	9610-0004			●	●	●
25	SHAFT; AXLE,RR L=986	1-42171-499-0	02	1	0005-			●	●
30	BOLT; HUB TO AXLE SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X45	9-09804-239-1	20	1	9604-0004	●	●
30	BOLT; HUB TO AXLE SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X58	1-09000-582-0	20	1	9604-0004	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	9604-0004			●	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	0005-	●		●	●
33	WASHER; AXLE SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	9-09150-812-0	20	1	9604-0004	●	●
33	WASHER; AXLE SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-814-0	20	1	9604-0004	●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	9604-0004			●	●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	0005-0603	●		●	●
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	0604-	●		●	●
37	BEARING; HUB INNER,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) JTEKT	1-09812-044-0	02	1	9604-0004	●	●
37	BEARING; HUB INNER,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NACHI	1-09812-053-0	02	1	9604-0004	●	●
37	BEARING; HUB INNER,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NSK	9-00093-161-0	02	1	9604-0004	●	●
37	BEARING; HUB INNER,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NSK	1-09812-150-0	02	1	9604-0004	●	●
37	BEARING; HUB INNER,RR AXLE NSK	1-09812-150-0	02	1	9604-0004			●	●	●
37	BEARING; HUB INNER,RR AXLE NSK	1-09812-150-0	02	1	0005-	●		●	●
37	BEARING; HUB INNER,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NACHI	1-09812-151-0	02	1	9604-0004	●	●
37	BEARING; HUB INNER,RR AXLE NACHI	1-09812-151-0	02	1	9604-0004			●	●	●
37	BEARING; HUB INNER,RR AXLE NACHI	1-09812-151-0	02	1	0005-	●		●	●
38	SEAL; OIL,RR HUB,INNER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TKK	1-09625-569-0	02	1	9604-0004	●	●
38	SEAL; OIL,RR HUB,INNER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TKK	9-09924-415-0	02	1	9604-0004	●	●
38	SEAL; OIL,RR HUB,INNER TKK	9-09924-415-0	02	1	9604-0004			●	●	●
38	SEAL; OIL,RR HUB,INNER TKK	9-09924-415-0	02	1	0005-	●		●	●
38	SEAL; OIL,RR HUB,INNER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NOK	9-09924-416-0	02	1	9604-0004	●	●
38	SEAL; OIL,RR HUB,INNER NOK	9-09924-416-0	02	1	9604-0004			●	●	●
38	SEAL; OIL,RR HUB,INNER NOK	9-09924-416-0	02	1	0005-0111	●		●	●
38	SEAL; OIL,RR HUB,INNER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) JTEKT	9-09924-417-0	02	1	9604-0004	●	●
38	SEAL; OIL,RR HUB,INNER JTEKT	9-09924-417-0	02	1	9604-0004			●	●	●
38	SEAL; OIL,RR HUB,INNER JTEKT	9-09924-417-0	02	1	0005-0111	●		●	●
43	RING; SNAP,HUB SEAL,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09950-201-0	02	1	9604-0004	●	●
43	RING; SNAP,HUB SEAL,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=150	9-09950-147-0	02	1	9604-0004	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=150	9-09950-147-0	02	1	9604-0004			●	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=150	9-09950-147-0	02	1	0005-	●		●	●
49	CASE; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LOAD SENSING PROPORTIONING VALVE(JR7) (B)	1-42150-961-0	01	1	9604-0004	●	●
49	CASE; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. LOAD SENSING PROPORTIONING VALVE(JR7) (B)	1-42160-150-0	01	1	9604-0004	●	●
49	CASE; RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-42160-307-0	01	1	9604-0004	●	●
49	CASE; RR AXLE (A)	1-42160-307-0	01	1	0005-1110	●
49	CASE; RR AXLE (A)	8-98201-704-0	01	1	1111-	●
49	CASE; RR AXLE (A)	1-42160-153-0	01	1	9604-0004			●
49	CASE; RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-42160-153-0	01	1	9604-0004				●	●
49	CASE; RR AXLE (A)	1-42160-153-0	01	1	0005-			●
49	CASE; RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-42160-153-0	01	1	0005-				●
49	CASE; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LOAD SENSING PROPORTIONING VALVE(JR7) (B)	1-42160-152-0	01	1	9604-0004				●	●
49	CASE; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LOAD SENSING PROPORTIONING VALVE(JR7) (B)	1-42160-152-0	01	1	0005-0210				●
49	CASE; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-42160-152-0	01	1	0211-				●
49	CASE; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. LOAD SENSING PROPORTIONING VALVE(JR7) (B)	1-42160-151-1	01	1	9604-0004				●	●
49	CASE; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. LOAD SENSING PROPORTIONING VALVE(JR7) (B)	1-42160-151-1	01	1	0005-0210				●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	9604-0004	●	●	●	●	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0005-	●		●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	9604-0004	●	●	●	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0005-	●		●	●
60	BREATHER; RR AXLE CASE (A)	9-36122-015-1	01	1	9604-0004	●	●
60	BREATHER; RR AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	9604-0004			●
60	BREATHER; RR AXLE CASE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	9604-0004				●	●
60	BREATHER; RR AXLE CASE (A)	9-36122-015-1	01	1	0005-	●
60	BREATHER; RR AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	0005-			●
60	BREATHER; RR AXLE CASE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	0005-				●
60	BREATHER; RR AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	1-09893-009-0	01	1	9604-0004			●	●	●
60	BREATHER; RR AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	1-09893-009-0	01	1	0005-			●	●
60	BREATHER; RR AXLE CASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	1-09893-007-0	01	1	9604-0004				●	●
60	BREATHER; RR AXLE CASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	1-09893-007-0	01	1	0005-				●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	9604-0004	●	●	●	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0005-	●		●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	9604-0004	●	●	●	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0005-	●		●	●
67	BOLT; FINAL DRIVE SETTING M12X55	9-91066-255-0	04	1	9604-0004	●	●
67	BOLT; FINAL DRIVE SETTING M12X55	9-91066-255-0	04	1	0005-	●
67	BOLT; FINAL DRIVE SETTING M12X35	9-92061-235-0	08	1	9604-0004	●	●
67	BOLT; FINAL DRIVE SETTING M12X35	9-92061-235-0	08	1	0005-0512	●
67	BOLT; FINAL DRIVE SETTING M12X35	0-20951-235-0	08	1	0601-	●
67	BOLT; FINAL DRIVE SETTING M14X65	9-91066-465-0	04	1	9604-0004			●	●	●
67	BOLT; FINAL DRIVE SETTING M14X65	9-91066-465-0	04	1	0005-0108			●	●
67	BOLT; FINAL DRIVE SETTING M14X65	9-92061-465-0	04	1	0109-			●	●
67	BOLT; FINAL DRIVE SETTING M14X40	9-92061-440-0	08	1	9604-0004			●	●	●
67	BOLT; FINAL DRIVE SETTING M14X40	9-92061-440-0	08	1	0005-0512			●	●
67	BOLT; FINAL DRIVE SETTING M14X40	0-20951-440-0	08	1	0601-			●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	9-09150-812-0	12	1	9604-0004	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	9-09150-812-0	12	1	0005-0603	●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	0-91510-812-0	12	1	0604-	●
71	WASHER; LK,FINAL DRIVE SETTING ID=14.2	9-09150-814-0	12	1	9604-0004			●	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=14.2	9-09150-814-0	12	1	0005-0603			●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=14.2	0-91510-814-0	12	1	0604-			●	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	0206-0208			●	●
74	BOLT; RR BRK ASM SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	9-92061-450-0	12	1	9604-0004	●	●
74	BOLT; RR BRK ASM SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X56	1-09060-004-0	04	1	9604-0004	●	●
74	BOLT; RR BRK ASM SETTING M14X56	1-09060-004-0	04	1	0005-	●
74	BOLT; RR BRK ASM SETTING M14X52	1-09000-310-0	04	1	9604-0004			●
74	BOLT; RR BRK ASM SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X52	1-09000-310-0	04	1	9604-0004				●	●
74	BOLT; RR BRK ASM SETTING M14X52	1-09000-310-0	04	1	0005-			●
74	BOLT; RR BRK ASM SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X52	1-09000-310-0	04	1	0005-				●
74	BOLT; RR BRK ASM SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X52	1-09000-310-0	12	1	9604-0004				●	●
74	BOLT; RR BRK ASM SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X52	1-09000-310-0	12	1	0005-				●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	9604-0004	●	●	●	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	0005-0603	●		●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0604-	●		●	●
76	NUT; RR BRK ASM SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99110-514-0	10	1	9604-0004	●	●		●	●
76	NUT; RR BRK ASM SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99110-514-0	10	1	0005-0512				●
76	NUT; RR BRK ASM SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	0-91110-514-0	10	1	0601-				●
76	NUT; RR BRK ASM SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99110-514-0	16	1	9604-0004	●	●		●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	9604-0004			●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	0005-0405	●		●
76	NUT; RR BRK ASM SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99110-514-0	16	1	0005-0405	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	0406-0512	●		●
76	NUT; RR BRK ASM SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99110-514-0	16	1	0406-0512				●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0601-	●		●
76	NUT; RR BRK ASM SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	0-91110-514-0	16	1	0601-				●
96	BRACKET; LSPV,AXLE CASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LOAD SENSING PROPORTIONING VALVE(JR7)	1-47475-073-0	01	1	9604-0004				●	●
96	BRACKET; LSPV,AXLE CASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LOAD SENSING PROPORTIONING VALVE(JR7)	1-47475-073-0	01	1	0005-				●
97	BOLT; BRKT,LSPV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LOAD SENSING PROPORTIONING VALVE(JR7) M8X16 FLANGE	0-28080-816-0	02	1	9604-0004				●	●
97	BOLT; BRKT,LSPV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LOAD SENSING PROPORTIONING VALVE(JR7) M8X16 FLANGE	0-28080-816-0	02	1	0005-0512				●
97	BOLT; BRKT,LSPV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LOAD SENSING PROPORTIONING VALVE(JR7) M8X16 FLANGE	0-28050-816-0	02	1	0601-				●
140	CONNECTOR; AXLE CASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09656-239-3	01	1	9604-0004	●	●
140	CONNECTOR; AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	1-09669-080-1	01	1	9604-0004			●	●	●
140	CONNECTOR; AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	1-09669-080-2	01	1	0005-			●	●

138 138 60 137 139 139 62 88 140 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
60	BREATHER; RR AXLE CASE (A)	9-36122-015-1	01	1	9604-0004	●	●
60	BREATHER; RR AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	9604-0004			●
60	BREATHER; RR AXLE CASE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	9604-0004				●	●
60	BREATHER; RR AXLE CASE (A)	9-36122-015-1	01	1	0005-	●
60	BREATHER; RR AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	0005-			●
60	BREATHER; RR AXLE CASE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	0005-				●
60	BREATHER; RR AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	1-09893-009-0	01	1	9604-0004			●	●	●
60	BREATHER; RR AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	1-09893-009-0	01	1	0005-			●	●
60	BREATHER; RR AXLE CASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	1-09893-007-0	01	1	9604-0004				●	●
60	BREATHER; RR AXLE CASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	1-09893-007-0	01	1	0005-				●
62	HOSE; RUBBER,BREATHER,RR AXLE AIR BREATHER W/FLEX HOSE<C4M>	0-02811-500-0	01	1	9604-0004			●	●	●
62	HOSE; RUBBER,BREATHER,RR AXLE AIR BREATHER W/FLEX HOSE<C4M>	0-02811-500-0	01	1	0005-0908			●	●
62	HOSE; RUBBER,BREATHER,RR AXLE AIR BREATHER W/FLEX HOSE<C4M>	0-02811-400-0	01	1	0909-			●	●
88	NUT; BRKT AIR BREATHER W/FLEX HOSE<C4M> M8	9-09110-408-0	04	1	9604-9606			●	●	●
88	NUT; BRKT AIR BREATHER W/FLEX HOSE<C4M> M8 FLANGE	0-91150-108-0	04	1	9607-0004			●	●	●
88	NUT; BRKT AIR BREATHER W/FLEX HOSE<C4M> M8 FLANGE	0-91150-108-0	04	1	0005-0602			●	●
88	NUT; BRKT AIR BREATHER W/FLEX HOSE<C4M> M8 FLANGE	0-91180-108-0	04	1	0603-			●	●
137	BRACKET; BREATHER,RR AXLE AIR BREATHER W/FLEX HOSE<C4M>	1-42129-122-0	01	1	9604-0004			●	●	●
137	BRACKET; BREATHER,RR AXLE AIR BREATHER W/FLEX HOSE<C4M>	1-42129-122-0	01	1	0005-			●	●
138	BOLT; BRKT AIR BREATHER W/FLEX HOSE<C4M> M8X20 FLANGE	0-28050-820-0	02	1	0909-			●	●
138	BOLT; BRKT AIR BREATHER W/FLEX HOSE<C4M> M8X25 FLANGE	0-28080-825-0	04	1	9604-9606			●	●	●
138	BOLT; BRKT AIR BREATHER W/FLEX HOSE<C4M> M8X25 FLANGE	0-28680-825-0	04	1	9607-0004			●	●	●
138	BOLT; BRKT AIR BREATHER W/FLEX HOSE<C4M> M8X25 FLANGE	0-28680-825-0	04	1	0005-0512			●	●
138	BOLT; BRKT AIR BREATHER W/FLEX HOSE<C4M> M8X25 FLANGE	0-28650-825-0	04	1	0601-0908			●	●
138	BOLT; BRKT AIR BREATHER W/FLEX HOSE<C4M> M8X25 FLANGE	0-28650-825-0	02	1	0909-			●	●
139	CLIP; WIRE AIR BREATHER W/FLEX HOSE<C4M> ID=18	1-09707-011-1	02	1	9604-0004			●	●	●
139	CLIP; WIRE AIR BREATHER W/FLEX HOSE<C4M> ID=18	1-09707-011-1	02	1	0005-			●	●
140	CONNECTOR; AXLE CASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09656-239-3	01	1	9604-0004	●	●
140	CONNECTOR; AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	1-09669-080-1	01	1	9604-0004			●	●	●
140	CONNECTOR; AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	1-09669-080-2	01	1	0005-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
