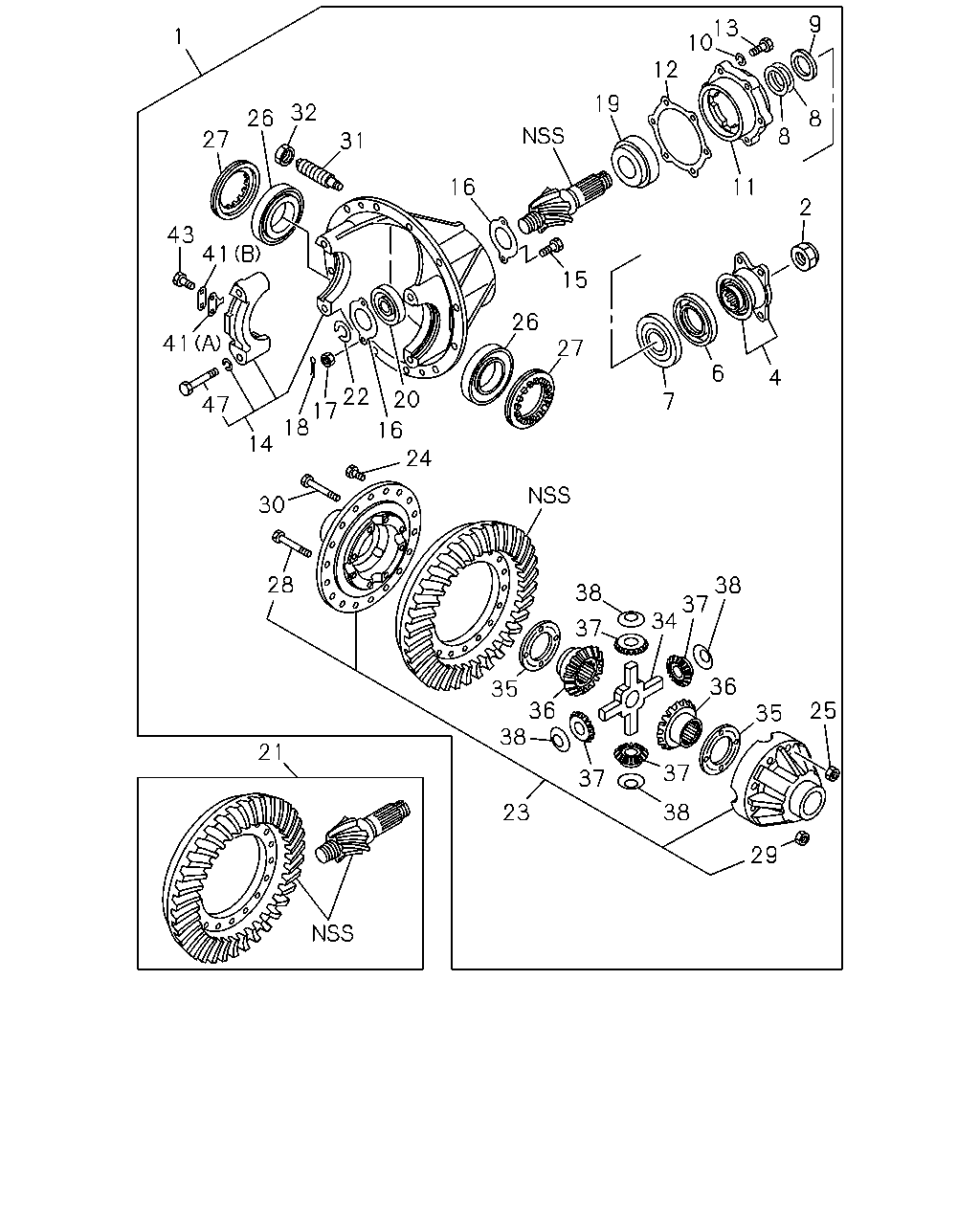

4-15 — FRONT FINAL DRIVE (#37209) — 373 parça

9 13 10 1 12 19 32 26 8 8 27 31 16 11 2 43 41 15 26 41 27 6 4 22 17 18 20 7 47 16 24 14 30 28 38 37 34 38 37 36 35 36 38 25 35 21 37 37 23 38 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,FRT FTS STD CAB MIDDLE CHASSIS(FT**MF) TRANSFER TF56<BFK> 39/7	1-41001-818-0	01	1	0406-	●
1	DRIVE ASM; FINAL,FRT FSS ALL(FS****) 39/7	1-41001-728-0	01	1	9604-0312	●
1	DRIVE ASM; FINAL,FRT 39/7	1-41001-728-0	01	1	9604-0312		●
1	DRIVE ASM; FINAL,FRT FSS ALL(FS****) 39/7	1-41003-165-0	01	1	0401-	●
1	DRIVE ASM; FINAL,FRT 39/7	1-41003-165-0	01	1	0401-		●
1	DRIVE ASM; FINAL,FRT FTS ALL(FT****) 39/7	1-41001-826-0	01	1	9604-0405	●
1	DRIVE ASM; FINAL,FRT FTS ALL(FT****) EXC. TRANSFER TF56<BFK> 39/7	1-41001-826-0	01	1	0406-	●
1	DRIVE ASM; FINAL,FRT 39/6	1-41001-772-0	01	1	9604-			●
1	DRIVE ASM; FINAL,FRT 41/8	1-41001-665-0	01	1	9604-0004		●
2	NUT; FINAL DRIVE PINION M30 FLANGE	1-09449-066-1	01	1	9604-0004	●	●	●
2	NUT; FINAL DRIVE PINION M30 FLANGE	1-09449-066-1	01	1	0005-	●		●
4	COUPLING; FINAL DRIVE PINION FTS STD CAB MIDDLE CHASSIS(FT**MF) TRANSFER TF56<BFK>	1-37245-078-7	01	1	0406-	●
4	COUPLING; FINAL DRIVE PINION	1-37245-067-4	01	1	9604-0004	●	●	●
4	COUPLING; FINAL DRIVE PINION	1-37245-067-4	01	1	0005-0405	●		●
4	COUPLING; FINAL DRIVE PINION EXC. TRANSFER TF56<BFK>	1-37245-067-4	01	1	0406-	●
4	COUPLING; FINAL DRIVE PINION	1-37245-067-4	01	1	0406-			●
6	SEAL; OIL,FINAL PINION TKK	1-09625-432-0	01	1	9604-9908	●	●	●
6	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	9909-0004	●	●	●
6	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	0005-	●		●
6	SEAL; OIL,FINAL PINION NOK	1-09625-484-0	01	1	9604-0004	●	●	●
6	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0005-	●		●
7	BEARING; PINION,OUTER JTEKT	5-09812-062-1	01	1	1001-	●		●
7	BEARING; PINION,OUTER NSK	1-09812-026-0	01	1	9604-0004	●	●	●
7	BEARING; PINION,OUTER NSK	1-09812-026-0	01	1	0005-1001	●		●
7	BEARING; PINION,OUTER NSK	5-09812-063-0	01	1	1002-	●		●
8	SHIM; PINION,FINAL DRIVE T=1.60	1-41229-179-0	AR	1	9604-0004	●	●	●
8	SHIM; PINION,FINAL DRIVE T=1.60	1-41229-179-0	AR	1	0005-	●		●
8	SHIM; PINION,FINAL DRIVE T=1.61	1-41229-180-0	AR	1	9604-0004	●	●	●
8	SHIM; PINION,FINAL DRIVE T=1.61	1-41229-180-0	AR	1	0005-	●		●
8	SHIM; PINION,FINAL DRIVE T=1.62	1-41229-181-0	AR	1	9604-0004	●	●	●
8	SHIM; PINION,FINAL DRIVE T=1.62	1-41229-181-0	AR	1	0005-	●		●
8	SHIM; PINION,FINAL DRIVE T=1.63	1-41229-182-0	AR	1	9604-0004	●	●	●
8	SHIM; PINION,FINAL DRIVE T=1.63	1-41229-182-0	AR	1	0005-	●		●
8	SHIM; PINION,FINAL DRIVE T=1.64	1-41229-183-0	AR	1	9604-0004	●	●	●
8	SHIM; PINION,FINAL DRIVE T=1.64	1-41229-183-0	AR	1	0005-	●		●
8	SHIM; PINION,FINAL DRIVE T=1.65	1-41229-184-0	AR	1	9604-0004	●	●	●
8	SHIM; PINION,FINAL DRIVE T=1.65	1-41229-184-0	AR	1	0005-	●		●
8	SHIM; PINION,FINAL DRIVE T=1.66	1-41229-185-0	AR	1	9604-0004	●	●	●
8	SHIM; PINION,FINAL DRIVE T=1.66	1-41229-185-0	AR	1	0005-	●		●
8	SHIM; PINION,FINAL DRIVE T=1.67	1-41229-186-0	AR	1	9604-0004	●	●	●
8	SHIM; PINION,FINAL DRIVE T=1.67	1-41229-186-0	AR	1	0005-	●		●
8	SHIM; PINION,FINAL DRIVE T=1.68	1-41229-187-0	AR	1	9604-0004	●	●	●
8	SHIM; PINION,FINAL DRIVE T=1.68	1-41229-187-0	AR	1	0005-	●		●
8	SHIM; PINION,FINAL DRIVE T=1.69	1-41229-188-0	AR	1	9604-0004	●	●	●
8	SHIM; PINION,FINAL DRIVE T=1.69	1-41229-188-0	AR	1	0005-	●		●
8	SHIM; PINION,FINAL DRIVE T=1.70	1-41229-189-0	AR	1	9604-0004	●	●	●
8	SHIM; PINION,FINAL DRIVE T=1.70	1-41229-189-0	AR	1	0005-	●		●
9	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	9604-0004	●	●	●
9	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	0005-	●		●
9	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	9604-0004	●	●	●
9	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	0005-	●		●
9	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	9604-0004	●	●	●
9	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	0005-	●		●
9	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	9604-0004	●	●	●
9	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	0005-	●		●
9	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	9604-0004	●	●	●
9	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	0005-	●		●
9	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	9604-0004	●	●	●
9	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	0005-	●		●
9	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	9604-0004	●	●	●
9	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	0005-	●		●
9	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	9604-0004	●	●	●
9	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	0005-	●		●
9	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	9604-0004	●	●	●
9	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	0005-	●		●
10	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	9604-0004	●	●	●
10	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	0005-0603	●		●
10	WASHER; LK,FINAL PINION ID=12.2	0-91510-512-0	06	1	0604-	●		●
11	CAGE; FINAL PINION	1-41151-021-0	01	1	9604-9610	●	●	●
11	CAGE; FINAL PINION	1-41151-063-0	01	1	9611-0004	●	●	●
11	CAGE; FINAL PINION	1-41151-063-0	01	1	0005-	●		●
12	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	9604-0004	●	●	●
12	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	0005-	●		●
12	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	9604-0004	●	●	●
12	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	0005-	●		●
12	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	9604-0004	●	●	●
12	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	0005-	●		●
12	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	9604-0004	●	●	●
12	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	0005-	●		●
13	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	9604-0004	●	●	●
13	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	0005-	●		●
14	CARRIER ASM; FINAL DRIVE,FRT AXLE FTS ALL(FT****)	1-41110-042-0	01	1	9604-	●
14	CARRIER ASM; FINAL DRIVE,FRT AXLE	1-41110-042-0	01	1	9604-			●
15	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	9604-0004	●	●	●
15	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	0005-	●		●
16	RETAINER; PILOT BRG,PINION	9-41227-004-0	02	1	9604-0004	●	●	●
16	RETAINER; PILOT BRG,PINION	9-41227-004-0	02	1	0005-	●		●
17	NUT; RET M8	9-09117-408-0	02	1	9604-9707	●	●	●
17	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9708-0004	●	●	●
17	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0005-0512	●		●
17	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-	●		●
18	PIN; SPLIT,RET	9-08112-012-0	02	1	9604-0004	●	●	●
18	PIN; SPLIT,RET	9-08112-012-0	02	1	0005-0805	●		●
18	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-	●		●
19	BEARING; PINION,INNER JTEKT	1-09812-042-1	01	1	0612-	●		●
19	BEARING; PINION,INNER NSK	1-09812-041-2	01	1	9604-0004	●	●	●
19	BEARING; PINION,INNER NSK	1-09812-041-2	01	1	0005-	●		●
20	BEARING; FINAL DRIVE PINION	9-00094-081-0	01	1	9604-0004	●	●	●
20	BEARING; FINAL DRIVE PINION	9-00094-081-0	01	1	0005-	●		●
21	GEAR SET; FINAL DRIVE,FRT 39/7	1-41210-259-2	01	1	9604-	●
21	GEAR SET; FINAL DRIVE,FRT 39/6	1-41210-357-1	01	1	9604-			●
21	GEAR SET; FINAL DRIVE,FRT 41/8	1-41210-415-1	01	1	9604-0004		●
22	RING; SNAP,FINAL DRIVE PINION	9-09952-005-0	01	1	9604-0004	●	●	●
22	RING; SNAP,FINAL DRIVE PINION	9-09952-005-0	01	1	0005-	●		●
23	CAGE ASM; DIFF,FINAL DRIVE FSS ALL(FS****)	1-41510-121-0	01	1	9604-0004	●
23	CAGE ASM; DIFF,FINAL DRIVE	1-41510-121-0	01	1	9604-0004		●
23	CAGE ASM; DIFF,FINAL DRIVE FSS STD CAB(FS*M)	1-41510-121-0	01	1	0005-	●
23	CAGE ASM; DIFF,FINAL DRIVE FTS ALL(FT****)	1-41510-123-0	01	1	9604-	●
23	CAGE ASM; DIFF,FINAL DRIVE	1-41510-123-0	01	1	9604-			●
24	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	9604-0004	●	●	●
24	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	0005-0201	●		●
24	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0202-0204	●		●
24	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	0205-	●		●
25	NUT; DIFF CAGE SETTING M14	1-09400-077-1	04	1	9604-0004	●	●	●
25	NUT; DIFF CAGE SETTING M14	1-09400-077-1	04	1	0005-	●		●
26	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-011-0	02	1	9604-0004	●	●	●
26	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-011-0	02	1	0005-	●		●
26	BEARING; DIFF CAGE NACHI ID=70 OD=125 T=26.3	1-09812-024-0	02	1	9604-0004	●	●	●
26	BEARING; DIFF CAGE NACHI ID=70 OD=125 T=26.3	1-09812-024-0	02	1	0005-	●		●
26	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-071-0	02	1	9604-0004	●	●	●
26	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-071-0	02	1	0005-0704	●		●
26	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	02	1	0705-	●		●
27	NUT; ADJ,DIFF CAGE FSS ALL(FS****) M120	9-41121-007-0	02	1	9604-0004	●
27	NUT; ADJ,DIFF CAGE M120	9-41121-007-0	02	1	9604-0004		●
27	NUT; ADJ,DIFF CAGE FSS STD CAB(FS*M) M120	9-41121-007-0	02	1	0005-	●
27	NUT; ADJ,DIFF CAGE FTS ALL(FT****) M128 H=22	1-41121-013-0	02	1	9604-	●
27	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	02	1	9604-			●
28	BOLT; DIFF CAGE SETTING M14X107	1-09044-024-0	04	1	9604-0004	●	●	●
28	BOLT; DIFF CAGE SETTING M14X107	1-09044-024-0	04	1	0005-	●		●
29	NUT; DIFF CAGE SETTING M14	1-09400-077-1	04	1	9604-0004	●	●	●
29	NUT; DIFF CAGE SETTING M14	1-09400-077-1	04	1	0005-	●		●
30	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9604-0004	●	●	●
30	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	0005-	●		●
31	BOLT; ADJ,DRIVEN GEAR M24X104	9-41127-005-0	01	1	9604-0004	●	●	●
31	BOLT; ADJ,DRIVEN GEAR M24X104	9-41127-005-0	01	1	0005-	●		●
32	NUT; ADJ,BOLT M24	9-09840-264-0	01	1	9604-0004	●	●	●
32	NUT; ADJ,BOLT M24	9-09840-264-0	01	1	0005-0312	●		●
32	NUT; ADJ,BOLT FTS ALL(FT****) M24	9-09840-264-0	01	1	0401-0408	●
32	NUT; ADJ,BOLT M24	9-09840-264-0	01	1	0401-0408			●
32	NUT; ADJ,BOLT M24	9-09840-264-0	01	1	0409-	●		●
34	PIN; CROSS,DIFF PINION	1-41521-050-0	01	1	9604-0004	●	●	●
34	PIN; CROSS,DIFF PINION	1-41521-050-2	01	1	0005-	●		●
35	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-061-0	AR	1	9604-0004	●	●	●
35	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-061-0	AR	1	0005-	●		●
35	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-062-0	AR	1	9604-0004	●	●	●
35	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-062-0	AR	1	0005-	●		●
35	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-063-0	AR	1	9604-0004	●	●	●
35	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-063-0	AR	1	0005-	●		●
35	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-064-0	AR	1	9604-0004	●	●	●
35	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-064-0	AR	1	0005-	●		●
35	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-080-0	AR	1	9604-0004	●	●	●
35	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-080-0	AR	1	0005-	●		●
35	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-081-0	AR	1	9604-0004	●	●	●
35	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-081-0	AR	1	0005-	●		●
35	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-082-0	AR	1	9604-0004	●	●	●
35	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-082-0	AR	1	0005-	●		●
36	GEAR; SIDE,DIFF Z=16	1-41561-105-0	02	1	9604-9704	●	●	●
36	GEAR; SIDE,DIFF Z=16	1-41561-115-0	02	1	9705-0004	●	●	●
36	GEAR; SIDE,DIFF Z=16	1-41561-115-0	02	1	0005-0407	●		●
36	GEAR; SIDE,DIFF Z=16	1-41561-144-0	02	1	0408-0905	●		●
36	GEAR; SIDE,DIFF Z=16	1-41561-158-0	02	1	0906-	●		●
37	GEAR; PINION DIFF Z=10	1-41551-032-0	04	1	9604-0004	●	●	●
37	GEAR; PINION DIFF Z=10	1-41551-032-0	04	1	0005-0407	●		●
37	GEAR; PINION DIFF Z=10	1-41551-042-0	04	1	0408-0905	●		●
37	GEAR; PINION DIFF Z=10	1-41551-049-0	04	1	0906-	●		●
38	WASHER; THRUST,PINION GEAR ID=29 OD=60	1-41562-119-0	04	1	9604-0004	●	●	●
38	WASHER; THRUST,PINION GEAR ID=29 OD=60	1-41562-119-0	04	1	0005-	●		●
41	PLATE; LK,ADJ NUT FSS ALL(FS****) (C)	9-41124-004-0	02	1	9604-0004	●
41	PLATE; LK,ADJ NUT (C)	9-41124-004-0	02	1	9604-0004		●
41	PLATE; LK,ADJ NUT FSS STD CAB(FS*M) (C)	9-41124-004-0	02	1	0005-	●
41	PLATE; LK,ADJ NUT FTS ALL(FT****) (B) T=1.0	9-41124-005-0	02	1	9604-	●
41	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	9604-			●
41	PLATE; LK,ADJ NUT FTS ALL(FT****) (A) T=2.3	9-41124-015-0	02	1	9604-	●
41	PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	02	1	9604-			●
43	BOLT; LK PLATE FSS ALL(FS****) M8X20	0-20800-820-0	08	1	9604-0004	●
43	BOLT; LK PLATE M8X20	0-20800-820-0	08	1	9604-0004		●
43	BOLT; LK PLATE FSS STD CAB(FS*M) M8X20	0-20800-820-0	08	1	0005-0512	●
43	BOLT; LK PLATE FSS STD CAB(FS*M) M8X20	0-20850-820-0	08	1	0601-	●
43	BOLT; LK PLATE FTS ALL(FT****) M8X16	0-20800-816-0	04	1	9604-0512	●
43	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9604-0512			●
43	BOLT; LK PLATE FTS ALL(FT****) M8X16	0-20850-816-0	04	1	0601-	●
43	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-			●
47	BOLT; BRG CAP FTS ALL(FT****) M16X100	9-91661-600-0	04	1	9604-0104	●
47	BOLT; BRG CAP M16X100	9-91661-600-0	04	1	9604-0104			●
47	BOLT; BRG CAP FTS ALL(FT****) M16X100 FLANGE	1-09070-047-0	04	1	0105-	●
47	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	0105-			●

1 12 19 15 16 20 16 17 18 22 32 31 2 27 30 8 9 4 26 24 6 7 38 13 10 11 28 37 37 38 35 36 36 25 38 34 37 37 38 35 23 29 21 26 27 40 41 42 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,FRT FTS STD CAB MIDDLE CHASSIS(FT**MF) TRANSFER TF56<BFK> 39/7	1-41001-818-0	01	1	0406-	●
1	DRIVE ASM; FINAL,FRT FSS ALL(FS****) 39/7	1-41001-728-0	01	1	9604-0312	●
1	DRIVE ASM; FINAL,FRT 39/7	1-41001-728-0	01	1	9604-0312		●
1	DRIVE ASM; FINAL,FRT FSS ALL(FS****) 39/7	1-41003-165-0	01	1	0401-	●
1	DRIVE ASM; FINAL,FRT 39/7	1-41003-165-0	01	1	0401-		●
1	DRIVE ASM; FINAL,FRT FTS ALL(FT****) 39/7	1-41001-826-0	01	1	9604-0405	●
1	DRIVE ASM; FINAL,FRT FTS ALL(FT****) EXC. TRANSFER TF56<BFK> 39/7	1-41001-826-0	01	1	0406-	●
1	DRIVE ASM; FINAL,FRT 39/6	1-41001-772-0	01	1	9604-			●
1	DRIVE ASM; FINAL,FRT 41/8	1-41001-665-0	01	1	9604-0004		●
2	NUT; FINAL DRIVE PINION M30 FLANGE	1-09449-066-1	01	1	9604-0004	●	●	●
2	NUT; FINAL DRIVE PINION M30 FLANGE	1-09449-066-1	01	1	0005-	●		●
4	COUPLING; FINAL DRIVE PINION FTS STD CAB MIDDLE CHASSIS(FT**MF) TRANSFER TF56<BFK>	1-37245-078-7	01	1	0406-	●
4	COUPLING; FINAL DRIVE PINION	1-37245-067-4	01	1	9604-0004	●	●	●
4	COUPLING; FINAL DRIVE PINION	1-37245-067-4	01	1	0005-0405	●		●
4	COUPLING; FINAL DRIVE PINION EXC. TRANSFER TF56<BFK>	1-37245-067-4	01	1	0406-	●
4	COUPLING; FINAL DRIVE PINION	1-37245-067-4	01	1	0406-			●
6	SEAL; OIL,FINAL PINION TKK	1-09625-432-0	01	1	9604-9908	●	●	●
6	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	9909-0004	●	●	●
6	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	0005-	●		●
6	SEAL; OIL,FINAL PINION NOK	1-09625-484-0	01	1	9604-0004	●	●	●
6	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0005-	●		●
7	BEARING; PINION,OUTER JTEKT	5-09812-062-1	01	1	1001-	●		●
7	BEARING; PINION,OUTER NSK	1-09812-026-0	01	1	9604-0004	●	●	●
7	BEARING; PINION,OUTER NSK	1-09812-026-0	01	1	0005-1001	●		●
7	BEARING; PINION,OUTER NSK	5-09812-063-0	01	1	1002-	●		●
8	SHIM; PINION,FINAL DRIVE T=1.60	1-41229-179-0	AR	1	9604-0004	●	●	●
8	SHIM; PINION,FINAL DRIVE T=1.60	1-41229-179-0	AR	1	0005-	●		●
8	SHIM; PINION,FINAL DRIVE T=1.61	1-41229-180-0	AR	1	9604-0004	●	●	●
8	SHIM; PINION,FINAL DRIVE T=1.61	1-41229-180-0	AR	1	0005-	●		●
8	SHIM; PINION,FINAL DRIVE T=1.62	1-41229-181-0	AR	1	9604-0004	●	●	●
8	SHIM; PINION,FINAL DRIVE T=1.62	1-41229-181-0	AR	1	0005-	●		●
8	SHIM; PINION,FINAL DRIVE T=1.63	1-41229-182-0	AR	1	9604-0004	●	●	●
8	SHIM; PINION,FINAL DRIVE T=1.63	1-41229-182-0	AR	1	0005-	●		●
8	SHIM; PINION,FINAL DRIVE T=1.64	1-41229-183-0	AR	1	9604-0004	●	●	●
8	SHIM; PINION,FINAL DRIVE T=1.64	1-41229-183-0	AR	1	0005-	●		●
8	SHIM; PINION,FINAL DRIVE T=1.65	1-41229-184-0	AR	1	9604-0004	●	●	●
8	SHIM; PINION,FINAL DRIVE T=1.65	1-41229-184-0	AR	1	0005-	●		●
8	SHIM; PINION,FINAL DRIVE T=1.66	1-41229-185-0	AR	1	9604-0004	●	●	●
8	SHIM; PINION,FINAL DRIVE T=1.66	1-41229-185-0	AR	1	0005-	●		●
8	SHIM; PINION,FINAL DRIVE T=1.67	1-41229-186-0	AR	1	9604-0004	●	●	●
8	SHIM; PINION,FINAL DRIVE T=1.67	1-41229-186-0	AR	1	0005-	●		●
8	SHIM; PINION,FINAL DRIVE T=1.68	1-41229-187-0	AR	1	9604-0004	●	●	●
8	SHIM; PINION,FINAL DRIVE T=1.68	1-41229-187-0	AR	1	0005-	●		●
8	SHIM; PINION,FINAL DRIVE T=1.69	1-41229-188-0	AR	1	9604-0004	●	●	●
8	SHIM; PINION,FINAL DRIVE T=1.69	1-41229-188-0	AR	1	0005-	●		●
8	SHIM; PINION,FINAL DRIVE T=1.70	1-41229-189-0	AR	1	9604-0004	●	●	●
8	SHIM; PINION,FINAL DRIVE T=1.70	1-41229-189-0	AR	1	0005-	●		●
9	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	9604-0004	●	●	●
9	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	0005-	●		●
9	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	9604-0004	●	●	●
9	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	0005-	●		●
9	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	9604-0004	●	●	●
9	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	0005-	●		●
9	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	9604-0004	●	●	●
9	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	0005-	●		●
9	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	9604-0004	●	●	●
9	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	0005-	●		●
9	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	9604-0004	●	●	●
9	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	0005-	●		●
9	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	9604-0004	●	●	●
9	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	0005-	●		●
9	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	9604-0004	●	●	●
9	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	0005-	●		●
9	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	9604-0004	●	●	●
9	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	0005-	●		●
10	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	9604-0004	●	●	●
10	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	0005-0603	●		●
10	WASHER; LK,FINAL PINION ID=12.2	0-91510-512-0	06	1	0604-	●		●
11	CAGE; FINAL PINION	1-41151-021-0	01	1	9604-9610	●	●	●
11	CAGE; FINAL PINION	1-41151-063-0	01	1	9611-0004	●	●	●
11	CAGE; FINAL PINION	1-41151-063-0	01	1	0005-	●		●
12	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	9604-0004	●	●	●
12	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	0005-	●		●
12	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	9604-0004	●	●	●
12	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	0005-	●		●
12	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	9604-0004	●	●	●
12	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	0005-	●		●
12	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	9604-0004	●	●	●
12	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	0005-	●		●
13	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	9604-0004	●	●	●
13	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	0005-	●		●
15	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	9604-0004	●	●	●
15	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	0005-	●		●
16	RETAINER; PILOT BRG,PINION	9-41227-004-0	02	1	9604-0004	●	●	●
16	RETAINER; PILOT BRG,PINION	9-41227-004-0	02	1	0005-	●		●
17	NUT; RET M8	9-09117-408-0	02	1	9604-9707	●	●	●
17	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9708-0004	●	●	●
17	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0005-0512	●		●
17	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-	●		●
18	PIN; SPLIT,RET	9-08112-012-0	02	1	9604-0004	●	●	●
18	PIN; SPLIT,RET	9-08112-012-0	02	1	0005-0805	●		●
18	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-	●		●
19	BEARING; PINION,INNER JTEKT	1-09812-042-1	01	1	0612-	●		●
19	BEARING; PINION,INNER NSK	1-09812-041-2	01	1	9604-0004	●	●	●
19	BEARING; PINION,INNER NSK	1-09812-041-2	01	1	0005-	●		●
20	BEARING; FINAL DRIVE PINION	9-00094-081-0	01	1	9604-0004	●	●	●
20	BEARING; FINAL DRIVE PINION	9-00094-081-0	01	1	0005-	●		●
21	GEAR SET; FINAL DRIVE,FRT 39/7	1-41210-259-2	01	1	9604-	●
21	GEAR SET; FINAL DRIVE,FRT 39/6	1-41210-357-1	01	1	9604-			●
21	GEAR SET; FINAL DRIVE,FRT 41/8	1-41210-415-1	01	1	9604-0004		●
22	RING; SNAP,FINAL DRIVE PINION	9-09952-005-0	01	1	9604-0004	●	●	●
22	RING; SNAP,FINAL DRIVE PINION	9-09952-005-0	01	1	0005-	●		●
23	CAGE ASM; DIFF,FINAL DRIVE FSS ALL(FS****)	1-41510-121-0	01	1	9604-0004	●
23	CAGE ASM; DIFF,FINAL DRIVE	1-41510-121-0	01	1	9604-0004		●
23	CAGE ASM; DIFF,FINAL DRIVE FSS STD CAB(FS*M)	1-41510-121-0	01	1	0005-	●
23	CAGE ASM; DIFF,FINAL DRIVE FTS ALL(FT****)	1-41510-123-0	01	1	9604-	●
23	CAGE ASM; DIFF,FINAL DRIVE	1-41510-123-0	01	1	9604-			●
24	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	9604-0004	●	●	●
24	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	0005-0201	●		●
24	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0202-0204	●		●
24	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	0205-	●		●
25	NUT; DIFF CAGE SETTING M14	1-09400-077-1	04	1	9604-0004	●	●	●
25	NUT; DIFF CAGE SETTING M14	1-09400-077-1	04	1	0005-	●		●
26	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-011-0	02	1	9604-0004	●	●	●
26	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-011-0	02	1	0005-	●		●
26	BEARING; DIFF CAGE NACHI ID=70 OD=125 T=26.3	1-09812-024-0	02	1	9604-0004	●	●	●
26	BEARING; DIFF CAGE NACHI ID=70 OD=125 T=26.3	1-09812-024-0	02	1	0005-	●		●
26	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-071-0	02	1	9604-0004	●	●	●
26	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-071-0	02	1	0005-0704	●		●
26	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	02	1	0705-	●		●
27	NUT; ADJ,DIFF CAGE FSS ALL(FS****) M120	9-41121-007-0	02	1	9604-0004	●
27	NUT; ADJ,DIFF CAGE M120	9-41121-007-0	02	1	9604-0004		●
27	NUT; ADJ,DIFF CAGE FSS STD CAB(FS*M) M120	9-41121-007-0	02	1	0005-	●
27	NUT; ADJ,DIFF CAGE FTS ALL(FT****) M128 H=22	1-41121-013-0	02	1	9604-	●
27	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	02	1	9604-			●
28	BOLT; DIFF CAGE SETTING M14X107	1-09044-024-0	04	1	9604-0004	●	●	●
28	BOLT; DIFF CAGE SETTING M14X107	1-09044-024-0	04	1	0005-	●		●
29	NUT; DIFF CAGE SETTING M14	1-09400-077-1	04	1	9604-0004	●	●	●
29	NUT; DIFF CAGE SETTING M14	1-09400-077-1	04	1	0005-	●		●
30	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9604-0004	●	●	●
30	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	0005-	●		●
31	BOLT; ADJ,DRIVEN GEAR M24X104	9-41127-005-0	01	1	9604-0004	●	●	●
31	BOLT; ADJ,DRIVEN GEAR M24X104	9-41127-005-0	01	1	0005-	●		●
32	NUT; ADJ,BOLT M24	9-09840-264-0	01	1	9604-0004	●	●	●
32	NUT; ADJ,BOLT M24	9-09840-264-0	01	1	0005-0312	●		●
32	NUT; ADJ,BOLT FTS ALL(FT****) M24	9-09840-264-0	01	1	0401-0408	●
32	NUT; ADJ,BOLT M24	9-09840-264-0	01	1	0401-0408			●
32	NUT; ADJ,BOLT M24	9-09840-264-0	01	1	0409-	●		●
34	PIN; CROSS,DIFF PINION	1-41521-050-0	01	1	9604-0004	●	●	●
34	PIN; CROSS,DIFF PINION	1-41521-050-2	01	1	0005-	●		●
35	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-061-0	AR	1	9604-0004	●	●	●
35	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-061-0	AR	1	0005-	●		●
35	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-062-0	AR	1	9604-0004	●	●	●
35	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-062-0	AR	1	0005-	●		●
35	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-063-0	AR	1	9604-0004	●	●	●
35	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-063-0	AR	1	0005-	●		●
35	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-064-0	AR	1	9604-0004	●	●	●
35	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-064-0	AR	1	0005-	●		●
35	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-080-0	AR	1	9604-0004	●	●	●
35	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-080-0	AR	1	0005-	●		●
35	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-081-0	AR	1	9604-0004	●	●	●
35	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-081-0	AR	1	0005-	●		●
35	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-082-0	AR	1	9604-0004	●	●	●
35	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-082-0	AR	1	0005-	●		●
36	GEAR; SIDE,DIFF Z=16	1-41561-105-0	02	1	9604-9704	●	●	●
36	GEAR; SIDE,DIFF Z=16	1-41561-115-0	02	1	9705-0004	●	●	●
36	GEAR; SIDE,DIFF Z=16	1-41561-115-0	02	1	0005-0407	●		●
36	GEAR; SIDE,DIFF Z=16	1-41561-144-0	02	1	0408-0905	●		●
36	GEAR; SIDE,DIFF Z=16	1-41561-158-0	02	1	0906-	●		●
37	GEAR; PINION DIFF Z=10	1-41551-032-0	04	1	9604-0004	●	●	●
37	GEAR; PINION DIFF Z=10	1-41551-032-0	04	1	0005-0407	●		●
37	GEAR; PINION DIFF Z=10	1-41551-042-0	04	1	0408-0905	●		●
37	GEAR; PINION DIFF Z=10	1-41551-049-0	04	1	0906-	●		●
38	WASHER; THRUST,PINION GEAR ID=29 OD=60	1-41562-119-0	04	1	9604-0004	●	●	●
38	WASHER; THRUST,PINION GEAR ID=29 OD=60	1-41562-119-0	04	1	0005-	●		●
40	GASKET; LK PLATE,ADJ NUT FSS ALL(FS****)	9-43213-006-0	02	1	9604-0004	●
40	GASKET; LK PLATE,ADJ NUT	9-43213-006-0	02	1	9604-0004		●
40	GASKET; LK PLATE,ADJ NUT FSS STD CAB(FS*M)	9-43213-006-1	02	1	0005-	●
41	PLATE; LK,ADJ NUT FSS ALL(FS****) (C)	9-41124-004-0	02	1	9604-0004	●
41	PLATE; LK,ADJ NUT (C)	9-41124-004-0	02	1	9604-0004		●
41	PLATE; LK,ADJ NUT FSS STD CAB(FS*M) (C)	9-41124-004-0	02	1	0005-	●
41	PLATE; LK,ADJ NUT FTS ALL(FT****) (B) T=1.0	9-41124-005-0	02	1	9604-	●
41	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	9604-			●
41	PLATE; LK,ADJ NUT FTS ALL(FT****) (A) T=2.3	9-41124-015-0	02	1	9604-	●
41	PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	02	1	9604-			●
42	WASHER; LK,LOCK PLATE FSS ALL(FS****) ID=8.2	9-09150-508-0	08	1	9604-0004	●
42	WASHER; LK,LOCK PLATE ID=8.2	9-09150-508-0	08	1	9604-0004		●
42	WASHER; LK,LOCK PLATE FSS STD CAB(FS*M) ID=8.2	9-09150-508-0	08	1	0005-0603	●
42	WASHER; LK,LOCK PLATE FSS STD CAB(FS*M) ID=8.2	0-91510-508-0	08	1	0604-	●
43	BOLT; LK PLATE FSS ALL(FS****) M8X20	0-20800-820-0	08	1	9604-0004	●
43	BOLT; LK PLATE M8X20	0-20800-820-0	08	1	9604-0004		●
43	BOLT; LK PLATE FSS STD CAB(FS*M) M8X20	0-20800-820-0	08	1	0005-0512	●
43	BOLT; LK PLATE FSS STD CAB(FS*M) M8X20	0-20850-820-0	08	1	0601-	●
43	BOLT; LK PLATE FTS ALL(FT****) M8X16	0-20800-816-0	04	1	9604-0512	●
43	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9604-0512			●
43	BOLT; LK PLATE FTS ALL(FT****) M8X16	0-20850-816-0	04	1	0601-	●
43	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
