Sayfa 4-12 - Isuzu EPC

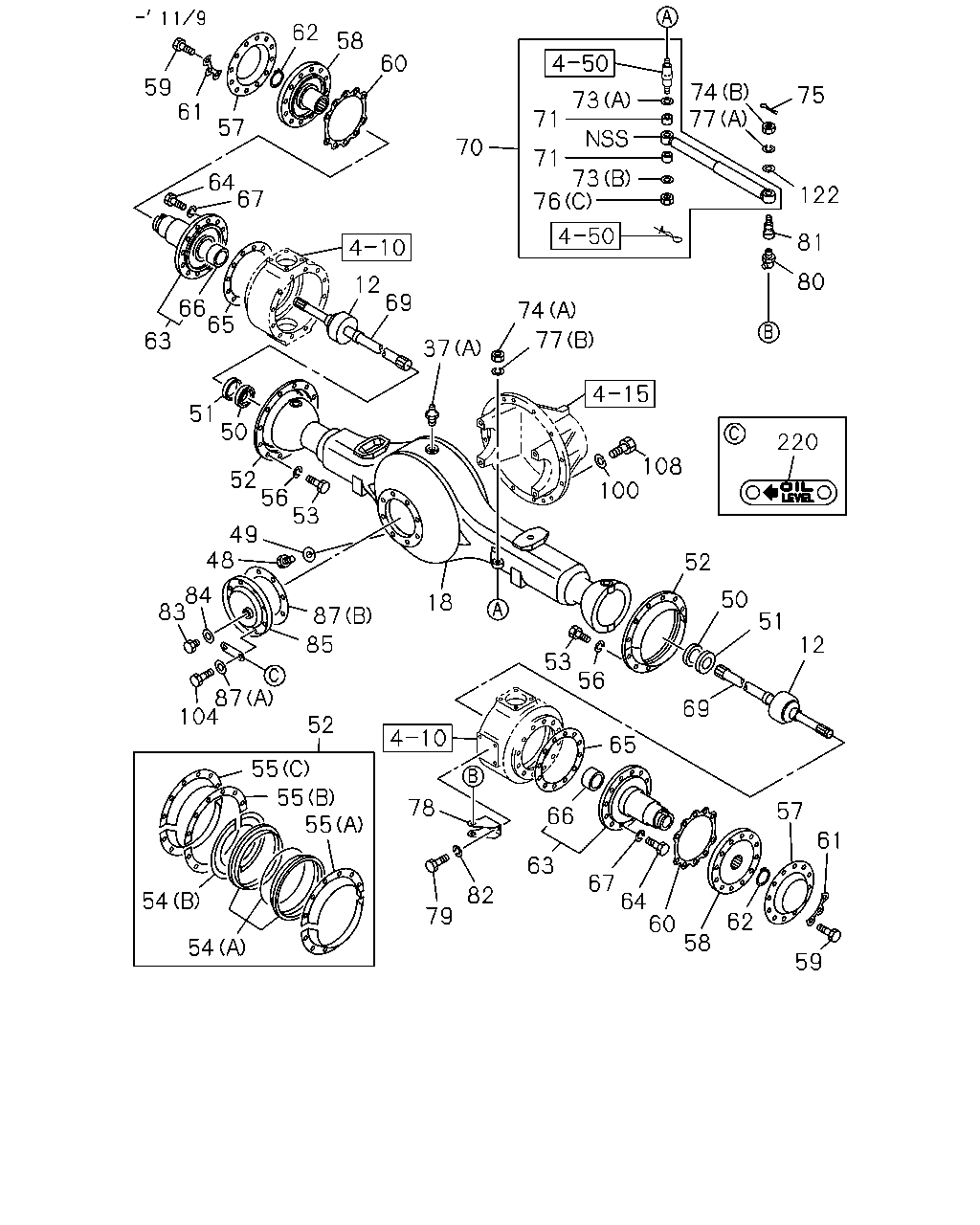

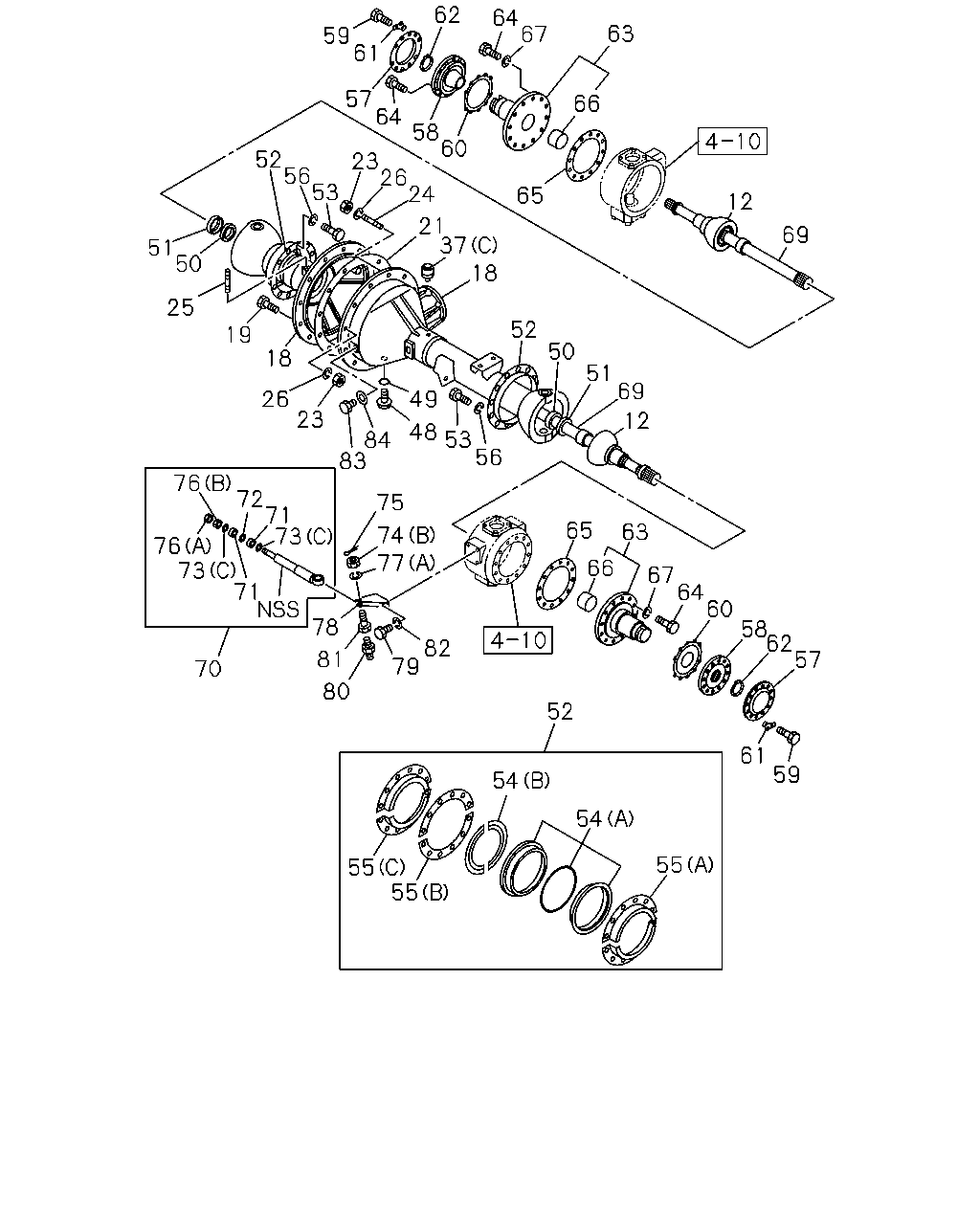

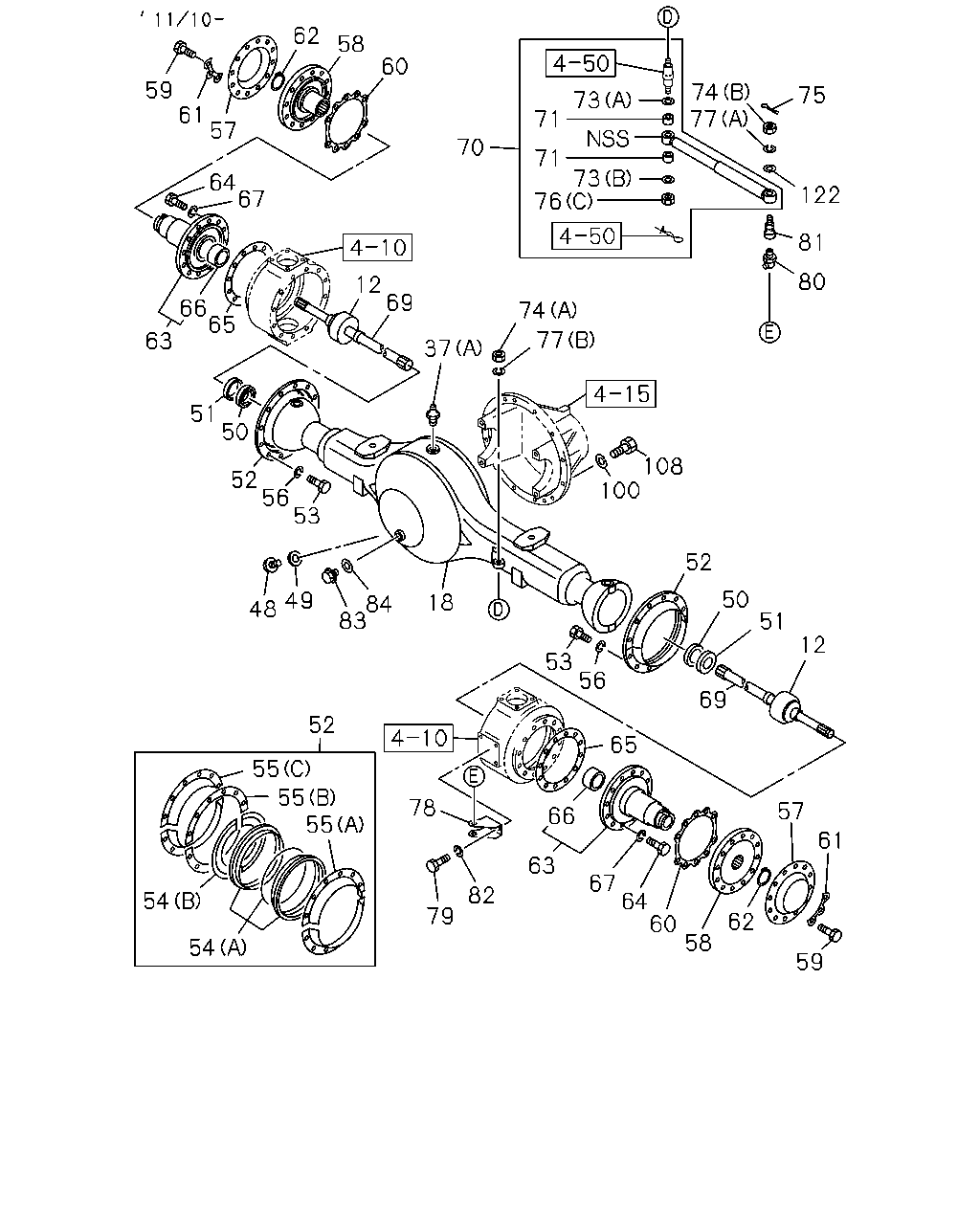

4-12 — FRONT DRIVE SHAFT (#37208) — 475 parça

62 64 67 63 59 61 57 64 66 58 60 52 56 53 23 26 24 65 12 21 37 18 69 51 50 25 52 19 50 18 51 49 69 26 23 12 48 53 56 84 83 76 72 71 73 75 65 63 74 77 76 73 71 66 67 64 60 58 62 57 78 82 79 81 70 80 52 61 59 54 54 55 55 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
12	JOINT ASM LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-012-0	02	1	9604-0004	●	●	●	●	●
12	JOINT ASM LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-012-0	02	1	0005-	●		●	●
12	JOINT ASM EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-018-0	02	1	9604-0004	●	●	●	●	●
12	JOINT ASM EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-018-0	02	1	0005-	●		●	●
18	CASE; FRT AXLE	1-43210-107-1	01	1	9604-0004	●	●
18	CASE; FRT AXLE	1-43210-107-1	01	1	0005-	●
18	CASE; FRT AXLE	1-43210-104-0	01	1	9604-0004	●	●
18	CASE; FRT AXLE	1-43210-104-0	01	1	0005-	●
18	CASE; FRT AXLE	1-43210-102-2	01	1	9604-0004			●	●	●
18	CASE; FRT AXLE	1-43210-102-4	01	1	0005-1109			●	●
18	CASE; FRT AXLE	8-98200-699-0	01	1	1110-			●	●
19	BOLT; FRT AXLE M12X45	9-91066-245-0	12	1	9604-0004	●	●
19	BOLT; FRT AXLE M12X45	9-91066-245-0	12	1	0005-0805	●
19	BOLT; FRT AXLE M12X45	8-98036-382-0	12	1	0806-	●
21	GASKET; CASE,FRT AXLE	1-43213-002-0	01	1	9604-0004	●	●
21	GASKET; CASE,FRT AXLE	1-43213-002-0	01	1	0005-	●
23	NUT; FRT AXLE M12	9-99110-512-0	13	1	9604-0004	●	●
23	NUT; FRT AXLE M12	9-99110-512-0	13	1	0005-0512	●
23	NUT; FRT AXLE M12	0-91110-512-0	13	1	0601-	●
24	STUD; CASE,FRT AXLE M12X28 L=46	9-94411-228-0	01	1	9604-0004	●	●
24	STUD; CASE,FRT AXLE M12X28 L=46	9-94411-228-0	01	1	0005-	●
25	STUD; AXLE CASE TO SPRING SEAT M16X149 L=173	1-09302-116-0	04	1	9604-0004	●	●
25	STUD; AXLE CASE TO SPRING SEAT M16X149 L=173	1-09302-116-0	04	1	0005-	●
26	WASHER; LK,CASE,FRT AXLE ID=12.2	9-09150-612-0	13	1	9604-0004	●	●
26	WASHER; LK,CASE,FRT AXLE ID=12.2	9-09150-612-0	13	1	0005-0603	●
26	WASHER; LK,CASE,FRT AXLE ID=12.2	0-91510-612-0	13	1	0604-	●
37	BREATHER; FRT AXLE CASE (C)	9-36122-001-0	01	1	9604-0004	●	●
37	BREATHER; FRT AXLE CASE (C)	9-36122-001-0	01	1	0005-	●

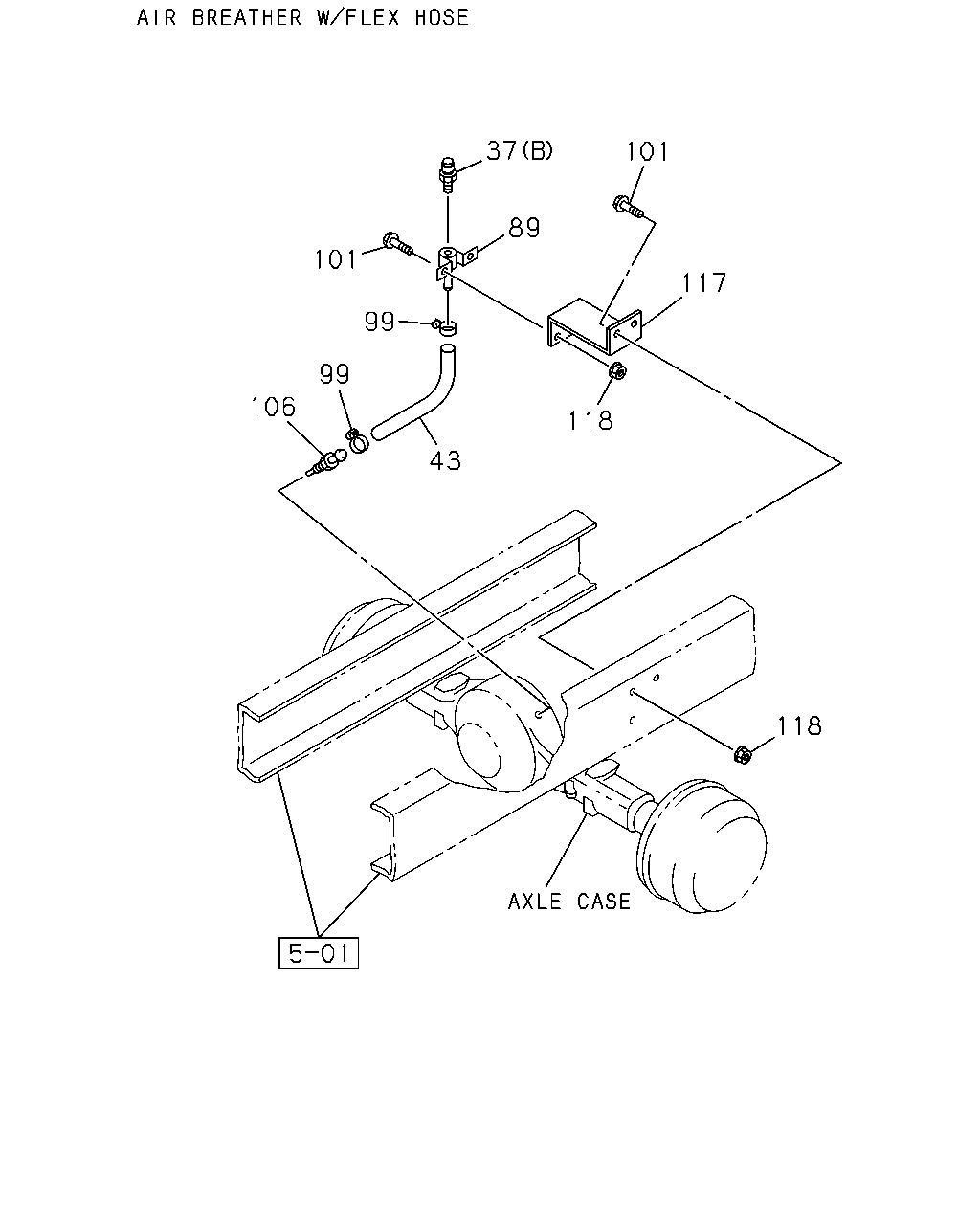

37	BREATHER; FRT AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	9-36122-013-0	01	1	9604-0004			●	●	●
37	BREATHER; FRT AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	9-36122-013-0	01	1	0005-			●	●
37	BREATHER; FRT AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	9604-0004			●	●	●
37	BREATHER; FRT AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	0005-			●	●
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	9604-0004	●	●	●	●	●
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0005-	●		●	●
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	9604-0004	●	●	●	●	●
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0005-	●		●	●
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	9604-0004	●	●	●	●	●
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	0005-	●		●	●
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	9604-0004	●	●	●	●	●
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	0005-	●		●	●
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	9604-0004	●	●	●	●	●
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	0005-	●		●	●
53	BOLT; OIL SEAL M8X16	0-20800-816-0	24	1	9604-0004	●	●	●	●	●
53	BOLT; OIL SEAL M8X16	0-20800-816-0	24	1	0005-0512	●		●	●
53	BOLT; OIL SEAL M8X16	0-20850-816-0	24	1	0601-	●		●	●
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	9604-0004	●	●	●	●	●
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	0005-	●		●	●
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	9604-0004	●	●	●	●	●
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	0005-	●		●	●
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	9604-0004	●	●	●	●	●
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	0005-	●		●	●
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	9604-0004	●	●	●	●	●
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	0005-	●		●	●
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	9604-0004	●	●	●	●	●
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	0005-	●		●	●
56	WASHER; LK,OIL SEAL ID=8.2	9-09150-508-0	24	1	9604-0004	●	●	●	●	●
56	WASHER; LK,OIL SEAL ID=8.2	9-09150-508-0	24	1	0005-0603	●		●	●
56	WASHER; LK,OIL SEAL ID=8.2	0-91510-508-0	24	1	0604-	●		●	●
57	COVER; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	9-42313-116-0	02	1	9604-0004	●	●	●	●	●
57	COVER; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	9-42313-116-0	02	1	0005-	●		●	●
58	FLANGE; AXLE SHAFT,FRT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42312-028-0	02	1	9604-0004	●	●	●	●	●
58	FLANGE; AXLE SHAFT,FRT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42312-028-0	02	1	0005-	●		●	●
59	BOLT; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12) M12X45	9-09804-239-1	20	1	9604-0004	●	●	●	●	●
59	BOLT; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12) M12X45	9-09804-239-1	20	1	0005-	●		●	●
60	GASKET; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42175-001-0	02	1	9604-0004	●	●	●	●	●
60	GASKET; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42175-001-0	02	1	0005-	●		●	●
61	PLATE; LK,FLANGE EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43319-005-0	08	1	9604-0004	●	●	●	●	●
61	PLATE; LK,FLANGE EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43319-005-0	08	1	0005-	●		●	●
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	9604-0004	●	●	●	●	●
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	0005-	●		●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-028-1	02	1	9604-0004	●	●	●	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-028-1	02	1	0005-0902	●		●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-061-0	02	1	0903-	●		●	●
64	BOLT; SPINDLE M12X35	9-92061-235-0	08	1	9604-0004	●	●	●	●	●
64	BOLT; SPINDLE M12X35	9-92061-235-0	08	1	0005-0512	●		●	●
64	BOLT; SPINDLE M12X35	0-20951-235-0	08	1	0601-	●		●	●
64	BOLT; SPINDLE M12X45	9-92061-245-0	16	1	9604-0004	●	●	●	●	●
64	BOLT; SPINDLE M12X45	9-92061-245-0	16	1	0005-	●		●	●
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	9604-0004	●	●	●	●	●
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	0005-	●		●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-006-0	02	1	9604-9708	●	●	●	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-008-0	02	1	9709-0004	●	●	●	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-008-0	02	1	0005-0902	●		●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-011-0	02	1	0903-	●		●	●
67	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	24	1	9604-0004	●	●	●	●	●
67	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	24	1	0005-0603	●		●	●
67	WASHER; LK,SPINDLE ID=12.2	0-91510-512-0	24	1	0604-	●		●	●
69	SHAFT; AXLE,FRT INNER	1-43311-024-0	01	1	9604-0004	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-024-0	01	1	0005-	●
69	SHAFT; AXLE,FRT INNER	1-43311-023-0	01	1	9604-0004	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-023-0	01	1	0005-	●
69	SHAFT; AXLE,FRT INNER	1-43311-038-0	01	1	9604-0004			●	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-038-0	01	1	0005-			●	●
69	SHAFT; AXLE,FRT INNER	1-43311-037-0	01	1	9604-0004			●	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-037-0	01	1	0005-			●	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51600-176-0	01	1	9604-0004	●	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51600-176-0	01	1	0005-	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51630-207-0	01	1	9604-0004			●	●	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51630-207-0	01	1	0005-			●	●
71	BUSHING; RUB,LWR,FRT S/ABS OD=25.4	9-51631-602-0	02	1	9604-0004	●	●
71	BUSHING; RUB,LWR,FRT S/ABS OD=25.4	9-51631-602-0	02	1	0005-	●
71	BUSHING; RUB,LWR,FRT S/ABS	9-51631-037-0	02	1	9604-0004			●	●	●
71	BUSHING; RUB,LWR,FRT S/ABS	9-51631-037-0	02	1	0005-			●	●
72	WASHER; CENTER,LWR,FRT S/ABS ID=15.0 OD=32	9-51631-049-0	01	1	9604-0004	●	●
72	WASHER; CENTER,LWR,FRT S/ABS ID=15.0 OD=32	9-51631-049-0	01	1	0005-	●
73	WASHER; LWR,FRT S/ABS (C) ID=10.5 OD=32	9-51631-048-0	02	1	9604-0004	●	●
73	WASHER; LWR,FRT S/ABS (C) ID=10.5 OD=32	9-51631-048-0	02	1	0005-	●
73	WASHER; LWR,FRT S/ABS (A)	9-51679-010-0	01	1	9604-0004			●	●	●
73	WASHER; LWR,FRT S/ABS (A)	9-51679-010-0	01	1	0005-			●	●
73	WASHER; LWR,FRT S/ABS (B)	9-51679-011-0	01	1	9604-0004			●	●	●
73	WASHER; LWR,FRT S/ABS (B)	9-51679-011-0	01	1	0005-			●	●
74	NUT; S/ABS (B) M12	9-99116-412-0	01	1	9604-0004	●	●	●	●	●
74	NUT; S/ABS (B) M12	9-99116-412-0	01	1	0005-0805	●		●	●
74	NUT; S/ABS (B) M12	0-91116-512-0	01	1	0806-	●		●	●
74	NUT; S/ABS (A) M16	9-99110-416-0	01	1	9604-0004			●	●	●
74	NUT; S/ABS (A) M16	9-99110-416-0	01	1	0005-0512			●	●
74	NUT; S/ABS (A) M16	0-91110-516-0	01	1	0601-			●	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	9-08113-020-0	01	1	9604-0004	●	●	●	●	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	9-08113-020-0	01	1	0005-0606	●		●	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	0-81123-020-0	01	1	0607-	●		●	●
76	NUT; LWR,FRT S/ABS (A) M10	9-09110-410-0	01	1	9604-0004	●	●
76	NUT; LWR,FRT S/ABS (A) M10	9-09110-410-0	01	1	0005-	●
76	NUT; LWR,FRT S/ABS (B) M10	9-09111-410-0	01	1	9604-0004	●	●
76	NUT; LWR,FRT S/ABS (B) M10	9-09111-410-0	01	1	0005-	●
76	NUT; LWR,FRT S/ABS (C)	9-51631-083-0	01	1	9604-0004			●	●	●
76	NUT; LWR,FRT S/ABS (C)	9-51631-083-0	01	1	0005-			●	●
77	WASHER; LK,S/ABS (A) ID=12.2	9-09150-512-0	01	1	9604-0004	●	●	●	●	●
77	WASHER; LK,S/ABS (A) ID=12.2	9-09150-512-0	01	1	0005-0603	●		●	●
77	WASHER; LK,S/ABS (A) ID=12.2	0-91510-512-0	01	1	0604-	●		●	●
77	WASHER; LK,S/ABS (B) ID=16.2	9-09150-516-0	01	1	9604-0004			●	●	●
77	WASHER; LK,S/ABS (B) ID=16.2	9-09150-516-0	01	1	0005-0603			●	●
77	WASHER; LK,S/ABS (B) ID=16.2	0-91510-516-0	01	1	0604-			●	●
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	9604-0004	●	●	●	●	●
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	0005-	●		●	●
79	BOLT; BRKT M12X20	0-20801-220-0	02	1	9604-0004	●	●	●	●	●
79	BOLT; BRKT M12X20	0-20801-220-0	02	1	0005-	●		●	●
79	BOLT; BRKT M12X25	0-20801-225-0	02	1	9604-0004	●	●	●	●	●
79	BOLT; BRKT M12X25	0-20801-225-0	02	1	0005-	●		●	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9604-0004	●	●	●	●	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0005-0512	●		●	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-	●		●	●
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	9604-0004	●	●	●	●	●
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	0005-	●		●	●
82	WASHER; LK,BRKT ID=12.2	9-09150-512-0	04	1	9604-0004	●	●	●	●	●
82	WASHER; LK,BRKT ID=12.2	9-09150-512-0	04	1	0005-0603	●		●	●
82	WASHER; LK,BRKT ID=12.2	0-91510-512-0	04	1	0604-	●		●	●
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	9604-0004	●	●	●	●	●
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	0005-	●		●	●
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	9604-0004	●	●	●	●	●
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	0005-	●		●	●

62 58 60 59 61 74 77 75 73 71 57 70 71 73 76 64 67 122 81 80 12 69 66 65 74 77 63 37 51 50 220 108 100 52 56 53 49 48 52 84 83 50 18 87 51 85 12 53 56 87 104 69 52 65 55 55 55 78 57 66 61 63 67 64 60 58 82 54 79 62 54 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
12	JOINT ASM LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-012-0	02	1	9604-0004	●	●	●	●	●
12	JOINT ASM LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-012-0	02	1	0005-	●		●	●
12	JOINT ASM EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-018-0	02	1	9604-0004	●	●	●	●	●
12	JOINT ASM EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-018-0	02	1	0005-	●		●	●
18	CASE; FRT AXLE	1-43210-107-1	01	1	9604-0004	●	●
18	CASE; FRT AXLE	1-43210-107-1	01	1	0005-	●
18	CASE; FRT AXLE	1-43210-104-0	01	1	9604-0004	●	●
18	CASE; FRT AXLE	1-43210-104-0	01	1	0005-	●
18	CASE; FRT AXLE	1-43210-102-2	01	1	9604-0004			●	●	●
18	CASE; FRT AXLE	1-43210-102-4	01	1	0005-1109			●	●
18	CASE; FRT AXLE	8-98200-699-0	01	1	1110-			●	●
37	BREATHER; FRT AXLE CASE (C)	9-36122-001-0	01	1	9604-0004	●	●
37	BREATHER; FRT AXLE CASE (C)	9-36122-001-0	01	1	0005-	●
37	BREATHER; FRT AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	9-36122-013-0	01	1	9604-0004			●	●	●
37	BREATHER; FRT AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	9-36122-013-0	01	1	0005-			●	●
37	BREATHER; FRT AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	9604-0004			●	●	●
37	BREATHER; FRT AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	0005-			●	●
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	9604-0004	●	●	●	●	●
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0005-	●		●	●
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	9604-0004	●	●	●	●	●
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0005-	●		●	●
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	9604-0004	●	●	●	●	●
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	0005-	●		●	●
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	9604-0004	●	●	●	●	●
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	0005-	●		●	●
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	9604-0004	●	●	●	●	●
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	0005-	●		●	●
53	BOLT; OIL SEAL M8X16	0-20800-816-0	24	1	9604-0004	●	●	●	●	●
53	BOLT; OIL SEAL M8X16	0-20800-816-0	24	1	0005-0512	●		●	●
53	BOLT; OIL SEAL M8X16	0-20850-816-0	24	1	0601-	●		●	●
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	9604-0004	●	●	●	●	●
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	0005-	●		●	●
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	9604-0004	●	●	●	●	●
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	0005-	●		●	●
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	9604-0004	●	●	●	●	●
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	0005-	●		●	●
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	9604-0004	●	●	●	●	●
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	0005-	●		●	●
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	9604-0004	●	●	●	●	●
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	0005-	●		●	●
56	WASHER; LK,OIL SEAL ID=8.2	9-09150-508-0	24	1	9604-0004	●	●	●	●	●
56	WASHER; LK,OIL SEAL ID=8.2	9-09150-508-0	24	1	0005-0603	●		●	●
56	WASHER; LK,OIL SEAL ID=8.2	0-91510-508-0	24	1	0604-	●		●	●
57	COVER; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	9-42313-116-0	02	1	9604-0004	●	●	●	●	●
57	COVER; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	9-42313-116-0	02	1	0005-	●		●	●
58	FLANGE; AXLE SHAFT,FRT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42312-028-0	02	1	9604-0004	●	●	●	●	●
58	FLANGE; AXLE SHAFT,FRT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42312-028-0	02	1	0005-	●		●	●
59	BOLT; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12) M12X45	9-09804-239-1	20	1	9604-0004	●	●	●	●	●
59	BOLT; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12) M12X45	9-09804-239-1	20	1	0005-	●		●	●
60	GASKET; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42175-001-0	02	1	9604-0004	●	●	●	●	●
60	GASKET; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42175-001-0	02	1	0005-	●		●	●
61	PLATE; LK,FLANGE EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43319-005-0	08	1	9604-0004	●	●	●	●	●
61	PLATE; LK,FLANGE EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43319-005-0	08	1	0005-	●		●	●
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	9604-0004	●	●	●	●	●
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	0005-	●		●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-028-1	02	1	9604-0004	●	●	●	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-028-1	02	1	0005-0902	●		●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-061-0	02	1	0903-	●		●	●
64	BOLT; SPINDLE M12X35	9-92061-235-0	08	1	9604-0004	●	●	●	●	●
64	BOLT; SPINDLE M12X35	9-92061-235-0	08	1	0005-0512	●		●	●
64	BOLT; SPINDLE M12X35	0-20951-235-0	08	1	0601-	●		●	●
64	BOLT; SPINDLE M12X45	9-92061-245-0	16	1	9604-0004	●	●	●	●	●
64	BOLT; SPINDLE M12X45	9-92061-245-0	16	1	0005-	●		●	●
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	9604-0004	●	●	●	●	●
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	0005-	●		●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-006-0	02	1	9604-9708	●	●	●	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-008-0	02	1	9709-0004	●	●	●	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-008-0	02	1	0005-0902	●		●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-011-0	02	1	0903-	●		●	●
67	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	24	1	9604-0004	●	●	●	●	●
67	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	24	1	0005-0603	●		●	●
67	WASHER; LK,SPINDLE ID=12.2	0-91510-512-0	24	1	0604-	●		●	●
69	SHAFT; AXLE,FRT INNER	1-43311-024-0	01	1	9604-0004	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-024-0	01	1	0005-	●
69	SHAFT; AXLE,FRT INNER	1-43311-023-0	01	1	9604-0004	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-023-0	01	1	0005-	●
69	SHAFT; AXLE,FRT INNER	1-43311-038-0	01	1	9604-0004			●	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-038-0	01	1	0005-			●	●
69	SHAFT; AXLE,FRT INNER	1-43311-037-0	01	1	9604-0004			●	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-037-0	01	1	0005-			●	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51600-176-0	01	1	9604-0004	●	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51600-176-0	01	1	0005-	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51630-207-0	01	1	9604-0004			●	●	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51630-207-0	01	1	0005-			●	●
71	BUSHING; RUB,LWR,FRT S/ABS OD=25.4	9-51631-602-0	02	1	9604-0004	●	●
71	BUSHING; RUB,LWR,FRT S/ABS OD=25.4	9-51631-602-0	02	1	0005-	●
71	BUSHING; RUB,LWR,FRT S/ABS	9-51631-037-0	02	1	9604-0004			●	●	●
71	BUSHING; RUB,LWR,FRT S/ABS	9-51631-037-0	02	1	0005-			●	●
73	WASHER; LWR,FRT S/ABS (C) ID=10.5 OD=32	9-51631-048-0	02	1	9604-0004	●	●
73	WASHER; LWR,FRT S/ABS (C) ID=10.5 OD=32	9-51631-048-0	02	1	0005-	●
73	WASHER; LWR,FRT S/ABS (A)	9-51679-010-0	01	1	9604-0004			●	●	●
73	WASHER; LWR,FRT S/ABS (A)	9-51679-010-0	01	1	0005-			●	●
73	WASHER; LWR,FRT S/ABS (B)	9-51679-011-0	01	1	9604-0004			●	●	●
73	WASHER; LWR,FRT S/ABS (B)	9-51679-011-0	01	1	0005-			●	●
74	NUT; S/ABS (B) M12	9-99116-412-0	01	1	9604-0004	●	●	●	●	●
74	NUT; S/ABS (B) M12	9-99116-412-0	01	1	0005-0805	●		●	●
74	NUT; S/ABS (B) M12	0-91116-512-0	01	1	0806-	●		●	●
74	NUT; S/ABS (A) M16	9-99110-416-0	01	1	9604-0004			●	●	●
74	NUT; S/ABS (A) M16	9-99110-416-0	01	1	0005-0512			●	●
74	NUT; S/ABS (A) M16	0-91110-516-0	01	1	0601-			●	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	9-08113-020-0	01	1	9604-0004	●	●	●	●	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	9-08113-020-0	01	1	0005-0606	●		●	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	0-81123-020-0	01	1	0607-	●		●	●
76	NUT; LWR,FRT S/ABS (A) M10	9-09110-410-0	01	1	9604-0004	●	●
76	NUT; LWR,FRT S/ABS (A) M10	9-09110-410-0	01	1	0005-	●
76	NUT; LWR,FRT S/ABS (B) M10	9-09111-410-0	01	1	9604-0004	●	●
76	NUT; LWR,FRT S/ABS (B) M10	9-09111-410-0	01	1	0005-	●
76	NUT; LWR,FRT S/ABS (C)	9-51631-083-0	01	1	9604-0004			●	●	●
76	NUT; LWR,FRT S/ABS (C)	9-51631-083-0	01	1	0005-			●	●
77	WASHER; LK,S/ABS (A) ID=12.2	9-09150-512-0	01	1	9604-0004	●	●	●	●	●
77	WASHER; LK,S/ABS (A) ID=12.2	9-09150-512-0	01	1	0005-0603	●		●	●
77	WASHER; LK,S/ABS (A) ID=12.2	0-91510-512-0	01	1	0604-	●		●	●
77	WASHER; LK,S/ABS (B) ID=16.2	9-09150-516-0	01	1	9604-0004			●	●	●
77	WASHER; LK,S/ABS (B) ID=16.2	9-09150-516-0	01	1	0005-0603			●	●
77	WASHER; LK,S/ABS (B) ID=16.2	0-91510-516-0	01	1	0604-			●	●
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	9604-0004	●	●	●	●	●
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	0005-	●		●	●
79	BOLT; BRKT M12X20	0-20801-220-0	02	1	9604-0004	●	●	●	●	●
79	BOLT; BRKT M12X20	0-20801-220-0	02	1	0005-	●		●	●
79	BOLT; BRKT M12X25	0-20801-225-0	02	1	9604-0004	●	●	●	●	●
79	BOLT; BRKT M12X25	0-20801-225-0	02	1	0005-	●		●	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9604-0004	●	●	●	●	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0005-0512	●		●	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-	●		●	●
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	9604-0004	●	●	●	●	●
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	0005-	●		●	●
82	WASHER; LK,BRKT ID=12.2	9-09150-512-0	04	1	9604-0004	●	●	●	●	●
82	WASHER; LK,BRKT ID=12.2	9-09150-512-0	04	1	0005-0603	●		●	●
82	WASHER; LK,BRKT ID=12.2	0-91510-512-0	04	1	0604-	●		●	●
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	9604-0004	●	●	●	●	●
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	0005-	●		●	●
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	9604-0004	●	●	●	●	●
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	0005-	●		●	●
85	COVER; AXLE CASE	9-42141-059-0	01	1	9604-0004			●	●	●
85	COVER; AXLE CASE	9-42141-059-0	01	1	0005-1109			●	●
87	GASKET; COVER,AXLE CASE (A) ID=10.2 OD=19	9-09572-010-0	08	1	9604-0004			●	●	●
87	GASKET; COVER,AXLE CASE (A) ID=10.2 OD=19	9-09572-010-0	08	1	0005-1109			●	●
87	GASKET; COVER,AXLE CASE (B)	9-42142-026-1	01	1	9604-0004			●	●	●
87	GASKET; COVER,AXLE CASE (B)	9-42142-026-2	01	1	0005-1109			●	●
100	WASHER; LK,FRT FINAL DRIVE ID=12.2	9-09150-812-0	12	1	9604-0004			●	●	●
100	WASHER; LK,FRT FINAL DRIVE ID=12.2	9-09150-812-0	12	1	0005-0603			●	●
100	WASHER; LK,FRT FINAL DRIVE ID=12.2	0-91510-812-0	12	1	0604-			●	●
104	BOLT; COVER,AXLE CASE M10X16	9-09800-874-0	08	1	9604-0004			●	●	●
104	BOLT; COVER,AXLE CASE M10X16	9-09800-874-0	08	1	0005-1109			●	●
108	BOLT; FRT FINAL DRIVE M12X35	9-92061-235-0	08	1	9604-0004			●	●	●
108	BOLT; FRT FINAL DRIVE M12X35	9-92061-235-0	08	1	0005-0512			●	●
108	BOLT; FRT FINAL DRIVE M12X35	0-20951-235-0	08	1	0601-			●	●
108	BOLT; FRT FINAL DRIVE M12X45	9-92061-245-0	04	1	9604-0004			●	●	●
108	BOLT; FRT FINAL DRIVE M12X45	9-92061-245-0	04	1	0005-			●	●
122	WASHER; S/ABS ID=17	9-09160-516-0	01	1	9604-0004			●	●	●
122	WASHER; S/ABS ID=17	9-09160-516-0	01	1	0005-0605			●	●
122	WASHER; S/ABS ID=17 OD=30	0-91610-516-0	01	1	0606-			●	●
220	PLATE	9-83996-444-1	01	1	9604-0004			●	●	●
220	PLATE	9-83996-444-1	01	1	0005-1109			●	●

62 58 60 59 61 57 74 77 75 73 71 70 71 73 76 64 67 122 81 80 12 69 66 65 74 77 63 37 51 50 108 100 52 56 53 52 50 49 48 18 84 83 51 12 53 56 69 52 65 55 55 55 78 57 66 61 63 67 64 60 58 82 54 79 62 54 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
12	JOINT ASM LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-012-0	02	1	9604-0004	●	●	●	●	●
12	JOINT ASM LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-012-0	02	1	0005-	●		●	●
12	JOINT ASM EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-018-0	02	1	9604-0004	●	●	●	●	●
12	JOINT ASM EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-018-0	02	1	0005-	●		●	●
18	CASE; FRT AXLE	1-43210-107-1	01	1	9604-0004	●	●
18	CASE; FRT AXLE	1-43210-107-1	01	1	0005-	●
18	CASE; FRT AXLE	1-43210-104-0	01	1	9604-0004	●	●
18	CASE; FRT AXLE	1-43210-104-0	01	1	0005-	●
18	CASE; FRT AXLE	1-43210-102-2	01	1	9604-0004			●	●	●
18	CASE; FRT AXLE	1-43210-102-4	01	1	0005-1109			●	●
18	CASE; FRT AXLE	8-98200-699-0	01	1	1110-			●	●
37	BREATHER; FRT AXLE CASE (C)	9-36122-001-0	01	1	9604-0004	●	●
37	BREATHER; FRT AXLE CASE (C)	9-36122-001-0	01	1	0005-	●
37	BREATHER; FRT AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	9-36122-013-0	01	1	9604-0004			●	●	●
37	BREATHER; FRT AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	9-36122-013-0	01	1	0005-			●	●
37	BREATHER; FRT AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	9604-0004			●	●	●
37	BREATHER; FRT AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	0005-			●	●
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	9604-0004	●	●	●	●	●
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0005-	●		●	●
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	9604-0004	●	●	●	●	●
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0005-	●		●	●
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	9604-0004	●	●	●	●	●
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	0005-	●		●	●
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	9604-0004	●	●	●	●	●
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	0005-	●		●	●
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	9604-0004	●	●	●	●	●
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	0005-	●		●	●
53	BOLT; OIL SEAL M8X16	0-20800-816-0	24	1	9604-0004	●	●	●	●	●
53	BOLT; OIL SEAL M8X16	0-20800-816-0	24	1	0005-0512	●		●	●
53	BOLT; OIL SEAL M8X16	0-20850-816-0	24	1	0601-	●		●	●
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	9604-0004	●	●	●	●	●
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	0005-	●		●	●
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	9604-0004	●	●	●	●	●
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	0005-	●		●	●
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	9604-0004	●	●	●	●	●
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	0005-	●		●	●
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	9604-0004	●	●	●	●	●
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	0005-	●		●	●
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	9604-0004	●	●	●	●	●
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	0005-	●		●	●
56	WASHER; LK,OIL SEAL ID=8.2	9-09150-508-0	24	1	9604-0004	●	●	●	●	●
56	WASHER; LK,OIL SEAL ID=8.2	9-09150-508-0	24	1	0005-0603	●		●	●
56	WASHER; LK,OIL SEAL ID=8.2	0-91510-508-0	24	1	0604-	●		●	●
57	COVER; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	9-42313-116-0	02	1	9604-0004	●	●	●	●	●
57	COVER; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	9-42313-116-0	02	1	0005-	●		●	●
58	FLANGE; AXLE SHAFT,FRT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42312-028-0	02	1	9604-0004	●	●	●	●	●
58	FLANGE; AXLE SHAFT,FRT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42312-028-0	02	1	0005-	●		●	●
59	BOLT; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12) M12X45	9-09804-239-1	20	1	9604-0004	●	●	●	●	●
59	BOLT; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12) M12X45	9-09804-239-1	20	1	0005-	●		●	●
60	GASKET; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42175-001-0	02	1	9604-0004	●	●	●	●	●
60	GASKET; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42175-001-0	02	1	0005-	●		●	●
61	PLATE; LK,FLANGE EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43319-005-0	08	1	9604-0004	●	●	●	●	●
61	PLATE; LK,FLANGE EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43319-005-0	08	1	0005-	●		●	●
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	9604-0004	●	●	●	●	●
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	0005-	●		●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-028-1	02	1	9604-0004	●	●	●	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-028-1	02	1	0005-0902	●		●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-061-0	02	1	0903-	●		●	●
64	BOLT; SPINDLE M12X35	9-92061-235-0	08	1	9604-0004	●	●	●	●	●
64	BOLT; SPINDLE M12X35	9-92061-235-0	08	1	0005-0512	●		●	●
64	BOLT; SPINDLE M12X35	0-20951-235-0	08	1	0601-	●		●	●
64	BOLT; SPINDLE M12X45	9-92061-245-0	16	1	9604-0004	●	●	●	●	●
64	BOLT; SPINDLE M12X45	9-92061-245-0	16	1	0005-	●		●	●
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	9604-0004	●	●	●	●	●
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	0005-	●		●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-006-0	02	1	9604-9708	●	●	●	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-008-0	02	1	9709-0004	●	●	●	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-008-0	02	1	0005-0902	●		●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-011-0	02	1	0903-	●		●	●
67	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	24	1	9604-0004	●	●	●	●	●
67	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	24	1	0005-0603	●		●	●
67	WASHER; LK,SPINDLE ID=12.2	0-91510-512-0	24	1	0604-	●		●	●
69	SHAFT; AXLE,FRT INNER	1-43311-024-0	01	1	9604-0004	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-024-0	01	1	0005-	●
69	SHAFT; AXLE,FRT INNER	1-43311-023-0	01	1	9604-0004	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-023-0	01	1	0005-	●
69	SHAFT; AXLE,FRT INNER	1-43311-038-0	01	1	9604-0004			●	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-038-0	01	1	0005-			●	●
69	SHAFT; AXLE,FRT INNER	1-43311-037-0	01	1	9604-0004			●	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-037-0	01	1	0005-			●	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51600-176-0	01	1	9604-0004	●	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51600-176-0	01	1	0005-	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51630-207-0	01	1	9604-0004			●	●	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51630-207-0	01	1	0005-			●	●
71	BUSHING; RUB,LWR,FRT S/ABS OD=25.4	9-51631-602-0	02	1	9604-0004	●	●
71	BUSHING; RUB,LWR,FRT S/ABS OD=25.4	9-51631-602-0	02	1	0005-	●
71	BUSHING; RUB,LWR,FRT S/ABS	9-51631-037-0	02	1	9604-0004			●	●	●
71	BUSHING; RUB,LWR,FRT S/ABS	9-51631-037-0	02	1	0005-			●	●
73	WASHER; LWR,FRT S/ABS (C) ID=10.5 OD=32	9-51631-048-0	02	1	9604-0004	●	●
73	WASHER; LWR,FRT S/ABS (C) ID=10.5 OD=32	9-51631-048-0	02	1	0005-	●
73	WASHER; LWR,FRT S/ABS (A)	9-51679-010-0	01	1	9604-0004			●	●	●
73	WASHER; LWR,FRT S/ABS (A)	9-51679-010-0	01	1	0005-			●	●
73	WASHER; LWR,FRT S/ABS (B)	9-51679-011-0	01	1	9604-0004			●	●	●
73	WASHER; LWR,FRT S/ABS (B)	9-51679-011-0	01	1	0005-			●	●
74	NUT; S/ABS (B) M12	9-99116-412-0	01	1	9604-0004	●	●	●	●	●
74	NUT; S/ABS (B) M12	9-99116-412-0	01	1	0005-0805	●		●	●
74	NUT; S/ABS (B) M12	0-91116-512-0	01	1	0806-	●		●	●
74	NUT; S/ABS (A) M16	9-99110-416-0	01	1	9604-0004			●	●	●
74	NUT; S/ABS (A) M16	9-99110-416-0	01	1	0005-0512			●	●
74	NUT; S/ABS (A) M16	0-91110-516-0	01	1	0601-			●	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	9-08113-020-0	01	1	9604-0004	●	●	●	●	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	9-08113-020-0	01	1	0005-0606	●		●	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	0-81123-020-0	01	1	0607-	●		●	●
76	NUT; LWR,FRT S/ABS (A) M10	9-09110-410-0	01	1	9604-0004	●	●
76	NUT; LWR,FRT S/ABS (A) M10	9-09110-410-0	01	1	0005-	●
76	NUT; LWR,FRT S/ABS (B) M10	9-09111-410-0	01	1	9604-0004	●	●
76	NUT; LWR,FRT S/ABS (B) M10	9-09111-410-0	01	1	0005-	●
76	NUT; LWR,FRT S/ABS (C)	9-51631-083-0	01	1	9604-0004			●	●	●
76	NUT; LWR,FRT S/ABS (C)	9-51631-083-0	01	1	0005-			●	●
77	WASHER; LK,S/ABS (A) ID=12.2	9-09150-512-0	01	1	9604-0004	●	●	●	●	●
77	WASHER; LK,S/ABS (A) ID=12.2	9-09150-512-0	01	1	0005-0603	●		●	●
77	WASHER; LK,S/ABS (A) ID=12.2	0-91510-512-0	01	1	0604-	●		●	●
77	WASHER; LK,S/ABS (B) ID=16.2	9-09150-516-0	01	1	9604-0004			●	●	●
77	WASHER; LK,S/ABS (B) ID=16.2	9-09150-516-0	01	1	0005-0603			●	●
77	WASHER; LK,S/ABS (B) ID=16.2	0-91510-516-0	01	1	0604-			●	●
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	9604-0004	●	●	●	●	●
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	0005-	●		●	●
79	BOLT; BRKT M12X20	0-20801-220-0	02	1	9604-0004	●	●	●	●	●
79	BOLT; BRKT M12X20	0-20801-220-0	02	1	0005-	●		●	●
79	BOLT; BRKT M12X25	0-20801-225-0	02	1	9604-0004	●	●	●	●	●
79	BOLT; BRKT M12X25	0-20801-225-0	02	1	0005-	●		●	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9604-0004	●	●	●	●	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0005-0512	●		●	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-	●		●	●
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	9604-0004	●	●	●	●	●
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	0005-	●		●	●
82	WASHER; LK,BRKT ID=12.2	9-09150-512-0	04	1	9604-0004	●	●	●	●	●
82	WASHER; LK,BRKT ID=12.2	9-09150-512-0	04	1	0005-0603	●		●	●
82	WASHER; LK,BRKT ID=12.2	0-91510-512-0	04	1	0604-	●		●	●
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	9604-0004	●	●	●	●	●
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	0005-	●		●	●
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	9604-0004	●	●	●	●	●
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	0005-	●		●	●
100	WASHER; LK,FRT FINAL DRIVE ID=12.2	9-09150-812-0	12	1	9604-0004			●	●	●
100	WASHER; LK,FRT FINAL DRIVE ID=12.2	9-09150-812-0	12	1	0005-0603			●	●
100	WASHER; LK,FRT FINAL DRIVE ID=12.2	0-91510-812-0	12	1	0604-			●	●
108	BOLT; FRT FINAL DRIVE M12X35	9-92061-235-0	08	1	9604-0004			●	●	●
108	BOLT; FRT FINAL DRIVE M12X35	9-92061-235-0	08	1	0005-0512			●	●
108	BOLT; FRT FINAL DRIVE M12X35	0-20951-235-0	08	1	0601-			●	●
108	BOLT; FRT FINAL DRIVE M12X45	9-92061-245-0	04	1	9604-0004			●	●	●
108	BOLT; FRT FINAL DRIVE M12X45	9-92061-245-0	04	1	0005-			●	●
122	WASHER; S/ABS ID=17	9-09160-516-0	01	1	9604-0004			●	●	●
122	WASHER; S/ABS ID=17	9-09160-516-0	01	1	0005-0605			●	●
122	WASHER; S/ABS ID=17 OD=30	0-91610-516-0	01	1	0606-			●	●

37 101 89 101 117 99 99 106 118 43 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
37	BREATHER; FRT AXLE CASE (C)	9-36122-001-0	01	1	9604-0004	●	●
37	BREATHER; FRT AXLE CASE (C)	9-36122-001-0	01	1	0005-	●
37	BREATHER; FRT AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	9-36122-013-0	01	1	9604-0004			●	●	●
37	BREATHER; FRT AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	9-36122-013-0	01	1	0005-			●	●
37	BREATHER; FRT AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	9604-0004			●	●	●
37	BREATHER; FRT AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	0005-			●	●
43	HOSE; RUBBER,AIR BREATHER AIR BREATHER W/FLEX HOSE<C4M> L=640 SERVICED BY L=3000	0-02857-300-0	01	1	9604-0004			●	●	●
43	HOSE; RUBBER,AIR BREATHER AIR BREATHER W/FLEX HOSE<C4M> L=640 SERVICED BY L=3000	0-02857-300-0	01	1	0005-0908			●	●
43	HOSE; RUBBER,AIR BREATHER AIR BREATHER W/FLEX HOSE<C4M> L=440 SERVICED BY L=3000	0-02857-300-0	01	1	0909-			●	●
89	ADAPTER; AIR BREATHER AIR BREATHER W/FLEX HOSE<C4M>	1-09669-066-0	01	1	9604-0004			●	●	●
89	ADAPTER; AIR BREATHER AIR BREATHER W/FLEX HOSE<C4M>	1-09669-066-0	01	1	0005-			●	●
99	CLIP; RUBBER HOSE AIR BREATHER W/FLEX HOSE<C4M> ID=15	1-09704-018-1	02	1	9604-0004			●	●	●
99	CLIP; RUBBER HOSE AIR BREATHER W/FLEX HOSE<C4M> ID=15	1-09704-018-1	02	1	0005-			●	●
101	BOLT; BRKT,ADAPTER AIR BREATHER W/FLEX HOSE<C4M> M8X20 FLANGE	0-28050-820-0	02	1	0909-			●	●
101	BOLT; BRKT,ADAPTER AIR BREATHER W/FLEX HOSE<C4M> M8X25 FLANGE	0-28080-825-0	04	1	9604-9606			●	●	●
101	BOLT; BRKT,ADAPTER AIR BREATHER W/FLEX HOSE<C4M> M8X25 FLANGE	0-28680-825-0	04	1	9607-0004			●	●	●
101	BOLT; BRKT,ADAPTER AIR BREATHER W/FLEX HOSE<C4M> M8X25 FLANGE	0-28680-825-0	04	1	0005-0512			●	●
101	BOLT; BRKT,ADAPTER AIR BREATHER W/FLEX HOSE<C4M> M8X25 FLANGE	0-28650-825-0	04	1	0601-0908			●	●
101	BOLT; BRKT,ADAPTER AIR BREATHER W/FLEX HOSE<C4M> M8X25 FLANGE	0-28650-825-0	02	1	0909-			●	●
106	CONNECTOR; RUBBER HOSE AIR BREATHER W/FLEX HOSE<C4M>	1-09669-081-0	01	1	9604-0004			●	●	●
106	CONNECTOR; RUBBER HOSE AIR BREATHER W/FLEX HOSE<C4M>	1-09669-081-0	01	1	0005-			●	●
117	BRACKET; ADAPTER,AIR BREATHER AIR BREATHER W/FLEX HOSE<C4M>	1-42129-203-0	01	1	9604-0004			●	●	●
117	BRACKET; ADAPTER,AIR BREATHER AIR BREATHER W/FLEX HOSE<C4M>	1-42129-203-0	01	1	0005-			●	●
118	NUT; BRKT,ADAPTER AIR BREATHER W/FLEX HOSE<C4M> M8	9-09110-408-0	04	1	9604-9606			●	●	●
118	NUT; BRKT,ADAPTER AIR BREATHER W/FLEX HOSE<C4M> M8 FLANGE	0-91150-108-0	04	1	9607-0004			●	●	●
118	NUT; BRKT,ADAPTER AIR BREATHER W/FLEX HOSE<C4M> M8 FLANGE	0-91150-108-0	04	1	0005-0602			●	●
118	NUT; BRKT,ADAPTER AIR BREATHER W/FLEX HOSE<C4M> M8 FLANGE	0-91180-108-0	04	1	0603-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
