4-11 — FRONT HUB AND DRUM OR ROTOR (#37207) — 46 parça

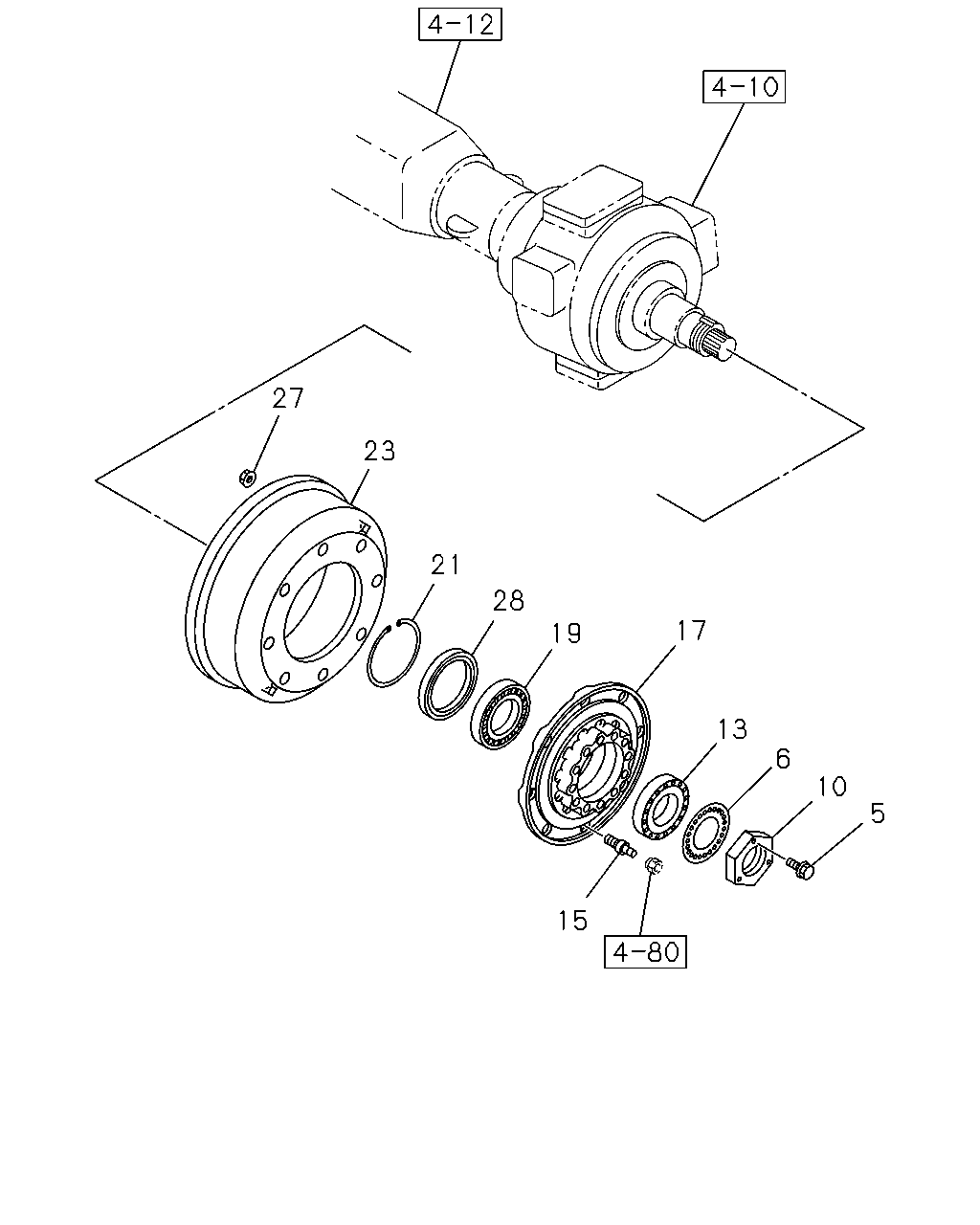

çizim 152834
27 23 21 28 17 19 13 6 10 5 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E
5 BOLT; LK WASHER
M6X16 W/LK WASHER 		0-50040-616-0 06 1 9604-9701 ● ● ● ● ●
5 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 06 1 9702-0004 ● ● ● ● ●
5 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 06 1 0005-0512 ● ● ●
5 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 0601-0707 ● ● ●
5 BOLT; LK WASHER
M6X16 HEX SOCKET 		8-98084-271-0 06 1 0708-1201 ● ● ●
5 BOLT; LK WASHER
M6X16 HEX SOCKET 		8-98200-943-0 06 1 1202- ● ● ●
6 WASHER; LK,FRT HUB
ID=74.6 		1-09533-008-0 02 1 9604-0004 ● ● ● ● ●
6 WASHER; LK,FRT HUB
ID=74.6 		1-09533-008-0 02 1 0005- ● ● ●
10 NUT; FRT HUB BRG
M74.6 		9-09843-064-2 02 1 9604-0004 ● ● ● ● ●
10 NUT; FRT HUB BRG
M74.6 		9-09843-064-2 02 1 0005- ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-044-0 02 1 9604-0004 ● ● ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-044-0 02 1 0005-1002 ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-154-0 02 1 1003- ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
NACHI 		1-09812-053-0 02 1 9604-0004 ● ● ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
NACHI 		1-09812-053-0 02 1 0005-1002 ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-161-0 02 1 9604-0004 ● ● ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-161-0 02 1 0005-1002 ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
NSK 		1-09812-153-0 02 1 1003- ● ● ●
15 PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X47.5 RH THREAD 		1-42332-128-0 08 1 9604-0004 ● ● ● ● ●
15 PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X47.5 RH THREAD 		1-42332-128-1 08 1 0005- ● ● ●
15 PIN; WHEEL,FRT AXLE
M24X37.5,M22X47.5 RH THREAD 		1-42331-128-0 08 1 9604-0004 ● ● ● ● ●
15 PIN; WHEEL,FRT AXLE
M24X37.5,M22X47.5 RH THREAD 		1-42331-128-1 08 1 0005- ● ● ●
17 HUB; FRT AXLE 1-42312-020-3 02 1 9604-0004 ● ● ● ● ●
17 HUB; FRT AXLE 1-42312-020-3 02 1 0005- ● ● ●
19 BEARING; HUB INNER,FRT AXLE
NACHI ID=80 OD=140 T=35.3 		1-09812-144-0 02 1 9604-0004 ● ● ● ● ●
19 BEARING; HUB INNER,FRT AXLE
NACHI ID=80 OD=140 T=35.3 		1-09812-144-0 02 1 0005-1002 ● ● ●
19 BEARING; HUB INNER,FRT AXLE
NACHI 		1-09812-151-0 02 1 1003- ● ● ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT ID=80 OD=140 T=35.3 		1-09812-145-0 02 1 9604-0004 ● ● ● ● ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT ID=80 OD=140 T=35.3 		1-09812-145-0 02 1 0005-1002 ● ● ●
19 BEARING; HUB INNER,FRT AXLE
NSK ID=80 OD=140 T=35.3 		1-09812-146-0 02 1 9604-0004 ● ● ● ● ●
19 BEARING; HUB INNER,FRT AXLE
NSK ID=80 OD=140 T=35.3 		1-09812-146-0 02 1 0005-1002 ● ● ●
19 BEARING; HUB INNER,FRT AXLE
NSK 		1-09812-150-0 02 1 1003- ● ● ●
21 RING; SNAP,HUB
OD=150 		9-09950-147-0 02 1 9604-0004 ● ● ● ● ●
21 RING; SNAP,HUB
OD=150 		9-09950-147-0 02 1 0005- ● ● ●
23 DRUM; BRK,FRT 1-42315-112-1 02 1 9604-0004 ● ● ● ● ●
23 DRUM; BRK,FRT 1-42315-112-1 02 1 0005- ● ● ●
27 NUT; WHEEL PIN,FRT AXLE
M22 		9-09110-522-0 16 1 9604-9609 ● ● ● ● ●
27 NUT; WHEEL PIN,FRT AXLE
M22 FLANGE 		1-09440-055-0 16 1 9610-9904 ● ● ● ● ●
27 NUT; WHEEL PIN,FRT AXLE
M22 FLANGE 		1-09440-065-0 16 1 9905-0004 ● ● ● ● ●
27 NUT; WHEEL PIN,FRT AXLE
M22 FLANGE 		1-09440-065-0 16 1 0005- ● ● ●
28 SEAL; OIL,FRT HUB
TKK 		9-09924-415-0 02 1 9604-0004 ● ● ● ● ●
28 SEAL; OIL,FRT HUB
TKK 		9-09924-415-0 02 1 0005- ● ● ●
28 SEAL; OIL,FRT HUB
NOK 		9-09924-416-0 02 1 9604-0004 ● ● ● ● ●
28 SEAL; OIL,FRT HUB
NOK 		9-09924-416-0 02 1 0005-0111 ● ● ●
28 SEAL; OIL,FRT HUB
JTEKT 		9-09924-417-0 02 1 9604-0004 ● ● ● ● ●
28 SEAL; OIL,FRT HUB
JTEKT 		9-09924-417-0 02 1 0005-0111 ● ● ●
