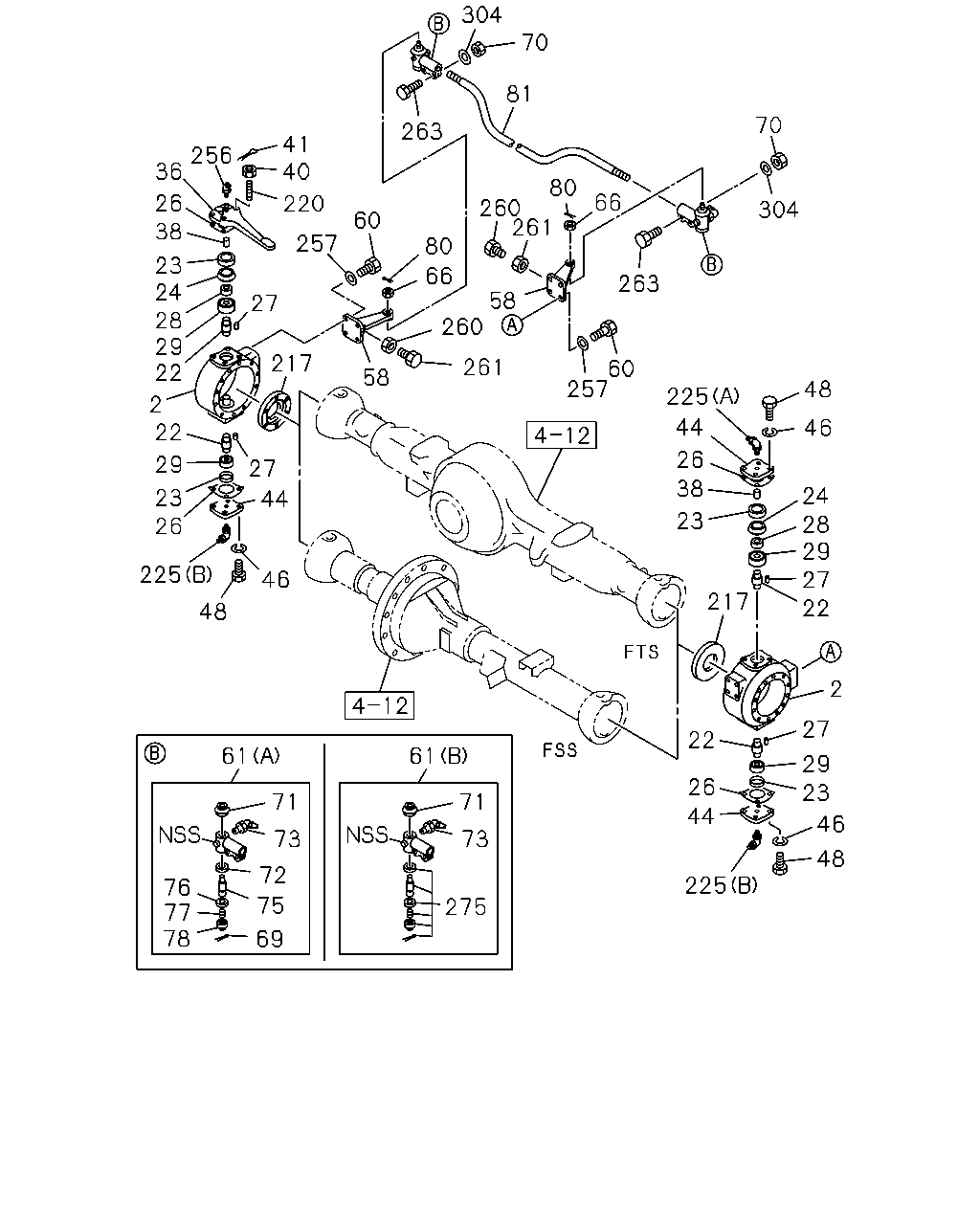

4-10 — FRONT AXLE (#37206) — 148 parça

36 26 38 23 24 29 28 22 2 22 29 23 225 48 46 44 27 217 27 257 220 40 41 263 81 70 304 80 260 66 70 304 263 260 58 261 71 61 73 72 75 69 275 73 71 225 44 26 48 23 46 29 27 2 22 27 29 28 46 24 48 225 26 38 23 44 257 60 58 80 66 60 256 61 217 22 76 77 78 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	KNUCKLE; FRT AXLE	1-43242-006-2	01	1	9604-0004	●	●	●	●	●
2	KNUCKLE; FRT AXLE	1-43242-006-4	01	1	0005-	●		●	●
2	KNUCKLE; FRT AXLE	9-43241-037-0	01	1	9604-0004	●	●	●	●	●
2	KNUCKLE; FRT AXLE	9-43241-037-2	01	1	0005-	●		●	●
22	PIN; KING,FRT AXLE H=50	1-43264-003-0	04	1	9604-0004	●	●	●	●	●
22	PIN; KING,FRT AXLE H=50	1-43264-003-0	04	1	0005-	●		●	●
23	COLLAR; DIST BRG	9-43267-004-0	04	1	9604-0004	●	●	●	●	●
23	COLLAR; DIST BRG	9-43267-004-0	04	1	0005-	●		●	●
24	RECEIVER; KING PIN	9-43269-008-0	02	1	9604-0004	●	●	●	●	●
24	RECEIVER; KING PIN	9-43269-008-0	02	1	0005-	●		●	●
26	SHIM; KING PIN,BRG T=0.1	9-43266-013-0	AR	1	9604-0004	●	●	●	●	●
26	SHIM; KING PIN,BRG T=0.1	9-43266-013-0	AR	1	0005-	●		●	●
26	SHIM; KING PIN,BRG T=0.2	9-43266-014-0	AR	1	9604-0004	●	●	●	●	●
26	SHIM; KING PIN,BRG T=0.2	9-43266-014-0	AR	1	0005-	●		●	●
26	SHIM; KING PIN,BRG T=0.5	9-43266-015-0	AR	1	9604-0004	●	●	●	●	●
26	SHIM; KING PIN,BRG T=0.5	9-43266-015-0	AR	1	0005-	●		●	●
27	PIN; STRAIGHT,KING PIN OD=5 L=10	9-08160-510-0	04	1	9604-0004	●	●	●	●	●
27	PIN; STRAIGHT,KING PIN OD=5 L=10	9-08160-510-0	04	1	0005-	●		●	●
28	WASHER; KING PIN	9-43269-007-0	02	1	9604-0004	●	●	●	●	●
28	WASHER; KING PIN	9-43269-007-0	02	1	0005-	●		●	●
29	BEARING; KING PIN	9-00093-181-0	04	1	9604-0004	●	●	●	●	●
29	BEARING; KING PIN	9-00093-181-0	04	1	0005-	●		●	●
36	ARM; KNUCKLE	1-43261-025-0	01	1	9604-0004	●	●
36	ARM; KNUCKLE	1-43261-025-0	01	1	0005-	●
36	ARM; KNUCKLE	1-43261-001-0	01	1	9604-9612			●	●	●
36	ARM; KNUCKLE	1-43261-029-0	01	1	9701-0004			●	●	●
36	ARM; KNUCKLE	1-43261-029-0	01	1	0005-1003			●	●
36	ARM; KNUCKLE	1-43261-035-0	01	1	1004-			●	●
38	KNOCK; KNUCKLE ARM	9-43269-009-1	02	1	9604-0004	●	●	●	●	●
38	KNOCK; KNUCKLE ARM	9-43269-009-1	02	1	0005-	●		●	●
40	NUT; KNUCKLE ARM M14	9-99116-414-0	04	1	9604-0004	●	●	●	●	●
40	NUT; KNUCKLE ARM M14	9-99116-414-0	04	1	0005-0604	●		●	●
40	NUT; KNUCKLE ARM M14 SLOTTED	0-91116-514-0	04	1	0605-	●		●	●
41	PIN; KNOCK,KNUCKLE ARM OD=2.8 L=25	9-08113-025-0	04	1	9604-0004	●	●	●	●	●
41	PIN; KNOCK,KNUCKLE ARM OD=2.8 L=25	9-08113-025-0	04	1	0005-0606	●		●	●
41	PIN; KNOCK,KNUCKLE ARM OD=2.8 L=25	0-81123-025-0	04	1	0607-	●		●	●
44	COVER; KING PIN	9-43265-007-1	03	1	9604-0004	●	●	●	●	●
44	COVER; KING PIN	9-43265-007-1	03	1	0005-	●		●	●
46	WASHER; LK,COVER ID=14.2	9-09150-814-0	12	1	9604-0004	●	●	●	●	●
46	WASHER; LK,COVER ID=14.2	9-09150-814-0	12	1	0005-0603	●		●	●
46	WASHER; LK,COVER ID=14.2	0-91510-814-0	12	1	0604-	●		●	●
48	BOLT; COVER M14X35	9-92061-435-0	12	1	9604-0004	●	●	●	●	●
48	BOLT; COVER M14X35	9-92061-435-0	12	1	0005-0512	●		●	●
48	BOLT; COVER M14X35	0-20951-435-0	12	1	0601-	●		●	●
58	ARM; TIE ROD	8-98138-221-0	01	1	1406-			●	●
58	ARM; TIE ROD	8-98138-222-0	01	1	1406-			●	●
58	ARM; TIE ROD	9-43263-011-1	01	1	9604-0004	●	●	●	●	●
58	ARM; TIE ROD	9-43263-011-1	01	1	0005-1405	●		●	●
58	ARM; TIE ROD	9-43263-011-1	01	1	1406-	●
58	ARM; TIE ROD	9-43262-017-1	01	1	9604-0004	●	●	●	●	●
58	ARM; TIE ROD	9-43262-017-1	01	1	0005-1405	●		●	●
58	ARM; TIE ROD	9-43262-017-1	01	1	1406-	●
60	BOLT; TIE ROD ARM M16X40	9-92061-640-0	08	1	9604-0004	●	●	●	●	●
60	BOLT; TIE ROD ARM M16X40	9-92061-640-0	08	1	0005-0512	●		●	●
60	BOLT; TIE ROD ARM M16X40	0-20951-640-0	08	1	0601-	●		●	●
61	ROD END; TIE ROD (A)	1-43150-192-0	01	1	9604-0004	●	●	●	●	●
61	ROD END; TIE ROD (A)	1-43150-192-0	01	1	0005-1405	●		●	●
61	ROD END; TIE ROD (A)	1-43150-192-0	01	1	1406-	●
61	ROD END; TIE ROD (B)	8-98236-793-1	01	1	1406-			●	●
61	ROD END; TIE ROD (A)	1-43150-191-0	01	1	9604-0004	●	●	●	●	●
61	ROD END; TIE ROD (A)	1-43150-191-0	01	1	0005-1405	●		●	●
61	ROD END; TIE ROD (A)	1-43150-191-0	01	1	1406-	●
61	ROD END; TIE ROD (B)	8-98236-792-1	01	1	1406-			●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1406-			●	●
66	NUT; TIE ROD END M16	9-09841-068-0	02	1	9604-0004	●	●	●	●	●
66	NUT; TIE ROD END M16	9-09841-068-0	02	1	0005-1405	●		●	●
66	NUT; TIE ROD END M16	9-09841-068-0	02	1	1406-	●
69	PIN; SPLIT,TIE ROD END	9-08114-065-0	02	1	9604-0004	●	●	●	●	●
69	PIN; SPLIT,TIE ROD END	9-08114-065-0	02	1	0005-0808	●		●	●
69	PIN; SPLIT,TIE ROD END	0-81124-065-0	02	1	0809-1405	●		●	●
69	PIN; SPLIT,TIE ROD END	0-81124-065-0	02	1	1406-	●
70	NUT; TIE ROD END M12	9-99110-512-0	04	1	9604-0004	●	●	●	●	●
70	NUT; TIE ROD END M12	9-99110-512-0	04	1	0005-0512	●		●	●
70	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-	●		●	●
71	BOOT; TIE ROD END	8-98229-116-0	02	1	1406-			●	●
71	BOOT; TIE ROD END	1-43159-009-0	02	1	1203-1206			●	●
71	BOOT; TIE ROD END	1-43159-009-0	02	1	9604-0004	●	●	●	●	●
71	BOOT; TIE ROD END	1-43159-009-0	02	1	0005-1202	●		●	●
71	BOOT; TIE ROD END	1-43159-009-0	04	1	1203-1206	●		●	●
71	BOOT; TIE ROD END	1-43159-009-0	02	1	1207-1405	●		●	●
71	BOOT; TIE ROD END	1-43159-009-0	02	1	1406-	●
72	SEAT; BALL,TIE ROD JOINT	9-44371-133-0	02	1	9604-0004	●	●	●	●	●
72	SEAT; BALL,TIE ROD JOINT	9-44371-133-0	02	1	0005-1405	●		●	●
72	SEAT; BALL,TIE ROD JOINT	9-44371-133-0	02	1	1406-	●
73	NIPPLE; GREASE,TIE ROD END	1-43159-132-0	02	1	1406-			●	●
73	NIPPLE; GREASE,TIE ROD END PT1/8 ELBOW	9-09031-210-0	02	1	9604-0004	●	●	●	●	●
73	NIPPLE; GREASE,TIE ROD END PT1/8 ELBOW	9-09031-210-0	02	1	0005-0512	●		●	●
73	NIPPLE; GREASE,TIE ROD END PT1/8 ELBOW	0-90301-610-0	02	1	0601-1405	●		●	●
73	NIPPLE; GREASE,TIE ROD END PT1/8 ELBOW	0-90301-610-0	02	1	1406-	●
75	JOINT; BALL,DRAG LINK	1-44361-042-2	02	1	9604-0004	●	●	●	●	●
75	JOINT; BALL,DRAG LINK	1-44361-042-2	02	1	0005-1405	●		●	●
75	JOINT; BALL,DRAG LINK	1-44361-042-2	02	1	1406-	●
76	SEAT; SPR,DRAG LINK	9-44373-006-0	02	1	9604-0004	●	●	●	●	●
76	SEAT; SPR,DRAG LINK	9-44373-006-0	02	1	0005-1405	●		●	●
76	SEAT; SPR,DRAG LINK	9-44373-006-0	02	1	1406-	●
77	SPRING; TIE ROD END	9-09940-057-0	02	1	9604-0004	●	●	●	●	●
77	SPRING; TIE ROD END	9-09940-057-0	02	1	0005-1405	●		●	●
77	SPRING; TIE ROD END	9-09940-057-0	02	1	1406-	●
78	PLUG; ADJ,ROD END	1-44375-017-0	02	1	9604-0004	●	●	●	●	●
78	PLUG; ADJ,ROD END	1-44375-017-0	02	1	0005-1405	●		●	●
78	PLUG; ADJ,ROD END	1-44375-017-0	02	1	1406-	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1406-			●	●
80	PIN; SPLIT,ROD END OD=3.7 L=30	9-08114-030-0	02	1	9604-0004	●	●	●	●	●
80	PIN; SPLIT,ROD END OD=3.7 L=30	9-08114-030-0	02	1	0005-0606	●		●	●
80	PIN; SPLIT,ROD END OD=3.7 L=30	0-81124-030-0	02	1	0607-1405	●		●	●
80	PIN; SPLIT,ROD END OD=3.7 L=30	0-81124-030-0	02	1	1406-	●
81	ROD; TIE	1-43151-048-0	01	1	9604-0004	●	●
81	ROD; TIE	1-43151-048-0	01	1	0005-	●
81	ROD; TIE	1-43151-070-0	01	1	9604-0004			●	●	●
81	ROD; TIE	1-43151-070-0	01	1	0005-1405			●	●
217	WASHER; THRUST,SHAFT LOCKING HUB FRT WHEEL DRIVE(W12) OD=100 ID=71	9-43321-005-0	02	1	9604-0004	●	●	●	●	●
217	WASHER; THRUST,SHAFT LOCKING HUB FRT WHEEL DRIVE(W12) OD=100 ID=71	9-43321-005-0	02	1	0005-0902	●		●	●
217	WASHER; THRUST,SHAFT LOCKING HUB FRT WHEEL DRIVE(W12) OD=100 ID=71	1-43321-009-0	02	1	0903-	●		●	●
220	STUD; KNUCKLE ARM M14X54.5 L=72	9-09830-131-0	01	1	9604-0004	●	●	●	●	●
220	STUD; KNUCKLE ARM M14X54.5 L=72	9-09830-131-0	01	1	0005-	●		●	●
220	STUD; KNUCKLE ARM M14X41.5 L=60.5	9-09830-132-0	01	1	9604-0004	●	●	●	●	●
220	STUD; KNUCKLE ARM M14X41.5 L=60.5	9-09830-132-0	01	1	0005-	●		●	●
220	STUD; KNUCKLE ARM M14X46.5 L=72	9-09830-133-0	01	1	9604-0004	●	●	●	●	●
220	STUD; KNUCKLE ARM M14X46.5 L=72	9-09830-133-0	01	1	0005-	●		●	●
220	STUD; KNUCKLE ARM M14X33.5 L=60.5	9-09830-134-0	01	1	9604-0004	●	●	●	●	●
220	STUD; KNUCKLE ARM M14X33.5 L=60.5	9-09830-134-0	01	1	0005-	●		●	●
225	NIPPLE; GREASE,COVER (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9604-0004	●	●	●	●	●
225	NIPPLE; GREASE,COVER (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0005-0512	●		●	●
225	NIPPLE; GREASE,COVER (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-	●		●	●
225	NIPPLE; GREASE,COVER (B) PT1/8 ELBOW	9-09031-210-0	02	1	9604-0004	●	●	●	●	●
225	NIPPLE; GREASE,COVER (B) PT1/8 ELBOW	9-09031-210-0	02	1	0005-0512	●		●	●
225	NIPPLE; GREASE,COVER (B) PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●		●	●
256	NIPPLE; GREASE,KNUCKLE ARM PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9604-0004	●	●	●	●	●
256	NIPPLE; GREASE,KNUCKLE ARM PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0005-0512	●		●	●
256	NIPPLE; GREASE,KNUCKLE ARM PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-	●		●	●
257	WASHER; LK,TIE ROD ARM ID=16.2	9-09150-516-0	08	1	9604-0004	●	●	●	●	●
257	WASHER; LK,TIE ROD ARM ID=16.2	9-09150-516-0	08	1	0005-0603	●		●	●
257	WASHER; LK,TIE ROD ARM ID=16.2	0-91510-516-0	08	1	0604-	●		●	●
260	BOLT; STOPPER,TIE ROD ARM M14X35	0-20801-435-0	02	1	9604-0004	●	●	●	●	●
260	BOLT; STOPPER,TIE ROD ARM M14X35	0-20801-435-0	02	1	0005-0512	●		●	●
260	BOLT; STOPPER,TIE ROD ARM M14X35	0-20851-435-0	02	1	0601-	●		●	●
261	NUT; STOPPER BOLT M14	9-99111-414-0	02	1	9604-0004	●	●	●	●	●
261	NUT; STOPPER BOLT M14	9-99111-414-0	02	1	0005-0512	●		●	●
261	NUT; STOPPER BOLT M14	0-91111-514-0	02	1	0601-	●		●	●
263	BOLT; ROD END M12X65	8-98053-922-0	04	1	1406-			●	●
263	BOLT; ROD END M12X45	9-92061-245-0	04	1	9604-0004	●	●	●	●	●
263	BOLT; ROD END M12X45	9-92061-245-0	04	1	0005-0808	●		●	●
263	BOLT; ROD END M12X50	0-20951-250-0	04	1	0809-1405	●		●	●
263	BOLT; ROD END M12X50	0-20951-250-0	04	1	1406-	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1406-			●	●
304	WASHER; PL ID=12.5	9-09164-512-0	04	1	9604-0004	●	●	●	●	●
304	WASHER; PL ID=12.5	9-09164-512-0	04	1	0005-0808	●		●	●
304	WASHER; PL ID=12.5	0-91614-512-0	04	1	0809-	●		●	●
