4-01 — PROPELLER SHAFT (#37205) — 1064 parça

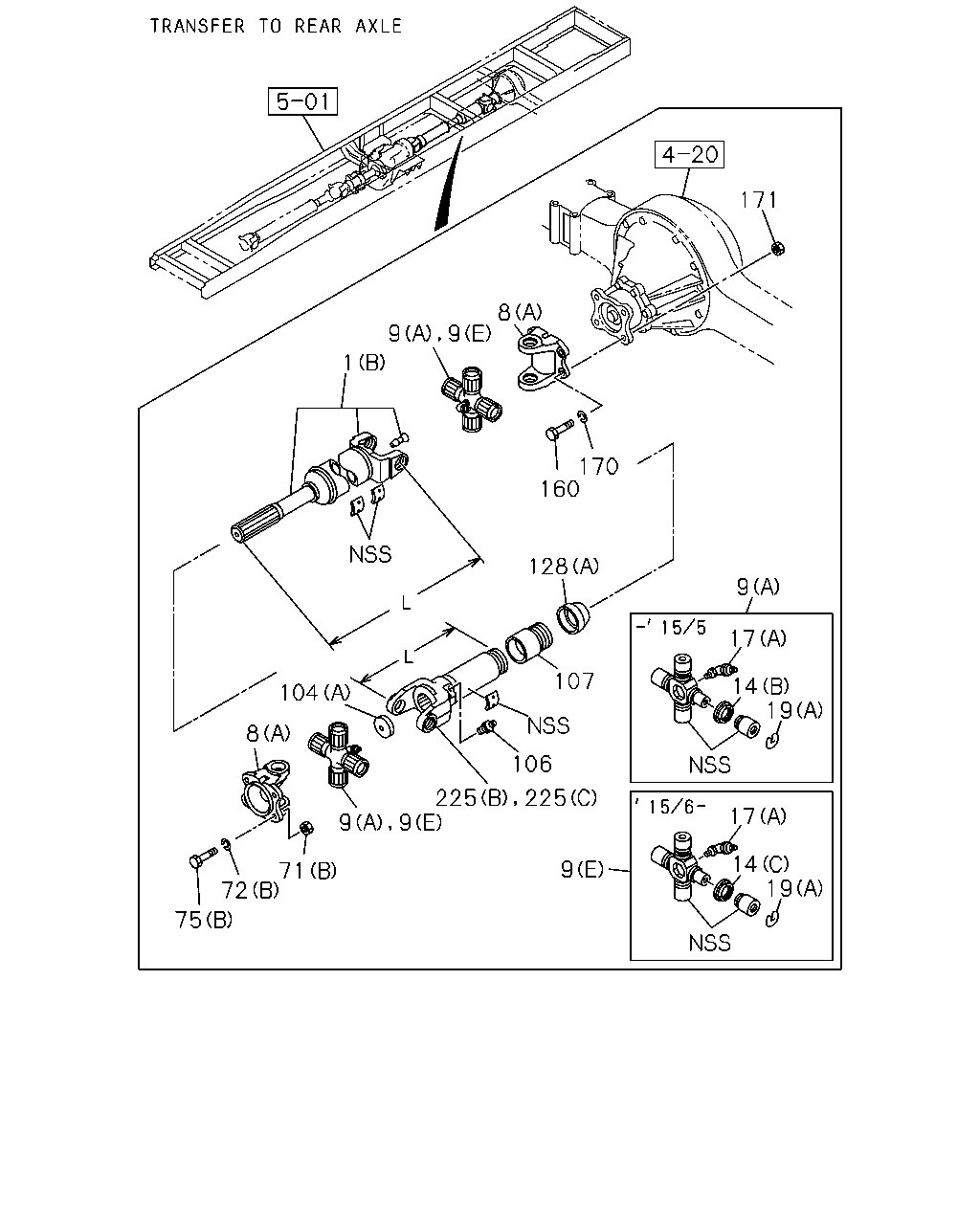

çizim 152819
171 8 9 9 170 160 1 128 9 17 14 19 17 14 19 9 75 71 9 9 225 225 106 107 104 8 72
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
MLD6Q M/T(X5J) (C) L=1432 		1-37124-317-0 01 1 0406- ●
1 SHAFT; PROP
MLD6Q M/T(X5J) (D) L=1041 		1-37124-183-1 01 1 0406- ●
1 SHAFT; PROP
MLD6Q M/T(X5J) (E) L=369 		1-37151-974-1 01 1 0406- ●
1 SHAFT; PROP
(B) L=516 		1-37124-034-1 01 1 9604- ●
1 SHAFT; PROP
(A) L=1527 		1-37124-073-1 01 1 9604-0004 ●
1 SHAFT; PROP
FTS MIDDLE CHASSIS(FT***F) (A) L=1527 		1-37124-073-1 01 1 9604-0004 ●
1 SHAFT; PROP
(A) L=1527 		1-37124-073-1 01 1 0005-0405 ● ●
1 SHAFT; PROP
(A) L=1527 		1-37124-073-1 01 1 0406- ●
1 SHAFT; PROP
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) L=1527 		1-37124-073-1 01 1 0406- ●
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 9604-0004 ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (A) L=1477 		1-37123-668-1 01 1 9604-0004 ●
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 0005- ●
1 SHAFT; PROP
(B) L=686 		1-37123-943-1 01 1 9604- ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (B) L=1191 		1-37123-463-1 01 1 9604-0004 ●
1 SHAFT; PROP
FTS MIDDLE CHASSIS(FT***F) (B) L=1136 		1-37123-631-1 01 1 9604-0004 ●
1 SHAFT; PROP
(B) L=1136 		1-37123-631-1 01 1 0005-0405 ●
1 SHAFT; PROP
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=1136 		1-37123-631-1 01 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
MLD6Q M/T(X5J) (C) 		1-37211-054-1 01 1 0406-1111 ●
8 YOKE; FLANGE,PROP SHAFT
MLD6Q M/T(X5J) (C) 		8-98178-052-0 01 1 1112- ●
8 YOKE; FLANGE,PROP SHAFT
MLD6Q M/T(X5J) (A) 		1-37211-056-3 01 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
MLD6Q M/T(X5J) (A) 		1-37211-056-3 01 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 9604-0405 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 0406- ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) D=80 		1-37211-037-4 02 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 04 1 9604-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0005-0405 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0005-0405 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0406- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0406- ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37211-056-3 02 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37211-056-3 02 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) (E) 		8-98048-925-0 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
(E) 		8-98048-925-1 AR 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(E) 		8-98048-925-1 AR 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) (D) 		1-37300-106-1 01 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) (C) 		1-37300-059-1 01 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-069-0 AR 1 9604-9809 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-0 AR 1 9810-0405 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0406-1111 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0406-1111 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1112-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1112-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-089-0 AR 1 9604-9809 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 9810-0405 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107- ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		8-98020-789-1 02 1 1107- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-1 AR 1 0406-1106 ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		1-37300-103-1 AR 1 0406-1106 ●
14 COVER; DUST,SPIDER
MLD6Q M/T(X5J) (C) 		8-98020-800-0 08 1 1112-1505 ●
14 COVER; DUST,SPIDER
MLD6Q M/T(X5J) (C) 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
MLD6Q M/T(X5J) (B) 		1-37319-012-0 AR 1 0406-1505 ●
14 COVER; DUST,SPIDER
(A) 		1-37319-006-0 AR 1 9604-9809 ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-011-0 AR 1 9810-0405 ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-011-0 AR 1 0406-1106 ● ●
14 COVER; DUST,SPIDER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37319-011-0 AR 1 0406-1106 ●
14 COVER; DUST,SPIDER
(A) 		8-98020-791-0 08 1 1107- ● ●
14 COVER; DUST,SPIDER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		8-98020-791-0 08 1 1107- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-012-0 AR 1 9810-1111 ● ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-012-0 08 1 1112-1505 ● ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506- ● ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506- ● ●
14 COVER; DUST,SPIDER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (C) 		8-98020-800-0 08 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (B) 		9-09928-049-0 02 1 0406- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (C) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (C) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (A) PT1/8 ELBOW 		9-09031-210-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (A) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 9604-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6Q M/T(X5J) (A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6Q M/T(X5J) (A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6Q M/T(X5J) (A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 AR 1 9604-0405 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 AR 1 0406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) T=1.95 		1-09587-014-0 AR 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 AR 1 9604-0405 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 AR 1 0406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) T=2.00 		1-09587-015-2 AR 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 AR 1 9604-0405 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 AR 1 0406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) T=2.05 		1-09587-016-1 AR 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9604- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9604- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9604- ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 08 1 0404-0405 ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 08 1 0406-0512 ● ●
71 NUT; YOKE
6HH1 STD ENG(65L) (B) M14 		9-99110-514-0 08 1 0406-0512 ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 08 1 0601- ● ●
71 NUT; YOKE
6HH1 STD ENG(65L) (B) M14 		0-91110-514-0 08 1 0601- ●
71 NUT; YOKE
6HK1 TCC ENG(81L) (C) M16 FLANGE 		1-09449-065-0 04 1 0406- ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 08 1 9604-0004 ● ● ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 04 1 0005-0512 ● ● ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 04 1 0005-0512 ● ● ●
71 NUT; YOKE
(A) M12 		0-91110-512-0 04 1 0601- ● ● ●
71 NUT; YOKE
(A) M12 		0-91110-512-0 04 1 0601- ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 12 1 9604-0403 ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 04 1 0404-0512 ● ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 0601- ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 08 1 0404-0405 ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 08 1 0406-0603 ● ●
72 WASHER; LK,YOKE
6HH1 STD ENG(65L) (B) ID=14.2 		9-09150-614-0 08 1 0406-0603 ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 08 1 0604- ● ●
72 WASHER; LK,YOKE
6HH1 STD ENG(65L) (B) ID=14.2 		0-91510-614-0 08 1 0604- ●
72 WASHER; LK,YOKE
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HK1 TCC ENG(81L) (C) ID=11.4 		9-09850-072-0 04 1 0406- ●
72 WASHER; LK,YOKE
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6Q M/T(X5J) (C) ID=11.4 		9-09850-072-0 04 1 0406- ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 08 1 9604-0004 ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0603 ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0603 ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 04 1 0604- ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 04 1 0604- ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 12 1 9604-0403 ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 04 1 0404-0603 ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 0604- ● ● ●
75 BOLT; PROP SHAFT TO TRANS
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HK1 TCC ENG(81L) (C) UNF7/16X27 		9-09820-144-0 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6Q M/T(X5J) (C) UNF7/16X27 		9-09820-144-0 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
6HK1 TCC ENG(81L) (D) M12X75 		9-91061-275-0 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 08 1 9604-0004 ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005-0405 ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005-0405 ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0406- ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
6HH1 STD ENG(65L),6HH1 N ENG(66L) (A) M12X32 		1-09000-076-1 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HH1 STD ENG(65L) (A) M12X32 		1-09000-076-1 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) M12X32 		1-09000-076-1 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 9604-0405 ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 0406- ● ●
75 BOLT; PROP SHAFT TO TRANS
6HH1 STD ENG(65L) (B) M14X37 		1-09000-121-0 08 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
(C) M14X40 		1-09000-187-0 04 1 9604-9807 ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 9604-0405 ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 0406- ● ●
104 PLUG; SLEEVE YOKE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		1-09600-014-0 01 1 0406- ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 02 1 9604-0004 ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0005- ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0005- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9604-0004 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS MIDDLE CHASSIS(FT***F) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS MIDDLE CHASSIS(FT***F) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0405 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0405 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0405 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HK1 TCC ENG(81L) MLD6Q M/T(X5J) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HK1 TCC ENG(81L) MLD6Q M/T(X5J) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
107 COVER; RET,SLEEVE 1-37249-060-0 01 1 9604-0004 ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-0 01 1 9604-0004 ●
107 COVER; RET,SLEEVE
FTS MIDDLE CHASSIS(FT***F) MBJ5J M/T(Y1Y) 		1-37249-060-0 01 1 9604-0004 ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0005-0405 ● ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0005-0405 ●
107 COVER; RET,SLEEVE
FTS STD CAB MIDDLE CHASSIS(FT**MF) MBJ5J M/T(Y1Y) 		1-37249-060-1 01 1 0005-0405 ●
107 COVER; RET,SLEEVE
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) 		1-37249-060-1 01 1 0005-0405 ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0406- ● ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0406- ●
107 COVER; RET,SLEEVE
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HK1 TCC ENG(81L) MLD6Q M/T(X5J) 		1-37249-060-1 01 1 0406- ●
107 COVER; RET,SLEEVE
FTS STD CAB MIDDLE CHASSIS(FT**MF) MBJ5J M/T(Y1Y) 		1-37249-060-1 01 1 0406- ●
107 COVER; RET,SLEEVE
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) 		1-37249-060-1 01 1 0406- ●
128 SEAL; SLEEVE
MLD6Q M/T(X5J) (C) 		1-37247-002-1 01 1 0406- ●
128 SEAL; SLEEVE
MLD6Q M/T(X5J) (D) 		1-37247-015-0 01 1 0406-1111 ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 9604-0405 ● ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 0406- ● ●
128 SEAL; SLEEVE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		1-37247-001-1 01 1 0406- ●
128 SEAL; SLEEVE
(A) 		1-37247-015-0 02 1 9604-9809 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 02 1 9810-0004 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0005-0405 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0005-0405 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0406-1111 ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0406-1111 ● ●
128 SEAL; SLEEVE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37247-024-0 01 1 0406-1111 ●
128 SEAL; SLEEVE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37247-024-0 01 1 0406-1111 ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1112- ● ● ●
160 BOLT; PROP SHAFT TO RR AXLE
M14X37 		1-09000-121-0 04 1 9604- ● ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=14.2 		9-09150-614-0 04 1 9604-0603 ● ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=14.2 		0-91510-614-0 04 1 0604- ● ● ●
171 NUT; YOKE,SLEEVE
M14 		9-99110-514-0 04 1 9604-0512 ● ● ●
171 NUT; YOKE,SLEEVE
M14 		0-91110-514-0 04 1 0601- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=228 		1-37241-098-2 01 1 9604-0405 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=228 		1-37241-098-2 01 1 0406- ● ●
225 YOKE; SLEEVE,PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) L=228 		1-37241-098-2 01 1 0406- ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-1 01 1 9604-9809 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-1 01 1 9604-9809 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS MIDDLE CHASSIS(FT***F) MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-1 01 1 9604-9809 ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 9810-9902 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS MIDDLE CHASSIS(FT***F) MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-2 01 1 9810-9902 ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 9903-0004 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 9903-0004 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS MIDDLE CHASSIS(FT***F) MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-2 01 1 9903-0004 ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 0005-0405 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 0005-0405 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-2 01 1 0005-0405 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-2 01 1 0005-0405 ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 0406- ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 0406- ●
225 YOKE; SLEEVE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HK1 TCC ENG(81L) MLD6Q M/T(X5J) (B) L=271 		1-37241-099-2 01 1 0406- ●
225 YOKE; SLEEVE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-2 01 1 0406- ●
225 YOKE; SLEEVE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-2 01 1 0406- ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=271 		1-37241-129-0 01 1 9810-9902 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(D) L=229 		1-37241-086-2 01 1 9604-0004 ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (D) L=229 		1-37241-086-2 01 1 9604-0004 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS MIDDLE CHASSIS(FT***F) MLD6D M/T(X5Q) (D) L=229 		1-37241-086-2 01 1 9604-0004 ●
225 YOKE; SLEEVE,PROP SHAFT
(D) L=229 		1-37241-086-2 01 1 0005- ●
225 YOKE; SLEEVE,PROP SHAFT
MLD6D M/T(X5Q) (D) L=229 		1-37241-086-2 01 1 0005- ●

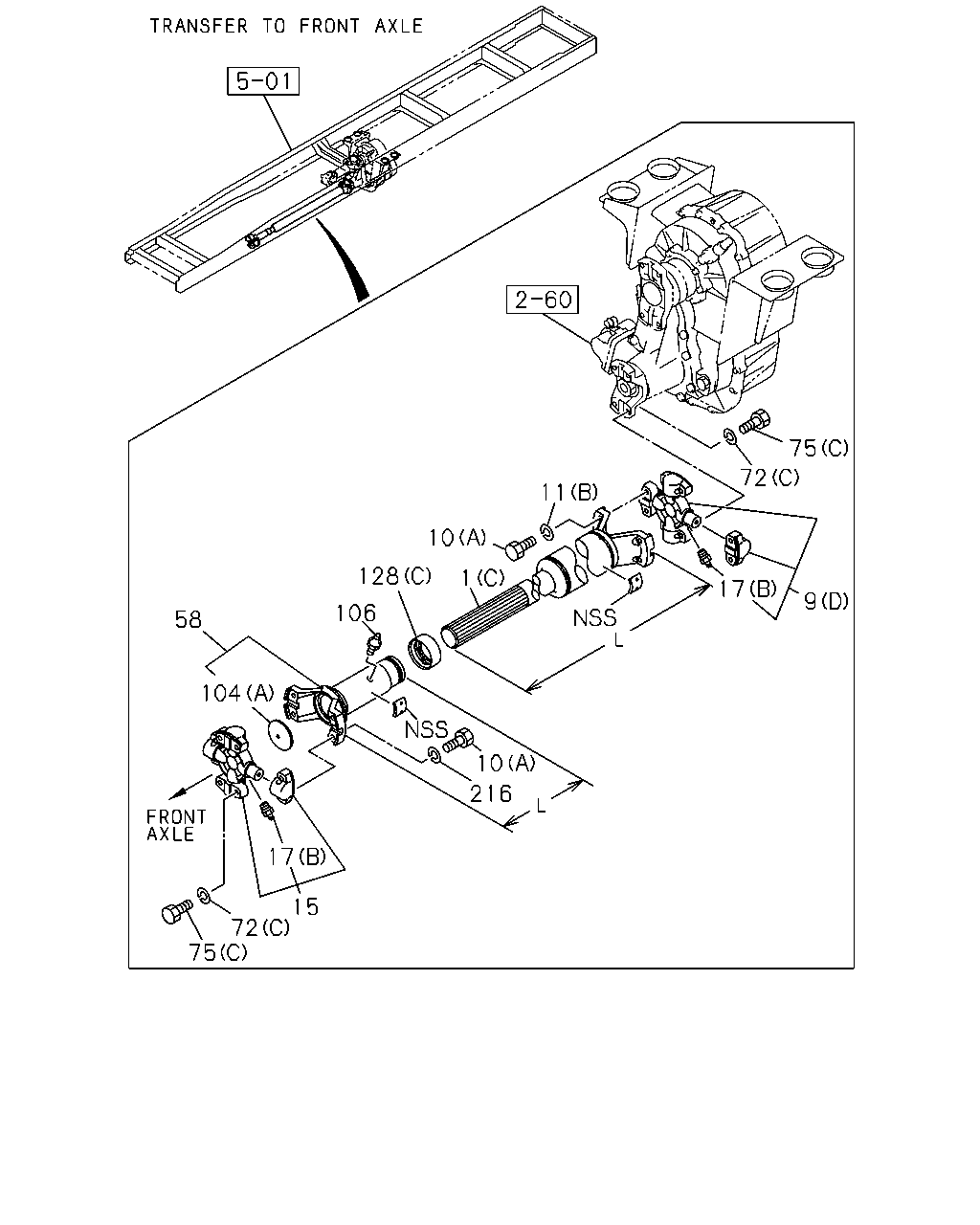

çizim 152826
75 72 17 15 104 58 106 10 216 1 128 10 11 17 9 72 75
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
MLD6Q M/T(X5J) (C) L=1432 		1-37124-317-0 01 1 0406- ●
1 SHAFT; PROP
MLD6Q M/T(X5J) (D) L=1041 		1-37124-183-1 01 1 0406- ●
1 SHAFT; PROP
MLD6Q M/T(X5J) (E) L=369 		1-37151-974-1 01 1 0406- ●
1 SHAFT; PROP
(B) L=516 		1-37124-034-1 01 1 9604- ●
1 SHAFT; PROP
(A) L=1527 		1-37124-073-1 01 1 9604-0004 ●
1 SHAFT; PROP
FTS MIDDLE CHASSIS(FT***F) (A) L=1527 		1-37124-073-1 01 1 9604-0004 ●
1 SHAFT; PROP
(A) L=1527 		1-37124-073-1 01 1 0005-0405 ● ●
1 SHAFT; PROP
(A) L=1527 		1-37124-073-1 01 1 0406- ●
1 SHAFT; PROP
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) L=1527 		1-37124-073-1 01 1 0406- ●
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 9604-0004 ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (A) L=1477 		1-37123-668-1 01 1 9604-0004 ●
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 0005- ●
1 SHAFT; PROP
(B) L=686 		1-37123-943-1 01 1 9604- ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (B) L=1191 		1-37123-463-1 01 1 9604-0004 ●
1 SHAFT; PROP
FTS MIDDLE CHASSIS(FT***F) (B) L=1136 		1-37123-631-1 01 1 9604-0004 ●
1 SHAFT; PROP
(B) L=1136 		1-37123-631-1 01 1 0005-0405 ●
1 SHAFT; PROP
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=1136 		1-37123-631-1 01 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) (E) 		8-98048-925-0 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
(E) 		8-98048-925-1 AR 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(E) 		8-98048-925-1 AR 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) (D) 		1-37300-106-1 01 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) (C) 		1-37300-059-1 01 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-069-0 AR 1 9604-9809 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-0 AR 1 9810-0405 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0406-1111 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0406-1111 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1112-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1112-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-089-0 AR 1 9604-9809 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 9810-0405 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107- ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		8-98020-789-1 02 1 1107- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-1 AR 1 0406-1106 ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		1-37300-103-1 AR 1 0406-1106 ●
10 BOLT; UJT
MLD6Q M/T(X5J) (A) UNF7/16X27 		9-09820-144-0 08 1 0406- ●
10 BOLT; UJT
MLD6Q M/T(X5J) (B) M12X75 		9-91061-275-0 04 1 0406- ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
MLD6Q M/T(X5J) (B) ID=11.4 		9-09850-072-0 04 1 0406- ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
MLD6Q M/T(X5J) (A) ID=12.2 		9-09150-612-0 04 1 0406-0603 ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
MLD6Q M/T(X5J) (A) ID=12.2 		0-91510-612-0 04 1 0604- ●
15 UNIVERSAL CENTER
MLD6Q M/T(X5J) 		1-37300-106-1 01 1 0406- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (B) 		9-09928-049-0 02 1 0406- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (C) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (C) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (A) PT1/8 ELBOW 		9-09031-210-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (A) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 9604-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ●
58 FLANGE; SPLINED
MLD6Q M/T(X5J) 		1-37245-314-0 01 1 0406- ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 08 1 0404-0405 ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 08 1 0406-0603 ● ●
72 WASHER; LK,YOKE
6HH1 STD ENG(65L) (B) ID=14.2 		9-09150-614-0 08 1 0406-0603 ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 08 1 0604- ● ●
72 WASHER; LK,YOKE
6HH1 STD ENG(65L) (B) ID=14.2 		0-91510-614-0 08 1 0604- ●
72 WASHER; LK,YOKE
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HK1 TCC ENG(81L) (C) ID=11.4 		9-09850-072-0 04 1 0406- ●
72 WASHER; LK,YOKE
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6Q M/T(X5J) (C) ID=11.4 		9-09850-072-0 04 1 0406- ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 08 1 9604-0004 ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0603 ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0603 ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 04 1 0604- ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 04 1 0604- ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 12 1 9604-0403 ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 04 1 0404-0603 ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 0604- ● ● ●
75 BOLT; PROP SHAFT TO TRANS
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HK1 TCC ENG(81L) (C) UNF7/16X27 		9-09820-144-0 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6Q M/T(X5J) (C) UNF7/16X27 		9-09820-144-0 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
6HK1 TCC ENG(81L) (D) M12X75 		9-91061-275-0 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 08 1 9604-0004 ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005-0405 ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005-0405 ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0406- ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
6HH1 STD ENG(65L),6HH1 N ENG(66L) (A) M12X32 		1-09000-076-1 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HH1 STD ENG(65L) (A) M12X32 		1-09000-076-1 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) M12X32 		1-09000-076-1 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 9604-0405 ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 0406- ● ●
75 BOLT; PROP SHAFT TO TRANS
6HH1 STD ENG(65L) (B) M14X37 		1-09000-121-0 08 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
(C) M14X40 		1-09000-187-0 04 1 9604-9807 ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 9604-0405 ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 0406- ● ●
104 PLUG; SLEEVE YOKE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		1-09600-014-0 01 1 0406- ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 02 1 9604-0004 ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0005- ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0005- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9604-0004 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS MIDDLE CHASSIS(FT***F) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS MIDDLE CHASSIS(FT***F) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0405 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0405 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0405 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HK1 TCC ENG(81L) MLD6Q M/T(X5J) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HK1 TCC ENG(81L) MLD6Q M/T(X5J) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
128 SEAL; SLEEVE
MLD6Q M/T(X5J) (C) 		1-37247-002-1 01 1 0406- ●
128 SEAL; SLEEVE
MLD6Q M/T(X5J) (D) 		1-37247-015-0 01 1 0406-1111 ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 9604-0405 ● ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 0406- ● ●
128 SEAL; SLEEVE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		1-37247-001-1 01 1 0406- ●
128 SEAL; SLEEVE
(A) 		1-37247-015-0 02 1 9604-9809 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 02 1 9810-0004 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0005-0405 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0005-0405 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0406-1111 ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0406-1111 ● ●
128 SEAL; SLEEVE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37247-024-0 01 1 0406-1111 ●
128 SEAL; SLEEVE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37247-024-0 01 1 0406-1111 ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1112- ● ● ●
216 WASHER; LK,UJT
MLD6Q M/T(X5J) ID=11.4 		9-09850-072-0 04 1 0406- ●

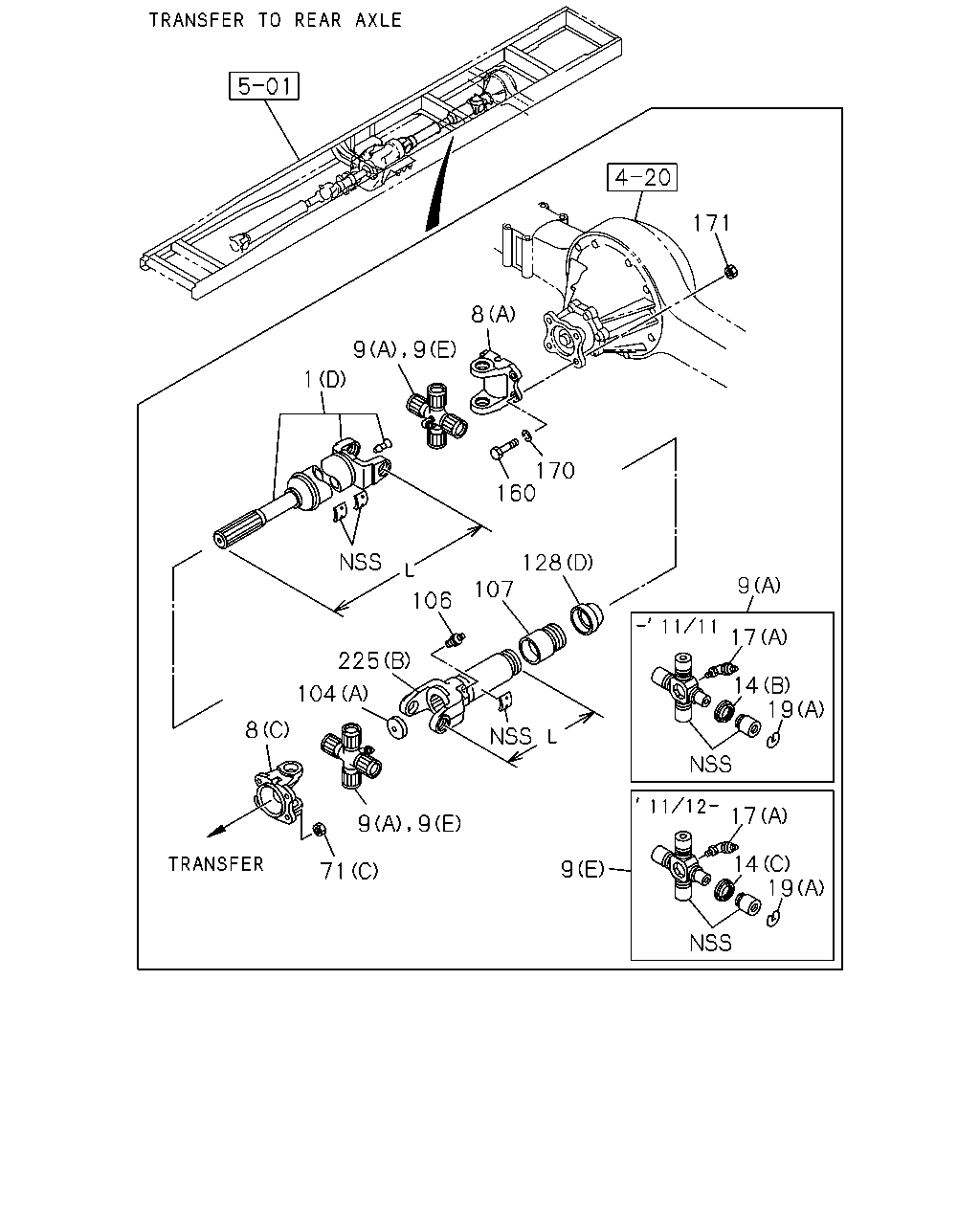

çizim 152829
19 14 17 9 71 9 9 8 104 225 106 107 128 160 170 1 9 9 8 9 17 14 19 171
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
MLD6Q M/T(X5J) (C) L=1432 		1-37124-317-0 01 1 0406- ●
1 SHAFT; PROP
MLD6Q M/T(X5J) (D) L=1041 		1-37124-183-1 01 1 0406- ●
1 SHAFT; PROP
MLD6Q M/T(X5J) (E) L=369 		1-37151-974-1 01 1 0406- ●
1 SHAFT; PROP
(B) L=516 		1-37124-034-1 01 1 9604- ●
1 SHAFT; PROP
(A) L=1527 		1-37124-073-1 01 1 9604-0004 ●
1 SHAFT; PROP
FTS MIDDLE CHASSIS(FT***F) (A) L=1527 		1-37124-073-1 01 1 9604-0004 ●
1 SHAFT; PROP
(A) L=1527 		1-37124-073-1 01 1 0005-0405 ● ●
1 SHAFT; PROP
(A) L=1527 		1-37124-073-1 01 1 0406- ●
1 SHAFT; PROP
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) L=1527 		1-37124-073-1 01 1 0406- ●
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 9604-0004 ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (A) L=1477 		1-37123-668-1 01 1 9604-0004 ●
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 0005- ●
1 SHAFT; PROP
(B) L=686 		1-37123-943-1 01 1 9604- ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (B) L=1191 		1-37123-463-1 01 1 9604-0004 ●
1 SHAFT; PROP
FTS MIDDLE CHASSIS(FT***F) (B) L=1136 		1-37123-631-1 01 1 9604-0004 ●
1 SHAFT; PROP
(B) L=1136 		1-37123-631-1 01 1 0005-0405 ●
1 SHAFT; PROP
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=1136 		1-37123-631-1 01 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
MLD6Q M/T(X5J) (C) 		1-37211-054-1 01 1 0406-1111 ●
8 YOKE; FLANGE,PROP SHAFT
MLD6Q M/T(X5J) (C) 		8-98178-052-0 01 1 1112- ●
8 YOKE; FLANGE,PROP SHAFT
MLD6Q M/T(X5J) (A) 		1-37211-056-3 01 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
MLD6Q M/T(X5J) (A) 		1-37211-056-3 01 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 9604-0405 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 0406- ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) D=80 		1-37211-037-4 02 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 04 1 9604-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0005-0405 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0005-0405 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0406- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0406- ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37211-056-3 02 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37211-056-3 02 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) (E) 		8-98048-925-0 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
(E) 		8-98048-925-1 AR 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(E) 		8-98048-925-1 AR 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) (D) 		1-37300-106-1 01 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) (C) 		1-37300-059-1 01 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-069-0 AR 1 9604-9809 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-0 AR 1 9810-0405 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0406-1111 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0406-1111 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1112-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1112-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-089-0 AR 1 9604-9809 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 9810-0405 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107- ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		8-98020-789-1 02 1 1107- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-1 AR 1 0406-1106 ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		1-37300-103-1 AR 1 0406-1106 ●
14 COVER; DUST,SPIDER
MLD6Q M/T(X5J) (C) 		8-98020-800-0 08 1 1112-1505 ●
14 COVER; DUST,SPIDER
MLD6Q M/T(X5J) (C) 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
MLD6Q M/T(X5J) (B) 		1-37319-012-0 AR 1 0406-1505 ●
14 COVER; DUST,SPIDER
(A) 		1-37319-006-0 AR 1 9604-9809 ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-011-0 AR 1 9810-0405 ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-011-0 AR 1 0406-1106 ● ●
14 COVER; DUST,SPIDER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37319-011-0 AR 1 0406-1106 ●
14 COVER; DUST,SPIDER
(A) 		8-98020-791-0 08 1 1107- ● ●
14 COVER; DUST,SPIDER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		8-98020-791-0 08 1 1107- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-012-0 AR 1 9810-1111 ● ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-012-0 08 1 1112-1505 ● ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506- ● ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506- ● ●
14 COVER; DUST,SPIDER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (C) 		8-98020-800-0 08 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (B) 		9-09928-049-0 02 1 0406- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (C) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (C) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (A) PT1/8 ELBOW 		9-09031-210-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (A) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 9604-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6Q M/T(X5J) (A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6Q M/T(X5J) (A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6Q M/T(X5J) (A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 AR 1 9604-0405 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 AR 1 0406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) T=1.95 		1-09587-014-0 AR 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 AR 1 9604-0405 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 AR 1 0406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) T=2.00 		1-09587-015-2 AR 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 AR 1 9604-0405 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 AR 1 0406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) T=2.05 		1-09587-016-1 AR 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9604- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9604- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9604- ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 08 1 0404-0405 ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 08 1 0406-0512 ● ●
71 NUT; YOKE
6HH1 STD ENG(65L) (B) M14 		9-99110-514-0 08 1 0406-0512 ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 08 1 0601- ● ●
71 NUT; YOKE
6HH1 STD ENG(65L) (B) M14 		0-91110-514-0 08 1 0601- ●
71 NUT; YOKE
6HK1 TCC ENG(81L) (C) M16 FLANGE 		1-09449-065-0 04 1 0406- ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 08 1 9604-0004 ● ● ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 04 1 0005-0512 ● ● ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 04 1 0005-0512 ● ● ●
71 NUT; YOKE
(A) M12 		0-91110-512-0 04 1 0601- ● ● ●
71 NUT; YOKE
(A) M12 		0-91110-512-0 04 1 0601- ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 12 1 9604-0403 ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 04 1 0404-0512 ● ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 0601- ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 9604-0405 ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 0406- ● ●
104 PLUG; SLEEVE YOKE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		1-09600-014-0 01 1 0406- ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 02 1 9604-0004 ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0005- ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0005- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9604-0004 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS MIDDLE CHASSIS(FT***F) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS MIDDLE CHASSIS(FT***F) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0405 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0405 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0405 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HK1 TCC ENG(81L) MLD6Q M/T(X5J) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HK1 TCC ENG(81L) MLD6Q M/T(X5J) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
107 COVER; RET,SLEEVE 1-37249-060-0 01 1 9604-0004 ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-0 01 1 9604-0004 ●
107 COVER; RET,SLEEVE
FTS MIDDLE CHASSIS(FT***F) MBJ5J M/T(Y1Y) 		1-37249-060-0 01 1 9604-0004 ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0005-0405 ● ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0005-0405 ●
107 COVER; RET,SLEEVE
FTS STD CAB MIDDLE CHASSIS(FT**MF) MBJ5J M/T(Y1Y) 		1-37249-060-1 01 1 0005-0405 ●
107 COVER; RET,SLEEVE
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) 		1-37249-060-1 01 1 0005-0405 ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0406- ● ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0406- ●
107 COVER; RET,SLEEVE
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HK1 TCC ENG(81L) MLD6Q M/T(X5J) 		1-37249-060-1 01 1 0406- ●
107 COVER; RET,SLEEVE
FTS STD CAB MIDDLE CHASSIS(FT**MF) MBJ5J M/T(Y1Y) 		1-37249-060-1 01 1 0406- ●
107 COVER; RET,SLEEVE
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) 		1-37249-060-1 01 1 0406- ●
128 SEAL; SLEEVE
MLD6Q M/T(X5J) (C) 		1-37247-002-1 01 1 0406- ●
128 SEAL; SLEEVE
MLD6Q M/T(X5J) (D) 		1-37247-015-0 01 1 0406-1111 ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 9604-0405 ● ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 0406- ● ●
128 SEAL; SLEEVE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		1-37247-001-1 01 1 0406- ●
128 SEAL; SLEEVE
(A) 		1-37247-015-0 02 1 9604-9809 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 02 1 9810-0004 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0005-0405 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0005-0405 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0406-1111 ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0406-1111 ● ●
128 SEAL; SLEEVE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37247-024-0 01 1 0406-1111 ●
128 SEAL; SLEEVE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37247-024-0 01 1 0406-1111 ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1112- ● ● ●
160 BOLT; PROP SHAFT TO RR AXLE
M14X37 		1-09000-121-0 04 1 9604- ● ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=14.2 		9-09150-614-0 04 1 9604-0603 ● ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=14.2 		0-91510-614-0 04 1 0604- ● ● ●
171 NUT; YOKE,SLEEVE
M14 		9-99110-514-0 04 1 9604-0512 ● ● ●
171 NUT; YOKE,SLEEVE
M14 		0-91110-514-0 04 1 0601- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=228 		1-37241-098-2 01 1 9604-0405 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=228 		1-37241-098-2 01 1 0406- ● ●
225 YOKE; SLEEVE,PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) L=228 		1-37241-098-2 01 1 0406- ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-1 01 1 9604-9809 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-1 01 1 9604-9809 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS MIDDLE CHASSIS(FT***F) MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-1 01 1 9604-9809 ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 9810-9902 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS MIDDLE CHASSIS(FT***F) MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-2 01 1 9810-9902 ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 9903-0004 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 9903-0004 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS MIDDLE CHASSIS(FT***F) MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-2 01 1 9903-0004 ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 0005-0405 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 0005-0405 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-2 01 1 0005-0405 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-2 01 1 0005-0405 ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 0406- ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 0406- ●
225 YOKE; SLEEVE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HK1 TCC ENG(81L) MLD6Q M/T(X5J) (B) L=271 		1-37241-099-2 01 1 0406- ●
225 YOKE; SLEEVE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-2 01 1 0406- ●
225 YOKE; SLEEVE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-2 01 1 0406- ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=271 		1-37241-129-0 01 1 9810-9902 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(D) L=229 		1-37241-086-2 01 1 9604-0004 ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (D) L=229 		1-37241-086-2 01 1 9604-0004 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS MIDDLE CHASSIS(FT***F) MLD6D M/T(X5Q) (D) L=229 		1-37241-086-2 01 1 9604-0004 ●
225 YOKE; SLEEVE,PROP SHAFT
(D) L=229 		1-37241-086-2 01 1 0005- ●
225 YOKE; SLEEVE,PROP SHAFT
MLD6D M/T(X5Q) (D) L=229 		1-37241-086-2 01 1 0005- ●

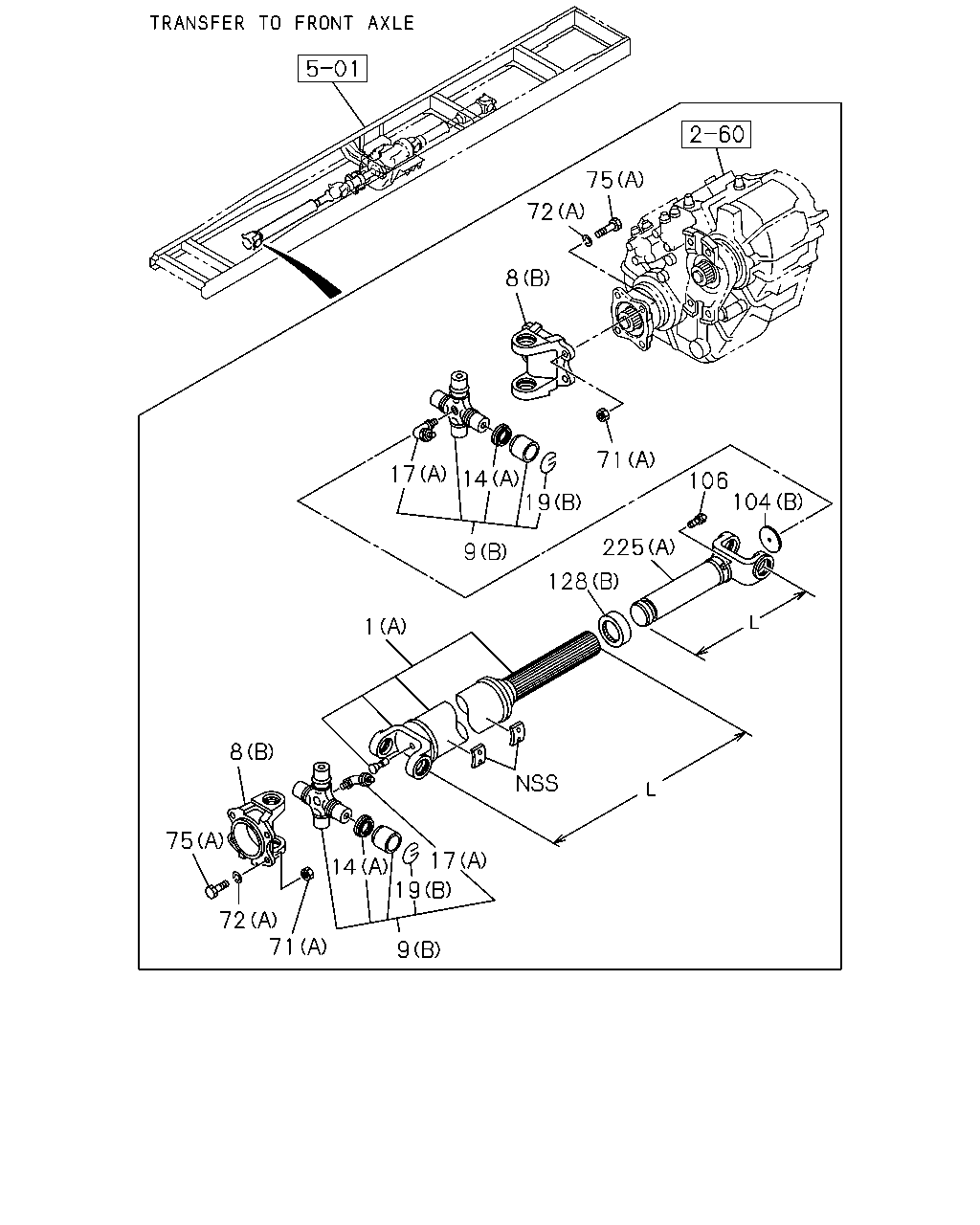

çizim 152840
75 72 8 71 17 14 19 106 104 225 9 128 1 8 75 17 14 19 72 71 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
MLD6Q M/T(X5J) (C) L=1432 		1-37124-317-0 01 1 0406- ●
1 SHAFT; PROP
MLD6Q M/T(X5J) (D) L=1041 		1-37124-183-1 01 1 0406- ●
1 SHAFT; PROP
MLD6Q M/T(X5J) (E) L=369 		1-37151-974-1 01 1 0406- ●
1 SHAFT; PROP
(B) L=516 		1-37124-034-1 01 1 9604- ●
1 SHAFT; PROP
(A) L=1527 		1-37124-073-1 01 1 9604-0004 ●
1 SHAFT; PROP
FTS MIDDLE CHASSIS(FT***F) (A) L=1527 		1-37124-073-1 01 1 9604-0004 ●
1 SHAFT; PROP
(A) L=1527 		1-37124-073-1 01 1 0005-0405 ● ●
1 SHAFT; PROP
(A) L=1527 		1-37124-073-1 01 1 0406- ●
1 SHAFT; PROP
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) L=1527 		1-37124-073-1 01 1 0406- ●
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 9604-0004 ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (A) L=1477 		1-37123-668-1 01 1 9604-0004 ●
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 0005- ●
1 SHAFT; PROP
(B) L=686 		1-37123-943-1 01 1 9604- ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (B) L=1191 		1-37123-463-1 01 1 9604-0004 ●
1 SHAFT; PROP
FTS MIDDLE CHASSIS(FT***F) (B) L=1136 		1-37123-631-1 01 1 9604-0004 ●
1 SHAFT; PROP
(B) L=1136 		1-37123-631-1 01 1 0005-0405 ●
1 SHAFT; PROP
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=1136 		1-37123-631-1 01 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
MLD6Q M/T(X5J) (C) 		1-37211-054-1 01 1 0406-1111 ●
8 YOKE; FLANGE,PROP SHAFT
MLD6Q M/T(X5J) (C) 		8-98178-052-0 01 1 1112- ●
8 YOKE; FLANGE,PROP SHAFT
MLD6Q M/T(X5J) (A) 		1-37211-056-3 01 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
MLD6Q M/T(X5J) (A) 		1-37211-056-3 01 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 9604-0405 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 0406- ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) D=80 		1-37211-037-4 02 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 04 1 9604-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0005-0405 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0005-0405 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0406- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0406- ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37211-056-3 02 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37211-056-3 02 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) (E) 		8-98048-925-0 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
(E) 		8-98048-925-1 AR 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(E) 		8-98048-925-1 AR 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) (D) 		1-37300-106-1 01 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) (C) 		1-37300-059-1 01 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-069-0 AR 1 9604-9809 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-0 AR 1 9810-0405 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0406-1111 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0406-1111 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1112-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1112-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-089-0 AR 1 9604-9809 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 9810-0405 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107- ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		8-98020-789-1 02 1 1107- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-1 AR 1 0406-1106 ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		1-37300-103-1 AR 1 0406-1106 ●
14 COVER; DUST,SPIDER
MLD6Q M/T(X5J) (C) 		8-98020-800-0 08 1 1112-1505 ●
14 COVER; DUST,SPIDER
MLD6Q M/T(X5J) (C) 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
MLD6Q M/T(X5J) (B) 		1-37319-012-0 AR 1 0406-1505 ●
14 COVER; DUST,SPIDER
(A) 		1-37319-006-0 AR 1 9604-9809 ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-011-0 AR 1 9810-0405 ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-011-0 AR 1 0406-1106 ● ●
14 COVER; DUST,SPIDER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37319-011-0 AR 1 0406-1106 ●
14 COVER; DUST,SPIDER
(A) 		8-98020-791-0 08 1 1107- ● ●
14 COVER; DUST,SPIDER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		8-98020-791-0 08 1 1107- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-012-0 AR 1 9810-1111 ● ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-012-0 08 1 1112-1505 ● ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506- ● ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506- ● ●
14 COVER; DUST,SPIDER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (C) 		8-98020-800-0 08 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (B) 		9-09928-049-0 02 1 0406- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (C) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (C) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (A) PT1/8 ELBOW 		9-09031-210-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (A) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 9604-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6Q M/T(X5J) (A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6Q M/T(X5J) (A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6Q M/T(X5J) (A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 AR 1 9604-0405 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 AR 1 0406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) T=1.95 		1-09587-014-0 AR 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 AR 1 9604-0405 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 AR 1 0406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) T=2.00 		1-09587-015-2 AR 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 AR 1 9604-0405 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 AR 1 0406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) T=2.05 		1-09587-016-1 AR 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9604- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9604- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9604- ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 08 1 0404-0405 ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 08 1 0406-0512 ● ●
71 NUT; YOKE
6HH1 STD ENG(65L) (B) M14 		9-99110-514-0 08 1 0406-0512 ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 08 1 0601- ● ●
71 NUT; YOKE
6HH1 STD ENG(65L) (B) M14 		0-91110-514-0 08 1 0601- ●
71 NUT; YOKE
6HK1 TCC ENG(81L) (C) M16 FLANGE 		1-09449-065-0 04 1 0406- ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 08 1 9604-0004 ● ● ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 04 1 0005-0512 ● ● ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 04 1 0005-0512 ● ● ●
71 NUT; YOKE
(A) M12 		0-91110-512-0 04 1 0601- ● ● ●
71 NUT; YOKE
(A) M12 		0-91110-512-0 04 1 0601- ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 12 1 9604-0403 ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 04 1 0404-0512 ● ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 0601- ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 08 1 0404-0405 ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 08 1 0406-0603 ● ●
72 WASHER; LK,YOKE
6HH1 STD ENG(65L) (B) ID=14.2 		9-09150-614-0 08 1 0406-0603 ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 08 1 0604- ● ●
72 WASHER; LK,YOKE
6HH1 STD ENG(65L) (B) ID=14.2 		0-91510-614-0 08 1 0604- ●
72 WASHER; LK,YOKE
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HK1 TCC ENG(81L) (C) ID=11.4 		9-09850-072-0 04 1 0406- ●
72 WASHER; LK,YOKE
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6Q M/T(X5J) (C) ID=11.4 		9-09850-072-0 04 1 0406- ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 08 1 9604-0004 ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0603 ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0603 ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 04 1 0604- ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 04 1 0604- ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 12 1 9604-0403 ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 04 1 0404-0603 ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 0604- ● ● ●
75 BOLT; PROP SHAFT TO TRANS
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HK1 TCC ENG(81L) (C) UNF7/16X27 		9-09820-144-0 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6Q M/T(X5J) (C) UNF7/16X27 		9-09820-144-0 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
6HK1 TCC ENG(81L) (D) M12X75 		9-91061-275-0 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 08 1 9604-0004 ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005-0405 ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005-0405 ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0406- ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
6HH1 STD ENG(65L),6HH1 N ENG(66L) (A) M12X32 		1-09000-076-1 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HH1 STD ENG(65L) (A) M12X32 		1-09000-076-1 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) M12X32 		1-09000-076-1 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 9604-0405 ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 0406- ● ●
75 BOLT; PROP SHAFT TO TRANS
6HH1 STD ENG(65L) (B) M14X37 		1-09000-121-0 08 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
(C) M14X40 		1-09000-187-0 04 1 9604-9807 ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 9604-0405 ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 0406- ● ●
104 PLUG; SLEEVE YOKE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		1-09600-014-0 01 1 0406- ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 02 1 9604-0004 ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0005- ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0005- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9604-0004 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS MIDDLE CHASSIS(FT***F) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS MIDDLE CHASSIS(FT***F) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0405 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0405 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0405 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HK1 TCC ENG(81L) MLD6Q M/T(X5J) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HK1 TCC ENG(81L) MLD6Q M/T(X5J) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
128 SEAL; SLEEVE
MLD6Q M/T(X5J) (C) 		1-37247-002-1 01 1 0406- ●
128 SEAL; SLEEVE
MLD6Q M/T(X5J) (D) 		1-37247-015-0 01 1 0406-1111 ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 9604-0405 ● ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 0406- ● ●
128 SEAL; SLEEVE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		1-37247-001-1 01 1 0406- ●
128 SEAL; SLEEVE
(A) 		1-37247-015-0 02 1 9604-9809 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 02 1 9810-0004 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0005-0405 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0005-0405 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0406-1111 ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0406-1111 ● ●
128 SEAL; SLEEVE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37247-024-0 01 1 0406-1111 ●
128 SEAL; SLEEVE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37247-024-0 01 1 0406-1111 ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1112- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=228 		1-37241-098-2 01 1 9604-0405 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=228 		1-37241-098-2 01 1 0406- ● ●
225 YOKE; SLEEVE,PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) L=228 		1-37241-098-2 01 1 0406- ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-1 01 1 9604-9809 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-1 01 1 9604-9809 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS MIDDLE CHASSIS(FT***F) MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-1 01 1 9604-9809 ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 9810-9902 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS MIDDLE CHASSIS(FT***F) MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-2 01 1 9810-9902 ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 9903-0004 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 9903-0004 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS MIDDLE CHASSIS(FT***F) MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-2 01 1 9903-0004 ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 0005-0405 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 0005-0405 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-2 01 1 0005-0405 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-2 01 1 0005-0405 ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 0406- ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 0406- ●
225 YOKE; SLEEVE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HK1 TCC ENG(81L) MLD6Q M/T(X5J) (B) L=271 		1-37241-099-2 01 1 0406- ●
225 YOKE; SLEEVE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-2 01 1 0406- ●
225 YOKE; SLEEVE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-2 01 1 0406- ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=271 		1-37241-129-0 01 1 9810-9902 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(D) L=229 		1-37241-086-2 01 1 9604-0004 ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (D) L=229 		1-37241-086-2 01 1 9604-0004 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS MIDDLE CHASSIS(FT***F) MLD6D M/T(X5Q) (D) L=229 		1-37241-086-2 01 1 9604-0004 ●
225 YOKE; SLEEVE,PROP SHAFT
(D) L=229 		1-37241-086-2 01 1 0005- ●
225 YOKE; SLEEVE,PROP SHAFT
MLD6D M/T(X5Q) (D) L=229 		1-37241-086-2 01 1 0005- ●
çizim 152843
5 9 9 8 75 72 9 17 14 19 17 14 19 107 106 104 8 128 71 225 225 9 9 9 71 72 75
BalonParca AdiParca NoAdetTipApplied Date A B C
5 YOKE; STUB,PROP SHAFT
L=387 		1-37171-086-1 01 1 9604-0004 ●
5 YOKE; STUB,PROP SHAFT
FTS MIDDLE CHASSIS(FT***F) MBJ5J M/T(Y1Y) L=387 		1-37171-086-1 01 1 9604-0004 ●
5 YOKE; STUB,PROP SHAFT
L=387 		1-37171-086-1 01 1 0005- ●
5 YOKE; STUB,PROP SHAFT
MBJ5J M/T(Y1Y) L=387 		1-37171-086-1 01 1 0005- ●
5 YOKE; STUB,PROP SHAFT
L=302 		1-37171-092-1 01 1 9604-0004 ●
5 YOKE; STUB,PROP SHAFT
FSS DOUBLE CAB(FS**W*) L=302 		1-37171-092-1 01 1 9604-0004 ●
5 YOKE; STUB,PROP SHAFT
FTS MIDDLE CHASSIS(FT***F) MLD6D M/T(X5Q) L=302 		1-37171-092-1 01 1 9604-0004 ●
5 YOKE; STUB,PROP SHAFT
L=302 		1-37171-092-1 01 1 0005- ●
5 YOKE; STUB,PROP SHAFT
MLD6D M/T(X5Q) L=302 		1-37171-092-1 01 1 0005- ●
8 YOKE; FLANGE,PROP SHAFT
MLD6Q M/T(X5J) (C) 		1-37211-054-1 01 1 0406-1111 ●
8 YOKE; FLANGE,PROP SHAFT
MLD6Q M/T(X5J) (C) 		8-98178-052-0 01 1 1112- ●
8 YOKE; FLANGE,PROP SHAFT
MLD6Q M/T(X5J) (A) 		1-37211-056-3 01 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
MLD6Q M/T(X5J) (A) 		1-37211-056-3 01 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 9604-0405 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 0406- ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) D=80 		1-37211-037-4 02 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 04 1 9604-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0005-0405 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0005-0405 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0406- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0406- ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37211-056-3 02 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37211-056-3 02 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) (E) 		8-98048-925-0 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
(E) 		8-98048-925-1 AR 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(E) 		8-98048-925-1 AR 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) (D) 		1-37300-106-1 01 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) (C) 		1-37300-059-1 01 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-069-0 AR 1 9604-9809 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-0 AR 1 9810-0405 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0406-1111 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0406-1111 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1112-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1112-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-089-0 AR 1 9604-9809 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 9810-0405 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107- ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		8-98020-789-1 02 1 1107- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-1 AR 1 0406-1106 ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		1-37300-103-1 AR 1 0406-1106 ●
14 COVER; DUST,SPIDER
MLD6Q M/T(X5J) (C) 		8-98020-800-0 08 1 1112-1505 ●
14 COVER; DUST,SPIDER
MLD6Q M/T(X5J) (C) 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
MLD6Q M/T(X5J) (B) 		1-37319-012-0 AR 1 0406-1505 ●
14 COVER; DUST,SPIDER
(A) 		1-37319-006-0 AR 1 9604-9809 ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-011-0 AR 1 9810-0405 ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-011-0 AR 1 0406-1106 ● ●
14 COVER; DUST,SPIDER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37319-011-0 AR 1 0406-1106 ●
14 COVER; DUST,SPIDER
(A) 		8-98020-791-0 08 1 1107- ● ●
14 COVER; DUST,SPIDER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		8-98020-791-0 08 1 1107- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-012-0 AR 1 9810-1111 ● ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-012-0 08 1 1112-1505 ● ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506- ● ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506- ● ●
14 COVER; DUST,SPIDER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (C) 		8-98020-800-0 08 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (B) 		9-09928-049-0 02 1 0406- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (C) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (C) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (A) PT1/8 ELBOW 		9-09031-210-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (A) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 9604-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6Q M/T(X5J) (A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6Q M/T(X5J) (A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6Q M/T(X5J) (A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 AR 1 9604-0405 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 AR 1 0406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) T=1.95 		1-09587-014-0 AR 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 AR 1 9604-0405 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 AR 1 0406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) T=2.00 		1-09587-015-2 AR 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 AR 1 9604-0405 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 AR 1 0406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) T=2.05 		1-09587-016-1 AR 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9604- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9604- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9604- ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 08 1 0404-0405 ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 08 1 0406-0512 ● ●
71 NUT; YOKE
6HH1 STD ENG(65L) (B) M14 		9-99110-514-0 08 1 0406-0512 ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 08 1 0601- ● ●
71 NUT; YOKE
6HH1 STD ENG(65L) (B) M14 		0-91110-514-0 08 1 0601- ●
71 NUT; YOKE
6HK1 TCC ENG(81L) (C) M16 FLANGE 		1-09449-065-0 04 1 0406- ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 08 1 9604-0004 ● ● ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 04 1 0005-0512 ● ● ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 04 1 0005-0512 ● ● ●
71 NUT; YOKE
(A) M12 		0-91110-512-0 04 1 0601- ● ● ●
71 NUT; YOKE
(A) M12 		0-91110-512-0 04 1 0601- ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 12 1 9604-0403 ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 04 1 0404-0512 ● ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 0601- ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 08 1 0404-0405 ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 08 1 0406-0603 ● ●
72 WASHER; LK,YOKE
6HH1 STD ENG(65L) (B) ID=14.2 		9-09150-614-0 08 1 0406-0603 ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 08 1 0604- ● ●
72 WASHER; LK,YOKE
6HH1 STD ENG(65L) (B) ID=14.2 		0-91510-614-0 08 1 0604- ●
72 WASHER; LK,YOKE
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HK1 TCC ENG(81L) (C) ID=11.4 		9-09850-072-0 04 1 0406- ●
72 WASHER; LK,YOKE
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6Q M/T(X5J) (C) ID=11.4 		9-09850-072-0 04 1 0406- ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 08 1 9604-0004 ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0603 ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0603 ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 04 1 0604- ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 04 1 0604- ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 12 1 9604-0403 ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 04 1 0404-0603 ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 0604- ● ● ●
75 BOLT; PROP SHAFT TO TRANS
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HK1 TCC ENG(81L) (C) UNF7/16X27 		9-09820-144-0 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6Q M/T(X5J) (C) UNF7/16X27 		9-09820-144-0 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
6HK1 TCC ENG(81L) (D) M12X75 		9-91061-275-0 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 08 1 9604-0004 ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005-0405 ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005-0405 ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0406- ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
6HH1 STD ENG(65L),6HH1 N ENG(66L) (A) M12X32 		1-09000-076-1 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HH1 STD ENG(65L) (A) M12X32 		1-09000-076-1 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) M12X32 		1-09000-076-1 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 9604-0405 ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 0406- ● ●
75 BOLT; PROP SHAFT TO TRANS
6HH1 STD ENG(65L) (B) M14X37 		1-09000-121-0 08 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
(C) M14X40 		1-09000-187-0 04 1 9604-9807 ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 9604-0405 ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 0406- ● ●
104 PLUG; SLEEVE YOKE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		1-09600-014-0 01 1 0406- ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 02 1 9604-0004 ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0005- ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 0005- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9604-0004 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS MIDDLE CHASSIS(FT***F) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS MIDDLE CHASSIS(FT***F) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9604-0004 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0405 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0405 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0405 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HK1 TCC ENG(81L) MLD6Q M/T(X5J) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HK1 TCC ENG(81L) MLD6Q M/T(X5J) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
107 COVER; RET,SLEEVE 1-37249-060-0 01 1 9604-0004 ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-0 01 1 9604-0004 ●
107 COVER; RET,SLEEVE
FTS MIDDLE CHASSIS(FT***F) MBJ5J M/T(Y1Y) 		1-37249-060-0 01 1 9604-0004 ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0005-0405 ● ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0005-0405 ●
107 COVER; RET,SLEEVE
FTS STD CAB MIDDLE CHASSIS(FT**MF) MBJ5J M/T(Y1Y) 		1-37249-060-1 01 1 0005-0405 ●
107 COVER; RET,SLEEVE
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) 		1-37249-060-1 01 1 0005-0405 ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0406- ● ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0406- ●
107 COVER; RET,SLEEVE
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HK1 TCC ENG(81L) MLD6Q M/T(X5J) 		1-37249-060-1 01 1 0406- ●
107 COVER; RET,SLEEVE
FTS STD CAB MIDDLE CHASSIS(FT**MF) MBJ5J M/T(Y1Y) 		1-37249-060-1 01 1 0406- ●
107 COVER; RET,SLEEVE
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) 		1-37249-060-1 01 1 0406- ●
128 SEAL; SLEEVE
MLD6Q M/T(X5J) (C) 		1-37247-002-1 01 1 0406- ●
128 SEAL; SLEEVE
MLD6Q M/T(X5J) (D) 		1-37247-015-0 01 1 0406-1111 ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 9604-0405 ● ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 0406- ● ●
128 SEAL; SLEEVE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		1-37247-001-1 01 1 0406- ●
128 SEAL; SLEEVE
(A) 		1-37247-015-0 02 1 9604-9809 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 02 1 9810-0004 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0005-0405 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0005-0405 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0406-1111 ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 0406-1111 ● ●
128 SEAL; SLEEVE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37247-024-0 01 1 0406-1111 ●
128 SEAL; SLEEVE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37247-024-0 01 1 0406-1111 ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1112- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=228 		1-37241-098-2 01 1 9604-0405 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=228 		1-37241-098-2 01 1 0406- ● ●
225 YOKE; SLEEVE,PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) L=228 		1-37241-098-2 01 1 0406- ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-1 01 1 9604-9809 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-1 01 1 9604-9809 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS MIDDLE CHASSIS(FT***F) MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-1 01 1 9604-9809 ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 9810-9902 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS MIDDLE CHASSIS(FT***F) MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-2 01 1 9810-9902 ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 9903-0004 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 9903-0004 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS MIDDLE CHASSIS(FT***F) MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-2 01 1 9903-0004 ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 0005-0405 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 0005-0405 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-2 01 1 0005-0405 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-2 01 1 0005-0405 ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 0406- ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=271 		1-37241-099-2 01 1 0406- ●
225 YOKE; SLEEVE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HK1 TCC ENG(81L) MLD6Q M/T(X5J) (B) L=271 		1-37241-099-2 01 1 0406- ●
225 YOKE; SLEEVE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-2 01 1 0406- ●
225 YOKE; SLEEVE,PROP SHAFT
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=271 		1-37241-099-2 01 1 0406- ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=271 		1-37241-129-0 01 1 9810-9902 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(D) L=229 		1-37241-086-2 01 1 9604-0004 ●
225 YOKE; SLEEVE,PROP SHAFT
FSS DOUBLE CAB(FS**W*) (D) L=229 		1-37241-086-2 01 1 9604-0004 ●
225 YOKE; SLEEVE,PROP SHAFT
FTS MIDDLE CHASSIS(FT***F) MLD6D M/T(X5Q) (D) L=229 		1-37241-086-2 01 1 9604-0004 ●
225 YOKE; SLEEVE,PROP SHAFT
(D) L=229 		1-37241-086-2 01 1 0005- ●
225 YOKE; SLEEVE,PROP SHAFT
MLD6D M/T(X5Q) (D) L=229 		1-37241-086-2 01 1 0005- ●
çizim 152847
19 14 17 19 14 17 72 9 9 9 17 75 10 72 71 11 177 1 9 9 71 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
MLD6Q M/T(X5J) (C) L=1432 		1-37124-317-0 01 1 0406- ●
1 SHAFT; PROP
MLD6Q M/T(X5J) (D) L=1041 		1-37124-183-1 01 1 0406- ●
1 SHAFT; PROP
MLD6Q M/T(X5J) (E) L=369 		1-37151-974-1 01 1 0406- ●
1 SHAFT; PROP
(B) L=516 		1-37124-034-1 01 1 9604- ●
1 SHAFT; PROP
(A) L=1527 		1-37124-073-1 01 1 9604-0004 ●
1 SHAFT; PROP
FTS MIDDLE CHASSIS(FT***F) (A) L=1527 		1-37124-073-1 01 1 9604-0004 ●
1 SHAFT; PROP
(A) L=1527 		1-37124-073-1 01 1 0005-0405 ● ●
1 SHAFT; PROP
(A) L=1527 		1-37124-073-1 01 1 0406- ●
1 SHAFT; PROP
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) L=1527 		1-37124-073-1 01 1 0406- ●
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 9604-0004 ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (A) L=1477 		1-37123-668-1 01 1 9604-0004 ●
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 0005- ●
1 SHAFT; PROP
(B) L=686 		1-37123-943-1 01 1 9604- ●
1 SHAFT; PROP
FSS DOUBLE CAB(FS**W*) (B) L=1191 		1-37123-463-1 01 1 9604-0004 ●
1 SHAFT; PROP
FTS MIDDLE CHASSIS(FT***F) (B) L=1136 		1-37123-631-1 01 1 9604-0004 ●
1 SHAFT; PROP
(B) L=1136 		1-37123-631-1 01 1 0005-0405 ●
1 SHAFT; PROP
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) L=1136 		1-37123-631-1 01 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
MLD6Q M/T(X5J) (C) 		1-37211-054-1 01 1 0406-1111 ●
8 YOKE; FLANGE,PROP SHAFT
MLD6Q M/T(X5J) (C) 		8-98178-052-0 01 1 1112- ●
8 YOKE; FLANGE,PROP SHAFT
MLD6Q M/T(X5J) (A) 		1-37211-056-3 01 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
MLD6Q M/T(X5J) (A) 		1-37211-056-3 01 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 9604-0405 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 0406- ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) D=80 		1-37211-037-4 02 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 04 1 9604-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0005-0405 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0005-0405 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0406- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 0406- ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37211-056-3 02 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37211-056-3 02 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) (E) 		8-98048-925-0 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
(E) 		8-98048-925-1 AR 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(E) 		8-98048-925-1 AR 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) (D) 		1-37300-106-1 01 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) (C) 		1-37300-059-1 01 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-069-0 AR 1 9604-9809 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-0 AR 1 9810-0405 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0406-1111 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0406-1111 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1112-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1112-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37300-102-1 AR 1 1112-1505 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-089-0 AR 1 9604-9809 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 9810-0405 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107- ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		8-98020-789-1 02 1 1107- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-1 AR 1 0406-1106 ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		1-37300-103-1 AR 1 0406-1106 ●
10 BOLT; UJT
MLD6Q M/T(X5J) (A) UNF7/16X27 		9-09820-144-0 08 1 0406- ●
10 BOLT; UJT
MLD6Q M/T(X5J) (B) M12X75 		9-91061-275-0 04 1 0406- ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
MLD6Q M/T(X5J) (B) ID=11.4 		9-09850-072-0 04 1 0406- ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
MLD6Q M/T(X5J) (A) ID=12.2 		9-09150-612-0 04 1 0406-0603 ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
MLD6Q M/T(X5J) (A) ID=12.2 		0-91510-612-0 04 1 0604- ●
14 COVER; DUST,SPIDER
MLD6Q M/T(X5J) (C) 		8-98020-800-0 08 1 1112-1505 ●
14 COVER; DUST,SPIDER
MLD6Q M/T(X5J) (C) 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
MLD6Q M/T(X5J) (B) 		1-37319-012-0 AR 1 0406-1505 ●
14 COVER; DUST,SPIDER
(A) 		1-37319-006-0 AR 1 9604-9809 ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-011-0 AR 1 9810-0405 ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-011-0 AR 1 0406-1106 ● ●
14 COVER; DUST,SPIDER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		1-37319-011-0 AR 1 0406-1106 ●
14 COVER; DUST,SPIDER
(A) 		8-98020-791-0 08 1 1107- ● ●
14 COVER; DUST,SPIDER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) 		8-98020-791-0 08 1 1107- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-012-0 AR 1 9810-1111 ● ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-012-0 08 1 1112-1505 ● ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506- ● ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506- ● ●
14 COVER; DUST,SPIDER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (C) 		8-98020-800-0 08 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (B) 		9-09928-049-0 02 1 0406- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (C) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (C) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (A) PT1/8 ELBOW 		9-09031-210-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6Q M/T(X5J) (A) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 9604-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6Q M/T(X5J) (A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6Q M/T(X5J) (A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6Q M/T(X5J) (A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 AR 1 9604-0405 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 AR 1 0406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) T=1.95 		1-09587-014-0 AR 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 AR 1 9604-0405 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 AR 1 0406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) T=2.00 		1-09587-015-2 AR 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 AR 1 9604-0405 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 AR 1 0406- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) T=2.05 		1-09587-016-1 AR 1 0406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9604- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9604- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9604- ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 08 1 0404-0405 ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 08 1 0406-0512 ● ●
71 NUT; YOKE
6HH1 STD ENG(65L) (B) M14 		9-99110-514-0 08 1 0406-0512 ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 08 1 0601- ● ●
71 NUT; YOKE
6HH1 STD ENG(65L) (B) M14 		0-91110-514-0 08 1 0601- ●
71 NUT; YOKE
6HK1 TCC ENG(81L) (C) M16 FLANGE 		1-09449-065-0 04 1 0406- ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 08 1 9604-0004 ● ● ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 04 1 0005-0512 ● ● ●
71 NUT; YOKE
(A) M12 		9-99110-512-0 04 1 0005-0512 ● ● ●
71 NUT; YOKE
(A) M12 		0-91110-512-0 04 1 0601- ● ● ●
71 NUT; YOKE
(A) M12 		0-91110-512-0 04 1 0601- ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 12 1 9604-0403 ● ● ●
71 NUT; YOKE
(B) M14 		9-99110-514-0 04 1 0404-0512 ● ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 0601- ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 08 1 0404-0405 ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 08 1 0406-0603 ● ●
72 WASHER; LK,YOKE
6HH1 STD ENG(65L) (B) ID=14.2 		9-09150-614-0 08 1 0406-0603 ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 08 1 0604- ● ●
72 WASHER; LK,YOKE
6HH1 STD ENG(65L) (B) ID=14.2 		0-91510-614-0 08 1 0604- ●
72 WASHER; LK,YOKE
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HK1 TCC ENG(81L) (C) ID=11.4 		9-09850-072-0 04 1 0406- ●
72 WASHER; LK,YOKE
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6Q M/T(X5J) (C) ID=11.4 		9-09850-072-0 04 1 0406- ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 08 1 9604-0004 ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0603 ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		9-09150-612-0 04 1 0005-0603 ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 04 1 0604- ● ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 04 1 0604- ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 12 1 9604-0403 ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		9-09150-614-0 04 1 0404-0603 ● ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 0604- ● ● ●
75 BOLT; PROP SHAFT TO TRANS
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HK1 TCC ENG(81L) (C) UNF7/16X27 		9-09820-144-0 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6Q M/T(X5J) (C) UNF7/16X27 		9-09820-144-0 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
6HK1 TCC ENG(81L) (D) M12X75 		9-91061-275-0 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 08 1 9604-0004 ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005-0405 ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0005-0405 ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0406- ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
6HH1 STD ENG(65L),6HH1 N ENG(66L) (A) M12X32 		1-09000-076-1 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
FTS STD CAB MIDDLE CHASSIS(FT**MF) 6HH1 STD ENG(65L) (A) M12X32 		1-09000-076-1 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
FTS STD CAB MIDDLE CHASSIS(FT**MF) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) M12X32 		1-09000-076-1 04 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 9604-0405 ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(B) M14X37 		1-09000-121-0 08 1 0406- ● ●
75 BOLT; PROP SHAFT TO TRANS
6HH1 STD ENG(65L) (B) M14X37 		1-09000-121-0 08 1 0406- ●
75 BOLT; PROP SHAFT TO TRANS
(C) M14X40 		1-09000-187-0 04 1 9604-9807 ● ● ●
177 NUT
MLD6Q M/T(X5J) M12 		9-99110-512-0 04 1 0406-0512 ●
177 NUT
MLD6Q M/T(X5J) M12 		0-91110-512-0 04 1 0601- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
