Sayfa 3-78 - Isuzu EPC

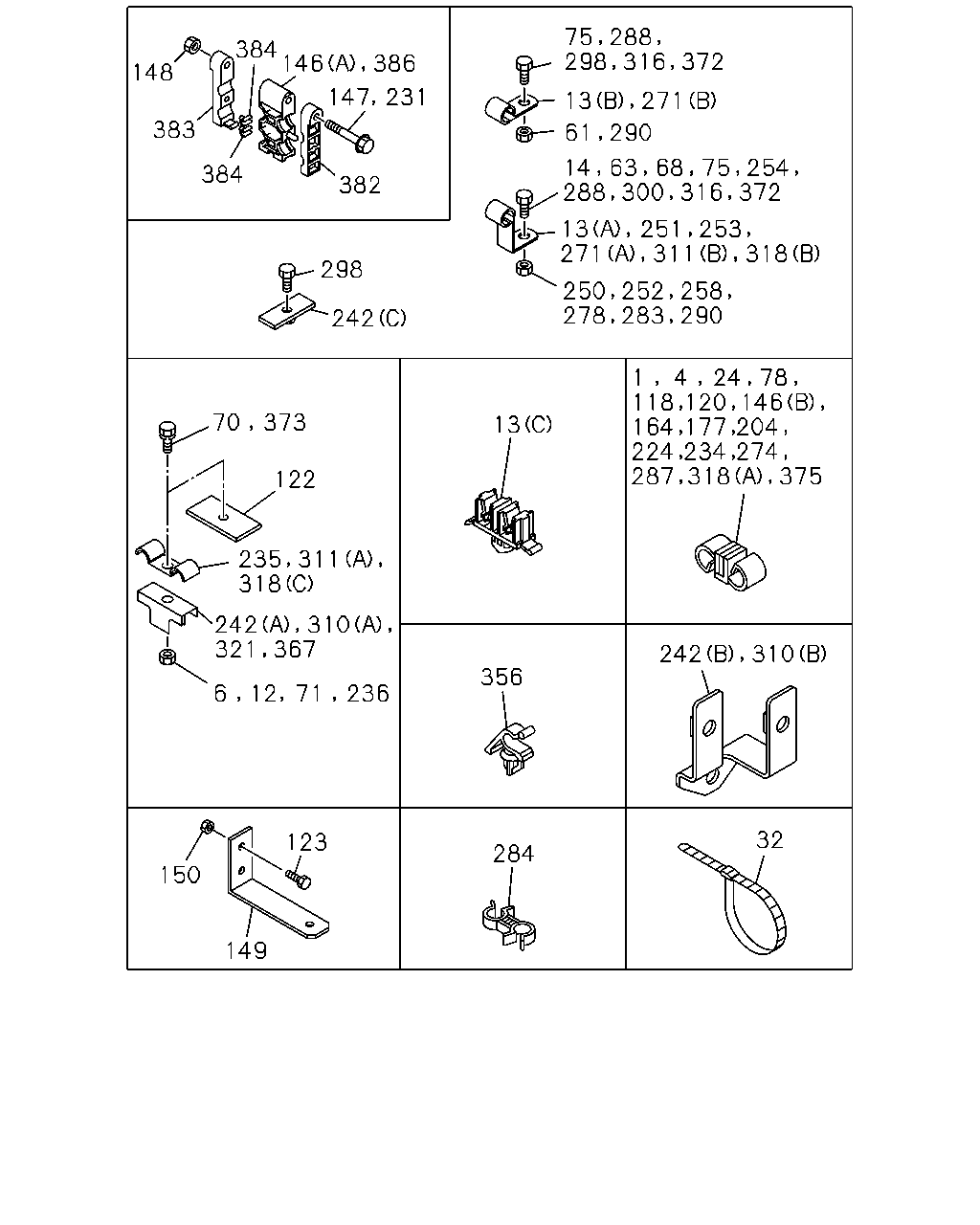

3-78 — FIXING PARTS; AIR PIPING (#37204) — 520 parça

384 146 386 148 383 61 290 384 382 298 242 1 13 122 318 356 6 12 71 236 32 123 284 150 149 75 288 298 316 372 13 271 14 63 68 75 254 372 316 300 288 147 231 13 251 253 318 311 271 250 252 258 290 283 278 4 78 146 120 118 164 177 204 274 234 224 287 318 375 310 242 367 321 242 310 311 235 70 373 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	CLIP; AIR PIPE 6HK1 TCC ENG(81L) ID=6.35 & 10.0	1-09709-274-1	01	1	0406-	●
1	CLIP; AIR PIPE EXC. BRAKE REGULATION ADR<TDU> ID=6.35 & 6.35	1-09709-273-1	01	1	9604-0004	●	●
1	CLIP; AIR PIPE ID=6.35 & 6.35	1-09709-273-1	01	1	9604-0004			●
1	CLIP; AIR PIPE ID=6.35 & 6.35	1-09709-273-1	01	1	0005-		●	●
1	CLIP; AIR PIPE EXC. BRAKE REGULATION ADR<TDU> ID=6.35 & 6.35	1-09709-273-1	01	1	0005-	●
4	CLIP; AIR PIPE TRANSFER TF56<BFK> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	0406-	●
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) ID=10 & 10	1-09709-277-1	01	1	9604-9803		●
4	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	9804-0004	●	●		●	●
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 10	1-09709-277-1	01	1	0005-	●
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 12	1-09709-278-1	01	1	9604-9803	●				●
6	NUT; PIPE CLIP TRANSFER TF56<BFK> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	0406-0602	●
6	NUT; PIPE CLIP TRANSFER TF56<BFK> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0603-	●
12	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9804-0004		●		●
13	CLIP; AIR PIPE 6HK1 TCC ENG(81L) (A) ID=7 L=38 H=21	1-09700-916-0	02	1	0406-	●
13	CLIP; AIR PIPE 6HK1 TCC ENG(81L) (B) ID=7 L=20	9-09524-635-0	01	1	0406-0606	●
13	CLIP; AIR PIPE 6HK1 TCC ENG(81L) (B) ID=7 L=20	0-95234-635-0	01	1	0607-	●
13	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C)	8-94435-553-0	03	1	0301-	●
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21	1-09700-916-0	01	1	9604-0004	●	●	●	●	●
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0005-0405	●	●	●
13	CLIP; AIR PIPE 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HH1N ENG(66L) (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0406-	●	●	●
13	CLIP; AIR PIPE (B) ID=7 L=40	9-09524-675-0	01	1	9604-0004	●	●	●	●	●
13	CLIP; AIR PIPE (B) ID=7 L=40	9-09524-675-0	01	1	0005-0405	●	●	●
13	CLIP; AIR PIPE 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HH1N ENG(66L) (B) ID=7 L=40	9-09524-675-0	01	1	0406-0606	●	●	●
13	CLIP; AIR PIPE 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HH1N ENG(66L) (B) ID=7 L=40	0-95234-675-0	01	1	0607-	●	●	●
13	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> (C)	8-94435-553-0	03	1	9604-0004	●	●		●	●
13	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> (C)	8-94435-553-0	03	1	0005-0212	●
13	CLIP; AIR PIPE HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> DUAL AIR GAUGE<UG2> (C)	8-94435-553-0	02	1	0301-	●
14	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28080-820-0	01	1	9604-9606	●	●		●	●
14	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	9607-0004	●	●		●	●
14	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	0005-0512	●
14	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
24	CLIP; PIPE ID=6.35 & 15	1-09709-276-1	01	1	9604-9801	●	●	●		●
24	CLIP; PIPE ID=6.35 & 15	1-09709-276-1	01	1	9802-9803	●	●	●	●	●
24	CLIP; PIPE EXC. AUSTRALIA EQUIPMENT(RR3) ID=6.35 & 15	1-09709-276-1	01	1	9804-0004		●
24	CLIP; PIPE ID=6.35 & 15	1-09709-276-1	01	1	9804-0004	●		●		●
24	CLIP; PIPE ID=6.35 & 15	1-09709-276-1	01	1	0005-	●	●	●
32	CLIP; BAND,RUBBER SLEEVE L=250	5-09707-030-1	01	1	9810-0004				●	●
61	NUT; CLIP FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	03	1	9604-9606	●	●		●	●
61	NUT; CLIP FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	03	1	9607-9803	●	●		●	●
61	NUT; CLIP FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	9804-9804		●
61	NUT; CLIP FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	9805-0004		●		●
61	NUT; CLIP FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	03	1	9804-0004	●				●
61	NUT; CLIP FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	03	1	0005-0602	●
61	NUT; CLIP FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	03	1	0603-	●
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28080-816-0	02	1	9604-9803	●	●		●	●
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28080-816-0	03	1	9804-0004		●		●
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X40 FLANGE	0-28080-840-0	01	1	9604-9606	●	●		●	●
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X40 FLANGE	0-28680-840-0	01	1	9607-9803	●	●		●	●
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X40 FLANGE	0-28680-840-0	01	1	9804-0004	●				●
63	BOLT; CLIP MLD6D M/T(X5Q) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X40 FLANGE	0-28680-840-0	01	1	0005-0403	●
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) MLD6 M/T<X9Y> M8X40 FLANGE	0-28680-840-0	01	1	0404-0512	●
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) MLD6 M/T<X9Y> M8X40 FLANGE	0-28650-840-0	01	1	0601-	●
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28080-816-0	02	1	9804-0004	●				●
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28080-816-0	02	1	0005-0512	●
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
68	BOLT; CLIP,AIR PIPE M8X50 FLANGE	0-28080-850-0	01	1	9604-9710	●	●	●	●	●
68	BOLT; CLIP,AIR PIPE M8X50 FLANGE	0-28080-850-0	02	1	9711-0004		●		●
68	BOLT; CLIP,AIR PIPE M8X50 FLANGE	0-28080-850-0	02	1	0005-0512		●
68	BOLT; CLIP,AIR PIPE M8X50 FLANGE	0-28050-850-0	02	1	0601-		●
68	BOLT; CLIP,AIR PIPE M8X50 FLANGE	0-28080-850-0	01	1	9711-0004	●		●		●
68	BOLT; CLIP,AIR PIPE M8X50 FLANGE	0-28080-850-0	01	1	0005-0512	●		●
68	BOLT; CLIP,AIR PIPE M8X50 FLANGE	0-28050-850-0	01	1	0601-	●		●
70	BOLT; CLIP,AIR PIPE TRANSFER TF56<BFK> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	0406-0512	●
70	BOLT; CLIP,AIR PIPE TRANSFER TF56<BFK> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
71	NUT; BRKT NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91150-108-0	01	1	9610-9803	●
71	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONT SEAT<A60> BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	01	1	9804-9805	●
71	NUT; BRKT AIR CONT SEAT<A60> BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	01	1	9804-9805					●
71	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONT SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	01	1	9806-0004	●
71	NUT; BRKT AIR CONT SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	01	1	9806-0004					●
71	NUT; BRKT MLD6D M/T(X5Q) AIR SUSP DRIVER SEAT<A56> BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	01	1	0005-0010	●
71	NUT; BRKT MLD6D M/T(X5Q) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	01	1	0011-0403	●
71	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> MLD6 M/T<X9Y> M8 FLANGE	0-91150-108-0	01	1	0404-0602	●
71	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> MLD6 M/T<X9Y> M8 FLANGE	0-91180-108-0	01	1	0603-	●
75	BOLT; CLIP EXC. BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28080-825-0	03	1	9604-9606		●
75	BOLT; CLIP EXC. BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28680-825-0	03	1	9607-9609		●
75	BOLT; CLIP EXC. BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28680-825-0	03	1	9610-9803		●
75	BOLT; CLIP NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE	0-28680-825-0	03	1	9610-9803	●
75	BOLT; CLIP AIR CONT SEAT<A60> BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28680-825-0	01	1	9804-9805		●		●
75	BOLT; CLIP AIR CONT SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28680-825-0	01	1	9806-0004		●		●
75	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	03	1	0005-0010		●	●
75	BOLT; CLIP EXC. BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28680-825-0	03	1	0005-0010	●
75	BOLT; CLIP MLD6D M/T(X5Q) AIR SUSP DRIVER SEAT<A56> BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28680-825-0	03	1	0005-0010	●
75	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	03	1	0011-0403		●	●
75	BOLT; CLIP EXC. BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28680-825-0	03	1	0011-0403	●
75	BOLT; CLIP MLD6D M/T(X5Q) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28680-825-0	03	1	0011-0403	●
75	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	03	1	0404-0512		●	●
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> MLD6 M/T<X9Y> M8X25 FLANGE	0-28680-825-0	03	1	0404-0512	●
75	BOLT; CLIP EXC. BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28680-825-0	03	1	0404-0512	●
75	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	0601-		●	●
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> MLD6 M/T<X9Y> M8X25 FLANGE	0-28650-825-0	03	1	0601-	●
75	BOLT; CLIP EXC. BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28650-825-0	03	1	0601-	●
75	BOLT; CLIP EXC. BRAKE REGULATION ADR<TDU> M8X50 FLANGE	0-28080-850-0	01	1	9604-0004		●
75	BOLT; CLIP M8X50 FLANGE	0-28080-850-0	01	1	0005-0512		●
75	BOLT; CLIP M8X50 FLANGE	0-28050-850-0	01	1	0601-		●
75	BOLT; CLIP EXC. BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28680-825-0	03	1	9804-9805		●
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONT SEAT<A60> BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28680-825-0	03	1	9804-9805	●
75	BOLT; CLIP AIR CONT SEAT<A60> BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28680-825-0	03	1	9804-9805					●
75	BOLT; CLIP EXC. BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28680-825-0	03	1	9806-9912		●
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONT SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28680-825-0	03	1	9806-9912	●
75	BOLT; CLIP AIR CONT SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28680-825-0	03	1	9806-9912					●
75	BOLT; CLIP EXC. BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28680-825-0	03	1	0001-0004	●	●			●
75	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	03	1	0001-0004			●
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONT SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28680-825-0	03	1	0001-0004	●
75	BOLT; CLIP AIR CONT SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28680-825-0	03	1	0001-0004					●
75	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	04	1	9604-9606			●
75	BOLT; CLIP EXC. BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28080-825-0	04	1	9604-9606	●				●
75	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	04	1	9607-9912			●
75	BOLT; CLIP EXC. BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28680-825-0	04	1	9607-9912	●				●
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONT SEAT<A60> BRAKE REGULATION ADR<TDU> M8X16 FLANGE	0-28080-816-0	01	1	9804-9805	●
75	BOLT; CLIP AIR CONT SEAT<A60> BRAKE REGULATION ADR<TDU> M8X16 FLANGE	0-28080-816-0	01	1	9804-9805					●
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONT SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> M8X16 FLANGE	0-28080-816-0	01	1	9806-0004	●
75	BOLT; CLIP AIR CONT SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> M8X16 FLANGE	0-28080-816-0	01	1	9806-0004					●
75	BOLT; CLIP NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE	0-28080-816-0	01	1	9604-9803	●
75	BOLT; CLIP AIR CONT SEAT<A60> BRAKE REGULATION ADR<TDU> M8X16 FLANGE	0-28080-816-0	02	1	9804-9805		●		●
75	BOLT; CLIP AIR CONT SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> M8X16 FLANGE	0-28080-816-0	02	1	9806-0004		●		●
75	BOLT; CLIP MLD6D M/T(X5Q) AIR SUSP DRIVER SEAT<A56> BRAKE REGULATION ADR<TDU> M8X16 FLANGE	0-28080-816-0	01	1	0005-0010	●
75	BOLT; CLIP MLD6D M/T(X5Q) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> M8X16 FLANGE	0-28080-816-0	01	1	0011-0403	●
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> MLD6 M/T<X9Y> M8X16 FLANGE	0-28080-816-0	01	1	0404-0512	●
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> MLD6 M/T<X9Y> M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
75	BOLT; CLIP NEW ZEALAND EQUIPMENT(PK5) M8X40 FLANGE	0-28080-840-0	01	1	9604-9606	●
75	BOLT; CLIP NEW ZEALAND EQUIPMENT(PK5) M8X40 FLANGE	0-28680-840-0	01	1	9607-9803	●
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONT SEAT<A60> BRAKE REGULATION ADR<TDU> M8X40 FLANGE	0-28680-840-0	01	1	9804-9805	●
75	BOLT; CLIP AIR CONT SEAT<A60> BRAKE REGULATION ADR<TDU> M8X40 FLANGE	0-28680-840-0	01	1	9804-9805					●
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONT SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> M8X40 FLANGE	0-28680-840-0	01	1	9806-0004	●
75	BOLT; CLIP AIR CONT SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> M8X40 FLANGE	0-28680-840-0	01	1	9806-0004					●
75	BOLT; CLIP MLD6D M/T(X5Q) AIR SUSP DRIVER SEAT<A56> BRAKE REGULATION ADR<TDU> M8X40 FLANGE	0-28680-840-0	01	1	0005-0010	●
75	BOLT; CLIP MLD6D M/T(X5Q) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> M8X40 FLANGE	0-28680-840-0	01	1	0011-0403	●
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> MLD6 M/T<X9Y> M8X40 FLANGE	0-28680-840-0	01	1	0404-0512	●
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> MLD6 M/T<X9Y> M8X40 FLANGE	0-28650-840-0	01	1	0601-	●
78	CLIP; AIR PIPE AIR DRYER<PS7> AUSTRALIA EQUIPMENT(RR3) ID=12 & 12	1-09709-280-1	02	1	9604-0004		●
118	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) ID=6.35 & 10.0	1-09709-274-1	01	1	9604-9801		●
118	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) ID=6.35 & 10.0	1-09709-274-1	01	1	9802-9803		●		●
118	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) ID=6.35 & 10.0	1-09709-274-1	02	1	9804-0004		●
118	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) ID=6.35 & 12	1-09709-275-1	02	1	9604-9801		●
118	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) ID=6.35 & 12	1-09709-275-1	02	1	9802-9803		●		●
118	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) ID=6.35 & 12	1-09709-275-1	02	1	9804-0004	●			●	●
118	CLIP; AIR PIPE BRAKE REGULATION ADR<TDU> ID=6.35 & 12	1-09709-275-1	02	1	0005-	●
118	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) ID=6.35 & 15	1-09709-276-1	01	1	9604-9801		●
118	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) ID=6.35 & 15	1-09709-276-1	01	1	9802-9803		●		●
118	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) ID=6.35 & 15	1-09709-276-1	01	1	9804-0004		●
118	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	01	1	9804-0004			●
118	CLIP; AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3) ID=6.35 & 15	1-09709-276-1	01	1	9804-0004	●				●
118	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	01	1	0005-			●
118	CLIP; AIR PIPE EXC. BRAKE REGULATION ADR<TDU> ID=6.35 & 15	1-09709-276-1	01	1	0005-	●
118	CLIP; AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3) ID=6.35 & 10.0	1-09709-274-1	01	1	9804-9804		●
118	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) ID=6.35 & 10.0	1-09709-274-1	01	1	9804-9804				●
118	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	9804-9804	●		●		●
118	CLIP; AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3) ID=6.35 & 10.0	1-09709-274-1	01	1	9805-0004		●
118	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) ID=6.35 & 10.0	1-09709-274-1	01	1	9805-0004				●
118	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	9805-0004	●		●		●
118	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	9805-0004			●
118	CLIP; AIR PIPE EXC. BRAKE REGULATION ADR<TDU> ID=6.35 & 10.0	1-09709-274-1	01	1	9805-0004	●
118	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	0005-	●	●	●
118	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	0005-			●
118	CLIP; AIR PIPE EXC. BRAKE REGULATION ADR<TDU> ID=6.35 & 10.0	1-09709-274-1	01	1	0005-	●
120	CLIP; AIR PIPE BRAKE REGULATION ADR<TDU> ID=6.35 & 6.35	1-09709-273-1	01	1	9604-9803	●	●		●	●
122	BRACKET; PIPE CLIP TRANSFER TF56<BFK> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=50	1-47475-299-2	01	1	0406-	●
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	02	1	9604-9606	●	●	●	●	●
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	02	1	9607-0004	●	●	●	●	●
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	02	1	0005-0512		●
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0005-0512	●		●
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-	●		●
146	CLIP; AIR PIPE (A) ID=10	1-09709-242-0	01	1	9604-0004	●	●	●	●	●
146	CLIP; AIR PIPE (A) ID=10	1-09709-242-0	01	1	0005-	●	●	●
146	CLIP; AIR PIPE BRAKE REGULATION ADR<TDU> (B) ID=10 & 10	1-09709-277-1	01	1	0005-0008	●
146	CLIP; AIR PIPE (B) ID=10 & 10	1-09709-277-1	01	1	0009-	●		●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28080-870-0	03	1	9604-0004	●	●	●	●	●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28080-870-0	03	1	0005-0512	●	●	●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	03	1	0601-	●	●	●
148	NUT; PIPE CLIP M8	9-09110-408-0	03	1	9604-9606	●	●	●	●	●
148	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9607-0004	●	●	●	●	●
148	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0005-0602	●	●	●
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0603-	●	●	●
149	BRACKET; PIPE CLIP	1-47476-792-0	01	1	9604-0004	●	●	●	●	●
149	BRACKET; PIPE CLIP	1-47476-792-0	01	1	0005-		●
149	BRACKET; PIPE CLIP	1-47478-791-0	01	1	0005-	●		●
150	NUT; CLIP BRKT M8	9-09110-408-0	02	1	9604-9606	●	●	●	●	●
150	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●	●	●	●
150	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0602		●
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0603-		●
150	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0005-0602	●		●
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●		●
164	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	9604-9803		●		●
164	CLIP; AIR PIPE BRAKE REGULATION ADR<TDU> ID=10 & 12	1-09709-278-1	01	1	9604-9803	●
164	CLIP; AIR PIPE EXC. BRAKE REGULATION ADR<TDU> ID=10 & 12	1-09709-278-1	01	1	9804-0004		●
164	CLIP; AIR PIPE BRAKE REGULATION ADR<TDU> ID=10 & 12	1-09709-278-1	01	1	9804-0004	●			●	●
164	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	0005-		●
164	CLIP; AIR PIPE BRAKE REGULATION ADR<TDU> ID=10 & 12	1-09709-278-1	01	1	0005-	●
164	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	9604-9803			●
164	CLIP; AIR PIPE EXC. BRAKE REGULATION ADR<TDU> ID=10 & 10	1-09709-277-1	01	1	9604-9803	●
164	CLIP; AIR PIPE BRAKE REGULATION ADR<TDU> ID=10 & 10	1-09709-277-1	01	1	9804-0004		●
164	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	9804-0004			●
164	CLIP; AIR PIPE EXC. BRAKE REGULATION ADR<TDU> ID=10 & 10	1-09709-277-1	01	1	9804-0004	●
164	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0005-			●
164	CLIP; AIR PIPE EXC. BRAKE REGULATION ADR<TDU> ID=10 & 10	1-09709-277-1	01	1	0005-	●
177	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) ID=10 & 10	1-09709-277-1	01	1	9604-9803		●
177	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	9604-9803	●		●		●
177	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	9804-0004	●		●		●
177	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0005-	●		●
177	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) ID=10 & 12	1-09709-278-1	01	1	9604-9803		●		●
204	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	02	1	0009-			●
204	CLIP; AIR PIPE EXC. BRAKE REGULATION ADR<TDU> ID=10 & 10	1-09709-277-1	02	1	0009-	●
204	CLIP; AIR PIPE BRAKE REGULATION ADR<TDU> ID=10 & 10	1-09709-277-1	04	1	0005-	●
224	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) ID=10 & 10	1-09709-277-1	01	1	9804-0004		●
224	CLIP; AIR PIPE EXC. BRAKE REGULATION ADR<TDU> ID=10 & 12	1-09709-278-1	01	1	9804-0004		●
224	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	0005-		●
231	BOLT; CLIP TRANSFER TF56<BFK> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X50 FLANGE	0-28080-850-0	01	1	0406-0512	●
231	BOLT; CLIP TRANSFER TF56<BFK> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X50 FLANGE	0-28050-850-0	01	1	0601-	●
234	CLIP; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) ID=10 & 10	1-09709-277-1	01	1	9604-9803		●
235	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9 & 9 L=17 & 17	1-09700-651-0	07	1	9604-0004	●	●		●	●
235	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9 & 9 L=17 & 17	1-09700-651-0	04	1	0005-0405	●
235	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9 & 9 L=17 & 17	1-09700-651-0	03	1	0406-	●
235	CLIP; AIR PIPE MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9 & 9 L=17 & 17	1-09700-651-0	03	1	0005-0403	●
235	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9 & 9 L=17 & 17	1-09700-651-0	03	1	0404-0405	●
235	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9 & 9 L=17 & 17	1-09700-651-0	04	1	0406-	●
235	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9 & 9 L=17 & 17	1-09700-651-0	01	1	9705-9804	●				●
236	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	01	1	9604-9606	●	●		●	●
236	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	9607-9803	●	●		●	●
236	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	9804-0004	●				●
236	NUT; CLIP MLD6D M/T(X5Q) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	0005-0403	●
236	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) MLD6 M/T<X9Y> M8 FLANGE	0-91150-108-0	01	1	0404-0602	●
236	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) MLD6 M/T<X9Y> M8 FLANGE	0-91180-108-0	01	1	0603-	●
242	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 W/NUT	1-47475-439-2	02	1	9804-0004		●		●
242	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47475-427-1	03	1	9604-9803	●	●		●	●
242	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47475-427-1	01	1	9804-0004		●		●
242	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8 W/NUT	1-47475-729-0	01	1	9705-0004	●				●
242	BRACKET; PIPE CLIP MLD6D M/T(X5Q) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8 W/NUT	1-47475-729-0	01	1	0005-0403	●
242	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) MLD6 M/T<X9Y> (C) M8 W/NUT	1-47475-729-0	01	1	0404-	●
242	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47475-427-1	03	1	9804-0004	●				●
242	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47475-427-1	03	1	0005-	●
250	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	01	1	9604-9606	●	●
250	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	9607-0004	●	●
250	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	0005-0405	●
250	NUT; PIPE CLIP TRANSFER TF56<BFK> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	0406-0602	●
250	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	0406-0602	●
250	NUT; PIPE CLIP TRANSFER TF56<BFK> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0603-	●
250	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0603-	●
250	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9604-9606				●
250	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	9607-0004				●
250	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	03	1	9604-9606					●
250	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	03	1	9607-0004					●
251	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	01	1	9604-0004	●				●
251	CLIP; AIR PIPE MLD6D M/T(X5Q) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	01	1	0005-0403	●
251	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) MLD6 M/T<X9Y> ID=8 H=20 L=20	1-09700-604-0	01	1	0404-	●
252	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	01	1	9604-9606	●				●
252	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	9607-0004	●				●
252	NUT; PIPE CLIP MLD6D M/T(X5Q) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	0005-0403	●
252	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) MLD6 M/T<X9Y> M8 FLANGE	0-91150-108-0	01	1	0404-0602	●
252	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) MLD6 M/T<X9Y> M8 FLANGE	0-91180-108-0	01	1	0603-	●
253	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	01	1	9604-0004	●	●		●	●
253	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	01	1	9604-0004		●
253	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	01	1	0005-0405	●
253	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	02	1	0406-	●
253	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	02	1	9604-0004	●			●
253	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	02	1	0005-0405	●
253	CLIP; AIR PIPE TRANSFER TF56<BFK> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	01	1	0406-	●
253	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	01	1	0406-	●
253	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	03	1	9604-0004					●
254	BOLT; PIPE CLIP TRANSFER TF56<BFK> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	0406-0512	●
254	BOLT; PIPE CLIP TRANSFER TF56<BFK> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
254	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28080-820-0	01	1	9604-9606		●
254	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	9607-0004		●
254	BOLT; PIPE CLIP M8X40 FLANGE	0-28080-840-0	01	1	9604-9606		●		●
254	BOLT; PIPE CLIP M8X40 FLANGE	0-28680-840-0	01	1	9607-0004		●		●
254	BOLT; PIPE CLIP M8X40 FLANGE	0-28680-840-0	01	1	0005-0512		●
254	BOLT; PIPE CLIP M8X40 FLANGE	0-28650-840-0	01	1	0601-		●
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9604-0004	●	●	●	●	●
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0005-0204	●	●	●
254	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0205-0205	●	●	●
254	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28080-820-0	02	1	9604-9606	●			●
254	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	02	1	9607-0004	●			●
254	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●
254	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
254	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28080-820-0	03	1	9604-9606					●
254	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	03	1	9607-0004					●
258	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	01	1	9604-9606	●	●		●	●
258	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	9607-0004	●	●		●	●
258	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	0005-0602	●
258	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0603-	●
271	CLIP; AIR PIPE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9604-0004		●		●
271	CLIP; AIR PIPE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=9 L=40	9-09524-875-0	01	1	9604-0004		●		●
271	CLIP; AIR PIPE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=9	9-09524-872-0	01	1	9604-0004	●				●
271	CLIP; AIR PIPE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=9	9-09524-872-0	01	1	0005-	●
274	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	9604-9803	●	●	●	●	●
274	CLIP; AIR PIPE BRAKE REGULATION ADR<TDU> ID=6.35 & 10.0	1-09709-274-1	02	1	9804-0004		●		●
274	CLIP; AIR PIPE ID=6.35 & 6.35	1-09709-273-1	01	1	9804-			●
274	CLIP; AIR PIPE EXC. BRAKE REGULATION ADR<TDU> ID=6.35 & 6.35	1-09709-273-1	01	1	9804-	●
274	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	9804-			●
274	CLIP; AIR PIPE EXC. BRAKE REGULATION ADR<TDU> ID=6.35 & 10.0	1-09709-274-1	01	1	9804-	●
274	CLIP; AIR PIPE BRAKE REGULATION ADR<TDU> ID=6.35 & 10.0	1-09709-274-1	04	1	9804-0004	●				●
274	CLIP; AIR PIPE BRAKE REGULATION ADR<TDU> ID=6.35 & 10.0	1-09709-274-1	04	1	0005-	●
278	NUT; CLIP,AIR PIPE M8	9-09110-408-0	01	1	9604-9606	●	●	●	●	●
278	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	9607-9710	●	●	●	●	●
278	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	9711-0004		●		●
278	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	0005-0602		●
278	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	02	1	0603-		●
278	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	9711-0004	●		●		●
278	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0005-0602	●		●
278	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	0603-	●		●
283	NUT; CLIP EXC. BRAKE REGULATION ADR<TDU> M8	9-09110-408-0	04	1	9604-9606		●
283	NUT; CLIP EXC. BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	04	1	9607-0004		●
283	NUT; CLIP MLD6D M/T(X5Q) AIR SUSP DRIVER SEAT<A56> BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	03	1	0005-0010	●
283	NUT; CLIP MLD6D M/T(X5Q) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	03	1	0011-0403	●
283	NUT; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> MLD6 M/T<X9Y> M8 FLANGE	0-91150-108-0	03	1	0404-0602	●
283	NUT; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> MLD6 M/T<X9Y> M8 FLANGE	0-91180-108-0	03	1	0603-	●
283	NUT; CLIP M8	9-09110-408-0	06	1	9604-9606			●
283	NUT; CLIP EXC. BRAKE REGULATION ADR<TDU> M8	9-09110-408-0	06	1	9604-9606	●				●
283	NUT; CLIP M8 FLANGE	0-91150-108-0	06	1	9607-9912			●
283	NUT; CLIP EXC. BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	06	1	9607-9912	●				●
283	NUT; CLIP M8 FLANGE	0-91150-108-0	05	1	0001-0004			●
283	NUT; CLIP EXC. BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	05	1	0001-0004	●				●
283	NUT; CLIP M8 FLANGE	0-91150-108-0	05	1	0005-0602			●
283	NUT; CLIP EXC. BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	05	1	0005-0602	●
283	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	0603-			●
283	NUT; CLIP EXC. BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91180-108-0	05	1	0603-	●
283	NUT; CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONT SEAT<A60> BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	03	1	9804-9805	●
283	NUT; CLIP AIR CONT SEAT<A60> BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	03	1	9804-9805					●
283	NUT; CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONT SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	03	1	9806-0004	●
283	NUT; CLIP AIR CONT SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	03	1	9806-0004					●
283	NUT; CLIP NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91150-108-0	03	1	9610-9803	●
283	NUT; CLIP AIR CONT SEAT<A60> BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	01	1	9804-9805		●		●
283	NUT; CLIP AIR CONT SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	01	1	9806-0004		●		●
283	NUT; CLIP M8 FLANGE	0-91150-108-0	04	1	0005-0602		●
283	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0603-		●
284	CLIP; FLEX HOSE ID=18 & 18	8-94323-068-0	02	1	9604-0004	●	●	●	●	●
284	CLIP; FLEX HOSE ID=18 & 18	8-94323-068-0	02	1	0005-	●	●	●
287	CLIP; AIR PIPE BRAKE REGULATION ADR<TDU> ID=6.35 & 10.0	1-09709-274-1	01	1	9804-0004	●	●		●	●
287	CLIP; AIR PIPE BRAKE REGULATION ADR<TDU> ID=6.35 & 10.0	1-09709-274-1	01	1	0005-	●
288	BOLT; CLIP,AIR PIPE 6HK1 TCC ENG(81L) M8X20 FLANGE	0-28680-820-0	03	1	0406-0512	●
288	BOLT; CLIP,AIR PIPE 6HK1 TCC ENG(81L) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28080-820-0	02	1	9604-9606	●	●	●	●	●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	02	1	9607-0004	●	●	●	●	●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	02	1	0005-0405	●	●	●
288	BOLT; CLIP,AIR PIPE 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HH1N ENG(66L) M8X20 FLANGE	0-28680-820-0	02	1	0406-0512	●	●	●
288	BOLT; CLIP,AIR PIPE 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HH1N ENG(66L) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●
290	NUT; CLIP,AIR PIPE 6HK1 TCC ENG(81L) M8 FLANGE	0-91150-108-0	03	1	0406-0602	●
290	NUT; CLIP,AIR PIPE 6HK1 TCC ENG(81L) M8 FLANGE	0-91180-108-0	03	1	0603-	●
290	NUT; CLIP,AIR PIPE M8	9-09110-408-0	02	1	9604-9606	●	●	●	●	●
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●	●	●	●
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	0005-0405	●	●	●
290	NUT; CLIP,AIR PIPE 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HH1N ENG(66L) M8 FLANGE	0-91150-108-0	02	1	0406-0602	●	●	●
290	NUT; CLIP,AIR PIPE 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L), 6HH1N ENG(66L) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
298	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28080-816-0	01	1	9604-9704	●	●		●	●
298	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28080-816-0	01	1	9705-9803	●	●		●	●
298	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28080-816-0	01	1	9705-9803	●				●
298	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28080-816-0	03	1	9804-0004		●		●
298	BOLT; CLIP MLD6D M/T(X5Q) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28080-816-0	02	1	0005-0403	●
298	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) MLD6 M/T<X9Y> M8X16 FLANGE	0-28080-816-0	02	1	0404-0512	●
298	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) MLD6 M/T<X9Y> M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
298	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X40 FLANGE	0-28080-840-0	03	1	9604-9606	●	●		●	●
298	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X40 FLANGE	0-28680-840-0	03	1	9607-9803	●	●		●	●
298	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X40 FLANGE	0-28680-840-0	01	1	9804-0004		●		●
298	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28080-816-0	02	1	9804-0004	●				●
298	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X40 FLANGE	0-28680-840-0	03	1	9804-0004	●				●
298	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X40 FLANGE	0-28680-840-0	03	1	0005-0512	●
298	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X40 FLANGE	0-28650-840-0	03	1	0601-	●
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0206-0904	●	●	●
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●	●
310	BRACKET; PIPE CLIP (A)	1-47475-427-1	01	1	9604-0004			●
310	BRACKET; PIPE CLIP EXC. BRAKE REGULATION ADR<TDU> (A)	1-47475-427-1	01	1	9604-0004	●				●
310	BRACKET; PIPE CLIP (A)	1-47475-427-1	01	1	0005-			●
310	BRACKET; PIPE CLIP EXC. BRAKE REGULATION ADR<TDU> (A)	1-47475-427-1	01	1	0005-	●
310	BRACKET; PIPE CLIP (B) M8 W/NUT	1-47475-439-2	01	1	9604-9609			●
310	BRACKET; PIPE CLIP EXC. BRAKE REGULATION ADR<TDU> (B) M8 W/NUT	1-47475-439-2	01	1	9604-9609	●				●
310	BRACKET; PIPE CLIP (B) M8 W/NUT	1-47475-439-2	01	1	9610-9803			●
310	BRACKET; PIPE CLIP EXC. BRAKE REGULATION ADR<TDU> (B) M8 W/NUT	1-47475-439-2	01	1	9610-9803	●				●
310	BRACKET; PIPE CLIP NEW ZEALAND EQUIPMENT(PK5) (B) M8 W/NUT	1-47475-439-2	01	1	9610-9803	●
310	BRACKET; PIPE CLIP (B) M8 W/NUT	1-47475-439-2	01	1	9804-9805			●
310	BRACKET; PIPE CLIP EXC. BRAKE REGULATION ADR<TDU> (B) M8 W/NUT	1-47475-439-2	01	1	9804-9805	●				●
310	BRACKET; PIPE CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONT SEAT<A60> BRAKE REGULATION ADR<TDU> (B) M8 W/NUT	1-47475-439-2	01	1	9804-9805	●
310	BRACKET; PIPE CLIP AIR CONT SEAT<A60> BRAKE REGULATION ADR<TDU> (B) M8 W/NUT	1-47475-439-2	01	1	9804-9805					●
310	BRACKET; PIPE CLIP (B) M8 W/NUT	1-47475-439-2	01	1	9806-0004			●
310	BRACKET; PIPE CLIP EXC. BRAKE REGULATION ADR<TDU> (B) M8 W/NUT	1-47475-439-2	01	1	9806-0004	●				●
310	BRACKET; PIPE CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONT SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> (B) M8 W/NUT	1-47475-439-2	01	1	9806-0004	●
310	BRACKET; PIPE CLIP AIR CONT SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> (B) M8 W/NUT	1-47475-439-2	01	1	9806-0004					●
310	BRACKET; PIPE CLIP (B) M8 W/NUT	1-47475-439-2	01	1	0005-0010			●
310	BRACKET; PIPE CLIP EXC. BRAKE REGULATION ADR<TDU> (B) M8 W/NUT	1-47475-439-2	01	1	0005-0010	●
310	BRACKET; PIPE CLIP MLD6D M/T(X5Q) AIR SUSP DRIVER SEAT<A56> BRAKE REGULATION ADR<TDU> (B) M8 W/NUT	1-47475-439-2	01	1	0005-0010	●
310	BRACKET; PIPE CLIP (B) M8 W/NUT	1-47475-439-2	01	1	0011-0403			●
310	BRACKET; PIPE CLIP EXC. BRAKE REGULATION ADR<TDU> (B) M8 W/NUT	1-47475-439-2	01	1	0011-0403	●
310	BRACKET; PIPE CLIP MLD6D M/T(X5Q) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> (B) M8 W/NUT	1-47475-439-2	01	1	0011-0403	●
310	BRACKET; PIPE CLIP (B) M8 W/NUT	1-47475-439-2	01	1	0404-			●
310	BRACKET; PIPE CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> MLD6 M/T<X9Y> (B) M8 W/NUT	1-47475-439-2	01	1	0404-	●
310	BRACKET; PIPE CLIP EXC. BRAKE REGULATION ADR<TDU> (B) M8 W/NUT	1-47475-439-2	01	1	0404-	●
311	CLIP; AIR PIPE EXC. BRAKE REGULATION ADR<TDU> (B) ID=6 H=20 L=20	1-09700-603-0	03	1	9604-9609		●
311	CLIP; AIR PIPE EXC. BRAKE REGULATION ADR<TDU> (B) ID=6 H=20 L=20	1-09700-603-0	03	1	9610-9803		●
311	CLIP; AIR PIPE NEW ZEALAND EQUIPMENT(PK5) (B) ID=6 H=20 L=20	1-09700-603-0	03	1	9610-9803	●
311	CLIP; AIR PIPE AIR CONT SEAT<A60> BRAKE REGULATION ADR<TDU> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9804-9805		●		●
311	CLIP; AIR PIPE AIR CONT SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9806-0004		●		●
311	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	04	1	9604-9803			●
311	CLIP; AIR PIPE EXC. BRAKE REGULATION ADR<TDU> (B) ID=6 H=20 L=20	1-09700-603-0	04	1	9604-9803	●				●
311	CLIP; AIR PIPE EXC. BRAKE REGULATION ADR<TDU> (B) ID=6 H=20 L=20	1-09700-603-0	03	1	9804-9912		●
311	CLIP; AIR PIPE EXC. BRAKE REGULATION ADR<TDU> (B) ID=6 H=20 L=20	1-09700-603-0	03	1	0001-0004	●	●			●
311	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	03	1	0001-0004			●
311	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	03	1	0005-		●	●
311	CLIP; AIR PIPE EXC. BRAKE REGULATION ADR<TDU> (B) ID=6 H=20 L=20	1-09700-603-0	03	1	0005-	●
311	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	04	1	9804-9805			●
311	CLIP; AIR PIPE EXC. BRAKE REGULATION ADR<TDU> (B) ID=6 H=20 L=20	1-09700-603-0	04	1	9804-9805	●				●
311	CLIP; AIR PIPE AIR SUSP DRIVER SEAT<A56>,AIR CONT SEAT<A60> BRAKE REGULATION ADR<TDU> (B) ID=6 H=20 L=20	1-09700-603-0	04	1	9804-9805	●
311	CLIP; AIR PIPE AIR CONT SEAT<A60> BRAKE REGULATION ADR<TDU> (B) ID=6 H=20 L=20	1-09700-603-0	04	1	9804-9805					●
311	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	04	1	9806-9912			●
311	CLIP; AIR PIPE EXC. BRAKE REGULATION ADR<TDU> (B) ID=6 H=20 L=20	1-09700-603-0	04	1	9806-9912	●				●
311	CLIP; AIR PIPE AIR SUSP DRIVER SEAT<A56>,AIR CONT SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> (B) ID=6 H=20 L=20	1-09700-603-0	04	1	9806-9912	●
311	CLIP; AIR PIPE AIR CONT SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> (B) ID=6 H=20 L=20	1-09700-603-0	04	1	9806-9912					●
311	CLIP; AIR PIPE AIR SUSP DRIVER SEAT<A56>,AIR CONT SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> (B) ID=6 H=20 L=20	1-09700-603-0	04	1	0001-0004	●
311	CLIP; AIR PIPE AIR CONT SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> (B) ID=6 H=20 L=20	1-09700-603-0	04	1	0001-0004					●
311	CLIP; AIR PIPE AIR SUSP DRIVER SEAT<A56> BRAKE REGULATION ADR<TDU> (B) ID=6 H=20 L=20	1-09700-603-0	04	1	0005-0010	●
311	CLIP; AIR PIPE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> (B) ID=6 H=20 L=20	1-09700-603-0	04	1	0011-	●
311	CLIP; AIR PIPE NEW ZEALAND EQUIPMENT(PK5) (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9604-9803	●
311	CLIP; AIR PIPE AIR CONT SEAT<A60> BRAKE REGULATION ADR<TDU> (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9804-9805		●		●
311	CLIP; AIR PIPE AIR CONT SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> BRAKE REGULATION ADR<TDU> (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9806-0004		●		●
316	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X12 W/LK WASHER	0-50040-812-0	02	1	9604-9911		●		●
316	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X10 FLANGE	0-28080-810-0	02	1	9912-0004		●		●
316	BOLT; CLIP M8X40 FLANGE	0-28080-840-0	01	1	9604-9606			●
316	BOLT; CLIP EXC. AIR DRYER<PS7> M8X40 FLANGE	0-28080-840-0	01	1	9604-9606	●
316	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	9607-0512			●
316	BOLT; CLIP EXC. AIR DRYER<PS7> M8X40 FLANGE	0-28680-840-0	01	1	9607-0512	●
316	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	01	1	0601-			●
316	BOLT; CLIP EXC. AIR DRYER<PS7> M8X40 FLANGE	0-28650-840-0	01	1	0601-	●
316	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X12 W/LK WASHER	0-50040-612-0	01	1	9604-0004	●				●
316	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X12 W/LK WASHER	0-50040-612-0	01	1	0005-0512	●
316	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X12 W/LK WASHER	0-50540-612-0	01	1	0601-	●
318	CLIP; AIR PIPE (C) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	0212-			●
318	CLIP; AIR PIPE EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	0212-	●
318	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) (A) ID=6.35 & 15	1-09709-276-1	02	1	9604-0004		●
318	CLIP; AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9604-0004	●	●
318	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9604-0004			●
318	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0005-0405	●	●	●
318	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0406-		●	●
318	CLIP; AIR PIPE EXC. TRANSFER TF56<BFK> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0406-	●
318	CLIP; AIR PIPE (C) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9604-9803			●
318	CLIP; AIR PIPE EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9604-9803	●
318	CLIP; AIR PIPE (A) ID=6.35 & 10.0	1-09709-274-1	01	1	9604-9803	●		●		●
318	CLIP; AIR PIPE (A) ID=6.35 & 12	1-09709-275-1	01	1	9604-9803	●		●		●
321	BRACKET; CLIP	1-47475-427-1	01	1	9604-			●
321	BRACKET; CLIP EXC. AIR DRYER<PS7>	1-47475-427-1	01	1	9604-	●
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=4.8	8-94128-483-0	01	1	9604-9803	●	●		●	●
356	CLIP; AIR PIPE ID=4.8	8-94128-483-0	01	1	9604-9803			●
356	CLIP; AIR PIPE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=4.8	8-94128-483-0	01	1	9604-9803	●
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=4.8	8-94128-483-0	01	1	9804-9810	●	●		●	●
356	CLIP; AIR PIPE AIR CONT SEAT<A60> DUAL AIR GAUGE<UG2> ID=4.8	8-94128-483-0	01	1	9804-9810		●		●	●
356	CLIP; AIR PIPE ID=4.8	8-94128-483-0	01	1	9804-9810			●
356	CLIP; AIR PIPE AIR SUSP DRIVER SEAT<A56>,AIR CONT SEAT<A60> DUAL AIR GAUGE<UG2> ID=4.8	8-94128-483-0	01	1	9804-9810	●
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=4.8	8-94128-483-0	01	1	9811-0004	●	●		●	●
356	CLIP; AIR PIPE AIR CONT SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=4.8	8-94128-483-0	01	1	9811-0004		●		●	●
356	CLIP; AIR PIPE ID=4.8	8-94128-483-0	01	1	9811-0004			●
356	CLIP; AIR PIPE AIR SUSP DRIVER SEAT<A56>,AIR CONT SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=4.8	8-94128-483-0	01	1	9811-0004	●
356	CLIP; AIR PIPE ID=4.8	8-94128-483-0	01	1	0005-0010		●	●
356	CLIP; AIR PIPE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=4.8	8-94128-483-0	01	1	0005-0010	●
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=4.8	8-94128-483-0	01	1	0005-0010	●
356	CLIP; AIR PIPE ID=4.8	8-94128-483-0	01	1	0011-		●	●
356	CLIP; AIR PIPE AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=4.8	8-94128-483-0	01	1	0011-	●
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=4.8	8-94128-483-0	01	1	0011-	●
367	BRACKET ASM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-427-1	01	1	9604-9803	●	●		●	●
367	BRACKET ASM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-427-1	01	1	9804-0004	●				●
367	BRACKET ASM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-427-1	01	1	0005-	●
372	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	9804-0004		●		●
373	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28080-820-0	01	1	9604-9606	●				●
373	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	9607-0004	●				●
373	BOLT; PIPE CLIP MLD6D M/T(X5Q) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	0005-0403	●
373	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) MLD6 M/T<X9Y> M8X20 FLANGE	0-28680-820-0	01	1	0404-0512	●
373	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) MLD6 M/T<X9Y> M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
375	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) ID=6.35 & 15	1-09709-276-1	02	1	9604-0004		●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	03	1	0005-	●	●	●
382	CLIP; UPR EXC. BRAKE REGULATION ADR<TDU> ID=10 & 10	1-09709-241-0	01	1	9709-0004		●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	01	1	9709-0004	●		●		●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	01	1	9604-9708	●	●	●	●	●
382	CLIP; UPR EXC. BRAKE REGULATION ADR<TDU> ID=10 & 10	1-09709-241-0	01	1	9604-9708		●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	02	1	9709-0004		●		●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	02	1	0005-0405		●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	02	1	0406-		●
382	CLIP; UPR TRANSFER TF56<BFK> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 10	1-09709-241-0	02	1	0406-	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	03	1	9604-0004	●	●	●	●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	01	1	0005-0405	●	●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	01	1	0406-	●	●	●
383	CLIP; LWR ID=10 & 10	1-09709-241-0	03	1	0005-	●	●	●
383	CLIP; LWR TRANSFER TF56<BFK> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 10	1-09709-243-0	02	1	0406-	●
383	CLIP; LWR EXC. BRAKE REGULATION ADR<TDU> ID=6 & 6	1-09709-244-0	01	1	9709-0004		●
383	CLIP; LWR ID=6 & 6	1-09709-244-0	01	1	9709-0004	●		●		●
383	CLIP; LWR ID=6 & 6	1-09709-244-0	01	1	0005-	●	●	●
383	CLIP; LWR ID=10 & 10	1-09709-241-0	03	1	9604-0004	●	●	●	●	●
383	CLIP; LWR ID=6 & 6	1-09709-244-0	01	1	9604-9708	●	●	●	●	●
383	CLIP; LWR EXC. BRAKE REGULATION ADR<TDU> ID=6 & 6	1-09709-244-0	01	1	9604-9708		●
383	CLIP; LWR ID=6 & 6	1-09709-244-0	02	1	9709-0004		●		●
383	CLIP; LWR ID=6 & 6	1-09709-244-0	02	1	0005-		●
384	COLLAR TRANSFER TF56<BFK> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=6	1-47459-010-0	02	1	0406-	●
384	COLLAR TRANSFER TF56<BFK> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8	1-47459-011-0	02	1	0406-	●
386	CLIP; CENTER ID=10	1-09709-242-0	03	1	0005-	●	●	●
386	CLIP; CENTER ID=10	1-09709-242-0	03	1	9604-0004	●	●	●	●	●

389 388 34 34 389 388 309 333

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
34	NUT; BRKT DUAL AIR GAUGE<UG2> M8 FLANGE	8-94279-517-0	03	1	9604-9611	●	●		●	●
34	NUT; BRKT DUAL AIR GAUGE<UG2> M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-0004	●	●		●	●
34	NUT; BRKT DUAL AIR GAUGE<UG2> M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0005-0605	●
34	NUT; BRKT DUAL AIR GAUGE<UG2> M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0606-	●
309	NUT; BRKT FIX DUAL AIR GAUGE<UG2> M8 FLANGE	8-94279-517-0	02	1	9604-9611	●	●		●	●
309	NUT; BRKT FIX DUAL AIR GAUGE<UG2> M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9612-0004	●	●		●	●
309	NUT; BRKT FIX DUAL AIR GAUGE<UG2> M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0005-	●
333	BRACKET; BRK AIR PIPE LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ>	1-79738-846-2	01	1	0602-0606	●
333	BRACKET; BRK AIR PIPE HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-79738-846-2	01	1	0212-0301	●
333	BRACKET; BRK AIR PIPE	1-79738-815-2	01	1	9604-0004	●	●	●	●	●
333	BRACKET; BRK AIR PIPE	1-79738-815-2	01	1	0005-0211	●	●	●
333	BRACKET; BRK AIR PIPE	1-79738-815-2	01	1	0212-0301		●	●
333	BRACKET; BRK AIR PIPE EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-79738-815-2	01	1	0212-0301	●
333	BRACKET; BRK AIR PIPE	1-79738-815-2	01	1	0302-0601	●	●	●
333	BRACKET; BRK AIR PIPE	1-79738-815-2	01	1	0602-0606		●	●
333	BRACKET; BRK AIR PIPE EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ>	1-79738-815-2	01	1	0602-0606	●
333	BRACKET; BRK AIR PIPE	1-79738-815-2	01	1	0607-	●	●	●
388	SEAL DUAL AIR GAUGE<UG2> (A) L=280	1-79738-793-1	01	1	9604-9803	●	●		●	●
388	SEAL DUAL AIR GAUGE<UG2> (A) L=280	1-79738-793-1	01	1	9804-0004	●	●		●	●
388	SEAL (A) L=280	1-79738-793-1	01	1	0005-0605	●	●	●
388	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=280	1-79738-793-1	01	1	0606-	●
388	SEAL DUAL AIR GAUGE<UG2> (B)	1-79738-826-0	01	1	9604-0004	●	●		●	●
388	SEAL DUAL AIR GAUGE<UG2> (B)	1-79738-826-0	01	1	0005-	●
389	BRACKET; UNION (B)	1-79738-796-2	01	1	0603-0605		●	●
389	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-79738-796-2	01	1	0603-0605	●
389	BRACKET; UNION DUAL AIR GAUGE<UG2> (A)	1-79738-827-1	01	1	9604-0004	●	●		●	●
389	BRACKET; UNION DUAL AIR GAUGE<UG2> (A)	1-79738-827-1	01	1	0005-	●
389	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-79738-791-2	01	1	9604-9803	●	●		●	●
389	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-79738-814-1	01	1	9804-0004	●	●		●	●
389	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-79738-814-2	01	1	0005-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
