Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#37203) — 574 parça

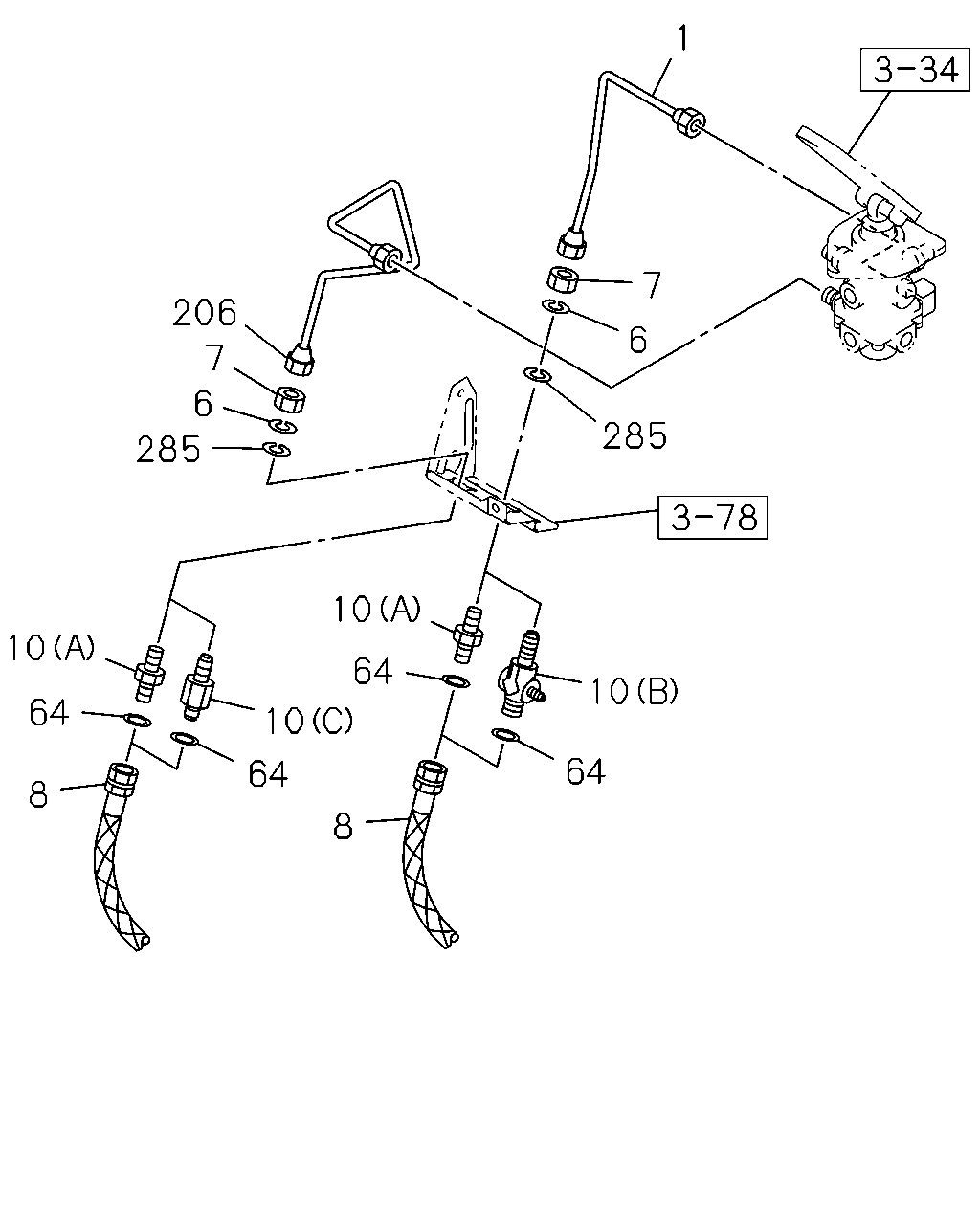

1 7 206 6 7 6 285 285 10 10 64 10 64 10 64 64 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=279	1-47492-449-4	01	1	9604-9902	●	●	●	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=277	1-49121-487-0	01	1	9903-0004	●	●	●	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=277	1-49121-487-0	01	1	0005-	●		●	●
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9604-0004	●	●	●	●	●
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0005-0603	●		●	●
6	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-	●		●	●
7	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9604-0004	●	●	●	●	●
7	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0005-0512	●		●	●
7	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-	●		●	●
8	HOSE; FLEX,AIR,CAB SIDE CAB UP +50MM<W60> L=580	1-09363-764-0	02	1	0406-				●
8	HOSE; FLEX,AIR,CAB SIDE L=520	0-07474-520-1	02	1	9604-9803	●	●	●	●	●
8	HOSE; FLEX,AIR,CAB SIDE L=520	1-09363-605-0	02	1	9804-0004	●	●	●	●	●
8	HOSE; FLEX,AIR,CAB SIDE L=520	1-09363-605-0	02	1	0005-0405	●		●	●
8	HOSE; FLEX,AIR,CAB SIDE L=520	1-09363-605-0	02	1	0406-	●		●
8	HOSE; FLEX,AIR,CAB SIDE EXC. CAB UP +50MM<W60> L=520	1-09363-605-0	02	1	0406-				●
10	CONNECTOR; FLEX HOSE (A)	1-09654-324-0	01	1	9604-9803	●	●	●	●	●
10	CONNECTOR; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> (A)	1-09654-324-0	01	1	9604-9803	●	●		●	●
10	CONNECTOR; FLEX HOSE (A)	1-09654-324-0	01	1	9604-9803			●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (C)	1-09654-394-0	01	1	9804-0004	●	●		●	●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (C)	1-09654-394-0	01	1	0005-				●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (B)	1-09656-451-1	01	1	9604-9803	●	●		●	●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (B)	1-09656-721-0	01	1	9804-0004	●	●		●	●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (B)	1-09656-721-0	01	1	0005-0103				●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> (B)	1-09656-754-0	01	1	0104-				●
10	CONNECTOR; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> (A) M16 STRAIGHT	1-09654-380-0	01	1	9804-0004	●	●		●	●
10	CONNECTOR; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> (A) M16 STRAIGHT	1-09654-380-0	01	1	9804-0004	●	●		●	●
10	CONNECTOR; FLEX HOSE (A) M16 STRAIGHT	1-09654-380-0	01	1	9804-0004			●
10	CONNECTOR; FLEX HOSE (A) M16 STRAIGHT	1-09654-380-0	01	1	9804-0004			●
10	CONNECTOR; FLEX HOSE (A) M16 STRAIGHT	1-09654-380-0	02	1	0005-	●		●
10	CONNECTOR; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> (A) M16 STRAIGHT	1-09654-380-0	02	1	0005-				●
64	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9604-0004	●	●	●	●	●
64	GASKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	9604-0004	●	●		●	●
64	GASKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	0005-				●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=406	1-47492-451-3	01	1	9604-0004	●	●	●	●	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=406	1-47492-451-3	01	1	0005-	●		●	●
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	02	1	9604-0004	●	●	●	●	●
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	0005-0605	●		●	●
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	0005-0605	●		●	●
285	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	01	1	0606-	●		●	●
285	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	01	1	0606-	●		●	●

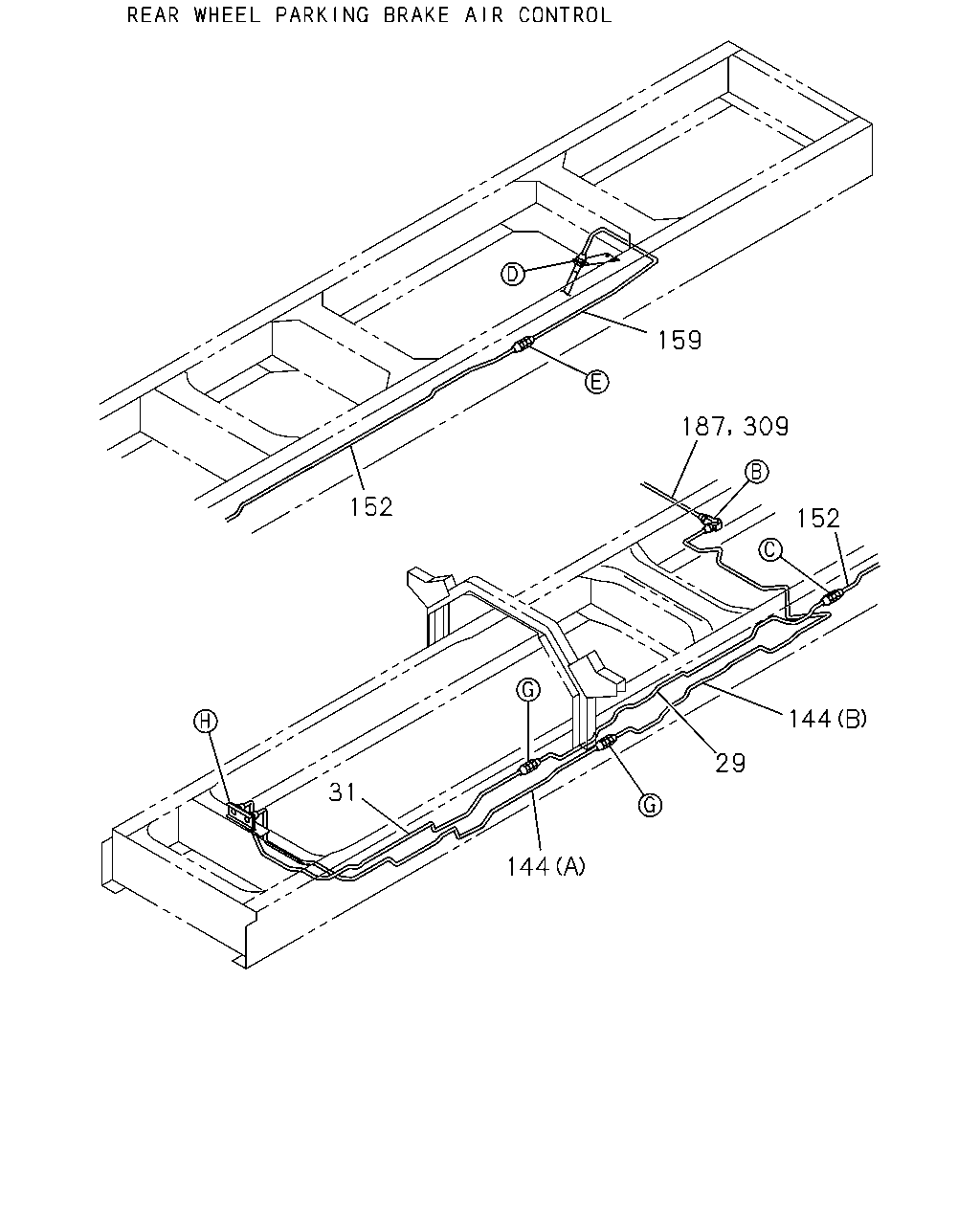

159 152 152 144 29 31 144 187 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E
29	PIPE; AIR,UNION TO UNION TRANSFER TF56<BFK> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1807 SERVICED BY L=1950	1-47428-854-0	01	1	0406-			●
29	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1642 SERVICED BY L=1700	1-47426-391-0	01	1	9604-9803	●	●
29	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1647 SERVICED BY L=1700	1-47426-391-0	01	1	9804-0004	●	●
29	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1742 SERVICED BY L=1800	1-47426-392-0	01	1	9604-9606			●	●
29	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1776 SERVICED BY L=1800	1-47426-392-0	01	1	9607-0004			●	●
29	PIPE; AIR,UNION TO UNION MLD6D M/T(X5Q) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1776 SERVICED BY L=1800	1-47426-392-0	01	1	0005-0009			●
29	PIPE; AIR,UNION TO UNION MLD6D M/T(X5Q) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1767 SERVICED BY L=1800	1-47428-853-0	01	1	0010-0403			●
29	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) MLD6 M/T<X9Y> L=1767 SERVICED BY L=1800	1-47428-853-0	01	1	0404-0405			●
29	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) MLD6 M/T<X9Y> EXC. TRANSFER TF56<BFK> L=1767 SERVICED BY L=1800	1-47428-853-0	01	1	0406-			●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1983 SERVICED BY L=2150	1-47426-394-0	01	1	9604-9803	●	●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1949 SERVICED BY L=2150	1-47426-394-0	01	1	9804-0004	●	●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2000 SERVICED BY L=2150	1-47426-394-0	01	1	9604-9606			●	●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1967 SERVICED BY L=2150	1-47426-394-0	01	1	9607-0004			●	●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1956 SERVICED BY L=2150	1-47428-855-0	01	1	0005-			●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1975 SERVICED BY L=2150	1-47426-394-0	01	1	9604-9803	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1797 SERVICED BY L=1950	1-47426-393-0	01	1	9804-0004	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2290 SERVICED BY L=2400	1-47426-395-0	01	1	9604-9611	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2295 SERVICED BY L=2400	1-47426-395-0	01	1	9612-9803	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2463 SERVICED BY L=2700	1-47426-396-0	01	1	9804-0004	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1976 SERVICED BY L=2150	1-47426-394-0	01	1	9604-9606			●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1984 SERVICED BY L=2150	1-47426-394-0	01	1	9607-9802			●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1984 SERVICED BY L=2150	1-47426-394-0	01	1	9804-0004			●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1974 SERVICED BY L=2150	1-47428-855-0	01	1	0005-			●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2296 SERVICED BY L=2400	1-47426-395-0	01	1	9604-9606			●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2287 SERVICED BY L=2400	1-47426-395-0	01	1	9607-0004			●	●
144	PIPE; AIR,UNION TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2316 SERVICED BY L=2400	1-47428-856-0	01	1	0005-0009			●
144	PIPE; AIR,UNION TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2341 SERVICED BY L=2400	1-47428-856-0	01	1	0010-0403			●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2341 SERVICED BY L=2400	1-47428-856-0	01	1	0404-			●
152	PIPE; AIR,UNION TO UNION TRANSFER TF56<BFK> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1624 SERVICED BY L=1700	1-47428-852-0	01	1	0406-			●
152	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1344 SERVICED BY L=1400	1-47426-389-0	01	1	9604-9605	●
152	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1346 SERVICED BY L=1400	1-47426-389-0	01	1	9606-0004	●
152	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1842 SERVICED BY L=1950	1-47426-393-0	01	1	9604-9605		●
152	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1843 SERVICED BY L=1950	1-47426-393-0	01	1	9606-0004		●
152	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1670 SERVICED BY L=1700	1-47426-391-0	01	1	9604-9605			●	●
152	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1671 SERVICED BY L=1700	1-47426-391-0	01	1	9606-0004			●	●
152	PIPE; AIR,UNION TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1671 SERVICED BY L=1700	1-47426-391-0	01	1	0005-0403			●
152	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1671 SERVICED BY L=1700	1-47426-391-0	01	1	0404-0405			●
152	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSFER TF56<BFK> L=1671 SERVICED BY L=1700	1-47426-391-0	01	1	0406-			●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1160 SERVICED BY L=1250	1-47426-388-0	01	1	9604-9605	●	●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1142 SERVICED BY L=1250	1-47426-388-0	01	1	9606-0004	●	●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1230 SERVICED BY L=1250	1-47426-388-0	01	1	9604-0004			●	●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1230 SERVICED BY L=1250	1-47426-388-0	01	1	0005-			●
187	PIPE; AIR,AIR VLV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3)	1-49116-393-1	01	1	9604-9803	●
187	PIPE; AIR,AIR VLV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3)	1-49116-497-0	01	1	9604-9803		●
187	PIPE; AIR,AIR VLV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49115-581-0	01	1	9604-9803			●	●
309	PIPE; AIR,MPV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3)	1-49119-390-0	01	1	9804-0003	●
309	PIPE; AIR,MPV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) L=995	1-49122-554-0	01	1	0004-0004	●
309	PIPE; AIR,MPV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) L=778	1-49119-389-0	01	1	9804-0004		●
309	PIPE; AIR,MPV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=648	1-49119-388-0	01	1	9804-0004			●	●
309	PIPE; AIR,MPV TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=648	1-49119-388-0	01	1	0005-0403			●
309	PIPE; AIR,MPV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=648	1-49119-388-0	01	1	0404-			●

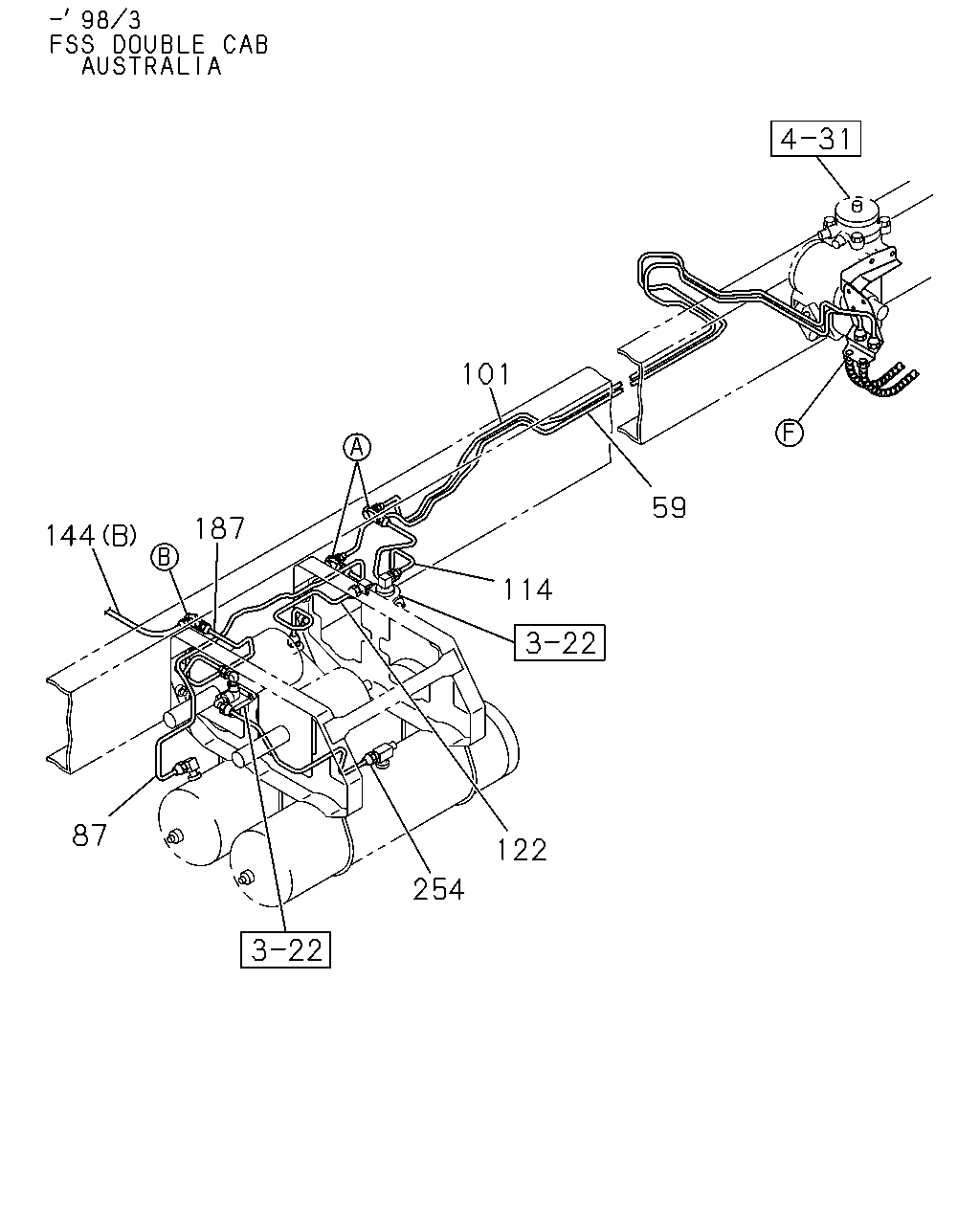

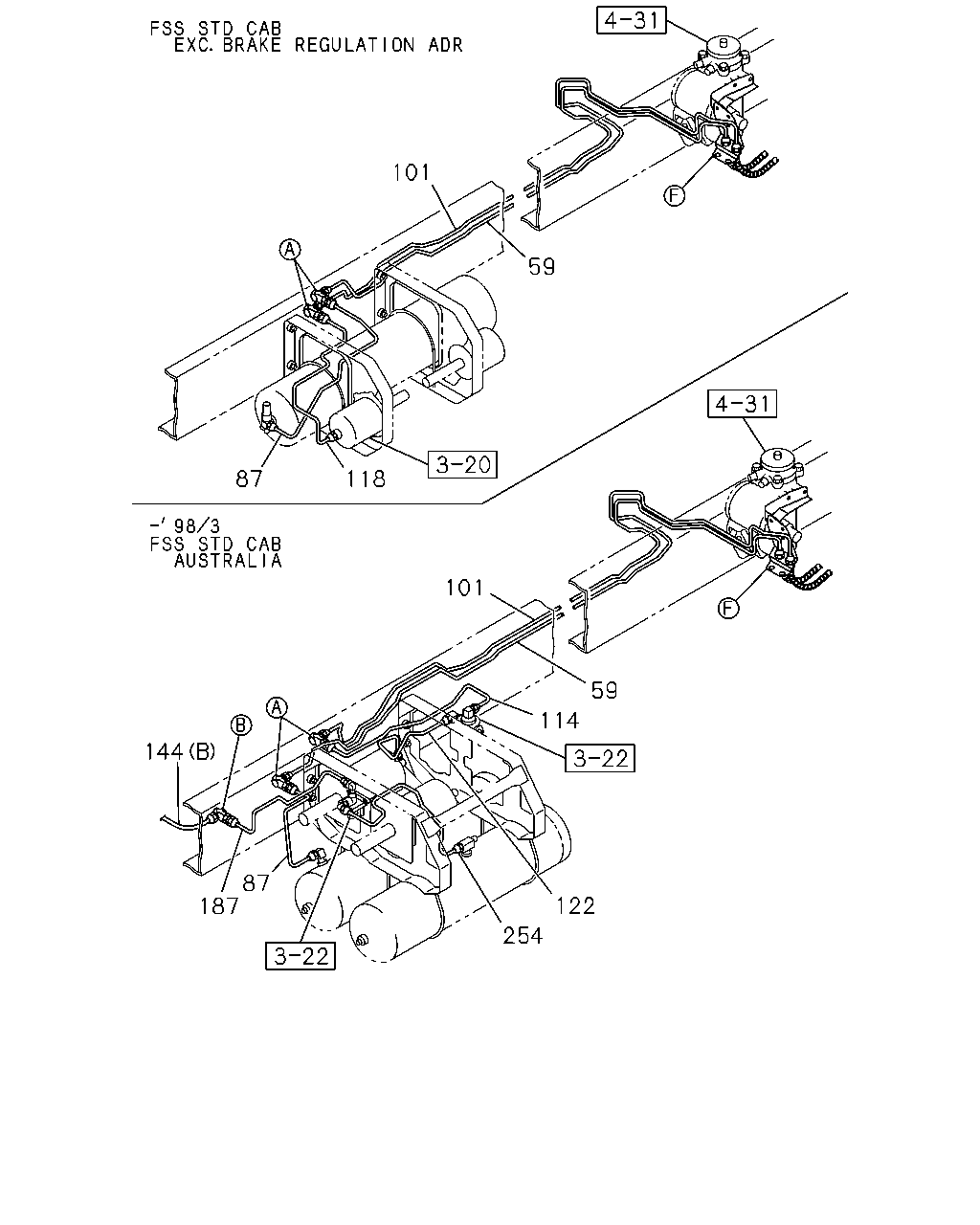

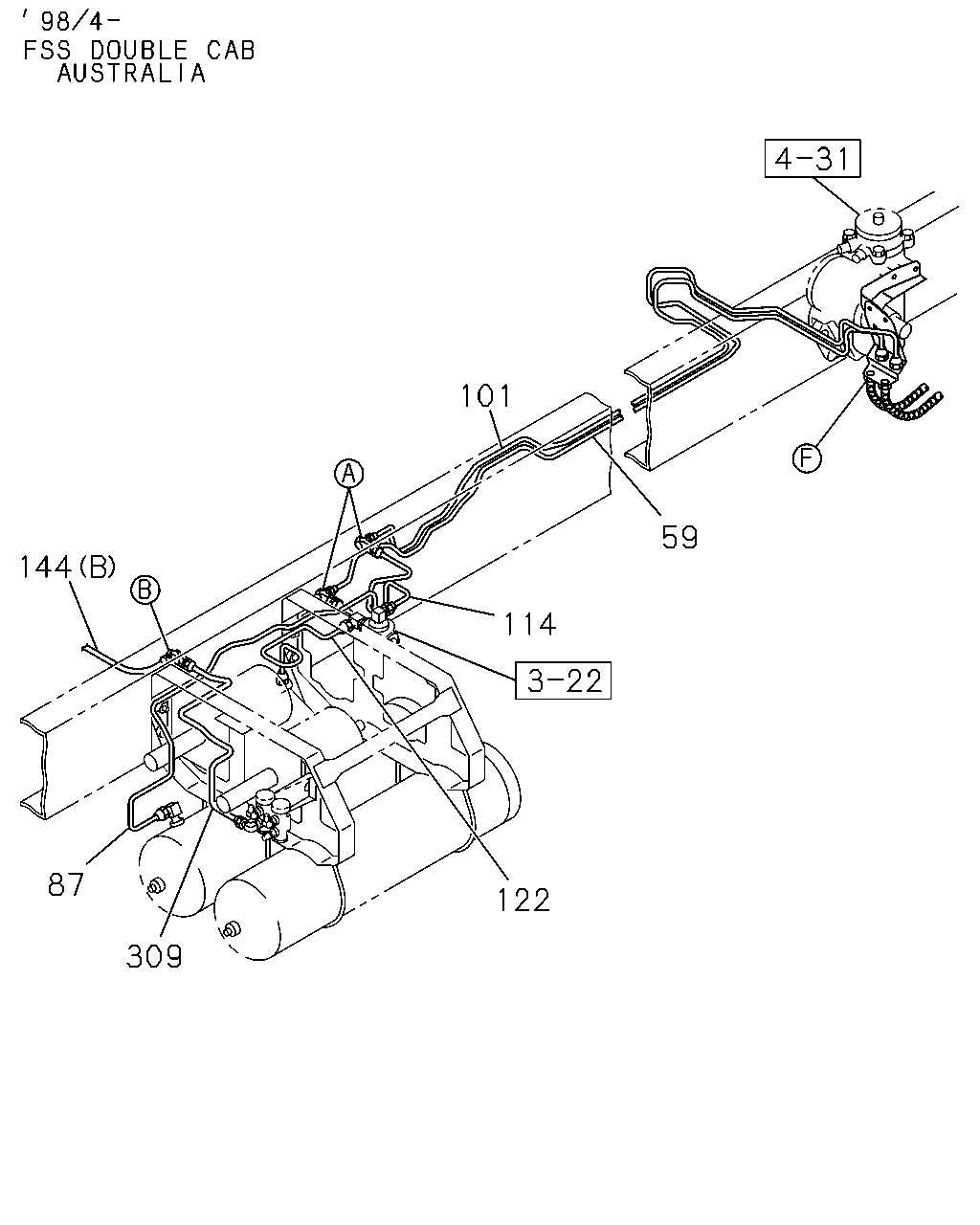

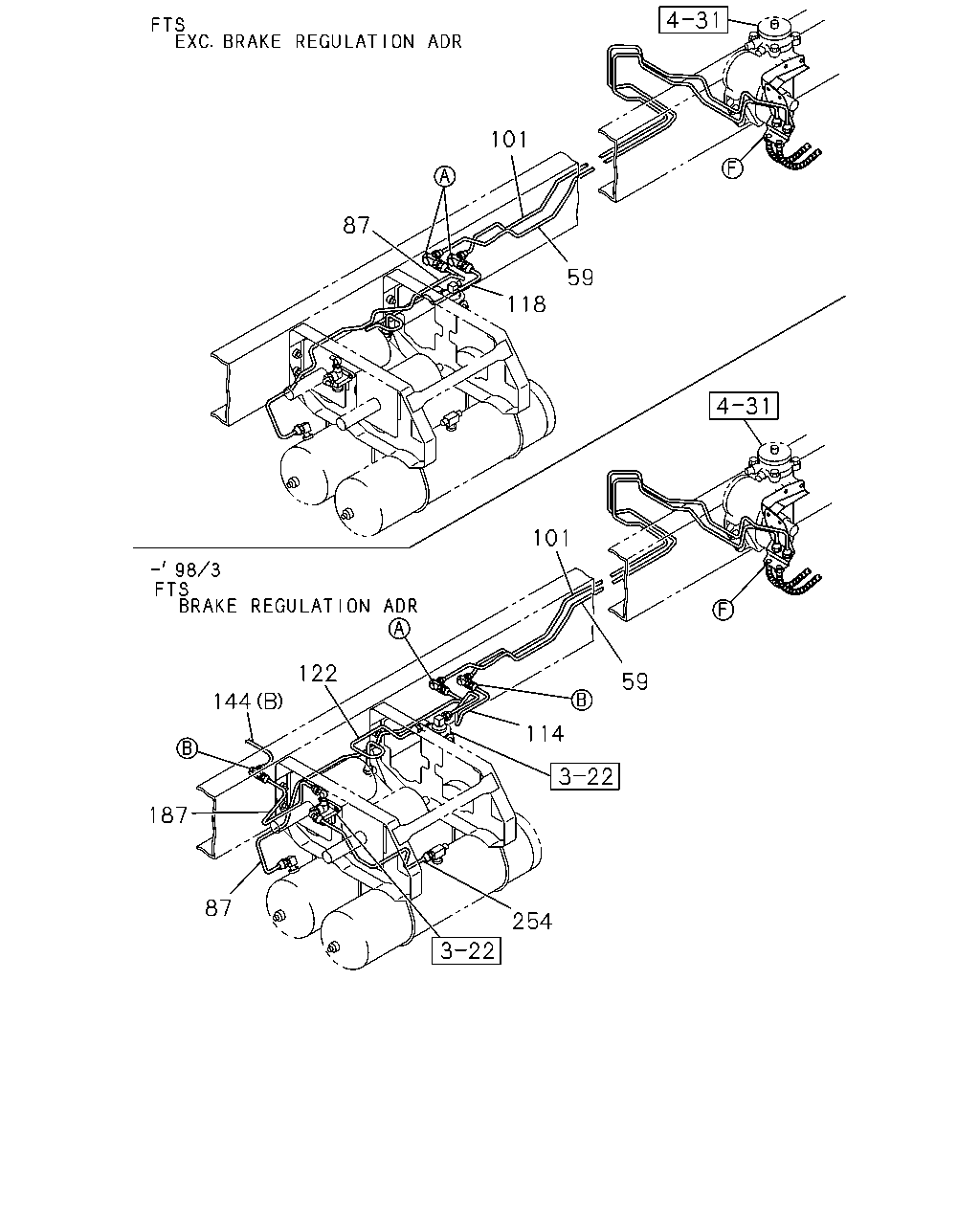

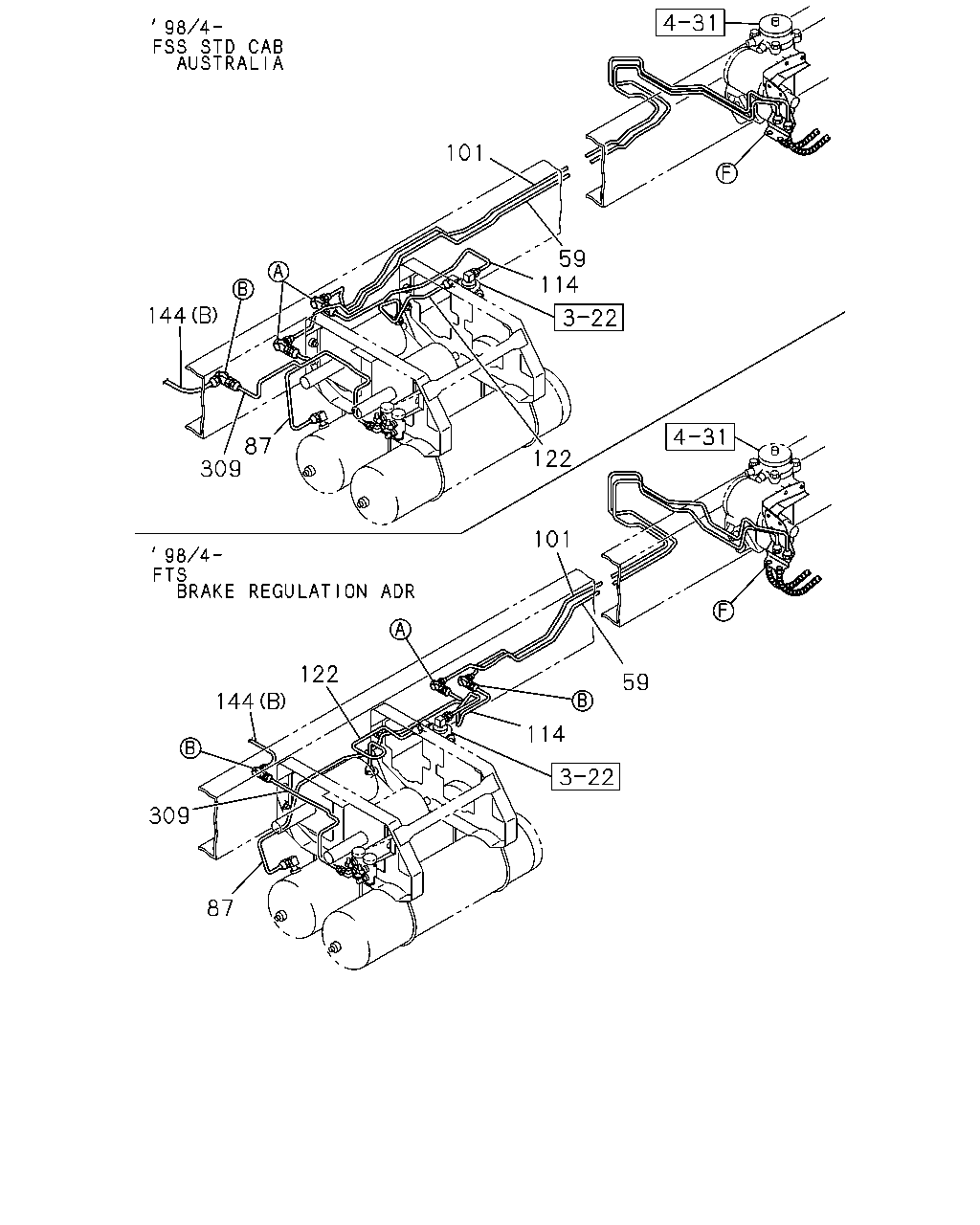

101 59 87 118 101 59 114 144 87 187 122 254

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
59	PIPE; AIR,UNION TO FLEX HOSE AUSTRALIA EQUIPMENT(RR3)	1-49119-378-0	01	1	9804-0004	●
59	PIPE; AIR,UNION TO FLEX HOSE EXC. BRAKE REGULATION ADR<TDU> L=3278 SERVICED BY L=3300	1-47426-426-0	01	1	9604-0004	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3278 SERVICED BY L=3300	1-47426-426-0	01	1	0005-0012	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3284 SERVICED BY L=3300	1-47428-886-0	01	1	0101-	●
59	PIPE; AIR,UNION TO FLEX HOSE BRAKE REGULATION ADR<TDU> L=3417 SERVICED BY L=3700	1-47426-427-0	01	1	9604-9803	●	●
59	PIPE; AIR,UNION TO FLEX HOSE AUSTRALIA EQUIPMENT(RR3) L=3417 SERVICED BY L=3700	1-47426-427-0	01	1	9804-0004		●
59	PIPE; AIR,UNION TO FLEX HOSE L=3453 SERVICED BY L=3700	1-47426-427-0	01	1	9604-0004			●	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3453 SERVICED BY L=3700	1-47426-427-0	01	1	0005-0008			●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3453 SERVICED BY L=3500	1-47428-887-0	01	1	0009-0009			●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3470 SERVICED BY L=3500	1-47428-887-0	01	1	0010-			●	●
87	PIPE; AIR,AIR TANK TO UNION AUSTRALIA EQUIPMENT(RR3)	1-49116-394-0	01	1	9604-9803	●
87	PIPE; AIR,AIR TANK TO UNION AUSTRALIA EQUIPMENT(RR3) L=476	1-49119-380-0	01	1	9804-0004	●
87	PIPE; AIR,AIR TANK TO UNION EXC. BRAKE REGULATION ADR<TDU>	1-49115-908-0	01	1	9604-0004	●
87	PIPE; AIR,AIR TANK TO UNION	1-49115-908-0	01	1	0005-	●
87	PIPE; AIR,AIR TANK TO UNION AUSTRALIA EQUIPMENT(RR3) L=1158 SERVICED BY L=1250	1-47426-416-0	01	1	9604-0004		●
87	PIPE; AIR,AIR TANK TO UNION L=1232 SERVICED BY L=1250	1-47426-416-0	01	1	9604-			●
87	PIPE; AIR,AIR TANK TO UNION EXC. BRAKE REGULATION ADR<TDU> L=1232 SERVICED BY L=1250	1-47426-416-0	01	1	9604-				●
87	PIPE; AIR,AIR TANK TO UNION BRAKE REGULATION ADR<TDU> L=1153 SERVICED BY L=1250	1-47426-416-0	01	1	9604-0004				●	●
87	PIPE; AIR,AIR TANK TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) BRAKE REGULATION ADR<TDU> L=1153 SERVICED BY L=1250	1-47426-416-0	01	1	0005-0403				●
87	PIPE; AIR,AIR TANK TO UNION BRAKE REGULATION ADR<TDU> L=1153 SERVICED BY L=1250	1-47426-416-0	01	1	0404-				●
101	PIPE; AIR,FLEX HOSE TO UNION EXC. BRAKE REGULATION ADR<TDU> L=3036 SERVICED BY L=3300	1-47426-426-0	01	1	9604-0004	●
101	PIPE; AIR,FLEX HOSE TO UNION BRAKE REGULATION ADR<TDU> L=3103 SERVICED BY L=3300	1-47426-426-0	01	1	9604-0004	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3036 SERVICED BY L=3300	1-47426-426-0	01	1	0005-0012	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3042 SERVICED BY L=3300	1-47428-886-0	01	1	0101-	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3190 SERVICED BY L=3300	1-47426-426-0	01	1	9604-0004			●	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3190 SERVICED BY L=3300	1-47426-426-0	01	1	0005-0008			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3190 SERVICED BY L=3300	1-47428-886-0	01	1	0009-0009			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3199 SERVICED BY L=3300	1-47428-886-0	01	1	0010-			●	●
114	PIPE; AIR,QUICK RELEASE VLV AUSTRALIA EQUIPMENT(RR3)	1-49116-392-0	01	1	9604-0004	●
114	PIPE; AIR,QUICK RELEASE VLV AUSTRALIA EQUIPMENT(RR3)	1-49117-305-0	01	1	9604-0004		●
114	PIPE; AIR,QUICK RELEASE VLV BRAKE REGULATION ADR<TDU>	1-49116-499-0	01	1	9604-0004				●	●
114	PIPE; AIR,QUICK RELEASE VLV MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) BRAKE REGULATION ADR<TDU>	1-49116-499-0	01	1	0005-0403				●
114	PIPE; AIR,QUICK RELEASE VLV BRAKE REGULATION ADR<TDU>	1-49116-499-0	01	1	0404-				●
118	PIPE; AIR,UNION TO AIR MASTER EXC. BRAKE REGULATION ADR<TDU>	1-49114-965-0	01	1	9604-9803	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. BRAKE REGULATION ADR<TDU>	1-49118-391-0	01	1	9804-0004	●
118	PIPE; AIR,UNION TO AIR MASTER	1-49118-391-0	01	1	0005-	●
118	PIPE; AIR,UNION TO AIR MASTER	1-49116-741-0	01	1	9604-9803			●
118	PIPE; AIR,UNION TO AIR MASTER EXC. BRAKE REGULATION ADR<TDU>	1-49116-741-0	01	1	9604-9803				●
118	PIPE; AIR,UNION TO AIR MASTER	1-49118-357-0	01	1	9804-			●
118	PIPE; AIR,UNION TO AIR MASTER EXC. BRAKE REGULATION ADR<TDU>	1-49118-357-0	01	1	9804-				●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER AUSTRALIA EQUIPMENT(RR3)	1-49116-385-0	01	1	9604-9803	●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER AUSTRALIA EQUIPMENT(RR3)	1-49118-382-0	01	1	9804-0004	●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER BRAKE REGULATION ADR<TDU>	1-49115-849-0	01	1	9604-9803		●		●	●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER BRAKE REGULATION ADR<TDU>	1-49119-497-0	01	1	9804-0004		●		●	●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER BRAKE REGULATION ADR<TDU>	1-49119-497-0	01	1	0005-				●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1975 SERVICED BY L=2150	1-47426-394-0	01	1	9604-9803	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1797 SERVICED BY L=1950	1-47426-393-0	01	1	9804-0004	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2290 SERVICED BY L=2400	1-47426-395-0	01	1	9604-9611	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2295 SERVICED BY L=2400	1-47426-395-0	01	1	9612-9803	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2463 SERVICED BY L=2700	1-47426-396-0	01	1	9804-0004	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1976 SERVICED BY L=2150	1-47426-394-0	01	1	9604-9606				●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1984 SERVICED BY L=2150	1-47426-394-0	01	1	9607-9802				●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1984 SERVICED BY L=2150	1-47426-394-0	01	1	9804-0004				●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1974 SERVICED BY L=2150	1-47428-855-0	01	1	0005-				●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2296 SERVICED BY L=2400	1-47426-395-0	01	1	9604-9606				●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2287 SERVICED BY L=2400	1-47426-395-0	01	1	9607-0004				●	●
144	PIPE; AIR,UNION TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2316 SERVICED BY L=2400	1-47428-856-0	01	1	0005-0009				●
144	PIPE; AIR,UNION TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2341 SERVICED BY L=2400	1-47428-856-0	01	1	0010-0403				●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2341 SERVICED BY L=2400	1-47428-856-0	01	1	0404-				●
187	PIPE; AIR,AIR VLV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3)	1-49116-393-1	01	1	9604-9803	●
187	PIPE; AIR,AIR VLV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3)	1-49116-497-0	01	1	9604-9803		●
187	PIPE; AIR,AIR VLV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49115-581-0	01	1	9604-9803				●	●
254	PIPE; AIR,TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3)	1-49116-387-0	01	1	9604-9803	●
254	PIPE; AIR,TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3)	1-49114-898-0	01	1	9604-9803		●
254	PIPE; AIR,TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49114-898-0	01	1	9604-9803				●	●

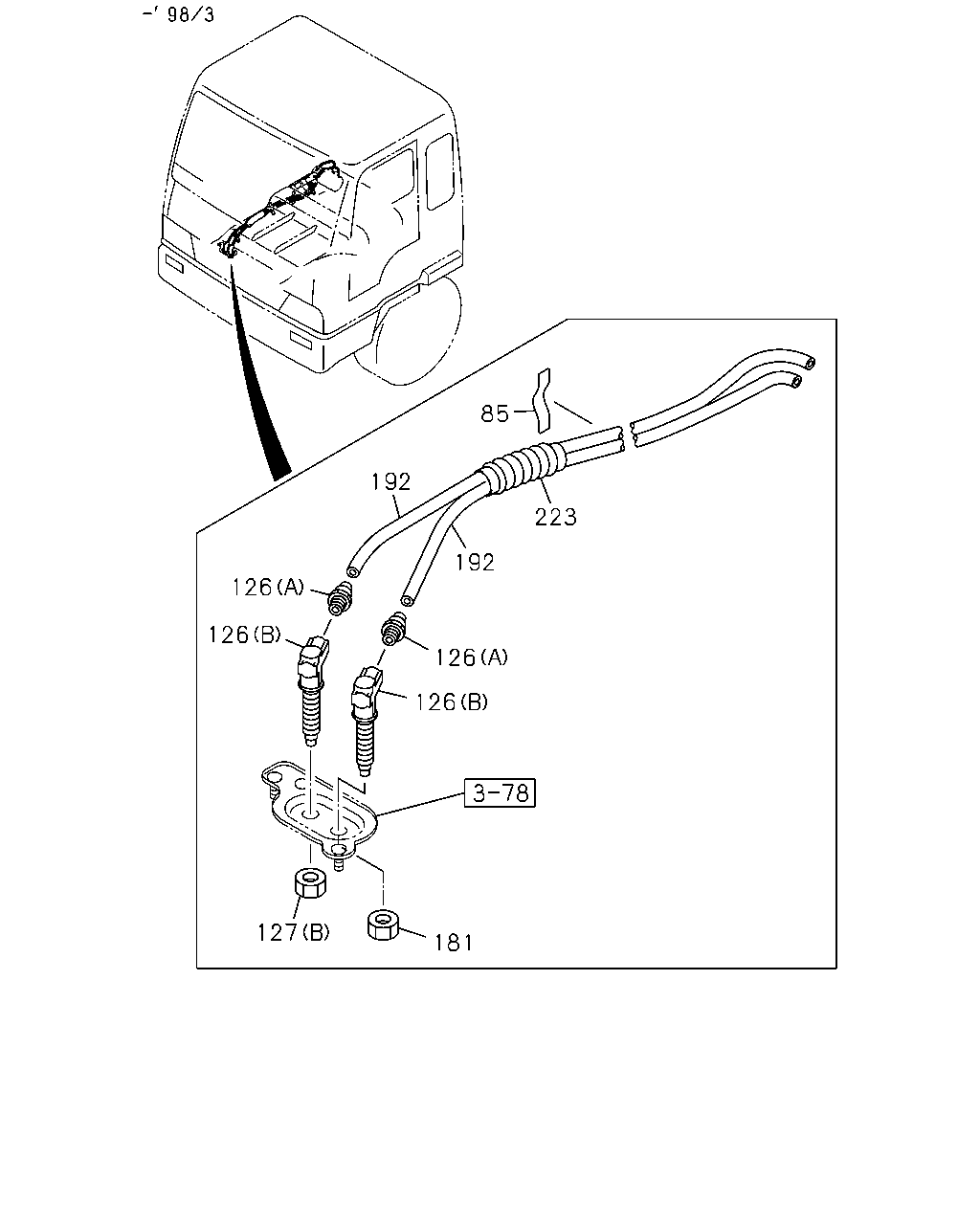

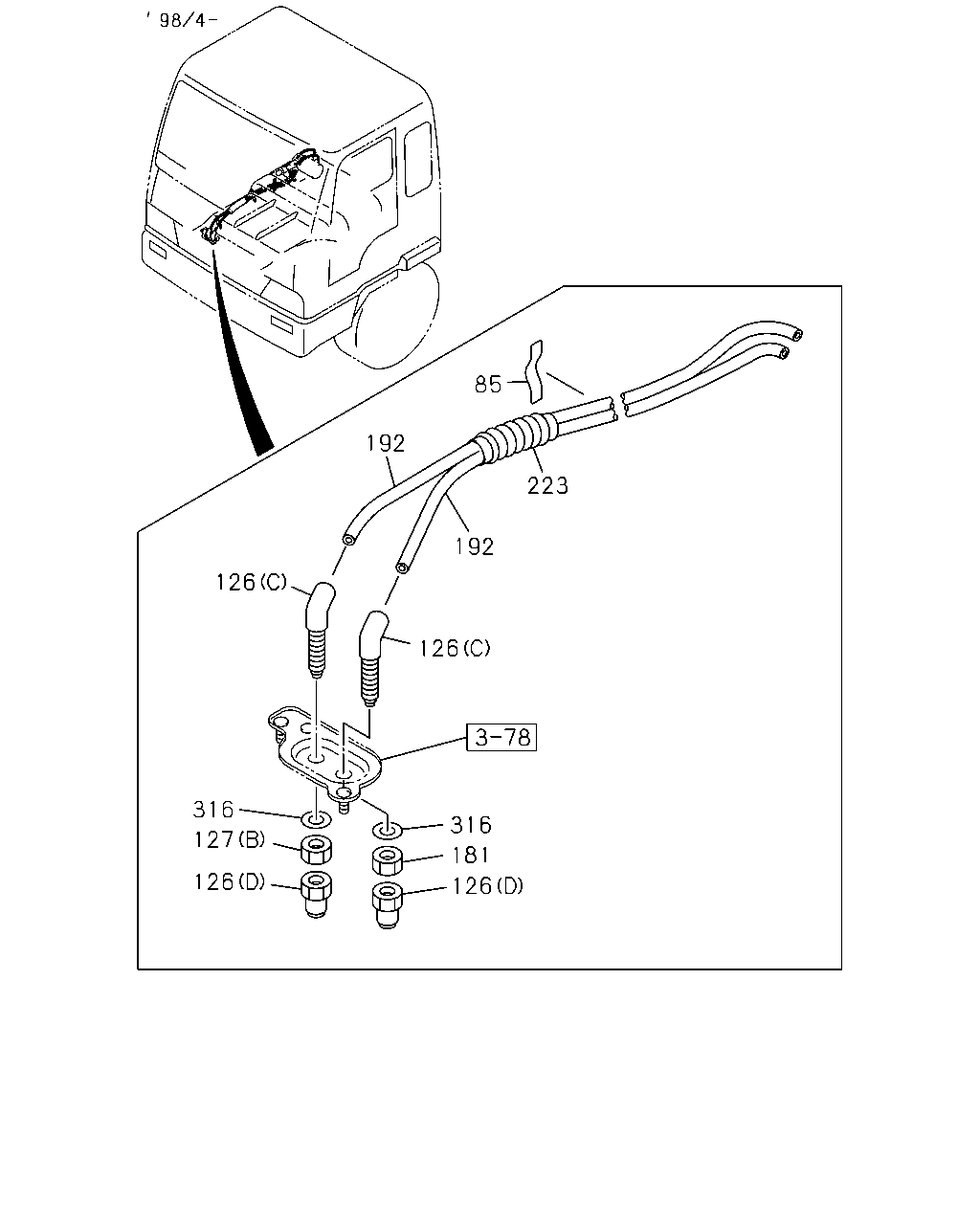

85 192 223 192 126 126 316 316 127 181 126 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X30	1-72498-014-1	05	1	9604-9903	●	●	●	●
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-0	05	1	9904-0004	●	●	●	●
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-1	05	1	0005-			●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9604-9803	●	●	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	9804-0004	●	●	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0005-0706			●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	8-98078-117-0	02	1	0707-			●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09660-743-0	02	1	9604-9803	●	●	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN8 & M20 STRAIGHT	1-09661-056-0	02	1	9804-0004	●	●	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN8 & M20 STRAIGHT	1-09661-056-0	02	1	0005-0007			●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN8 & M20 STRAIGHT	1-09661-381-0	02	1	0008-0706			●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14	9-99111-414-0	02	1	9604-0004	●	●	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14	9-99111-414-0	02	1	0005-0512			●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14	0-91111-514-0	02	1	0601-			●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M18	9-99111-418-0	01	1	9604-9803	●	●	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	9-99111-420-0	01	1	9804-0004	●	●	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	9-99111-420-0	01	1	0005-0512			●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	0-91111-520-0	01	1	0601-			●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18	9-99111-418-0	01	1	9604-9803	●	●	●	●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	9-99111-420-0	01	1	9804-0004	●	●	●	●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	9-99111-420-0	01	1	0005-0512			●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	0-91111-520-0	01	1	0601-			●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9711-0004	●	●	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0005-			●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0005-			●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=15	1-87410-102-0	01	1	9711-0004	●	●	●	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=15	1-87410-102-0	01	1	0005-			●
316	WASHER; PL ID=21	9-09160-520-0	02	1	9804-0004	●	●	●	●
316	WASHER; PL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21	9-09160-520-0	02	1	0005-0605			●
316	WASHER; PL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21	0-91610-520-0	02	1	0606-			●

101 59 187 144 114 87 122 254

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
59	PIPE; AIR,UNION TO FLEX HOSE AUSTRALIA EQUIPMENT(RR3)	1-49119-378-0	01	1	9804-0004	●
59	PIPE; AIR,UNION TO FLEX HOSE EXC. BRAKE REGULATION ADR<TDU> L=3278 SERVICED BY L=3300	1-47426-426-0	01	1	9604-0004	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3278 SERVICED BY L=3300	1-47426-426-0	01	1	0005-0012	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3284 SERVICED BY L=3300	1-47428-886-0	01	1	0101-	●
59	PIPE; AIR,UNION TO FLEX HOSE BRAKE REGULATION ADR<TDU> L=3417 SERVICED BY L=3700	1-47426-427-0	01	1	9604-9803	●	●
59	PIPE; AIR,UNION TO FLEX HOSE AUSTRALIA EQUIPMENT(RR3) L=3417 SERVICED BY L=3700	1-47426-427-0	01	1	9804-0004		●
59	PIPE; AIR,UNION TO FLEX HOSE L=3453 SERVICED BY L=3700	1-47426-427-0	01	1	9604-0004			●	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3453 SERVICED BY L=3700	1-47426-427-0	01	1	0005-0008			●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3453 SERVICED BY L=3500	1-47428-887-0	01	1	0009-0009			●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3470 SERVICED BY L=3500	1-47428-887-0	01	1	0010-			●	●
87	PIPE; AIR,AIR TANK TO UNION AUSTRALIA EQUIPMENT(RR3)	1-49116-394-0	01	1	9604-9803	●
87	PIPE; AIR,AIR TANK TO UNION AUSTRALIA EQUIPMENT(RR3) L=476	1-49119-380-0	01	1	9804-0004	●
87	PIPE; AIR,AIR TANK TO UNION EXC. BRAKE REGULATION ADR<TDU>	1-49115-908-0	01	1	9604-0004	●
87	PIPE; AIR,AIR TANK TO UNION	1-49115-908-0	01	1	0005-	●
87	PIPE; AIR,AIR TANK TO UNION AUSTRALIA EQUIPMENT(RR3) L=1158 SERVICED BY L=1250	1-47426-416-0	01	1	9604-0004		●
87	PIPE; AIR,AIR TANK TO UNION L=1232 SERVICED BY L=1250	1-47426-416-0	01	1	9604-			●
87	PIPE; AIR,AIR TANK TO UNION EXC. BRAKE REGULATION ADR<TDU> L=1232 SERVICED BY L=1250	1-47426-416-0	01	1	9604-				●
87	PIPE; AIR,AIR TANK TO UNION BRAKE REGULATION ADR<TDU> L=1153 SERVICED BY L=1250	1-47426-416-0	01	1	9604-0004				●	●
87	PIPE; AIR,AIR TANK TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) BRAKE REGULATION ADR<TDU> L=1153 SERVICED BY L=1250	1-47426-416-0	01	1	0005-0403				●
87	PIPE; AIR,AIR TANK TO UNION BRAKE REGULATION ADR<TDU> L=1153 SERVICED BY L=1250	1-47426-416-0	01	1	0404-				●
101	PIPE; AIR,FLEX HOSE TO UNION EXC. BRAKE REGULATION ADR<TDU> L=3036 SERVICED BY L=3300	1-47426-426-0	01	1	9604-0004	●
101	PIPE; AIR,FLEX HOSE TO UNION BRAKE REGULATION ADR<TDU> L=3103 SERVICED BY L=3300	1-47426-426-0	01	1	9604-0004	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3036 SERVICED BY L=3300	1-47426-426-0	01	1	0005-0012	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3042 SERVICED BY L=3300	1-47428-886-0	01	1	0101-	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3190 SERVICED BY L=3300	1-47426-426-0	01	1	9604-0004			●	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3190 SERVICED BY L=3300	1-47426-426-0	01	1	0005-0008			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3190 SERVICED BY L=3300	1-47428-886-0	01	1	0009-0009			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3199 SERVICED BY L=3300	1-47428-886-0	01	1	0010-			●	●
114	PIPE; AIR,QUICK RELEASE VLV AUSTRALIA EQUIPMENT(RR3)	1-49116-392-0	01	1	9604-0004	●
114	PIPE; AIR,QUICK RELEASE VLV AUSTRALIA EQUIPMENT(RR3)	1-49117-305-0	01	1	9604-0004		●
114	PIPE; AIR,QUICK RELEASE VLV BRAKE REGULATION ADR<TDU>	1-49116-499-0	01	1	9604-0004				●	●
114	PIPE; AIR,QUICK RELEASE VLV MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) BRAKE REGULATION ADR<TDU>	1-49116-499-0	01	1	0005-0403				●
114	PIPE; AIR,QUICK RELEASE VLV BRAKE REGULATION ADR<TDU>	1-49116-499-0	01	1	0404-				●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER AUSTRALIA EQUIPMENT(RR3)	1-49116-385-0	01	1	9604-9803	●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER AUSTRALIA EQUIPMENT(RR3)	1-49118-382-0	01	1	9804-0004	●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER BRAKE REGULATION ADR<TDU>	1-49115-849-0	01	1	9604-9803		●		●	●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER BRAKE REGULATION ADR<TDU>	1-49119-497-0	01	1	9804-0004		●		●	●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER BRAKE REGULATION ADR<TDU>	1-49119-497-0	01	1	0005-				●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1975 SERVICED BY L=2150	1-47426-394-0	01	1	9604-9803	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1797 SERVICED BY L=1950	1-47426-393-0	01	1	9804-0004	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2290 SERVICED BY L=2400	1-47426-395-0	01	1	9604-9611	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2295 SERVICED BY L=2400	1-47426-395-0	01	1	9612-9803	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2463 SERVICED BY L=2700	1-47426-396-0	01	1	9804-0004	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1976 SERVICED BY L=2150	1-47426-394-0	01	1	9604-9606				●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1984 SERVICED BY L=2150	1-47426-394-0	01	1	9607-9802				●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1984 SERVICED BY L=2150	1-47426-394-0	01	1	9804-0004				●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1974 SERVICED BY L=2150	1-47428-855-0	01	1	0005-				●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2296 SERVICED BY L=2400	1-47426-395-0	01	1	9604-9606				●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2287 SERVICED BY L=2400	1-47426-395-0	01	1	9607-0004				●	●
144	PIPE; AIR,UNION TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2316 SERVICED BY L=2400	1-47428-856-0	01	1	0005-0009				●
144	PIPE; AIR,UNION TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2341 SERVICED BY L=2400	1-47428-856-0	01	1	0010-0403				●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2341 SERVICED BY L=2400	1-47428-856-0	01	1	0404-				●
187	PIPE; AIR,AIR VLV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3)	1-49116-393-1	01	1	9604-9803	●
187	PIPE; AIR,AIR VLV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3)	1-49116-497-0	01	1	9604-9803		●
187	PIPE; AIR,AIR VLV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49115-581-0	01	1	9604-9803				●	●
254	PIPE; AIR,TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3)	1-49116-387-0	01	1	9604-9803	●
254	PIPE; AIR,TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3)	1-49114-898-0	01	1	9604-9803		●
254	PIPE; AIR,TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49114-898-0	01	1	9604-9803				●	●

175 175 127 127 97 97 127 97 97 178 178 127 97 72 97 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E
72	NUT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9604-9606	●	●	●	●
72	NUT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●	●	●
72	NUT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0005-0602			●
72	NUT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0603-			●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 2WAY	1-09654-176-2	01	1	9604-0004	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) M14 L=59.5	9-09223-108-1	02	1	0005-0607			●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) M14 L=59.5	0-92113-108-0	02	1	0608-			●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09654-229-1	01	1	9604-0004	●	●	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09654-229-1	01	1	0005-			●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09660-913-1	02	1	9604-0004	●	●	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN8 & M14 STRAIGHT	1-09661-094-0	02	1	0005-0007			●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0008-			●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M14 STRAIGHT	9-09223-008-1	01	1	9604-0004	●	●	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M14 STRAIGHT	9-09223-008-1	01	1	9604-0004			●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M14 STRAIGHT	9-09223-008-1	01	1	0005-0607			●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M14 STRAIGHT	9-09223-008-1	01	1	0005-0607			●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M14 STRAIGHT	0-92113-008-0	01	1	0608-			●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M14 STRAIGHT	0-92113-008-0	01	1	0608-			●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14	9-99111-414-0	02	1	9604-0004	●	●	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14	9-99111-414-0	02	1	0005-0512			●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14	0-91111-514-0	02	1	0601-			●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M18	9-99111-418-0	01	1	9604-9803	●	●	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	9-99111-420-0	01	1	9804-0004	●	●	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	9-99111-420-0	01	1	0005-0512			●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	0-91111-520-0	01	1	0601-			●
175	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28080-820-0	02	1	9604-9606	●	●	●	●
175	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	02	1	9607-0004	●	●	●	●
175	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0512			●
175	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	02	1	0601-			●
178	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-611-4	01	1	9604-0004	●	●	●	●
178	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-611-4	01	1	0005-			●

97 91 60 37 97 97 162 79 21 161 19 67 163 64 37 59 101 46 97 19 19 41 41 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
8	HOSE; FLEX,AIR,CAB SIDE CAB UP +50MM<W60> L=580	1-09363-764-0	02	1	0406-				●
8	HOSE; FLEX,AIR,CAB SIDE L=520	0-07474-520-1	02	1	9604-9803	●	●	●	●	●
8	HOSE; FLEX,AIR,CAB SIDE L=520	1-09363-605-0	02	1	9804-0004	●	●	●	●	●
8	HOSE; FLEX,AIR,CAB SIDE L=520	1-09363-605-0	02	1	0005-0405	●		●	●
8	HOSE; FLEX,AIR,CAB SIDE L=520	1-09363-605-0	02	1	0406-	●		●
8	HOSE; FLEX,AIR,CAB SIDE EXC. CAB UP +50MM<W60> L=520	1-09363-605-0	02	1	0406-				●
19	NUT; PIPE UNION (A) M16	9-99111-416-0	02	1	9604-0004	●	●	●	●	●
19	NUT; PIPE UNION (A) M16	9-99111-416-0	02	1	0005-0512	●		●	●
19	NUT; PIPE UNION (A) M16	0-91111-516-0	02	1	0601-	●		●	●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12	9-99111-412-0	01	1	9604-0004	●	●		●	●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12	9-99111-412-0	01	1	0005-0512				●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12	0-91111-512-0	01	1	0601-				●
21	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	01	1	9604-0004	●	●		●	●
21	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	01	1	0005-0603				●
21	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	0-91510-514-0	01	1	0604-				●
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-210-1	01	1	9604-0004	●	●	●	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-210-1	01	1	9604-0004	●	●	●	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-210-1	01	1	0005-0607	●		●	●
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-210-1	01	1	0005-0607	●		●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0608-	●		●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	0608-	●		●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	9604-0004	●	●		●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	0005-				●
41	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9604-0004	●	●	●	●	●
41	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0005-0603	●		●	●
41	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-	●		●	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 STRAIGHT	9-09223-008-1	01	1	9604-0004	●	●		●	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 STRAIGHT	9-09223-008-1	01	1	0005-0607				●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 STRAIGHT	0-92113-008-0	01	1	0608-				●
59	PIPE; AIR,UNION TO FLEX HOSE AUSTRALIA EQUIPMENT(RR3)	1-49119-378-0	01	1	9804-0004	●
59	PIPE; AIR,UNION TO FLEX HOSE EXC. BRAKE REGULATION ADR<TDU> L=3278 SERVICED BY L=3300	1-47426-426-0	01	1	9604-0004	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3278 SERVICED BY L=3300	1-47426-426-0	01	1	0005-0012	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3284 SERVICED BY L=3300	1-47428-886-0	01	1	0101-	●
59	PIPE; AIR,UNION TO FLEX HOSE BRAKE REGULATION ADR<TDU> L=3417 SERVICED BY L=3700	1-47426-427-0	01	1	9604-9803	●	●
59	PIPE; AIR,UNION TO FLEX HOSE AUSTRALIA EQUIPMENT(RR3) L=3417 SERVICED BY L=3700	1-47426-427-0	01	1	9804-0004		●
59	PIPE; AIR,UNION TO FLEX HOSE L=3453 SERVICED BY L=3700	1-47426-427-0	01	1	9604-0004			●	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3453 SERVICED BY L=3700	1-47426-427-0	01	1	0005-0008			●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3453 SERVICED BY L=3500	1-47428-887-0	01	1	0009-0009			●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3470 SERVICED BY L=3500	1-47428-887-0	01	1	0010-			●	●
60	NUT; NIPPLE,AIR PIPE TRANSFER TF56<BFK> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	0406-0602				●
60	NUT; NIPPLE,AIR PIPE TRANSFER TF56<BFK> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0603-				●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	9-99111-416-0	01	1	9604-0004	●	●		●	●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	9-99111-416-0	01	1	0005-0512				●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91111-516-0	01	1	0601-				●
64	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9604-0004	●	●	●	●	●
64	GASKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	9604-0004	●	●		●	●
64	GASKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	0005-				●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9604-9606	●	●		●	●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●		●	●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0005-0602				●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0603-				●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28080-820-0	02	1	9604-9606	●	●		●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	02	1	9607-0004	●	●		●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0512				●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	02	1	0601-				●
91	NUT; PIPE UNION M16	9-99111-416-0	01	1	9604-0004	●	●	●	●	●
91	NUT; PIPE UNION M16	9-99111-416-0	01	1	9604-0004	●	●	●	●	●
91	NUT; PIPE UNION M16	9-99111-416-0	01	1	0005-0512	●		●	●
91	NUT; PIPE UNION M16	9-99111-416-0	01	1	0005-0512	●		●	●
91	NUT; PIPE UNION M16	0-91111-516-0	01	1	0601-	●		●	●
91	NUT; PIPE UNION M16	0-91111-516-0	01	1	0601-	●		●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 2WAY	1-09654-176-2	01	1	9604-0004	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) M14 L=59.5	9-09223-108-1	02	1	0005-0607				●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) M14 L=59.5	0-92113-108-0	02	1	0608-				●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09654-229-1	01	1	9604-0004	●	●		●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09654-229-1	01	1	0005-				●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09660-913-1	02	1	9604-0004	●	●		●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN8 & M14 STRAIGHT	1-09661-094-0	02	1	0005-0007				●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0008-				●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M14 STRAIGHT	9-09223-008-1	01	1	9604-0004	●	●		●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M14 STRAIGHT	9-09223-008-1	01	1	9604-0004				●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M14 STRAIGHT	9-09223-008-1	01	1	0005-0607				●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M14 STRAIGHT	9-09223-008-1	01	1	0005-0607				●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M14 STRAIGHT	0-92113-008-0	01	1	0608-				●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M14 STRAIGHT	0-92113-008-0	01	1	0608-				●
101	PIPE; AIR,FLEX HOSE TO UNION EXC. BRAKE REGULATION ADR<TDU> L=3036 SERVICED BY L=3300	1-47426-426-0	01	1	9604-0004	●
101	PIPE; AIR,FLEX HOSE TO UNION BRAKE REGULATION ADR<TDU> L=3103 SERVICED BY L=3300	1-47426-426-0	01	1	9604-0004	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3036 SERVICED BY L=3300	1-47426-426-0	01	1	0005-0012	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3042 SERVICED BY L=3300	1-47428-886-0	01	1	0101-	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3190 SERVICED BY L=3300	1-47426-426-0	01	1	9604-0004			●	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3190 SERVICED BY L=3300	1-47426-426-0	01	1	0005-0008			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3190 SERVICED BY L=3300	1-47428-886-0	01	1	0009-0009			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3199 SERVICED BY L=3300	1-47428-886-0	01	1	0010-			●	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-07462-580-1	01	1	9604-0004	●	●		●	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-07462-580-1	01	1	0005-0605				●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-57462-580-1	01	1	0606-				●
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	9604-0004	●	●		●	●
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	0005-0512				●
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	0-91111-514-0	01	1	0601-				●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-464-0	01	1	9604-0004	●	●		●	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-464-0	01	1	0005-				●

101 59 114 144 87 309 122 101 122 59 144 114 309 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
59	PIPE; AIR,UNION TO FLEX HOSE AUSTRALIA EQUIPMENT(RR3)	1-49119-378-0	01	1	9804-0004	●
59	PIPE; AIR,UNION TO FLEX HOSE EXC. BRAKE REGULATION ADR<TDU> L=3278 SERVICED BY L=3300	1-47426-426-0	01	1	9604-0004	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3278 SERVICED BY L=3300	1-47426-426-0	01	1	0005-0012	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3284 SERVICED BY L=3300	1-47428-886-0	01	1	0101-	●
59	PIPE; AIR,UNION TO FLEX HOSE BRAKE REGULATION ADR<TDU> L=3417 SERVICED BY L=3700	1-47426-427-0	01	1	9604-9803	●	●
59	PIPE; AIR,UNION TO FLEX HOSE AUSTRALIA EQUIPMENT(RR3) L=3417 SERVICED BY L=3700	1-47426-427-0	01	1	9804-0004		●
59	PIPE; AIR,UNION TO FLEX HOSE L=3453 SERVICED BY L=3700	1-47426-427-0	01	1	9604-0004			●	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3453 SERVICED BY L=3700	1-47426-427-0	01	1	0005-0008			●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3453 SERVICED BY L=3500	1-47428-887-0	01	1	0009-0009			●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3470 SERVICED BY L=3500	1-47428-887-0	01	1	0010-			●	●
87	PIPE; AIR,AIR TANK TO UNION AUSTRALIA EQUIPMENT(RR3)	1-49116-394-0	01	1	9604-9803	●
87	PIPE; AIR,AIR TANK TO UNION AUSTRALIA EQUIPMENT(RR3) L=476	1-49119-380-0	01	1	9804-0004	●
87	PIPE; AIR,AIR TANK TO UNION EXC. BRAKE REGULATION ADR<TDU>	1-49115-908-0	01	1	9604-0004	●
87	PIPE; AIR,AIR TANK TO UNION	1-49115-908-0	01	1	0005-	●
87	PIPE; AIR,AIR TANK TO UNION AUSTRALIA EQUIPMENT(RR3) L=1158 SERVICED BY L=1250	1-47426-416-0	01	1	9604-0004		●
87	PIPE; AIR,AIR TANK TO UNION L=1232 SERVICED BY L=1250	1-47426-416-0	01	1	9604-			●
87	PIPE; AIR,AIR TANK TO UNION EXC. BRAKE REGULATION ADR<TDU> L=1232 SERVICED BY L=1250	1-47426-416-0	01	1	9604-				●
87	PIPE; AIR,AIR TANK TO UNION BRAKE REGULATION ADR<TDU> L=1153 SERVICED BY L=1250	1-47426-416-0	01	1	9604-0004				●	●
87	PIPE; AIR,AIR TANK TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) BRAKE REGULATION ADR<TDU> L=1153 SERVICED BY L=1250	1-47426-416-0	01	1	0005-0403				●
87	PIPE; AIR,AIR TANK TO UNION BRAKE REGULATION ADR<TDU> L=1153 SERVICED BY L=1250	1-47426-416-0	01	1	0404-				●
101	PIPE; AIR,FLEX HOSE TO UNION EXC. BRAKE REGULATION ADR<TDU> L=3036 SERVICED BY L=3300	1-47426-426-0	01	1	9604-0004	●
101	PIPE; AIR,FLEX HOSE TO UNION BRAKE REGULATION ADR<TDU> L=3103 SERVICED BY L=3300	1-47426-426-0	01	1	9604-0004	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3036 SERVICED BY L=3300	1-47426-426-0	01	1	0005-0012	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3042 SERVICED BY L=3300	1-47428-886-0	01	1	0101-	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3190 SERVICED BY L=3300	1-47426-426-0	01	1	9604-0004			●	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3190 SERVICED BY L=3300	1-47426-426-0	01	1	0005-0008			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3190 SERVICED BY L=3300	1-47428-886-0	01	1	0009-0009			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3199 SERVICED BY L=3300	1-47428-886-0	01	1	0010-			●	●
114	PIPE; AIR,QUICK RELEASE VLV AUSTRALIA EQUIPMENT(RR3)	1-49116-392-0	01	1	9604-0004	●
114	PIPE; AIR,QUICK RELEASE VLV AUSTRALIA EQUIPMENT(RR3)	1-49117-305-0	01	1	9604-0004		●
114	PIPE; AIR,QUICK RELEASE VLV BRAKE REGULATION ADR<TDU>	1-49116-499-0	01	1	9604-0004				●	●
114	PIPE; AIR,QUICK RELEASE VLV MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) BRAKE REGULATION ADR<TDU>	1-49116-499-0	01	1	0005-0403				●
114	PIPE; AIR,QUICK RELEASE VLV BRAKE REGULATION ADR<TDU>	1-49116-499-0	01	1	0404-				●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER AUSTRALIA EQUIPMENT(RR3)	1-49116-385-0	01	1	9604-9803	●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER AUSTRALIA EQUIPMENT(RR3)	1-49118-382-0	01	1	9804-0004	●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER BRAKE REGULATION ADR<TDU>	1-49115-849-0	01	1	9604-9803		●		●	●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER BRAKE REGULATION ADR<TDU>	1-49119-497-0	01	1	9804-0004		●		●	●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER BRAKE REGULATION ADR<TDU>	1-49119-497-0	01	1	0005-				●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1975 SERVICED BY L=2150	1-47426-394-0	01	1	9604-9803	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1797 SERVICED BY L=1950	1-47426-393-0	01	1	9804-0004	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2290 SERVICED BY L=2400	1-47426-395-0	01	1	9604-9611	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2295 SERVICED BY L=2400	1-47426-395-0	01	1	9612-9803	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2463 SERVICED BY L=2700	1-47426-396-0	01	1	9804-0004	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1976 SERVICED BY L=2150	1-47426-394-0	01	1	9604-9606				●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1984 SERVICED BY L=2150	1-47426-394-0	01	1	9607-9802				●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1984 SERVICED BY L=2150	1-47426-394-0	01	1	9804-0004				●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1974 SERVICED BY L=2150	1-47428-855-0	01	1	0005-				●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2296 SERVICED BY L=2400	1-47426-395-0	01	1	9604-9606				●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2287 SERVICED BY L=2400	1-47426-395-0	01	1	9607-0004				●	●
144	PIPE; AIR,UNION TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2316 SERVICED BY L=2400	1-47428-856-0	01	1	0005-0009				●
144	PIPE; AIR,UNION TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2341 SERVICED BY L=2400	1-47428-856-0	01	1	0010-0403				●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2341 SERVICED BY L=2400	1-47428-856-0	01	1	0404-				●
309	PIPE; AIR,MPV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3)	1-49119-390-0	01	1	9804-0003	●
309	PIPE; AIR,MPV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) L=995	1-49122-554-0	01	1	0004-0004	●
309	PIPE; AIR,MPV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) L=778	1-49119-389-0	01	1	9804-0004		●
309	PIPE; AIR,MPV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=648	1-49119-388-0	01	1	9804-0004				●	●
309	PIPE; AIR,MPV TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=648	1-49119-388-0	01	1	0005-0403				●
309	PIPE; AIR,MPV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=648	1-49119-388-0	01	1	0404-				●

85 192 223 192 126 126 126 126 127 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X30	1-72498-014-1	05	1	9604-9903	●	●	●	●
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-0	05	1	9904-0004	●	●	●	●
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-1	05	1	0005-			●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9604-9803	●	●	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	9804-0004	●	●	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0005-0706			●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	8-98078-117-0	02	1	0707-			●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09660-743-0	02	1	9604-9803	●	●	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN8 & M20 STRAIGHT	1-09661-056-0	02	1	9804-0004	●	●	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN8 & M20 STRAIGHT	1-09661-056-0	02	1	0005-0007			●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN8 & M20 STRAIGHT	1-09661-381-0	02	1	0008-0706			●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14	9-99111-414-0	02	1	9604-0004	●	●	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14	9-99111-414-0	02	1	0005-0512			●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14	0-91111-514-0	02	1	0601-			●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M18	9-99111-418-0	01	1	9604-9803	●	●	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	9-99111-420-0	01	1	9804-0004	●	●	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	9-99111-420-0	01	1	0005-0512			●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	0-91111-520-0	01	1	0601-			●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18	9-99111-418-0	01	1	9604-9803	●	●	●	●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	9-99111-420-0	01	1	9804-0004	●	●	●	●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	9-99111-420-0	01	1	0005-0512			●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	0-91111-520-0	01	1	0601-			●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9711-0004	●	●	●	●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0005-			●
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0005-			●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=15	1-87410-102-0	01	1	9711-0004	●	●	●	●
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=15	1-87410-102-0	01	1	0005-			●

101 59 144 114 87 122 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
59	PIPE; AIR,UNION TO FLEX HOSE AUSTRALIA EQUIPMENT(RR3)	1-49119-378-0	01	1	9804-0004	●
59	PIPE; AIR,UNION TO FLEX HOSE EXC. BRAKE REGULATION ADR<TDU> L=3278 SERVICED BY L=3300	1-47426-426-0	01	1	9604-0004	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3278 SERVICED BY L=3300	1-47426-426-0	01	1	0005-0012	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3284 SERVICED BY L=3300	1-47428-886-0	01	1	0101-	●
59	PIPE; AIR,UNION TO FLEX HOSE BRAKE REGULATION ADR<TDU> L=3417 SERVICED BY L=3700	1-47426-427-0	01	1	9604-9803	●	●
59	PIPE; AIR,UNION TO FLEX HOSE AUSTRALIA EQUIPMENT(RR3) L=3417 SERVICED BY L=3700	1-47426-427-0	01	1	9804-0004		●
59	PIPE; AIR,UNION TO FLEX HOSE L=3453 SERVICED BY L=3700	1-47426-427-0	01	1	9604-0004			●	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3453 SERVICED BY L=3700	1-47426-427-0	01	1	0005-0008			●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3453 SERVICED BY L=3500	1-47428-887-0	01	1	0009-0009			●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3470 SERVICED BY L=3500	1-47428-887-0	01	1	0010-			●	●
87	PIPE; AIR,AIR TANK TO UNION AUSTRALIA EQUIPMENT(RR3)	1-49116-394-0	01	1	9604-9803	●
87	PIPE; AIR,AIR TANK TO UNION AUSTRALIA EQUIPMENT(RR3) L=476	1-49119-380-0	01	1	9804-0004	●
87	PIPE; AIR,AIR TANK TO UNION EXC. BRAKE REGULATION ADR<TDU>	1-49115-908-0	01	1	9604-0004	●
87	PIPE; AIR,AIR TANK TO UNION	1-49115-908-0	01	1	0005-	●
87	PIPE; AIR,AIR TANK TO UNION AUSTRALIA EQUIPMENT(RR3) L=1158 SERVICED BY L=1250	1-47426-416-0	01	1	9604-0004		●
87	PIPE; AIR,AIR TANK TO UNION L=1232 SERVICED BY L=1250	1-47426-416-0	01	1	9604-			●
87	PIPE; AIR,AIR TANK TO UNION EXC. BRAKE REGULATION ADR<TDU> L=1232 SERVICED BY L=1250	1-47426-416-0	01	1	9604-				●
87	PIPE; AIR,AIR TANK TO UNION BRAKE REGULATION ADR<TDU> L=1153 SERVICED BY L=1250	1-47426-416-0	01	1	9604-0004				●	●
87	PIPE; AIR,AIR TANK TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) BRAKE REGULATION ADR<TDU> L=1153 SERVICED BY L=1250	1-47426-416-0	01	1	0005-0403				●
87	PIPE; AIR,AIR TANK TO UNION BRAKE REGULATION ADR<TDU> L=1153 SERVICED BY L=1250	1-47426-416-0	01	1	0404-				●
101	PIPE; AIR,FLEX HOSE TO UNION EXC. BRAKE REGULATION ADR<TDU> L=3036 SERVICED BY L=3300	1-47426-426-0	01	1	9604-0004	●
101	PIPE; AIR,FLEX HOSE TO UNION BRAKE REGULATION ADR<TDU> L=3103 SERVICED BY L=3300	1-47426-426-0	01	1	9604-0004	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3036 SERVICED BY L=3300	1-47426-426-0	01	1	0005-0012	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3042 SERVICED BY L=3300	1-47428-886-0	01	1	0101-	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3190 SERVICED BY L=3300	1-47426-426-0	01	1	9604-0004			●	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3190 SERVICED BY L=3300	1-47426-426-0	01	1	0005-0008			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3190 SERVICED BY L=3300	1-47428-886-0	01	1	0009-0009			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3199 SERVICED BY L=3300	1-47428-886-0	01	1	0010-			●	●
114	PIPE; AIR,QUICK RELEASE VLV AUSTRALIA EQUIPMENT(RR3)	1-49116-392-0	01	1	9604-0004	●
114	PIPE; AIR,QUICK RELEASE VLV AUSTRALIA EQUIPMENT(RR3)	1-49117-305-0	01	1	9604-0004		●
114	PIPE; AIR,QUICK RELEASE VLV BRAKE REGULATION ADR<TDU>	1-49116-499-0	01	1	9604-0004				●	●
114	PIPE; AIR,QUICK RELEASE VLV MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) BRAKE REGULATION ADR<TDU>	1-49116-499-0	01	1	0005-0403				●
114	PIPE; AIR,QUICK RELEASE VLV BRAKE REGULATION ADR<TDU>	1-49116-499-0	01	1	0404-				●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER AUSTRALIA EQUIPMENT(RR3)	1-49116-385-0	01	1	9604-9803	●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER AUSTRALIA EQUIPMENT(RR3)	1-49118-382-0	01	1	9804-0004	●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER BRAKE REGULATION ADR<TDU>	1-49115-849-0	01	1	9604-9803		●		●	●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER BRAKE REGULATION ADR<TDU>	1-49119-497-0	01	1	9804-0004		●		●	●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER BRAKE REGULATION ADR<TDU>	1-49119-497-0	01	1	0005-				●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1975 SERVICED BY L=2150	1-47426-394-0	01	1	9604-9803	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1797 SERVICED BY L=1950	1-47426-393-0	01	1	9804-0004	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2290 SERVICED BY L=2400	1-47426-395-0	01	1	9604-9611	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2295 SERVICED BY L=2400	1-47426-395-0	01	1	9612-9803	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2463 SERVICED BY L=2700	1-47426-396-0	01	1	9804-0004	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1976 SERVICED BY L=2150	1-47426-394-0	01	1	9604-9606				●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1984 SERVICED BY L=2150	1-47426-394-0	01	1	9607-9802				●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1984 SERVICED BY L=2150	1-47426-394-0	01	1	9804-0004				●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1974 SERVICED BY L=2150	1-47428-855-0	01	1	0005-				●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2296 SERVICED BY L=2400	1-47426-395-0	01	1	9604-9606				●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2287 SERVICED BY L=2400	1-47426-395-0	01	1	9607-0004				●	●
144	PIPE; AIR,UNION TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2316 SERVICED BY L=2400	1-47428-856-0	01	1	0005-0009				●
144	PIPE; AIR,UNION TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2341 SERVICED BY L=2400	1-47428-856-0	01	1	0010-0403				●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2341 SERVICED BY L=2400	1-47428-856-0	01	1	0404-				●
309	PIPE; AIR,MPV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3)	1-49119-390-0	01	1	9804-0003	●
309	PIPE; AIR,MPV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) L=995	1-49122-554-0	01	1	0004-0004	●
309	PIPE; AIR,MPV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) L=778	1-49119-389-0	01	1	9804-0004		●
309	PIPE; AIR,MPV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=648	1-49119-388-0	01	1	9804-0004				●	●
309	PIPE; AIR,MPV TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=648	1-49119-388-0	01	1	0005-0403				●
309	PIPE; AIR,MPV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=648	1-49119-388-0	01	1	0404-				●

101 87 59 118 101 122 59 144 114 187 87 254

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
59	PIPE; AIR,UNION TO FLEX HOSE AUSTRALIA EQUIPMENT(RR3)	1-49119-378-0	01	1	9804-0004	●
59	PIPE; AIR,UNION TO FLEX HOSE EXC. BRAKE REGULATION ADR<TDU> L=3278 SERVICED BY L=3300	1-47426-426-0	01	1	9604-0004	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3278 SERVICED BY L=3300	1-47426-426-0	01	1	0005-0012	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3284 SERVICED BY L=3300	1-47428-886-0	01	1	0101-	●
59	PIPE; AIR,UNION TO FLEX HOSE BRAKE REGULATION ADR<TDU> L=3417 SERVICED BY L=3700	1-47426-427-0	01	1	9604-9803	●	●
59	PIPE; AIR,UNION TO FLEX HOSE AUSTRALIA EQUIPMENT(RR3) L=3417 SERVICED BY L=3700	1-47426-427-0	01	1	9804-0004		●
59	PIPE; AIR,UNION TO FLEX HOSE L=3453 SERVICED BY L=3700	1-47426-427-0	01	1	9604-0004			●	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3453 SERVICED BY L=3700	1-47426-427-0	01	1	0005-0008			●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3453 SERVICED BY L=3500	1-47428-887-0	01	1	0009-0009			●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=3470 SERVICED BY L=3500	1-47428-887-0	01	1	0010-			●	●
87	PIPE; AIR,AIR TANK TO UNION AUSTRALIA EQUIPMENT(RR3)	1-49116-394-0	01	1	9604-9803	●
87	PIPE; AIR,AIR TANK TO UNION AUSTRALIA EQUIPMENT(RR3) L=476	1-49119-380-0	01	1	9804-0004	●
87	PIPE; AIR,AIR TANK TO UNION EXC. BRAKE REGULATION ADR<TDU>	1-49115-908-0	01	1	9604-0004	●
87	PIPE; AIR,AIR TANK TO UNION	1-49115-908-0	01	1	0005-	●
87	PIPE; AIR,AIR TANK TO UNION AUSTRALIA EQUIPMENT(RR3) L=1158 SERVICED BY L=1250	1-47426-416-0	01	1	9604-0004		●
87	PIPE; AIR,AIR TANK TO UNION L=1232 SERVICED BY L=1250	1-47426-416-0	01	1	9604-			●
87	PIPE; AIR,AIR TANK TO UNION EXC. BRAKE REGULATION ADR<TDU> L=1232 SERVICED BY L=1250	1-47426-416-0	01	1	9604-				●
87	PIPE; AIR,AIR TANK TO UNION BRAKE REGULATION ADR<TDU> L=1153 SERVICED BY L=1250	1-47426-416-0	01	1	9604-0004				●	●
87	PIPE; AIR,AIR TANK TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) BRAKE REGULATION ADR<TDU> L=1153 SERVICED BY L=1250	1-47426-416-0	01	1	0005-0403				●
87	PIPE; AIR,AIR TANK TO UNION BRAKE REGULATION ADR<TDU> L=1153 SERVICED BY L=1250	1-47426-416-0	01	1	0404-				●
101	PIPE; AIR,FLEX HOSE TO UNION EXC. BRAKE REGULATION ADR<TDU> L=3036 SERVICED BY L=3300	1-47426-426-0	01	1	9604-0004	●
101	PIPE; AIR,FLEX HOSE TO UNION BRAKE REGULATION ADR<TDU> L=3103 SERVICED BY L=3300	1-47426-426-0	01	1	9604-0004	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3036 SERVICED BY L=3300	1-47426-426-0	01	1	0005-0012	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3042 SERVICED BY L=3300	1-47428-886-0	01	1	0101-	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3190 SERVICED BY L=3300	1-47426-426-0	01	1	9604-0004			●	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3190 SERVICED BY L=3300	1-47426-426-0	01	1	0005-0008			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3190 SERVICED BY L=3300	1-47428-886-0	01	1	0009-0009			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=3199 SERVICED BY L=3300	1-47428-886-0	01	1	0010-			●	●
114	PIPE; AIR,QUICK RELEASE VLV AUSTRALIA EQUIPMENT(RR3)	1-49116-392-0	01	1	9604-0004	●
114	PIPE; AIR,QUICK RELEASE VLV AUSTRALIA EQUIPMENT(RR3)	1-49117-305-0	01	1	9604-0004		●
114	PIPE; AIR,QUICK RELEASE VLV BRAKE REGULATION ADR<TDU>	1-49116-499-0	01	1	9604-0004				●	●
114	PIPE; AIR,QUICK RELEASE VLV MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) BRAKE REGULATION ADR<TDU>	1-49116-499-0	01	1	0005-0403				●
114	PIPE; AIR,QUICK RELEASE VLV BRAKE REGULATION ADR<TDU>	1-49116-499-0	01	1	0404-				●
118	PIPE; AIR,UNION TO AIR MASTER EXC. BRAKE REGULATION ADR<TDU>	1-49114-965-0	01	1	9604-9803	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. BRAKE REGULATION ADR<TDU>	1-49118-391-0	01	1	9804-0004	●
118	PIPE; AIR,UNION TO AIR MASTER	1-49118-391-0	01	1	0005-	●
118	PIPE; AIR,UNION TO AIR MASTER	1-49116-741-0	01	1	9604-9803			●
118	PIPE; AIR,UNION TO AIR MASTER EXC. BRAKE REGULATION ADR<TDU>	1-49116-741-0	01	1	9604-9803				●
118	PIPE; AIR,UNION TO AIR MASTER	1-49118-357-0	01	1	9804-			●
118	PIPE; AIR,UNION TO AIR MASTER EXC. BRAKE REGULATION ADR<TDU>	1-49118-357-0	01	1	9804-				●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER AUSTRALIA EQUIPMENT(RR3)	1-49116-385-0	01	1	9604-9803	●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER AUSTRALIA EQUIPMENT(RR3)	1-49118-382-0	01	1	9804-0004	●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER BRAKE REGULATION ADR<TDU>	1-49115-849-0	01	1	9604-9803		●		●	●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER BRAKE REGULATION ADR<TDU>	1-49119-497-0	01	1	9804-0004		●		●	●
122	PIPE; QUICK RELEASE VLV TO AIR MASTER BRAKE REGULATION ADR<TDU>	1-49119-497-0	01	1	0005-				●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1975 SERVICED BY L=2150	1-47426-394-0	01	1	9604-9803	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1797 SERVICED BY L=1950	1-47426-393-0	01	1	9804-0004	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2290 SERVICED BY L=2400	1-47426-395-0	01	1	9604-9611	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2295 SERVICED BY L=2400	1-47426-395-0	01	1	9612-9803	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2463 SERVICED BY L=2700	1-47426-396-0	01	1	9804-0004	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1976 SERVICED BY L=2150	1-47426-394-0	01	1	9604-9606				●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1984 SERVICED BY L=2150	1-47426-394-0	01	1	9607-9802				●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1984 SERVICED BY L=2150	1-47426-394-0	01	1	9804-0004				●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1974 SERVICED BY L=2150	1-47428-855-0	01	1	0005-				●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2296 SERVICED BY L=2400	1-47426-395-0	01	1	9604-9606				●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2287 SERVICED BY L=2400	1-47426-395-0	01	1	9607-0004				●	●
144	PIPE; AIR,UNION TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2316 SERVICED BY L=2400	1-47428-856-0	01	1	0005-0009				●
144	PIPE; AIR,UNION TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2341 SERVICED BY L=2400	1-47428-856-0	01	1	0010-0403				●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2341 SERVICED BY L=2400	1-47428-856-0	01	1	0404-				●
187	PIPE; AIR,AIR VLV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3)	1-49116-393-1	01	1	9604-9803	●
187	PIPE; AIR,AIR VLV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3)	1-49116-497-0	01	1	9604-9803		●
187	PIPE; AIR,AIR VLV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49115-581-0	01	1	9604-9803				●	●
254	PIPE; AIR,TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3)	1-49116-387-0	01	1	9604-9803	●
254	PIPE; AIR,TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3)	1-49114-898-0	01	1	9604-9803		●
254	PIPE; AIR,TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49114-898-0	01	1	9604-9803				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
