◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10716 - FSS/FTS-RHD ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#37202) — 274 parça

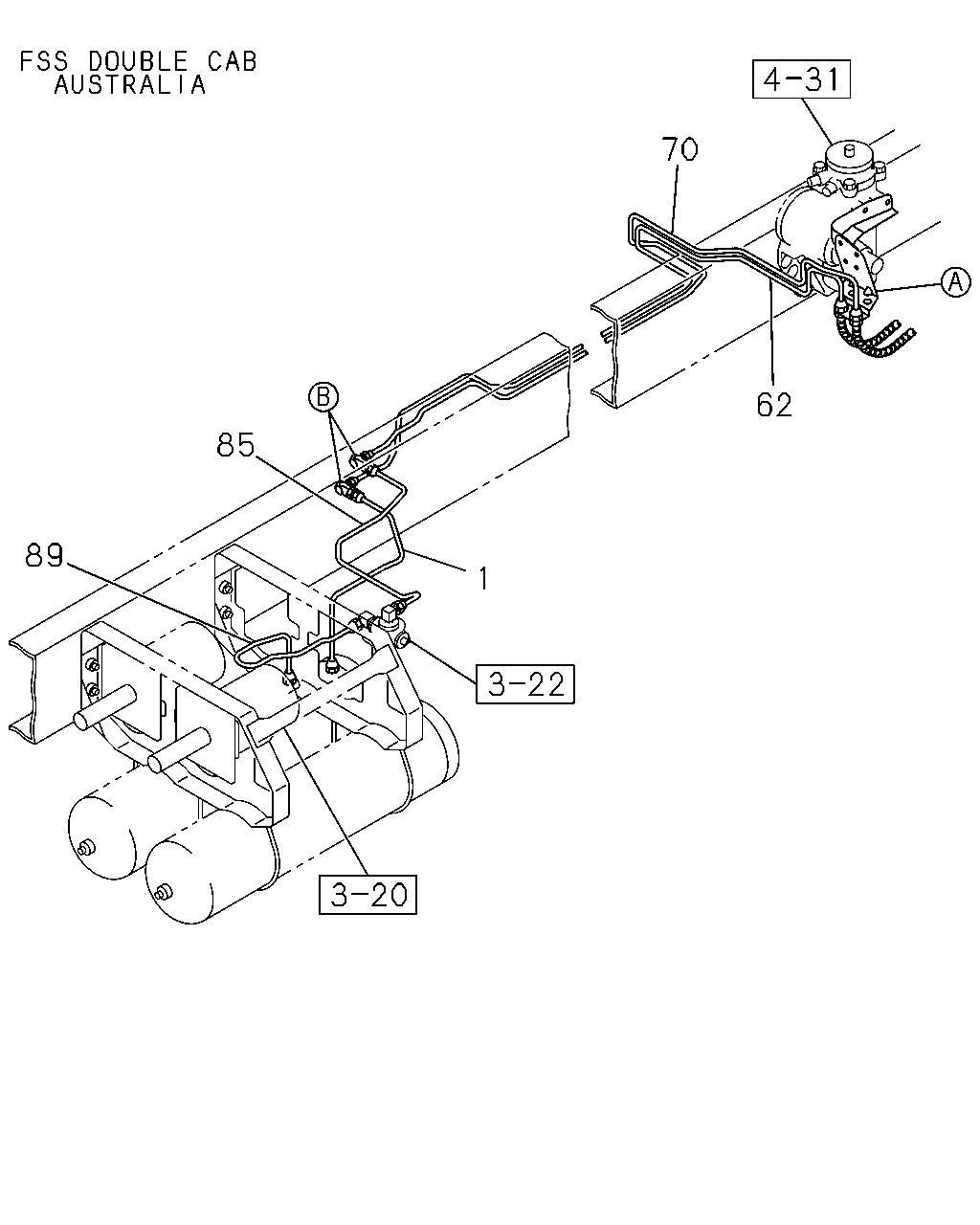

çizim 152804
70 62 85 89 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PIPE; AIR,AIR TANK TO UNION
AUSTRALIA EQUIPMENT(RR3) 		1-49116-390-0 01 1 9604-0004 ●
1 PIPE; AIR,AIR TANK TO UNION
EXC. BRAKE REGULATION ADR<TDU> 		1-49115-907-0 01 1 9604-9711 ●
1 PIPE; AIR,AIR TANK TO UNION
EXC. BRAKE REGULATION ADR<TDU> 		1-49119-044-0 01 1 9712-0004 ●
1 PIPE; AIR,AIR TANK TO UNION 1-49119-044-0 01 1 0005- ●
1 PIPE; AIR,AIR TANK TO UNION
AUSTRALIA EQUIPMENT(RR3) 		1-49116-494-0 01 1 9604-0004 ●
1 PIPE; AIR,AIR TANK TO UNION 1-49116-738-0 01 1 9604- ●
1 PIPE; AIR,AIR TANK TO UNION
EXC. BRAKE REGULATION ADR<TDU> 		1-49116-738-0 01 1 9604- ●
1 PIPE; AIR,AIR TANK TO UNION
BRAKE REGULATION ADR<TDU> 		1-49115-578-0 01 1 9604-0004 ● ●
1 PIPE; AIR,AIR TANK TO UNION
MLD6D M/T(X5Q) BRAKE REGULATION ADR<TDU> 		1-49122-627-0 01 1 0005-0403 ●
1 PIPE; AIR,AIR TANK TO UNION
BRAKE REGULATION ADR<TDU> MLD6 M/T<X9Y> 		1-49122-627-0 01 1 0404- ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2971 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> L=2971 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2971 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> L=2971 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2973 SERVICED BY L=3300 		1-47428-886-0 01 1 0105-0411 ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> L=2973 SERVICED BY L=3300 		1-47428-886-0 01 1 0105-0411 ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2972 SERVICED BY L=3300 		1-47428-801-0 01 1 0412- ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> L=2972 SERVICED BY L=3300 		1-47428-801-0 01 1 0412- ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> L=2677 SERVICED BY L=2900 		1-47426-425-0 01 1 9604-0004 ●
62 PIPE; AIR,UNION TO FLEX HOSE
BRAKE REGULATION ADR<TDU> L=2753 SERVICED BY L=2900 		1-47426-425-0 01 1 9604-0004 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2677 SERVICED BY L=2900 		1-47426-425-0 01 1 0005-0012 ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2680 SERVICED BY L=2900 		1-47428-885-0 01 1 0101- ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2970 SERVICED BY L=3300 		1-47426-426-0 01 1 9604-0004 ● ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
BRAKE REGULATION ADR<TDU> L=3027 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ●
62 PIPE; AIR,UNION TO FLEX HOSE
BRAKE REGULATION ADR<TDU> L=3027 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ●
62 PIPE; AIR,UNION TO FLEX HOSE
BRAKE REGULATION ADR<TDU> L=3029 SERVICED BY L=3300 		1-47428-886-0 01 1 0105- ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. BRAKE REGULATION ADR<TDU> L=2883 SERVICED BY L=2900 		1-47426-425-0 01 1 9604-0004 ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3117 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. BRAKE REGULATION ADR<TDU> L=3117 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3117 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. BRAKE REGULATION ADR<TDU> L=3117 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3119 SERVICED BY L=3300 		1-47428-886-0 01 1 0105-0411 ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. BRAKE REGULATION ADR<TDU> L=3119 SERVICED BY L=3300 		1-47428-886-0 01 1 0105-0411 ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3118 SERVICED BY L=3300 		1-47428-801-0 01 1 0412- ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. BRAKE REGULATION ADR<TDU> L=3118 SERVICED BY L=3300 		1-47428-801-0 01 1 0412- ●
70 PIPE; AIR,FLEX HOSE TO UNION
BRAKE REGULATION ADR<TDU> L=2885 SERVICED BY L=2900 		1-47426-425-0 01 1 9604-0004 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=2883 SERVICED BY L=2900 		1-47426-425-0 01 1 0005-0012 ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=2886 SERVICED BY L=2900 		1-47428-885-0 01 1 0101- ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3116 SERVICED BY L=3300 		1-47426-426-0 01 1 9604-0004 ● ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
BRAKE REGULATION ADR<TDU> L=3175 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ●
70 PIPE; AIR,FLEX HOSE TO UNION
BRAKE REGULATION ADR<TDU> L=3175 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ●
70 PIPE; AIR,FLEX HOSE TO UNION
BRAKE REGULATION ADR<TDU> L=3177 SERVICED BY L=3300 		1-47428-886-0 01 1 0105- ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV
AUSTRALIA EQUIPMENT(RR3) 		1-49116-391-0 01 1 9604-0004 ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV
MLD6D M/T(X5Q) BRAKE REGULATION ADR<TDU> L=598 SERVICED BY L=600 		1-47428-868-0 01 1 0005-0403 ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV
BRAKE REGULATION ADR<TDU> MLD6 M/T<X9Y> L=598 SERVICED BY L=600 		1-47428-868-0 01 1 0404- ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV
AUSTRALIA EQUIPMENT(RR3) 		1-49116-495-0 01 1 9604-0004 ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV
BRAKE REGULATION ADR<TDU> 		1-49115-579-0 01 1 9604-0004 ● ●
89 PIPE; QUICK RELEASE VLV TO AIR MASTER
AUSTRALIA EQUIPMENT(RR3) 		1-49116-388-0 01 1 9604-9803 ●
89 PIPE; QUICK RELEASE VLV TO AIR MASTER
AUSTRALIA EQUIPMENT(RR3) 		1-49118-381-0 01 1 9804-0004 ●
89 PIPE; QUICK RELEASE VLV TO AIR MASTER
AUSTRALIA EQUIPMENT(RR3) 		1-49114-890-0 01 1 9604-9803 ●
89 PIPE; QUICK RELEASE VLV TO AIR MASTER
BRAKE REGULATION ADR<TDU> 		1-49114-890-0 01 1 9604-9803 ● ●
89 PIPE; QUICK RELEASE VLV TO AIR MASTER
AUSTRALIA EQUIPMENT(RR3) 		1-49118-121-0 01 1 9804-0004 ●
89 PIPE; QUICK RELEASE VLV TO AIR MASTER
BRAKE REGULATION ADR<TDU> 		1-49118-121-0 01 1 9804-0004 ● ●
89 PIPE; QUICK RELEASE VLV TO AIR MASTER
BRAKE REGULATION ADR<TDU> 		1-49118-121-0 01 1 0005- ●

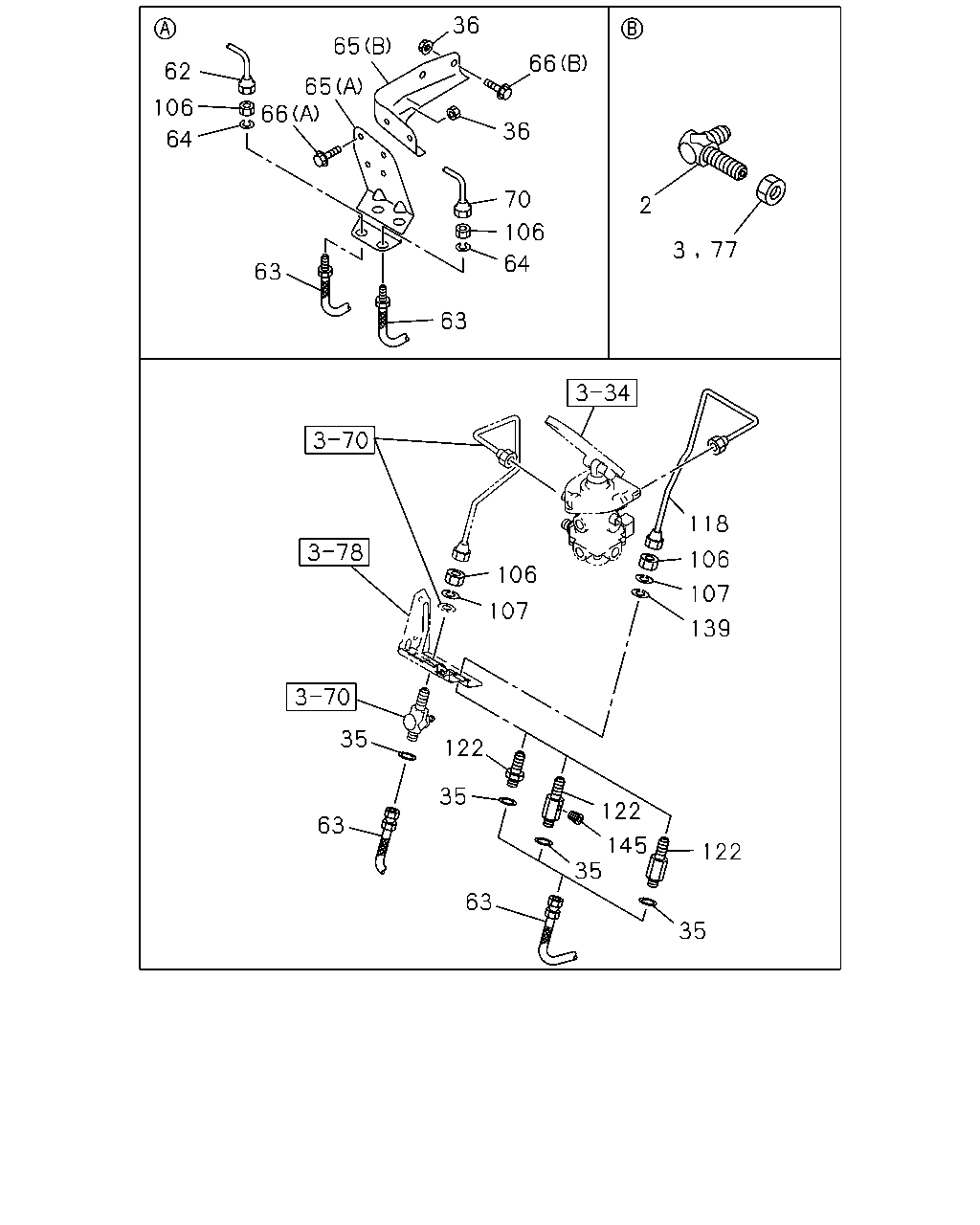

çizim 152812
36 65 66 62 65 66 106 36 64 70 2 106 3 77 64 63 63 118 106 106 107 107 139 35 122 35 122 63 145 35 122 63 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 UNION; AIR PIPE
M16 ELBOW 		9-09235-210-1 02 1 9604-0004 ● ● ● ● ●
2 UNION; AIR PIPE
M16 ELBOW 		9-09235-210-1 02 1 0005-0607 ● ● ●
2 UNION; AIR PIPE
M16 ELBOW 		0-92135-210-0 02 1 0608- ● ● ●
3 NUT; PIPE UNION
M16 		9-99111-416-0 01 1 9604-0004 ● ● ● ● ●
3 NUT; PIPE UNION
M16 		9-99111-416-0 01 1 0005-0512 ● ● ●
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0601- ● ● ●
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 9604-0004 ● ● ● ● ●
36 NUT; HOSE BRKT
M10 FLANGE 		0-91150-210-0 02 1 9604-0004 ● ● ● ● ●
36 NUT; HOSE BRKT
M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ● ● ●
36 NUT; HOSE BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ●
36 NUT; HOSE BRKT
M8 		9-09110-408-0 02 1 9604-9606 ● ● ● ● ●
36 NUT; HOSE BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ● ● ● ●
36 NUT; HOSE BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ● ●
36 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2971 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> L=2971 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2971 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> L=2971 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2973 SERVICED BY L=3300 		1-47428-886-0 01 1 0105-0411 ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> L=2973 SERVICED BY L=3300 		1-47428-886-0 01 1 0105-0411 ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2972 SERVICED BY L=3300 		1-47428-801-0 01 1 0412- ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> L=2972 SERVICED BY L=3300 		1-47428-801-0 01 1 0412- ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> L=2677 SERVICED BY L=2900 		1-47426-425-0 01 1 9604-0004 ●
62 PIPE; AIR,UNION TO FLEX HOSE
BRAKE REGULATION ADR<TDU> L=2753 SERVICED BY L=2900 		1-47426-425-0 01 1 9604-0004 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2677 SERVICED BY L=2900 		1-47426-425-0 01 1 0005-0012 ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2680 SERVICED BY L=2900 		1-47428-885-0 01 1 0101- ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2970 SERVICED BY L=3300 		1-47426-426-0 01 1 9604-0004 ● ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
BRAKE REGULATION ADR<TDU> L=3027 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ●
62 PIPE; AIR,UNION TO FLEX HOSE
BRAKE REGULATION ADR<TDU> L=3027 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ●
62 PIPE; AIR,UNION TO FLEX HOSE
BRAKE REGULATION ADR<TDU> L=3029 SERVICED BY L=3300 		1-47428-886-0 01 1 0105- ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
CAB UP +50MM<W60> L=760 		1-09363-886-0 02 1 0406- ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
L=710 		0-07474-710-1 02 1 9604-9803 ● ● ● ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
L=700 		1-09363-604-1 02 1 9804-0004 ● ● ● ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
L=700 		1-09363-604-1 02 1 0005-0405 ● ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
L=700 		1-09363-604-1 02 1 0406- ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
EXC. CAB UP +50MM<W60> L=700 		1-09363-604-1 02 1 0406- ●
64 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 02 1 9604-0004 ● ● ● ● ●
64 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 02 1 0005-0603 ● ● ●
64 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-516-0 02 1 0604- ● ● ●
65 BRACKET; FLEX HOSE
(B) 		1-47476-762-0 01 1 9604-0004 ● ●
65 BRACKET; FLEX HOSE
(B) 		1-47476-762-0 01 1 0005- ●
65 BRACKET; FLEX HOSE
(A) 		1-47476-761-1 01 1 9604-0004 ● ● ● ● ●
65 BRACKET; FLEX HOSE
(A) 		1-47476-761-1 01 1 0005- ● ● ●
65 BRACKET; FLEX HOSE
(B) 		1-47477-215-0 01 1 9604-0004 ● ● ●
65 BRACKET; FLEX HOSE
(B) 		1-47477-215-0 01 1 0005- ● ●
66 BOLT; HOSE BRKT
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9604-9606 ● ● ● ● ●
66 BOLT; HOSE BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9607-0004 ● ● ● ● ●
66 BOLT; HOSE BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ● ● ●
66 BOLT; HOSE BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
66 BOLT; HOSE BRKT
(B) M10X16 FLANGE 		0-28181-016-0 02 1 9604-0004 ● ● ● ● ●
66 BOLT; HOSE BRKT
(B) M10X16 FLANGE 		0-28181-016-0 02 1 0005-0512 ● ● ●
66 BOLT; HOSE BRKT
(B) M10X16 FLANGE 		0-28151-016-0 02 1 0601- ● ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. BRAKE REGULATION ADR<TDU> L=2883 SERVICED BY L=2900 		1-47426-425-0 01 1 9604-0004 ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3117 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. BRAKE REGULATION ADR<TDU> L=3117 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3117 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. BRAKE REGULATION ADR<TDU> L=3117 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3119 SERVICED BY L=3300 		1-47428-886-0 01 1 0105-0411 ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. BRAKE REGULATION ADR<TDU> L=3119 SERVICED BY L=3300 		1-47428-886-0 01 1 0105-0411 ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3118 SERVICED BY L=3300 		1-47428-801-0 01 1 0412- ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. BRAKE REGULATION ADR<TDU> L=3118 SERVICED BY L=3300 		1-47428-801-0 01 1 0412- ●
70 PIPE; AIR,FLEX HOSE TO UNION
BRAKE REGULATION ADR<TDU> L=2885 SERVICED BY L=2900 		1-47426-425-0 01 1 9604-0004 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=2883 SERVICED BY L=2900 		1-47426-425-0 01 1 0005-0012 ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=2886 SERVICED BY L=2900 		1-47428-885-0 01 1 0101- ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3116 SERVICED BY L=3300 		1-47426-426-0 01 1 9604-0004 ● ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
BRAKE REGULATION ADR<TDU> L=3175 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ●
70 PIPE; AIR,FLEX HOSE TO UNION
BRAKE REGULATION ADR<TDU> L=3175 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ●
70 PIPE; AIR,FLEX HOSE TO UNION
BRAKE REGULATION ADR<TDU> L=3177 SERVICED BY L=3300 		1-47428-886-0 01 1 0105- ●
77 NUT; PIPE UNION
M16 		9-99111-416-0 01 1 9604-0004 ● ● ● ● ●
77 NUT; PIPE UNION
M16 		9-99111-416-0 01 1 0005-0512 ● ● ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0601- ● ● ●
106 NUT; FLEX HOSE
M16 		9-99111-416-0 04 1 9604-9803 ● ● ● ● ●
106 NUT; FLEX HOSE
M16 		9-99111-416-0 02 1 9804-0004 ● ● ● ● ●
106 NUT; FLEX HOSE
M16 		9-99111-416-0 02 1 9804-0004 ● ● ● ● ●
106 NUT; FLEX HOSE
M16 		9-99111-416-0 02 1 0005-0512 ● ● ●
106 NUT; FLEX HOSE
M16 		9-99111-416-0 02 1 0005-0512 ● ● ●
106 NUT; FLEX HOSE
M16 		0-91111-516-0 02 1 0601- ● ● ●
106 NUT; FLEX HOSE
M16 		0-91111-516-0 02 1 0601- ● ● ●
107 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 02 1 9604-0004 ● ● ● ● ●
107 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 02 1 0005-0603 ● ● ●
107 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-516-0 02 1 0604- ● ● ●
118 PIPE; AIR,BRK VLV TO FLEX HOSE
L=419 		1-49115-942-3 01 1 9604-0004 ● ● ● ● ●
118 PIPE; AIR,BRK VLV TO FLEX HOSE
L=419 		1-49115-942-3 01 1 0005- ● ● ●
122 CONNECTOR; FLEX HOSE
DUAL AIR GAUGE<UG2> 		1-09656-638-0 01 1 9604-9803 ● ● ● ●
122 CONNECTOR; FLEX HOSE
DUAL AIR GAUGE<UG2> 		1-09654-394-0 01 1 9804-0004 ● ● ● ●
122 CONNECTOR; FLEX HOSE
DUAL AIR GAUGE<UG2> 		1-09654-394-0 01 1 0005- ●
122 CONNECTOR; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09654-324-0 01 1 9604-9803 ● ● ● ●
122 CONNECTOR; FLEX HOSE 1-09654-324-0 01 1 9604-9803 ●
122 CONNECTOR; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M16 STRAIGHT 		1-09654-380-0 01 1 9804-0004 ● ● ● ●
122 CONNECTOR; FLEX HOSE
M16 STRAIGHT 		1-09654-380-0 01 1 9804-0004 ●
122 CONNECTOR; FLEX HOSE
M16 STRAIGHT 		1-09654-380-0 01 1 0005- ● ●
122 CONNECTOR; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M16 STRAIGHT 		1-09654-380-0 01 1 0005- ●
139 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 9604-0004 ● ● ● ● ●
139 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 0005-0605 ● ● ●
139 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 0606- ● ● ●
145 PLUG
DUAL AIR GAUGE<UG2> PT1/4 		9-99204-513-0 01 1 9604-9803 ● ● ● ●

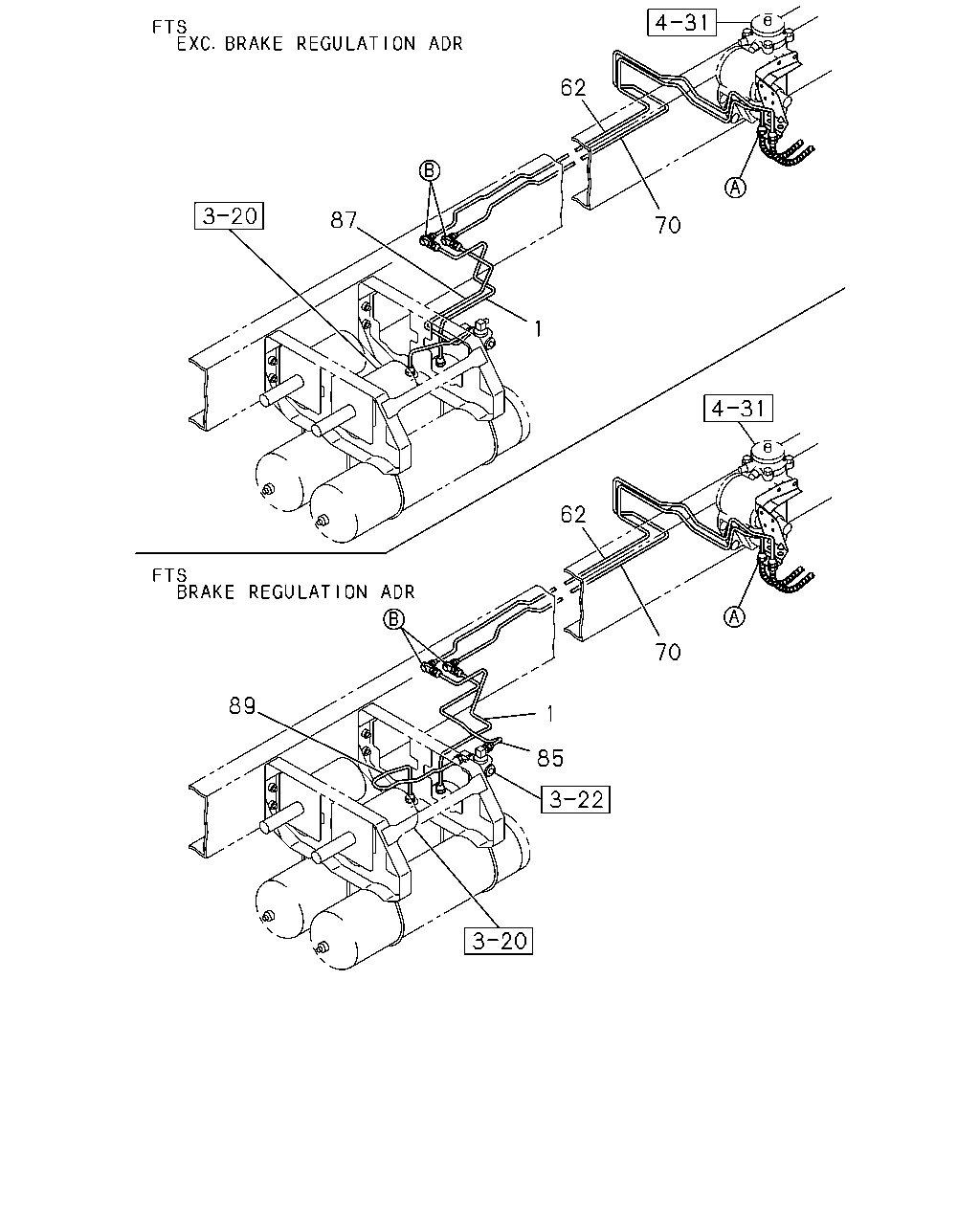

çizim 152814
62 87 70 1 62 70 89 1 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PIPE; AIR,AIR TANK TO UNION
AUSTRALIA EQUIPMENT(RR3) 		1-49116-390-0 01 1 9604-0004 ●
1 PIPE; AIR,AIR TANK TO UNION
EXC. BRAKE REGULATION ADR<TDU> 		1-49115-907-0 01 1 9604-9711 ●
1 PIPE; AIR,AIR TANK TO UNION
EXC. BRAKE REGULATION ADR<TDU> 		1-49119-044-0 01 1 9712-0004 ●
1 PIPE; AIR,AIR TANK TO UNION 1-49119-044-0 01 1 0005- ●
1 PIPE; AIR,AIR TANK TO UNION
AUSTRALIA EQUIPMENT(RR3) 		1-49116-494-0 01 1 9604-0004 ●
1 PIPE; AIR,AIR TANK TO UNION 1-49116-738-0 01 1 9604- ●
1 PIPE; AIR,AIR TANK TO UNION
EXC. BRAKE REGULATION ADR<TDU> 		1-49116-738-0 01 1 9604- ●
1 PIPE; AIR,AIR TANK TO UNION
BRAKE REGULATION ADR<TDU> 		1-49115-578-0 01 1 9604-0004 ● ●
1 PIPE; AIR,AIR TANK TO UNION
MLD6D M/T(X5Q) BRAKE REGULATION ADR<TDU> 		1-49122-627-0 01 1 0005-0403 ●
1 PIPE; AIR,AIR TANK TO UNION
BRAKE REGULATION ADR<TDU> MLD6 M/T<X9Y> 		1-49122-627-0 01 1 0404- ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2971 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> L=2971 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2971 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> L=2971 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2973 SERVICED BY L=3300 		1-47428-886-0 01 1 0105-0411 ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> L=2973 SERVICED BY L=3300 		1-47428-886-0 01 1 0105-0411 ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2972 SERVICED BY L=3300 		1-47428-801-0 01 1 0412- ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> L=2972 SERVICED BY L=3300 		1-47428-801-0 01 1 0412- ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> L=2677 SERVICED BY L=2900 		1-47426-425-0 01 1 9604-0004 ●
62 PIPE; AIR,UNION TO FLEX HOSE
BRAKE REGULATION ADR<TDU> L=2753 SERVICED BY L=2900 		1-47426-425-0 01 1 9604-0004 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2677 SERVICED BY L=2900 		1-47426-425-0 01 1 0005-0012 ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2680 SERVICED BY L=2900 		1-47428-885-0 01 1 0101- ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2970 SERVICED BY L=3300 		1-47426-426-0 01 1 9604-0004 ● ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
BRAKE REGULATION ADR<TDU> L=3027 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ●
62 PIPE; AIR,UNION TO FLEX HOSE
BRAKE REGULATION ADR<TDU> L=3027 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ●
62 PIPE; AIR,UNION TO FLEX HOSE
BRAKE REGULATION ADR<TDU> L=3029 SERVICED BY L=3300 		1-47428-886-0 01 1 0105- ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. BRAKE REGULATION ADR<TDU> L=2883 SERVICED BY L=2900 		1-47426-425-0 01 1 9604-0004 ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3117 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. BRAKE REGULATION ADR<TDU> L=3117 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3117 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. BRAKE REGULATION ADR<TDU> L=3117 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3119 SERVICED BY L=3300 		1-47428-886-0 01 1 0105-0411 ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. BRAKE REGULATION ADR<TDU> L=3119 SERVICED BY L=3300 		1-47428-886-0 01 1 0105-0411 ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3118 SERVICED BY L=3300 		1-47428-801-0 01 1 0412- ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. BRAKE REGULATION ADR<TDU> L=3118 SERVICED BY L=3300 		1-47428-801-0 01 1 0412- ●
70 PIPE; AIR,FLEX HOSE TO UNION
BRAKE REGULATION ADR<TDU> L=2885 SERVICED BY L=2900 		1-47426-425-0 01 1 9604-0004 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=2883 SERVICED BY L=2900 		1-47426-425-0 01 1 0005-0012 ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=2886 SERVICED BY L=2900 		1-47428-885-0 01 1 0101- ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3116 SERVICED BY L=3300 		1-47426-426-0 01 1 9604-0004 ● ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
BRAKE REGULATION ADR<TDU> L=3175 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ●
70 PIPE; AIR,FLEX HOSE TO UNION
BRAKE REGULATION ADR<TDU> L=3175 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ●
70 PIPE; AIR,FLEX HOSE TO UNION
BRAKE REGULATION ADR<TDU> L=3177 SERVICED BY L=3300 		1-47428-886-0 01 1 0105- ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV
AUSTRALIA EQUIPMENT(RR3) 		1-49116-391-0 01 1 9604-0004 ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV
MLD6D M/T(X5Q) BRAKE REGULATION ADR<TDU> L=598 SERVICED BY L=600 		1-47428-868-0 01 1 0005-0403 ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV
BRAKE REGULATION ADR<TDU> MLD6 M/T<X9Y> L=598 SERVICED BY L=600 		1-47428-868-0 01 1 0404- ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV
AUSTRALIA EQUIPMENT(RR3) 		1-49116-495-0 01 1 9604-0004 ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV
BRAKE REGULATION ADR<TDU> 		1-49115-579-0 01 1 9604-0004 ● ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. BRAKE REGULATION ADR<TDU> 		1-49115-906-0 01 1 9604-9605 ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. BRAKE REGULATION ADR<TDU> 		1-49117-430-0 01 1 9606-9803 ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. BRAKE REGULATION ADR<TDU> 		1-49118-390-0 01 1 9804-0004 ●
87 PIPE; AIR,UNION TO AIR MASTER 1-49118-390-0 01 1 0005- ●
87 PIPE; AIR,UNION TO AIR MASTER 1-49116-739-0 01 1 9604-9803 ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. BRAKE REGULATION ADR<TDU> 		1-49116-739-0 01 1 9604-9803 ●
87 PIPE; AIR,UNION TO AIR MASTER 1-49118-356-0 01 1 9804- ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. BRAKE REGULATION ADR<TDU> 		1-49118-356-0 01 1 9804- ●
89 PIPE; QUICK RELEASE VLV TO AIR MASTER
AUSTRALIA EQUIPMENT(RR3) 		1-49116-388-0 01 1 9604-9803 ●
89 PIPE; QUICK RELEASE VLV TO AIR MASTER
AUSTRALIA EQUIPMENT(RR3) 		1-49118-381-0 01 1 9804-0004 ●
89 PIPE; QUICK RELEASE VLV TO AIR MASTER
AUSTRALIA EQUIPMENT(RR3) 		1-49114-890-0 01 1 9604-9803 ●
89 PIPE; QUICK RELEASE VLV TO AIR MASTER
BRAKE REGULATION ADR<TDU> 		1-49114-890-0 01 1 9604-9803 ● ●
89 PIPE; QUICK RELEASE VLV TO AIR MASTER
AUSTRALIA EQUIPMENT(RR3) 		1-49118-121-0 01 1 9804-0004 ●
89 PIPE; QUICK RELEASE VLV TO AIR MASTER
BRAKE REGULATION ADR<TDU> 		1-49118-121-0 01 1 9804-0004 ● ●
89 PIPE; QUICK RELEASE VLV TO AIR MASTER
BRAKE REGULATION ADR<TDU> 		1-49118-121-0 01 1 0005- ●

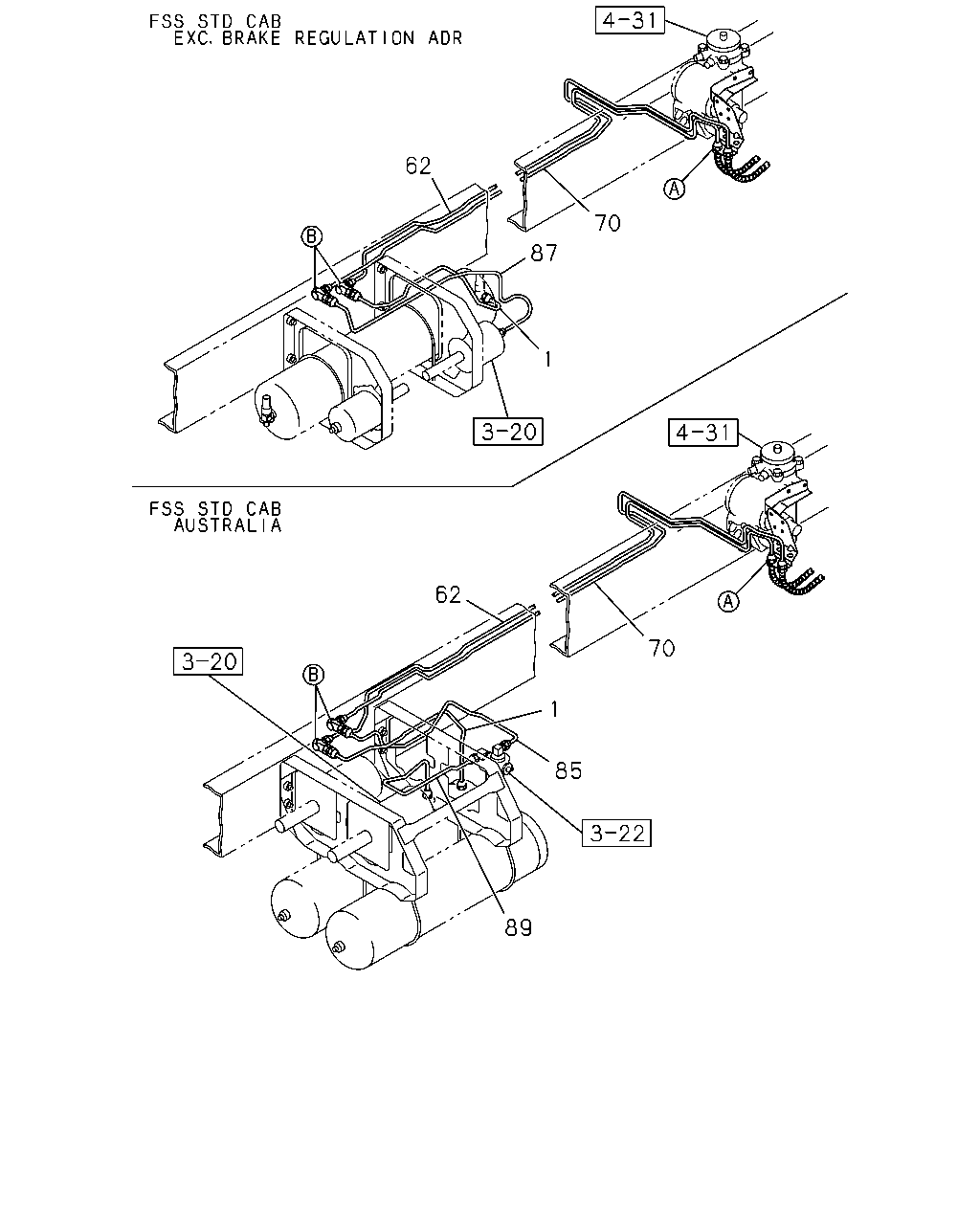

çizim 152815
62 70 87 1 62 70 1 85 89
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PIPE; AIR,AIR TANK TO UNION
AUSTRALIA EQUIPMENT(RR3) 		1-49116-390-0 01 1 9604-0004 ●
1 PIPE; AIR,AIR TANK TO UNION
EXC. BRAKE REGULATION ADR<TDU> 		1-49115-907-0 01 1 9604-9711 ●
1 PIPE; AIR,AIR TANK TO UNION
EXC. BRAKE REGULATION ADR<TDU> 		1-49119-044-0 01 1 9712-0004 ●
1 PIPE; AIR,AIR TANK TO UNION 1-49119-044-0 01 1 0005- ●
1 PIPE; AIR,AIR TANK TO UNION
AUSTRALIA EQUIPMENT(RR3) 		1-49116-494-0 01 1 9604-0004 ●
1 PIPE; AIR,AIR TANK TO UNION 1-49116-738-0 01 1 9604- ●
1 PIPE; AIR,AIR TANK TO UNION
EXC. BRAKE REGULATION ADR<TDU> 		1-49116-738-0 01 1 9604- ●
1 PIPE; AIR,AIR TANK TO UNION
BRAKE REGULATION ADR<TDU> 		1-49115-578-0 01 1 9604-0004 ● ●
1 PIPE; AIR,AIR TANK TO UNION
MLD6D M/T(X5Q) BRAKE REGULATION ADR<TDU> 		1-49122-627-0 01 1 0005-0403 ●
1 PIPE; AIR,AIR TANK TO UNION
BRAKE REGULATION ADR<TDU> MLD6 M/T<X9Y> 		1-49122-627-0 01 1 0404- ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2971 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> L=2971 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2971 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> L=2971 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2973 SERVICED BY L=3300 		1-47428-886-0 01 1 0105-0411 ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> L=2973 SERVICED BY L=3300 		1-47428-886-0 01 1 0105-0411 ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2972 SERVICED BY L=3300 		1-47428-801-0 01 1 0412- ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> L=2972 SERVICED BY L=3300 		1-47428-801-0 01 1 0412- ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> L=2677 SERVICED BY L=2900 		1-47426-425-0 01 1 9604-0004 ●
62 PIPE; AIR,UNION TO FLEX HOSE
BRAKE REGULATION ADR<TDU> L=2753 SERVICED BY L=2900 		1-47426-425-0 01 1 9604-0004 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2677 SERVICED BY L=2900 		1-47426-425-0 01 1 0005-0012 ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2680 SERVICED BY L=2900 		1-47428-885-0 01 1 0101- ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=2970 SERVICED BY L=3300 		1-47426-426-0 01 1 9604-0004 ● ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
BRAKE REGULATION ADR<TDU> L=3027 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ●
62 PIPE; AIR,UNION TO FLEX HOSE
BRAKE REGULATION ADR<TDU> L=3027 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ●
62 PIPE; AIR,UNION TO FLEX HOSE
BRAKE REGULATION ADR<TDU> L=3029 SERVICED BY L=3300 		1-47428-886-0 01 1 0105- ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. BRAKE REGULATION ADR<TDU> L=2883 SERVICED BY L=2900 		1-47426-425-0 01 1 9604-0004 ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3117 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. BRAKE REGULATION ADR<TDU> L=3117 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3117 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. BRAKE REGULATION ADR<TDU> L=3117 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3119 SERVICED BY L=3300 		1-47428-886-0 01 1 0105-0411 ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. BRAKE REGULATION ADR<TDU> L=3119 SERVICED BY L=3300 		1-47428-886-0 01 1 0105-0411 ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3118 SERVICED BY L=3300 		1-47428-801-0 01 1 0412- ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. BRAKE REGULATION ADR<TDU> L=3118 SERVICED BY L=3300 		1-47428-801-0 01 1 0412- ●
70 PIPE; AIR,FLEX HOSE TO UNION
BRAKE REGULATION ADR<TDU> L=2885 SERVICED BY L=2900 		1-47426-425-0 01 1 9604-0004 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=2883 SERVICED BY L=2900 		1-47426-425-0 01 1 0005-0012 ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=2886 SERVICED BY L=2900 		1-47428-885-0 01 1 0101- ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=3116 SERVICED BY L=3300 		1-47426-426-0 01 1 9604-0004 ● ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
BRAKE REGULATION ADR<TDU> L=3175 SERVICED BY L=3300 		1-47428-886-0 01 1 0005-0008 ●
70 PIPE; AIR,FLEX HOSE TO UNION
BRAKE REGULATION ADR<TDU> L=3175 SERVICED BY L=3300 		1-47428-886-0 01 1 0009-0104 ●
70 PIPE; AIR,FLEX HOSE TO UNION
BRAKE REGULATION ADR<TDU> L=3177 SERVICED BY L=3300 		1-47428-886-0 01 1 0105- ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV
AUSTRALIA EQUIPMENT(RR3) 		1-49116-391-0 01 1 9604-0004 ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV
MLD6D M/T(X5Q) BRAKE REGULATION ADR<TDU> L=598 SERVICED BY L=600 		1-47428-868-0 01 1 0005-0403 ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV
BRAKE REGULATION ADR<TDU> MLD6 M/T<X9Y> L=598 SERVICED BY L=600 		1-47428-868-0 01 1 0404- ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV
AUSTRALIA EQUIPMENT(RR3) 		1-49116-495-0 01 1 9604-0004 ●
85 PIPE; AIR,UNION TO QUICK RELEASE VLV
BRAKE REGULATION ADR<TDU> 		1-49115-579-0 01 1 9604-0004 ● ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. BRAKE REGULATION ADR<TDU> 		1-49115-906-0 01 1 9604-9605 ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. BRAKE REGULATION ADR<TDU> 		1-49117-430-0 01 1 9606-9803 ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. BRAKE REGULATION ADR<TDU> 		1-49118-390-0 01 1 9804-0004 ●
87 PIPE; AIR,UNION TO AIR MASTER 1-49118-390-0 01 1 0005- ●
87 PIPE; AIR,UNION TO AIR MASTER 1-49116-739-0 01 1 9604-9803 ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. BRAKE REGULATION ADR<TDU> 		1-49116-739-0 01 1 9604-9803 ●
87 PIPE; AIR,UNION TO AIR MASTER 1-49118-356-0 01 1 9804- ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. BRAKE REGULATION ADR<TDU> 		1-49118-356-0 01 1 9804- ●
89 PIPE; QUICK RELEASE VLV TO AIR MASTER
AUSTRALIA EQUIPMENT(RR3) 		1-49116-388-0 01 1 9604-9803 ●
89 PIPE; QUICK RELEASE VLV TO AIR MASTER
AUSTRALIA EQUIPMENT(RR3) 		1-49118-381-0 01 1 9804-0004 ●
89 PIPE; QUICK RELEASE VLV TO AIR MASTER
AUSTRALIA EQUIPMENT(RR3) 		1-49114-890-0 01 1 9604-9803 ●
89 PIPE; QUICK RELEASE VLV TO AIR MASTER
BRAKE REGULATION ADR<TDU> 		1-49114-890-0 01 1 9604-9803 ● ●
89 PIPE; QUICK RELEASE VLV TO AIR MASTER
AUSTRALIA EQUIPMENT(RR3) 		1-49118-121-0 01 1 9804-0004 ●
89 PIPE; QUICK RELEASE VLV TO AIR MASTER
BRAKE REGULATION ADR<TDU> 		1-49118-121-0 01 1 9804-0004 ● ●
89 PIPE; QUICK RELEASE VLV TO AIR MASTER
BRAKE REGULATION ADR<TDU> 		1-49118-121-0 01 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
