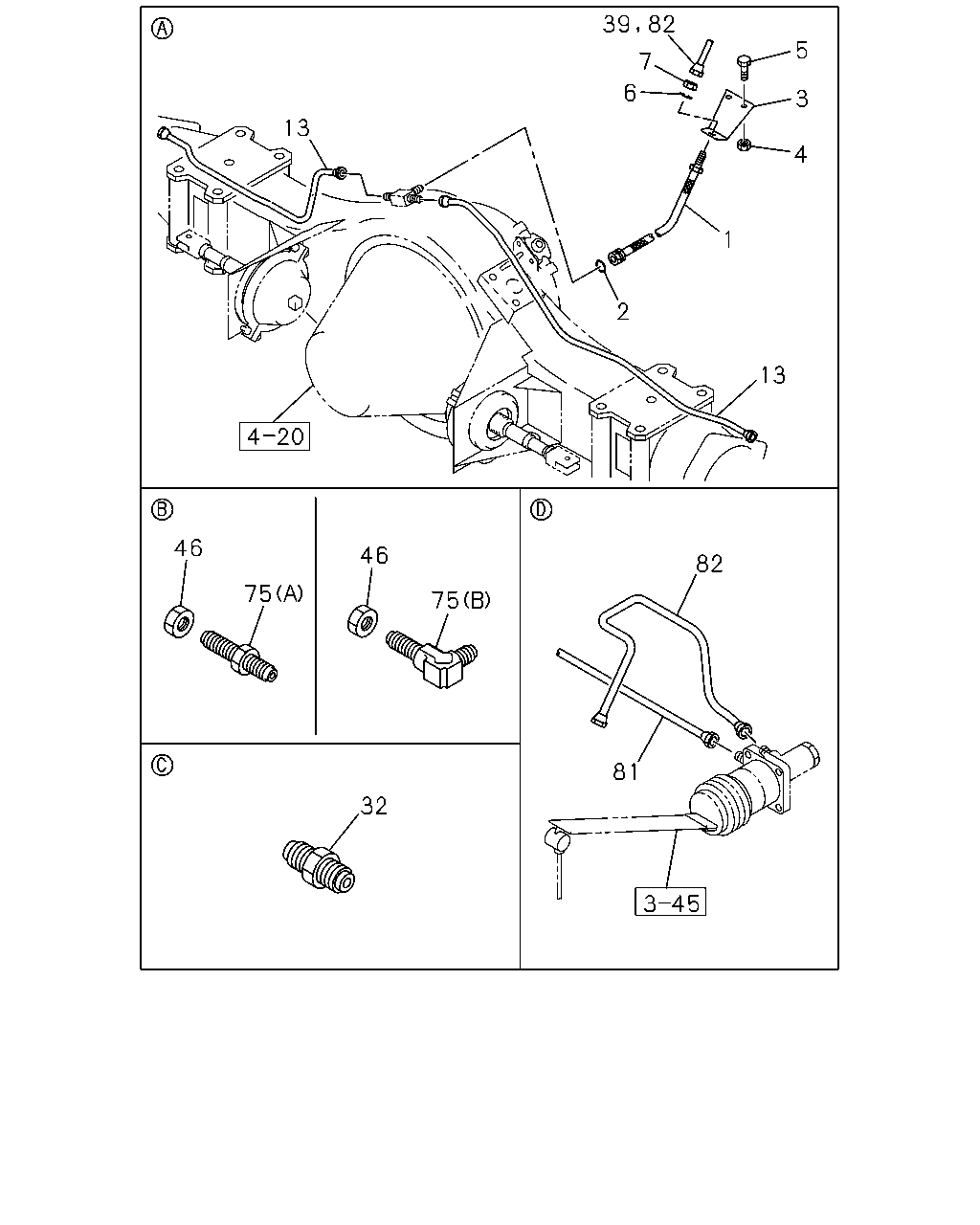

3-55 — BRAKE PIPING; OIL,REAR (#37199) — 142 parça

39 33 1 82 81 1 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	HOSE; FLEX,RR BRK L=690	0-05313-690-0	01	1	9604-9605	●	●
1	HOSE; FLEX,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=690	0-05313-690-0	01	1	9606-0004	●	●
1	HOSE; FLEX,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=730	0-05313-730-0	01	1	9606-0004	●	●
1	HOSE; FLEX,RR BRK L=730	0-05313-730-0	01	1	0005-0511	●
1	HOSE; FLEX,RR BRK L=730	0-05213-730-0	01	1	0512-	●
1	HOSE; FLEX,RR BRK L=663	1-09364-938-0	01	1	9609-			●
1	HOSE; FLEX,RR BRK THAILAND EQUIPMENT(PM9) L=663	1-09364-938-0	01	1	9609-				●
1	HOSE; FLEX,RR BRK L=700	0-05312-700-0	01	1	9604-9608			●	●	●
1	HOSE; FLEX,RR BRK EXC. THAILAND EQUIPMENT(PM9) L=700	0-05312-700-0	01	1	9609-0004				●
1	HOSE; FLEX,RR BRK L=700	0-05312-700-0	01	1	9609-0004					●
1	HOSE; FLEX,RR BRK EXC. THAILAND EQUIPMENT(PM9) L=700	0-05312-700-0	01	1	0005-0907				●
1	HOSE; FLEX,RR BRK EXC. THAILAND EQUIPMENT(PM9) L=700	0-05212-700-0	01	1	0908-				●
33	PIPE; OIL,UNION TO UNION TRANSFER TF56<BFK> BRAKE REGULATION ADR<TDU> L=2133 SERVICED BY L=2200	1-47426-360-0	01	1	0406-0406				●
33	PIPE; OIL,UNION TO UNION TRANSFER TF56<BFK> BRAKE REGULATION ADR<TDU> L=2136 SERVICED BY L=2200	1-47426-360-0	01	1	0407-				●
33	PIPE; OIL,UNION TO UNION AUSTRALIA EQUIPMENT(RR3) L=1190 SERVICED BY L=1200	1-47426-352-0	01	1	9604-9803	●
33	PIPE; OIL,UNION TO UNION BRAKE REGULATION ADR<TDU> L=1190 SERVICED BY L=1200	1-47426-352-0	01	1	9804-0004	●
33	PIPE; OIL,UNION TO UNION L=1171 SERVICED BY L=1200	1-47426-352-0	01	1	0005-	●
33	PIPE; OIL,UNION TO UNION EXC. BRAKE REGULATION ADR<TDU> L=1171 SERVICED BY L=1200	1-47426-352-0	01	1	9604-0004	●
33	PIPE; OIL,UNION TO UNION AUSTRALIA EQUIPMENT(RR3) L=1690 SERVICED BY L=1700	1-47426-357-0	01	1	9604-9803		●
33	PIPE; OIL,UNION TO UNION BRAKE REGULATION ADR<TDU> L=1690 SERVICED BY L=1700	1-47426-357-0	01	1	9804-0004		●
33	PIPE; OIL,UNION TO UNION L=1475 SERVICED BY L=1500	1-47426-355-0	01	1	9604-			●
33	PIPE; OIL,UNION TO UNION BRAKE REGULATION ADR<TDU> L=2082 SERVICED BY L=2200	1-47426-360-0	01	1	9604-0004				●	●
33	PIPE; OIL,UNION TO UNION MLD6D M/T(X5Q) BRAKE REGULATION ADR<TDU> L=2082 SERVICED BY L=2200	1-47426-360-0	01	1	0005-0403				●
33	PIPE; OIL,UNION TO UNION BRAKE REGULATION ADR<TDU> L=2082 SERVICED BY L=2200	1-47426-360-0	01	1	0404-0405				●
33	PIPE; OIL,UNION TO UNION BRAKE REGULATION ADR<TDU> EXC. TRANSFER TF56<BFK> L=2082 SERVICED BY L=2200	1-47426-360-0	01	1	0406-0506				●
33	PIPE; OIL,UNION TO UNION MLD6D M/T(X5Q) BRAKE REGULATION ADR<TDU> EXC. TRANSFER TF56<BFK> L=2082 SERVICED BY L=2200	1-47426-360-0	01	1	0507-				●
33	PIPE; OIL,UNION TO UNION EXC. BRAKE REGULATION ADR<TDU> L=2105 SERVICED BY L=2200	1-47426-360-0	01	1	9604-0004				●	●
33	PIPE; OIL,UNION TO UNION EXC. BRAKE REGULATION ADR<TDU> L=2105 SERVICED BY L=2200	1-47426-360-0	01	1	0005-				●
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. LOAD SENSING PROPORTIONING VALVE(JR7), BRAKE REGULATION ADR<TDU> L=1983 SERVICED BY L=2000	1-47426-359-0	01	1	9604-0004	●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE REGULATION ADR<TDU> EXC. LOAD SENSING PROPORTIONING VALVE(JR7) L=1913 SERVICED BY L=2000	1-47426-359-0	01	1	9604-9710	●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE REGULATION ADR<TDU> EXC. LOAD SENSING PROPORTIONING VALVE(JR7) L=1910 SERVICED BY L=2000	1-47426-359-0	01	1	9711-9803	●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE REGULATION ADR<TDU> EXC. LOAD SENSING PROPORTIONING VALVE(JR7) L=1910 SERVICED BY L=2000	1-47426-359-0	01	1	9804-0004	●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1983 SERVICED BY L=2000	1-47426-359-0	01	1	0005-0006	●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1979 SERVICED BY L=2000	1-47426-359-0	01	1	0007-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1325 SERVICED BY L=1370	1-47426-354-0	01	1	9604-0004			●
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. LOAD SENSING PROPORTIONING VALVE(JR7) L=1325 SERVICED BY L=1370	1-47426-354-0	01	1	9604-0004				●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1325 SERVICED BY L=1370	1-47426-354-0	01	1	0005-			●
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. LOAD SENSING PROPORTIONING VALVE(JR7) L=1325 SERVICED BY L=1370	1-47426-354-0	01	1	0005-				●
81	PIPE; OIL,UNION TO LSPV LOAD SENSING PROPORTIONING VALVE(JR7) L=1994 SERVICED BY L=2200	1-47426-360-0	01	1	9604-0004	●	●
81	PIPE; OIL,UNION TO LSPV LOAD SENSING PROPORTIONING VALVE(JR7) L=1369 SERVICED BY L=1500	1-47426-355-0	01	1	9604-0004				●	●
81	PIPE; OIL,UNION TO LSPV LOAD SENSING PROPORTIONING VALVE(JR7) L=1369 SERVICED BY L=1500	1-47426-355-0	01	1	0005-				●
82	PIPE; OIL,LSPV TO FLEX HOSE LOAD SENSING PROPORTIONING VALVE(JR7)	1-47429-783-0	01	1	9604-0004	●	●
82	PIPE; OIL,LSPV TO FLEX HOSE LOAD SENSING PROPORTIONING VALVE(JR7)	1-47429-787-0	01	1	9604-0004				●	●
82	PIPE; OIL,LSPV TO FLEX HOSE LOAD SENSING PROPORTIONING VALVE(JR7)	1-47429-787-0	01	1	0005-				●

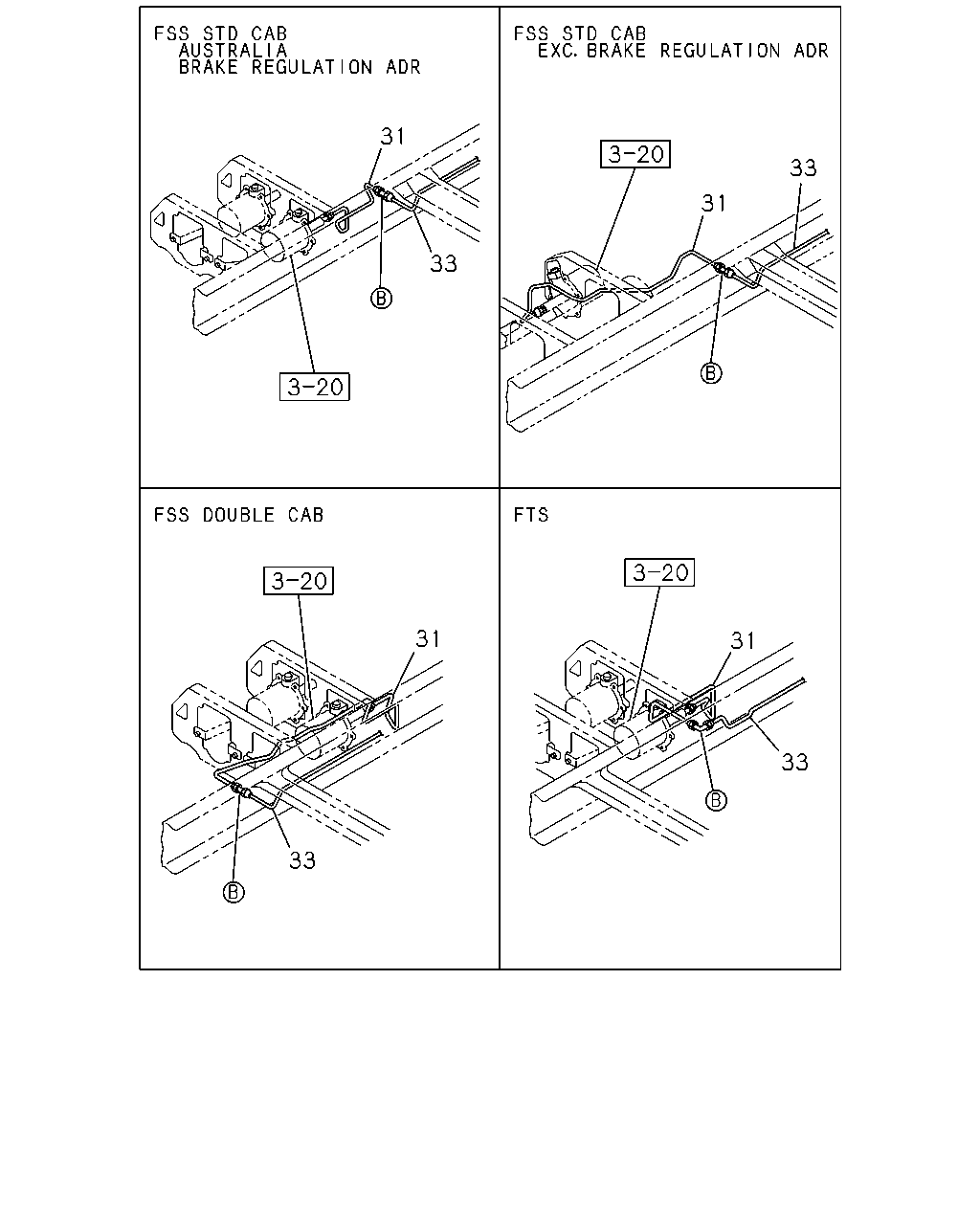

31 33 31 33 31 31 33 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
31	PIPE; OIL,AIR MASTER TO UNION AUSTRALIA EQUIPMENT(RR3)	1-47429-312-0	01	1	9604-9803	●
31	PIPE; OIL,AIR MASTER TO UNION BRAKE REGULATION ADR<TDU>	1-49161-612-0	01	1	9804-0004	●
31	PIPE; OIL,AIR MASTER TO UNION EXC. BRAKE REGULATION ADR<TDU> L=889	1-47429-269-0	01	1	9604-9809	●
31	PIPE; OIL,AIR MASTER TO UNION EXC. BRAKE REGULATION ADR<TDU> L=890	1-49161-560-0	01	1	9810-0004	●
31	PIPE; OIL,AIR MASTER TO UNION L=890	1-49161-560-0	01	1	0005-	●
31	PIPE; OIL,AIR MASTER TO UNION AUSTRALIA EQUIPMENT(RR3)	1-47429-349-0	01	1	9604-9803		●
31	PIPE; OIL,AIR MASTER TO UNION BRAKE REGULATION ADR<TDU>	1-49162-052-0	01	1	9804-0004		●
31	PIPE; OIL,AIR MASTER TO UNION	1-47429-472-0	01	1	9604-9803			●
31	PIPE; OIL,AIR MASTER TO UNION EXC. BRAKE REGULATION ADR<TDU>	1-47429-472-0	01	1	9604-9803				●
31	PIPE; OIL,AIR MASTER TO UNION L=614 SERVICED BY L=650	1-47426-346-0	01	1	9804-			●
31	PIPE; OIL,AIR MASTER TO UNION EXC. BRAKE REGULATION ADR<TDU> L=614 SERVICED BY L=650	1-47426-346-0	01	1	9804-				●
31	PIPE; OIL,AIR MASTER TO UNION BRAKE REGULATION ADR<TDU>	1-47428-908-0	01	1	9604-9803				●	●
31	PIPE; OIL,AIR MASTER TO UNION BRAKE REGULATION ADR<TDU>	1-49162-672-0	01	1	9804-0004				●	●
31	PIPE; OIL,AIR MASTER TO UNION MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) BRAKE REGULATION ADR<TDU>	1-49162-672-0	01	1	0005-0403				●
31	PIPE; OIL,AIR MASTER TO UNION BRAKE REGULATION ADR<TDU>	1-49162-672-0	01	1	0404-				●
33	PIPE; OIL,UNION TO UNION TRANSFER TF56<BFK> BRAKE REGULATION ADR<TDU> L=2133 SERVICED BY L=2200	1-47426-360-0	01	1	0406-0406				●
33	PIPE; OIL,UNION TO UNION TRANSFER TF56<BFK> BRAKE REGULATION ADR<TDU> L=2136 SERVICED BY L=2200	1-47426-360-0	01	1	0407-				●
33	PIPE; OIL,UNION TO UNION AUSTRALIA EQUIPMENT(RR3) L=1190 SERVICED BY L=1200	1-47426-352-0	01	1	9604-9803	●
33	PIPE; OIL,UNION TO UNION BRAKE REGULATION ADR<TDU> L=1190 SERVICED BY L=1200	1-47426-352-0	01	1	9804-0004	●
33	PIPE; OIL,UNION TO UNION L=1171 SERVICED BY L=1200	1-47426-352-0	01	1	0005-	●
33	PIPE; OIL,UNION TO UNION EXC. BRAKE REGULATION ADR<TDU> L=1171 SERVICED BY L=1200	1-47426-352-0	01	1	9604-0004	●
33	PIPE; OIL,UNION TO UNION AUSTRALIA EQUIPMENT(RR3) L=1690 SERVICED BY L=1700	1-47426-357-0	01	1	9604-9803		●
33	PIPE; OIL,UNION TO UNION BRAKE REGULATION ADR<TDU> L=1690 SERVICED BY L=1700	1-47426-357-0	01	1	9804-0004		●
33	PIPE; OIL,UNION TO UNION L=1475 SERVICED BY L=1500	1-47426-355-0	01	1	9604-			●
33	PIPE; OIL,UNION TO UNION BRAKE REGULATION ADR<TDU> L=2082 SERVICED BY L=2200	1-47426-360-0	01	1	9604-0004				●	●
33	PIPE; OIL,UNION TO UNION MLD6D M/T(X5Q) BRAKE REGULATION ADR<TDU> L=2082 SERVICED BY L=2200	1-47426-360-0	01	1	0005-0403				●
33	PIPE; OIL,UNION TO UNION BRAKE REGULATION ADR<TDU> L=2082 SERVICED BY L=2200	1-47426-360-0	01	1	0404-0405				●
33	PIPE; OIL,UNION TO UNION BRAKE REGULATION ADR<TDU> EXC. TRANSFER TF56<BFK> L=2082 SERVICED BY L=2200	1-47426-360-0	01	1	0406-0506				●
33	PIPE; OIL,UNION TO UNION MLD6D M/T(X5Q) BRAKE REGULATION ADR<TDU> EXC. TRANSFER TF56<BFK> L=2082 SERVICED BY L=2200	1-47426-360-0	01	1	0507-				●
33	PIPE; OIL,UNION TO UNION EXC. BRAKE REGULATION ADR<TDU> L=2105 SERVICED BY L=2200	1-47426-360-0	01	1	9604-0004				●	●
33	PIPE; OIL,UNION TO UNION EXC. BRAKE REGULATION ADR<TDU> L=2105 SERVICED BY L=2200	1-47426-360-0	01	1	0005-				●

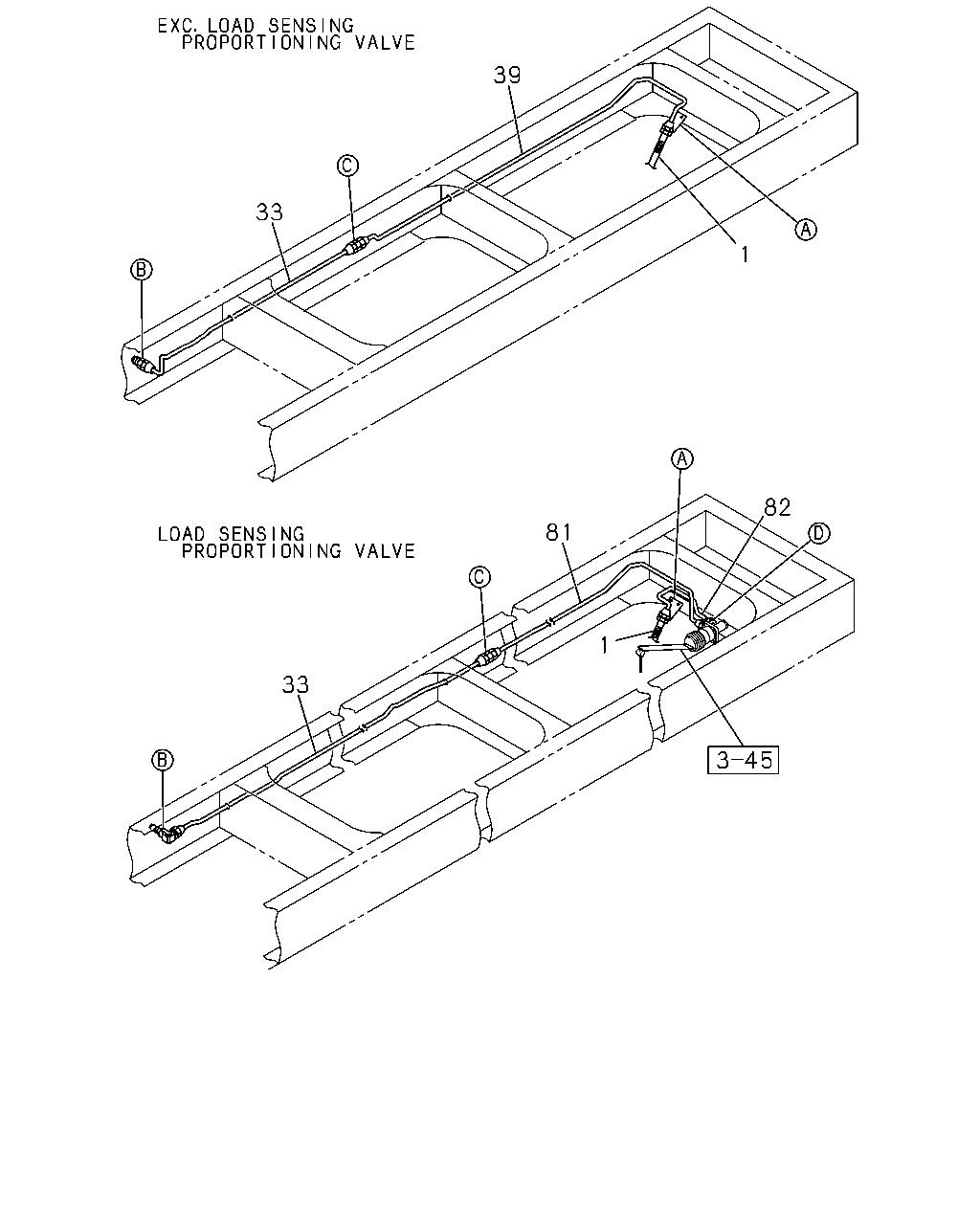

5 7 6 3 13 4 1 2 13 46 46 82 75 75 81 32 39 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	HOSE; FLEX,RR BRK L=690	0-05313-690-0	01	1	9604-9605	●	●
1	HOSE; FLEX,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=690	0-05313-690-0	01	1	9606-0004	●	●
1	HOSE; FLEX,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=730	0-05313-730-0	01	1	9606-0004	●	●
1	HOSE; FLEX,RR BRK L=730	0-05313-730-0	01	1	0005-0511	●
1	HOSE; FLEX,RR BRK L=730	0-05213-730-0	01	1	0512-	●
1	HOSE; FLEX,RR BRK L=663	1-09364-938-0	01	1	9609-			●
1	HOSE; FLEX,RR BRK THAILAND EQUIPMENT(PM9) L=663	1-09364-938-0	01	1	9609-				●
1	HOSE; FLEX,RR BRK L=700	0-05312-700-0	01	1	9604-9608			●	●	●
1	HOSE; FLEX,RR BRK EXC. THAILAND EQUIPMENT(PM9) L=700	0-05312-700-0	01	1	9609-0004				●
1	HOSE; FLEX,RR BRK L=700	0-05312-700-0	01	1	9609-0004					●
1	HOSE; FLEX,RR BRK EXC. THAILAND EQUIPMENT(PM9) L=700	0-05312-700-0	01	1	0005-0907				●
1	HOSE; FLEX,RR BRK EXC. THAILAND EQUIPMENT(PM9) L=700	0-05212-700-0	01	1	0908-				●
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	9604-9707	●	●	●	●	●
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	9708-0004			●	●	●
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0005-			●	●
3	BRACKET; FLEX HOSE,RR BRK	1-47465-251-0	01	1	9604-0004	●	●	●	●	●
3	BRACKET; FLEX HOSE,RR BRK	1-47465-251-0	01	1	0005-	●		●	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8	9-09110-408-0	02	1	9604-9606	●	●	●	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●	●	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	0005-0602	●		●	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	0603-	●		●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28080-825-0	02	1	9604-9606	●	●	●	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28680-825-0	02	1	9607-0004	●	●	●	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●		●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28650-825-0	02	1	0601-	●		●	●
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	9604-0004	●	●	●	●	●
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0005-0603	●		●	●
6	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	01	1	0604-	●		●	●
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	9604-0004	●	●	●	●	●
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0005-	●		●	●
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=858	1-47427-108-0	01	1	9604-0004	●	●
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=685	1-47427-107-0	01	1	9604-0004	●	●
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47429-732-0	01	1	9604-0004	●	●
13	PIPE; BRK,RR AXLE	1-47429-732-0	01	1	0005-	●
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47429-731-0	01	1	9604-0004	●	●
13	PIPE; BRK,RR AXLE	1-47429-731-0	01	1	0005-	●
13	PIPE; BRK,RR AXLE	1-47428-644-0	01	1	9604-0004			●	●	●
13	PIPE; BRK,RR AXLE	1-47428-644-0	01	1	0005-			●	●
13	PIPE; BRK,RR AXLE	1-47428-643-0	01	1	9604-0004			●	●	●
13	PIPE; BRK,RR AXLE	1-47428-643-0	01	1	0005-			●	●
32	UNION; OIL PIPE M12 L=40	9-09223-006-1	01	1	9604-0004	●	●	●	●	●
32	UNION; OIL PIPE M12 L=40	9-09223-006-1	01	1	0005-0607	●		●	●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	01	1	0608-	●		●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. LOAD SENSING PROPORTIONING VALVE(JR7), BRAKE REGULATION ADR<TDU> L=1983 SERVICED BY L=2000	1-47426-359-0	01	1	9604-0004	●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE REGULATION ADR<TDU> EXC. LOAD SENSING PROPORTIONING VALVE(JR7) L=1913 SERVICED BY L=2000	1-47426-359-0	01	1	9604-9710	●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE REGULATION ADR<TDU> EXC. LOAD SENSING PROPORTIONING VALVE(JR7) L=1910 SERVICED BY L=2000	1-47426-359-0	01	1	9711-9803	●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE REGULATION ADR<TDU> EXC. LOAD SENSING PROPORTIONING VALVE(JR7) L=1910 SERVICED BY L=2000	1-47426-359-0	01	1	9804-0004	●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1983 SERVICED BY L=2000	1-47426-359-0	01	1	0005-0006	●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1979 SERVICED BY L=2000	1-47426-359-0	01	1	0007-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1325 SERVICED BY L=1370	1-47426-354-0	01	1	9604-0004			●
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. LOAD SENSING PROPORTIONING VALVE(JR7) L=1325 SERVICED BY L=1370	1-47426-354-0	01	1	9604-0004				●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1325 SERVICED BY L=1370	1-47426-354-0	01	1	0005-			●
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. LOAD SENSING PROPORTIONING VALVE(JR7) L=1325 SERVICED BY L=1370	1-47426-354-0	01	1	0005-				●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	9604-0004	●	●	●	●	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0005-	●		●	●
75	UNION; OIL PIPE (A) M12 L=66.5	9-09223-306-1	01	1	9604-0004	●	●
75	UNION; OIL PIPE (A) M12 L=66.5	9-09223-306-1	01	1	0005-0607	●
75	UNION; OIL PIPE (A) M12 L=66.5	0-92113-306-0	01	1	0608-	●
75	UNION; OIL PIPE (B) M12 ELBOW	9-09225-206-1	01	1	9604-0004			●	●	●
75	UNION; OIL PIPE (B) M12 ELBOW	9-09225-206-1	01	1	0005-0607			●	●
75	UNION; OIL PIPE (B) M12 ELBOW	0-92125-206-0	01	1	0608-			●	●
81	PIPE; OIL,UNION TO LSPV LOAD SENSING PROPORTIONING VALVE(JR7) L=1994 SERVICED BY L=2200	1-47426-360-0	01	1	9604-0004	●	●
81	PIPE; OIL,UNION TO LSPV LOAD SENSING PROPORTIONING VALVE(JR7) L=1369 SERVICED BY L=1500	1-47426-355-0	01	1	9604-0004				●	●
81	PIPE; OIL,UNION TO LSPV LOAD SENSING PROPORTIONING VALVE(JR7) L=1369 SERVICED BY L=1500	1-47426-355-0	01	1	0005-				●
82	PIPE; OIL,LSPV TO FLEX HOSE LOAD SENSING PROPORTIONING VALVE(JR7)	1-47429-783-0	01	1	9604-0004	●	●
82	PIPE; OIL,LSPV TO FLEX HOSE LOAD SENSING PROPORTIONING VALVE(JR7)	1-47429-787-0	01	1	9604-0004				●	●
82	PIPE; OIL,LSPV TO FLEX HOSE LOAD SENSING PROPORTIONING VALVE(JR7)	1-47429-787-0	01	1	0005-				●
