3-52 — BRAKE PIPING; OIL,FRONT (#37198) — 114 parça

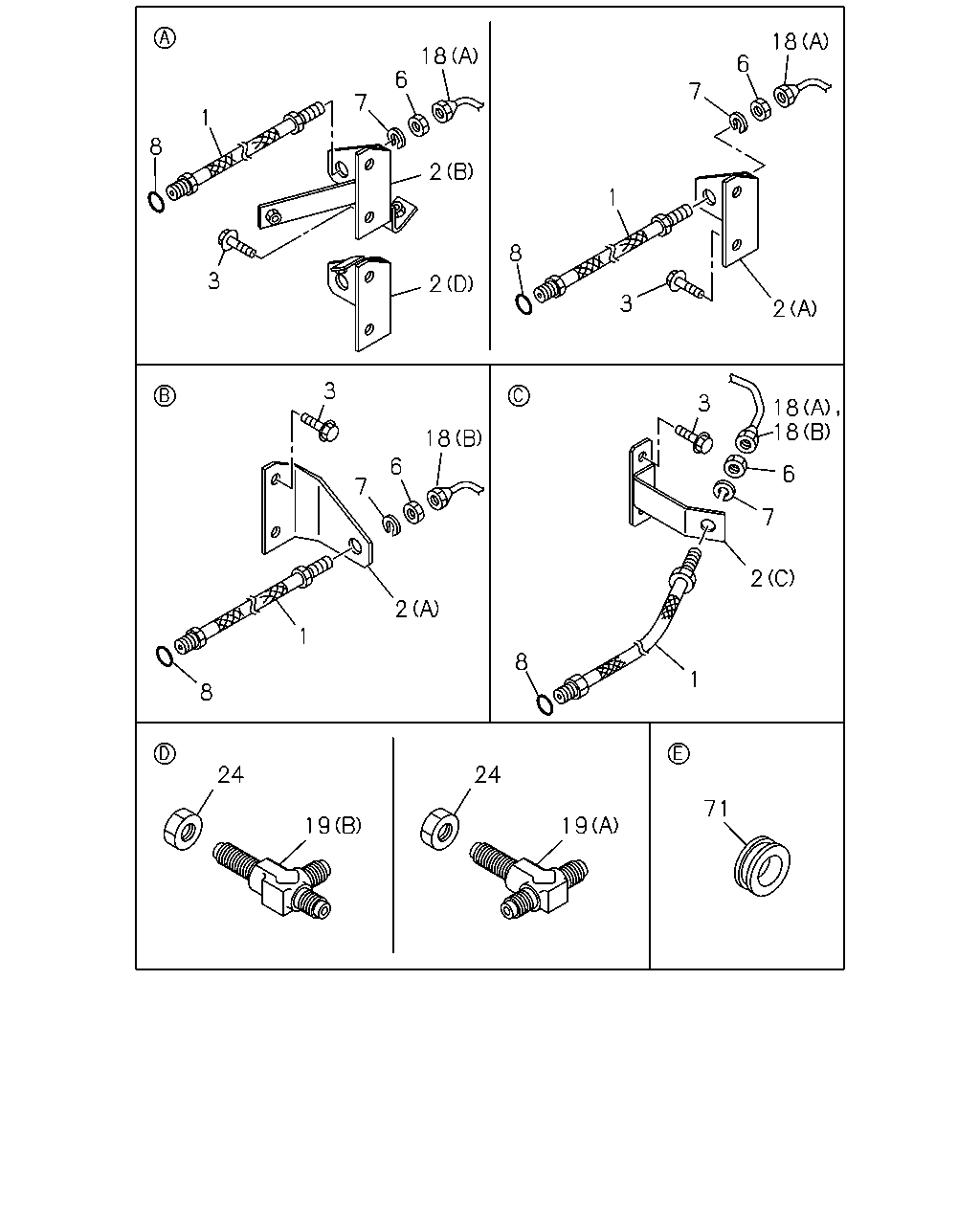

çizim 152789
18 18 6 6 7 7 1 8 2 1 8 3 2 3 2 3 3 18 18 18 6 6 7 7 2 2 1 8 1 8 24 24 71 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HOSE; FLEX,FRT BRK
L=550 		0-05312-550-0 02 1 9604-0004 ● ●
1 HOSE; FLEX,FRT BRK
L=550 		0-05312-550-0 02 1 0005- ●
1 HOSE; FLEX,FRT BRK
L=690 		0-05312-690-0 02 1 9604-0004 ● ● ●
1 HOSE; FLEX,FRT BRK
L=690 		0-05312-690-0 02 1 0005- ● ●
2 BRACKET; FLEX HOSE,FRT BRK
(A) 		1-47477-323-1 01 1 9604- ●
2 BRACKET; FLEX HOSE,FRT BRK
(A) 		1-47477-322-1 01 1 9604-0004 ● ●
2 BRACKET; FLEX HOSE,FRT BRK
(A) 		1-47477-322-1 01 1 0005- ●
2 BRACKET; FLEX HOSE,FRT BRK
(B) 		1-47477-583-0 01 1 9604-9804 ●
2 BRACKET; FLEX HOSE,FRT BRK
(D) 		1-47478-206-1 01 1 9805-0004 ●
2 BRACKET; FLEX HOSE,FRT BRK
(C) 		1-47476-817-0 02 1 9604-0004 ● ● ●
2 BRACKET; FLEX HOSE,FRT BRK
(C) 		1-47476-817-0 02 1 0005- ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28080-825-0 04 1 9604-9606 ● ● ● ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28080-825-0 02 1 9607-0004 ● ● ● ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28080-825-0 02 1 0005-0512 ● ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28050-825-0 02 1 0601- ● ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28680-825-0 02 1 9607-0004 ● ● ● ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ● ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
6 NUT; FLEX HOSE,FRT BRK
M12 		9-09840-280-0 02 1 9604-0004 ● ● ● ● ●
6 NUT; FLEX HOSE,FRT BRK
M12 		9-09840-280-0 02 1 0005- ● ● ●
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		9-09150-512-0 02 1 9604-0004 ● ● ● ● ●
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		9-09150-512-0 02 1 0005-0603 ● ● ●
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		0-91510-512-0 02 1 0604- ● ● ●
8 GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17 		9-09920-472-0 02 1 9604-0004 ● ● ● ● ●
8 GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17 		9-09920-472-0 02 1 0005- ● ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> (A) L=1608 SERVICED BY L=1620 		1-47426-356-0 01 1 9604-0004 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> (B) L=2668 SERVICED BY L=2900 		1-47426-364-0 01 1 9604-9708 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> (B) L=2663 SERVICED BY L=2900 		1-47426-364-0 01 1 9709-0004 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) BRAKE REGULATION ADR<TDU> (B) L=2725 SERVICED BY L=2900 		1-47426-364-0 01 1 0005-0403 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE REGULATION ADR<TDU> (B) L=2725 SERVICED BY L=2900 		1-47426-364-0 01 1 0404- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
AUSTRALIA EQUIPMENT(RR3) (A) L=1611 SERVICED BY L=1620 		1-47426-356-0 01 1 9604-9803 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE REGULATION ADR<TDU> (A) L=1611 SERVICED BY L=1620 		1-47426-356-0 01 1 9804-0004 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1608 SERVICED BY L=1620 		1-47426-356-0 01 1 0005- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
AUSTRALIA EQUIPMENT(RR3) (B) L=2655 SERVICED BY L=2900 		1-47426-364-0 01 1 9604-9803 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE REGULATION ADR<TDU> (B) L=2686 SERVICED BY L=2900 		1-47426-364-0 01 1 9804-0004 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2663 SERVICED BY L=2900 		1-47426-364-0 01 1 0005- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1788 SERVICED BY L=1820 		1-47426-358-0 01 1 9604- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> (A) L=1788 SERVICED BY L=1820 		1-47426-358-0 01 1 9604- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2772 SERVICED BY L=2900 		1-47426-364-0 01 1 9604-9912 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> (B) L=2772 SERVICED BY L=2900 		1-47426-364-0 01 1 9604-9912 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2774 SERVICED BY L=2900 		1-47426-364-0 01 1 0001- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> (B) L=2774 SERVICED BY L=2900 		1-47426-364-0 01 1 0001- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE REGULATION ADR<TDU> (A) L=1623 SERVICED BY L=1700 		1-47426-357-0 01 1 9604-0004 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE REGULATION ADR<TDU> (A) L=1623 SERVICED BY L=1700 		1-47426-357-0 01 1 0005- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE REGULATION ADR<TDU> (B) L=2694 SERVICED BY L=2900 		1-47426-364-0 01 1 9604-0004 ● ●
19 UNION; OIL PIPE
(A) M12 3WAY 		9-09228-606-1 01 1 9604-0004 ● ●
19 UNION; OIL PIPE
BRAKE REGULATION ADR<TDU> (A) M12 3WAY 		9-09228-606-1 01 1 9604-0004 ● ●
19 UNION; OIL PIPE
(A) M12 3WAY 		9-09228-606-1 01 1 0005-0607 ●
19 UNION; OIL PIPE
BRAKE REGULATION ADR<TDU> (A) M12 3WAY 		9-09228-606-1 01 1 0005-0607 ●
19 UNION; OIL PIPE
(A) M12 3WAY 		0-92138-606-0 01 1 0608- ●
19 UNION; OIL PIPE
BRAKE REGULATION ADR<TDU> (A) M12 3WAY 		0-92138-606-0 01 1 0608- ●
19 UNION; OIL PIPE
(B) M12 3WAY 		9-09228-906-1 01 1 9604-0607 ●
19 UNION; OIL PIPE
EXC. BRAKE REGULATION ADR<TDU> (B) M12 3WAY 		9-09228-906-1 01 1 9604-0607 ●
19 UNION; OIL PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 0608- ●
19 UNION; OIL PIPE
EXC. BRAKE REGULATION ADR<TDU> (B) M12 3WAY 		0-92138-906-0 01 1 0608- ●
24 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 9604-0004 ● ● ● ● ●
24 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 0005- ● ● ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 9604-0004 ● ● ● ● ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 0005- ● ● ●

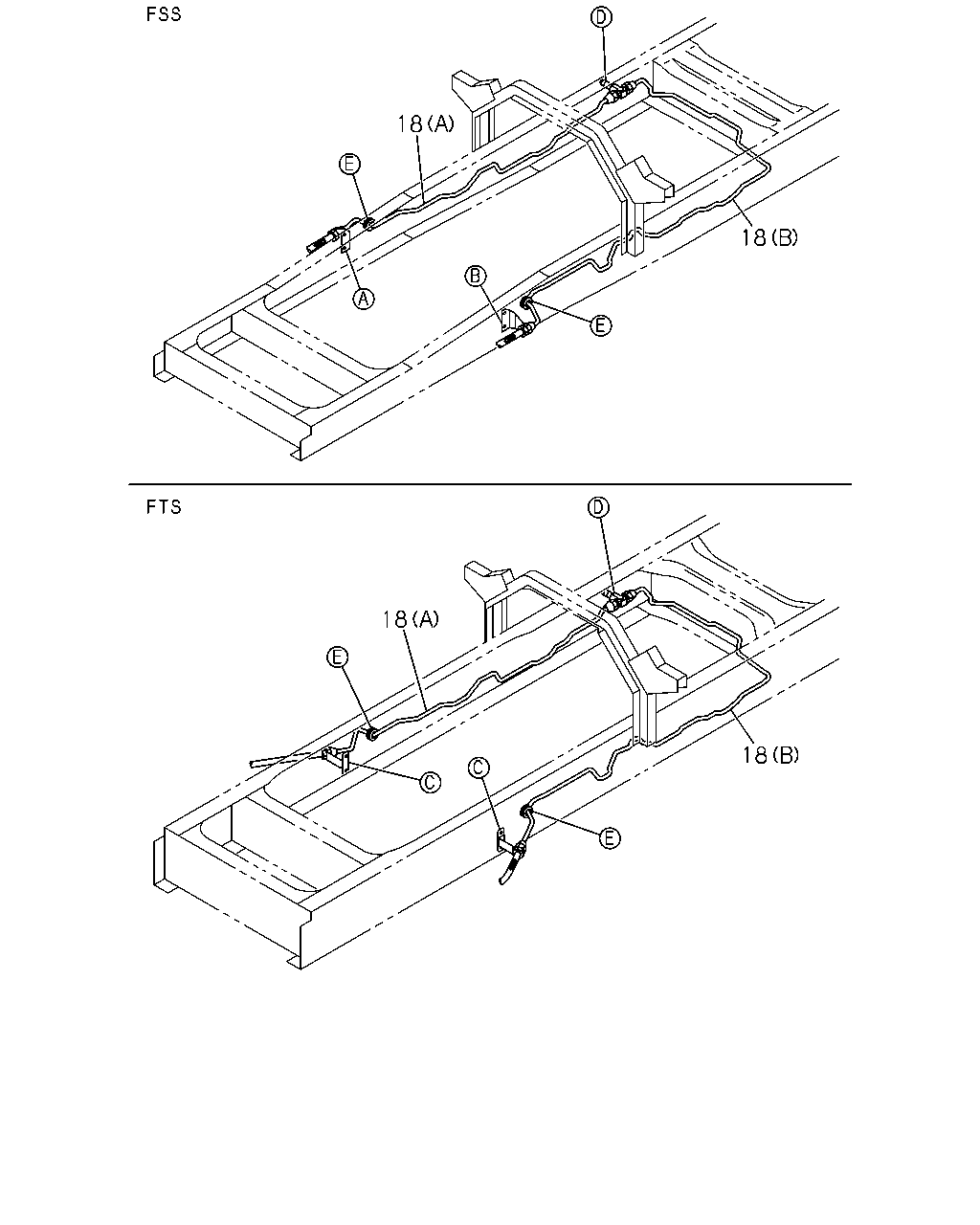

çizim 152796
18 18 18 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E
18 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> (A) L=1608 SERVICED BY L=1620 		1-47426-356-0 01 1 9604-0004 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> (B) L=2668 SERVICED BY L=2900 		1-47426-364-0 01 1 9604-9708 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> (B) L=2663 SERVICED BY L=2900 		1-47426-364-0 01 1 9709-0004 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) BRAKE REGULATION ADR<TDU> (B) L=2725 SERVICED BY L=2900 		1-47426-364-0 01 1 0005-0403 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE REGULATION ADR<TDU> (B) L=2725 SERVICED BY L=2900 		1-47426-364-0 01 1 0404- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
AUSTRALIA EQUIPMENT(RR3) (A) L=1611 SERVICED BY L=1620 		1-47426-356-0 01 1 9604-9803 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE REGULATION ADR<TDU> (A) L=1611 SERVICED BY L=1620 		1-47426-356-0 01 1 9804-0004 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1608 SERVICED BY L=1620 		1-47426-356-0 01 1 0005- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
AUSTRALIA EQUIPMENT(RR3) (B) L=2655 SERVICED BY L=2900 		1-47426-364-0 01 1 9604-9803 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE REGULATION ADR<TDU> (B) L=2686 SERVICED BY L=2900 		1-47426-364-0 01 1 9804-0004 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2663 SERVICED BY L=2900 		1-47426-364-0 01 1 0005- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1788 SERVICED BY L=1820 		1-47426-358-0 01 1 9604- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> (A) L=1788 SERVICED BY L=1820 		1-47426-358-0 01 1 9604- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2772 SERVICED BY L=2900 		1-47426-364-0 01 1 9604-9912 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> (B) L=2772 SERVICED BY L=2900 		1-47426-364-0 01 1 9604-9912 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2774 SERVICED BY L=2900 		1-47426-364-0 01 1 0001- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> (B) L=2774 SERVICED BY L=2900 		1-47426-364-0 01 1 0001- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE REGULATION ADR<TDU> (A) L=1623 SERVICED BY L=1700 		1-47426-357-0 01 1 9604-0004 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE REGULATION ADR<TDU> (A) L=1623 SERVICED BY L=1700 		1-47426-357-0 01 1 0005- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE REGULATION ADR<TDU> (B) L=2694 SERVICED BY L=2900 		1-47426-364-0 01 1 9604-0004 ● ●

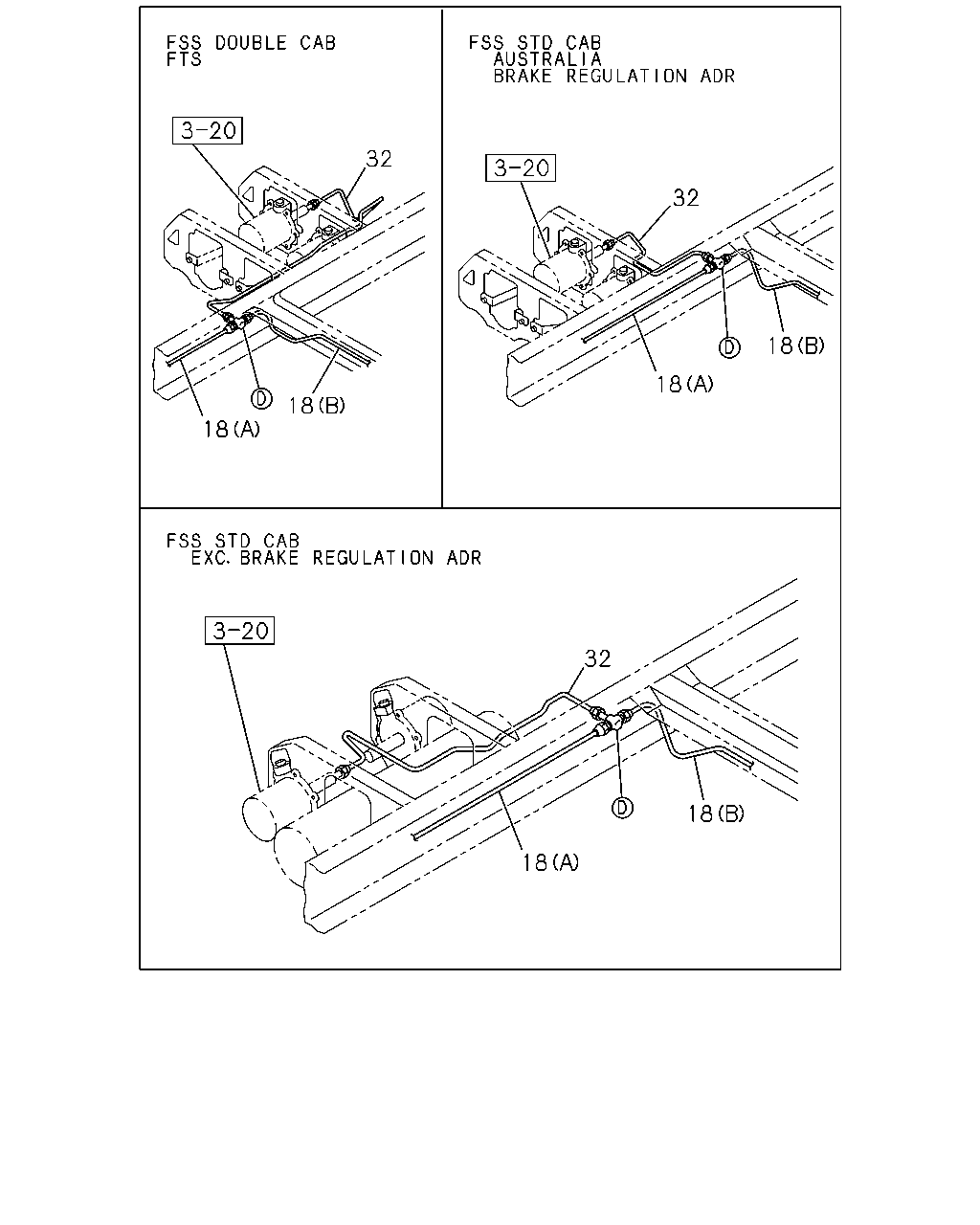

çizim 152799
32 32 18 18 18 18 32 18 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E
18 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> (A) L=1608 SERVICED BY L=1620 		1-47426-356-0 01 1 9604-0004 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> (B) L=2668 SERVICED BY L=2900 		1-47426-364-0 01 1 9604-9708 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> (B) L=2663 SERVICED BY L=2900 		1-47426-364-0 01 1 9709-0004 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) BRAKE REGULATION ADR<TDU> (B) L=2725 SERVICED BY L=2900 		1-47426-364-0 01 1 0005-0403 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE REGULATION ADR<TDU> (B) L=2725 SERVICED BY L=2900 		1-47426-364-0 01 1 0404- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
AUSTRALIA EQUIPMENT(RR3) (A) L=1611 SERVICED BY L=1620 		1-47426-356-0 01 1 9604-9803 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE REGULATION ADR<TDU> (A) L=1611 SERVICED BY L=1620 		1-47426-356-0 01 1 9804-0004 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1608 SERVICED BY L=1620 		1-47426-356-0 01 1 0005- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
AUSTRALIA EQUIPMENT(RR3) (B) L=2655 SERVICED BY L=2900 		1-47426-364-0 01 1 9604-9803 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE REGULATION ADR<TDU> (B) L=2686 SERVICED BY L=2900 		1-47426-364-0 01 1 9804-0004 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2663 SERVICED BY L=2900 		1-47426-364-0 01 1 0005- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1788 SERVICED BY L=1820 		1-47426-358-0 01 1 9604- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> (A) L=1788 SERVICED BY L=1820 		1-47426-358-0 01 1 9604- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2772 SERVICED BY L=2900 		1-47426-364-0 01 1 9604-9912 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> (B) L=2772 SERVICED BY L=2900 		1-47426-364-0 01 1 9604-9912 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2774 SERVICED BY L=2900 		1-47426-364-0 01 1 0001- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. BRAKE REGULATION ADR<TDU> (B) L=2774 SERVICED BY L=2900 		1-47426-364-0 01 1 0001- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE REGULATION ADR<TDU> (A) L=1623 SERVICED BY L=1700 		1-47426-357-0 01 1 9604-0004 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE REGULATION ADR<TDU> (A) L=1623 SERVICED BY L=1700 		1-47426-357-0 01 1 0005- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE REGULATION ADR<TDU> (B) L=2694 SERVICED BY L=2900 		1-47426-364-0 01 1 9604-0004 ● ●
32 PIPE; OIL,AIR MASTER TO UNION
AUSTRALIA EQUIPMENT(RR3) 		1-47429-311-0 01 1 9604-9803 ●
32 PIPE; OIL,AIR MASTER TO UNION
BRAKE REGULATION ADR<TDU> 		1-49161-611-0 01 1 9804-0004 ●
32 PIPE; OIL,AIR MASTER TO UNION
EXC. BRAKE REGULATION ADR<TDU> L=953 		1-47429-076-0 01 1 9604-9809 ●
32 PIPE; OIL,AIR MASTER TO UNION
EXC. BRAKE REGULATION ADR<TDU> L=978 		1-49161-959-0 01 1 9810-0004 ●
32 PIPE; OIL,AIR MASTER TO UNION
L=978 		1-49161-959-0 01 1 0005- ●
32 PIPE; OIL,AIR MASTER TO UNION
AUSTRALIA EQUIPMENT(RR3) L=1086 SERVICED BY L=1200 		1-47426-352-0 01 1 9604-9803 ●
32 PIPE; OIL,AIR MASTER TO UNION
BRAKE REGULATION ADR<TDU> L=1069 SERVICED BY L=1100 		1-47426-351-0 01 1 9804-0004 ●
32 PIPE; OIL,AIR MASTER TO UNION
L=1188 SERVICED BY L=1200 		1-47426-352-0 01 1 9604-9803 ●
32 PIPE; OIL,AIR MASTER TO UNION
EXC. BRAKE REGULATION ADR<TDU> L=1188 SERVICED BY L=1200 		1-47426-352-0 01 1 9604-9803 ●
32 PIPE; OIL,AIR MASTER TO UNION
L=1171 SERVICED BY L=1200 		1-47426-352-0 01 1 9804- ●
32 PIPE; OIL,AIR MASTER TO UNION
EXC. BRAKE REGULATION ADR<TDU> L=1171 SERVICED BY L=1200 		1-47426-352-0 01 1 9804- ●
32 PIPE; OIL,AIR MASTER TO UNION
BRAKE REGULATION ADR<TDU> L=950 		1-47428-529-0 01 1 9604-9803 ● ●
32 PIPE; OIL,AIR MASTER TO UNION
BRAKE REGULATION ADR<TDU> L=996 		1-49161-480-0 01 1 9804-0004 ● ●
32 PIPE; OIL,AIR MASTER TO UNION
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) BRAKE REGULATION ADR<TDU> L=996 		1-49161-480-0 01 1 0005-0403 ●
32 PIPE; OIL,AIR MASTER TO UNION
BRAKE REGULATION ADR<TDU> L=996 		1-49161-480-0 01 1 0404- ●
