◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10716 - FSS/FTS-RHD ▶ 3 - Brakes, Brake System ▶ 3-45 - LOAD SENSING PROPORTIONING VALVE ▶
3-45 — LOAD SENSING PROPORTIONING VALVE (#37196) — 138 parça

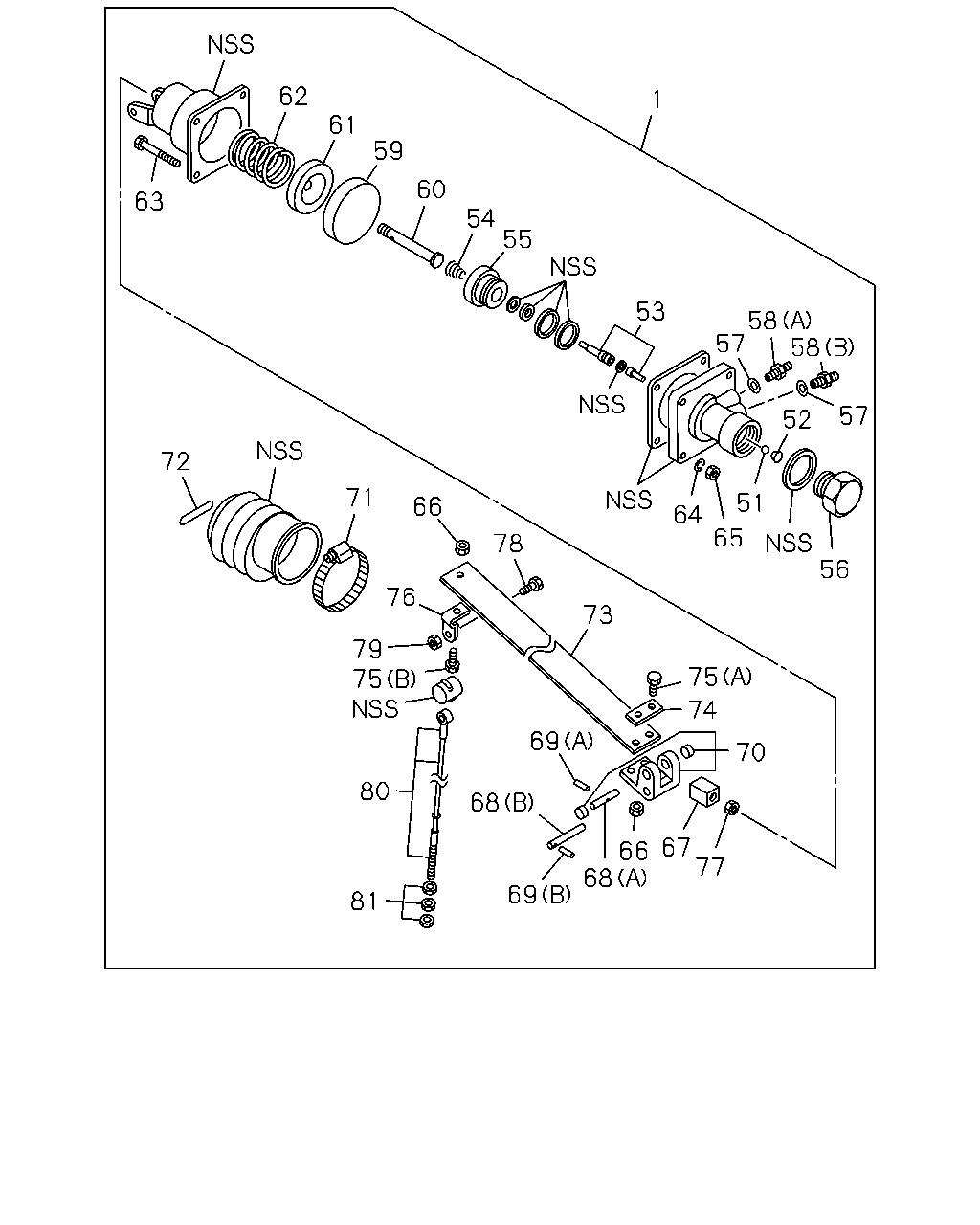

çizim 152769
62 1 61 59 60 63 54 55 53 58 57 58 52 57 72 71 51 66 64 65 56 78 76 73 79 75 75 74 69 70 80 68 67 77 66 68 69 81
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 VALVE ASM; LOAD SENSING PROPORTIONING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47710-014-0 01 1 9604-0004 ● ●
1 VALVE ASM; LOAD SENSING PROPORTIONING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47710-022-0 01 1 9604-0004 ● ●
1 VALVE ASM; LOAD SENSING PROPORTIONING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47710-022-0 01 1 0005-0102 ●
1 VALVE ASM; LOAD SENSING PROPORTIONING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47710-092-0 01 1 0103- ●
51 BALL; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-010-0 01 1 9604-0004 ● ● ● ●
51 BALL; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-010-0 01 1 0005-0102 ●
52 SPRING; BALL
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47714-001-0 01 1 9604-0004 ● ● ● ●
52 SPRING; BALL
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47714-001-0 01 1 0005-0102 ●
53 PLUNGER; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-012-0 01 1 9604-0004 ● ●
53 PLUNGER; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-038-0 01 1 9604-0004 ● ●
53 PLUNGER; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-038-0 01 1 0005-0102 ●
54 SPRING; RET,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47714-002-0 01 1 9604-0004 ● ● ● ●
54 SPRING; RET,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47714-002-0 01 1 0005-0102 ●
55 RETAINER; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-015-0 01 1 9604-0004 ● ● ● ●
55 RETAINER; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-015-0 01 1 0005-0102 ●
56 PLUG; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-011-0 01 1 9604-0004 ● ● ● ●
56 PLUG; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-011-0 01 1 0005-0102 ●
57 GASKET; CONNECTOR
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-039-0 02 1 9604-0004 ● ● ● ●
57 GASKET; CONNECTOR
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-039-0 02 1 0005- ●
58 CONNECTOR; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47719-035-0 01 1 9604-0004 ● ● ● ●
58 CONNECTOR; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47719-035-0 01 1 0005- ●
58 CONNECTOR; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		1-47719-040-0 01 1 9604-0004 ● ● ● ●
58 CONNECTOR; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		1-47719-040-0 01 1 0005- ●
59 SPACER; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-019-0 01 1 9604-0004 ● ● ● ●
59 SPACER; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-019-0 01 1 0005-0102 ●
60 ROD; ACTUATOR
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-020-0 01 1 9604-0004 ● ● ● ●
60 ROD; ACTUATOR
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-020-0 01 1 0005-0102 ●
61 RETAINER; SPRING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-021-0 01 1 9604-0004 ● ● ● ●
61 RETAINER; SPRING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-021-0 01 1 0005-0102 ●
62 SPRING; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47714-003-0 01 1 9604-0004 ● ● ● ●
62 SPRING; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47714-003-0 01 1 0005-0102 ●
63 BOLT; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-31829-015-0 04 1 9604-0004 ● ● ● ●
63 BOLT; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-31829-015-0 04 1 0005-0102 ●
64 WASHER; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) ID=8.2 		9-09150-508-0 04 1 9604-0004 ● ● ● ●
64 WASHER; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) ID=8.2 		9-09150-508-0 04 1 0005-0102 ●
65 NUT; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		9-83315-085-0 04 1 9604-0004 ● ● ● ●
65 NUT; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		9-83315-085-0 04 1 0005-0102 ●
66 NUT; LEAF SPR,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47819-021-0 03 1 9604-0004 ● ● ● ●
66 NUT; LEAF SPR,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47819-021-0 03 1 0005-0102 ●
66 NUT; LEAF SPR,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47819-021-0 02 1 0103- ●
67 CLEVIS; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-023-0 01 1 9604-0004 ● ● ● ●
67 CLEVIS; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-023-0 01 1 0005-0102 ●
68 PIN; LEVER
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47719-024-0 01 1 9604-0004 ● ● ● ●
68 PIN; LEVER
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47719-024-0 01 1 0005-0102 ●
68 PIN; LEVER
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		1-47719-026-0 01 1 9604-0004 ● ● ● ●
68 PIN; LEVER
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		1-47719-026-0 01 1 0005-0102 ●
69 PIN; SPR
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47719-025-0 01 1 9604-0004 ● ● ● ●
69 PIN; SPR
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47719-025-0 01 1 0005-0102 ●
69 PIN; SPR
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		1-47719-027-0 01 1 9604-0004 ● ● ● ●
69 PIN; SPR
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		1-47719-027-0 01 1 0005-0102 ●
70 LEVER; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47711-001-0 01 1 9604-0004 ● ● ● ●
70 LEVER; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47711-001-0 01 1 0005-0102 ●
71 CLAMP; BOOT
LOAD SENSING PROPORTIONING VALVE(JR7) 		9-44519-012-0 01 1 9604-0004 ● ● ● ●
71 CLAMP; BOOT
LOAD SENSING PROPORTIONING VALVE(JR7) 		9-44519-012-0 01 1 0005-0102 ●
72 CLIP; BOOT
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-029-0 01 1 9604-0004 ● ● ● ●
72 CLIP; BOOT
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-029-0 01 1 0005-0102 ●
73 SPRING; LEAF,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47714-004-0 01 1 9604-0004 ● ●
73 SPRING; LEAF,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47714-005-0 01 1 9604-0004 ● ●
73 SPRING; LEAF,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47714-005-0 01 1 0005-0102 ●
73 SPRING; LEAF,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47714-010-0 01 1 0103- ●
74 PLATE; LEAF SPRING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-030-0 01 1 9604-0004 ● ● ● ●
74 PLATE; LEAF SPRING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-030-0 01 1 0005-0102 ●
74 PLATE; LEAF SPRING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-067-0 01 1 0103- ●
75 BOLT; LEAF SPRING
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47719-031-0 02 1 9604-0004 ● ● ● ●
75 BOLT; LEAF SPRING
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47719-031-0 02 1 0005- ●
75 BOLT; LEAF SPRING
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		9-88510-122-0 01 1 9604-0004 ● ● ● ●
75 BOLT; LEAF SPRING
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		9-88510-122-0 01 1 0005-0102 ●
76 BRACKET; WIRE
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-032-0 01 1 9604-0004 ● ● ● ●
76 BRACKET; WIRE
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-032-0 01 1 0005-0102 ●
77 NUT; CLEVIS
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47819-021-0 01 1 9604-0004 ● ● ● ●
77 NUT; CLEVIS
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47819-021-0 01 1 0005-0102 ●
78 BOLT; WIRE BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-033-0 01 1 9604-0004 ● ● ● ●
78 BOLT; WIRE BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-033-0 01 1 0005-0102 ●
79 NUT; WIRE BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47819-021-0 01 1 9604-0004 ● ● ● ●
79 NUT; WIRE BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47819-021-0 01 1 0005-0102 ●
80 WIRE; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-043-0 01 1 9604-0004 ● ● ● ●
80 WIRE; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-043-0 01 1 0005-0102 ●
81 NUT; WIRE
LOAD SENSING PROPORTIONING VALVE(JR7) 		9-83315-085-0 03 1 9604-0004 ● ● ● ●
81 NUT; WIRE
LOAD SENSING PROPORTIONING VALVE(JR7) 		9-83315-085-0 03 1 0005-0102 ●

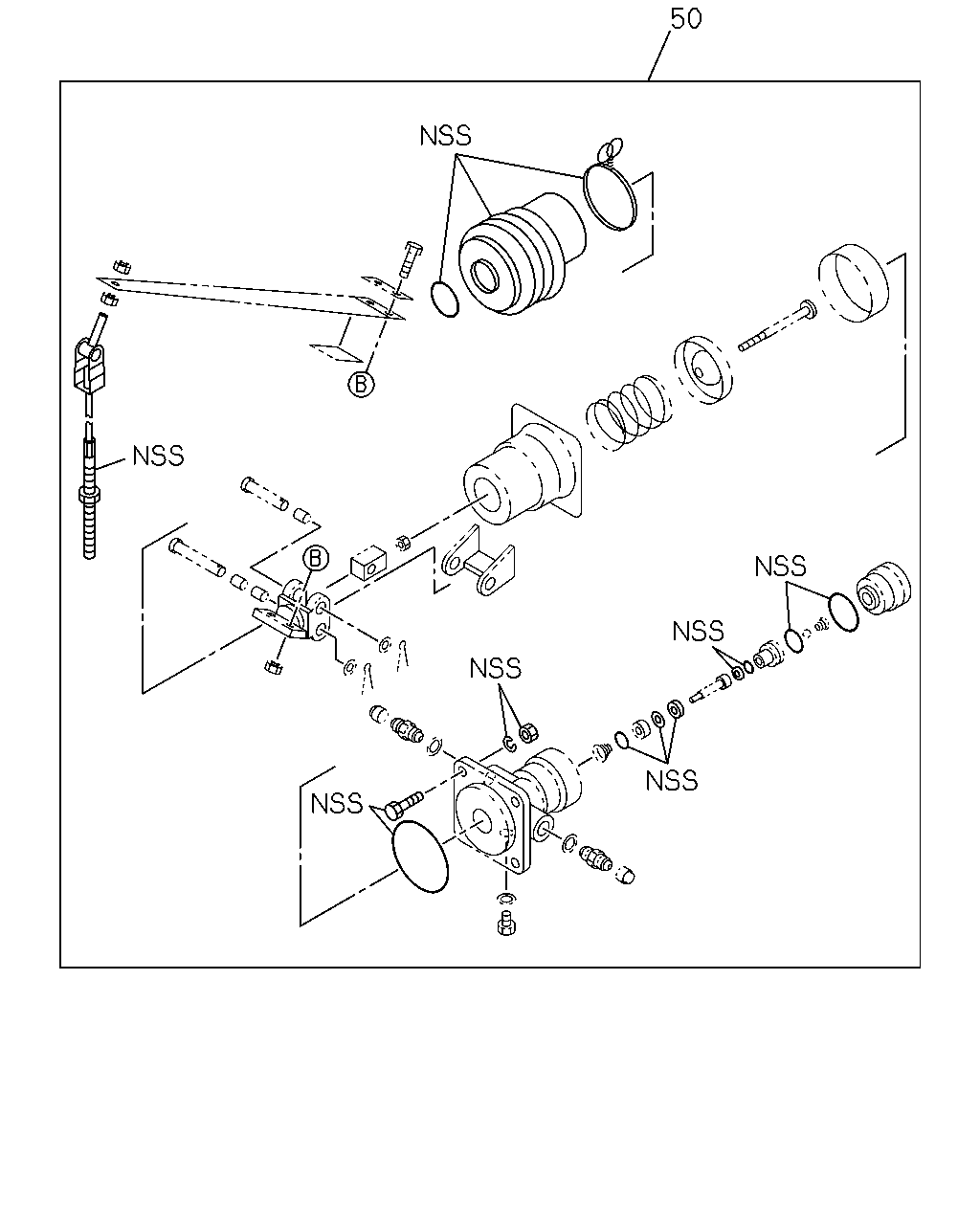

çizim 152775
50
BalonParca AdiParca NoAdetTipApplied Date A B C D
50 REPAIR KIT; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-85576-010-0 01 1 9604-0004 ● ●
50 REPAIR KIT; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-85576-174-0 01 1 9604-0004 ● ●
50 REPAIR KIT; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-85576-174-0 01 1 0005-0102 ●
50 REPAIR KIT; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-85576-295-0 01 1 0103- ●

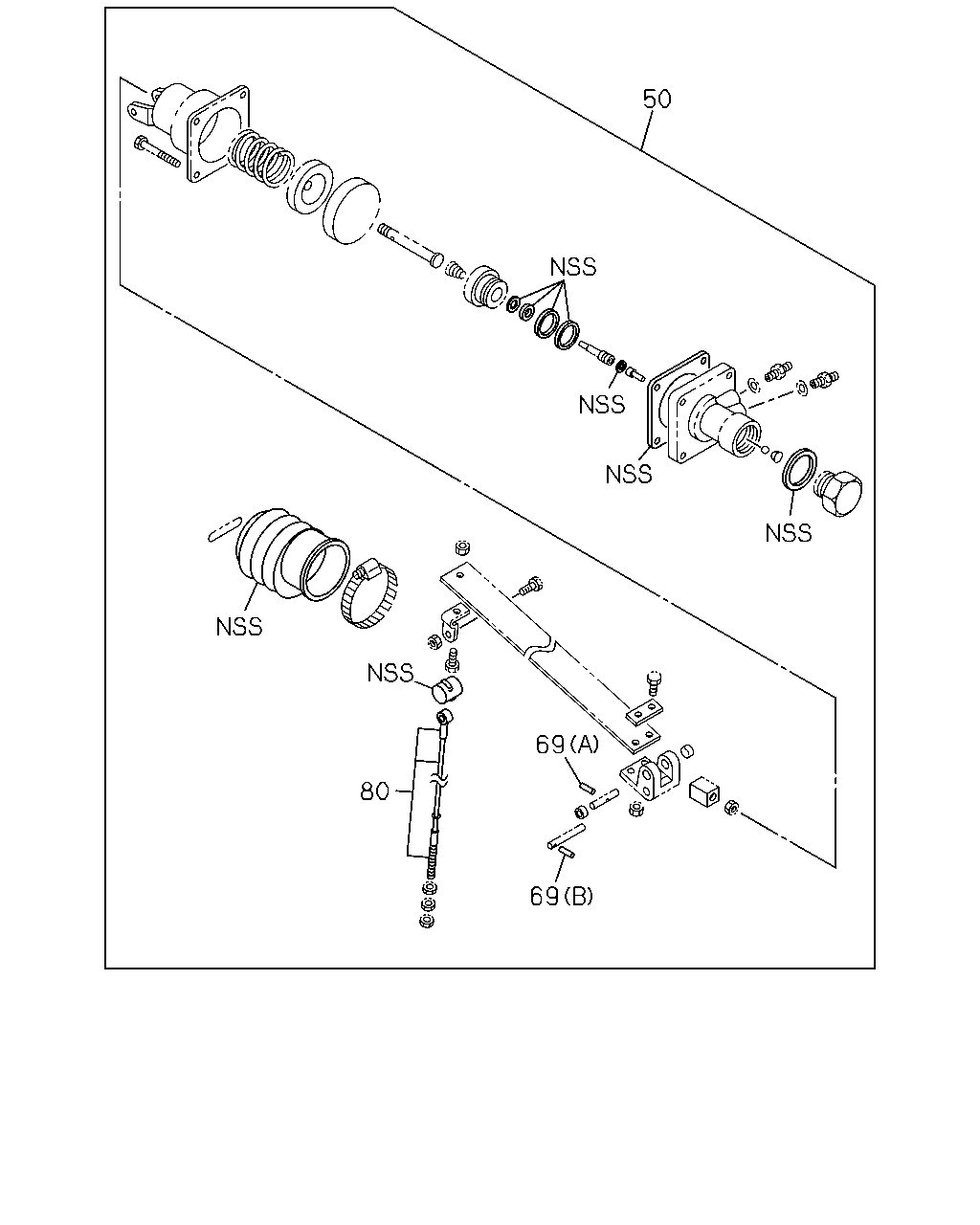

çizim 152781
50 69 80 69
BalonParca AdiParca NoAdetTipApplied Date A B C D
50 REPAIR KIT; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-85576-010-0 01 1 9604-0004 ● ●
50 REPAIR KIT; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-85576-174-0 01 1 9604-0004 ● ●
50 REPAIR KIT; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-85576-174-0 01 1 0005-0102 ●
50 REPAIR KIT; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-85576-295-0 01 1 0103- ●
69 PIN; SPR
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47719-025-0 01 1 9604-0004 ● ● ● ●
69 PIN; SPR
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47719-025-0 01 1 0005-0102 ●
69 PIN; SPR
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		1-47719-027-0 01 1 9604-0004 ● ● ● ●
69 PIN; SPR
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		1-47719-027-0 01 1 0005-0102 ●
80 WIRE; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-043-0 01 1 9604-0004 ● ● ● ●
80 WIRE; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-043-0 01 1 0005-0102 ●

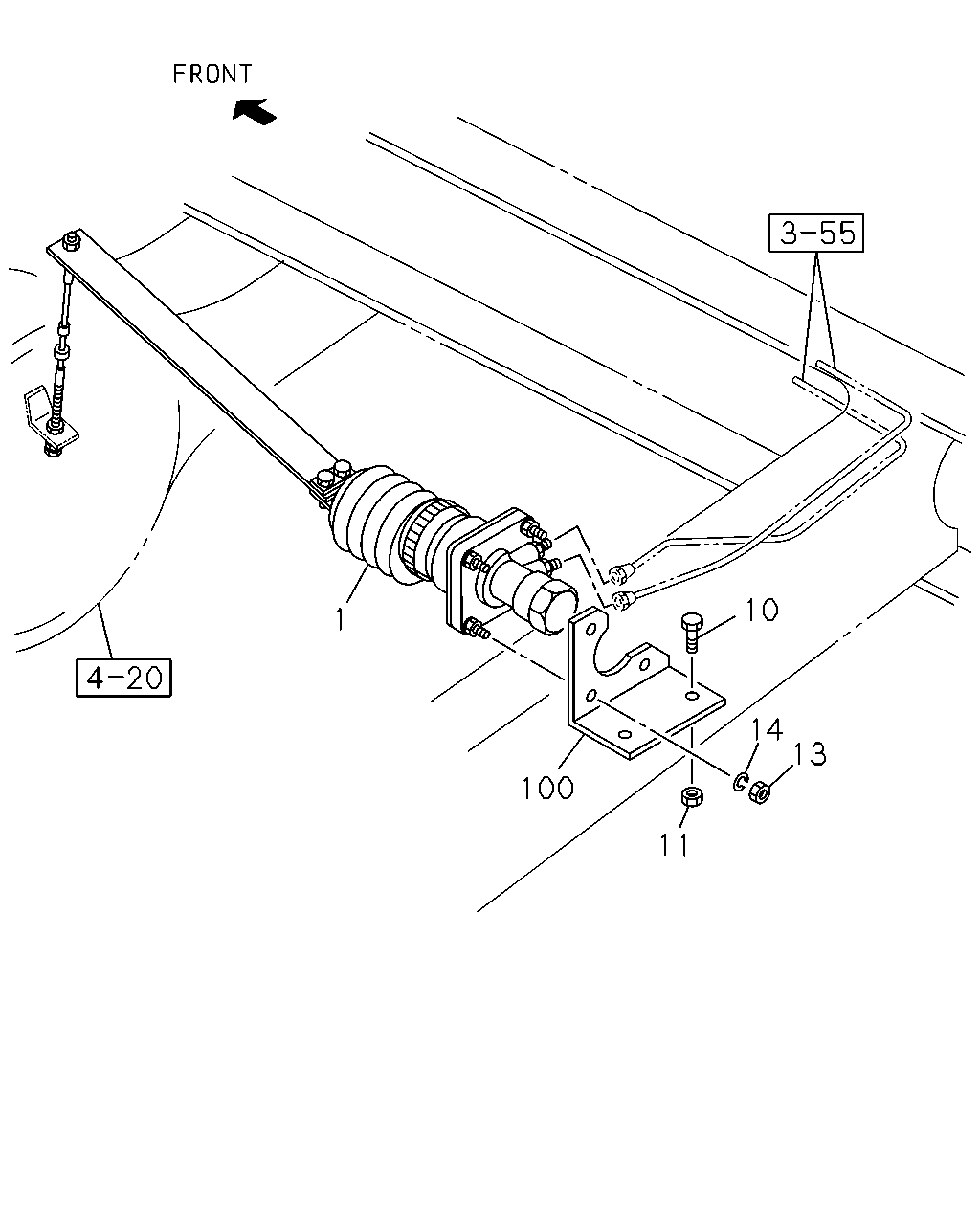

çizim 152786
10 1 14 13 100 11
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 VALVE ASM; LOAD SENSING PROPORTIONING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47710-014-0 01 1 9604-0004 ● ●
1 VALVE ASM; LOAD SENSING PROPORTIONING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47710-022-0 01 1 9604-0004 ● ●
1 VALVE ASM; LOAD SENSING PROPORTIONING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47710-022-0 01 1 0005-0102 ●
1 VALVE ASM; LOAD SENSING PROPORTIONING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47710-092-0 01 1 0103- ●
10 BOLT; BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) M8X20 FLANGE 		0-28080-820-0 02 1 9604-9606 ● ● ● ●
10 BOLT; BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) M8X20 FLANGE 		0-28680-820-0 02 1 9607-0004 ● ● ● ●
10 BOLT; BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ●
10 BOLT; BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
11 NUT; BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) M8 		9-09110-408-0 02 1 9604-9606 ● ● ● ●
11 NUT; BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ● ● ●
11 NUT; BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ●
11 NUT; BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
13 NUT; LSPV TO BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) M8 		9-09110-408-0 03 1 9604-9606 ● ● ● ●
13 NUT; LSPV TO BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) M8 FLANGE 		0-91150-108-0 03 1 9607-0004 ● ● ● ●
13 NUT; LSPV TO BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) M8 FLANGE 		0-91150-108-0 03 1 0005-0602 ●
13 NUT; LSPV TO BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) M8 FLANGE 		0-91180-108-0 03 1 0603- ●
14 WASHER; LK,LSPV TO BRKT
LOAD SENSING PROPORTIONING VALVE(JR7) ID=8.2 		9-09150-508-0 03 1 9604-9606 ● ● ● ●
100 BRACKET; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47477-214-0 01 1 9604-0004 ● ● ● ●
100 BRACKET; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47477-214-0 01 1 0005- ●

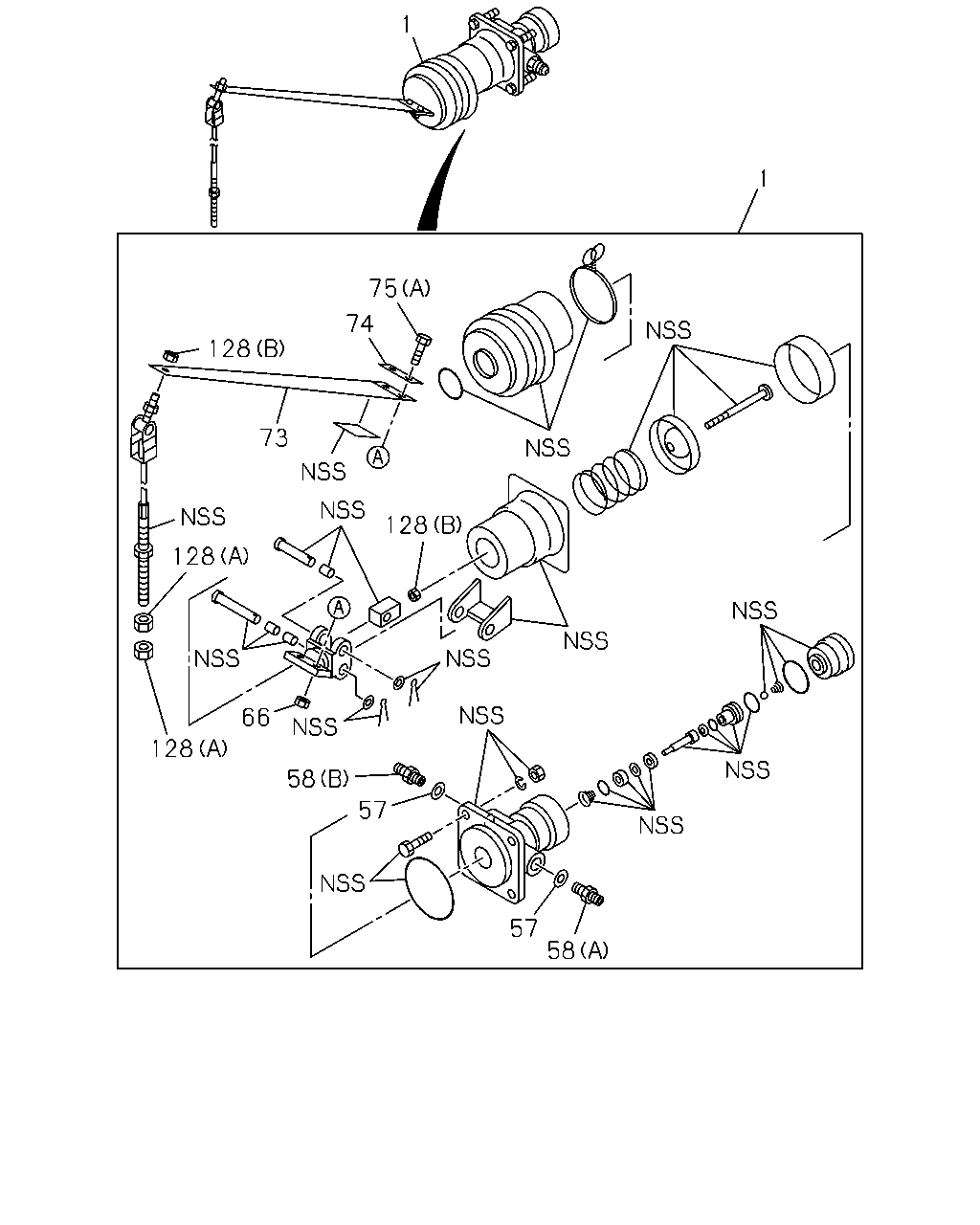

çizim 152788
1 1 75 74 128 73 128 128 66 128 58 57 57 58
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 VALVE ASM; LOAD SENSING PROPORTIONING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47710-014-0 01 1 9604-0004 ● ●
1 VALVE ASM; LOAD SENSING PROPORTIONING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47710-022-0 01 1 9604-0004 ● ●
1 VALVE ASM; LOAD SENSING PROPORTIONING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47710-022-0 01 1 0005-0102 ●
1 VALVE ASM; LOAD SENSING PROPORTIONING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47710-092-0 01 1 0103- ●
57 GASKET; CONNECTOR
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-039-0 02 1 9604-0004 ● ● ● ●
57 GASKET; CONNECTOR
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-039-0 02 1 0005- ●
58 CONNECTOR; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47719-035-0 01 1 9604-0004 ● ● ● ●
58 CONNECTOR; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47719-035-0 01 1 0005- ●
58 CONNECTOR; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		1-47719-040-0 01 1 9604-0004 ● ● ● ●
58 CONNECTOR; LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		1-47719-040-0 01 1 0005- ●
66 NUT; LEAF SPR,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47819-021-0 03 1 9604-0004 ● ● ● ●
66 NUT; LEAF SPR,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47819-021-0 03 1 0005-0102 ●
66 NUT; LEAF SPR,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47819-021-0 02 1 0103- ●
73 SPRING; LEAF,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47714-004-0 01 1 9604-0004 ● ●
73 SPRING; LEAF,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47714-005-0 01 1 9604-0004 ● ●
73 SPRING; LEAF,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47714-005-0 01 1 0005-0102 ●
73 SPRING; LEAF,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47714-010-0 01 1 0103- ●
74 PLATE; LEAF SPRING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-030-0 01 1 9604-0004 ● ● ● ●
74 PLATE; LEAF SPRING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-030-0 01 1 0005-0102 ●
74 PLATE; LEAF SPRING
LOAD SENSING PROPORTIONING VALVE(JR7) 		1-47719-067-0 01 1 0103- ●
75 BOLT; LEAF SPRING
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47719-031-0 02 1 9604-0004 ● ● ● ●
75 BOLT; LEAF SPRING
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47719-031-0 02 1 0005- ●
75 BOLT; LEAF SPRING
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		9-88510-122-0 01 1 9604-0004 ● ● ● ●
75 BOLT; LEAF SPRING
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		9-88510-122-0 01 1 0005-0102 ●
128 NUT; CABLE
LOAD SENSING PROPORTIONING VALVE(JR7) (A) 		1-47819-021-0 02 1 0103- ●
128 NUT; CABLE
LOAD SENSING PROPORTIONING VALVE(JR7) (B) 		9-83315-085-0 02 1 0103- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
