◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10716 - FSS/FTS-RHD ▶ 3 - Brakes, Brake System ▶ 3-41 - REAR BRAKE POWER CHAMBER ▶

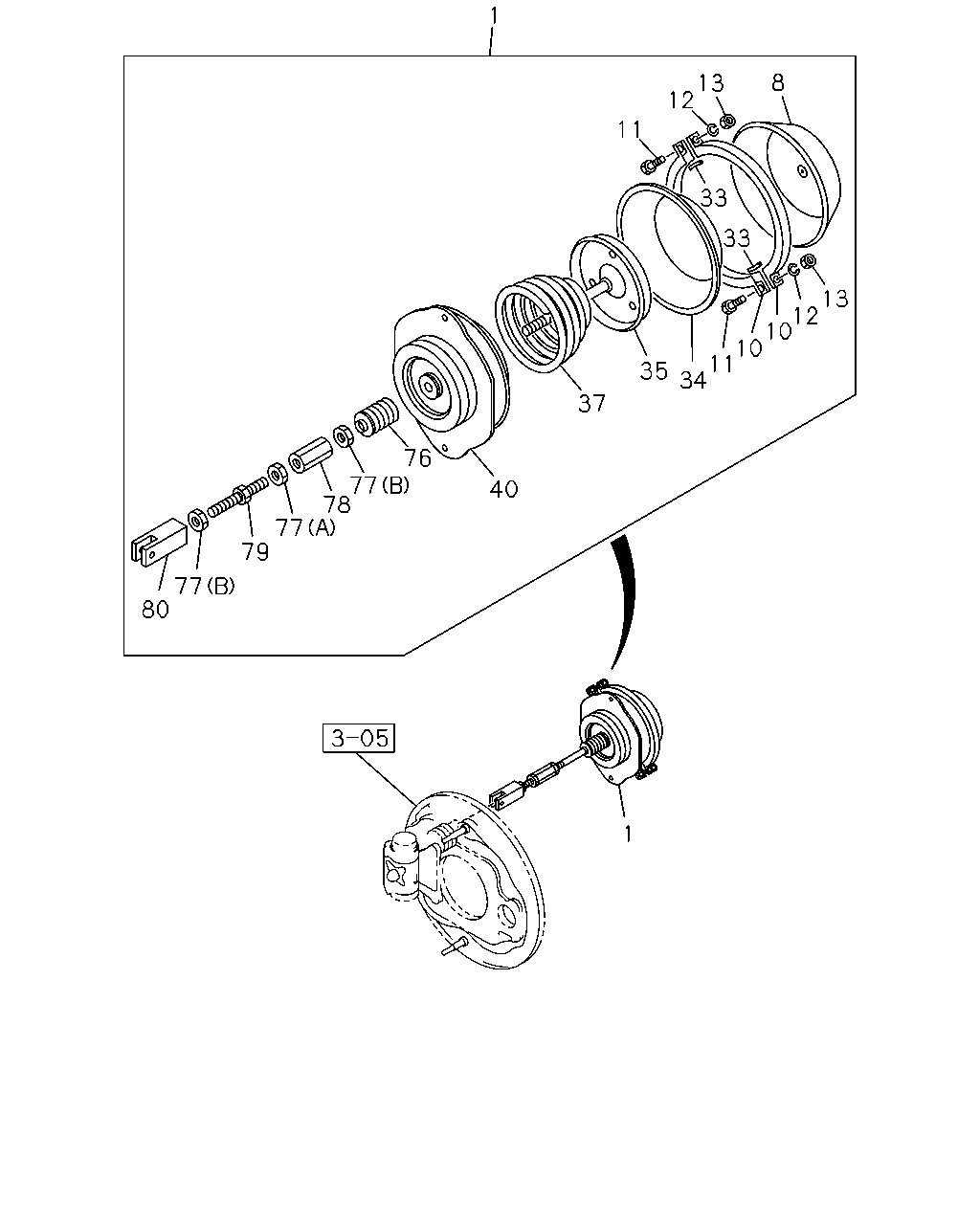

3-41 — REAR BRAKE POWER CHAMBER (#37195) — 40 parça
çizim 152787
1 8 13 12 11 33 33 13 12 10 10 11 34 35 37 76 77 78 77 79 40 77 80 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48250-305-1 01 1 9604-0004 ● ●
1 CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48250-304-1 01 1 9604-0004 ● ●
1 CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48250-350-1 01 1 9604-0004 ● ●
1 CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48250-350-1 01 1 0005- ●
1 CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48250-349-1 01 1 9604-0004 ● ●
1 CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48250-349-1 01 1 0005- ●
8 SHELL; CYL,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48251-031-0 02 1 9604-0004 ● ● ● ●
8 SHELL; CYL,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48251-031-0 02 1 0005- ●
10 RING; CLAMP,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48259-016-0 04 1 9604-0004 ● ● ● ●
10 RING; CLAMP,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48259-016-0 04 1 0005- ●
11 BOLT; CLAMP RING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48259-035-0 04 1 9604-0004 ● ● ● ●
11 BOLT; CLAMP RING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48259-035-0 04 1 0005- ●
12 WASHER; LK,CLAMP RING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2 		9-09150-510-0 04 1 9604-0004 ● ● ● ●
12 WASHER; LK,CLAMP RING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2 		9-09150-510-0 04 1 0005- ●
13 NUT; CLAMP RING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-83315-080-0 04 1 9604-0004 ● ● ● ●
13 NUT; CLAMP RING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-83315-080-0 04 1 0005- ●
33 RETAINER; DIAPH
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48259-044-0 04 1 9604-0004 ● ● ● ●
33 RETAINER; DIAPH
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48259-044-0 04 1 0005- ●
34 DIAPHRAGM
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48252-026-0 02 1 9604-0004 ● ● ● ●
34 DIAPHRAGM
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48252-026-0 02 1 0005- ●
35 PLATE; ROD END,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48253-024-0 02 1 9604-0004 ● ● ● ●
35 PLATE; ROD END,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48253-024-0 02 1 0005- ●
37 SPRING; LWR,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48255-008-0 02 1 9604-0004 ● ● ● ●
37 SPRING; LWR,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48255-008-0 02 1 0005- ●
40 COVER ASM; LWR,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48251-032-0 02 1 9604-0004 ● ● ● ●
40 COVER ASM; LWR,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48251-032-0 02 1 0005- ●
76 GUARD; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48259-096-0 02 1 9604-0004 ● ● ● ●
76 GUARD; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48259-096-0 02 1 0005- ●
77 NUT; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48253-021-0 02 1 9604-0004 ● ● ● ●
77 NUT; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48253-021-0 02 1 0005- ●
77 NUT; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		9-88510-432-0 04 1 9604-0004 ● ● ● ●
77 NUT; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		9-88510-432-0 04 1 0005- ●
78 TURNBACKLE; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48253-023-0 02 1 9604-0004 ● ● ● ●
78 TURNBACKLE; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48253-023-0 02 1 0005- ●
79 STUD; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48253-027-0 02 1 9604-0004 ● ●
79 STUD; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48253-028-0 02 1 9604-0004 ● ●
79 STUD; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48253-028-0 02 1 0005- ●
80 CLEVIS; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48253-026-0 02 1 9604-0004 ● ●
80 CLEVIS; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48253-020-0 02 1 9604-0004 ● ●
80 CLEVIS; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48253-020-0 02 1 0005- ●
