Sayfa 3-33 - Isuzu EPC

3-33 — AIR MASTER (#37193) — 683 parça

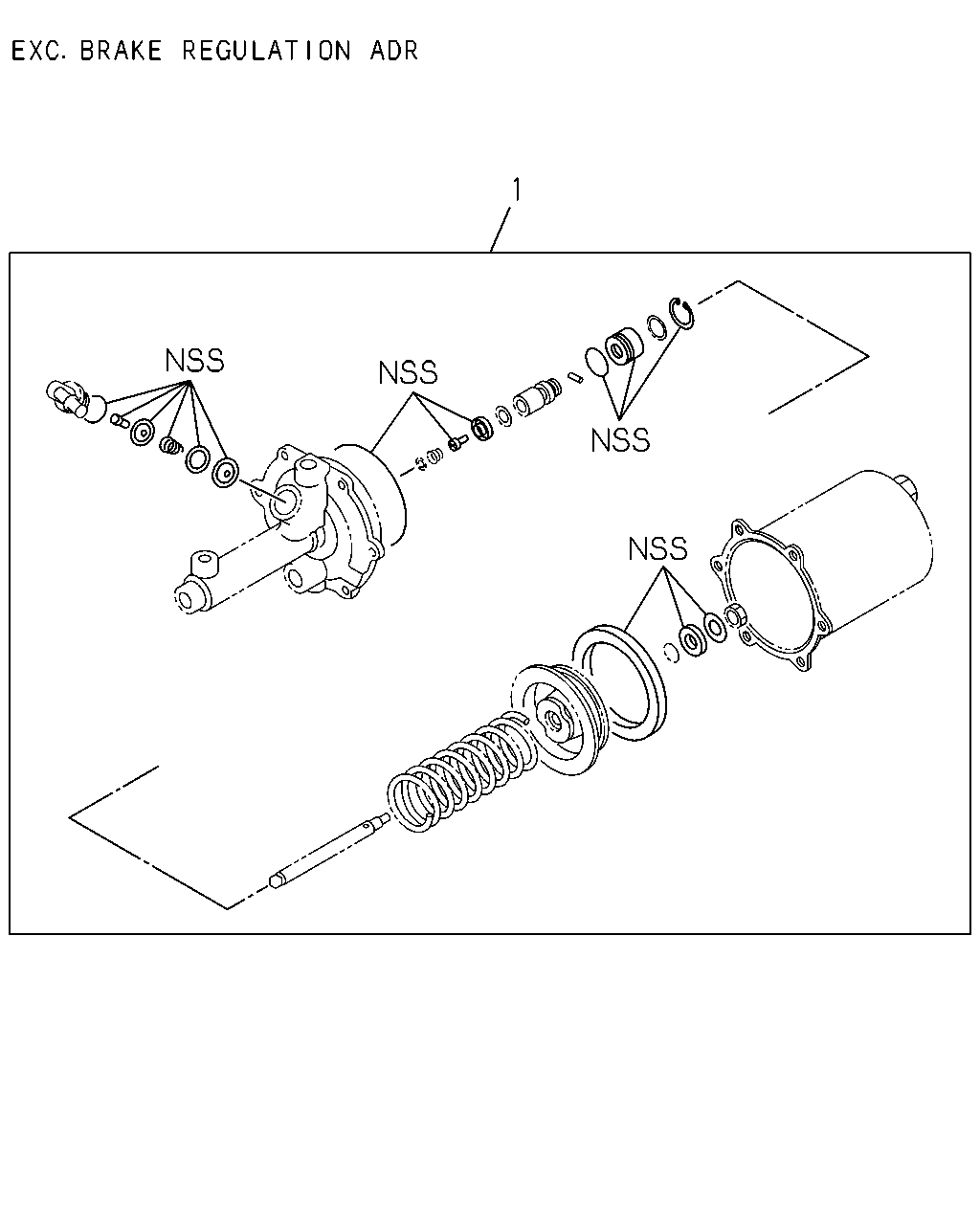

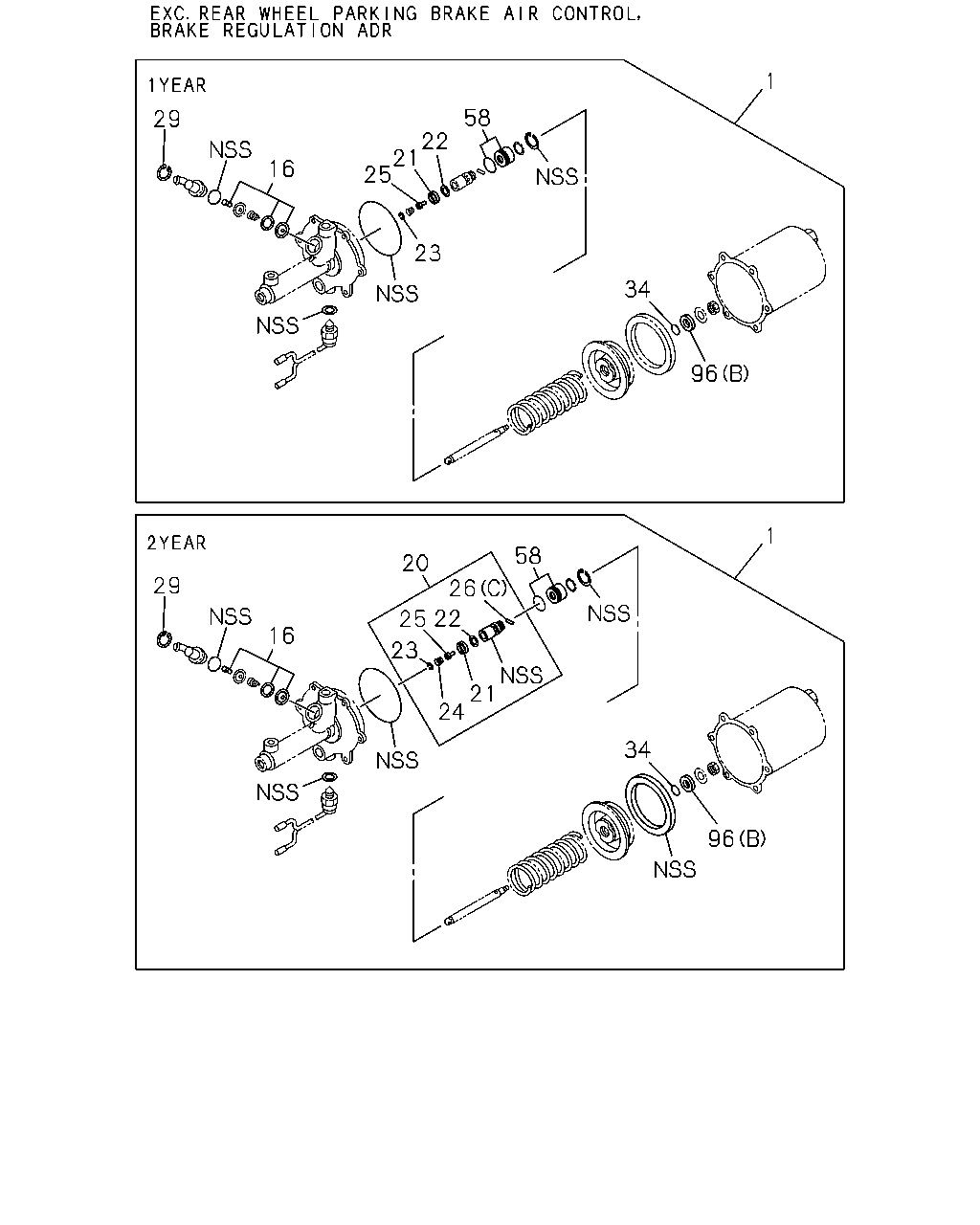

1 58 29 22 21 25 16 23 34 96 1 58 20 29 26 16 23 21 24 34 96 25 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47829-077-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47829-078-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: G = 1-47800-663-1, H = 1-47800-664-2	1-85576-208-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: I = 1-47800-665-1, J = 1-47800-666-2	1-85576-210-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: K = 1-47800-789-0	1-85576-308-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: F = 1-47800-656-2	1-85576-384-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: L = 1-47800-827-0	1-85576-480-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-87520-206-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-87520-207-1	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: C = 1-47800-500-2	1-87830-393-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: C = 1-47800-500-2	1-87830-394-0	01	1	-
16	VALVE ASM ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-024-0	01	1	-
16	VALVE ASM ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47842-009-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-022-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: C = 1-47800-500-2	1-47821-019-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47821-021-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47821-027-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: F = 1-47800-656-2	1-47821-047-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: K = 1-47800-789-0, L = 1-47800-827-0	1-47821-053-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47821-009-0	01	1	-
21	GASKET; CUP ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47821-041-0	01	1	-
21	GASKET; CUP ASM PART: C = 1-47800-500-2	1-47829-037-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-011-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: C = 1-47800-500-2	1-47829-036-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83325-077-0	01	1	-
23	RING; RET ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-31829-081-0	01	1	-
23	RING; RET ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-46366-111-0	01	1	-
23	RING; RET ASM PART: C = 1-47800-500-2	9-83315-102-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2	1-47824-017-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47824-028-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: F = 1-47800-656-2	1-47824-034-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: K = 1-47800-789-0, L = 1-47800-827-0	1-47824-041-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-111-0	01	1	-
25	SEAL; VALVE ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-023-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47821-024-0	01	1	-
25	SEAL; VALVE ASM PART: C = 1-47800-500-2	1-47827-038-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (C) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-039-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (A) ASM PART: F = 1-47800-656-2	1-47829-099-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (B) ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47829-101-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (A) ASM PART: K = 1-47800-789-0, L = 1-47800-827-0	1-47829-141-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-057-0	01	1	-
34	GASKET ID=11.0 ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-09561-111-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-056-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-032-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-053-0	01	1	-

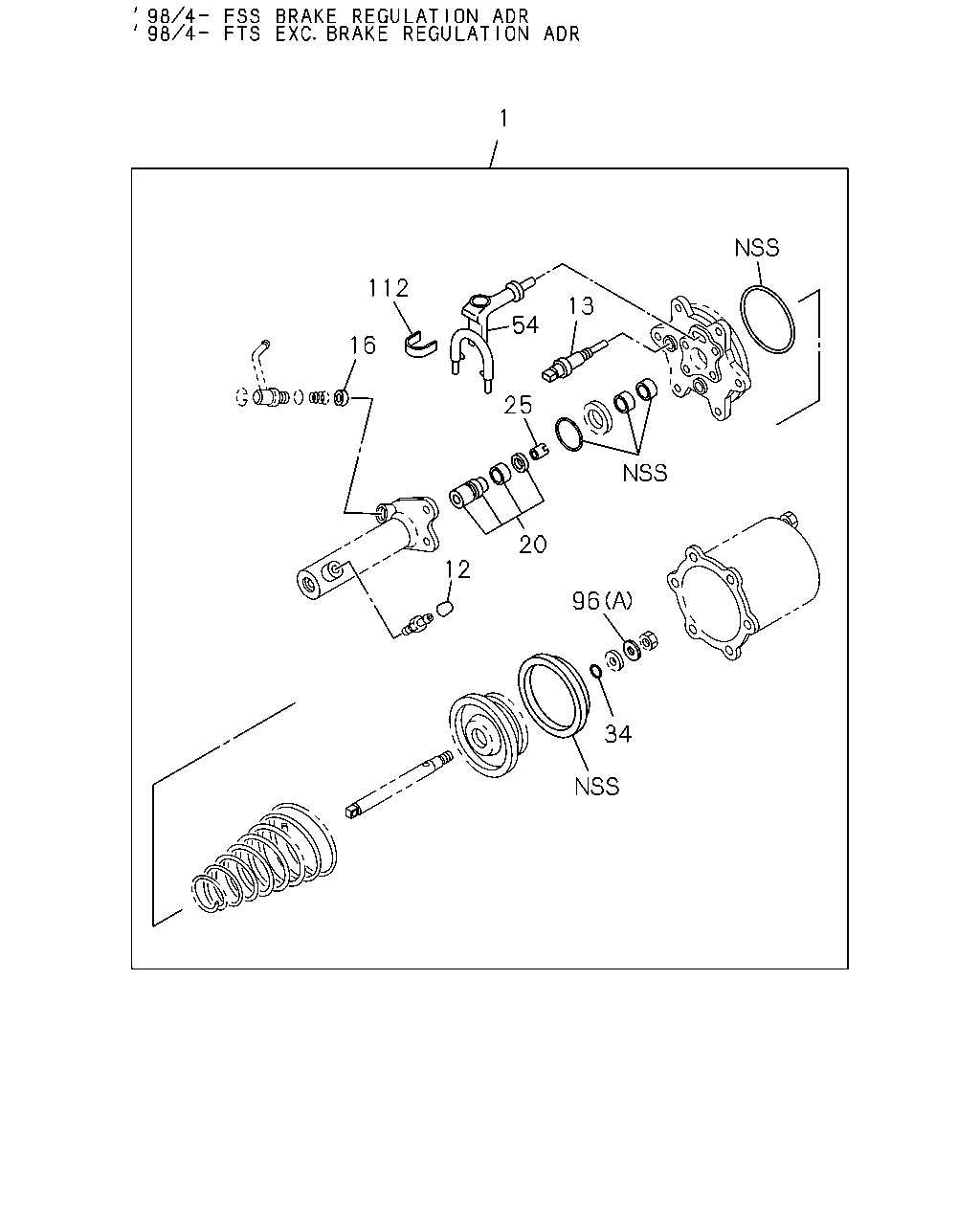

1 112 13 54 16 25 20 12 96 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47829-077-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47829-078-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: G = 1-47800-663-1, H = 1-47800-664-2	1-85576-208-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: I = 1-47800-665-1, J = 1-47800-666-2	1-85576-210-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: K = 1-47800-789-0	1-85576-308-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: F = 1-47800-656-2	1-85576-384-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: L = 1-47800-827-0	1-85576-480-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-87520-206-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-87520-207-1	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: C = 1-47800-500-2	1-87830-393-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: C = 1-47800-500-2	1-87830-394-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-198-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83335-044-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-168-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: C = 1-47800-500-2	1-47819-170-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-196-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-206-0	01	1	-
16	VALVE ASM ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-024-0	01	1	-
16	VALVE ASM ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47842-009-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-022-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: C = 1-47800-500-2	1-47821-019-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47821-021-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47821-027-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: F = 1-47800-656-2	1-47821-047-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: K = 1-47800-789-0, L = 1-47800-827-0	1-47821-053-0	01	1	-
25	SEAL; VALVE ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-023-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47821-024-0	01	1	-
25	SEAL; VALVE ASM PART: C = 1-47800-500-2	1-47827-038-0	01	1	-
34	GASKET ID=11.0 ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-09561-111-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-039-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-187-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-194-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-032-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-053-0	01	1	-
112	CLAMP; EXH COVER,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-188-0	01	1	-

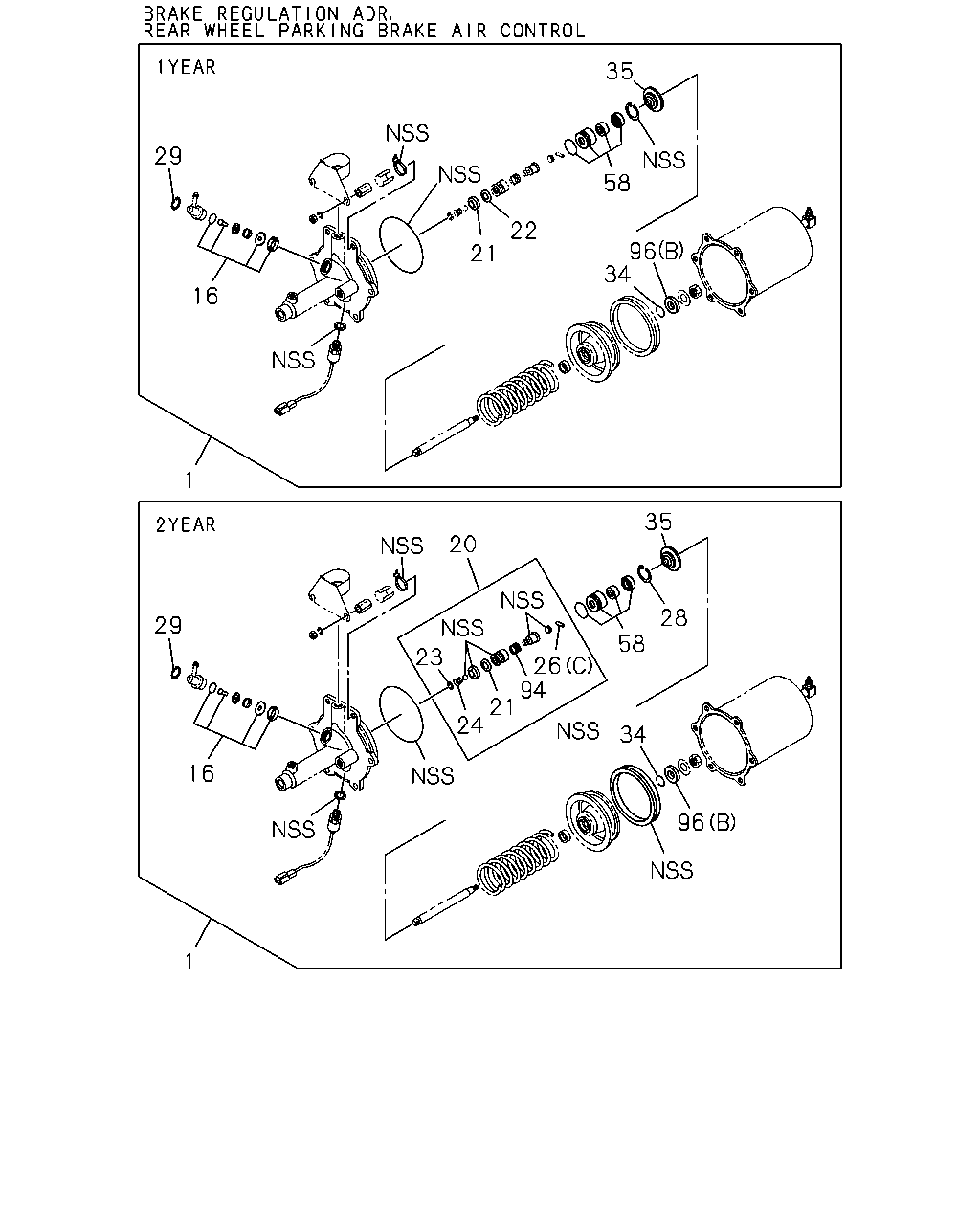

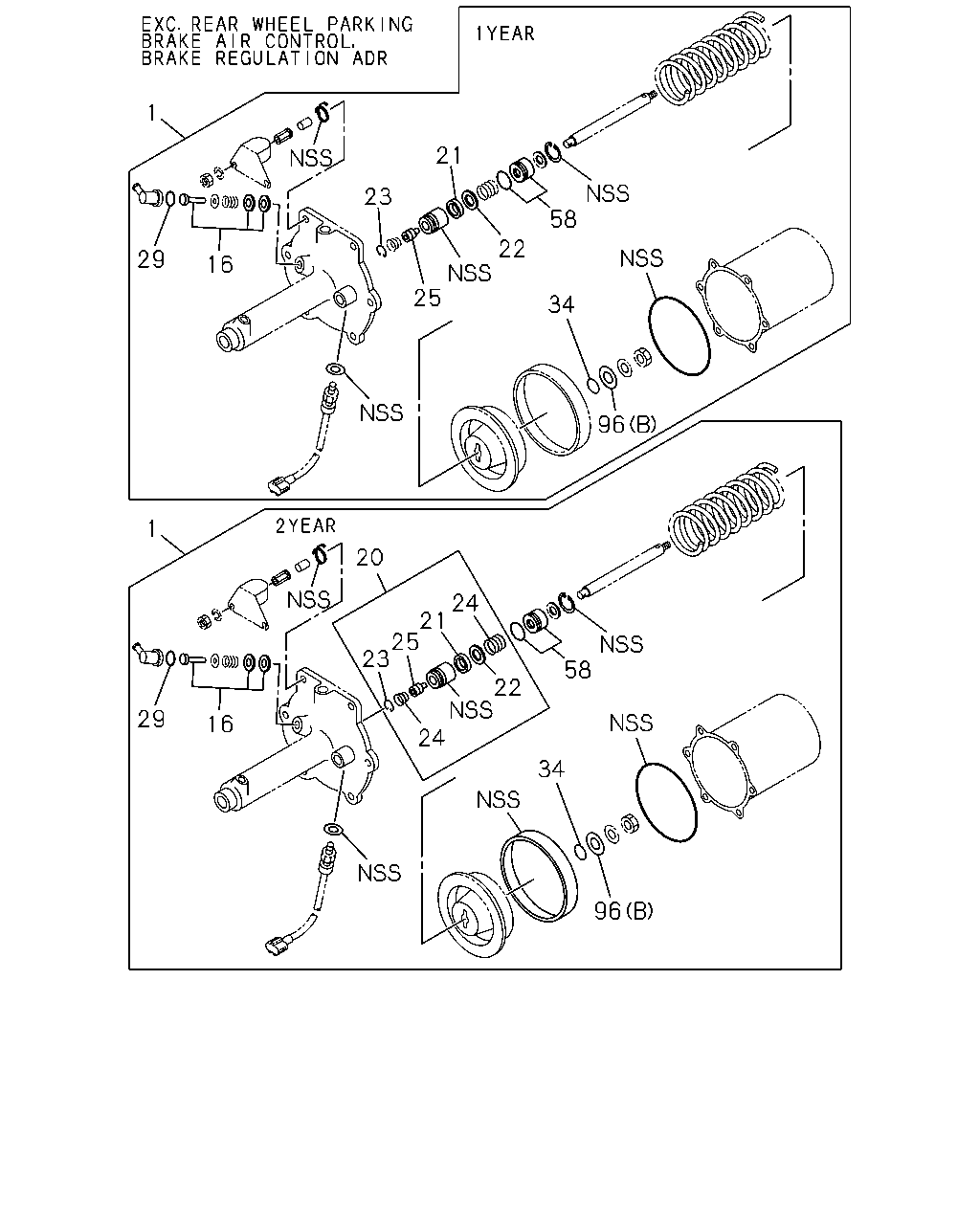

35 29 58 22 96 34 21 16 1 35 20 28 29 58 23 26 94 21 24 34 16 96 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47829-077-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47829-078-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: G = 1-47800-663-1, H = 1-47800-664-2	1-85576-208-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: I = 1-47800-665-1, J = 1-47800-666-2	1-85576-210-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: K = 1-47800-789-0	1-85576-308-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: F = 1-47800-656-2	1-85576-384-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: L = 1-47800-827-0	1-85576-480-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-87520-206-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-87520-207-1	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: C = 1-47800-500-2	1-87830-393-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: C = 1-47800-500-2	1-87830-394-0	01	1	-
16	VALVE ASM ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-024-0	01	1	-
16	VALVE ASM ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47842-009-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-022-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: C = 1-47800-500-2	1-47821-019-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47821-021-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47821-027-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: F = 1-47800-656-2	1-47821-047-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: K = 1-47800-789-0, L = 1-47800-827-0	1-47821-053-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47821-009-0	01	1	-
21	GASKET; CUP ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47821-041-0	01	1	-
21	GASKET; CUP ASM PART: C = 1-47800-500-2	1-47829-037-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-011-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: C = 1-47800-500-2	1-47829-036-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83325-077-0	01	1	-
23	RING; RET ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-31829-081-0	01	1	-
23	RING; RET ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-46366-111-0	01	1	-
23	RING; RET ASM PART: C = 1-47800-500-2	9-83315-102-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2	1-47824-017-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47824-028-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: F = 1-47800-656-2	1-47824-034-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: K = 1-47800-789-0, L = 1-47800-827-0	1-47824-041-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-111-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (C) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-039-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (A) ASM PART: F = 1-47800-656-2	1-47829-099-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (B) ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47829-101-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (A) ASM PART: K = 1-47800-789-0, L = 1-47800-827-0	1-47829-141-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47819-164-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-173-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-057-0	01	1	-
34	GASKET ID=11.0 ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-09561-111-0	01	1	-
35	WASHER; PLATE,PUSH ROD ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47829-079-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-056-0	01	1	-
94	SPRING; PISTON ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-059-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-032-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-053-0	01	1	-

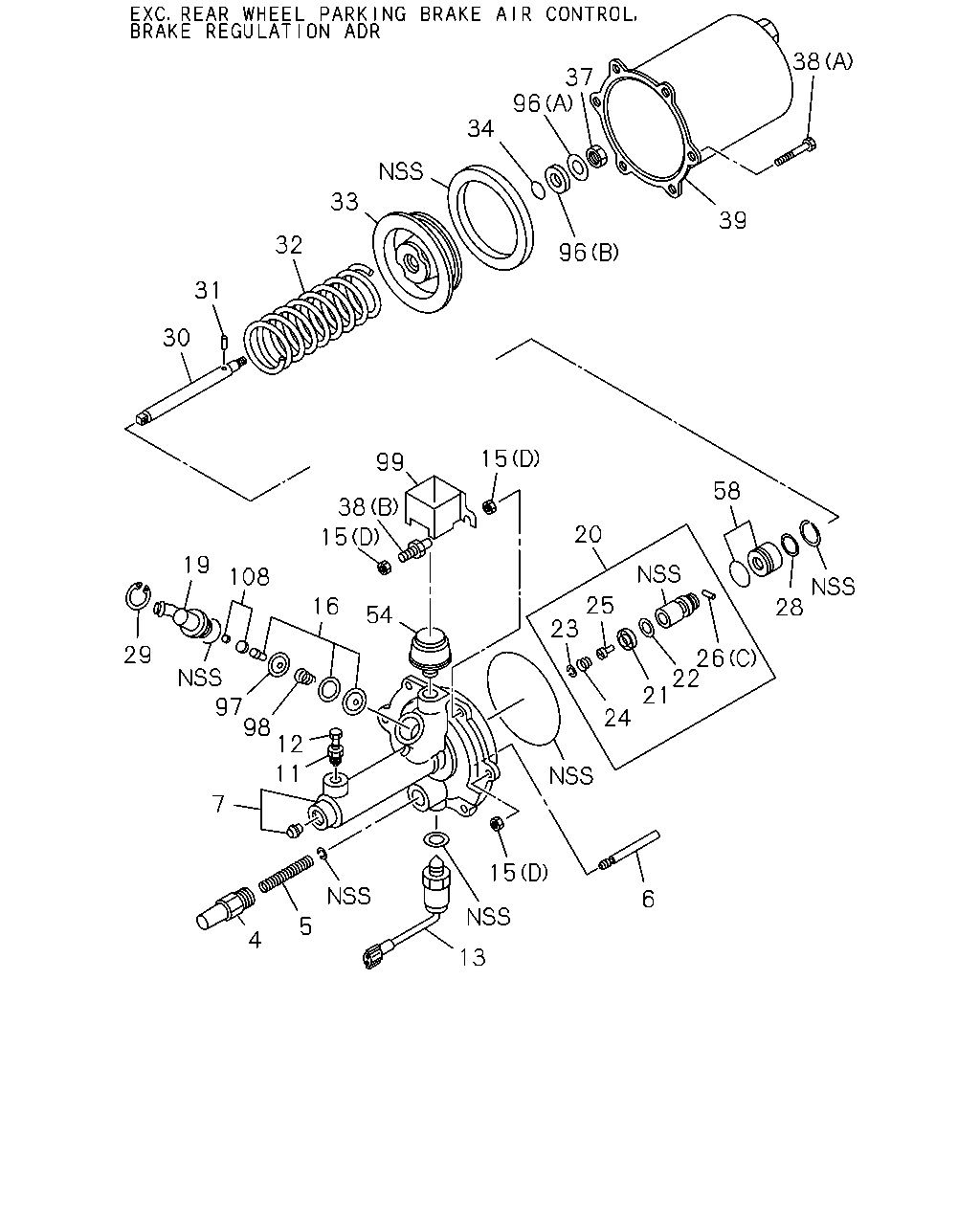

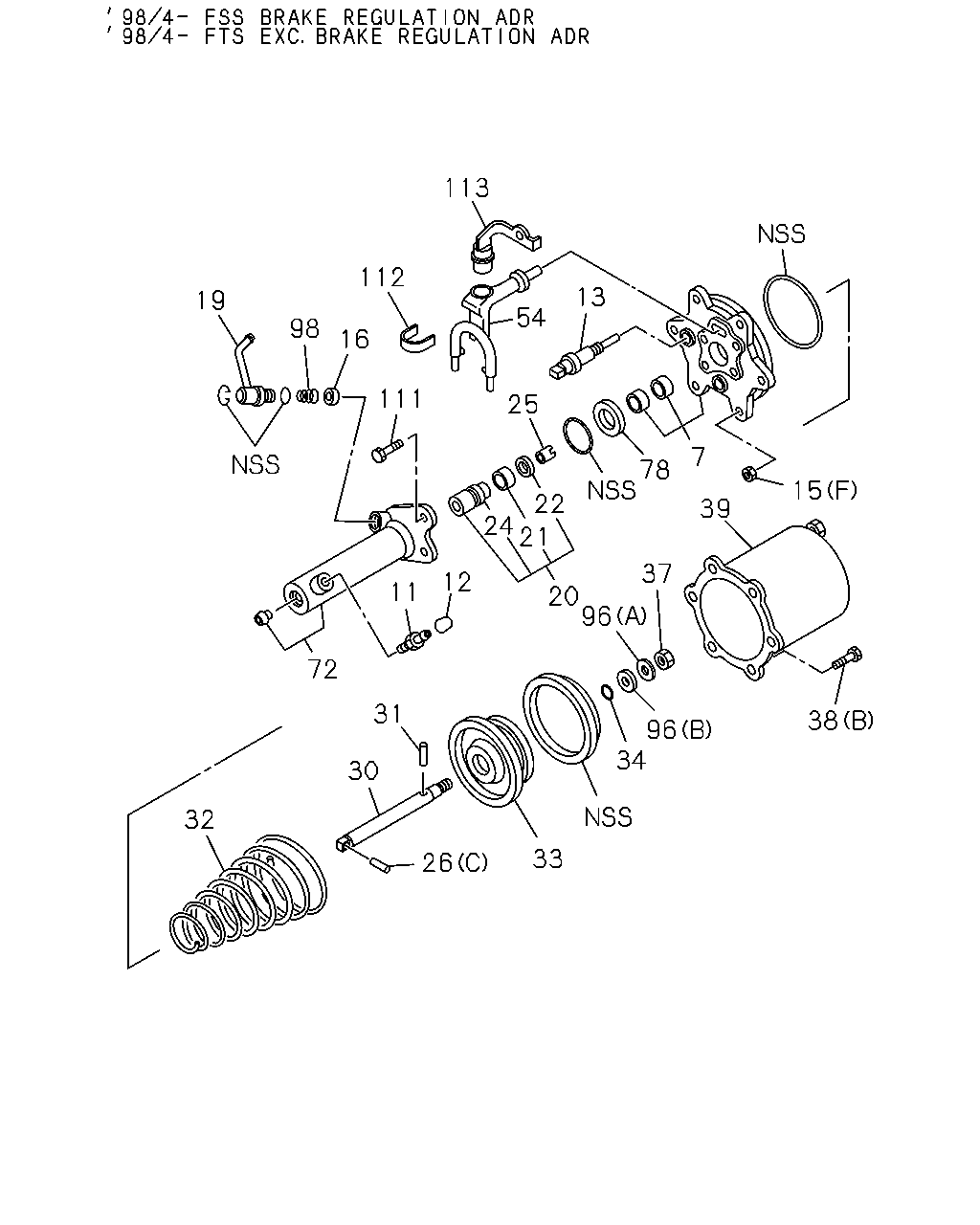

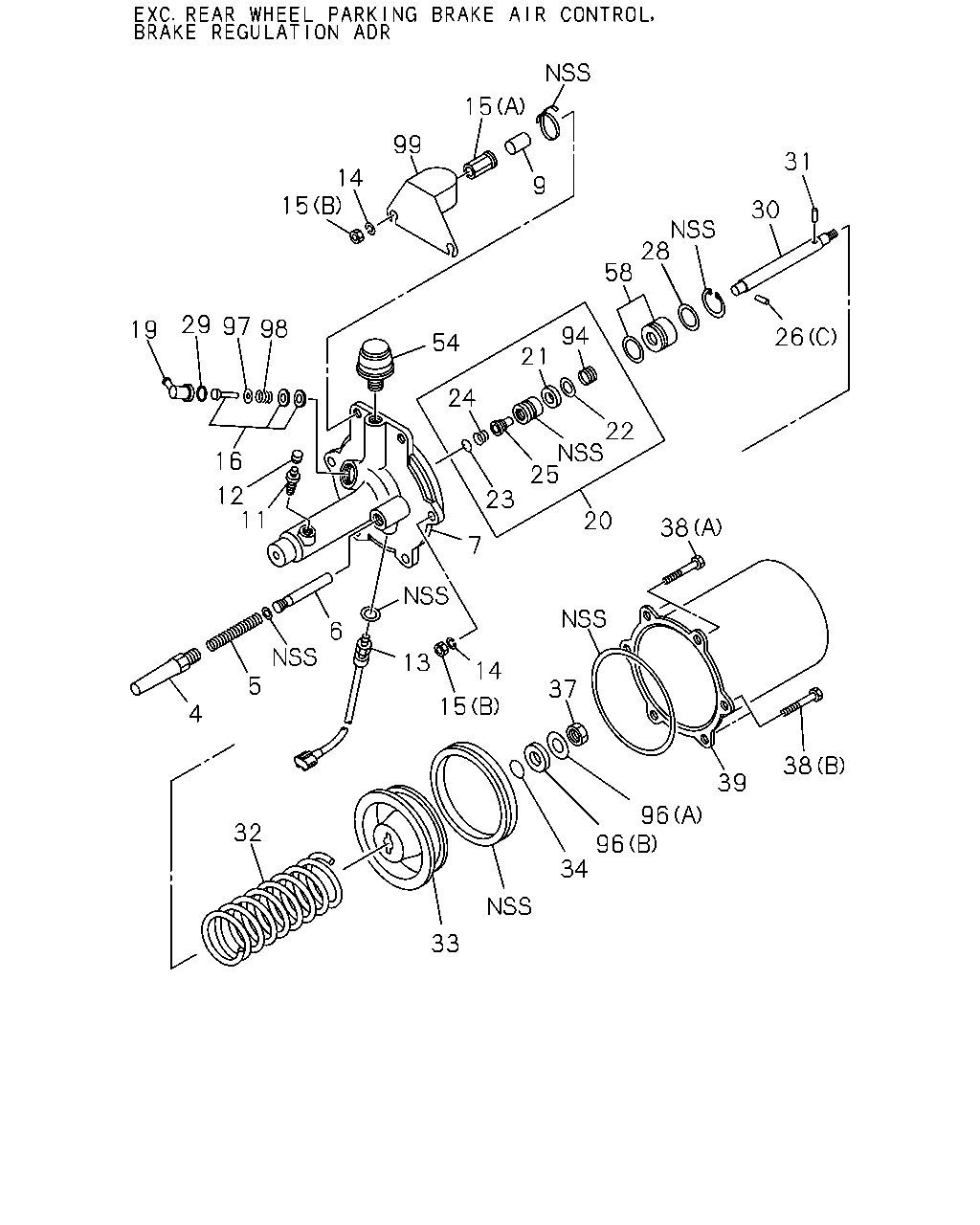

113 112 13 19 54 98 16 111 25 7 78 15 22 39 24 21 37 12 11 20 96 72 31 38 96 34 30 32 33 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	PLATE; END,AIR MASTER ASM PART: B = 1-47800-469-1, D = 1-47800-600-0	1-47811-109-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: A = 1-47800-468-1	1-47811-110-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: E = 1-47800-601-0	1-47813-054-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: C = 1-47800-500-2	1-47841-072-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47841-083-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: G = 1-47800-663-1, I = 1-47800-665-1	1-47841-084-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: H = 1-47800-664-2, J = 1-47800-666-2	1-47841-085-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-197-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83331-704-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-198-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83335-044-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-168-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: C = 1-47800-500-2	1-47819-170-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-196-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-206-0	01	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-134-0	02	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (C) ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47819-182-0	04	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (D) ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-200-0	06	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (E) ASM PART: C = 1-47800-500-2	1-47829-069-0	07	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (F), M10 FLANGE ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	8-97096-430-0	07	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	9-83315-080-0	02	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	9-83315-080-0	06	1	-
16	VALVE ASM ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-024-0	01	1	-
16	VALVE ASM ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47842-009-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: C = 1-47800-500-2	1-47819-174-1	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-195-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-204-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47849-032-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-022-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: C = 1-47800-500-2	1-47821-019-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47821-021-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47821-027-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: F = 1-47800-656-2	1-47821-047-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: K = 1-47800-789-0, L = 1-47800-827-0	1-47821-053-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47821-009-0	01	1	-
21	GASKET; CUP ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47821-041-0	01	1	-
21	GASKET; CUP ASM PART: C = 1-47800-500-2	1-47829-037-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-011-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: C = 1-47800-500-2	1-47829-036-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83325-077-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2	1-47824-017-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47824-028-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: F = 1-47800-656-2	1-47824-034-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: K = 1-47800-789-0, L = 1-47800-827-0	1-47824-041-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-111-0	01	1	-
25	SEAL; VALVE ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-023-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47821-024-0	01	1	-
25	SEAL; VALVE ASM PART: C = 1-47800-500-2	1-47827-038-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (C) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-039-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (A) ASM PART: F = 1-47800-656-2	1-47829-099-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (B) ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47829-101-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (A) ASM PART: K = 1-47800-789-0, L = 1-47800-827-0	1-47829-141-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: C = 1-47800-500-2	1-47825-021-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47825-022-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47829-102-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-107-0	01	1	-
31	PIN; STRAIGHT ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-054-0	01	1	-
31	PIN; STRAIGHT ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47829-103-0	01	1	-
31	PIN; STRAIGHT ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-108-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: C = 1-47800-500-2	1-47824-018-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47824-020-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47824-035-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-109-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47822-006-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: C = 1-47800-500-2	1-47822-008-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47829-104-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-106-0	01	1	-
34	GASKET ID=11.0 ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-09561-111-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47829-105-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-99111-412-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: C = 1-47800-500-2	1-31829-015-0	05	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-154-0	02	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (C) ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-199-0	06	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: C = 1-47800-500-2	1-47829-065-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83315-078-0	06	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	9-83315-078-0	04	1	-
39	SHELL; CYL,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47811-107-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: C = 1-47800-500-2	1-47811-116-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47811-126-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47811-137-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47811-138-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-039-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-187-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-194-0	01	1	-
72	CYLINDER; AIR MASTER ASM PART: G = 1-47800-663-1, I = 1-47800-665-1	1-47811-139-0	01	1	-
72	CYLINDER; AIR MASTER ASM PART: H = 1-47800-664-2, J = 1-47800-666-2	1-47811-140-0	01	1	-
78	COLLAR; AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-110-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-032-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-053-0	01	1	-
98	SPRING; VALVE ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-205-0	01	1	-
98	SPRING; VALVE ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47843-006-0	01	1	-
111	BOLT; CYL,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-203-0	03	1	-
112	CLAMP; EXH COVER,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-188-0	01	1	-
113	HOLDER; EXH COVER,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-207-0	01	1	-

1 21 58 23 22 25 29 16 34 96 1 20 24 21 25 23 58 7 22 24 29 16 34 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47829-077-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47829-078-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: G = 1-47800-663-1, H = 1-47800-664-2	1-85576-208-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: I = 1-47800-665-1, J = 1-47800-666-2	1-85576-210-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: K = 1-47800-789-0	1-85576-308-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: F = 1-47800-656-2	1-85576-384-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: L = 1-47800-827-0	1-85576-480-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-87520-206-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-87520-207-1	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: C = 1-47800-500-2	1-87830-393-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: C = 1-47800-500-2	1-87830-394-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: B = 1-47800-469-1, D = 1-47800-600-0	1-47811-109-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: A = 1-47800-468-1	1-47811-110-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: E = 1-47800-601-0	1-47813-054-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: C = 1-47800-500-2	1-47841-072-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47841-083-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: G = 1-47800-663-1, I = 1-47800-665-1	1-47841-084-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: H = 1-47800-664-2, J = 1-47800-666-2	1-47841-085-0	01	1	-
16	VALVE ASM ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-024-0	01	1	-
16	VALVE ASM ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47842-009-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-022-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: C = 1-47800-500-2	1-47821-019-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47821-021-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47821-027-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: F = 1-47800-656-2	1-47821-047-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: K = 1-47800-789-0, L = 1-47800-827-0	1-47821-053-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47821-009-0	01	1	-
21	GASKET; CUP ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47821-041-0	01	1	-
21	GASKET; CUP ASM PART: C = 1-47800-500-2	1-47829-037-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-011-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: C = 1-47800-500-2	1-47829-036-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83325-077-0	01	1	-
23	RING; RET ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-31829-081-0	01	1	-
23	RING; RET ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-46366-111-0	01	1	-
23	RING; RET ASM PART: C = 1-47800-500-2	9-83315-102-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2	1-47824-017-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47824-028-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: F = 1-47800-656-2	1-47824-034-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: K = 1-47800-789-0, L = 1-47800-827-0	1-47824-041-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-111-0	01	1	-
25	SEAL; VALVE ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-023-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47821-024-0	01	1	-
25	SEAL; VALVE ASM PART: C = 1-47800-500-2	1-47827-038-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-057-0	01	1	-
34	GASKET ID=11.0 ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-09561-111-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-056-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-032-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-053-0	01	1	-

39 38 37 96 96 34 33 32 31 30 54 35 28 15 9 99 58 26 15 38 29 23 19 16 14 94 22 21 24 97 98 12 20 11 7 13 6 5 4 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	RETAINER; PUSH ROD,WARNING SW,AIR MAST ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-052-0	01	1	-
4	RETAINER; PUSH ROD,WARNING SW,AIR MAST ASM PART: C = 1-47800-500-2	1-47829-070-0	01	1	-
5	SPRING; PUSH ROD,WARNING SW,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47824-021-0	01	1	-
5	SPRING; PUSH ROD,WARNING SW,AIR MASTER ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47824-026-0	01	1	-
5	SPRING; PUSH ROD,WARNING SW,AIR MASTER ASM PART: C = 1-47800-500-2	1-47824-027-0	01	1	-
6	ROD; PUSH,WARNING SW,AIR MASTER ASM PART: C = 1-47800-500-2	1-47829-043-0	01	1	-
6	ROD; PUSH,WARNING SW,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-048-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: B = 1-47800-469-1, D = 1-47800-600-0	1-47811-109-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: A = 1-47800-468-1	1-47811-110-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: E = 1-47800-601-0	1-47813-054-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: C = 1-47800-500-2	1-47841-072-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47841-083-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: G = 1-47800-663-1, I = 1-47800-665-1	1-47841-084-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: H = 1-47800-664-2, J = 1-47800-666-2	1-47841-085-0	01	1	-
9	PROTECTOR; END PLATE,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-44569-165-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-197-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83331-704-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-198-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83335-044-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-168-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: C = 1-47800-500-2	1-47819-170-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-196-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-206-0	01	1	-
14	WASHER; END PLATE TO SHELL,AIR MASTER ID=10.2 ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	9-09150-510-0	06	1	-
14	WASHER; END PLATE TO SHELL,AIR MASTER ID=10.2 ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	9-09150-510-0	02	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-134-0	02	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (C) ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47819-182-0	04	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (D) ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-200-0	06	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (E) ASM PART: C = 1-47800-500-2	1-47829-069-0	07	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (F), M10 FLANGE ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	8-97096-430-0	07	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	9-83315-080-0	02	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	9-83315-080-0	06	1	-
16	VALVE ASM ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-024-0	01	1	-
16	VALVE ASM ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47842-009-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: C = 1-47800-500-2	1-47819-174-1	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-195-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-204-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47849-032-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-022-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: C = 1-47800-500-2	1-47821-019-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47821-021-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47821-027-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: F = 1-47800-656-2	1-47821-047-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: K = 1-47800-789-0, L = 1-47800-827-0	1-47821-053-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47821-009-0	01	1	-
21	GASKET; CUP ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47821-041-0	01	1	-
21	GASKET; CUP ASM PART: C = 1-47800-500-2	1-47829-037-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-011-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: C = 1-47800-500-2	1-47829-036-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83325-077-0	01	1	-
23	RING; RET ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-31829-081-0	01	1	-
23	RING; RET ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-46366-111-0	01	1	-
23	RING; RET ASM PART: C = 1-47800-500-2	9-83315-102-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2	1-47824-017-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47824-028-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: F = 1-47800-656-2	1-47824-034-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: K = 1-47800-789-0, L = 1-47800-827-0	1-47824-041-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-111-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (C) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-039-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (A) ASM PART: F = 1-47800-656-2	1-47829-099-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (B) ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47829-101-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (A) ASM PART: K = 1-47800-789-0, L = 1-47800-827-0	1-47829-141-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47819-164-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-173-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-057-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: C = 1-47800-500-2	1-47825-021-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47825-022-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47829-102-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-107-0	01	1	-
31	PIN; STRAIGHT ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-054-0	01	1	-
31	PIN; STRAIGHT ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47829-103-0	01	1	-
31	PIN; STRAIGHT ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-108-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: C = 1-47800-500-2	1-47824-018-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47824-020-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47824-035-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-109-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47822-006-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: C = 1-47800-500-2	1-47822-008-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47829-104-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-106-0	01	1	-
34	GASKET ID=11.0 ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-09561-111-0	01	1	-
35	WASHER; PLATE,PUSH ROD ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47829-079-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47829-105-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-99111-412-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: C = 1-47800-500-2	1-31829-015-0	05	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-154-0	02	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (C) ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-199-0	06	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: C = 1-47800-500-2	1-47829-065-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83315-078-0	06	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	9-83315-078-0	04	1	-
39	SHELL; CYL,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47811-107-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: C = 1-47800-500-2	1-47811-116-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47811-126-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47811-137-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47811-138-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-039-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-187-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-194-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-056-0	01	1	-
94	SPRING; PISTON ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-059-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-032-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-053-0	01	1	-
97	RETAINER; VALVE ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47824-023-0	01	1	-
98	SPRING; VALVE ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-205-0	01	1	-
98	SPRING; VALVE ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47843-006-0	01	1	-
99	BRACKET; AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-128-0	01	1	-
99	BRACKET; AIR MASTER ASM PART: C = 1-47800-500-2	1-47819-172-0	01	1	-
99	BRACKET; AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-202-0	01	1	-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47829-077-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47829-078-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: G = 1-47800-663-1, H = 1-47800-664-2	1-85576-208-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: I = 1-47800-665-1, J = 1-47800-666-2	1-85576-210-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: K = 1-47800-789-0	1-85576-308-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: F = 1-47800-656-2	1-85576-384-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: L = 1-47800-827-0	1-85576-480-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-87520-206-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-87520-207-1	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: C = 1-47800-500-2	1-87830-393-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: C = 1-47800-500-2	1-87830-394-0	01	1	-

38 37 96 34 33 39 32 96 31 30 15 99 58 38 20 15 19 108 28 25 23 16 54 29 26 22 21 97 98 12 24 11 7 15 6 5 4 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	RETAINER; PUSH ROD,WARNING SW,AIR MAST ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-052-0	01	1	-
4	RETAINER; PUSH ROD,WARNING SW,AIR MAST ASM PART: C = 1-47800-500-2	1-47829-070-0	01	1	-
5	SPRING; PUSH ROD,WARNING SW,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47824-021-0	01	1	-
5	SPRING; PUSH ROD,WARNING SW,AIR MASTER ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47824-026-0	01	1	-
5	SPRING; PUSH ROD,WARNING SW,AIR MASTER ASM PART: C = 1-47800-500-2	1-47824-027-0	01	1	-
6	ROD; PUSH,WARNING SW,AIR MASTER ASM PART: C = 1-47800-500-2	1-47829-043-0	01	1	-
6	ROD; PUSH,WARNING SW,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-048-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: B = 1-47800-469-1, D = 1-47800-600-0	1-47811-109-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: A = 1-47800-468-1	1-47811-110-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: E = 1-47800-601-0	1-47813-054-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: C = 1-47800-500-2	1-47841-072-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47841-083-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: G = 1-47800-663-1, I = 1-47800-665-1	1-47841-084-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: H = 1-47800-664-2, J = 1-47800-666-2	1-47841-085-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-197-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83331-704-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-198-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83335-044-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-168-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: C = 1-47800-500-2	1-47819-170-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-196-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-206-0	01	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-134-0	02	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (C) ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47819-182-0	04	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (D) ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-200-0	06	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (E) ASM PART: C = 1-47800-500-2	1-47829-069-0	07	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (F), M10 FLANGE ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	8-97096-430-0	07	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	9-83315-080-0	02	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	9-83315-080-0	06	1	-
16	VALVE ASM ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-024-0	01	1	-
16	VALVE ASM ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47842-009-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: C = 1-47800-500-2	1-47819-174-1	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-195-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-204-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47849-032-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-022-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: C = 1-47800-500-2	1-47821-019-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47821-021-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47821-027-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: F = 1-47800-656-2	1-47821-047-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: K = 1-47800-789-0, L = 1-47800-827-0	1-47821-053-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47821-009-0	01	1	-
21	GASKET; CUP ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47821-041-0	01	1	-
21	GASKET; CUP ASM PART: C = 1-47800-500-2	1-47829-037-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-011-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: C = 1-47800-500-2	1-47829-036-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83325-077-0	01	1	-
23	RING; RET ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-31829-081-0	01	1	-
23	RING; RET ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-46366-111-0	01	1	-
23	RING; RET ASM PART: C = 1-47800-500-2	9-83315-102-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2	1-47824-017-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47824-028-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: F = 1-47800-656-2	1-47824-034-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: K = 1-47800-789-0, L = 1-47800-827-0	1-47824-041-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-111-0	01	1	-
25	SEAL; VALVE ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-023-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47821-024-0	01	1	-
25	SEAL; VALVE ASM PART: C = 1-47800-500-2	1-47827-038-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (C) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-039-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (A) ASM PART: F = 1-47800-656-2	1-47829-099-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (B) ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47829-101-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (A) ASM PART: K = 1-47800-789-0, L = 1-47800-827-0	1-47829-141-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47819-164-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-173-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-057-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: C = 1-47800-500-2	1-47825-021-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47825-022-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47829-102-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-107-0	01	1	-
31	PIN; STRAIGHT ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-054-0	01	1	-
31	PIN; STRAIGHT ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47829-103-0	01	1	-
31	PIN; STRAIGHT ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-108-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: C = 1-47800-500-2	1-47824-018-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47824-020-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47824-035-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-109-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47822-006-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: C = 1-47800-500-2	1-47822-008-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47829-104-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-106-0	01	1	-
34	GASKET ID=11.0 ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-09561-111-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47829-105-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-99111-412-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: C = 1-47800-500-2	1-31829-015-0	05	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-154-0	02	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (C) ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-199-0	06	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: C = 1-47800-500-2	1-47829-065-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83315-078-0	06	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	9-83315-078-0	04	1	-
39	SHELL; CYL,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47811-107-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: C = 1-47800-500-2	1-47811-116-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47811-126-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47811-137-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47811-138-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-039-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-187-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-194-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-056-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-032-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-053-0	01	1	-
97	RETAINER; VALVE ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47824-023-0	01	1	-
98	SPRING; VALVE ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-205-0	01	1	-
98	SPRING; VALVE ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47843-006-0	01	1	-
99	BRACKET; AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-128-0	01	1	-
99	BRACKET; AIR MASTER ASM PART: C = 1-47800-500-2	1-47819-172-0	01	1	-
99	BRACKET; AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-202-0	01	1	-
108	FILTER; OIL ASM PART: C = 1-47800-500-2	1-47819-175-0	01	1	-

39 38 37 33 32 31 30 99 104 26 110 15 19 20 54 26 109 24 12 11 7 15 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	PLATE; END,AIR MASTER ASM PART: B = 1-47800-469-1, D = 1-47800-600-0	1-47811-109-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: A = 1-47800-468-1	1-47811-110-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: E = 1-47800-601-0	1-47813-054-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: C = 1-47800-500-2	1-47841-072-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47841-083-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: G = 1-47800-663-1, I = 1-47800-665-1	1-47841-084-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: H = 1-47800-664-2, J = 1-47800-666-2	1-47841-085-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-197-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83331-704-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-198-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83335-044-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-168-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: C = 1-47800-500-2	1-47819-170-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-196-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-206-0	01	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-134-0	02	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (C) ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47819-182-0	04	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (D) ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-200-0	06	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (E) ASM PART: C = 1-47800-500-2	1-47829-069-0	07	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (F), M10 FLANGE ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	8-97096-430-0	07	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	9-83315-080-0	02	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	9-83315-080-0	06	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: C = 1-47800-500-2	1-47819-174-1	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-195-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-204-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47849-032-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-022-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: C = 1-47800-500-2	1-47821-019-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47821-021-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47821-027-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: F = 1-47800-656-2	1-47821-047-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: K = 1-47800-789-0, L = 1-47800-827-0	1-47821-053-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2	1-47824-017-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47824-028-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: F = 1-47800-656-2	1-47824-034-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: K = 1-47800-789-0, L = 1-47800-827-0	1-47824-041-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-111-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (C) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-039-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (A) ASM PART: F = 1-47800-656-2	1-47829-099-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (B) ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47829-101-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (A) ASM PART: K = 1-47800-789-0, L = 1-47800-827-0	1-47829-141-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: C = 1-47800-500-2	1-47825-021-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47825-022-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47829-102-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-107-0	01	1	-
31	PIN; STRAIGHT ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-054-0	01	1	-
31	PIN; STRAIGHT ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47829-103-0	01	1	-
31	PIN; STRAIGHT ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-108-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: C = 1-47800-500-2	1-47824-018-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47824-020-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47824-035-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-109-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47822-006-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: C = 1-47800-500-2	1-47822-008-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47829-104-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-106-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47829-105-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-99111-412-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: C = 1-47800-500-2	1-31829-015-0	05	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-154-0	02	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (C) ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-199-0	06	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: C = 1-47800-500-2	1-47829-065-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83315-078-0	06	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	9-83315-078-0	04	1	-
39	SHELL; CYL,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47811-107-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: C = 1-47800-500-2	1-47811-116-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47811-126-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47811-137-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47811-138-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-039-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-187-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-194-0	01	1	-
99	BRACKET; AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-128-0	01	1	-
99	BRACKET; AIR MASTER ASM PART: C = 1-47800-500-2	1-47819-172-0	01	1	-
99	BRACKET; AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-202-0	01	1	-
104	BOLT; BRKT,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-201-0	01	1	-
109	CLIP; PIN,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47829-098-0	01	1	-
110	GUIDE; PIN,AIR MASTER ASM PART: F = 1-47800-656-2	1-47829-100-0	01	1	-
110	GUIDE; PIN,AIR MASTER ASM PART: K = 1-47800-789-0, L = 1-47800-827-0	1-47829-142-0	01	1	-

15 99 31 14 15 9 30 28 58 29 97 98 19 94 26 54 21 24 22 25 16 12 11 23 20 38 7 6 13 14 5 37 15 4 38 39 96 96 34 32 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	RETAINER; PUSH ROD,WARNING SW,AIR MAST ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-052-0	01	1	-
4	RETAINER; PUSH ROD,WARNING SW,AIR MAST ASM PART: C = 1-47800-500-2	1-47829-070-0	01	1	-
5	SPRING; PUSH ROD,WARNING SW,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47824-021-0	01	1	-
5	SPRING; PUSH ROD,WARNING SW,AIR MASTER ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47824-026-0	01	1	-
5	SPRING; PUSH ROD,WARNING SW,AIR MASTER ASM PART: C = 1-47800-500-2	1-47824-027-0	01	1	-
6	ROD; PUSH,WARNING SW,AIR MASTER ASM PART: C = 1-47800-500-2	1-47829-043-0	01	1	-
6	ROD; PUSH,WARNING SW,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-048-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: B = 1-47800-469-1, D = 1-47800-600-0	1-47811-109-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: A = 1-47800-468-1	1-47811-110-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: E = 1-47800-601-0	1-47813-054-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: C = 1-47800-500-2	1-47841-072-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47841-083-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: G = 1-47800-663-1, I = 1-47800-665-1	1-47841-084-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: H = 1-47800-664-2, J = 1-47800-666-2	1-47841-085-0	01	1	-
9	PROTECTOR; END PLATE,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-44569-165-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-197-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83331-704-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-198-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83335-044-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-168-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: C = 1-47800-500-2	1-47819-170-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-196-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-206-0	01	1	-
14	WASHER; END PLATE TO SHELL,AIR MASTER ID=10.2 ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	9-09150-510-0	06	1	-
14	WASHER; END PLATE TO SHELL,AIR MASTER ID=10.2 ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	9-09150-510-0	02	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-134-0	02	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (C) ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47819-182-0	04	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (D) ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-200-0	06	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (E) ASM PART: C = 1-47800-500-2	1-47829-069-0	07	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (F), M10 FLANGE ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	8-97096-430-0	07	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	9-83315-080-0	02	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	9-83315-080-0	06	1	-
16	VALVE ASM ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-024-0	01	1	-
16	VALVE ASM ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47842-009-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: C = 1-47800-500-2	1-47819-174-1	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-195-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-204-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47849-032-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-022-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: C = 1-47800-500-2	1-47821-019-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47821-021-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47821-027-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: F = 1-47800-656-2	1-47821-047-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: K = 1-47800-789-0, L = 1-47800-827-0	1-47821-053-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47821-009-0	01	1	-
21	GASKET; CUP ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47821-041-0	01	1	-
21	GASKET; CUP ASM PART: C = 1-47800-500-2	1-47829-037-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-011-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: C = 1-47800-500-2	1-47829-036-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83325-077-0	01	1	-
23	RING; RET ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-31829-081-0	01	1	-
23	RING; RET ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-46366-111-0	01	1	-
23	RING; RET ASM PART: C = 1-47800-500-2	9-83315-102-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2	1-47824-017-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47824-028-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: F = 1-47800-656-2	1-47824-034-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: K = 1-47800-789-0, L = 1-47800-827-0	1-47824-041-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-111-0	01	1	-
25	SEAL; VALVE ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47812-023-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47821-024-0	01	1	-
25	SEAL; VALVE ASM PART: C = 1-47800-500-2	1-47827-038-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (C) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-039-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (A) ASM PART: F = 1-47800-656-2	1-47829-099-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (B) ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47829-101-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER (A) ASM PART: K = 1-47800-789-0, L = 1-47800-827-0	1-47829-141-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47819-164-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-173-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-057-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: C = 1-47800-500-2	1-47825-021-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47825-022-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47829-102-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-107-0	01	1	-
31	PIN; STRAIGHT ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-054-0	01	1	-
31	PIN; STRAIGHT ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47829-103-0	01	1	-
31	PIN; STRAIGHT ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-108-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: C = 1-47800-500-2	1-47824-018-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47824-020-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47824-035-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-109-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47822-006-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: C = 1-47800-500-2	1-47822-008-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47829-104-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-106-0	01	1	-
34	GASKET ID=11.0 ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-09561-111-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47829-105-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-99111-412-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: C = 1-47800-500-2	1-31829-015-0	05	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-154-0	02	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (C) ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-199-0	06	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: C = 1-47800-500-2	1-47829-065-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	9-83315-078-0	06	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	9-83315-078-0	04	1	-
39	SHELL; CYL,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1	1-47811-107-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: C = 1-47800-500-2	1-47811-116-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: D = 1-47800-600-0, E = 1-47800-601-0	1-47811-126-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47811-137-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47811-138-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-039-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-187-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-194-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-056-0	01	1	-
94	SPRING; PISTON ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47829-059-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-032-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0, G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47829-053-0	01	1	-
97	RETAINER; VALVE ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47824-023-0	01	1	-
98	SPRING; VALVE ASM PART: G = 1-47800-663-1, H = 1-47800-664-2, I = 1-47800-665-1, J = 1-47800-666-2	1-47819-205-0	01	1	-
98	SPRING; VALVE ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, C = 1-47800-500-2, D = 1-47800-600-0, E = 1-47800-601-0	1-47843-006-0	01	1	-
99	BRACKET; AIR MASTER ASM PART: A = 1-47800-468-1, B = 1-47800-469-1, D = 1-47800-600-0, E = 1-47800-601-0	1-47819-128-0	01	1	-
99	BRACKET; AIR MASTER ASM PART: C = 1-47800-500-2	1-47819-172-0	01	1	-
99	BRACKET; AIR MASTER ASM PART: F = 1-47800-656-2, K = 1-47800-789-0, L = 1-47800-827-0	1-47819-202-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
