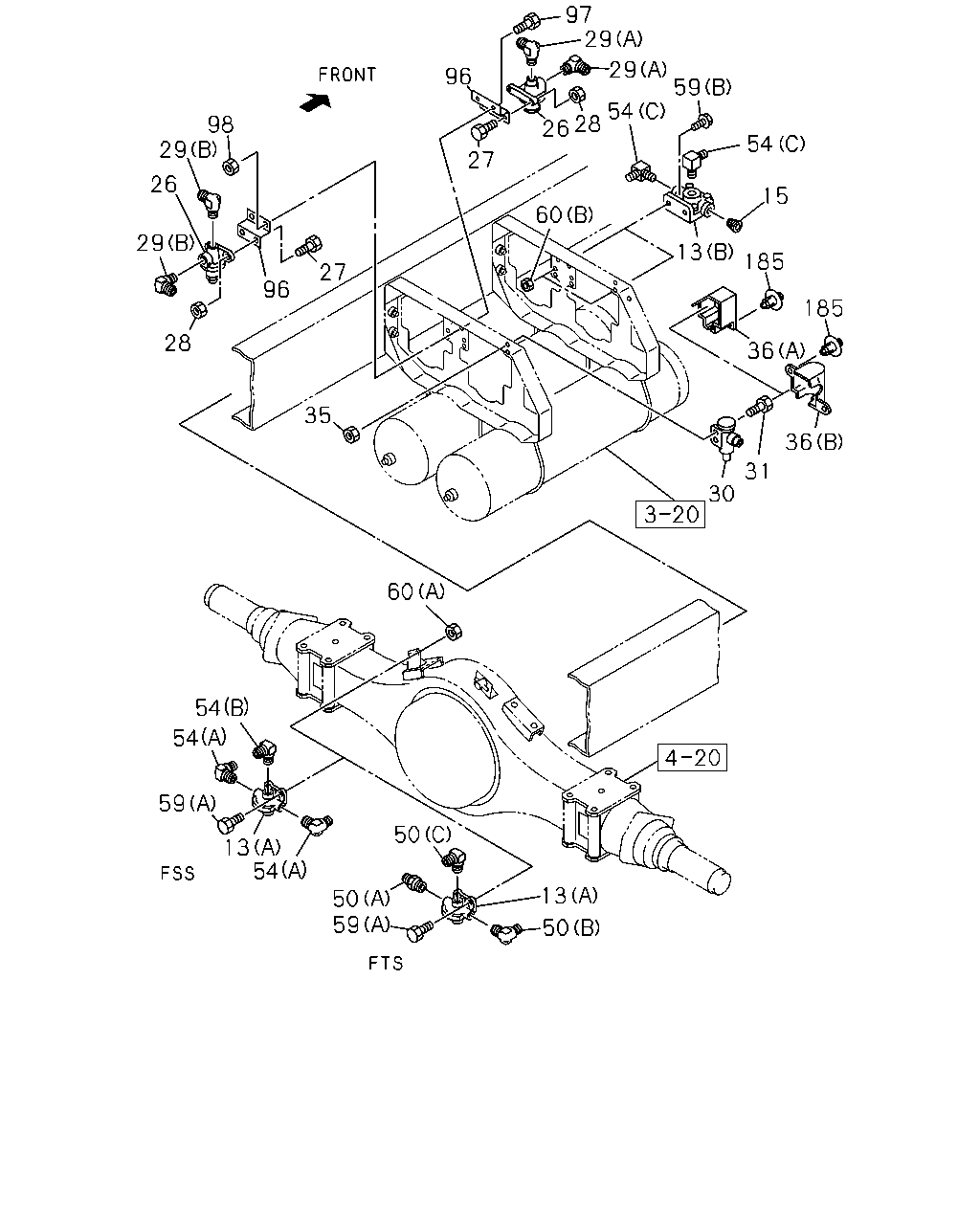

3-22 — AIR CONTROL PARTS (#37191) — 73 parça

13 240 158 157 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (B)	1-48410-234-0	02	1	9604-0004	●	●	●	●
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (B)	1-48410-234-0	02	1	0005-0701			●
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (B)	1-48410-782-0	02	1	0702-			●
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48410-320-0	01	1	9604-0004	●	●	●	●
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48410-320-0	01	1	0005-0109			●
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48410-659-0	01	1	0110-			●
157	RETAINER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48419-020-0	01	1	0110-			●
158	SPRING; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-48419-003-0	01	1	0110-			●
216	REPAIR KIT; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-235-0	01	1	0110-			●
240	REPAIR KIT; AIR CONT GOV	1-85576-466-0	01	1	0005-	●		●		●

97 29 29 59 54 28 26 96 98 29 54 27 26 15 60 29 13 185 27 96 185 28 36 35 36 31 30 60 54 54 59 50 13 54 13 50 59 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (B)	1-48410-234-0	02	1	9604-0004	●	●	●	●
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (B)	1-48410-234-0	02	1	0005-0701			●
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (B)	1-48410-782-0	02	1	0702-			●
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48410-320-0	01	1	9604-0004	●	●	●	●
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48410-320-0	01	1	0005-0109			●
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48410-659-0	01	1	0110-			●
15	PLUG; VALVE BRAKE REGULATION ADR<TDU> NPTF3/8-18	8-94231-272-1	02	1	9604-0004	●	●	●	●
15	PLUG; VALVE BRAKE REGULATION ADR<TDU> NPTF3/8-18	8-94231-272-1	02	1	0005-0805			●
15	PLUG; VALVE BRAKE REGULATION ADR<TDU> NPTF3/8-18	8-97329-623-0	02	1	0806-			●
26	VALVE; AIR BRAKE REGULATION ADR<TDU>	1-48110-006-0	02	1	9604-9803	●	●	●	●
27	BOLT; AIR VLV BRAKE REGULATION ADR<TDU> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9604-9606	●	●	●	●
27	BOLT; AIR VLV BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28680-825-0	04	1	9607-9803	●	●	●	●
28	NUT; AIR VLV BRAKE REGULATION ADR<TDU> M8	9-09110-408-0	04	1	9604-9606	●	●	●	●
28	NUT; AIR VLV BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	04	1	9607-9803	●	●	●	●
29	CONNECTOR; AIR VLV BRAKE REGULATION ADR<TDU> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9604-9803	●	●	●	●
29	CONNECTOR; AIR VLV BRAKE REGULATION ADR<TDU> (B) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9604-9803	●	●	●	●
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9604-0004	●	●	●	●	●
30	GOVERNOR; AIR CONT	1-48350-058-0	01	1	0005-	●		●		●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28080-825-0	02	1	9604-9606	●	●	●	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9607-0004	●	●	●	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●		●		●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0601-	●		●		●
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9604-9606	●	●	●	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●	●	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	0005-0602	●		●		●
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-	●		●		●
36	COVER; GOV EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (A)	1-48359-043-2	01	1	9604-0004	●	●
36	COVER; GOV (A)	1-48359-043-3	01	1	0005-	●
36	COVER; GOV BRAKE REGULATION ADR<TDU> (B)	1-48359-081-0	01	1	9604-9709	●	●	●	●
36	COVER; GOV BRAKE REGULATION ADR<TDU> (B)	1-48359-081-0	01	1	9710-0004	●	●
36	COVER; GOV (B)	1-48359-081-0	01	1	9710-0004			●	●	●
36	COVER; GOV (B)	1-48359-081-0	01	1	0005-			●		●
50	CONNECTOR; RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	9604-0004			●	●
50	CONNECTOR; RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	0005-			●
50	CONNECTOR; RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9604-0004			●	●
50	CONNECTOR; RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	0005-			●
50	CONNECTOR; RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9604-0004			●	●
50	CONNECTOR; RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0005-			●
54	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT3/8 ELBOW	1-09650-437-0	02	1	9604-0004	●	●
54	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9604-0004	●	●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (C) M16 & NPTF3/8 ELBOW	1-09650-447-0	04	1	9604-0004	●	●	●	●
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (C) M16 & NPTF3/8 ELBOW	1-09650-447-0	04	1	0005-			●
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> (B) M8X20 FLANGE	0-28080-820-0	04	1	9604-9606	●	●	●	●
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> (B) M8X20 FLANGE	0-28680-820-0	04	1	9607-0004	●	●	●	●
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> (B) M8X20 FLANGE	0-28680-820-0	04	1	0005-0512			●
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-			●
59	BOLT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9604-0004	●	●	●	●
59	BOLT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	0005-0906			●
59	BOLT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-			●
60	NUT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> (B) M8	9-09110-408-0	04	1	9604-9606	●	●	●	●
60	NUT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> (B) M8 FLANGE	0-91150-108-0	04	1	9607-0004	●	●	●	●
60	NUT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> (B) M8 FLANGE	0-91150-108-0	04	1	0005-0602			●
60	NUT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> (B) M8 FLANGE	0-91180-108-0	04	1	0603-			●
60	NUT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8	9-09110-408-0	02	1	9604-0004	●	●	●	●
60	NUT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8	9-09110-408-0	02	1	0005-0512			●
60	NUT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8	0-91110-508-0	02	1	0601-			●
96	BRACKET BRAKE REGULATION ADR<TDU>	1-48495-053-1	02	1	9604-9803	●	●	●	●
97	BOLT; VLV BRKT BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28080-825-0	02	1	9604-9606	●	●	●	●
97	BOLT; VLV BRKT BRAKE REGULATION ADR<TDU> M8X30 FLANGE	0-28680-830-0	02	1	9607-9803	●	●	●	●
98	NUT; VLV BRKT BRAKE REGULATION ADR<TDU> M8	9-09110-408-0	02	1	9604-9606	●	●	●	●
98	NUT; VLV BRKT BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●	●	●
185	FASTENER; COVER	1-09470-006-0	02	1	9604-0004	●	●	●	●	●
185	FASTENER; COVER	1-09470-006-0	02	1	0005-	●		●		●
