Sayfa 3-11 - Isuzu EPC

3-11 — PARKING BRAKE CONTROL (#37189) — 360 parça

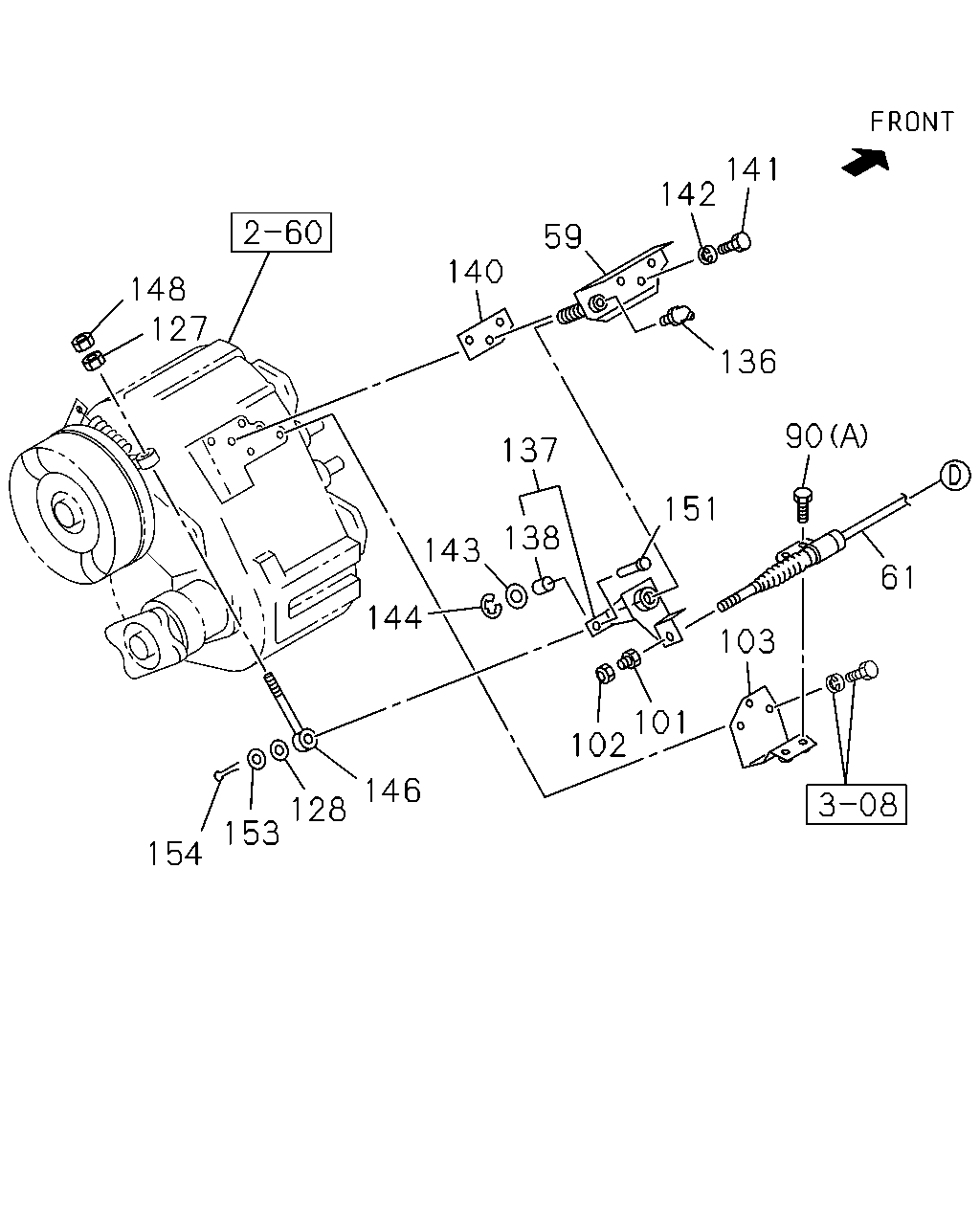

141 142 59 140 148 127 136 90 137 151 138 143 61 144 103 101 102 146 128 153 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
59	BRACKET; RELAY LEVER PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION OIL COOLER<C2C>	1-46276-030-1	01	1	9604-0004	●	●
59	BRACKET; RELAY LEVER	1-46276-030-1	01	1	9604-0004			●
59	BRACKET; RELAY LEVER	1-46276-030-1	01	1	0005-0405	●		●
59	BRACKET; RELAY LEVER EXC. TRANSMISSION OIL COOLER<C2C>	1-46276-030-1	01	1	0005-0405		●
59	BRACKET; RELAY LEVER	1-46276-030-1	01	1	0406-	●		●
59	BRACKET; RELAY LEVER MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C>	1-46276-030-1	01	1	0406-		●
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4944	1-79996-328-1	01	1	9604-9909	●			●
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4944	1-79996-478-0	01	1	9910-0004	●			●
61	CABLE; PARKING BRK L=4944	1-79996-478-4	01	1	0005-	●
61	CABLE; PARKING BRK L=4994	1-79996-329-0	01	1	9604-9610			●
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4994	1-79996-329-0	01	1	9604-9610		●			●
61	CABLE; PARKING BRK L=5044	1-79996-355-0	01	1	9611-9909			●
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=5044	1-79996-355-0	01	1	9611-9909		●			●
61	CABLE; PARKING BRK L=5044	1-79996-466-0	01	1	9910-0004			●
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=5044	1-79996-466-0	01	1	9910-0004		●			●
61	CABLE; PARKING BRK L=5044	1-79996-466-4	01	1	0005-			●
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=5044	1-79996-466-4	01	1	0005-		●
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M10X25 FLANGE	0-28081-025-0	02	1	9604-9606	●	●		●	●
90	BOLT; CABLE TO BRKT (A) M10X25 FLANGE	0-28081-025-0	02	1	9604-9606			●
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M10X25 FLANGE	0-28681-025-0	02	1	9607-0004	●	●		●	●
90	BOLT; CABLE TO BRKT (A) M10X25 FLANGE	0-28681-025-0	02	1	9607-0004			●
90	BOLT; CABLE TO BRKT (A) M10X25 FLANGE	0-28681-025-0	02	1	0005-0009	●		●
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M10X25 FLANGE	0-28681-025-0	02	1	0005-0009		●
90	BOLT; CABLE TO BRKT (A) M10X30 FLANGE	0-28681-030-0	02	1	0010-0512	●		●
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M10X30 FLANGE	0-28681-030-0	02	1	0010-0512		●
90	BOLT; CABLE TO BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●		●
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-		●
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9604-0004	●	●
90	BOLT; CABLE TO BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9604-0004			●
90	BOLT; CABLE TO BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0005-0904	●		●
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0005-0904		●
90	BOLT; CABLE TO BRKT (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●		●
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-		●
90	BOLT; CABLE TO BRKT (C) M8X16 FLANGE	0-28080-816-0	01	1	9604-0004			●
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X16 FLANGE	0-28080-816-0	01	1	9604-0004		●			●
90	BOLT; CABLE TO BRKT (C) M8X16 FLANGE	0-28080-816-0	01	1	0005-0512			●
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X16 FLANGE	0-28080-816-0	01	1	0005-0512		●
90	BOLT; CABLE TO BRKT (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-			●
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	1-46259-007-0	01	1	9604-0004	●	●		●	●
101	NUT; CABLE TO LEVER M8	1-46259-007-0	01	1	9604-0004			●
101	NUT; CABLE TO LEVER M8	1-46259-007-0	01	1	0005-	●		●
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	1-46259-007-0	01	1	0005-		●
102	NUT; LK,CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	01	1	9604-9609	●	●		●	●
102	NUT; LK,CABLE TO LEVER M8	9-09110-408-0	01	1	9604-9609			●
102	NUT; LK,CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	9610-0004	●	●		●	●
102	NUT; LK,CABLE TO LEVER M8 FLANGE	0-91150-108-0	01	1	9610-0004			●
102	NUT; LK,CABLE TO LEVER M8 FLANGE	0-91150-108-0	01	1	0005-0602	●		●
102	NUT; LK,CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	0005-0602		●
102	NUT; LK,CABLE TO LEVER M8 FLANGE	0-91180-108-0	01	1	0603-	●		●
102	NUT; LK,CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0603-		●
103	BRACKET; PARKING BRK CONT PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION OIL COOLER<C2C>	1-46147-052-1	01	1	9604-0004	●	●
103	BRACKET; PARKING BRK CONT	1-46147-052-1	01	1	9604-0004			●
103	BRACKET; PARKING BRK CONT	1-46147-052-1	01	1	0005-0405	●		●
103	BRACKET; PARKING BRK CONT EXC. TRANSMISSION OIL COOLER<C2C>	1-46147-052-1	01	1	0005-0405		●
103	BRACKET; PARKING BRK CONT	1-46147-052-1	01	1	0406-	●		●
103	BRACKET; PARKING BRK CONT MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C>	1-46147-052-1	01	1	0406-		●
127	NUT; LINK PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION OIL COOLER<C2C>	1-09445-001-0	01	1	9604-0004	●	●
127	NUT; LINK	1-09445-001-0	01	1	9604-0004			●
127	NUT; LINK	1-09445-001-0	01	1	0005-0405	●		●
127	NUT; LINK EXC. TRANSMISSION OIL COOLER<C2C>	1-09445-001-0	01	1	0005-0405		●
127	NUT; LINK	1-09445-001-0	01	1	0406-	●		●
127	NUT; LINK MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C>	1-09445-001-0	01	1	0406-		●
128	WASHER; PL,LINK PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION OIL COOLER<C2C> ID=10.5 OD=18	9-09160-510-0	01	1	9604-0004	●	●
128	WASHER; PL,LINK ID=10.5 OD=18	9-09160-510-0	01	1	9604-0004			●
128	WASHER; PL,LINK ID=10.5 OD=18	9-09160-510-0	01	1	0005-0405	●		●
128	WASHER; PL,LINK EXC. TRANSMISSION OIL COOLER<C2C> ID=10.5 OD=18	9-09160-510-0	01	1	0005-0405		●
128	WASHER; PL,LINK ID=10.5 OD=18	9-09160-510-0	01	1	0406-0605	●		●
128	WASHER; PL,LINK MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> ID=10.5 OD=18	9-09160-510-0	01	1	0406-0605		●
128	WASHER; PL,LINK ID=10.5	0-91610-510-0	01	1	0606-	●		●
128	WASHER; PL,LINK EXC. TRANSMISSION OIL COOLER<C2C> ID=10.5	0-91610-510-0	01	1	0606-		●
136	NIPPLE; GREASE PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION OIL COOLER<C2C> PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9604-0004	●	●
136	NIPPLE; GREASE PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9604-0004			●
136	NIPPLE; GREASE PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0005-0405	●		●
136	NIPPLE; GREASE EXC. TRANSMISSION OIL COOLER<C2C> PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0005-0405		●
136	NIPPLE; GREASE PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0406-0512	●		●
136	NIPPLE; GREASE MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0406-0512		●
136	NIPPLE; GREASE PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-	●		●
136	NIPPLE; GREASE EXC. TRANSMISSION OIL COOLER<C2C> PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-		●
137	LEVER ASM; W/BUSHING PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION OIL COOLER<C2C>	1-46140-098-1	01	1	9604-0004	●	●
137	LEVER ASM; W/BUSHING	1-46140-098-1	01	1	9604-0004			●
137	LEVER ASM; W/BUSHING	1-46140-098-1	01	1	0005-0405	●		●
137	LEVER ASM; W/BUSHING EXC. TRANSMISSION OIL COOLER<C2C>	1-46140-098-1	01	1	0005-0405		●
137	LEVER ASM; W/BUSHING	1-46140-098-1	01	1	0406-1001	●		●
137	LEVER ASM; W/BUSHING MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C>	1-46140-098-1	01	1	0406-1001		●
137	LEVER ASM; W/BUSHING	1-46140-119-0	01	1	1002-	●		●
137	LEVER ASM; W/BUSHING EXC. TRANSMISSION OIL COOLER<C2C>	1-46140-119-0	01	1	1002-		●
138	BUSHING; LEVER PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION OIL COOLER<C2C>	1-46149-003-0	01	1	9604-0004	●	●
138	BUSHING; LEVER	1-46149-003-0	01	1	9604-0004			●
138	BUSHING; LEVER	1-46149-003-0	01	1	0005-0405	●		●
138	BUSHING; LEVER EXC. TRANSMISSION OIL COOLER<C2C>	1-46149-003-0	01	1	0005-0405		●
138	BUSHING; LEVER	1-46149-003-0	01	1	0406-1001	●		●
138	BUSHING; LEVER MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C>	1-46149-003-0	01	1	0406-1001		●
138	BUSHING; LEVER	1-46149-031-0	01	1	1002-	●		●
138	BUSHING; LEVER EXC. TRANSMISSION OIL COOLER<C2C>	1-46149-031-0	01	1	1002-		●
140	PLATE; DIST PARKING BRK PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION OIL COOLER<C2C>	1-46149-016-0	01	1	9604-0004	●	●
140	PLATE; DIST PARKING BRK	1-46149-016-0	01	1	9604-0004			●
140	PLATE; DIST PARKING BRK	1-46149-016-0	01	1	0005-0405	●		●
140	PLATE; DIST PARKING BRK EXC. TRANSMISSION OIL COOLER<C2C>	1-46149-016-0	01	1	0005-0405		●
140	PLATE; DIST PARKING BRK	1-46149-016-0	01	1	0406-	●		●
140	PLATE; DIST PARKING BRK MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C>	1-46149-016-0	01	1	0406-		●
141	BOLT; BRKT,RELAY LEVER PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION OIL COOLER<C2C> M12X38	0-23801-238-0	03	1	9604-0004	●	●
141	BOLT; BRKT,RELAY LEVER M12X38	0-23801-238-0	03	1	9604-0004			●
141	BOLT; BRKT,RELAY LEVER M12X38	0-23801-238-0	03	1	0005-0405	●		●
141	BOLT; BRKT,RELAY LEVER EXC. TRANSMISSION OIL COOLER<C2C> M12X38	0-23801-238-0	03	1	0005-0405		●
141	BOLT; BRKT,RELAY LEVER M12X38	0-23801-238-0	03	1	0406-	●		●
141	BOLT; BRKT,RELAY LEVER MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M12X38	0-23801-238-0	03	1	0406-		●
142	WASHER; LK,BRKT,RELAY LEVER PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION OIL COOLER<C2C> ID=12.2	9-09150-512-0	03	1	9604-0004	●	●
142	WASHER; LK,BRKT,RELAY LEVER ID=12.2	9-09150-512-0	03	1	9604-0004			●
142	WASHER; LK,BRKT,RELAY LEVER ID=12.2	9-09150-512-0	03	1	0005-0405	●		●
142	WASHER; LK,BRKT,RELAY LEVER EXC. TRANSMISSION OIL COOLER<C2C> ID=12.2	9-09150-512-0	03	1	0005-0405		●
142	WASHER; LK,BRKT,RELAY LEVER ID=12.2	9-09150-512-0	03	1	0406-0603	●		●
142	WASHER; LK,BRKT,RELAY LEVER MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> ID=12.2	9-09150-512-0	03	1	0406-0603		●
142	WASHER; LK,BRKT,RELAY LEVER ID=12.2	0-91510-512-0	03	1	0604-	●		●
142	WASHER; LK,BRKT,RELAY LEVER EXC. TRANSMISSION OIL COOLER<C2C> ID=12.2	0-91510-512-0	03	1	0604-		●
143	WASHER; PL,BRKT,RELAY LEVER PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION OIL COOLER<C2C> ID=19	9-09160-518-0	01	1	9604-0004	●	●
143	WASHER; PL,BRKT,RELAY LEVER ID=19	9-09160-518-0	01	1	9604-0004			●
143	WASHER; PL,BRKT,RELAY LEVER ID=19	9-09160-518-0	01	1	0005-0405	●		●
143	WASHER; PL,BRKT,RELAY LEVER EXC. TRANSMISSION OIL COOLER<C2C> ID=19	9-09160-518-0	01	1	0005-0405		●
143	WASHER; PL,BRKT,RELAY LEVER ID=19	9-09160-518-0	01	1	0406-	●		●
143	WASHER; PL,BRKT,RELAY LEVER MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> ID=19	9-09160-518-0	01	1	0406-		●
144	RING; SNAP,E TYPE,BRKT PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION OIL COOLER<C2C> ID=15	9-09185-015-0	01	1	9604-0004	●	●
144	RING; SNAP,E TYPE,BRKT ID=15	9-09185-015-0	01	1	9604-0004			●
144	RING; SNAP,E TYPE,BRKT ID=15	9-09185-015-0	01	1	0005-0405	●		●
144	RING; SNAP,E TYPE,BRKT EXC. TRANSMISSION OIL COOLER<C2C> ID=15	9-09185-015-0	01	1	0005-0405		●
144	RING; SNAP,E TYPE,BRKT ID=15	9-09185-015-0	01	1	0406-	●		●
144	RING; SNAP,E TYPE,BRKT MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> ID=15	9-09185-015-0	01	1	0406-		●
146	ROD; LINK,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION OIL COOLER<C2C>	1-46142-048-0	01	1	9604-0004	●	●
146	ROD; LINK,PARKING BRK	1-46142-048-0	01	1	9604-0004			●
146	ROD; LINK,PARKING BRK	1-46142-048-0	01	1	0005-0405	●		●
146	ROD; LINK,PARKING BRK EXC. TRANSMISSION OIL COOLER<C2C>	1-46142-048-0	01	1	0005-0405		●
146	ROD; LINK,PARKING BRK	1-46142-048-0	01	1	0406-	●		●
146	ROD; LINK,PARKING BRK MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C>	1-46142-048-0	01	1	0406-		●
148	NUT; LK,LINK PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION OIL COOLER<C2C> M10	9-09110-410-0	01	1	9604-0004	●	●
148	NUT; LK,LINK M10	9-09110-410-0	01	1	9604-0004			●
148	NUT; LK,LINK M10	9-09110-410-0	01	1	0005-0405	●		●
148	NUT; LK,LINK EXC. TRANSMISSION OIL COOLER<C2C> M10	9-09110-410-0	01	1	0005-0405		●
148	NUT; LK,LINK M10	9-09110-410-0	01	1	0406-0512	●		●
148	NUT; LK,LINK MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> M10	9-09110-410-0	01	1	0406-0512		●
148	NUT; LK,LINK M10	0-91110-510-0	01	1	0601-	●		●
148	NUT; LK,LINK EXC. TRANSMISSION OIL COOLER<C2C> M10	0-91110-510-0	01	1	0601-		●
151	PIN; LINK TO LEVER PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION OIL COOLER<C2C> OD=10 L=31	9-08234-031-0	01	1	9604-0004	●	●
151	PIN; LINK TO LEVER OD=10 L=31	9-08234-031-0	01	1	9604-0004			●
151	PIN; LINK TO LEVER OD=10 L=31	9-08234-031-0	01	1	0005-0405	●		●
151	PIN; LINK TO LEVER EXC. TRANSMISSION OIL COOLER<C2C> OD=10 L=31	9-08234-031-0	01	1	0005-0405		●
151	PIN; LINK TO LEVER OD=10 L=31	9-08234-031-0	01	1	0406-	●		●
151	PIN; LINK TO LEVER MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> OD=10 L=31	9-08234-031-0	01	1	0406-		●
153	WASHER; WAVE,LINK PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION OIL COOLER<C2C>	9-09855-192-0	01	1	9604-0004	●	●
153	WASHER; WAVE,LINK	9-09855-192-0	01	1	9604-0004			●
153	WASHER; WAVE,LINK	9-09855-192-0	01	1	0005-0405	●		●
153	WASHER; WAVE,LINK EXC. TRANSMISSION OIL COOLER<C2C>	9-09855-192-0	01	1	0005-0405		●
153	WASHER; WAVE,LINK	9-09855-192-0	01	1	0406-	●		●
153	WASHER; WAVE,LINK MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C>	9-09855-192-0	01	1	0406-		●
154	PIN; SPLIT,LINK PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION OIL COOLER<C2C> OD=2.8 L=18	9-08113-018-0	01	1	9604-0004	●	●
154	PIN; SPLIT,LINK OD=2.8 L=18	9-08113-018-0	01	1	9604-0004			●
154	PIN; SPLIT,LINK OD=2.8 L=18	9-08113-018-0	01	1	0005-0405	●		●
154	PIN; SPLIT,LINK EXC. TRANSMISSION OIL COOLER<C2C> OD=2.8 L=18	9-08113-018-0	01	1	0005-0405		●
154	PIN; SPLIT,LINK OD=2.8 L=18	9-08113-018-0	01	1	0406-0606	●		●
154	PIN; SPLIT,LINK MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) EXC. TRANSMISSION OIL COOLER<C2C> OD=2.8 L=18	9-08113-018-0	01	1	0406-0606		●
154	PIN; SPLIT,LINK OD=2.8 L=18	0-81123-018-0	01	1	0607-	●		●
154	PIN; SPLIT,LINK EXC. TRANSMISSION OIL COOLER<C2C> OD=2.8 L=18	0-81123-018-0	01	1	0607-		●

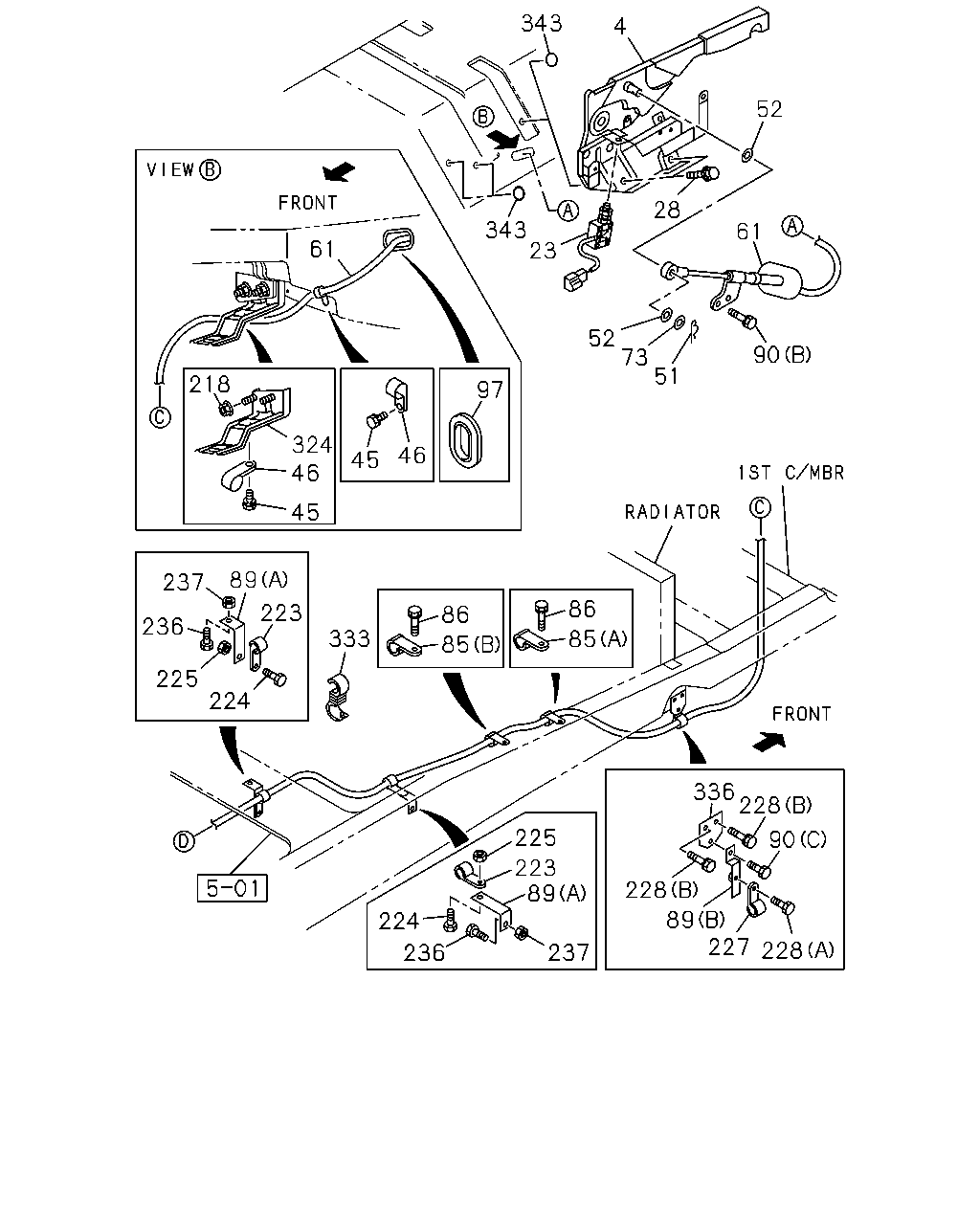

343 4 52 28 343 23 61 61 52 73 51 90 218 97 324 46 46 45 45 89 237 86 223 86 236 333 85 85 225 224 336 228 225 90 223 89 228 89 227 224 228 237 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79998-864-1	01	1	9604-9809	●	●
4	STEM; PARKING BRK	1-79998-864-1	01	1	9604-9809			●
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79996-419-0	01	1	9810-9908	●	●
4	STEM; PARKING BRK	1-79996-419-0	01	1	9810-9908			●
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79996-481-0	01	1	9909-9911	●	●
4	STEM; PARKING BRK	1-79996-481-0	01	1	9909-9911			●
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79996-503-0	01	1	9912-0004	●	●
4	STEM; PARKING BRK	1-79996-503-0	01	1	9912-0004			●
4	STEM; PARKING BRK	1-79996-503-0	01	1	0005-0010	●		●
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79996-503-0	01	1	0005-0010		●
4	STEM; PARKING BRK	1-79996-548-0	01	1	0011-	●		●
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79996-548-0	01	1	0011-		●
23	SWITCH; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82440-100-0	01	1	9604-0004	●	●
23	SWITCH; PARKING BRK	1-82440-100-0	01	1	9604-0004			●
23	SWITCH; PARKING BRK	1-82440-100-0	01	1	0005-	●		●
23	SWITCH; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82440-100-0	01	1	0005-		●
28	BOLT; HAND BRK LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9604-0004	●	●
28	BOLT; HAND BRK LEVER M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9604-0004			●
28	BOLT; HAND BRK LEVER M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0005-0904	●		●
28	BOLT; HAND BRK LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0005-0904		●
28	BOLT; HAND BRK LEVER M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-	●		●
28	BOLT; HAND BRK LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-		●
45	BOLT; CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9604-9812	●	●
45	BOLT; CABLE TO FLOOR M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9604-9812			●
45	BOLT; CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9901-0004	●	●
45	BOLT; CABLE TO FLOOR M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9901-0004			●
45	BOLT; CABLE TO FLOOR M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0005-	●		●
45	BOLT; CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0005-		●
46	CLIP; FRT CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20	9-09525-535-0	03	1	9604-0004	●	●
46	CLIP; FRT CABLE TO FLOOR ID=16 L=20	9-09525-535-0	03	1	9604-0004			●
46	CLIP; FRT CABLE TO FLOOR ID=16 L=20	9-09525-535-0	03	1	0005-0606	●		●
46	CLIP; FRT CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20	9-09525-535-0	03	1	0005-0606		●
46	CLIP; FRT CABLE TO FLOOR ID=16 L=20	0-95235-535-0	03	1	0607-	●		●
46	CLIP; FRT CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20	0-95235-535-0	03	1	0607-		●
51	PIN; JOINT,RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09987-243-1	01	1	9604-0004	●	●
51	PIN; JOINT,RELAY LEVER	1-09987-243-1	01	1	9604-0004			●
51	PIN; JOINT,RELAY LEVER	1-09987-243-1	01	1	0005-	●		●
51	PIN; JOINT,RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09987-243-1	01	1	0005-		●
52	WASHER; CURVED RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=19	8-94206-429-1	02	1	9604-0004	●	●
52	WASHER; CURVED RELAY LEVER ID=19	8-94206-429-1	02	1	9604-0004			●
52	WASHER; CURVED RELAY LEVER ID=19	8-94206-429-1	02	1	0005-	●		●
52	WASHER; CURVED RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=19	8-94206-429-1	02	1	0005-		●
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4944	1-79996-328-1	01	1	9604-9909	●			●
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4944	1-79996-478-0	01	1	9910-0004	●			●
61	CABLE; PARKING BRK L=4944	1-79996-478-4	01	1	0005-	●
61	CABLE; PARKING BRK L=4994	1-79996-329-0	01	1	9604-9610			●
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4994	1-79996-329-0	01	1	9604-9610		●			●
61	CABLE; PARKING BRK L=5044	1-79996-355-0	01	1	9611-9909			●
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=5044	1-79996-355-0	01	1	9611-9909		●			●
61	CABLE; PARKING BRK L=5044	1-79996-466-0	01	1	9910-0004			●
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=5044	1-79996-466-0	01	1	9910-0004		●			●
61	CABLE; PARKING BRK L=5044	1-79996-466-4	01	1	0005-			●
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=5044	1-79996-466-4	01	1	0005-		●
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=17	9-09160-516-0	01	1	9604-0004	●	●
73	WASHER; PL,CABLE ID=17	9-09160-516-0	01	1	9604-0004			●
73	WASHER; PL,CABLE ID=17	9-09160-516-0	01	1	0005-0605	●		●
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=17	9-09160-516-0	01	1	0005-0605		●
73	WASHER; PL,CABLE ID=17 OD=30	0-91610-516-0	01	1	0606-	●		●
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=17 OD=30	0-91610-516-0	01	1	0606-		●
85	CLIP; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=14.5 L=40	1-09701-014-0	01	1	9604-9804	●	●		●	●
85	CLIP; BRKT (A) ID=14.5 L=40	1-09701-014-0	01	1	9604-9804			●
85	CLIP; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=16 H=30 L=30	1-09701-080-0	01	1	9805-0004	●	●		●	●
85	CLIP; BRKT (A) ID=16 H=30 L=30	1-09701-080-0	01	1	9805-0004			●
85	CLIP; BRKT (A) ID=16 H=30 L=30	1-09701-080-0	01	1	0005-	●		●
85	CLIP; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=16 H=30 L=30	1-09701-080-0	01	1	0005-		●
85	CLIP; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=24 L=40	1-09701-139-0	01	1	9604-0004	●	●		●	●
85	CLIP; BRKT (B) ID=24 L=40	1-09701-139-0	01	1	9604-0004			●
85	CLIP; BRKT (B) ID=24 L=40	1-09701-139-0	01	1	0005-1101	●		●
85	CLIP; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=24 L=40	1-09701-139-0	01	1	0005-1101		●
85	CLIP; BRKT (B) ID=14.5 L=40	1-09701-014-0	01	1	1102-	●		●
85	CLIP; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14.5 L=40	1-09701-014-0	01	1	1102-		●
86	BOLT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9604-9606	●	●		●	●
86	BOLT M8X25 FLANGE	0-28080-825-0	02	1	9604-9606			●
86	BOLT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	9607-0004	●	●		●	●
86	BOLT M8X25 FLANGE	0-28680-825-0	02	1	9607-0004			●
86	BOLT M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●		●
86	BOLT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0005-0512		●
86	BOLT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●		●
86	BOLT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
89	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-34656-009-0	02	1	9604-9804	●			●
89	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-34656-009-0	02	1	9805-0004	●	●		●	●
89	BRACKET; CLIP (A)	1-34656-009-0	02	1	9805-0004			●
89	BRACKET; CLIP (A)	1-34656-009-0	02	1	0005-	●		●
89	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-34656-009-0	02	1	0005-		●
89	BRACKET; CLIP (A)	1-34656-028-0	01	1	9604-9711			●
89	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-34656-028-0	01	1	9604-9711		●			●
89	BRACKET; CLIP (A)	1-34656-009-0	01	1	9712-9804			●
89	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-34656-009-0	01	1	9712-9804		●			●
89	BRACKET; CLIP (B)	1-47477-261-0	01	1	9604-0004			●
89	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47477-261-0	01	1	9604-0004		●			●
89	BRACKET; CLIP (B)	1-47477-261-0	01	1	0005-			●
89	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47477-261-0	01	1	0005-		●
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M10X25 FLANGE	0-28081-025-0	02	1	9604-9606	●	●		●	●
90	BOLT; CABLE TO BRKT (A) M10X25 FLANGE	0-28081-025-0	02	1	9604-9606			●
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M10X25 FLANGE	0-28681-025-0	02	1	9607-0004	●	●		●	●
90	BOLT; CABLE TO BRKT (A) M10X25 FLANGE	0-28681-025-0	02	1	9607-0004			●
90	BOLT; CABLE TO BRKT (A) M10X25 FLANGE	0-28681-025-0	02	1	0005-0009	●		●
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M10X25 FLANGE	0-28681-025-0	02	1	0005-0009		●
90	BOLT; CABLE TO BRKT (A) M10X30 FLANGE	0-28681-030-0	02	1	0010-0512	●		●
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M10X30 FLANGE	0-28681-030-0	02	1	0010-0512		●
90	BOLT; CABLE TO BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●		●
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-		●
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9604-0004	●	●
90	BOLT; CABLE TO BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9604-0004			●
90	BOLT; CABLE TO BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0005-0904	●		●
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0005-0904		●
90	BOLT; CABLE TO BRKT (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●		●
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-		●
90	BOLT; CABLE TO BRKT (C) M8X16 FLANGE	0-28080-816-0	01	1	9604-0004			●
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X16 FLANGE	0-28080-816-0	01	1	9604-0004		●			●
90	BOLT; CABLE TO BRKT (C) M8X16 FLANGE	0-28080-816-0	01	1	0005-0512			●
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X16 FLANGE	0-28080-816-0	01	1	0005-0512		●
90	BOLT; CABLE TO BRKT (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-			●
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09983-078-0	01	1	9604-0004	●	●
97	GROMMET; PARKING BRK CABLE	1-09983-078-0	01	1	9604-0004				●	●
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09983-078-0	01	1	0005-		●
218	NUT; BRKT,PARKING BRK CABLE M8 FLANGE	8-94279-517-0	02	1	9604-9611	●	●	●	●	●
218	NUT; BRKT,PARKING BRK CABLE M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9612-0004	●	●	●	●	●
218	NUT; BRKT,PARKING BRK CABLE M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0005-	●	●	●
223	CLIP; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.5 L=28	1-09701-013-0	02	1	9604-9909	●	●		●	●
223	CLIP; PARKING BRK CABLE ID=14.5 L=28	1-09701-013-0	02	1	9604-9909			●
223	CLIP; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.5 L=28	1-09701-013-0	02	1	9910-0004	●			●
223	CLIP; PARKING BRK CABLE ID=14.5 L=28	1-09701-013-0	02	1	0005-	●
223	CLIP; PARKING BRK CABLE ID=14.5 L=28	1-09701-013-0	01	1	9910-0004			●
223	CLIP; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.5 L=28	1-09701-013-0	01	1	9910-0004		●			●
223	CLIP; PARKING BRK CABLE ID=14.5 L=28	1-09701-013-0	01	1	0005-			●
223	CLIP; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.5 L=28	1-09701-013-0	01	1	0005-		●
223	CLIP; PARKING BRK CABLE ID=15 L=22 H=30	1-09701-215-1	01	1	9910-0004			●
223	CLIP; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=15 L=22 H=30	1-09701-215-1	01	1	9910-0004		●			●
223	CLIP; PARKING BRK CABLE ID=15 L=22 H=30	1-09701-215-1	01	1	0005-			●
223	CLIP; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=15 L=22 H=30	1-09701-215-1	01	1	0005-		●
224	BOLT; CABLE CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9604-9606	●	●		●	●
224	BOLT; CABLE CLIP M8X25 FLANGE	0-28080-825-0	02	1	9604-9606			●
224	BOLT; CABLE CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	9607-0004	●	●		●	●
224	BOLT; CABLE CLIP M8X25 FLANGE	0-28680-825-0	02	1	9607-0004			●
224	BOLT; CABLE CLIP M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●		●
224	BOLT; CABLE CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0005-0512		●
224	BOLT; CABLE CLIP M8X25 FLANGE	0-28650-825-0	02	1	0601-	●		●
224	BOLT; CABLE CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
225	NUT; CABLE CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9604-9606	●	●		●	●
225	NUT; CABLE CLIP M8	9-09110-408-0	02	1	9604-9606			●
225	NUT; CABLE CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●		●	●
225	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	02	1	9607-0004			●
225	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	02	1	0005-0602	●		●
225	NUT; CABLE CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0005-0602		●
225	NUT; CABLE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-	●		●
225	NUT; CABLE CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0603-		●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=13 L=20	9-09525-235-0	01	1	9604-0004	●	●		●	●
227	CLIP; RAD ID=13 L=20	9-09525-235-0	01	1	9604-0004			●
227	CLIP; RAD ID=13 L=20	9-09525-235-0	01	1	0005-0606	●		●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=13 L=20	9-09525-235-0	01	1	0005-0606		●
227	CLIP; RAD ID=13 L=20	0-95235-235-0	01	1	0607-	●		●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=13 L=20	0-95235-235-0	01	1	0607-		●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 FLANGE	0-28080-816-0	01	1	9604-0004	●	●		●	●
228	BOLT; CLIP RAD MTG (A) M8X16 FLANGE	0-28080-816-0	01	1	9604-0004			●
228	BOLT; CLIP RAD MTG (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0512	●		●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0512		●
228	BOLT; CLIP RAD MTG (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●		●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9604-0004	●	●		●	●
228	BOLT; CLIP RAD MTG (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9604-0004			●
228	BOLT; CLIP RAD MTG (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0005-	●		●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0005-		●
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9604-9606	●	●		●	●
236	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28080-825-0	02	1	9604-9606			●
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9608	●	●		●	●
236	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9607-9608			●
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	02	1	9609-9810	●	●		●	●
236	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28680-830-0	02	1	9609-9810			●
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	9811-0004	●	●		●	●
236	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9811-0004			●
236	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●		●
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0005-0512		●
236	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0601-	●		●
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
237	NUT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9604-9606	●	●		●	●
237	NUT; BRKT TO FRAME M8	9-09110-408-0	02	1	9604-9606			●
237	NUT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●		●	●
237	NUT; BRKT TO FRAME M8 FLANGE	0-91150-108-0	02	1	9607-0004			●
237	NUT; BRKT TO FRAME M8 FLANGE	0-91150-108-0	02	1	0005-0602	●		●
237	NUT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0005-0602		●
237	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-	●		●
237	NUT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0603-		●
324	BRACKET	1-79998-750-3	01	1	9604-0004	●	●	●	●	●
324	BRACKET	1-79998-750-3	01	1	0005-	●	●	●
333	CLIP; CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12 & 12	1-09709-280-1	01	1	9604-9804	●	●		●	●
333	CLIP; CABLE ID=12 & 12	1-09709-280-1	01	1	9604-9804			●
336	BRACKET; RADIATOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-36183-162-1	01	1	9604-0004	●	●		●	●
336	BRACKET; RADIATOR	1-36183-162-1	01	1	9604-0004			●
336	BRACKET; RADIATOR	1-36183-162-1	01	1	0005-	●		●
336	BRACKET; RADIATOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-36183-162-1	01	1	0005-		●
343	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	05	1	9604-0004	●	●
343	SEAL OD=25 BLACK	1-76798-019-0	05	1	9604-0004				●	●
343	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	05	1	0005-		●
343	SEAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	02	1	9604-0004	●	●
343	SEAL OD=25 BLACK	1-76798-019-0	02	1	9604-0004			●
343	SEAL OD=25 BLACK	1-76798-019-0	02	1	0005-	●		●
343	SEAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	02	1	0005-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
