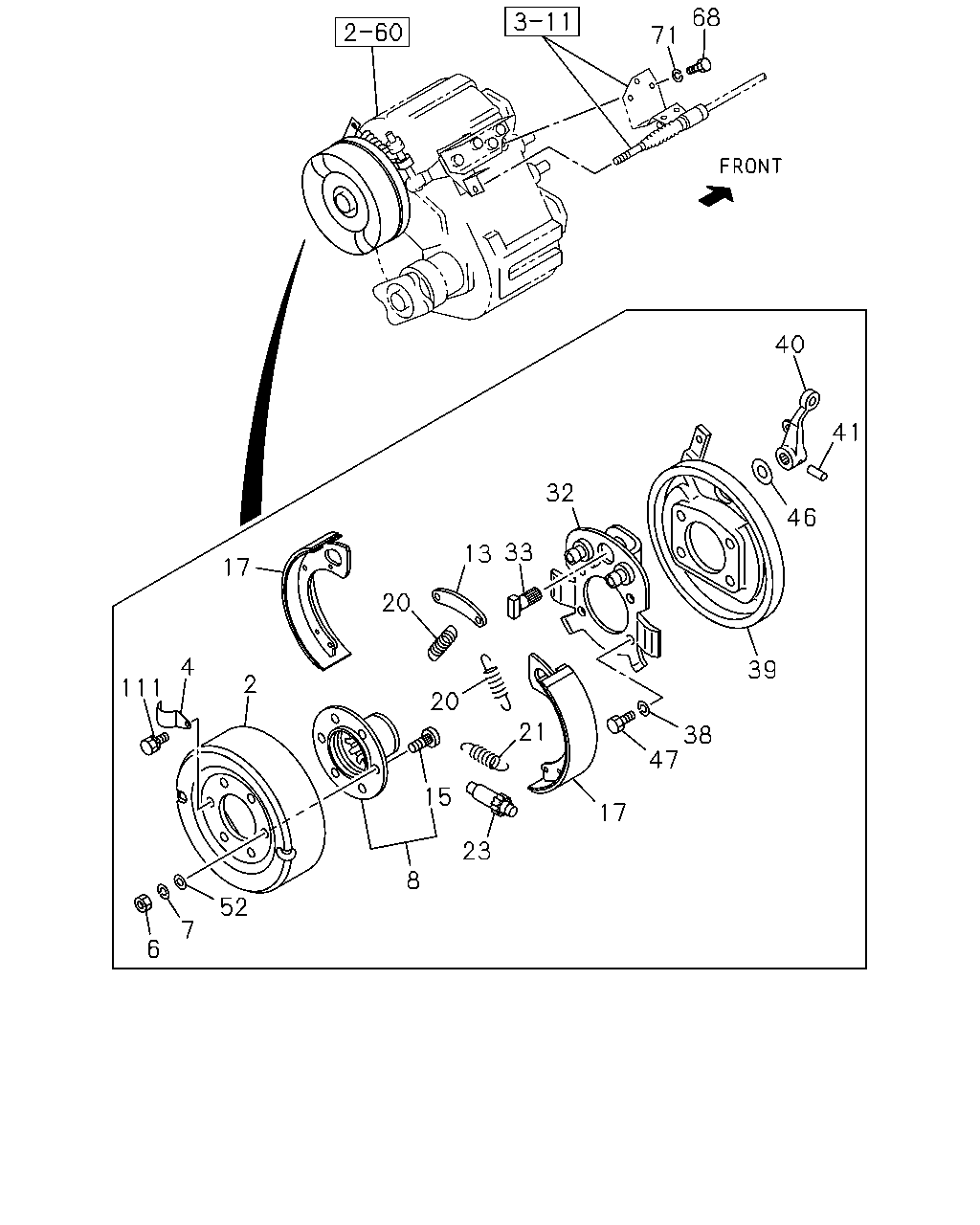

2 |
DRUM; PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
|
1-46211-004-1 |
01 |
1 |
9604- |
| |
4 |
COVER; ADJ HOLE
PARKING BRAKE DRUM 8.5"(B1S)
|
9-46219-015-1 |
02 |
1 |
9604- |
| |
6 |
NUT; FLANGE
PARKING BRAKE DRUM 8.5"(B1S)
M12
|
9-99110-512-0 |
04 |
1 |
9604-0512 |
| |
6 |
NUT; FLANGE
PARKING BRAKE DRUM 8.5"(B1S)
M12
|
0-91110-512-0 |
04 |
1 |
0601- |
| |
7 |
WASHER; LK,FLANGE
PARKING BRAKE DRUM 8.5"(B1S)
ID=12.2
|
9-09150-512-0 |
04 |
1 |
9604-0603 |
| |
7 |
WASHER; LK,FLANGE
PARKING BRAKE DRUM 8.5"(B1S)
ID=12.2
|
0-91510-512-0 |
04 |
1 |
0604- |
| |
8 |
FLANGE; PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
|
1-37240-049-1 |
01 |
1 |
9604- |
| |
13 |
BRACE; PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
|
9-46239-003-0 |
01 |
1 |
9604- |
| |
15 |
BOLT; FLANGE
PARKING BRAKE DRUM 8.5"(B1S)
M12X39
|
1-09046-001-2 |
04 |
1 |
9604-0707 |
| |
15 |
BOLT; FLANGE
PARKING BRAKE DRUM 8.5"(B1S)
M12X39
|
8-97365-446-0 |
04 |
1 |
0708- |
| |
17 |
SHOE; PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
|
1-46220-024-0 |
02 |
1 |
9604- |
| |
20 |
SPRING; RETURN,SECONDARY,PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
|
9-09942-567-1 |
02 |
1 |
9604- |
| |
21 |
SPRING; RETURN,PARKING BRK SHOE
PARKING BRAKE DRUM 8.5"(B1S)
|
1-09583-268-0 |
01 |
1 |
9604- |
| |
23 |
SCREW; ADJ,PARKING BRK SHOE
PARKING BRAKE DRUM 8.5"(B1S)
|
9-46240-008-0 |
01 |
1 |
9604- |
| |
32 |
PLATE; SUPPORT,PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
|
1-46213-023-0 |
01 |
1 |
9604- |
| |
33 |
SHAFT; CAM,PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
|
1-46251-005-0 |
01 |
1 |
9604- |
| |
38 |
WASHER; LK,SUPPORT PLATE
PARKING BRAKE DRUM 8.5"(B1S)
ID=14.2
|
9-09150-514-0 |
04 |
1 |
9604-0603 |
| |
38 |
WASHER; LK,SUPPORT PLATE
PARKING BRAKE DRUM 8.5"(B1S)
ID=14.2
|
0-91510-514-0 |
04 |
1 |
0604- |
| |
39 |
COVER; DUST,PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
|
1-46213-020-0 |
01 |
1 |
9604- |
| |
40 |
LEVER; CM/SHF,PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
|
1-46252-003-0 |
01 |
1 |
9604- |
| |
41 |
PIN; KNOCK,LEVER
PARKING BRAKE DRUM 8.5"(B1S)
|
9-09878-594-0 |
01 |
1 |
9604- |
| |
46 |
WASHER; LEVER
PARKING BRAKE DRUM 8.5"(B1S)
|
9-09855-367-0 |
01 |
1 |
9604- |
| |
47 |
BOLT; SUPPORT PLATE
PARKING BRAKE DRUM 8.5"(B1S)
M14X32
|
0-23801-432-0 |
04 |
1 |
9604- |
| |
52 |
WASHER; PL
PARKING BRAKE DRUM 8.5"(B1S)
ID=12.5
|
9-09164-512-0 |
04 |
1 |
9604- |
| |
68 |
BOLT; BRKT,PARKING BRK CONT
PARKING BRAKE DRUM 8.5"(B1S)
M10X20
|
0-23801-020-0 |
03 |
1 |
9604- |
| |
71 |
WASHER; LK,BRKT FIX,PARKING
PARKING BRAKE DRUM 8.5"(B1S)
ID=10.2
|
9-09150-510-0 |
03 |
1 |
9604-0603 |
| |
71 |
WASHER; LK,BRKT FIX,PARKING
PARKING BRAKE DRUM 8.5"(B1S)
ID=10.2
|
0-91510-510-0 |
03 |
1 |
0604- |
| |
111 |
BOLT; COVER,CHECK HOLE
PARKING BRAKE DRUM 8.5"(B1S)
M8X18 W/LK WASHER
|
0-50040-818-0 |
02 |
1 |
9604-0906 |
| |
111 |
BOLT; COVER,CHECK HOLE
PARKING BRAKE DRUM 8.5"(B1S)
M8X18 W/LK WASHER
|
0-50540-818-0 |
02 |
1 |
0907- |
