Isuzu WW
▶
TRUCKS
▶
EXY
▶
11116 - EXY AUST JNLT05 EXC.HYDRAULIC RETARDER
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

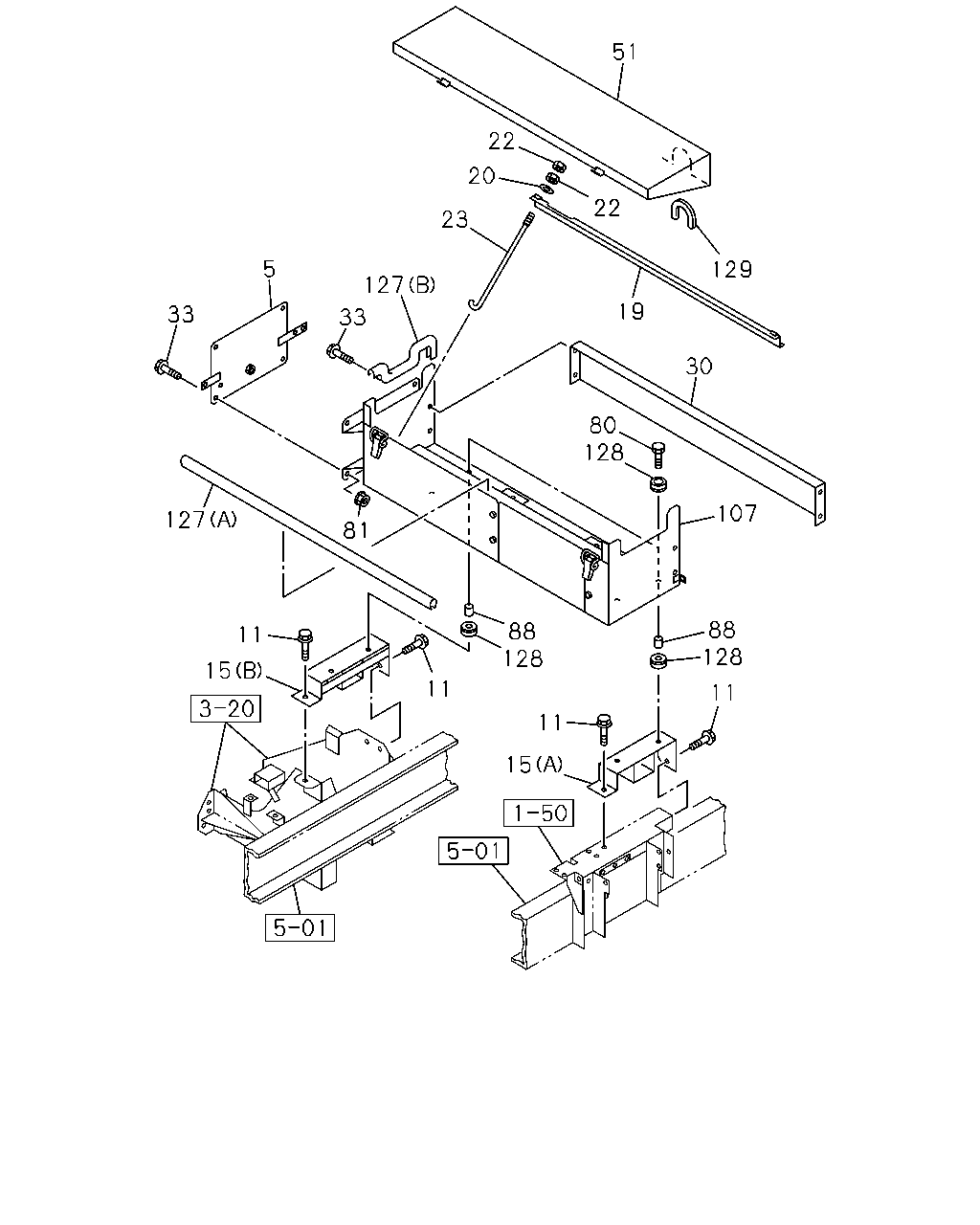

5-20 — BATTERY CARRIER
(#37184) — 19 parça
51
22
20
23
22
19
129
30
80
128
107
88
128
11
11
128
88
11
15
15
11
127
33
5
33
127
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
BRACKET; BATTERY RELAY
8-98056-143-1
01
1
0710-
11
BOLT; BRKT FIX
M12X35 FLANGE
0-28051-235-0
04
1
0710-
15
BRACKET; BATTERY
(A)
8-98080-835-0
01
1
0710-
15
BRACKET; BATTERY
(B)
8-98080-836-0
01
1
0710-
19
STAY; BATTERY
1-53618-050-0
01
1
0710-
20
WASHER; PL,STAY
ID=8.4 OD=22
0-91614-708-0
02
1
0710-
22
NUT; STAY
M8
0-91110-508-0
04
1
0710-
23
BOLT; STAY
L=260
1-53616-109-0
02
1
0710-
30
PLATE; BATTERY
1-53619-104-0
01
1
0710-
33
BOLT; PLATE TO BRKT
M8X20 FLANGE
0-28050-820-0
04
1
0710-
51
COVER; BATTERY
8-98080-521-1
01
1
0710-
80
BOLT; BATTERY
M10X50 FLANGE
0-28051-050-0
04
1
0710-
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
0710-
88
TUBE; BATTERY
L=22
9-22159-024-0
04
1
0710-
107
BOX; BATTERY
8-98048-991-2
01
1
0710-
127
FINISHER; BATTERY BOX
(A) L=985
1-79937-721-2
01
1
0710-
127
FINISHER; BATTERY BOX
(B) SERVICED BY L=500
1-79937-746-0
02
1
0710-
128
RUBBER; SUPPORT
OD=40
1-22159-094-0
08
1
0710-
129
FINISHER; COVER
L=250 SERVICED BY L=500
1-79937-746-0
02
1
0710-
