◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11116 - EXY AUST JNLT05 EXC.HYDRAULIC RETARDER ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#37180) — 252 parça
çizim 180635
69 72 202 202 203 204 205 65 204 203 70
BalonParca AdiParca NoAdetTipApplied Date
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 0710-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 0710-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 0710-
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-492-1 01 1 0710-
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-493-1 01 1 0710-
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 23 1 0710-
202 NUT; S/ABS
(C) M10 FLANGE 		0-91150-110-0 02 1 0710-1007
202 NUT; S/ABS
(C) M10 FLANGE 		0-91180-110-0 02 1 1008-
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 0710-
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 0710-
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 0710-
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 0710-
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 0710-
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 0710-

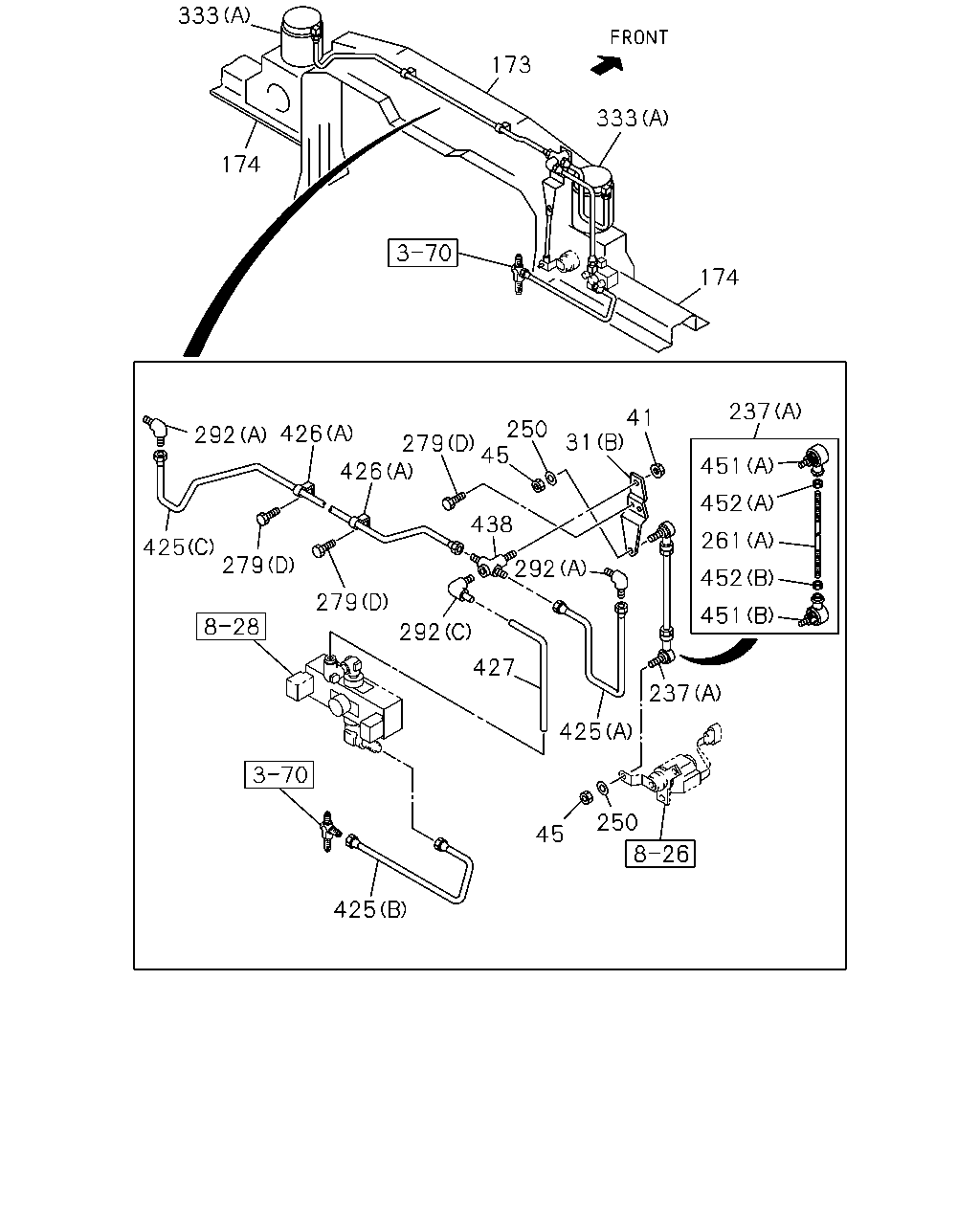

çizim 180659
333 173 333 174 174 237 41 31 250 279 45 426 292 451 426 452 438 261 425 279 292 452 279 451 292 427 237 425 250 45 425
BalonParca AdiParca NoAdetTipApplied Date
31 BRACKET; CAB
(A) 		1-44226-178-1 01 1 0710-
31 BRACKET; CAB
(D) 		1-53453-224-5 01 1 0710-
31 BRACKET; CAB
(D) 		1-53453-225-3 01 1 0710-
31 BRACKET; CAB
(B) 		1-53458-374-1 01 1 0710-
31 BRACKET; CAB
(C) 		8-98079-059-0 01 1 0710-
41 NUT
M12 FLANGE 		0-91180-212-0 01 1 0710-
45 NUT
M5 		0-91110-505-0 04 1 0710-
173 MEMBER; CAB MTG RR 8-98063-227-1 01 1 0710-
174 OUTRIGGER 1-53456-278-3 01 1 0710-1003
174 OUTRIGGER 8-98158-646-0 01 1 1004-
174 OUTRIGGER 1-53456-418-3 01 1 0710-
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 0710-
237 ROD ASM; LATERAL
(C) 		1-33671-987-0 01 1 0710-
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 0710-
250 WASHER; LK
ID=5.1 		0-91510-505-0 04 1 0710-
261 ROD; LINK
(B) 		0-84100-506-0 01 1 0710-
261 ROD; LINK
(A) 		9-08410-514-0 01 1 0710-
279 BOLT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 0710-
279 BOLT
(E) M8X60 FLANGE 		0-28050-860-0 02 1 0710-
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 0710-1510
279 BOLT
(B) M12X40 FLANGE 		8-98270-173-0 04 1 1511-
279 BOLT
(D) M8X20 FLANGE 		0-28650-820-0 04 1 0710-
279 BOLT
(F) M8X22 W/LK&PL WASHER 		1-09030-042-0 02 1 0710-
279 BOLT
(A) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 0710-
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0710-
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 0710-
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0710-
292 CONNECTOR; CAB SUSPENSION
(D) 		1-09661-577-0 01 1 0710-
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 0710-
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 0710-
333 SPRING
(B) 		1-52110-142-4 02 1 0710-
333 SPRING
(A) 		1-52110-143-4 02 1 0710-
425 PIPE ASM; AIR
(A) L=298 		1-47494-961-1 01 1 0710-1003
425 PIPE ASM; AIR
(A) L=291 		8-98095-656-0 01 1 1004-
425 PIPE ASM; AIR
(C) L=1149 SERVICED BY L=1200 		1-47428-816-0 01 1 0710-
425 PIPE ASM; AIR
(B) L=330 		8-98073-872-0 01 1 0710-
426 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 0710-
426 CLIP
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-
426 CLIP
(B) ID=9.5 		5-09709-020-0 01 1 0710-
426 CLIP
(D) ID=11 H=20 L=20 		8-98033-780-0 01 1 0710-
427 TUBE
SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0710-0907
427 TUBE
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0908-
427 TUBE
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0908-
438 UNION
M12X2 & PT1/8 3WAY 		1-09656-655-0 01 1 0710-
451 JOINT; BALL
(B) 		1-09760-103-2 02 1 0710-
451 JOINT; BALL
(A) 		1-09760-104-2 02 1 0710-
452 NUT; BALL JOINT
(A) M5 		0-91110-505-0 02 1 0710-
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 02 1 0710-

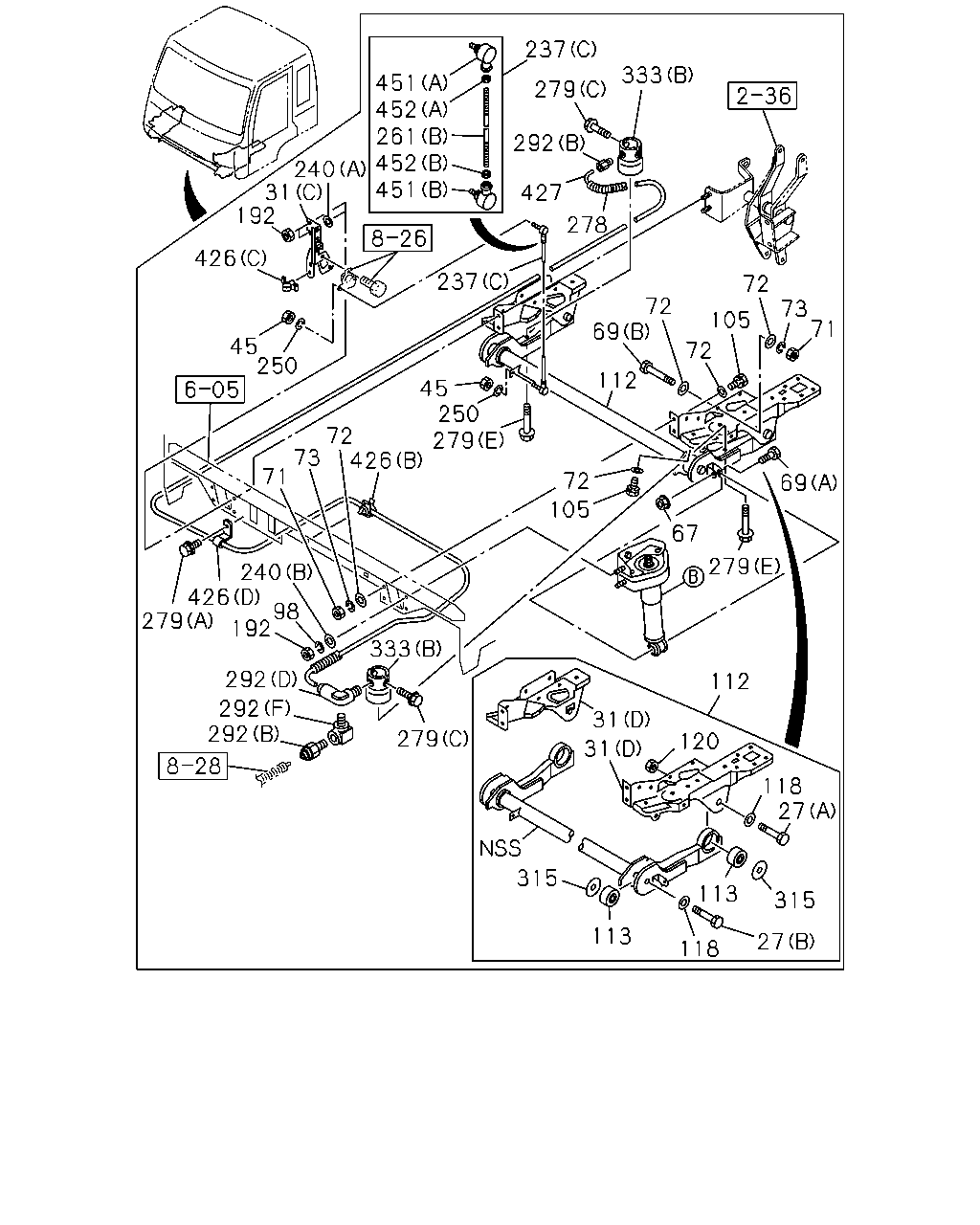

çizim 180661
237 333 451 452 261 452 451 279 292 240 31 192 427 278 426 237 72 72 69 73 71 105 45 250 72 112 45 250 279 72 73 426 71 72 69 105 67 279 240 426 279 98 192 333 292 112 292 292 31 279 120 31 118 27 315 113 315 113 27 118
BalonParca AdiParca NoAdetTipApplied Date
27 BOLT; BUSHING
(B) M18X120 		1-09000-442-1 02 1 0710-
27 BOLT; BUSHING
(A) M18X90 		9-91066-890-0 02 1 0710-
31 BRACKET; CAB
(A) 		1-44226-178-1 01 1 0710-
31 BRACKET; CAB
(D) 		1-53453-224-5 01 1 0710-
31 BRACKET; CAB
(D) 		1-53453-225-3 01 1 0710-
31 BRACKET; CAB
(B) 		1-53458-374-1 01 1 0710-
31 BRACKET; CAB
(C) 		8-98079-059-0 01 1 0710-
45 NUT
M5 		0-91110-505-0 04 1 0710-
67 NUT; S/ABS,CAB FRT SUSPENSION
M12 FLANGE 		0-91180-212-0 02 1 0710-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 0710-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 0710-
71 NUT; BRKT TO CAB FRAME
M10 		1-09984-142-0 06 1 0710-
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 23 1 0710-
73 WASHER; LK,BRKT TO CAB FRAME
ID=10 		1-09985-185-0 12 1 0710-
98 WASHER; LK,BRKT
ID=10 		1-09985-185-0 04 1 0710-
105 BOLT; BRKT TO CAB FRAME
M10X30 W/SP WASHER 		1-09980-546-0 08 1 0710-
112 ARM ASM; LINK,CAB FRT SUSP 8-98077-409-1 01 1 0710-
113 BUSHING; RUBBER,FLOATING LINK ARM,W/PI 1-53458-714-0 04 1 0710-
118 WASHER; PL,STOPPER RUBBER,LINK ARM
ID=19 OD=30 		1-09503-279-0 04 1 0710-
120 NUT; STOPPER RUBBER,LINK ARM
M18 		0-91110-518-0 02 1 0710-
192 NUT; BRKT FIX
M10 		1-09984-142-0 02 1 0710-
192 NUT; BRKT FIX
M10 		1-09984-142-0 04 1 0710-
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 0710-
237 ROD ASM; LATERAL
(C) 		1-33671-987-0 01 1 0710-
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 0710-
240 WASHER; PL,BRKT
(C) ID=12.5 OD=22 		0-91610-512-0 02 1 0710-
240 WASHER; PL,BRKT
(A) ID=10.5 OD=18 		1-09985-173-0 01 1 0710-
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 0710-
250 WASHER; LK
ID=5.1 		0-91510-505-0 04 1 0710-
261 ROD; LINK
(B) 		0-84100-506-0 01 1 0710-
261 ROD; LINK
(A) 		9-08410-514-0 01 1 0710-
278 COVER
L=1200 SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0710-
279 BOLT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 0710-
279 BOLT
(E) M8X60 FLANGE 		0-28050-860-0 02 1 0710-
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 0710-1510
279 BOLT
(B) M12X40 FLANGE 		8-98270-173-0 04 1 1511-
279 BOLT
(D) M8X20 FLANGE 		0-28650-820-0 04 1 0710-
279 BOLT
(F) M8X22 W/LK&PL WASHER 		1-09030-042-0 02 1 0710-
279 BOLT
(A) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 0710-
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0710-
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 0710-
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0710-
292 CONNECTOR; CAB SUSPENSION
(D) 		1-09661-577-0 01 1 0710-
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 0710-
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 0710-
315 WASHER; CAB MTG
ID=34.5 		1-53458-281-1 04 1 0710-
333 SPRING
(B) 		1-52110-142-4 02 1 0710-
333 SPRING
(A) 		1-52110-143-4 02 1 0710-
426 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 0710-
426 CLIP
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-
426 CLIP
(B) ID=9.5 		5-09709-020-0 01 1 0710-
426 CLIP
(D) ID=11 H=20 L=20 		8-98033-780-0 01 1 0710-
427 TUBE
SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0710-0907
427 TUBE
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0908-
427 TUBE
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0908-
451 JOINT; BALL
(B) 		1-09760-103-2 02 1 0710-
451 JOINT; BALL
(A) 		1-09760-104-2 02 1 0710-
452 NUT; BALL JOINT
(A) M5 		0-91110-505-0 02 1 0710-
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 02 1 0710-
çizim 180662
294 202 202 203 204 205 204 203 201 173 203 204 205 174 205 204 203 202 202
BalonParca AdiParca NoAdetTipApplied Date
173 MEMBER; CAB MTG RR 8-98063-227-1 01 1 0710-
174 OUTRIGGER 1-53456-278-3 01 1 0710-1003
174 OUTRIGGER 8-98158-646-0 01 1 1004-
174 OUTRIGGER 1-53456-418-3 01 1 0710-
201 ABSORBER ASM; SHOCK,RR MTG 1-51630-728-1 02 1 0710-
202 NUT; S/ABS
(C) M10 FLANGE 		0-91150-110-0 02 1 0710-1007
202 NUT; S/ABS
(C) M10 FLANGE 		0-91180-110-0 02 1 1008-
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 0710-
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 0710-
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 0710-
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 0710-
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 0710-
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 0710-
294 MEMBER; FLOATING 1-53454-949-2 01 1 0710-

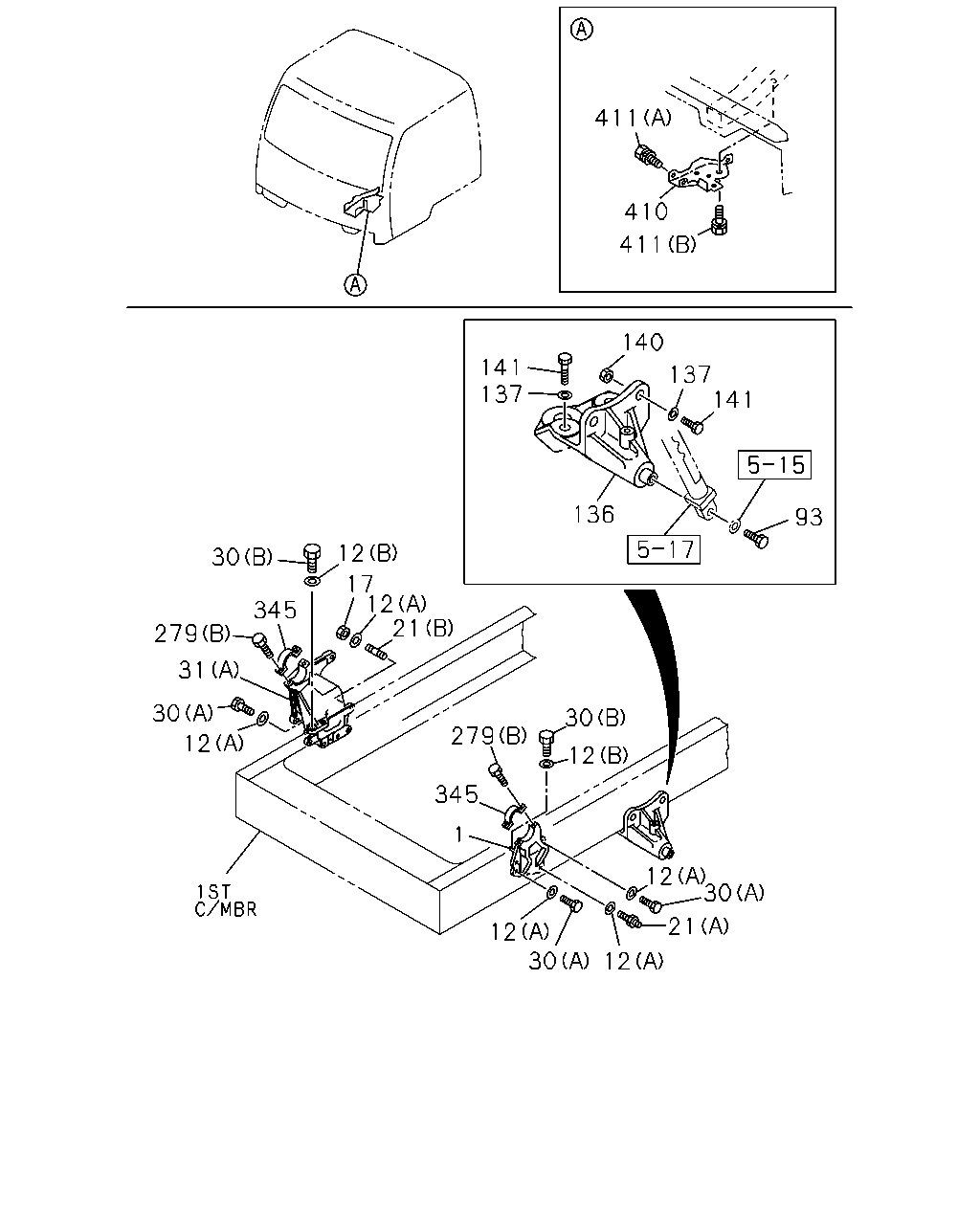

çizim 180663
411 410 411 140 137 141 93 136 137 141 12 17 12 21 30 279 31 30 12 279 345 1 30 12 12 30 21 12 30 12 345
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; CAB MTG 1-53453-312-0 01 1 0710-0802
1 BRACKET; CAB MTG 8-98094-536-0 01 1 0803-
12 WASHER; LK,BRKT
(A) ID=16.2 		1-09503-223-0 11 1 0710-0907
12 WASHER; LK,BRKT
(A) ID=16.2 		1-09503-316-0 11 1 0908-
12 WASHER; LK,BRKT
(B) ID=15 		9-09651-069-0 04 1 0710-0907
12 WASHER; LK,BRKT
(B) ID=15 		8-98010-627-1 04 1 0908-
17 NUT; BRKT,CAB TILT
M16 		0-91110-516-0 01 1 0710-
21 STUD; BRKT,CAB TILT
(A) M12X20,M16X45 L=76 		1-09029-090-0 02 1 0710-
21 STUD; BRKT,CAB TILT
(B) M16X50 L=74 		1-09300-117-0 01 1 0710-
30 BOLT; CAB FRT FOOT
(A) M14X60 		0-20951-460-0 02 1 0710-
30 BOLT; CAB FRT FOOT
(B) M14X45 		9-92061-445-0 02 1 0710-1003
30 BOLT; CAB FRT FOOT
(B) M14X45 		0-20951-445-0 02 1 1004-
30 BOLT; CAB FRT FOOT
(A) M16X45 		9-92061-645-0 08 1 0710-0907
30 BOLT; CAB FRT FOOT
(A) M16X45 		0-20951-645-0 08 1 0908-
31 BRACKET; CAB
(A) 		1-44226-178-1 01 1 0710-
31 BRACKET; CAB
(D) 		1-53453-224-5 01 1 0710-
31 BRACKET; CAB
(D) 		1-53453-225-3 01 1 0710-
31 BRACKET; CAB
(B) 		1-53458-374-1 01 1 0710-
31 BRACKET; CAB
(C) 		8-98079-059-0 01 1 0710-
93 BOLT; PIN
M10X30 		1-09000-283-0 01 1 0710-
136 BRACKET; OIL CYL 1-53458-829-0 01 1 0710-
137 WASHER; PL,BRKT
ID=15 		9-09651-069-0 04 1 0710-1201
137 WASHER; PL,BRKT
ID=15 		8-98010-627-1 04 1 1202-
140 NUT; BRKT
M14 		0-91110-514-0 02 1 0710-
141 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 0710-
279 BOLT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 0710-
279 BOLT
(E) M8X60 FLANGE 		0-28050-860-0 02 1 0710-
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 0710-1510
279 BOLT
(B) M12X40 FLANGE 		8-98270-173-0 04 1 1511-
279 BOLT
(D) M8X20 FLANGE 		0-28650-820-0 04 1 0710-
279 BOLT
(F) M8X22 W/LK&PL WASHER 		1-09030-042-0 02 1 0710-
279 BOLT
(A) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 0710-
345 CAP; CAB 1-53458-336-3 02 1 0710-
410 REINFORCEMENT; CAB TILT 1-62570-864-0 01 1 0710-
411 BOLT; REINFORCEMENT
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0710-0904
411 BOLT; REINFORCEMENT
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
411 BOLT; REINFORCEMENT
(B) M10X20 W/LK&PL WASHER 		8-94279-211-0 01 1 0710-

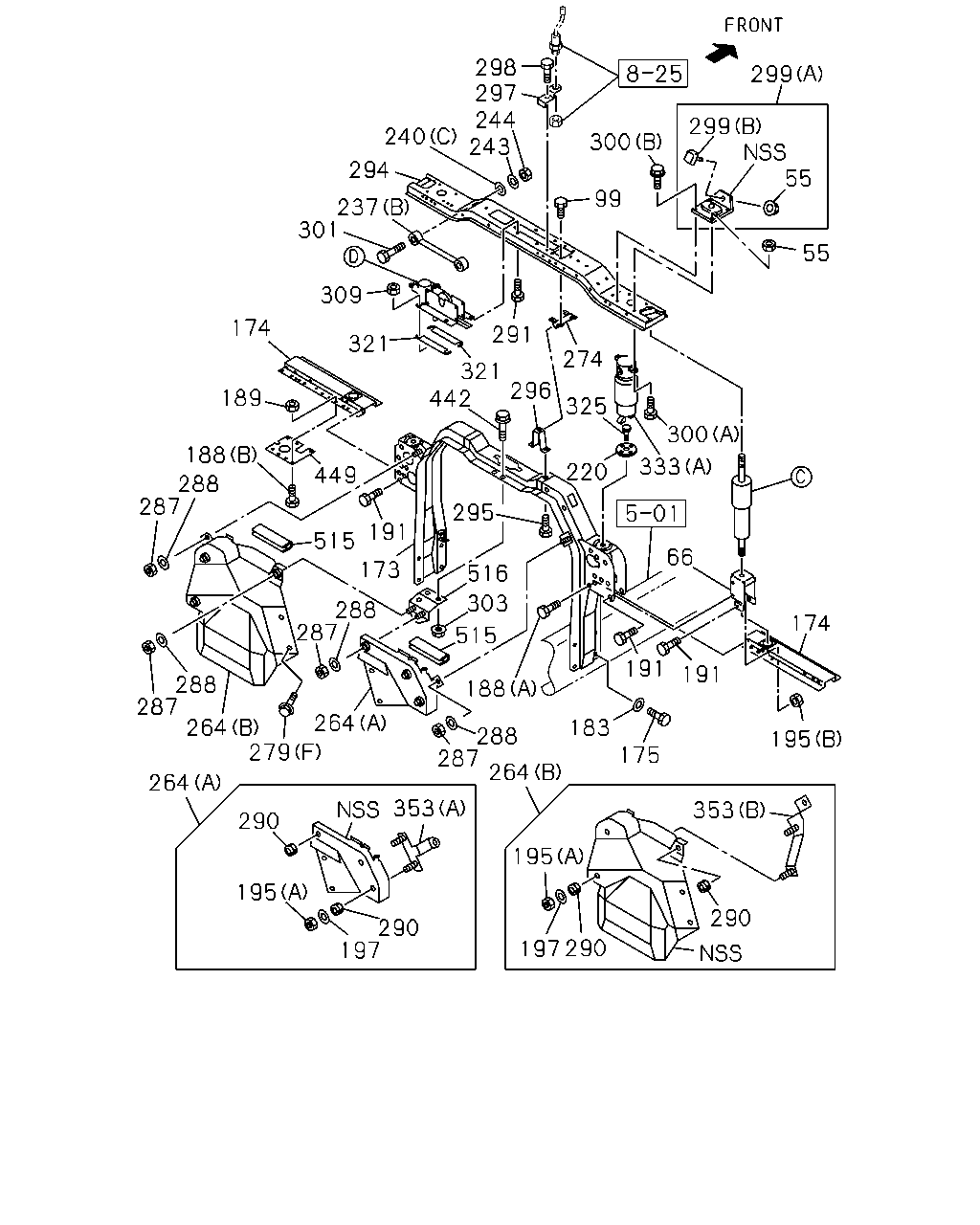

çizim 180676
298 297 244 243 240 294 237 301 309 174 189 188 288 287 449 321 442 321 291 296 325 274 99 300 299 299 55 55 300 333 220 295 191 515 173 288 287 288 287 264 264 279 264 290 195 290 197 353 287 288 264 195 197 290 290 353 195 174 191 191 183 175 188 515 303 516 66
BalonParca AdiParca NoAdetTipApplied Date
55 NUT; RUBBER
M8 FLANGE 		0-91180-108-0 06 1 0710-
66 BRACKET; S/ABS 1-53458-755-1 01 1 0710-1204
66 BRACKET; S/ABS 8-98214-572-0 01 1 1205-
66 BRACKET; S/ABS 1-53458-786-0 01 1 0710-
99 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0710-
173 MEMBER; CAB MTG RR 8-98063-227-1 01 1 0710-
174 OUTRIGGER 1-53456-278-3 01 1 0710-1003
174 OUTRIGGER 8-98158-646-0 01 1 1004-
174 OUTRIGGER 1-53456-418-3 01 1 0710-
175 BOLT; MEMBER TO FRAME
M14X40 		0-20951-440-0 08 1 0710-
183 WASHER; PL,MEMBER
ID=15 		9-09651-069-0 08 1 0710-0907
183 WASHER; PL,MEMBER
ID=15 		8-98010-627-1 08 1 0908-
188 BOLT; OUTRIGGER
(B) M10X20 FLANGE 		0-28651-020-0 04 1 0710-
188 BOLT; OUTRIGGER
(A) M10X25 FLANGE 		0-28651-025-0 08 1 0710-
189 NUT; OUTRIGGER
M10 FLANGE 		0-91180-210-0 04 1 0710-
191 BOLT; BRKT FIX
M10X25 FLANGE 		0-28651-025-0 07 1 0710-
195 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 04 1 0710-
195 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-210-0 04 1 0710-
197 WASHER; PL
ID=8.4 OD=26 		0-91614-808-0 04 1 0710-
220 GUIDE; SPR 1-53458-648-1 02 1 0710-
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 0710-
237 ROD ASM; LATERAL
(C) 		1-33671-987-0 01 1 0710-
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 0710-
240 WASHER; PL,BRKT
(C) ID=12.5 OD=22 		0-91610-512-0 02 1 0710-
240 WASHER; PL,BRKT
(A) ID=10.5 OD=18 		1-09985-173-0 01 1 0710-
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 0710-
243 WASHER; LK,LATERAL ROD
ID=12.2 		0-91510-512-0 02 1 0710-
244 NUT; LATERAL ROD
M12 		0-91110-512-0 02 1 0710-
264 PANEL; BACK
(A) 		8-98087-927-0 01 1 0710-
264 PANEL; BACK
(B) 		8-98087-929-0 01 1 0710-
274 PIN 1-53458-996-0 01 1 0710-
279 BOLT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 0710-
279 BOLT
(E) M8X60 FLANGE 		0-28050-860-0 02 1 0710-
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 0710-1510
279 BOLT
(B) M12X40 FLANGE 		8-98270-173-0 04 1 1511-
279 BOLT
(D) M8X20 FLANGE 		0-28650-820-0 04 1 0710-
279 BOLT
(F) M8X22 W/LK&PL WASHER 		1-09030-042-0 02 1 0710-
279 BOLT
(A) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 0710-
287 NUT
M8 FLANGE 		0-91180-108-0 04 1 0710-
288 WASHER; PL
ID=8.4 OD=26 		0-91614-808-0 02 1 0710-
290 RUBBER; MTG 1-53459-702-1 06 1 0710-
291 BOLT; RATCH
M10X25 FLANGE 		0-28651-025-0 04 1 0710-
294 MEMBER; FLOATING 1-53454-949-2 01 1 0710-
295 BOLT; STOPPER,UPR
M10X20 FLANGE 		0-28651-020-0 02 1 0710-
296 STOPPER; UPR 1-53458-973-1 01 1 0710-
297 BRACKET; LIMIT SW 1-53458-782-0 01 1 0710-
298 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0710-
299 RUBBER; MTG
(B) 		1-53366-155-0 02 1 0710-
299 RUBBER; MTG
(A) 		1-53366-194-0 02 1 0710-
300 BOLT; MTG RUBBER
(B) M8X16 FLANGE 		0-28050-816-0 04 1 0710-
300 BOLT; MTG RUBBER
(A) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 0710-
301 PIN; LATERAL ROD
M12X57.5 		1-53459-498-1 02 1 0710-
303 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-
309 NUT
M10 FLANGE 		0-91180-210-0 04 1 0710-
321 SHIM; FRT CAB MTG 1-53458-629-1 04 1 0710-
325 BOLT; GUIDE NUT
M8X20 FLANGE 		0-28650-820-0 02 1 0710-
333 SPRING
(B) 		1-52110-142-4 02 1 0710-
333 SPRING
(A) 		1-52110-143-4 02 1 0710-
353 BRACKET
(A) 		8-98087-967-0 01 1 0710-
353 BRACKET
(B) 		8-98087-968-0 01 1 0710-
442 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0710-
449 BRACKET; OUTRIGGER 1-53456-279-0 01 1 0710-
515 FINISHER; BACK PANEL
L=150 		1-76710-004-0 02 1 0710-
516 BRACKET; PANEL 8-98073-593-0 01 1 0710-

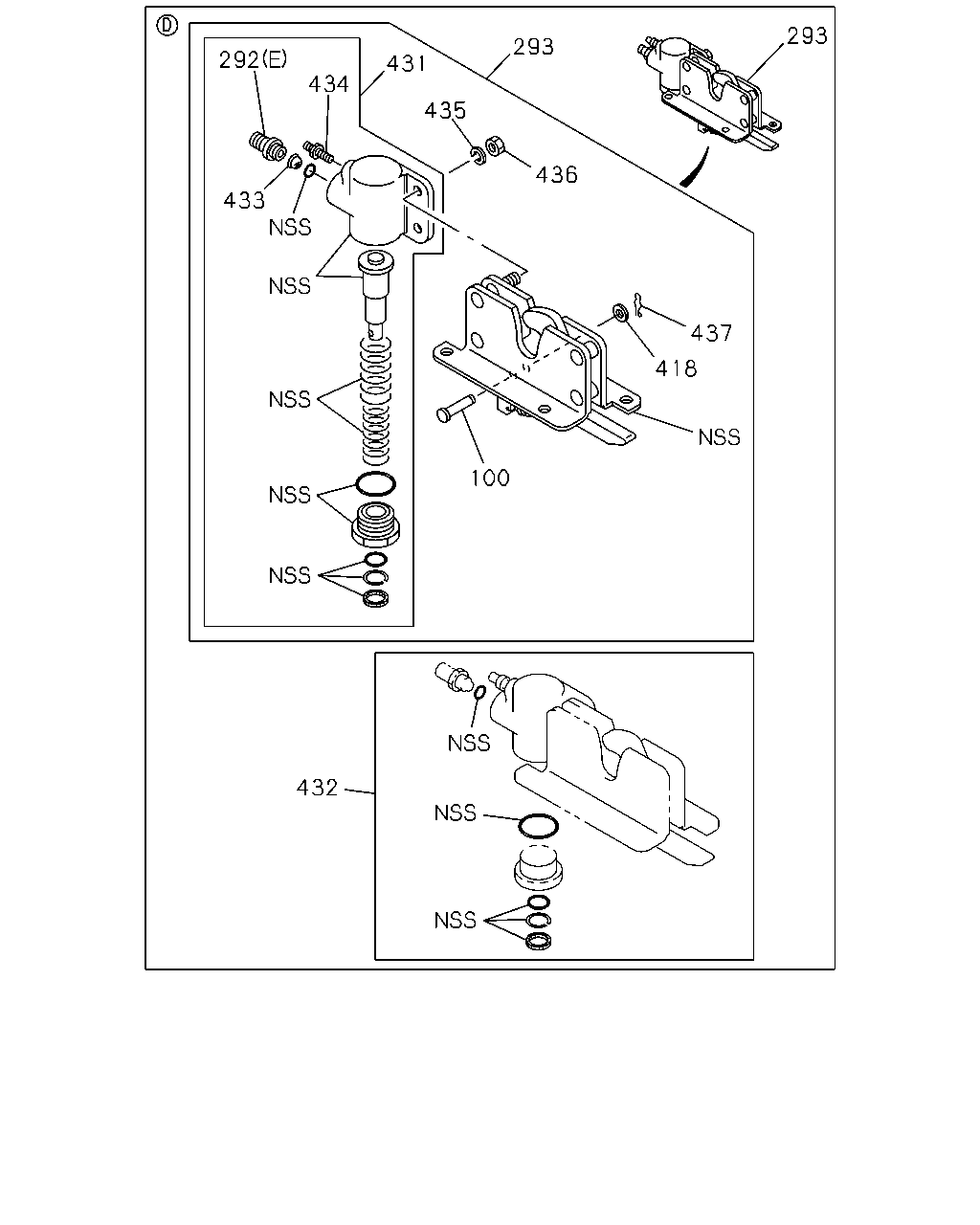

çizim 180687
293 293 435 431 434 292 433 436 437 418 100 432
BalonParca AdiParca NoAdetTipApplied Date
100 PIN; JOINT 1-53458-831-0 01 1 0710-
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0710-
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 0710-
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0710-
292 CONNECTOR; CAB SUSPENSION
(D) 		1-09661-577-0 01 1 0710-
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 0710-
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 0710-
293 RATCH; CAB SUSP,RR 1-53458-918-0 01 1 0710-
418 WASHER; PL,PIN 1-53458-059-0 01 1 0710-
431 CYLINDER; AIR,RATCH 1-53457-013-0 01 1 0710-
432 REPAIR KIT; AIR CYL 1-85579-052-0 01 1 0710-
433 FILTER; AIR CYL 1-53458-048-0 01 1 0710-
434 SCREW; AIR BLEEDER 1-53458-529-0 01 1 0710-
435 WASHER; LK,AIR CYL
ID=10.2 		9-09150-510-0 02 1 0710-
436 NUT; AIR CYL 1-53458-528-0 02 1 0710-
437 PIN; SNAP 1-53458-526-0 01 1 0710-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
