◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10705 - FVR(LHD) EXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#3718) — 495 parça

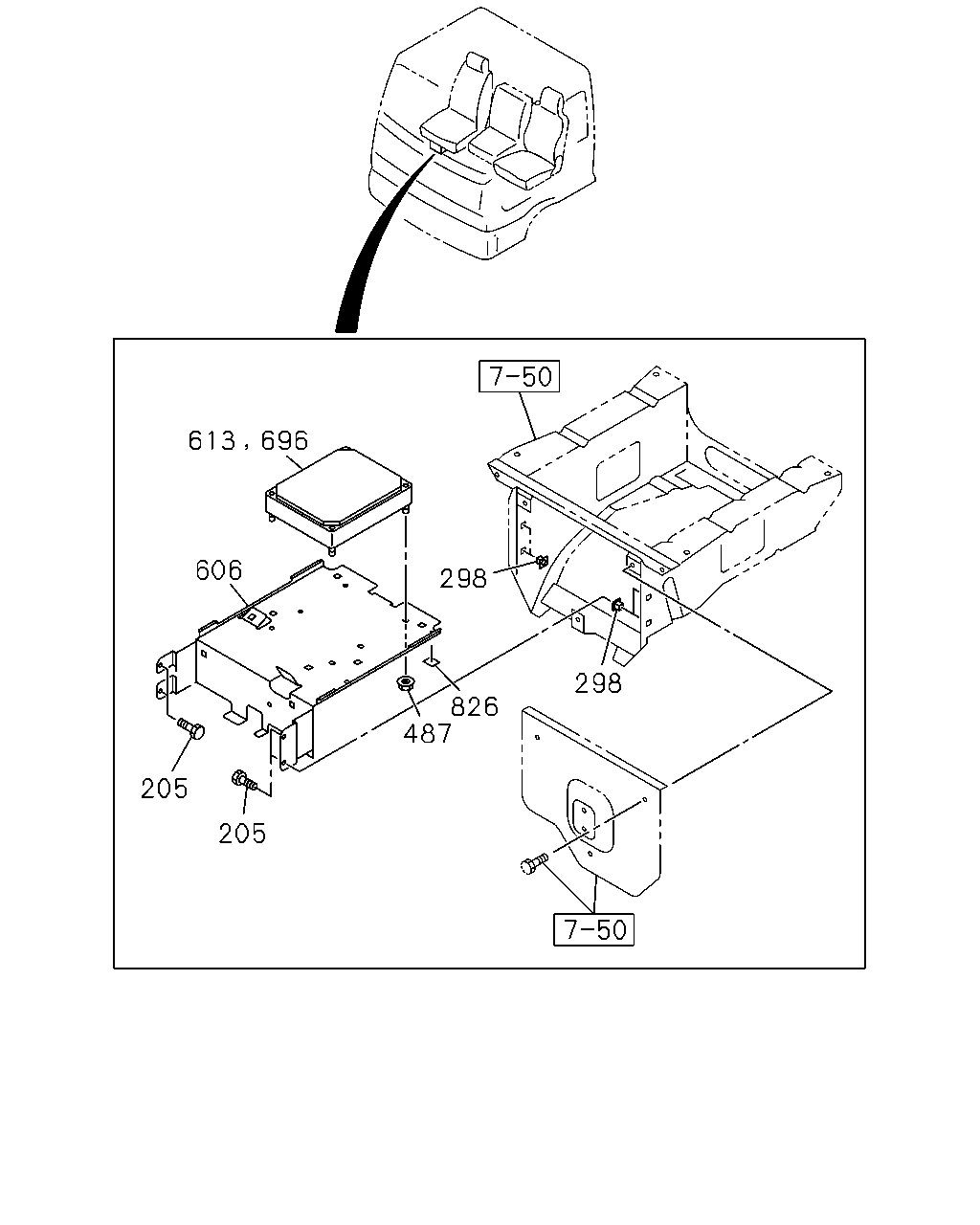

çizim 6161
613 696 606 298 298 826 487 205 205
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
205 SCREW; BRKT
EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 9805-0004 ●
205 SCREW; BRKT
EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0005-0607 ● ●
205 SCREW; BRKT
A/T<X9D> M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0005-0607 ●
205 SCREW; BRKT
EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0608- ● ●
205 SCREW; BRKT
A/T<X9D> M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0608- ●
205 SCREW; BRKT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0608- ●
298 GROMMET; SCREW
EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8 		8-94222-314-0 04 1 9710-9803 ●
298 GROMMET; SCREW
EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8 		8-94222-314-0 04 1 9805-0004 ●
298 GROMMET; SCREW
EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8 		8-94222-314-0 04 1 0005-0607 ● ●
298 GROMMET; SCREW
A/T<X9D> D=9.7X9.7 L=8 		8-94222-314-0 04 1 0005-0607 ●
298 GROMMET; SCREW
EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8 		8-94222-314-0 04 1 0608- ● ●
298 GROMMET; SCREW
A/T<X9D> D=9.7X9.7 L=8 		8-94222-314-0 04 1 0608- ●
298 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0608- ●
487 NUT
EURO2 SPECIFICATION<THN> M6 FLANGE 		0-91150-106-0 04 1 9710-9803 ●
487 NUT
EURO2 SPECIFICATION<THN> M6 FLANGE 		0-91150-106-0 04 1 9805-0602 ●
487 NUT
EURO2 SPECIFICATION<THN> M6 FLANGE 		0-91180-106-0 04 1 0603- ●
606 BRACKET; CONT UNIT
EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ> 		1-75558-552-9 01 1 0608- ●
606 BRACKET; CONT UNIT
EURO2 SPECIFICATION<THN> 		1-75558-534-5 01 1 9710-9803 ●
606 BRACKET; CONT UNIT
EURO2 SPECIFICATION<THN> 		1-75558-534-7 01 1 9805-0004 ●
606 BRACKET; CONT UNIT
EURO2 SPECIFICATION<THN> 		1-75558-534-9 01 1 0005- ● ●
613 CONTROL UNIT; ENG
EURO2 SPECIFICATION<THN> 		1-80110-178-0 01 1 9710- ●
613 CONTROL UNIT; ENG
EURO2 SPECIFICATION<THN> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-80110-441-0 01 1 9808-0004 ●
613 CONTROL UNIT; ENG
EURO2 SPECIFICATION<THN> 		1-80110-441-0 01 1 0005- ●
696 CONTROL UNIT 8-94392-865-1 01 1 0608- ●
826 SEAL; NOISE INSULATION
EURO2 SPECIFICATION<THN> 30X30 		8-97866-626-0 03 1 9710-9803 ●
826 SEAL; NOISE INSULATION
EURO2 SPECIFICATION<THN> 30X30 		8-97866-626-0 03 1 9805-0004 ●
826 SEAL; NOISE INSULATION
EURO2 SPECIFICATION<THN> 30X30 		8-97866-626-0 03 1 0005-0309 ● ●
826 SEAL; NOISE INSULATION
A/T<X9D> 30X30 		8-97866-626-0 03 1 0005-0309 ●
826 SEAL; NOISE INSULATION
EURO2 SPECIFICATION<THN> 30X30 		1-74998-128-1 03 1 0310-0607 ● ●
826 SEAL; NOISE INSULATION
A/T<X9D> 30X30 		1-74998-128-1 03 1 0310-0607 ●
826 SEAL; NOISE INSULATION
EURO2 SPECIFICATION<THN> 30X30 		1-74998-128-1 03 1 0608-0908 ● ●
826 SEAL; NOISE INSULATION
A/T<X9D> 30X30 		1-74998-128-1 03 1 0608-0908 ●
826 SEAL; NOISE INSULATION
30X30 		1-74998-128-1 03 1 0608-0908 ●
826 SEAL; NOISE INSULATION
EURO2 SPECIFICATION<THN> 30X30 		8-98142-344-0 03 1 0909- ● ●
826 SEAL; NOISE INSULATION
A/T<X9D> 30X30 		8-98142-344-0 03 1 0909- ●
826 SEAL; NOISE INSULATION
30X30 		8-98142-344-0 03 1 0909- ●

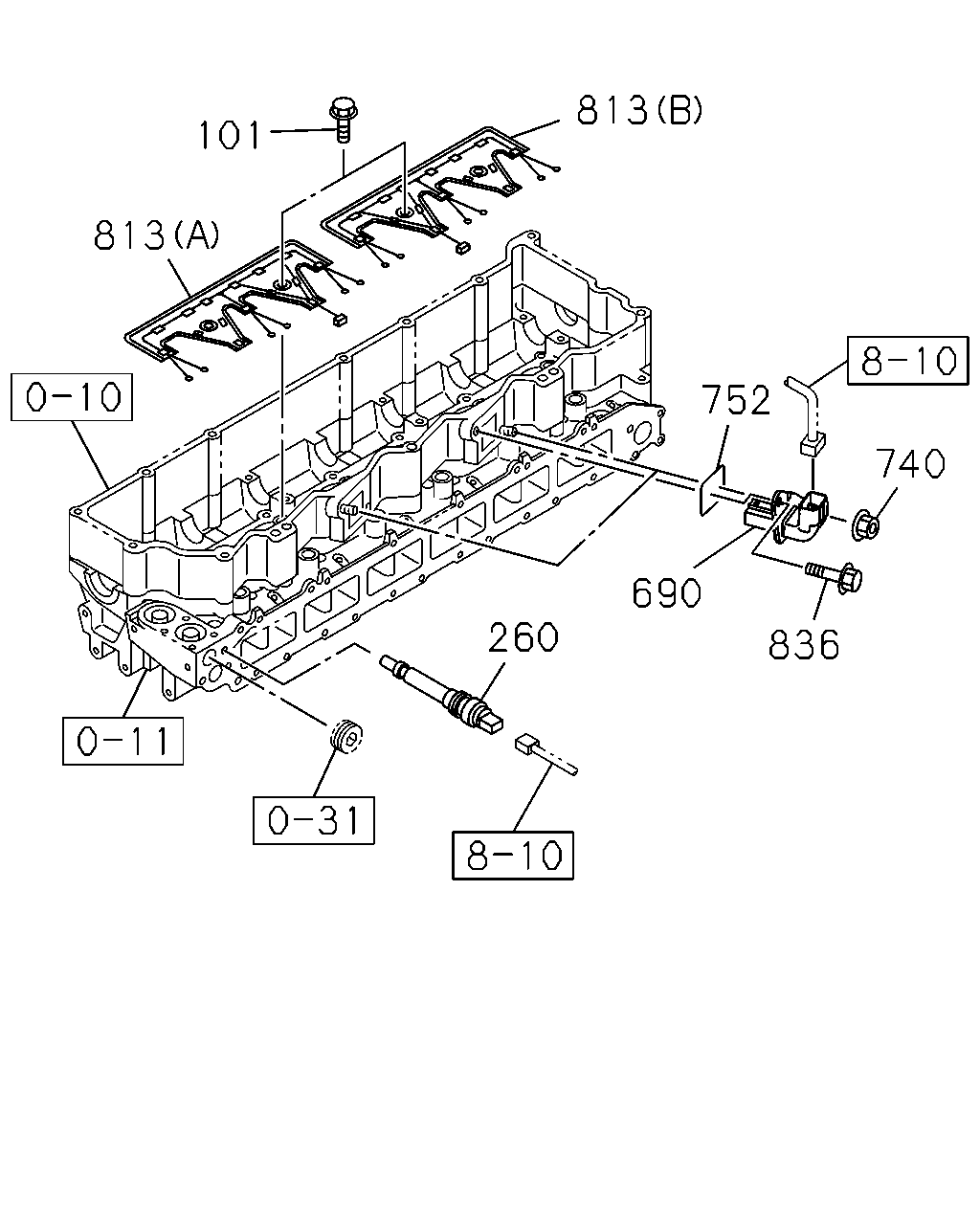

çizim 8011
813 101 813 752 740 690 260 836
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
101 BOLT; HARNESS
M8X40 FLANGE 		0-28650-840-0 04 1 0608- ●
260 SENSOR; WATER TEMP 1-80210-005-1 01 1 0608- ●
260 SENSOR; WATER TEMP
EURO2 SPECIFICATION<THN> 		1-80210-004-0 01 1 9710-9807 ●
260 SENSOR; WATER TEMP
EURO2 SPECIFICATION<THN> 		1-80210-004-0 01 1 9808- ● ●
690 CONNECTOR 8-94390-858-1 02 1 0608- ●
740 NUT
M8 FLANGE 		0-91180-108-0 04 1 0608-1011 ●
740 NUT
M8 FLANGE 		0-91180-108-0 02 1 1012- ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 0608- ●
813 HARNESS; INJECTOR
(A) FRONT 		8-94391-302-3 01 1 0608- ●
813 HARNESS; INJECTOR
(B) REAR 		8-94391-303-3 01 1 0608- ●
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 02 1 1012- ●

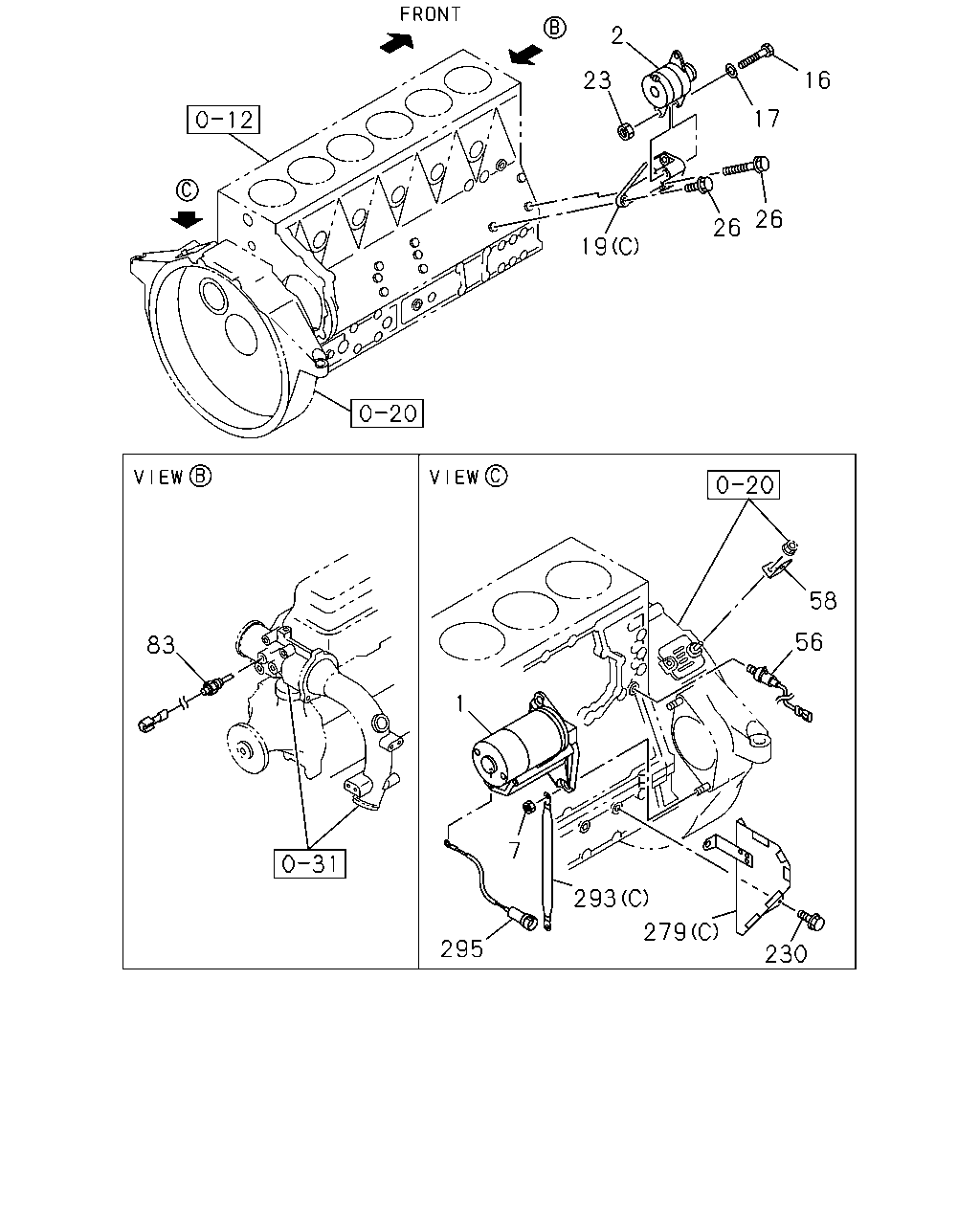

çizim 37389
2 23 16 17 26 26 19 58 56 83 1 7 293 279 295 230
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-94399-159-3 01 1 9601-9709 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-94399-159-3 01 1 9710-9806 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9807-9904 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-94399-159-4 01 1 9807-9904 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-94399-159-4 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9908-0004 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-94399-159-4 01 1 9908-0004 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-94399-159-4 01 1 0005-0108 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-97602-167-1 01 1 0109- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-94394-151-2 01 1 9710-9904 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-94394-151-2 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW DENSO 		8-94394-151-2 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-94394-151-2 01 1 9908-0108 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-97602-169-1 01 1 0109-0607 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-97602-169-1 01 1 0608- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-97602-169-1 01 1 0608- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW NIKKO 		1-81100-307-0 01 1 9601-9708 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW NIKKO 		1-81100-323-0 01 1 9709-0302 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW NIKKO 		1-81100-308-0 01 1 9601-9708 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW NIKKO 		1-81100-324-0 01 1 9709-0302 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-324-1 01 1 0303- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO 		1-81100-230-2 01 1 9601-0108 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO 		1-81100-422-0 01 1 0109- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EURO2 SPECIFICATION<THN> GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 60A NIKKO 		1-81200-417-3 01 1 0701- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9601-9806 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9807-0004 ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 0005-0006 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONTROL(C60) 24V 40A NIKKO 		1-81200-416-4 01 1 0007-0612 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONTROL(C60), EURO2SPECIFICATION<THN> 24V 40A NIKKO 		1-81200-416-4 01 1 0701-0702 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 40A NIKKO 		1-81200-416-4 01 1 0701-0702 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONTROL(C60) 24V 40A NIKKO 		1-81200-416-4 01 1 0701-0702 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 40A NIKKO 		1-81200-416-5 01 1 0703- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 40A NIKKO 		1-81200-416-5 01 1 0703- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-5 01 1 0703- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI 		1-81200-521-0 01 1 9904-9905 ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI 		1-81200-577-0 01 1 9906-9907 ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A DENSO 		8-94399-157-1 01 1 9601- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A MITSUBISHI 		1-81200-599-5 01 1 0608- ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9601-9806 ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9807-0004 ● ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 0005-0512 ● ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 0601-0607 ● ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 0608- ● ● ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 02 1 9601- ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9601-9806 ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9807-0004 ● ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 0005-0006 ● ●
16 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M14X135 		1-09000-133-1 01 1 0007-0607 ● ●
16 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M14X135 		1-09000-133-1 01 1 0608-0703 ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 0608-0703 ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 0704- ● ● ●
16 BOLT; GEN
M14X128 		9-09801-203-0 01 1 9601-9611 ● ●
16 BOLT; GEN
M14X123 		9-09801-204-1 01 1 9612- ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9601-9806 ● ● ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9807-0004 ● ● ● ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 0005-0605 ● ● ● ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0606-0607 ● ● ● ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0608- ● ● ● ● ●
19 BRACKET; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94395-470-3 01 1 0407-0607 ●
19 BRACKET; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94395-470-3 01 1 0608-0703 ●
19 BRACKET; GEN
(A) 		8-94395-470-3 01 1 0608-0703 ●
19 BRACKET; GEN
EURO2 SPECIFICATION<THN> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94395-470-5 01 1 0704- ●
19 BRACKET; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94395-470-5 01 1 0704- ●
19 BRACKET; GEN
(A) 		8-94395-470-5 01 1 0704- ●
19 BRACKET; GEN
(B) 		8-94396-297-0 01 1 9601-9803 ●
19 BRACKET; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94396-297-0 01 1 9601-9803 ●
19 BRACKET; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94396-297-0 01 1 9804-9806 ● ●
19 BRACKET; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94396-297-0 01 1 9807-0004 ● ●
19 BRACKET; GEN
(B) 		8-94396-297-0 01 1 9807-0004 ●
19 BRACKET; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94396-297-0 01 1 0005-0112 ● ●
19 BRACKET; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-97602-318-0 01 1 0201- ● ●
19 BRACKET; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94395-470-2 01 1 9601-9803 ●
19 BRACKET; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94395-470-2 01 1 9804-0004 ● ●
19 BRACKET; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94395-470-2 01 1 0005-0006 ●
19 BRACKET; GEN
(C) 		1-19711-038-0 01 1 9601- ●
19 BRACKET; GEN
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R(YC4) (C) 		1-19711-038-0 01 1 9601- ●
19 BRACKET; GEN
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (C) 		1-19711-097-0 01 1 9601- ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 9601-9806 ● ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 9807-0004 ● ● ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 0005-0512 ● ●
23 NUT; GEN
M14 		0-91110-514-0 01 1 0601-0607 ● ●
23 NUT; GEN
M14 		0-91110-514-0 01 1 0608- ● ● ●
23 NUT; GEN
M14 FLANGE 		0-91150-114-0 01 1 9601- ● ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 02 1 0407-0512 ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28151-040-0 02 1 0601-0703 ●
26 BOLT; GEN BRKT
EURO2 SPECIFICATION<THN> AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28151-040-0 02 1 0704- ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28151-040-0 02 1 0704- ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 9601-9806 ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 9807-0004 ● ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 0005-0006 ● ●
26 BOLT; GEN BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X80 FLANGE 		0-28181-080-0 02 1 0007-0512 ● ●
26 BOLT; GEN BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X80 FLANGE 		0-28151-080-0 02 1 0601-0703 ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28151-080-0 02 1 0704- ● ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 9601-9806 ● ● ● ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 9807-0004 ● ● ● ● ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 0005-0512 ● ● ● ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28151-040-0 01 1 0601- ● ● ● ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 02 1 9601-9803 ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 02 1 9804-0004 ● ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 02 1 0005-0006 ●
26 BOLT; GEN BRKT
M10X70 FLANGE 		0-28181-070-0 02 1 9601-0512 ● ●
26 BOLT; GEN BRKT
M10X70 FLANGE 		0-28151-070-0 02 1 0601- ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-0 01 1 9601-9806 ● ● ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-0 01 1 9807-0004 ● ● ● ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-0 01 1 0005-0607 ● ● ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 0608- ● ● ● ● ●
58 BRACKET; CLIP
L=55 		1-47475-304-0 01 1 9601- ● ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 9601-9709 ● ● ● ●
83 THERMOMETER UNIT
EXC. EURO2 SPECIFICATION<THN> 		1-83161-031-1 01 1 9710-9806 ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 9710-9806 ● ● ●
83 THERMOMETER UNIT
EXC. EURO2 SPECIFICATION<THN> 		1-83161-031-1 01 1 9807-0004 ● ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 9807-0004 ● ● ●
83 THERMOMETER UNIT
EXC. EURO2 SPECIFICATION<THN> 		1-83161-031-1 01 1 0005- ● ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 0005- ● ●
230 BOLT; HEAT PROTECTOR
M8X28 FLANGE 		0-28080-828-0 01 1 9601-9709 ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> M8X28 FLANGE 		0-28080-828-0 01 1 9601-9709 ●
230 BOLT; HEAT PROTECTOR
EXC. EURO2 SPECIFICATION<THN> M8X28 FLANGE 		0-28080-828-0 01 1 9710-9806 ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> M8X28 FLANGE 		0-28080-828-0 01 1 9710-9806 ●
230 BOLT; HEAT PROTECTOR
EXC. EURO2 SPECIFICATION<THN> M8X28 FLANGE 		0-28080-828-0 01 1 9807-0302 ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> M8X28 FLANGE 		0-28080-828-0 01 1 9807-0302 ●
230 BOLT; HEAT PROTECTOR
M8X28 FLANGE 		0-28080-828-0 01 1 9807-0302 ●
230 BOLT; HEAT PROTECTOR
EXC. EURO2 SPECIFICATION<THN> M8X28 FLANGE 		0-28080-828-0 01 1 0303- ●
230 BOLT; HEAT PROTECTOR
M10X30 FLANGE 		0-28181-030-0 01 1 9601-9709 ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> M10X30 FLANGE 		0-28181-030-0 01 1 9601-9709 ●
230 BOLT; HEAT PROTECTOR
EXC. EURO2 SPECIFICATION<THN> M10X30 FLANGE 		0-28181-030-0 01 1 9710-9806 ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> M10X30 FLANGE 		0-28181-030-0 01 1 9710-9806 ●
230 BOLT; HEAT PROTECTOR
EXC. EURO2 SPECIFICATION<THN> M10X30 FLANGE 		0-28181-030-0 01 1 9807-0302 ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> M10X30 FLANGE 		0-28181-030-0 01 1 9807-0302 ●
230 BOLT; HEAT PROTECTOR
M10X30 FLANGE 		0-28181-030-0 01 1 9807-0302 ●
230 BOLT; HEAT PROTECTOR
EXC. EURO2 SPECIFICATION<THN> M10X30 FLANGE 		0-28181-030-0 01 1 0303-0512 ●
230 BOLT; HEAT PROTECTOR
EXC. EURO2 SPECIFICATION<THN> M10X30 FLANGE 		0-28151-030-0 01 1 0601- ●
230 BOLT; HEAT PROTECTOR
M10X16 FLANGE 		0-28181-016-0 02 1 9601-0512 ●
230 BOLT; HEAT PROTECTOR
M10X16 FLANGE 		0-28151-016-0 02 1 0601- ●
279 PROTECTOR; STARTER
(B) 		8-94394-501-0 01 1 9601-9709 ●
279 PROTECTOR; STARTER
EXC. EURO2 SPECIFICATION<THN> (B) 		8-94394-501-0 01 1 9710-9806 ●
279 PROTECTOR; STARTER
EXC. EURO2 SPECIFICATION<THN> (B) 		8-94394-501-0 01 1 9807-0004 ●
279 PROTECTOR; STARTER
(B) 		8-94394-501-0 01 1 9807-0004 ●
279 PROTECTOR; STARTER
EXC. EURO2 SPECIFICATION<THN> (B) 		8-94394-501-0 01 1 0005- ●
279 PROTECTOR; STARTER
FLYWHEEL HOUSING FC<E1R> (A) 		8-94394-952-1 01 1 9601-0302 ●
279 PROTECTOR; STARTER
(C) 		1-14181-292-0 01 1 9601- ●
293 CABLE; STARTER EARTH
(B) L=350 		1-82650-266-0 01 1 0608- ●
293 CABLE; STARTER EARTH
(A) L=360 		1-82650-230-1 01 1 9601-9709 ●
293 CABLE; STARTER EARTH
FLYWHEEL HOUSING FC<E1R> (A) L=360 		1-82650-230-1 01 1 9601-9709 ●
293 CABLE; STARTER EARTH
EXC. EURO2 SPECIFICATION<THN> (A) L=360 		1-82650-230-1 01 1 9710-9806 ●
293 CABLE; STARTER EARTH
FLYWHEEL HOUSING FC<E1R> (A) L=360 		1-82650-230-1 01 1 9710-9806 ●
293 CABLE; STARTER EARTH
EXC. EURO2 SPECIFICATION<THN> (A) L=360 		1-82650-230-1 01 1 9807-0006 ●
293 CABLE; STARTER EARTH
FLYWHEEL HOUSING FC<E1R> (A) L=360 		1-82650-230-1 01 1 9807-0006 ●
293 CABLE; STARTER EARTH
(A) L=360 		1-82650-230-1 01 1 9807-0006 ●
293 CABLE; STARTER EARTH
FLYWHEEL HOUSING FC<E1R> (A) L=360 		1-82650-230-1 01 1 0007-0302 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> (B) L=320 		1-82650-324-0 01 1 0002-0005 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> (B) L=320 		1-82650-324-0 01 1 0006- ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> (B) L=320 		1-82650-324-0 01 1 0006- ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> (B) L=350 		1-82650-266-0 01 1 9710-9710 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> (B) L=350 		1-82650-266-0 01 1 9710-9710 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> (B) L=350 		1-82650-266-0 01 1 9711-9904 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> (B) L=350 		1-82650-266-0 01 1 9711-9904 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> (B) L=350 		1-82650-266-0 02 1 9905-9907 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> (B) L=350 		1-82650-266-0 02 1 9905-9907 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> (B) L=350 		1-82650-266-0 01 1 9908-0001 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> (B) L=350 		1-82650-266-0 01 1 9908-0001 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> (B) L=350 		1-82650-266-0 01 1 0002-0005 ●
293 CABLE; STARTER EARTH
EXC. EURO2 SPECIFICATION<THN> (A) L=300 		1-82650-223-0 01 1 0007- ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> (B) L=350 		1-82650-266-0 01 1 9601-9709 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT VAR2<TAK> (B) L=290 		1-82650-279-0 01 1 9710-9710 ●
293 CABLE; STARTER EARTH
(C) L=550 		1-82650-239-0 01 1 9601- ● ●
295 HARNESS; STARTER 1-82640-527-1 01 1 9601- ● ●

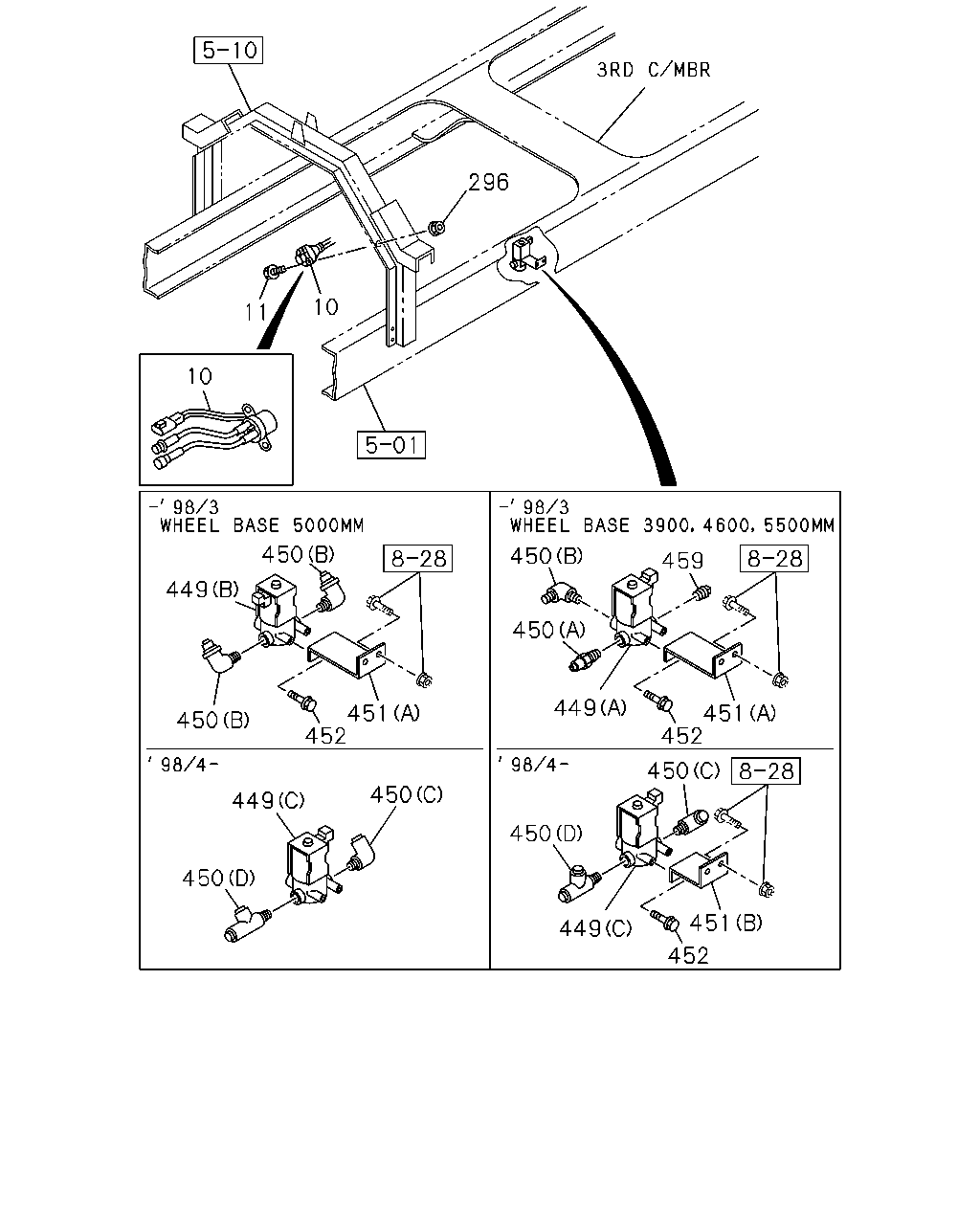

çizim 37518
296 10 11 10 450 450 459 449 450 449 451 452 451 452 450 450 450 449 450 450 451 449 452
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 RELAY; STARTER
EXC. STARTER DENSO(RC6) NIKKO 		1-81171-067-0 01 1 9601-9608 ● ● ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6) NIKKO 		1-81171-075-0 01 1 9609-9709 ● ● ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6) NIKKO 		1-81171-075-0 01 1 9710-9803 ● ● ● ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6) NIKKO 		1-81171-075-0 01 1 9804-0004 ● ● ●
10 RELAY; STARTER
EXC. KEY LOCK TOOL BOX<RC5> HITACHI 		1-81171-087-0 01 1 0005-0303 ● ● ● ● ●
10 RELAY; STARTER
EXC. KEY LOCK TOOL BOX<RC5> NIKKO 		1-81171-075-1 01 1 0304-0607 ● ● ● ● ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6) NIKKO 		1-81171-075-1 01 1 0608- ● ● ● ● ● ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6) HITACHI 		1-81171-087-0 01 1 9904-9907 ● ● ●
10 RELAY; STARTER
EXC. NIKKO<Y70> EXC. STARTER DENSO(RC6) HITACHI 		1-81171-087-0 01 1 9908-0004 ● ● ● ● ●
10 RELAY; STARTER
STARTER DENSO(RC6) DENSO 		1-81171-070-0 01 1 9601- ● ● ● ● ● ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6) 		1-81171-060-0 01 1 9601-9709 ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ● ● ● ●
11 BOLT; RELAY STARTER
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9801 ● ● ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28680-820-0 02 1 9802-9803 ● ● ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28680-820-0 02 1 9804-0004 ● ● ● ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ● ● ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28650-820-0 02 1 0601-0607 ● ● ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28650-820-0 02 1 0608- ● ● ● ● ●
296 NUT; RELAY,STARTER
M8 		9-09110-408-0 02 1 9601-9606 ● ● ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 9607-9803 ● ● ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 9804-0004 ● ● ● ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ● ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91180-108-0 02 1 0603-0607 ● ● ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91180-108-0 02 1 0608- ● ● ● ● ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<THN> (A) 		1-82563-600-2 01 1 9710-9803 ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM
EURO2 SPECIFICATION<THN> (C) 		1-82563-599-5 01 1 9804- ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM
WHEEL BASE 5000MM(50W) EURO2 SPECIFICATION<THN> (B) 		1-82563-598-2 01 1 9710-9803 ●
450 CONNECTOR; MAG VLV,INL PORT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<THN> (A) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9710-9803 ●
450 CONNECTOR; MAG VLV,INL PORT
EURO2 SPECIFICATION<THN> (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9804- ●
450 CONNECTOR; MAG VLV,INL PORT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<THN> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9710-9803 ●
450 CONNECTOR; MAG VLV,INL PORT
EURO2 SPECIFICATION<THN> (D) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 9804- ●
450 CONNECTOR; MAG VLV,INL PORT
WHEEL BASE 5000MM(50W) EURO2 SPECIFICATION<THN> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 9710-9803 ●
451 BRACKET; MAG VLV,VSS
EURO2 SPECIFICATION<THN> (A) 		1-47477-953-0 01 1 9710-9803 ●
451 BRACKET; MAG VLV,VSS
WHEEL BASE 3900MM(39W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<THN> (B) 		1-82569-208-0 01 1 9804-0004 ●
451 BRACKET; MAG VLV,VSS
EURO2 SPECIFICATION<THN> (B) 		1-82569-208-0 01 1 0005- ●
452 BOLT; VSS MAG VLV
EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28080-820-0 02 1 9710-9803 ●
452 BOLT; VSS MAG VLV
WHEEL BASE 3900MM(39W),WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28080-820-0 02 1 9804-0004 ●
452 BOLT; VSS MAG VLV
EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28080-820-0 02 1 0005-0512 ●
452 BOLT; VSS MAG VLV
EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
459 PLUG
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) EURO2 SPECIFICATION<THN> PT1/4 		9-99204-513-0 01 1 9710-9803 ●

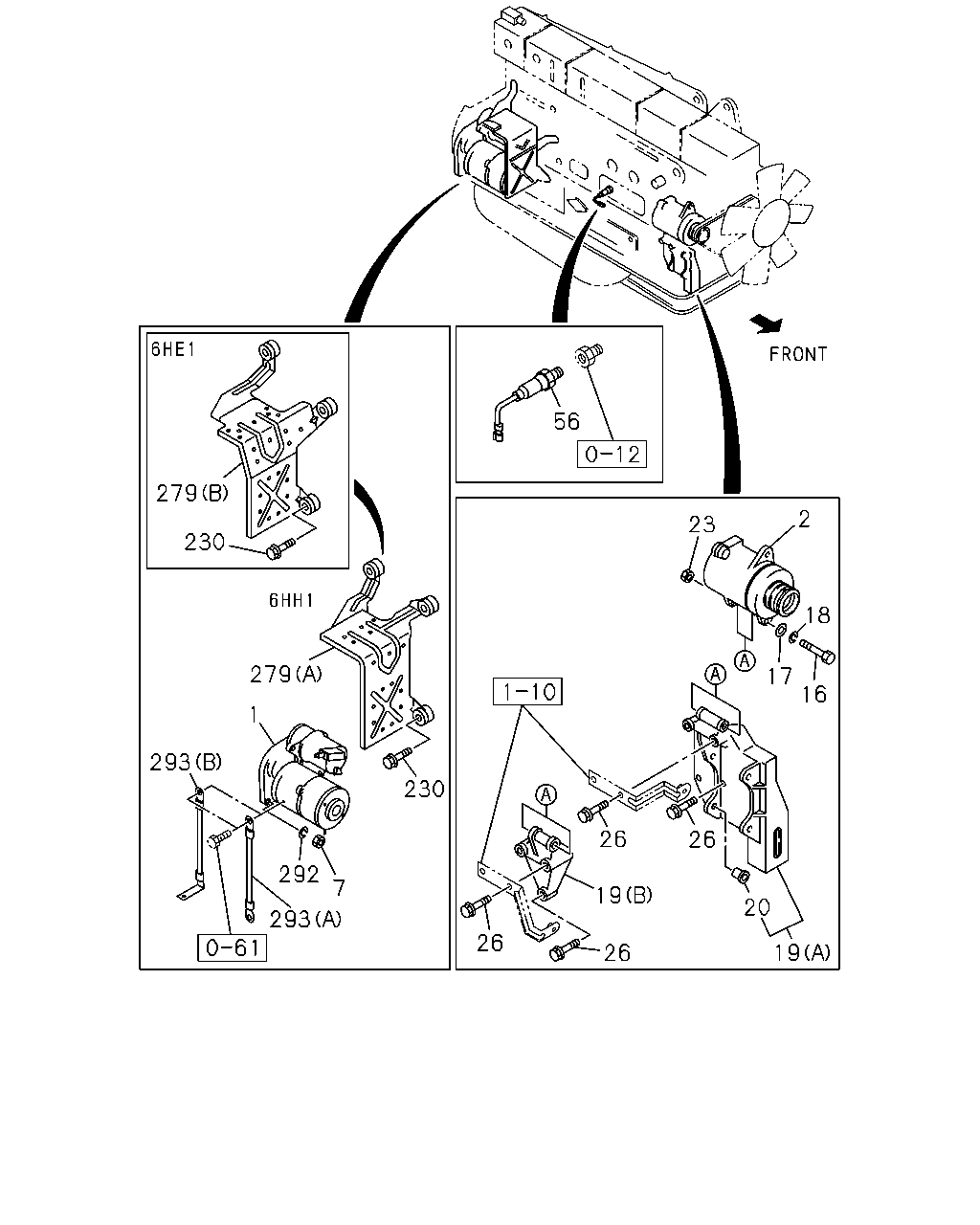

çizim 38290
56 279 2 23 230 18 279 17 16 1 293 230 26 26 292 7 19 20 293 26 19 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-94399-159-3 01 1 9601-9709 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-94399-159-3 01 1 9710-9806 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9807-9904 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-94399-159-4 01 1 9807-9904 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-94399-159-4 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9908-0004 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-94399-159-4 01 1 9908-0004 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-94399-159-4 01 1 0005-0108 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-97602-167-1 01 1 0109- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-94394-151-2 01 1 9710-9904 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-94394-151-2 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW DENSO 		8-94394-151-2 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-94394-151-2 01 1 9908-0108 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-97602-169-1 01 1 0109-0607 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO 		8-97602-169-1 01 1 0608- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-97602-169-1 01 1 0608- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW NIKKO 		1-81100-307-0 01 1 9601-9708 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW NIKKO 		1-81100-323-0 01 1 9709-0302 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW NIKKO 		1-81100-308-0 01 1 9601-9708 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW NIKKO 		1-81100-324-0 01 1 9709-0302 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-324-1 01 1 0303- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO 		1-81100-230-2 01 1 9601-0108 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO 		1-81100-422-0 01 1 0109- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EURO2 SPECIFICATION<THN> GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 60A NIKKO 		1-81200-417-3 01 1 0701- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9601-9806 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9807-0004 ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 0005-0006 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONTROL(C60) 24V 40A NIKKO 		1-81200-416-4 01 1 0007-0612 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONTROL(C60), EURO2SPECIFICATION<THN> 24V 40A NIKKO 		1-81200-416-4 01 1 0701-0702 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 40A NIKKO 		1-81200-416-4 01 1 0701-0702 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONTROL(C60) 24V 40A NIKKO 		1-81200-416-4 01 1 0701-0702 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 40A NIKKO 		1-81200-416-5 01 1 0703- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 40A NIKKO 		1-81200-416-5 01 1 0703- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-5 01 1 0703- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI 		1-81200-521-0 01 1 9904-9905 ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI 		1-81200-577-0 01 1 9906-9907 ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A DENSO 		8-94399-157-1 01 1 9601- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A MITSUBISHI 		1-81200-599-5 01 1 0608- ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9601-9806 ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9807-0004 ● ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 0005-0512 ● ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 0601-0607 ● ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 0608- ● ● ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 02 1 9601- ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9601-9806 ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9807-0004 ● ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 0005-0006 ● ●
16 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M14X135 		1-09000-133-1 01 1 0007-0607 ● ●
16 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M14X135 		1-09000-133-1 01 1 0608-0703 ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 0608-0703 ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 0704- ● ● ●
16 BOLT; GEN
M14X128 		9-09801-203-0 01 1 9601-9611 ● ●
16 BOLT; GEN
M14X123 		9-09801-204-1 01 1 9612- ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9601-9806 ● ● ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9807-0004 ● ● ● ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 0005-0605 ● ● ● ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0606-0607 ● ● ● ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0608- ● ● ● ● ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 9601-9806 ● ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 9807-0004 ● ● ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 0005-0603 ● ●
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 0604-0607 ● ●
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 0608- ● ● ●
19 BRACKET; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94395-470-3 01 1 0407-0607 ●
19 BRACKET; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94395-470-3 01 1 0608-0703 ●
19 BRACKET; GEN
(A) 		8-94395-470-3 01 1 0608-0703 ●
19 BRACKET; GEN
EURO2 SPECIFICATION<THN> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94395-470-5 01 1 0704- ●
19 BRACKET; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94395-470-5 01 1 0704- ●
19 BRACKET; GEN
(A) 		8-94395-470-5 01 1 0704- ●
19 BRACKET; GEN
(B) 		8-94396-297-0 01 1 9601-9803 ●
19 BRACKET; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94396-297-0 01 1 9601-9803 ●
19 BRACKET; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94396-297-0 01 1 9804-9806 ● ●
19 BRACKET; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94396-297-0 01 1 9807-0004 ● ●
19 BRACKET; GEN
(B) 		8-94396-297-0 01 1 9807-0004 ●
19 BRACKET; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94396-297-0 01 1 0005-0112 ● ●
19 BRACKET; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-97602-318-0 01 1 0201- ● ●
19 BRACKET; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94395-470-2 01 1 9601-9803 ●
19 BRACKET; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94395-470-2 01 1 9804-0004 ● ●
19 BRACKET; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94395-470-2 01 1 0005-0006 ●
19 BRACKET; GEN
(C) 		1-19711-038-0 01 1 9601- ●
19 BRACKET; GEN
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R(YC4) (C) 		1-19711-038-0 01 1 9601- ●
19 BRACKET; GEN
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (C) 		1-19711-097-0 01 1 9601- ●
20 COLLAR; BRKT,GEN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94201-057-1 02 1 0407-0607 ●
20 COLLAR; BRKT,GEN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94201-057-1 02 1 0608-0703 ●
20 COLLAR; BRKT,GEN 8-94201-057-1 02 1 0608-0703 ●
20 COLLAR; BRKT,GEN
EURO2 SPECIFICATION<THN> AIR CONDITIONER MANUAL CONTROL(C60) 		8-94201-057-1 02 1 0704-1302 ●
20 COLLAR; BRKT,GEN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94201-057-1 02 1 0704-1302 ●
20 COLLAR; BRKT,GEN 8-94201-057-1 02 1 0704-1302 ●
20 COLLAR; BRKT,GEN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94201-057-1 02 1 9601-9803 ●
20 COLLAR; BRKT,GEN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94201-057-1 02 1 9804-0004 ● ●
20 COLLAR; BRKT,GEN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94201-057-1 02 1 0005-0006 ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 9601-9806 ● ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 9807-0004 ● ● ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 0005-0512 ● ●
23 NUT; GEN
M14 		0-91110-514-0 01 1 0601-0607 ● ●
23 NUT; GEN
M14 		0-91110-514-0 01 1 0608- ● ● ●
23 NUT; GEN
M14 FLANGE 		0-91150-114-0 01 1 9601- ● ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 02 1 0407-0512 ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28151-040-0 02 1 0601-0703 ●
26 BOLT; GEN BRKT
EURO2 SPECIFICATION<THN> AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28151-040-0 02 1 0704- ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28151-040-0 02 1 0704- ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 9601-9806 ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 9807-0004 ● ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 0005-0006 ● ●
26 BOLT; GEN BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X80 FLANGE 		0-28181-080-0 02 1 0007-0512 ● ●
26 BOLT; GEN BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X80 FLANGE 		0-28151-080-0 02 1 0601-0703 ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28151-080-0 02 1 0704- ● ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 9601-9806 ● ● ● ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 9807-0004 ● ● ● ● ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 0005-0512 ● ● ● ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28151-040-0 01 1 0601- ● ● ● ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 02 1 9601-9803 ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 02 1 9804-0004 ● ●
26 BOLT; GEN BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 02 1 0005-0006 ●
26 BOLT; GEN BRKT
M10X70 FLANGE 		0-28181-070-0 02 1 9601-0512 ● ●
26 BOLT; GEN BRKT
M10X70 FLANGE 		0-28151-070-0 02 1 0601- ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-0 01 1 9601-9806 ● ● ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-0 01 1 9807-0004 ● ● ● ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-0 01 1 0005-0607 ● ● ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 0608- ● ● ● ● ●
230 BOLT; HEAT PROTECTOR
M8X28 FLANGE 		0-28080-828-0 01 1 9601-9709 ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> M8X28 FLANGE 		0-28080-828-0 01 1 9601-9709 ●
230 BOLT; HEAT PROTECTOR
EXC. EURO2 SPECIFICATION<THN> M8X28 FLANGE 		0-28080-828-0 01 1 9710-9806 ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> M8X28 FLANGE 		0-28080-828-0 01 1 9710-9806 ●
230 BOLT; HEAT PROTECTOR
EXC. EURO2 SPECIFICATION<THN> M8X28 FLANGE 		0-28080-828-0 01 1 9807-0302 ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> M8X28 FLANGE 		0-28080-828-0 01 1 9807-0302 ●
230 BOLT; HEAT PROTECTOR
M8X28 FLANGE 		0-28080-828-0 01 1 9807-0302 ●
230 BOLT; HEAT PROTECTOR
EXC. EURO2 SPECIFICATION<THN> M8X28 FLANGE 		0-28080-828-0 01 1 0303- ●
230 BOLT; HEAT PROTECTOR
M10X30 FLANGE 		0-28181-030-0 01 1 9601-9709 ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> M10X30 FLANGE 		0-28181-030-0 01 1 9601-9709 ●
230 BOLT; HEAT PROTECTOR
EXC. EURO2 SPECIFICATION<THN> M10X30 FLANGE 		0-28181-030-0 01 1 9710-9806 ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> M10X30 FLANGE 		0-28181-030-0 01 1 9710-9806 ●
230 BOLT; HEAT PROTECTOR
EXC. EURO2 SPECIFICATION<THN> M10X30 FLANGE 		0-28181-030-0 01 1 9807-0302 ●
230 BOLT; HEAT PROTECTOR
FLYWHEEL HOUSING FC<E1R> M10X30 FLANGE 		0-28181-030-0 01 1 9807-0302 ●
230 BOLT; HEAT PROTECTOR
M10X30 FLANGE 		0-28181-030-0 01 1 9807-0302 ●
230 BOLT; HEAT PROTECTOR
EXC. EURO2 SPECIFICATION<THN> M10X30 FLANGE 		0-28181-030-0 01 1 0303-0512 ●
230 BOLT; HEAT PROTECTOR
EXC. EURO2 SPECIFICATION<THN> M10X30 FLANGE 		0-28151-030-0 01 1 0601- ●
230 BOLT; HEAT PROTECTOR
M10X16 FLANGE 		0-28181-016-0 02 1 9601-0512 ●
230 BOLT; HEAT PROTECTOR
M10X16 FLANGE 		0-28151-016-0 02 1 0601- ●
279 PROTECTOR; STARTER
(B) 		8-94394-501-0 01 1 9601-9709 ●
279 PROTECTOR; STARTER
EXC. EURO2 SPECIFICATION<THN> (B) 		8-94394-501-0 01 1 9710-9806 ●
279 PROTECTOR; STARTER
EXC. EURO2 SPECIFICATION<THN> (B) 		8-94394-501-0 01 1 9807-0004 ●
279 PROTECTOR; STARTER
(B) 		8-94394-501-0 01 1 9807-0004 ●
279 PROTECTOR; STARTER
EXC. EURO2 SPECIFICATION<THN> (B) 		8-94394-501-0 01 1 0005- ●
279 PROTECTOR; STARTER
FLYWHEEL HOUSING FC<E1R> (A) 		8-94394-952-1 01 1 9601-0302 ●
279 PROTECTOR; STARTER
(C) 		1-14181-292-0 01 1 9601- ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 9601-9806 ● ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 9807-0004 ● ● ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 0005-0603 ● ●
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 02 1 0604-0607 ● ●
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 02 1 0608- ● ● ●
293 CABLE; STARTER EARTH
(B) L=350 		1-82650-266-0 01 1 0608- ●
293 CABLE; STARTER EARTH
(A) L=360 		1-82650-230-1 01 1 9601-9709 ●
293 CABLE; STARTER EARTH
FLYWHEEL HOUSING FC<E1R> (A) L=360 		1-82650-230-1 01 1 9601-9709 ●
293 CABLE; STARTER EARTH
EXC. EURO2 SPECIFICATION<THN> (A) L=360 		1-82650-230-1 01 1 9710-9806 ●
293 CABLE; STARTER EARTH
FLYWHEEL HOUSING FC<E1R> (A) L=360 		1-82650-230-1 01 1 9710-9806 ●
293 CABLE; STARTER EARTH
EXC. EURO2 SPECIFICATION<THN> (A) L=360 		1-82650-230-1 01 1 9807-0006 ●
293 CABLE; STARTER EARTH
FLYWHEEL HOUSING FC<E1R> (A) L=360 		1-82650-230-1 01 1 9807-0006 ●
293 CABLE; STARTER EARTH
(A) L=360 		1-82650-230-1 01 1 9807-0006 ●
293 CABLE; STARTER EARTH
FLYWHEEL HOUSING FC<E1R> (A) L=360 		1-82650-230-1 01 1 0007-0302 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> (B) L=320 		1-82650-324-0 01 1 0002-0005 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> (B) L=320 		1-82650-324-0 01 1 0006- ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> (B) L=320 		1-82650-324-0 01 1 0006- ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> (B) L=350 		1-82650-266-0 01 1 9710-9710 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> (B) L=350 		1-82650-266-0 01 1 9710-9710 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> (B) L=350 		1-82650-266-0 01 1 9711-9904 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> (B) L=350 		1-82650-266-0 01 1 9711-9904 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> (B) L=350 		1-82650-266-0 02 1 9905-9907 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> (B) L=350 		1-82650-266-0 02 1 9905-9907 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> (B) L=350 		1-82650-266-0 01 1 9908-0001 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> (B) L=350 		1-82650-266-0 01 1 9908-0001 ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> (B) L=350 		1-82650-266-0 01 1 0002-0005 ●
293 CABLE; STARTER EARTH
EXC. EURO2 SPECIFICATION<THN> (A) L=300 		1-82650-223-0 01 1 0007- ●
293 CABLE; STARTER EARTH
EXC. FLYWHEEL HOUSING FC<E1R> (B) L=350 		1-82650-266-0 01 1 9601-9709 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT VAR2<TAK> (B) L=290 		1-82650-279-0 01 1 9710-9710 ●
293 CABLE; STARTER EARTH
(C) L=550 		1-82650-239-0 01 1 9601- ● ●

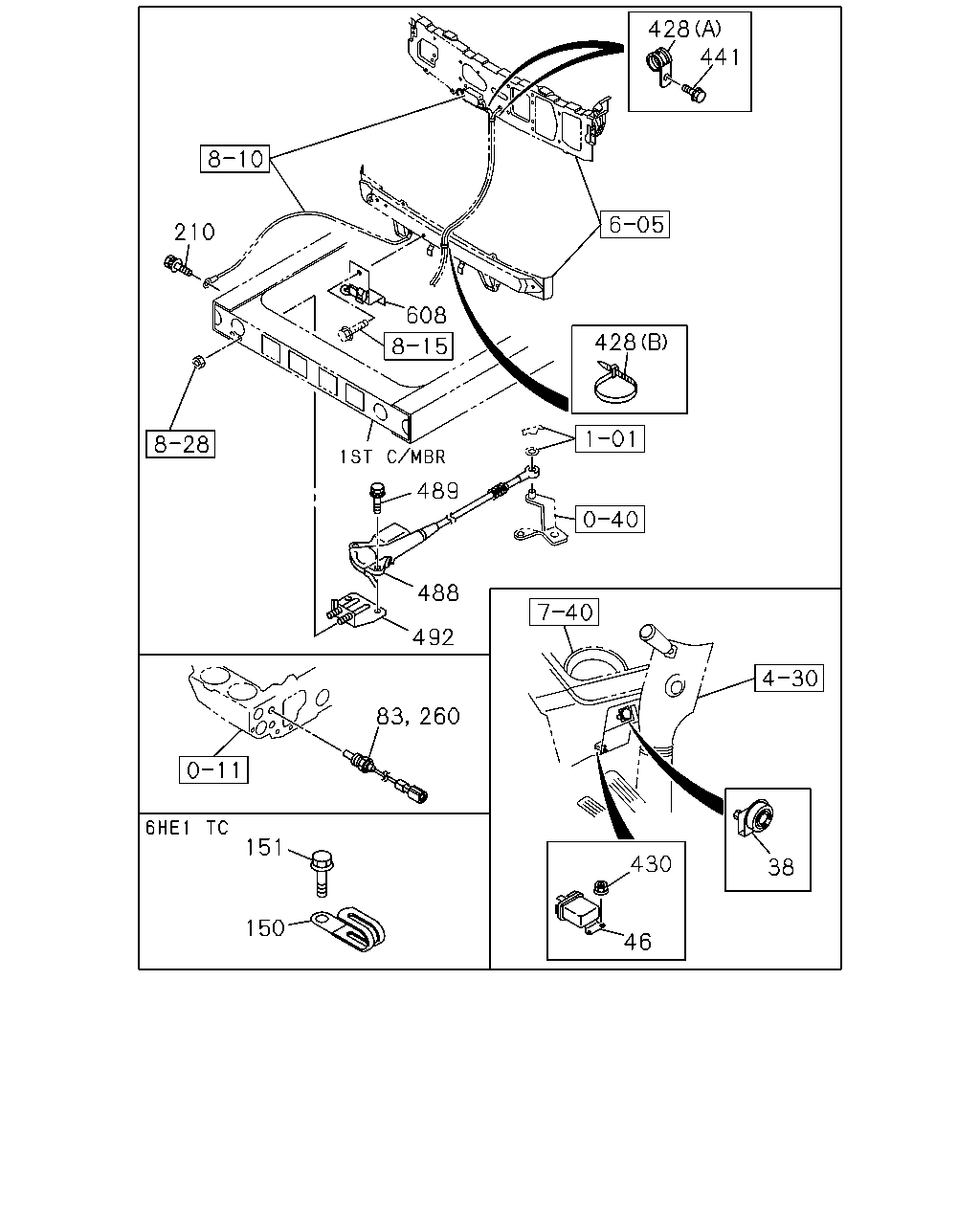

çizim 40540
428 441 210 608 428 489 488 492 151 430 38 150 46 83 260
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 9601-9803 ● ● ● ●
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 9804-0004 ● ● ● ● ●
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 0005-0607 ● ● ● ●
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 0608- ● ● ● ● ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 9601-9803 ● ● ● ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 9804-0004 ● ● ● ● ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 0005-0607 ● ● ● ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 0608- ● ● ● ● ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 9601-9709 ● ● ● ●
83 THERMOMETER UNIT
EXC. EURO2 SPECIFICATION<THN> 		1-83161-031-1 01 1 9710-9806 ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 9710-9806 ● ● ●
83 THERMOMETER UNIT
EXC. EURO2 SPECIFICATION<THN> 		1-83161-031-1 01 1 9807-0004 ● ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 9807-0004 ● ● ●
83 THERMOMETER UNIT
EXC. EURO2 SPECIFICATION<THN> 		1-83161-031-1 01 1 0005- ● ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 0005- ● ●
150 CLIP; HARNESS,SOLENOID VLV
EURO2 SPECIFICATION<THN> ID=18 L=44 		8-94225-185-0 02 1 9710-0801 ●
150 CLIP; HARNESS,SOLENOID VLV
EURO2 SPECIFICATION<THN> ID=18 L=44 		8-97367-985-1 02 1 0802- ●
151 BOLT; HARNESS CLIP,SOLENOID VLV
EURO2 SPECIFICATION<THN> M8X12 FLANGE 		0-28080-812-0 02 1 9710-0512 ●
151 BOLT; HARNESS CLIP,SOLENOID VLV
EURO2 SPECIFICATION<THN> M8X12 FLANGE 		0-28050-812-0 02 1 0601- ●
210 BOLT; CABLE FIX
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9601-9803 ● ● ● ●
210 BOLT; CABLE FIX
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9804-9903 ● ● ● ● ●
210 BOLT; CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9904-0004 ● ● ● ● ●
210 BOLT; CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0005-1201 ● ● ● ●
210 BOLT; CABLE FIX
A/T<X9D> M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0005-1201 ●
210 BOLT; CABLE FIX
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202- ● ● ● ●
210 BOLT; CABLE FIX
A/T<X9D> M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202- ●
260 SENSOR; WATER TEMP 1-80210-005-1 01 1 0608- ●
260 SENSOR; WATER TEMP
EURO2 SPECIFICATION<THN> 		1-80210-004-0 01 1 9710-9807 ●
260 SENSOR; WATER TEMP
EURO2 SPECIFICATION<THN> 		1-80210-004-0 01 1 9808- ● ●
428 CLIP; HARNESS
(B) L=300 		1-09707-001-1 07 1 0608- ●
428 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (B) L=300 		1-09707-001-1 04 1 9710-0004 ●
428 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (B) L=300 		1-09707-001-1 05 1 0005- ●
428 CLIP; HARNESS
(A) ID=35 L=50 		1-09701-214-0 02 1 9601-9803 ● ● ● ●
428 CLIP; HARNESS
(A) ID=35 L=50 		1-09701-214-0 02 1 9804-0004 ● ● ● ● ●
428 CLIP; HARNESS
(A) ID=35 L=50 		1-09701-214-0 02 1 0005-0607 ● ● ● ●
428 CLIP; HARNESS
(A) ID=35 L=50 		1-09701-214-0 02 1 0608- ● ● ● ● ●
430 NUT; RELAY FIX
M6 FLANGE 		0-91150-106-0 01 1 9601-9803 ● ● ● ●
430 NUT; RELAY FIX
M6 FLANGE 		0-91150-106-0 01 1 9804-0004 ● ● ● ● ●
430 NUT; RELAY FIX
M6 FLANGE 		0-91150-106-0 01 1 0005-0602 ● ● ● ●
430 NUT; RELAY FIX
M6 FLANGE 		0-91180-106-0 01 1 0603-0607 ● ● ● ●
430 NUT; RELAY FIX
M6 FLANGE 		0-91180-106-0 01 1 0608- ● ● ● ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28080-825-0 02 1 9601-9606 ● ● ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9803 ● ● ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 9804-0004 ● ● ● ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ● ● ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 0601-0607 ● ● ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 0608- ● ● ● ● ●
488 STOPPER; ENG
EURO2 SPECIFICATION<THN> 		1-82840-153-2 01 1 9710- ●
488 STOPPER; ENG 1-82840-128-1 01 1 9601-9709 ● ●
488 STOPPER; ENG
EXC. EURO2 SPECIFICATION<THN> 		1-82840-128-1 01 1 9710-9806 ● ●
488 STOPPER; ENG
EXC. EURO2 SPECIFICATION<THN> 		1-82840-128-2 01 1 9807-0004 ● ● ●
488 STOPPER; ENG
EXC. EURO2 SPECIFICATION<THN> 		1-82840-128-3 01 1 0005- ● ●
488 STOPPER; ENG 1-82840-142-3 01 1 9601- ●
488 STOPPER; ENG 1-82840-150-2 01 1 9601- ●
489 BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9601-9803 ● ● ● ●
489 BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9804-0004 ● ● ● ● ●
489 BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 0005-0512 ● ● ● ●
489 BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER 		0-50640-825-0 02 1 0601- ● ● ● ●
492 BRACKET; ENG STOPPER 1-82849-089-1 01 1 9601-9803 ● ● ● ●
492 BRACKET; ENG STOPPER 1-82849-089-1 01 1 9804-0004 ● ● ● ● ●
492 BRACKET; ENG STOPPER 1-82849-089-1 01 1 0005- ● ● ● ●
608 SENSOR; AIR TEMP 1-83544-031-0 01 1 0608- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
